6-76 — FLOOR EQUIPMENT AND SEALING (#162250) — 70 parça

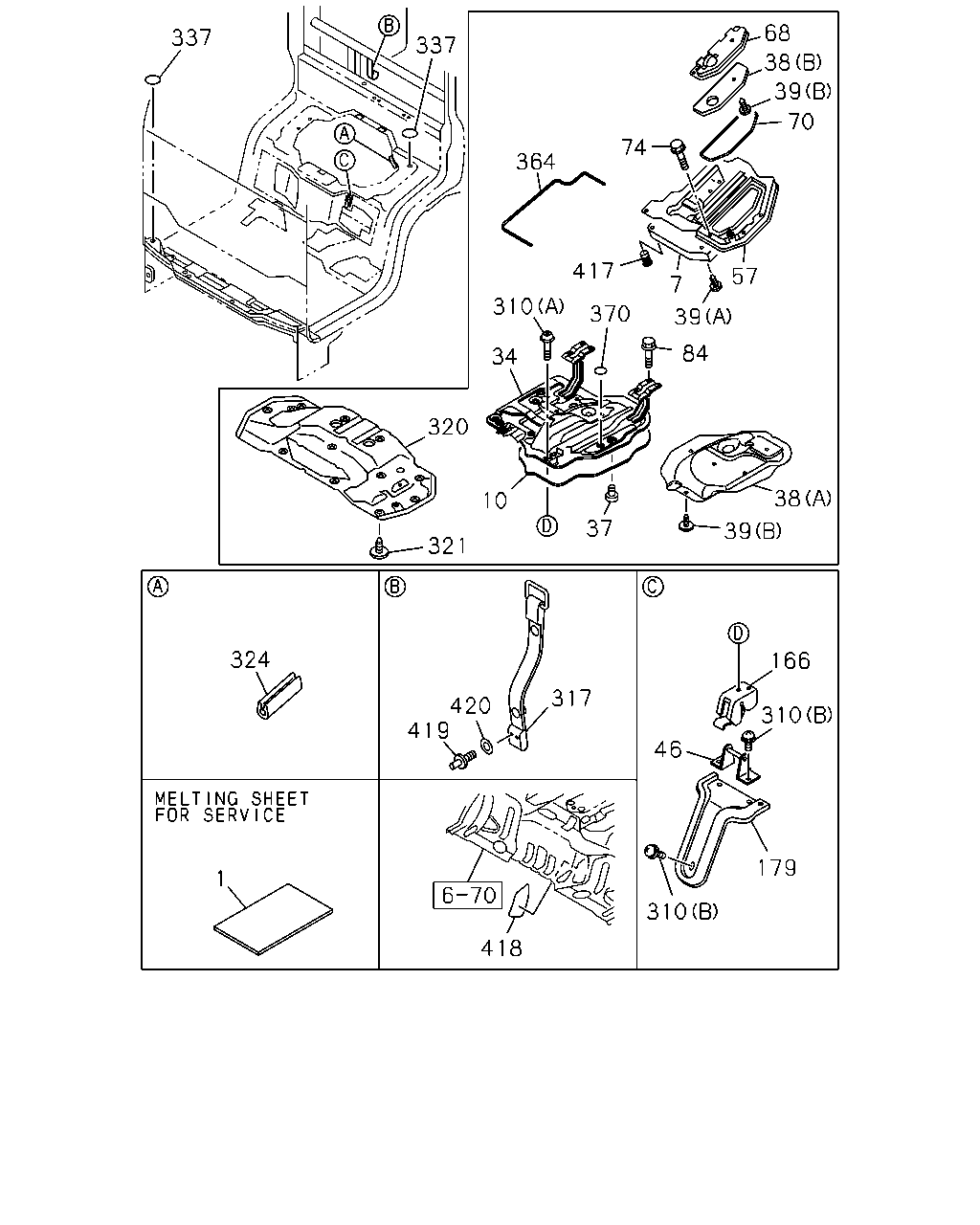

çizim 480804
179 310 166 46 310 418 317 420 419 324 1 321 10 320 37 39 38 84 39 57 7 417 310 34 370 364 74 70 39 38 68 337 337
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1506-1508 ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1509- ● ●
7 16.545 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-98250-675-0 01 1 1506-1508 ●
7 16.545 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-98250-675-0 01 1 1509- ● ●
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98029-377-0 01 1 1506-1508 ●
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98029-377-0 01 1 1509- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-98021-745-1 01 1 1506-1508 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-98021-745-1 01 1 1509- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10 		5-74917-001-2 02 1 1506-1508 ●
37 16.549 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10 		5-74917-001-2 02 1 1509- ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-98242-234-0 01 1 1506-1508 ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-98242-234-0 01 1 1509- ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98250-672-0 01 1 1506-1508 ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98250-672-0 01 1 1509- ● ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (B) OD=30 		8-94279-952-0 07 1 1506-1508 ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (B) OD=30 		8-94279-952-0 07 1 1509- ● ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 1506-1508 ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 1509- ● ●
46 16.549 HOOK ASM; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-145-0 02 1 1506-1508 ●
46 16.549 HOOK ASM; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-145-0 02 1 1509- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-98021-746-2 01 1 1506-1508 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-98021-746-2 01 1 1509- ● ●
68 16.549 COVER ASM; SUB,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-141-0 01 1 1506-1508 ●
68 16.549 COVER ASM; SUB,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-141-0 01 1 1509- ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97853-050-1 01 1 1506-1508 ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97853-050-1 01 1 1509- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 09 1 1506-1508 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 09 1 1509- ● ●
84 16.549 BOLT; ENG COVER HINGE
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1506-1508 ●
84 16.549 BOLT; ENG COVER HINGE
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1509- ● ●
166 16.549 LOCK; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-152-0 02 1 1506-1508 ●
166 16.549 LOCK; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-152-0 02 1 1509- ● ●
179 16.549 REINFORCEMENT; COVER
INSPECTION ENGINE COVER<8GA> 		8-98048-301-1 01 1 1506-1508 ●
179 16.549 REINFORCEMENT; COVER
INSPECTION ENGINE COVER<8GA> 		8-98048-301-1 01 1 1509- ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 1506-1508 ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 1509- ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 (B) M6X16 		0-38050-616-0 05 1 1506-1508 ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 (B) M6X16 		0-38050-616-0 05 1 1509- ● ●
317 16.549 BAND; ENGINE COVER
INSPECTION ENGINE COVER<8GA> 		8-97585-575-0 01 1 1506-1508 ●
317 16.549 BAND; ENGINE COVER
INSPECTION ENGINE COVER<8GA> 		8-97585-575-0 01 1 1509- ● ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98250-678-0 01 1 1506-1508 ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98250-678-0 01 1 1509- ● ●
321 16.549 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4 		8-97808-623-0 14 1 1506-1508 ●
321 16.549 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4 		8-97808-623-0 14 1 1509- ● ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> L=140 		8-97892-742-0 01 1 1506-1508 ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> L=140 		8-97892-742-0 01 1 1509- ● ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1506-1508 ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1509- ● ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 1506-1508 ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 1509- ● ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 07 1 1506-1508 ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 07 1 1509- ● ●
337 16.545 SEAL; CLIP HOLE
EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 08 1 1506-1508 ●
337 16.545 SEAL; CLIP HOLE
EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 08 1 1509- ● ●
364 16.545 FINISHER; ENG COVER SIDE
INSPECTION ENGINE COVER<8GA> L=1100 		8-97892-744-0 01 1 1506-1508 ●
364 16.545 FINISHER; ENG COVER SIDE
INSPECTION ENGINE COVER<8GA> L=1100 		8-97892-744-0 01 1 1509- ● ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 OD=25 BLACK 		1-76798-019-0 01 1 1506-1508 ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 OD=25 BLACK 		1-76798-019-0 01 1 1509- ● ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT 		8-98013-752-0 01 1 1506-1508 ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT 		8-98013-752-0 01 1 1509- ● ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> M8 POP NUT 		8-98021-404-0 01 1 1506-1508 ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> M8 POP NUT 		8-98021-404-0 01 1 1509- ● ●
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 1506-1508 ●
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 1509- ● ●
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 1506-1508 ●
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 1509- ● ●
419 09.786 RIVET; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98065-262-0 01 1 1506-1508 ●
419 09.786 RIVET; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98065-262-0 01 1 1509- ● ●
420 09.786 WASHER; ENG COVER
INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 1506-1508 ●
420 09.786 WASHER; ENG COVER
INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 1509- ● ●
