6-70 — FLOOR PANEL (#162248) — 76 parça

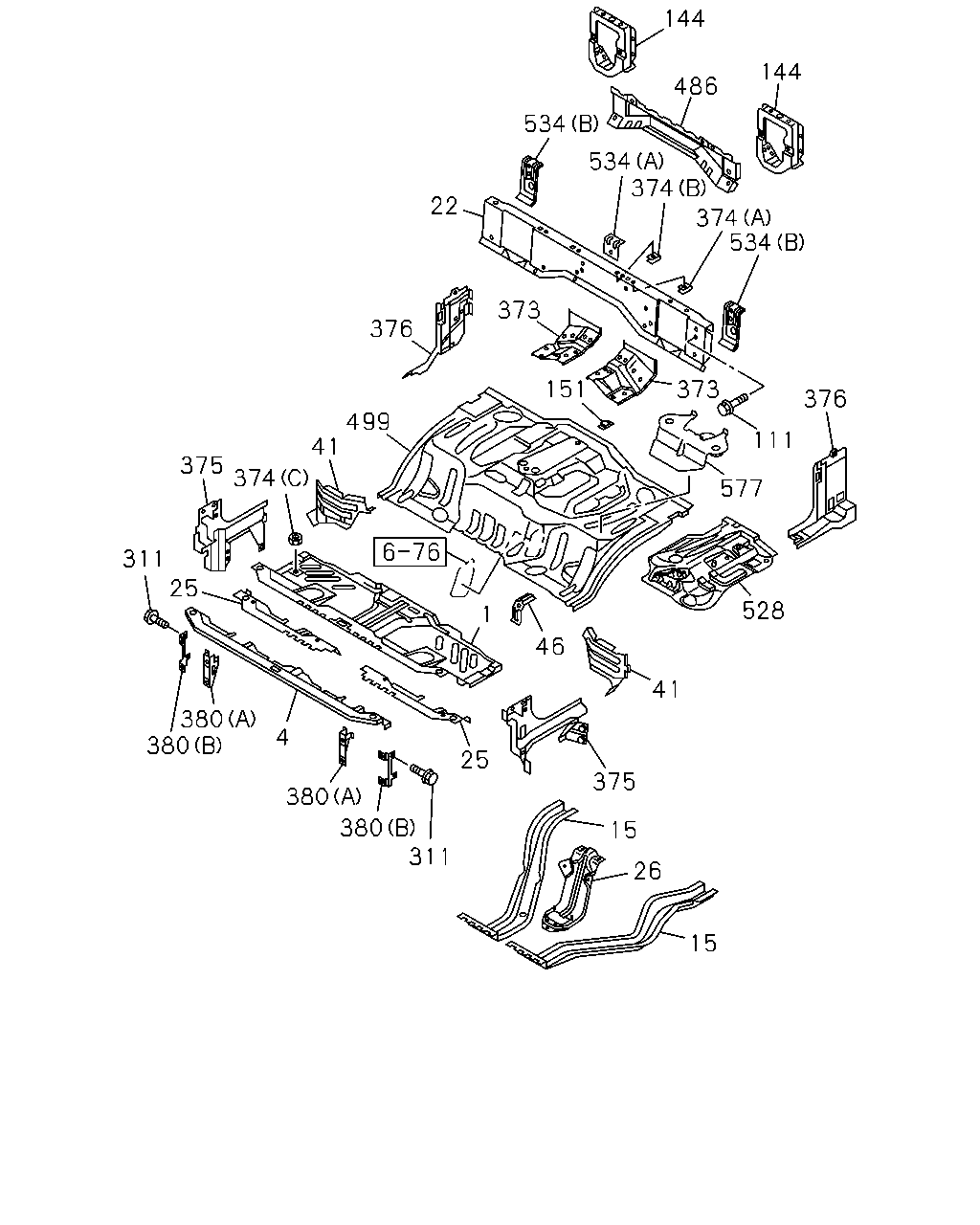

çizim 479997
144 144 486 534 22 376 373 151 373 376 534 374 534 577 528 41 111 499 41 374 375 1 46 375 26 15 15 311 380 380 380 25 380 311 4 25 374
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97589-434-1 01 1 1506-1508 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97589-434-1 01 1 1509- ● ●
4 16.545 FRAME; FLOOR,FRT
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-98080-108-0 01 1 1506-1508 ●
4 16.545 FRAME; FLOOR,FRT
MANUAL TILT CAB<RWZ> 		8-98080-108-0 01 1 1509- ● ●
15 16.545 FRAME; UNDER
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-98061-277-1 01 1 1506-1508 ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-98061-277-1 01 1 1509- ● ●
15 16.545 FRAME; UNDER
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-98061-278-1 01 1 1506-1508 ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-98061-278-1 01 1 1509- ● ●
22 16.545 FRAME; FLOOR REAR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97589-446-2 01 1 1506-1508 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97589-446-2 01 1 1509- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97588-030-1 01 1 1506-1508 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> 		8-97588-030-1 01 1 1509- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97588-031-1 01 1 1506-1508 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> 		8-97588-031-1 01 1 1509- ● ●
26 16.545 PANEL; GEAR CONT REINF
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97589-517-1 01 1 1506-1508 ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97589-517-1 01 1 1509- ● ●
41 16.545 SUPPORT; STEP,RR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97583-935-2 01 1 1506-1508 ●
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> 		8-97583-935-2 01 1 1509- ● ●
41 16.545 SUPPORT; STEP,RR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97583-936-2 01 1 1506-1508 ●
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> 		8-97583-936-2 01 1 1509- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97583-834-0 01 1 1506-1508 ●
46 16.545 BRACKET; FRT SEAT,RR OUTER
MANUAL TILT CAB<RWZ> 		8-97583-834-0 01 1 1509- ● ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
144 16.545 BRACKET; MTG,RR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97589-544-2 02 1 1506-1508 ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> 		8-97589-544-3 02 1 1509- ● ●
151 16.670 BRACKET; SEAT CUSHION STOPPER
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97583-833-0 01 1 1506-1508 ●
151 16.670 BRACKET; SEAT CUSHION STOPPER
MANUAL TILT CAB<RWZ> 		8-97583-833-0 01 1 1509- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1506-1508 ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1509- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97589-447-0 01 1 1506-1508 ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-97589-447-0 01 1 1509- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97589-448-0 01 1 1506-1508 ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-97589-448-0 01 1 1509- ● ●
374 16.545 NUT; FLOOR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> (B) M6 		1-09984-110-0 02 1 1506-1508 ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> (B) M6 		1-09984-110-0 02 1 1509- ● ●
374 16.545 NUT; FLOOR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 01 1 1506-1508 ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 01 1 1509- ● ●
374 16.545 NUT; FLOOR
(C) M8 		9-09114-068-0 03 1 1506-1508 ●
374 16.545 NUT; FLOOR
(C) M8 		9-09114-068-0 03 1 1509- ● ●
375 16.545 CLOSING; PILLAR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97583-882-3 01 1 1506-1508 ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97583-882-3 01 1 1509- ● ●
375 16.545 CLOSING; PILLAR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97583-883-2 01 1 1506-1508 ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97583-883-2 01 1 1509- ● ●
376 16.545 CLOSING; PILLAR,LWR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97583-888-2 01 1 1506-1508 ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97583-888-2 01 1 1509- ● ●
376 16.545 CLOSING; PILLAR,LWR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97584-618-2 01 1 1506-1508 ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97584-618-2 01 1 1509- ● ●
380 16.545 BRACKET; HEAD LAMP
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> (A) 		8-97589-384-4 01 1 1506-1508 ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97589-384-4 01 1 1509- ● ●
380 16.545 BRACKET; HEAD LAMP
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> (A) 		8-97589-385-3 01 1 1506-1508 ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97589-385-3 01 1 1509- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1506-1508 ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1509- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1506-1508 ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1509- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-98030-610-2 01 1 1506-1508 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> 		8-98030-610-2 01 1 1509- ● ●
499 16.545 PANEL; FLOOR,RR
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97589-436-0 01 1 1506-1508 ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> 		8-97589-436-0 01 1 1509- ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-97589-437-2 01 1 1506-1508 ●
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> 		8-97589-437-2 01 1 1509- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> (B) 		8-98007-678-2 02 1 1506-1508 ●
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> (B) 		8-98007-678-2 02 1 1509- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> (A) 		8-98019-181-2 01 1 1506-1508 ●
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> (A) 		8-98019-181-2 01 1 1509- ● ●
577 16.545 BRACKET; SENSOR,YAW
4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 		8-98206-512-0 01 1 1506-1508 ●
577 16.545 BRACKET; SENSOR,YAW
4 WHEEL ANTI LOCK BRAKE<JE5> MANUAL TILT CAB<RWZ> EXC. TAIWAN EQUIPMENT(B04) 		8-98206-512-0 01 1 1509- ● ●

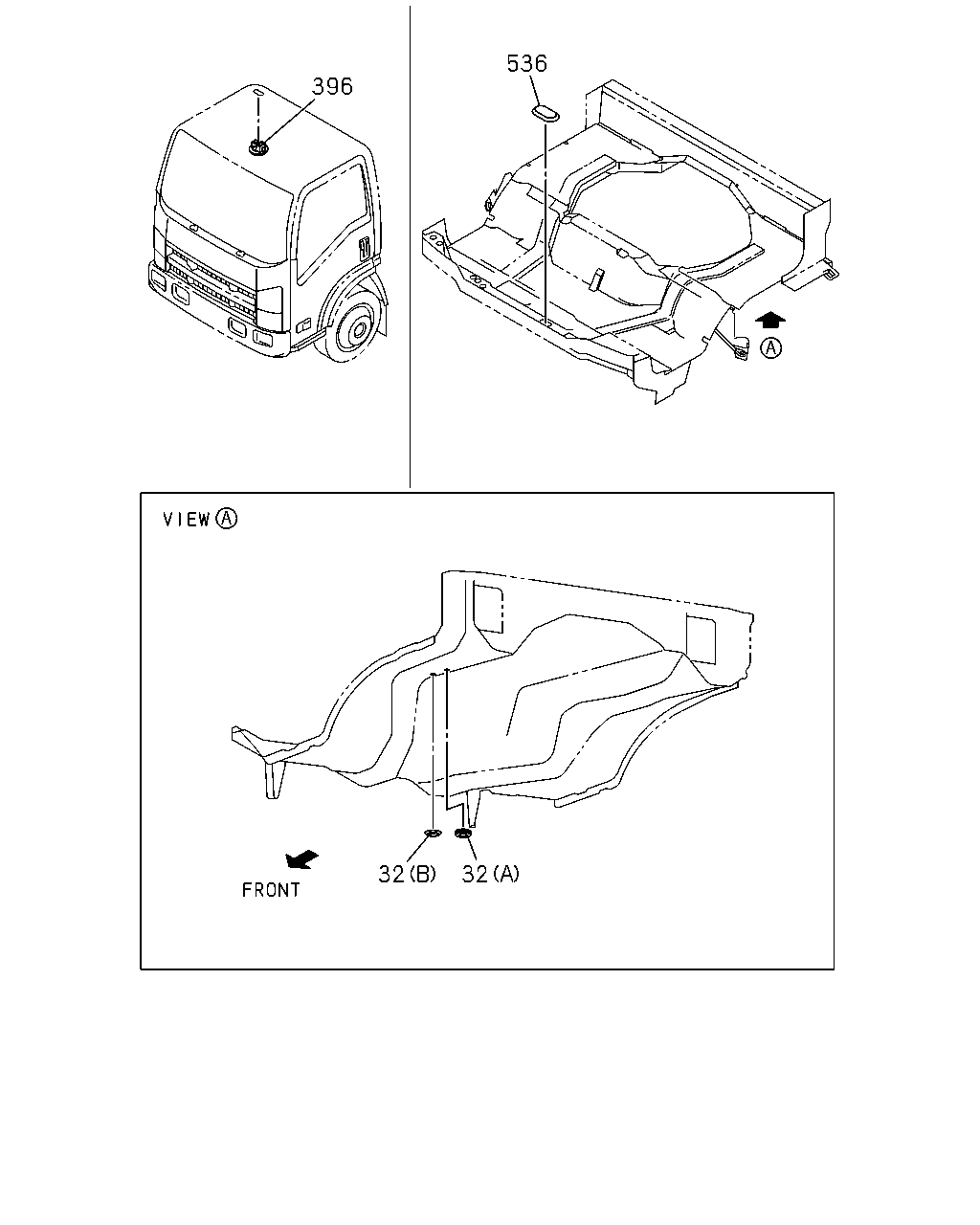

çizim 480630
396 536 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1506-1508 ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1509- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1506-1508 ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1509- ● ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1506-1508 ●
396 16.547 GROMMET; LOCATION HOLE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1509- ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1506-1508 ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1509- ● ●
