◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#162247) — 59 parça

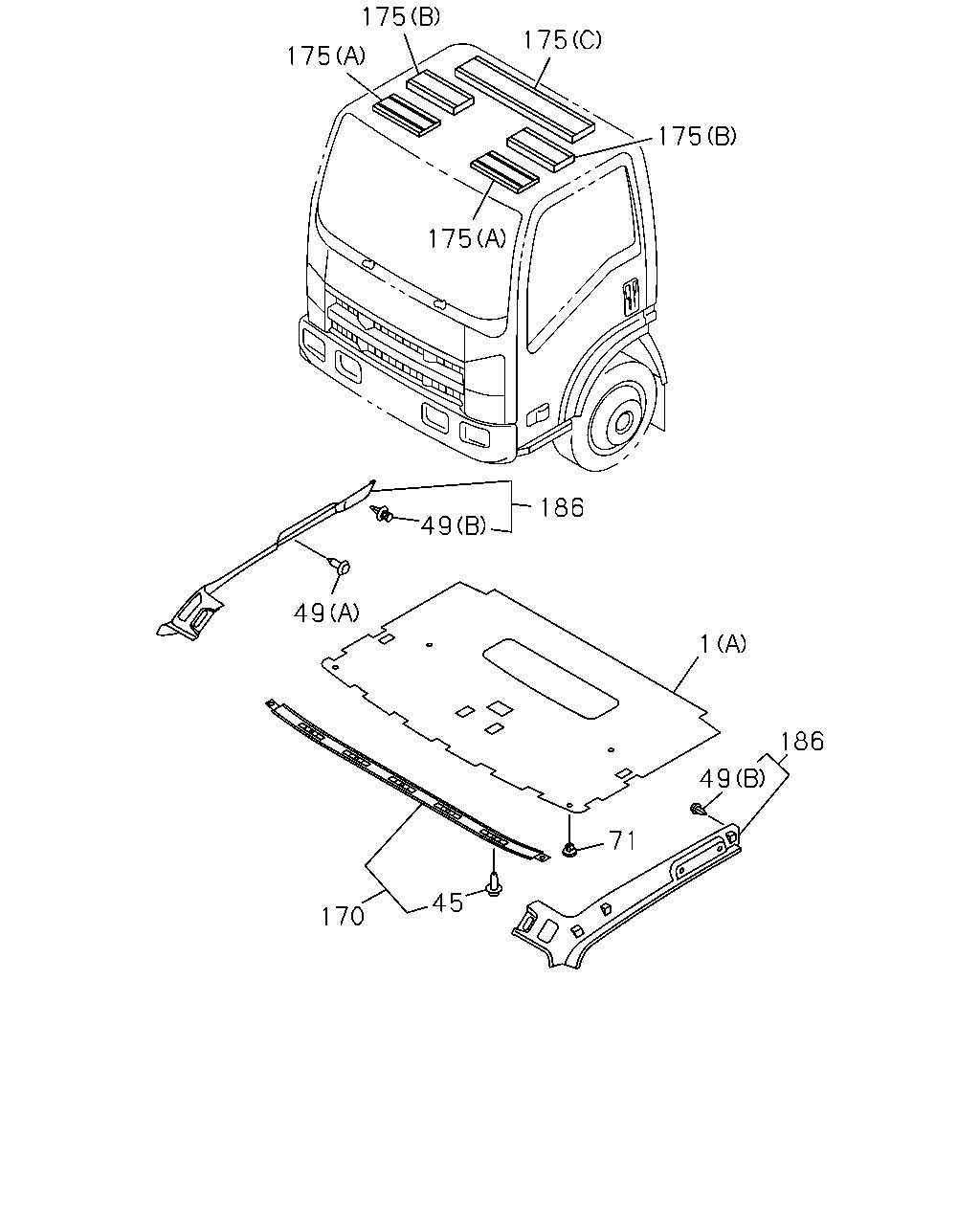

çizim 480465
175 175 175 175 175 186 49 49 170 45 71 49 1 186
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY 		8-97425-051-0 01 1 1509- ● ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97425-049-0 01 1 1509- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (A) DARK GRAY 		8-97411-681-2 01 1 1506-1508 ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97411-681-2 01 1 1509- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-282-6 01 1 1506-1508 ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-282-6 01 1 1509- ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-277-5 01 1 1506-1508 ●
1 16.742 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> (A) DARK GRAY 		8-97406-277-5 01 1 1509- ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 1506-1508 ●
45 16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 03 1 1509- ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 1506-1508 ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 02 1 1509- ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 02 1 1506-1508 ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1509- ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1509- ● ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 04 1 1506-1508 ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5>,INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 04 1 1509- ● ●
71 16.742 FASTENER; HD LINING
COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-301-2 03 1 1509- ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-282-0 02 1 1509- ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> DARK GRAY 		8-97405-301-2 04 1 1509- ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 1506-1508 ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 1509- ● ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97406-296-4 01 1 1506-1508 ●
170 16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97406-296-4 01 1 1509- ● ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98051-799-2 01 1 1509- ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 1506-1508 ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-299-3 02 1 1509- ● ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 1506-1508 ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98037-300-3 01 1 1509- ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1506-1508 ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1509- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 1506-1508 ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-252-3 01 1 1509- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 1506-1508 ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-250-3 01 1 1509- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1506-1508 ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1509- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1506-1508 ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1509- ● ●

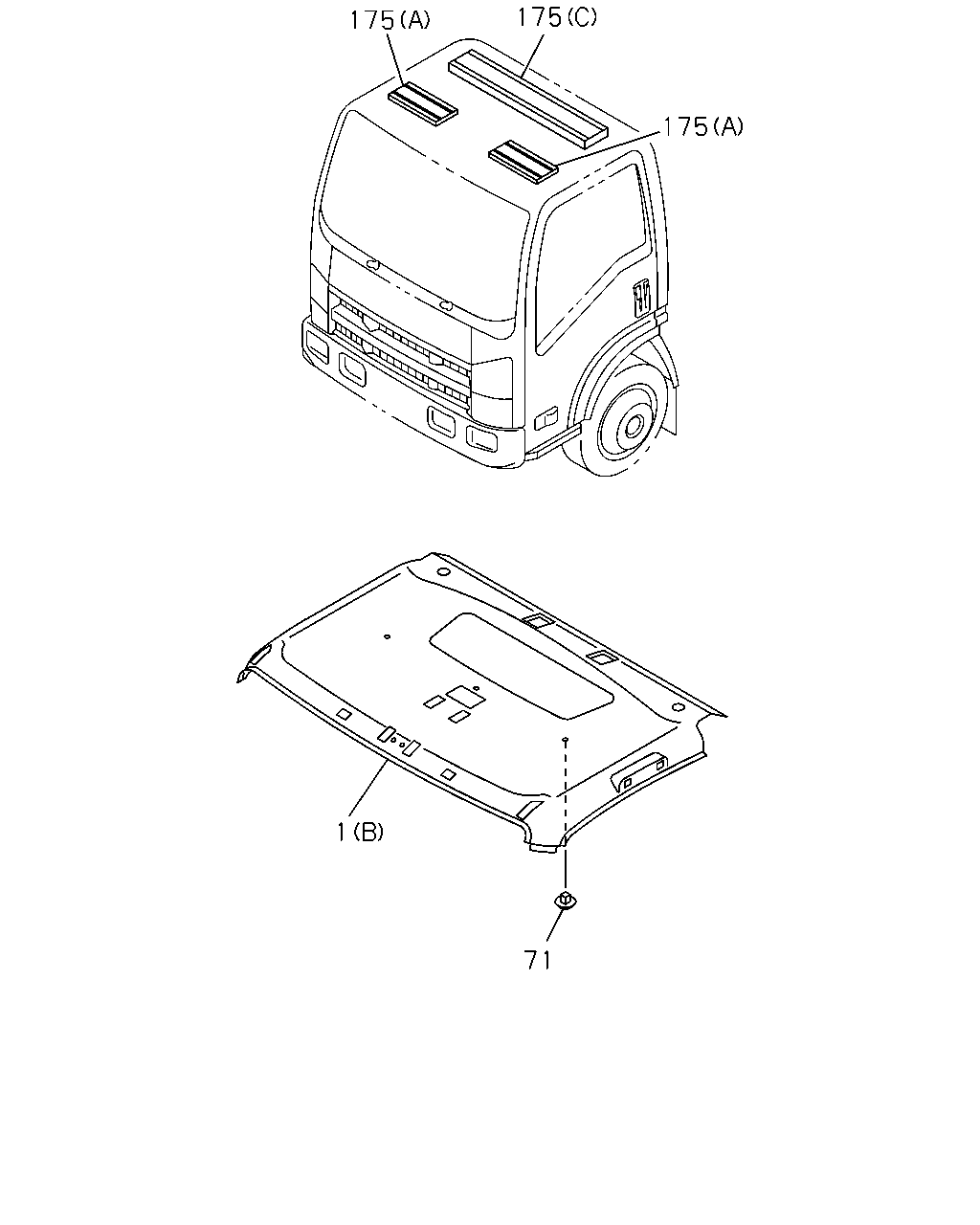

çizim 492955
175 175 175 1 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY 		8-97425-051-0 01 1 1509- ● ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97425-049-0 01 1 1509- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (A) DARK GRAY 		8-97411-681-2 01 1 1506-1508 ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97411-681-2 01 1 1509- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-282-6 01 1 1506-1508 ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-282-6 01 1 1509- ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-277-5 01 1 1506-1508 ●
1 16.742 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> (A) DARK GRAY 		8-97406-277-5 01 1 1509- ● ●
71 16.742 FASTENER; HD LINING
COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-301-2 03 1 1509- ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-282-0 02 1 1509- ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> DARK GRAY 		8-97405-301-2 04 1 1509- ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 1506-1508 ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 1509- ● ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98051-799-2 01 1 1509- ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 1506-1508 ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-299-3 02 1 1509- ● ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 1506-1508 ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98037-300-3 01 1 1509- ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1506-1508 ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
