Isuzu WW
▶
TRUCKS
▶
NLR
▶
51627 - NLR/NMR(85)LHD EURO5B+
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

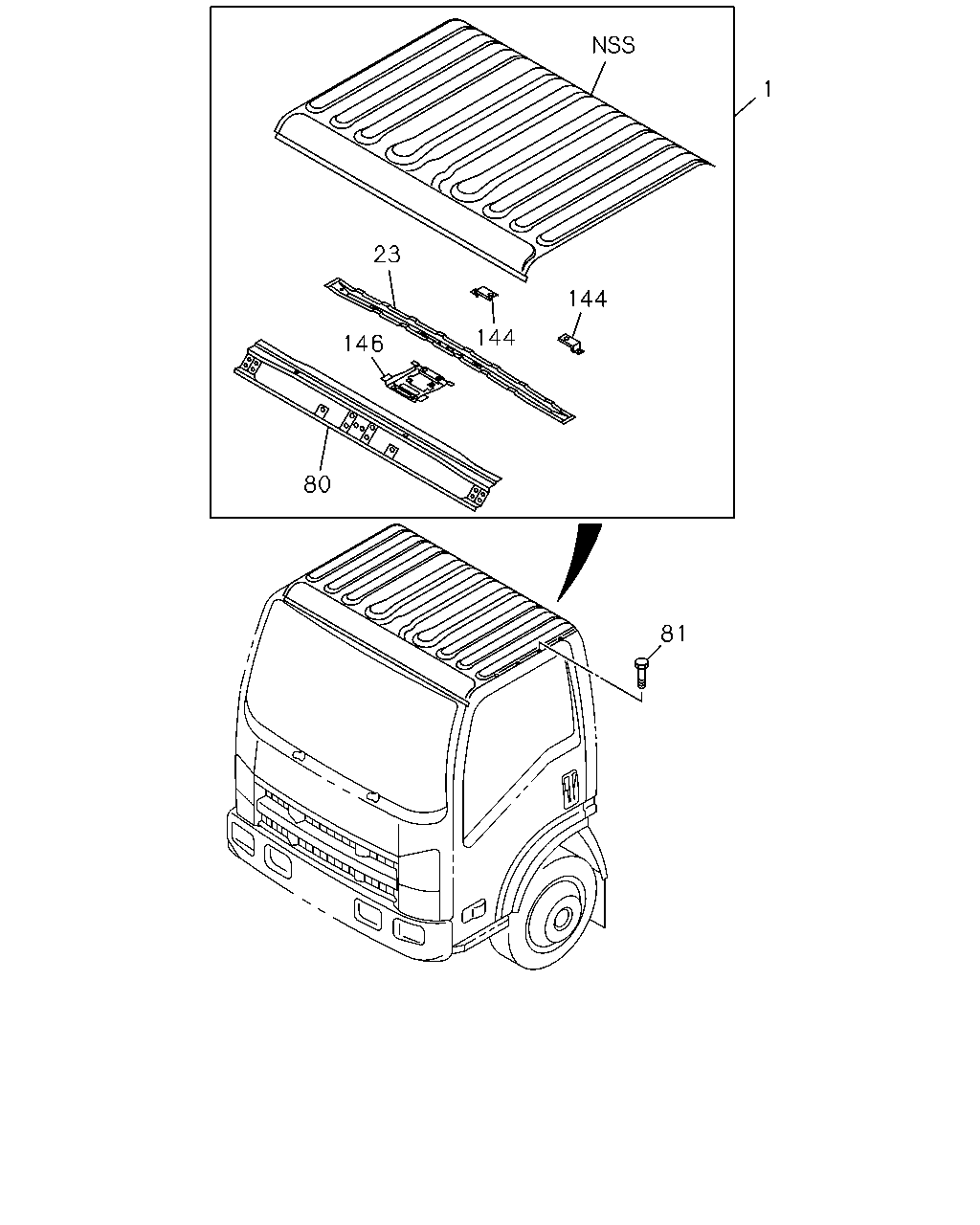

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#162246) — 12 parça
Tümü
A - NMR6SE
B - NMR6SN
1
144
144
23
146
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.585 PANEL; ROOF
8-98287-343-0
01
1
1506-1508
●
1
16.585 PANEL; ROOF
8-98287-343-0
01
1
1509-
●
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98287-358-0
01
1
1506-1508
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98287-358-0
01
1
1509-
●
●
80
16.585 PANEL; HEADER,ROOF
8-98287-352-0
01
1
1506-1508
●
80
16.585 PANEL; HEADER,ROOF
8-98287-352-0
01
1
1509-
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1506-1508
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1509-
●
●
144
16.585 BRACKET; ROOF
8-98013-931-1
02
1
1506-1508
●
144
16.585 BRACKET; ROOF
8-98013-931-1
02
1
1509-
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98009-289-4
01
1
1506-1508
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98009-289-4
01
1
1509-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
