6-47 — MUD GUARD AND INSULATOR (#162245) — 88 parça

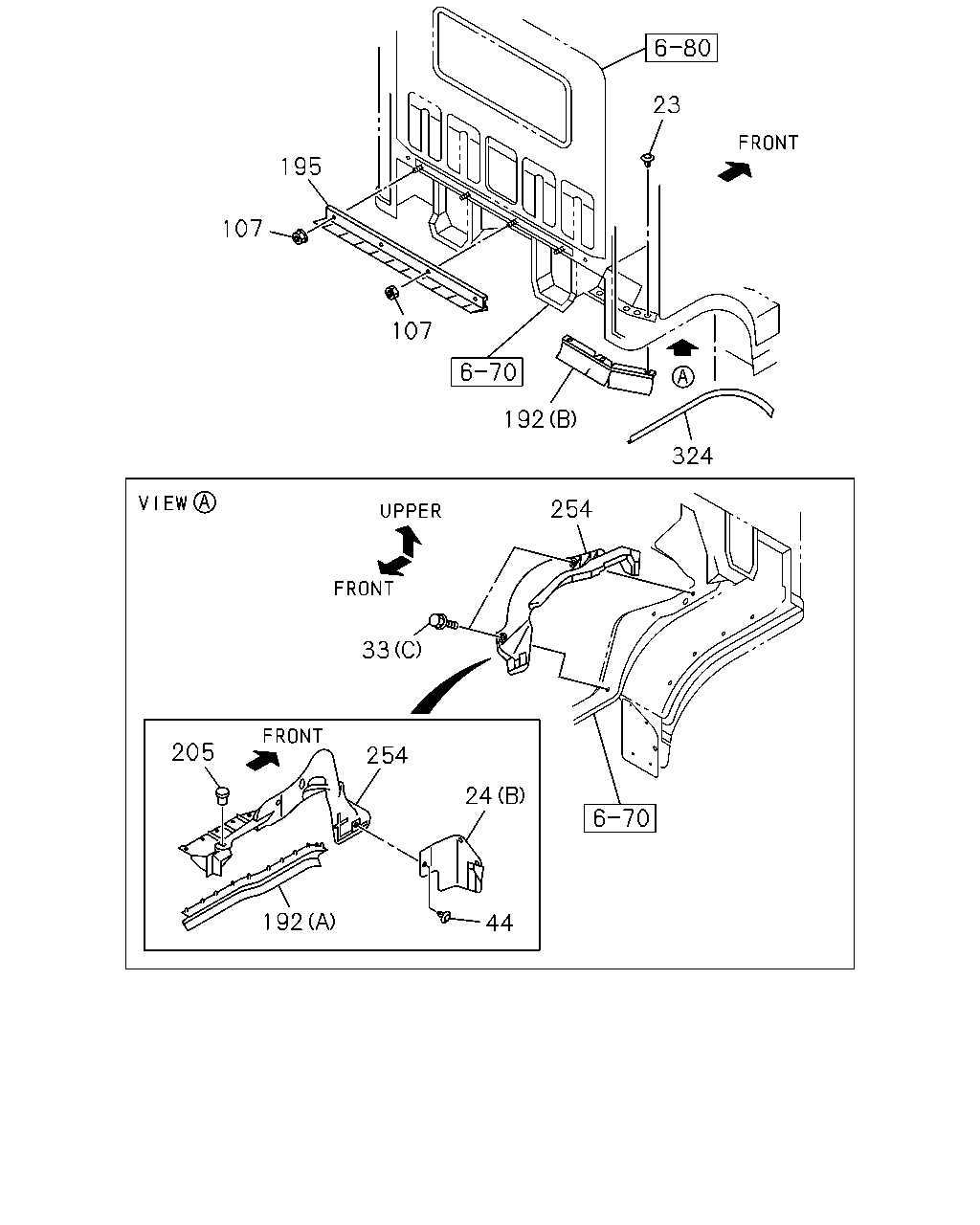

324 254 33 254 24 44 192 205 107 195 107 192 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1506-1508	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1509-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1506-1508	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1509-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	1506-1508	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	1509-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1506-1508	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1509-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1506-1508	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1509-	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1506-1508	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1509-	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1506-1508	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1509-	●	●
107	08.214 NUT; HEAT PROTECTOR 4JJ1-TCC ENG(RDU) 03.417 M6 FLANGE	8-94279-514-0	04	1	1506-1508	●
107	08.214 NUT; HEAT PROTECTOR TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) 03.417 M6 FLANGE	8-94279-514-0	04	1	1509-	●
192	08.153 SEAL; MUD COVER 4JJ1-TCC ENG(RDU) (A)	8-98022-755-1	01	1	1506-1508	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1509-	●	●
192	08.153 SEAL; MUD COVER 4JJ1-TCC ENG(RDU) (A)	8-98022-756-1	01	1	1506-1508	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1509-	●	●
192	08.153 SEAL; MUD COVER 4JJ1-TCC ENG(RDU) (B)	8-98192-388-0	02	1	1506-1508	●
192	08.153 SEAL; MUD COVER (B)	8-98192-388-0	02	1	1509-	●	●
195	03.602 PROTECTOR; HEAT 4JJ1-TCC ENG(RDU)	8-98075-080-0	01	1	1506-1508	●
195	03.602 PROTECTOR; HEAT TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ)	8-98075-080-0	01	1	1509-	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1506-1508	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1509-	●	●
254	08.153 COVER; MUD,VALANCE 4JJ1-TCC ENG(RDU)	8-98115-263-0	01	1	1506-1508	●
254	08.153 COVER; MUD,VALANCE	8-98115-263-0	01	1	1509-	●	●
254	08.153 COVER; MUD,VALANCE 4JJ1-TCC ENG(RDU)	8-98115-264-0	01	1	1506-1508	●
254	08.153 COVER; MUD,VALANCE	8-98115-264-0	01	1	1509-	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1506-1508	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1509-	●	●

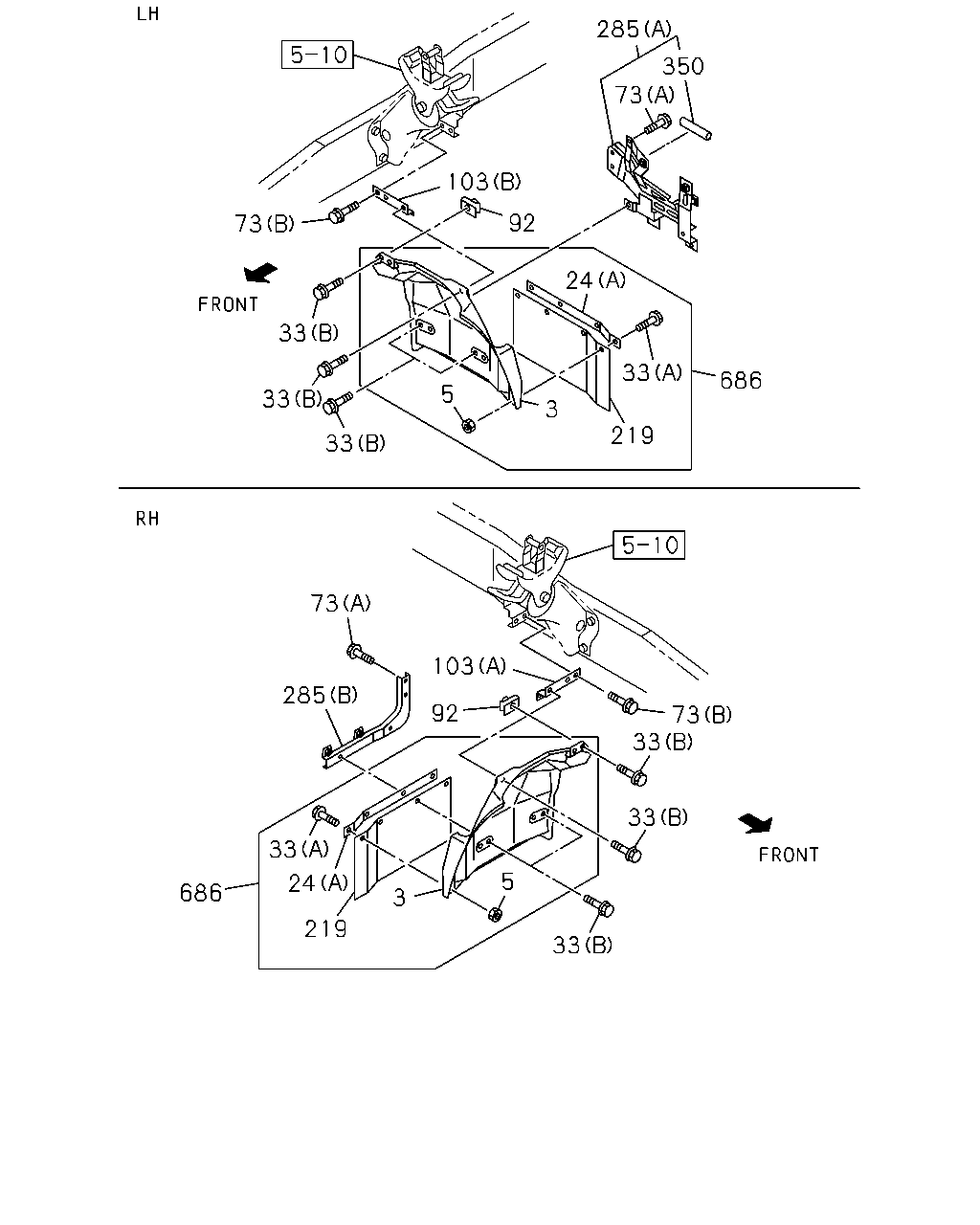

33 33 33 73 103 92 73 285 33 24 3 5 219 686 33 33 33 33 686 219 3 5 92 24 103 73 285 73 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	1506-1508	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	1509-	●	●
3	08.153 GUARD; MUD,RR	8-98055-620-2	01	1	1506-1508	●
3	08.153 GUARD; MUD,RR	8-98055-620-2	01	1	1509-	●	●
5	08.155 NUT; FLAP RUBBER M6	8-98227-380-0	08	1	1506-1508	●
5	08.155 NUT; FLAP RUBBER M6	8-98227-380-0	08	1	1509-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1506-1508	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1509-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	1506-1508	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	1509-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1506-1508	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1509-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1506-1508	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1509-	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1506-1508	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1509-	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1506-1508	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1509-	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1506-1508	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1509-	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1506-1508	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1509-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155 (B)	8-98038-865-1	01	1	1506-1508	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155 (B)	8-98038-865-1	01	1	1509-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155 (A)	8-98059-689-0	01	1	1506-1508	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155 (A)	8-98059-689-0	01	1	1509-	●	●
219	08.155 FLAP; MUD GUARD	8-98010-741-1	02	1	1506-1508	●
219	08.155 FLAP; MUD GUARD	8-98010-741-1	02	1	1509-	●	●
285	08.155 BRACKET; MUD COVER (A)	8-98082-272-0	01	1	1506-1508	●
285	08.155 BRACKET; MUD COVER (A)	8-98082-272-0	01	1	1509-	●	●
285	08.155 BRACKET; MUD COVER (B)	8-98131-079-0	01	1	1506-1508	●
285	08.155 BRACKET; MUD COVER (B)	8-98131-079-0	01	1	1509-	●	●
350	08.155 PROTECTOR; EDGE,MUD COVER 03.008 L=80	5-22439-006-0	01	1	1506-1508	●
350	08.155 PROTECTOR; EDGE,MUD COVER 03.008 L=80	5-22439-006-0	01	1	1509-	●	●
686	08.155 FLAP ASM; MUD	8-98001-302-6	01	1	1506-1508	●
686	08.155 FLAP ASM; MUD	8-98001-302-6	01	1	1509-	●	●
686	08.155 FLAP ASM; MUD	8-98055-455-4	01	1	1506-1508	●
686	08.155 FLAP ASM; MUD	8-98055-455-4	01	1	1509-	●	●

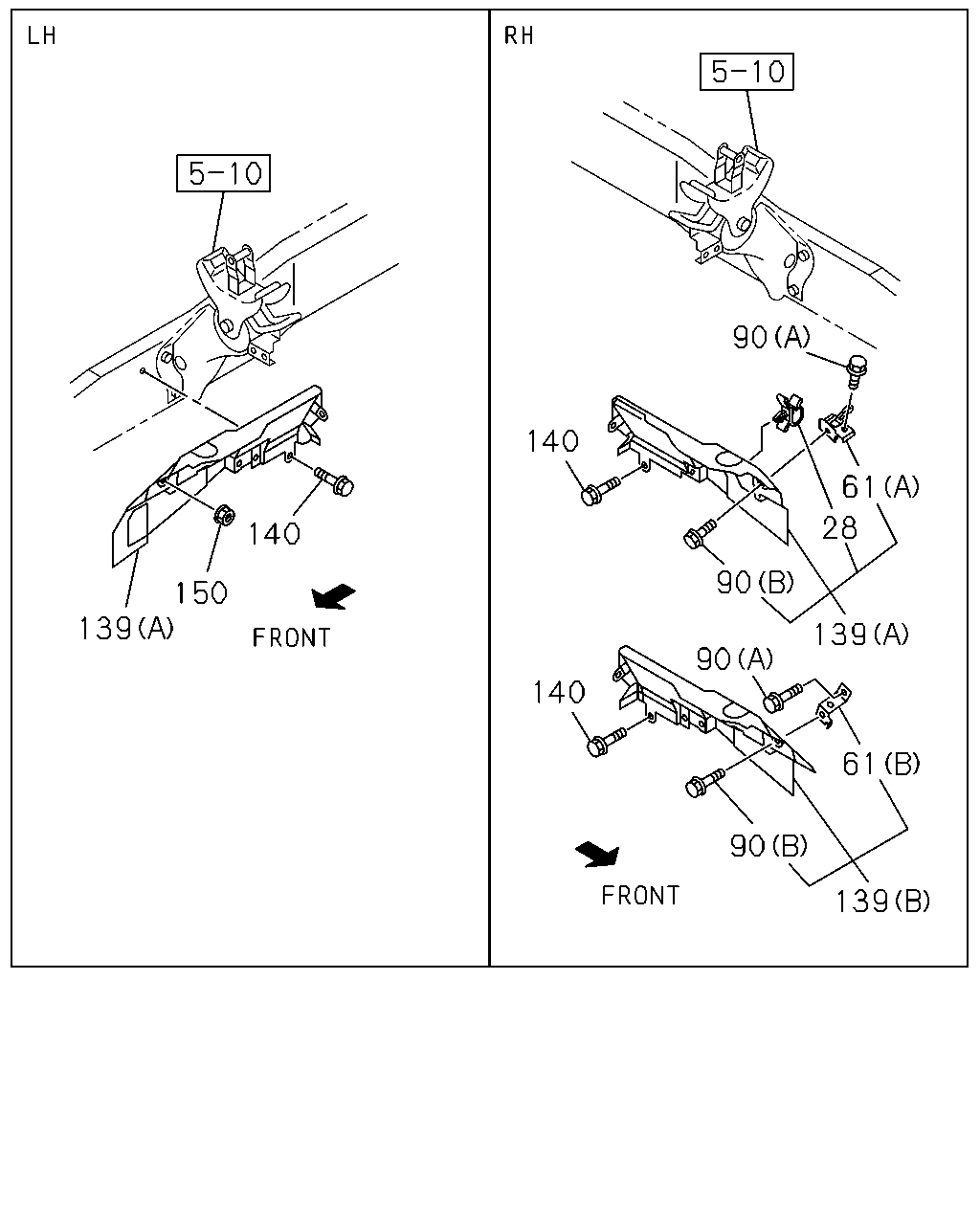

139 150 140 140 140 90 90 139 139 61 28 90 90 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	08.154 CLIP	8-98244-588-0	01	1	1506-1508	●
28	08.154 CLIP EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98244-588-0	01	1	1509-	●	●
61	08.155 BRACKET; COVER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98033-140-0	01	1	1509-	●	●
61	08.155 BRACKET; COVER (A)	8-98195-451-1	01	1	1506-1508	●
61	08.155 BRACKET; COVER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98195-451-1	01	1	1509-	●	●
90	08.153 BOLT; COVER 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●
90	08.153 BOLT; COVER 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
90	08.153 BOLT; COVER 08.155 (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1506-1508	●
90	08.153 BOLT; COVER 08.155 (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1509-	●	●
139	08.153 PANEL; SIDE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98053-670-1	01	1	1509-	●	●
139	08.153 PANEL; SIDE (A)	8-97385-590-3	01	1	1506-1508	●
139	08.153 PANEL; SIDE (A)	8-97385-590-3	01	1	1509-	●	●
139	08.153 PANEL; SIDE (A)	8-98196-490-3	01	1	1506-1508	●
139	08.153 PANEL; SIDE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98196-490-3	01	1	1509-	●	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	02	1	1506-1508	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	02	1	1509-	●	●
150	08.155 NUT; SIDE PANEL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1506-1508	●
150	08.155 NUT; SIDE PANEL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1509-	●	●
