24 |
CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(D)
ID=18 L=25
|
8-94121-004-1 |
02 |
1 |
1004-1004 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(D)
ID=21 L=24
|
8-98019-191-0 |
02 |
1 |
1005-1204 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
(D)
ID=21 L=24
|
8-98019-191-0 |
01 |
1 |
1205- |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W)
(D)
ID=21 L=24
|
8-98019-191-0 |
01 |
1 |
1205- |
|
● |
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
(D)
ID=21 L=24
|
8-98019-191-0 |
01 |
1 |
1004-1204 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
(D)
ID=21 L=24
|
8-98019-191-0 |
02 |
1 |
1205- |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W)
(D)
ID=21 L=24
|
8-98019-191-0 |
02 |
1 |
1205- |
|
● |
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W)
EXC. BIO DIESEL FUEL B10<8NV>
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
07 |
1 |
1004- |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
05 |
1 |
0906-1003 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
01 |
1 |
1004-1204 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 3400MM(34W)
EXC. BIO DIESEL FUEL B10<8NV>
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
02 |
1 |
1205- |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
02 |
1 |
1205- |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
02 |
1 |
1205- |
|
● |
| |
24 |
CLIP; FUEL HOSE
(C)
ID=16.5 & 10.5-14
|
8-98147-093-0 |
01 |
1 |
0906-1204 |
● |
|
| |
24 |
CLIP; FUEL HOSE
(C)
ID=16.5 & 10.5-14
|
8-98147-093-0 |
01 |
1 |
1205- |
● |
● |
| |
24 |
CLIP; FUEL HOSE
(B)
ID=15 H=24 L=20
|
1-09700-606-0 |
01 |
1 |
0906-1204 |
● |
|
| |
24 |
CLIP; FUEL HOSE
(B)
ID=15 H=24 L=20
|
1-09700-606-0 |
01 |
1 |
1205- |
● |
● |
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 3400MM(34W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
02 |
1 |
0906-1003 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
02 |
1 |
1004-1204 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 3400MM(34W)
EXC. BIO DIESEL FUEL B10<8NV>
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
02 |
1 |
1004-1204 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
01 |
1 |
1205- |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
01 |
1 |
1205- |
|
● |
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4000MM(40W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
04 |
1 |
0906-1003 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4000MM(40W)
EXC. BIO DIESEL FUEL B10<8NV>
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
04 |
1 |
1004- |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
07 |
1 |
0906-1003 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W)
EXC. BIO DIESEL FUEL B10<8NV>
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
05 |
1 |
1004- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
1004-1004 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1005-1009 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1005-1009 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1010-1204 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1010-1204 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1010-1204 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1205- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1205- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1205- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1205- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1205- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W),
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(F)
ID=8 H=20 L=20
|
1-09700-604-0 |
01 |
1 |
1004-1004 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(F)
ID=8 H=20 L=20
|
1-09700-604-0 |
01 |
1 |
1005-1204 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
(F)
ID=8 H=20 L=20
|
1-09700-604-0 |
01 |
1 |
1205- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(F)
ID=8 H=20 L=20
|
1-09700-604-0 |
01 |
1 |
1205- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
(D)
ID=16
|
8-94238-568-0 |
04 |
1 |
1004-1204 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
(D)
ID=16
|
8-94238-568-0 |
04 |
1 |
1205- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(D)
ID=16
|
8-94238-568-0 |
04 |
1 |
1205- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV>
(A)
ID=13
|
8-94238-571-0 |
08 |
1 |
1004- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
0906-1204 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
1205- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
0906-1003 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV>
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
1004- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
0906-1004 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
0906-1204 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
1205- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=13
|
8-94238-571-0 |
08 |
1 |
0906-1003 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
1004-1204 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
1205- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
1205- |
|
● |
| |
47 |
PIPE; FUEL,RETURN
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
L=1834
|
8-98156-788-0 |
01 |
1 |
1004-1004 |
● |
|
| |
47 |
PIPE; FUEL,RETURN
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
L=1819
|
8-98169-690-0 |
01 |
1 |
1005-1107 |
● |
|
| |
47 |
PIPE; FUEL,RETURN
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
L=1829
|
8-98183-129-0 |
01 |
1 |
1108- |
● |
|
| |
47 |
PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
L=2445
|
8-98156-787-0 |
01 |
1 |
1004-1004 |
● |
|
| |
47 |
PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
L=2443
|
8-98169-672-0 |
01 |
1 |
1005-1005 |
● |
|
| |
47 |
PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
L=2445
|
8-98172-649-0 |
01 |
1 |
1006-1204 |
● |
|
| |
47 |
PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
L=2445
|
8-98172-649-0 |
01 |
1 |
1205- |
● |
|
| |
47 |
PIPE; FUEL,RETURN
L=2445
|
8-98172-649-0 |
01 |
1 |
1205- |
|
● |
| |
47 |
PIPE; FUEL,RETURN
L=1496
SERVICED BY L=1550
|
1-47428-851-0 |
01 |
1 |
0906-1003 |
● |
|
| |
47 |
PIPE; FUEL,RETURN
EXC. BIO DIESEL FUEL B10<8NV>
L=1496
SERVICED BY L=1550
|
1-47428-851-0 |
01 |
1 |
1004- |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
ID=27 L=500
|
8-98119-327-0 |
01 |
1 |
1004-1004 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0906-1003 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
1004-1009 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
1010-1204 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
1205- |
● |
● |
| |
62 |
BOLT; CLIP FIX
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1004-1004 |
● |
|
| |
62 |
BOLT; CLIP FIX
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1005-1204 |
● |
|
| |
62 |
BOLT; CLIP FIX
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1205- |
● |
|
| |
62 |
BOLT; CLIP FIX
WHEEL BASE 4600MM(46W)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1205- |
|
● |
| |
62 |
BOLT; CLIP FIX
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1004-1204 |
● |
|
| |
62 |
BOLT; CLIP FIX
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1205- |
● |
|
| |
62 |
BOLT; CLIP FIX
WHEEL BASE 4900MM(49W)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1205- |
|
● |
| |
64 |
NUT; CLIP
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1004-1204 |
● |
|
| |
64 |
NUT; CLIP
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1205- |
● |
|
| |
64 |
NUT; CLIP
WHEEL BASE 4900MM(49W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1205- |
|
● |
| |
64 |
NUT; CLIP
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1004-1004 |
● |
|
| |
64 |
NUT; CLIP
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1005-1204 |
● |
|
| |
64 |
NUT; CLIP
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1205- |
● |
|
| |
64 |
NUT; CLIP
WHEEL BASE 4600MM(46W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1205- |
|
● |
| |
65 |

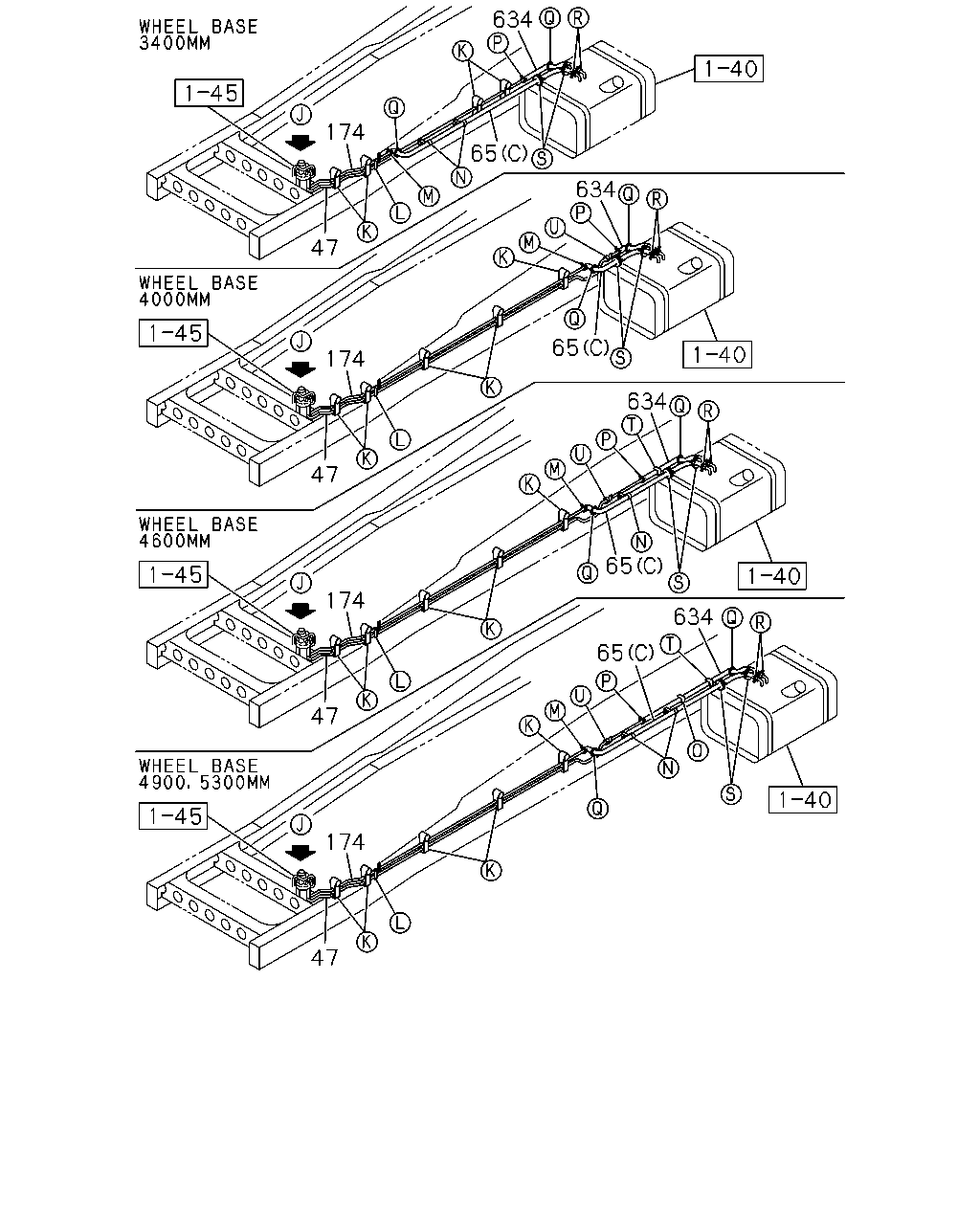

HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
(C)
SERVICED BY L=3000
|
0-01859-300-0 |
01 |
1 |
1004-1004 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
(C)
L=1450
|
8-98172-291-0 |
01 |
1 |
1005-1107 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
(C)
L=1450
|
8-98183-310-0 |
01 |
1 |
1108- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W)
BIO DIESEL FUEL B10<8NV>
(C)
SERVICED BY L=3000
|
0-01859-300-0 |
01 |
1 |
1004-1004 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W)
BIO DIESEL FUEL B10<8NV>
(C)
L=850
|
8-98172-292-0 |
01 |
1 |
1005-1107 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W)
BIO DIESEL FUEL B10<8NV>
(C)
L=850
|
8-98183-311-0 |
01 |
1 |
1108-1204 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W)
BIO DIESEL FUEL B10<8NV>
(C)
L=850
|
8-98183-311-0 |
01 |
1 |
1205- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W)
(C)
L=850
|
8-98183-311-0 |
01 |
1 |
1205- |
|
● |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
(C)
L=1250
SERVICED BY L=3000
|
0-01859-300-0 |
01 |
1 |
1004-1004 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
(C)
L=1200
|
8-98172-294-0 |
01 |
1 |
1005-1107 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
(C)
L=1200
|
8-98183-312-0 |
01 |
1 |
1108-1204 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
(C)
L=1200
|
8-98183-312-0 |
01 |
1 |
1205- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W)
(C)
L=1200
|
8-98183-312-0 |
01 |
1 |
1205- |
|
● |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(C)
SERVICED BY L=3000
|
0-01859-300-0 |
01 |
1 |
1004-1004 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(C)
L=1550
|
8-98172-295-0 |
01 |
1 |
1005-1107 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(C)
L=1550
|
8-98183-313-0 |
01 |
1 |
1108-1204 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
(C)
L=1550
|
8-98183-313-0 |
01 |
1 |
1205- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W)
(C)
L=1550
|
8-98183-313-0 |
01 |
1 |
1205- |
|
● |
| |
65 |

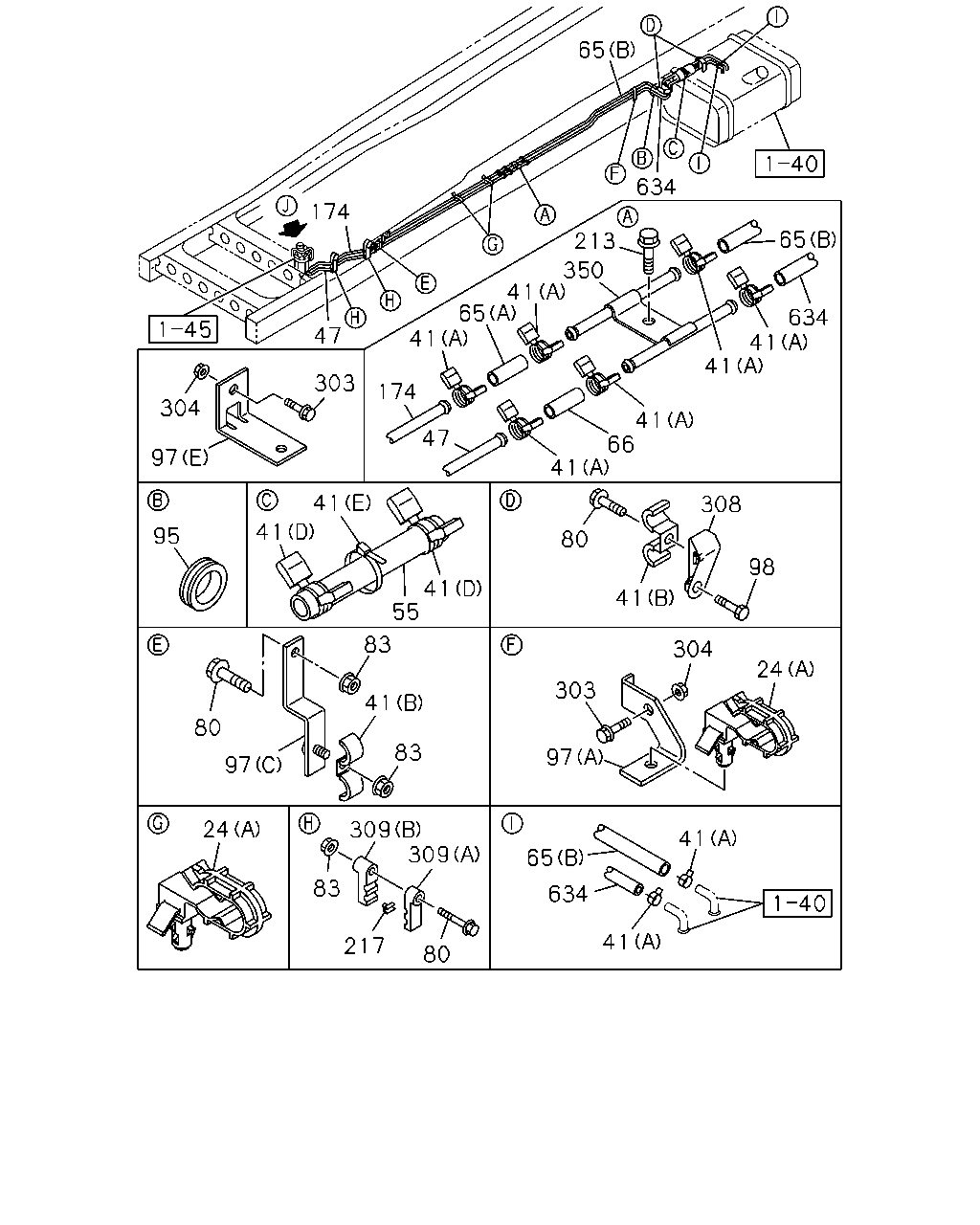

HOSE; FUEL,DELIVERY PIPE
(A)
L=60
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0906-1003 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
EXC. BIO DIESEL FUEL B10<8NV>
(A)
L=60
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1004- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3400MM(34W)
(B)
L=900
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0906-1003 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3400MM(34W)
EXC. BIO DIESEL FUEL B10<8NV>
(B)
L=900
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1004- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W)
(B)
L=1550
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0906-1003 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W)
EXC. BIO DIESEL FUEL B10<8NV>
(B)
L=1550
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1004- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W)
(B)
L=1900
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0906-1003 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W)
EXC. BIO DIESEL FUEL B10<8NV>
(B)
L=1900
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1004- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W)
(B)
L=2400
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0906-1003 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W)
EXC. BIO DIESEL FUEL B10<8NV>
(B)
L=2400
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1004- |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV>
M8X50 FLANGE
|
0-28050-850-0 |
01 |
1 |
1005- |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M8X50 FLANGE
|
0-28050-850-0 |
03 |
1 |
1004-1204 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
M8X50 FLANGE
|
0-28050-850-0 |
03 |
1 |
1205- |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
M8X50 FLANGE
|
0-28050-850-0 |
03 |
1 |
1205- |
|
● |
| |
80 |
BOLT; CLIP,FUEL TANK
WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W),
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1004-1004 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1005-1204 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1205- |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1205- |
|
● |
| |
80 |
BOLT; CLIP,FUEL TANK
M8X50 FLANGE
|
0-28050-850-0 |
01 |
1 |
0906-1003 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
M8X50 FLANGE
|
0-28050-850-0 |
01 |
1 |
1004-1004 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV>
M8X50 FLANGE
|
0-28050-850-0 |
01 |
1 |
1004-1004 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
M8X50 FLANGE
|
0-28050-850-0 |
02 |
1 |
1005- |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0906-1204 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1205- |
● |
● |
| |
83 |
NUT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M8 FLANGE
|
0-91180-108-0 |
07 |
1 |
1004-1204 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
M8 FLANGE
|
0-91180-108-0 |
07 |
1 |
1205- |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
07 |
1 |
1205- |
|
● |
| |
83 |
NUT; CLIP,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1004- |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0906-1003 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
1004- |
● |
|
| |

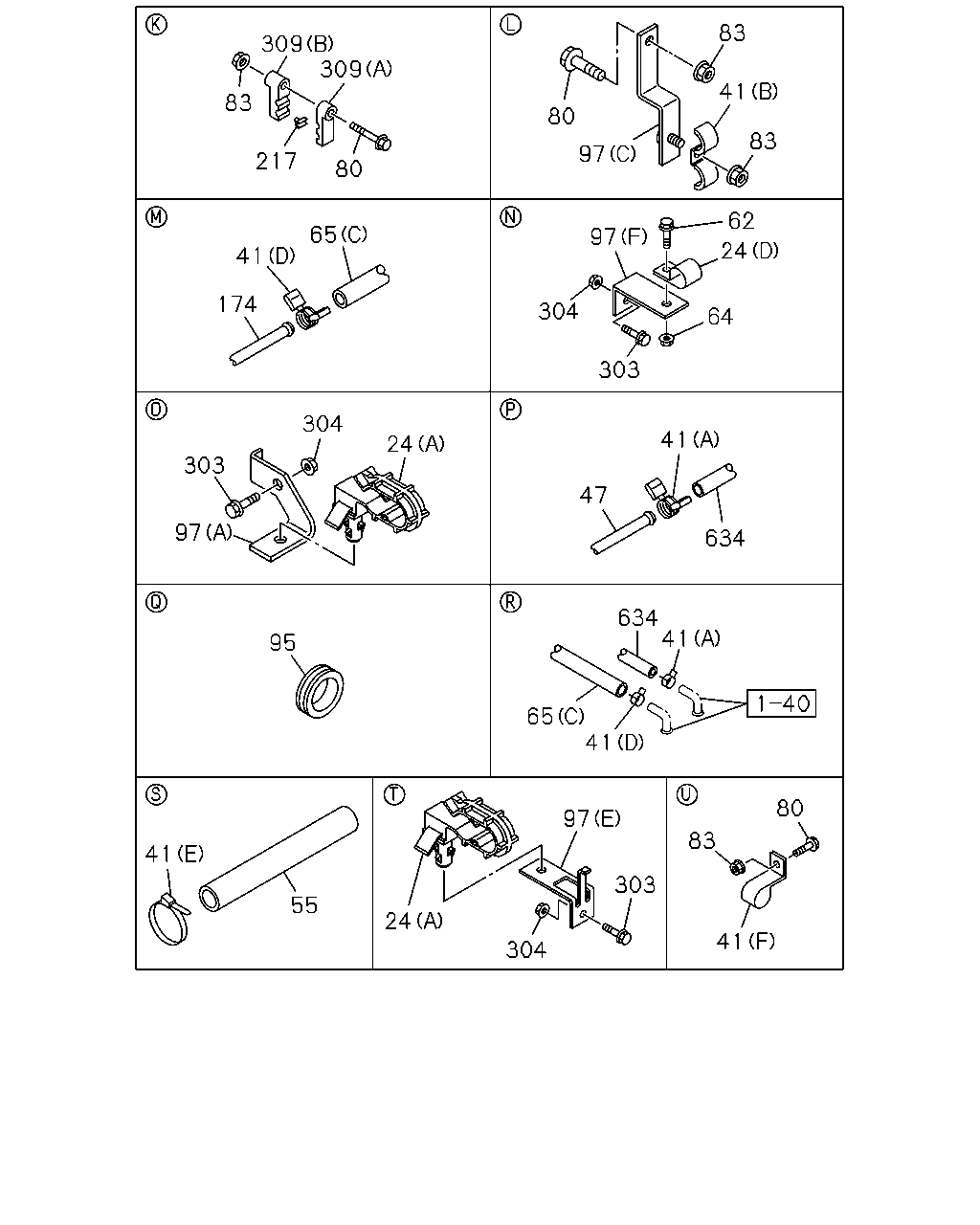

95 |
BUSHING; PIPE,FUEL TANK
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
ID=19 OD=23 T=18
|
9-09956-130-1 |
01 |
1 |
1004-1004 |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
0906-1003 |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
1004-1004 |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
1004-1004 |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
1005-1204 |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
1005-1204 |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
1205- |
● |
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV>
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
1205- |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
1205- |
|
● |
| |
97 |
BRACKET; CLIP
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(F)
L=55
|
1-47476-177-0 |
02 |
1 |
1004-1004 |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(F)
L=55
|
1-47476-177-0 |
02 |
1 |
1005-1204 |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
(F)
L=55
|
1-47476-177-0 |
01 |
1 |
1205- |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4600MM(46W)
(F)
L=55
|
1-47476-177-0 |
01 |
1 |
1205- |
|
● |
| |
97 |
BRACKET; CLIP
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
(F)
L=55
|
1-47476-177-0 |
01 |
1 |
1004-1204 |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
(F)
L=55
|
1-47476-177-0 |
02 |
1 |
1205- |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4900MM(49W)
(F)
L=55
|
1-47476-177-0 |
02 |
1 |
1205- |
|
● |
| |
97 |

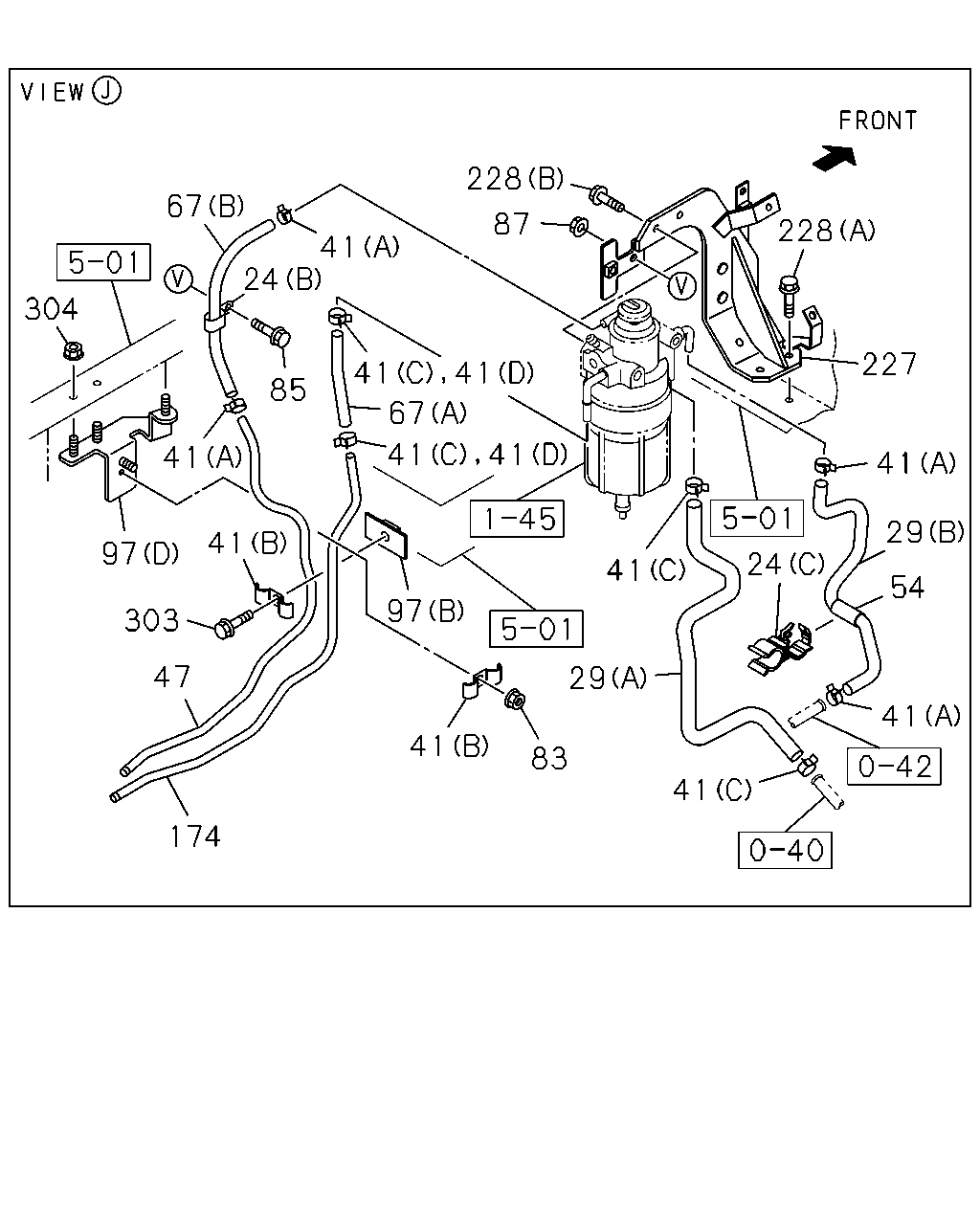

BRACKET; CLIP
(B)
L=50
|
1-47475-299-2 |
01 |
1 |
0906-1204 |
● |
|
| |
97 |
BRACKET; CLIP
(B)
L=50
|
1-47475-299-2 |
01 |
1 |
1205- |
● |
● |
| |
97 |
BRACKET; CLIP
(C)
|
8-98078-201-0 |
01 |
1 |
0906-1204 |
● |
|
| |
97 |
BRACKET; CLIP
(C)
|
8-98078-201-0 |
01 |
1 |
1205- |
● |
● |
| |
97 |
BRACKET; CLIP
(D)
|
8-98083-537-0 |
01 |
1 |
0906-1204 |
● |
|
| |
97 |
BRACKET; CLIP
(D)
|
8-98083-537-0 |
01 |
1 |
1205- |
● |
● |
| |
97 |
BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
(E)
|
8-98109-768-0 |
01 |
1 |
0906-1003 |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
EXC. BIO DIESEL FUEL B10<8NV>
(E)
|
8-98109-768-0 |
01 |
1 |
1004-1204 |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(E)
|
8-98109-768-0 |
01 |
1 |
1004-1204 |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
EXC. BIO DIESEL FUEL B10<8NV>
(E)
|
8-98109-768-0 |
01 |
1 |
1205- |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
(E)
|
8-98109-768-0 |
01 |
1 |
1205- |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W)
(E)
|
8-98109-768-0 |
01 |
1 |
1205- |
|
● |
| |
97 |
BRACKET; CLIP
WHEEL BASE 4900MM(49W)
(A)
|
8-98083-349-0 |
01 |
1 |
0906-1204 |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
(A)
|
8-98083-349-0 |
01 |
1 |
1205- |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4900MM(49W)
(A)
|
8-98083-349-0 |
01 |
1 |
1205- |
|
● |
| |
174 |
PIPE; FUEL,FEED,FRT
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
|
8-98156-650-0 |
01 |
1 |
1004-1004 |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
|
8-98169-375-0 |
01 |
1 |
1005- |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
|
8-98156-649-0 |
01 |
1 |
1004-1204 |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
|
8-98156-649-0 |
01 |
1 |
1205- |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
|
8-98156-649-0 |
01 |
1 |
1205- |
|
● |
| |
174 |
PIPE; FUEL,FEED,FRT
L=1322
|
8-98100-140-0 |
01 |
1 |
0906-1003 |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
EXC. BIO DIESEL FUEL B10<8NV>
L=1322
|
8-98100-140-0 |
01 |
1 |
1004- |
● |
|
| |
217 |
COLLAR; FUEL PIPE FIX
ID=8
|
1-47459-011-0 |
01 |
1 |
0906-1003 |
● |
|
| |
217 |
COLLAR; FUEL PIPE FIX
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
ID=8
|
1-47459-011-0 |
01 |
1 |
1004-1004 |
● |
|
| |
217 |
COLLAR; FUEL PIPE FIX
EXC. BIO DIESEL FUEL B10<8NV>
ID=8
|
1-47459-011-0 |
01 |
1 |
1004-1004 |
● |
|
| |
217 |
COLLAR; FUEL PIPE FIX
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
ID=8
|
1-47459-011-0 |
02 |
1 |
1005- |
● |
|
| |
217 |
COLLAR; FUEL PIPE FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
ID=8
|
1-47459-011-0 |
03 |
1 |
1004-1204 |
● |
|
| |
217 |
COLLAR; FUEL PIPE FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
ID=8
|
1-47459-011-0 |
03 |
1 |
1205- |
● |
|
| |
217 |
COLLAR; FUEL PIPE FIX
ID=8
|
1-47459-011-0 |
03 |
1 |
1205- |
|
● |
| |
217 |
COLLAR; FUEL PIPE FIX
EXC. BIO DIESEL FUEL B10<8NV>
ID=8
|
1-47459-011-0 |
01 |
1 |
1005- |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
03 |
1 |
1004-1004 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1004-1004 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1005-1204 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
EXC. BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1205- |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1205- |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1205- |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4600MM(46W)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1205- |
|
● |
| |
303 |
BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1205- |
|
● |
| |
303 |
BOLT; BRKT
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0906-1204 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4900MM(49W)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0906-1204 |
● |
|
| |
303 |
BOLT; BRKT
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1205- |
● |
● |
| |
303 |
BOLT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1205- |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4900MM(49W)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1205- |
|
● |
| |
303 |
BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0906-1003 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
EXC. BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1004-1004 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1005-1008 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
EXC. BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1005-1008 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1005-1008 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1009-1204 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1009-1204 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
EXC. BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1009-1204 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1205- |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4900MM(49W)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1205- |
|
● |
| |
304 |
NUT; BRKT
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
1004-1004 |
● |
|
| |
304 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0906-1003 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1004-1004 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1005-1204 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1205- |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1205- |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
EXC. BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1205- |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4600MM(46W)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1205- |
|
● |
| |
304 |
NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1205- |
|
● |
| |
304 |
NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0906-1003 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
EXC. BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1004-1004 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1005-1008 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
EXC. BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1005-1008 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1005-1008 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1009-1204 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1009-1204 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
EXC. BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1009-1204 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1205- |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4900MM(49W)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1205- |
|
● |
| |
304 |
NUT; BRKT
WHEEL BASE 4900MM(49W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0906-1003 |
● |
|
| |
304 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1004-1204 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4900MM(49W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1004-1204 |
● |
|
| |
304 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1205- |
● |
● |
| |
304 |
NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1205- |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4900MM(49W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1205- |
|
● |
| |
309 |
CLIP; PIPE
(A)
ID=10 & 10
|
1-09709-241-0 |
01 |
1 |
0906-1003 |
● |
|
| |
309 |
CLIP; PIPE
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
(A)
ID=10 & 10
|
1-09709-241-0 |
01 |
1 |
1004-1004 |
● |
|
| |
309 |
CLIP; PIPE
EXC. BIO DIESEL FUEL B10<8NV>
(A)
ID=10 & 10
|
1-09709-241-0 |
01 |
1 |
1004-1004 |
● |
|
| |
309 |
CLIP; PIPE
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
(A)
ID=10 & 10
|
1-09709-241-0 |
02 |
1 |
1005- |
● |
|
| |
309 |
CLIP; PIPE
(B)
ID=10 & 10
|
1-09709-243-0 |
01 |
1 |
0906-1003 |
● |
|
| |
309 |
CLIP; PIPE
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
(B)
ID=10 & 10
|
1-09709-243-0 |
01 |
1 |
1004-1004 |
● |
|
| |
309 |
CLIP; PIPE
EXC. BIO DIESEL FUEL B10<8NV>
(B)
ID=10 & 10
|
1-09709-243-0 |
01 |
1 |
1004-1004 |
● |
|
| |
309 |
CLIP; PIPE
WHEEL BASE 3400MM(34W)
BIO DIESEL FUEL B10<8NV>
(B)
ID=10 & 10
|
1-09709-243-0 |
02 |
1 |
1005- |
● |
|
| |
309 |
CLIP; PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(A)
ID=10 & 10
|
1-09709-241-0 |
03 |
1 |
1004-1204 |
● |
|
| |
309 |
CLIP; PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
(A)
ID=10 & 10
|
1-09709-241-0 |
03 |
1 |
1205- |
● |
|
| |
309 |
CLIP; PIPE
(A)
ID=10 & 10
|
1-09709-241-0 |
03 |
1 |
1205- |
|
● |
| |
309 |
CLIP; PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
(B)
ID=10 & 10
|
1-09709-243-0 |
03 |
1 |
1004-1204 |
● |
|
| |
309 |
CLIP; PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
(B)
ID=10 & 10
|
1-09709-243-0 |
03 |
1 |
1205- |
● |
|
| |
309 |
CLIP; PIPE
(B)
ID=10 & 10
|
1-09709-243-0 |
03 |
1 |
1205- |
|
● |
| |
309 |
CLIP; PIPE
EXC. BIO DIESEL FUEL B10<8NV>
(A)
ID=10 & 10
|
1-09709-241-0 |
01 |
1 |
1005- |
● |
|
| |
309 |
CLIP; PIPE
EXC. BIO DIESEL FUEL B10<8NV>
(B)
ID=10 & 10
|
1-09709-243-0 |
01 |
1 |
1005- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W)
BIO DIESEL FUEL B10<8NV>
L=640
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1004-1204 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W)
BIO DIESEL FUEL B10<8NV>
L=640
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1205- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4000MM(40W)
L=640
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1205- |
|
● |
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
L=1050
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1004-1204 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W)
BIO DIESEL FUEL B10<8NV>
L=1050
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1205- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W)
L=1050
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1205- |
|
● |
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4900MM(49W)
BIO DIESEL FUEL B10<8NV>
L=1450
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1004-1204 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
BIO DIESEL FUEL B10<8NV>
L=1450
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1205- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4900MM(49W)
L=1450
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1205- |
|
● |
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 3400MM(34W)
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0906-1003 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 3400MM(34W)
EXC. BIO DIESEL FUEL B10<8NV>
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1004- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4000MM(40W)
L=1600
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0906-1003 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4000MM(40W)
EXC. BIO DIESEL FUEL B10<8NV>
L=1600
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1004- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W)
L=2000
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0906-1003 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W)
EXC. BIO DIESEL FUEL B10<8NV>
L=2000
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1004- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4900MM(49W)
L=2400
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0906-1003 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4900MM(49W)
EXC. BIO DIESEL FUEL B10<8NV>
L=2400
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1004- |
● |
|
