◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#162233) — 42 parça

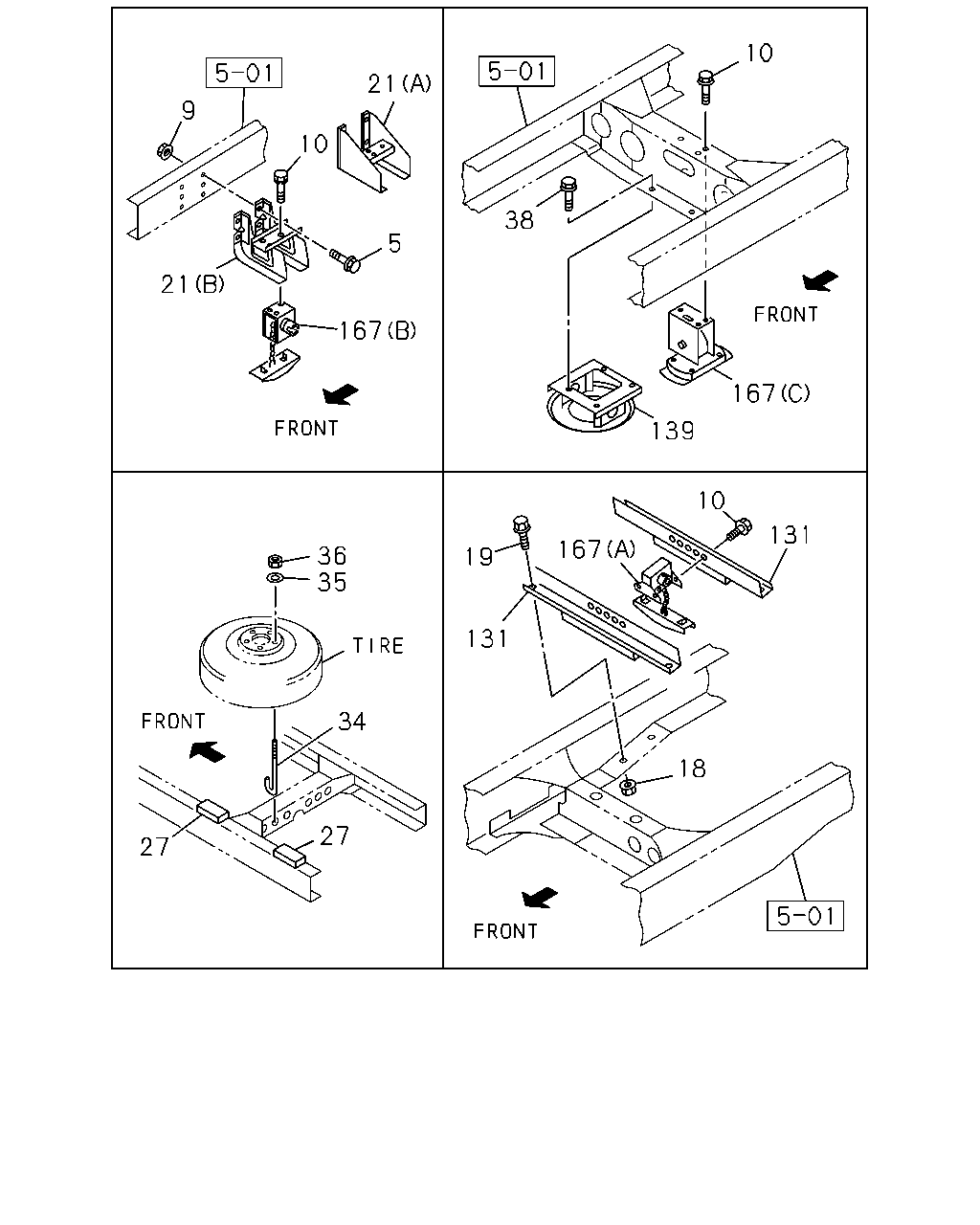

çizim 480767
167 139 10 38 167 5 10 21 21 9 36 35 34 27 27 131 19 167 10 131 18
BalonParca AdiParca NoAdetTipApplied Date A B
5 07.632 BOLT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1509- ●
5 07.632 BOLT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1509- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1506-1508 ●
5 07.632 BOLT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1509- ●
5 07.632 BOLT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SINGLE RR TI RE(6TD) 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1509- ●
5 07.632 BOLT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SI LVER(CYS) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1509- ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1506-1508 ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1509- ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SINGLE RR TI RE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1509- ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 1509- ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SI LVER(CYS) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 1509- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1506-1508 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1509- ● ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1506-1508 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1509- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1509- ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1506-1508 ●
18 07.633 NUT; MEMBER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ● ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1506-1508 ●
19 07.632 BOLT; C/MBR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1509- ● ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) (A) 		8-98141-569-0 01 1 1509- ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B) 		8-98036-085-2 01 1 1509- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) (A) 		8-98223-839-0 01 1 1506-1508 ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) (A) 		8-98223-839-0 01 1 1509- ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SINGLE RR TI RE(6TD) (A) 		8-98223-839-0 01 1 1509- ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SI LVER(CYS) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (A) 		8-98223-839-0 01 1 1509- ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10 		8-94341-284-0 03 1 1509- ● ●
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X330 		8-98226-501-0 01 1 1509- ● ●
35 07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54 		8-94466-483-0 01 1 1509- ● ●
36 07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.002 M12 		0-91110-512-0 01 1 1509- ● ●
38 07.629 BOLT; STOPPER
WHEEL BASE 2400MM(24W) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE WHEEL CARRIER<P10> SINGLE RR TIRE(6TD) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1509- ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 1506-1508 ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 1509- ● ●
139 07.629 STOPPER; SPARE TIRE
WHEEL BASE 2400MM(24W) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE WHEEL CARRIER<P10> SINGLE RR TIRE(6TD) 		8-98107-563-2 01 1 1509- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SINGLE RR TIRE(6TD) (C) 		8-94380-175-1 01 1 1509- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) (B) 		8-94382-875-1 01 1 1506-1508 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) (B) 		8-94382-875-1 01 1 1509- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (B) 		8-94382-875-1 01 1 1509- ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) (A) 		8-98036-384-0 01 1 1506-1508 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) (A) 		8-98036-384-0 01 1 1509- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (A) 		8-98036-384-0 01 1 1509- ●
