Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#162231) — 168 parça

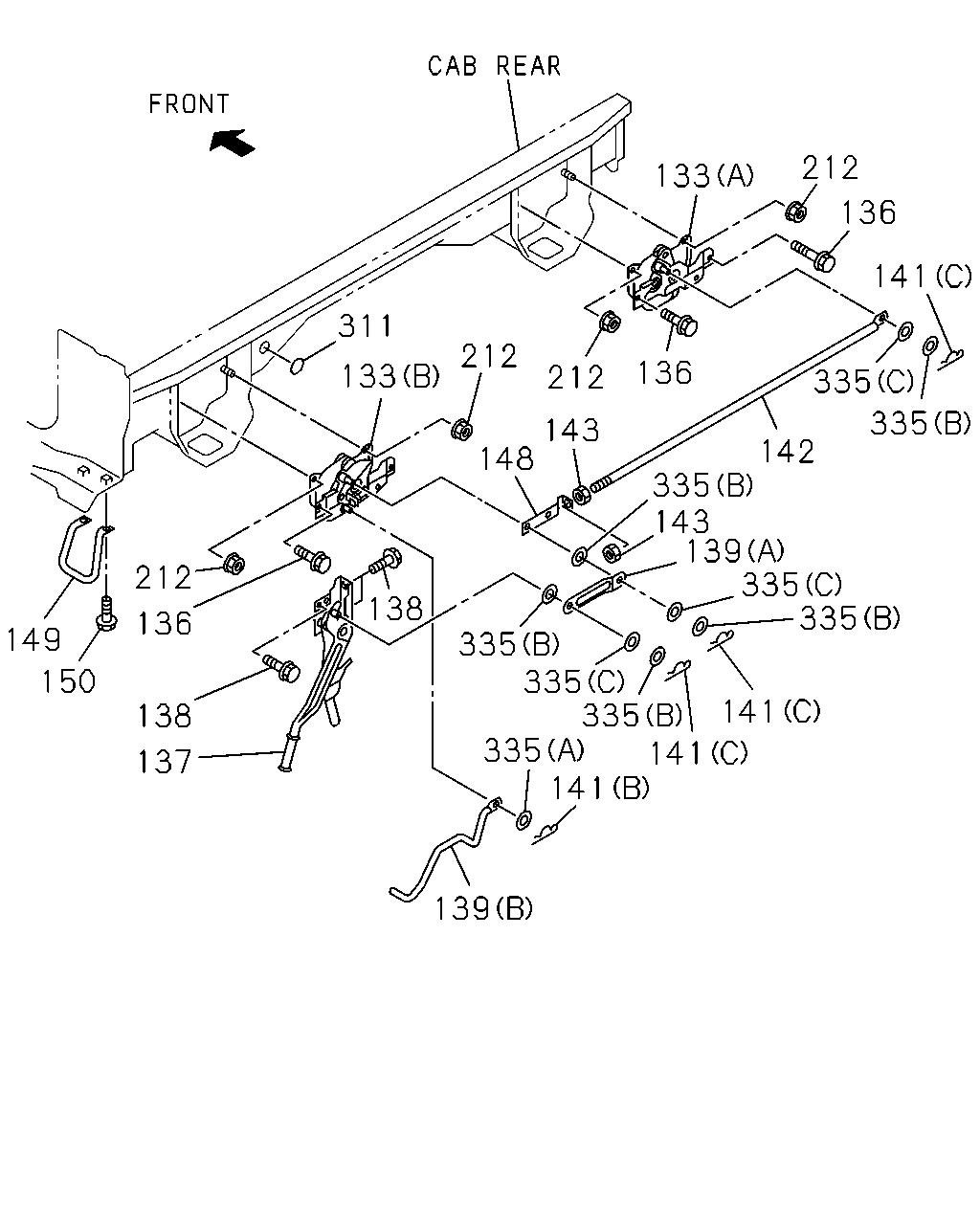

133 212 136 141 335 335 142 335 143 139 335 335 141 141 141 335 335 335 335 139 137 138 150 149 136 212 138 148 143 212 136 212 133 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1506-1508	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1509-	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1506-1508	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1509-	●	●
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1506-1508	●
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1509-	●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97411-004-3	01	1	1506-1508	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97411-004-3	01	1	1509-	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1506-1508	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1509-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1506-1508	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1509-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-201-0	01	1	1506-1508	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-201-0	01	1	1509-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1506-1508	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1509-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1506-1508	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1509-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1506-1508	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1509-	●	●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-272-0	01	1	1506-1508	●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-272-0	01	1	1509-	●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	1506-1508	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	1509-	●	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1506-1508	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1509-	●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1506-1508	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1509-	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1506-1508	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1509-	●	●
311	09.005 SEAL; CAB LOCK 16.545 OD=32 BLACK	8-98031-126-0	01	1	1506-1508	●
311	09.005 SEAL; CAB LOCK 16.545 OD=32 BLACK	8-98031-126-0	01	1	1509-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1506-1508	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1509-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1506-1508	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1509-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1506-1508	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1509-	●	●

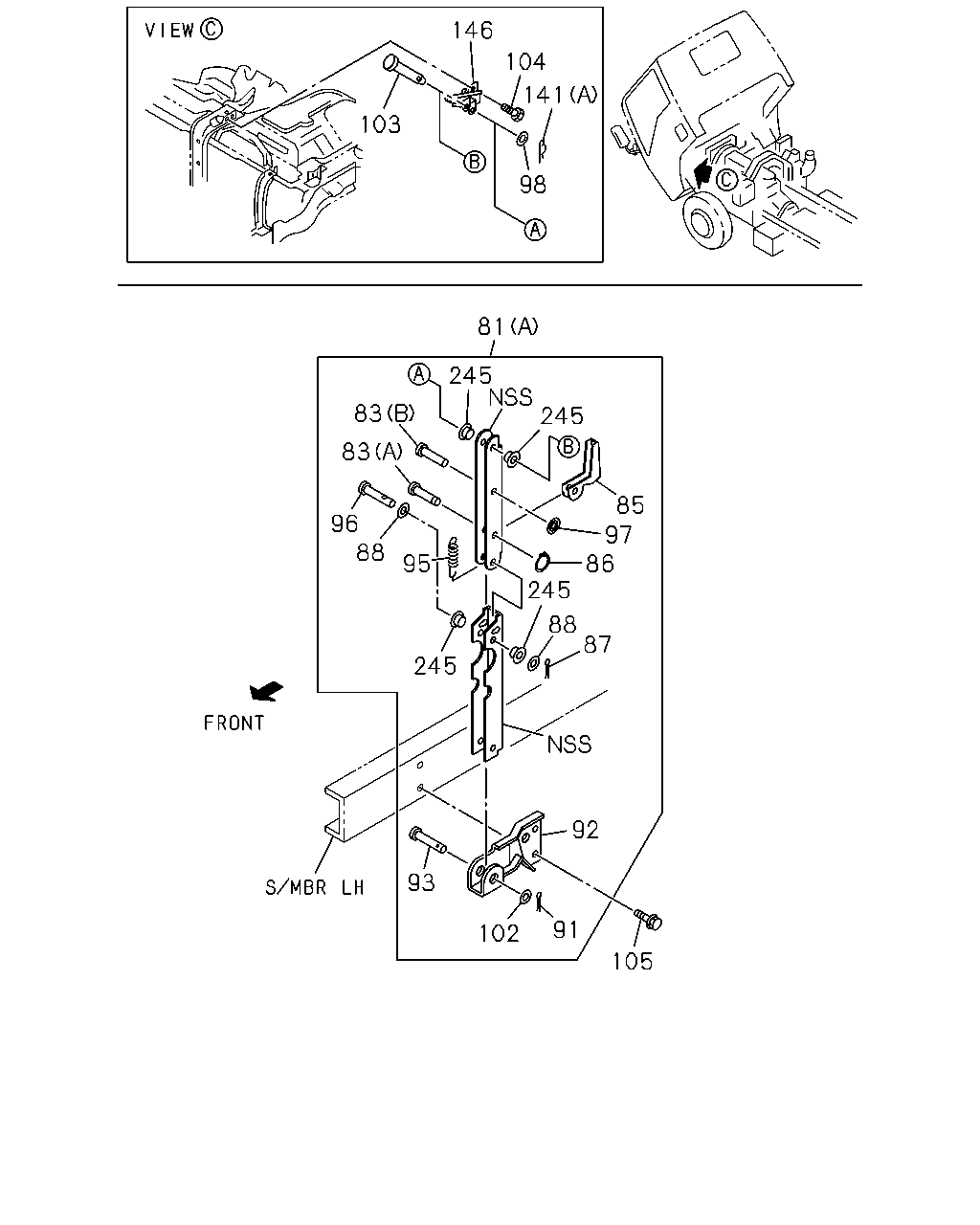

105 92 102 31 91 87 88 245 245 93 95 88 83 96 86 245 85 245 81 141 98 104 146 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	09.003 WASHER; WAVE FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> 09.005 ID=13 OD=22	8-98060-839-0	01	1	1509-	●
81	09.003 STAY ASM; CAB TILT FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> (B)	8-98123-308-0	01	1	1509-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98141-229-2	01	1	1506-1508	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98141-229-2	01	1	1509-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98141-229-2	01	1	1509-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97231-416-0	01	1	1506-1508	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97231-416-0	01	1	1509-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97231-416-0	01	1	1509-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (A)	8-98122-493-0	01	1	1506-1508	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (A)	8-98122-493-0	01	1	1509-	●	●
85	09.003 LEVER; LOCK,CAB STAY FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1509-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-97231-421-1	01	1	1506-1508	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97231-421-1	01	1	1509-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-97231-421-1	01	1	1509-		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1506-1508	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1509-	●	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1506-1508	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1509-	●	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1506-1508	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1509-	●	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1506-1508	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1509-	●	●
92	09.003 BRACKET; CAB STAY TO FRAME FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-97385-586-1	01	1	1509-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98049-333-1	01	1	1506-1508	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98049-333-1	01	1	1509-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98049-333-1	01	1	1509-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1506-1508	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1509-	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1506-1508	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1509-	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1506-1508	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1509-	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1506-1508	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1509-	●	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1506-1508	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1509-	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1506-1508	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1509-	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1506-1508	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1509-	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-1508	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1506-1508	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1509-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1506-1508	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1509-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1506-1508	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1509-	●	●
146	09.003 BRACKET ASM; CAB STAY UPR FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-98035-848-1	01	1	1509-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-98001-523-1	01	1	1506-1508	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98001-523-1	01	1	1509-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-98001-523-1	01	1	1509-		●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1506-1508	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1509-	●	●

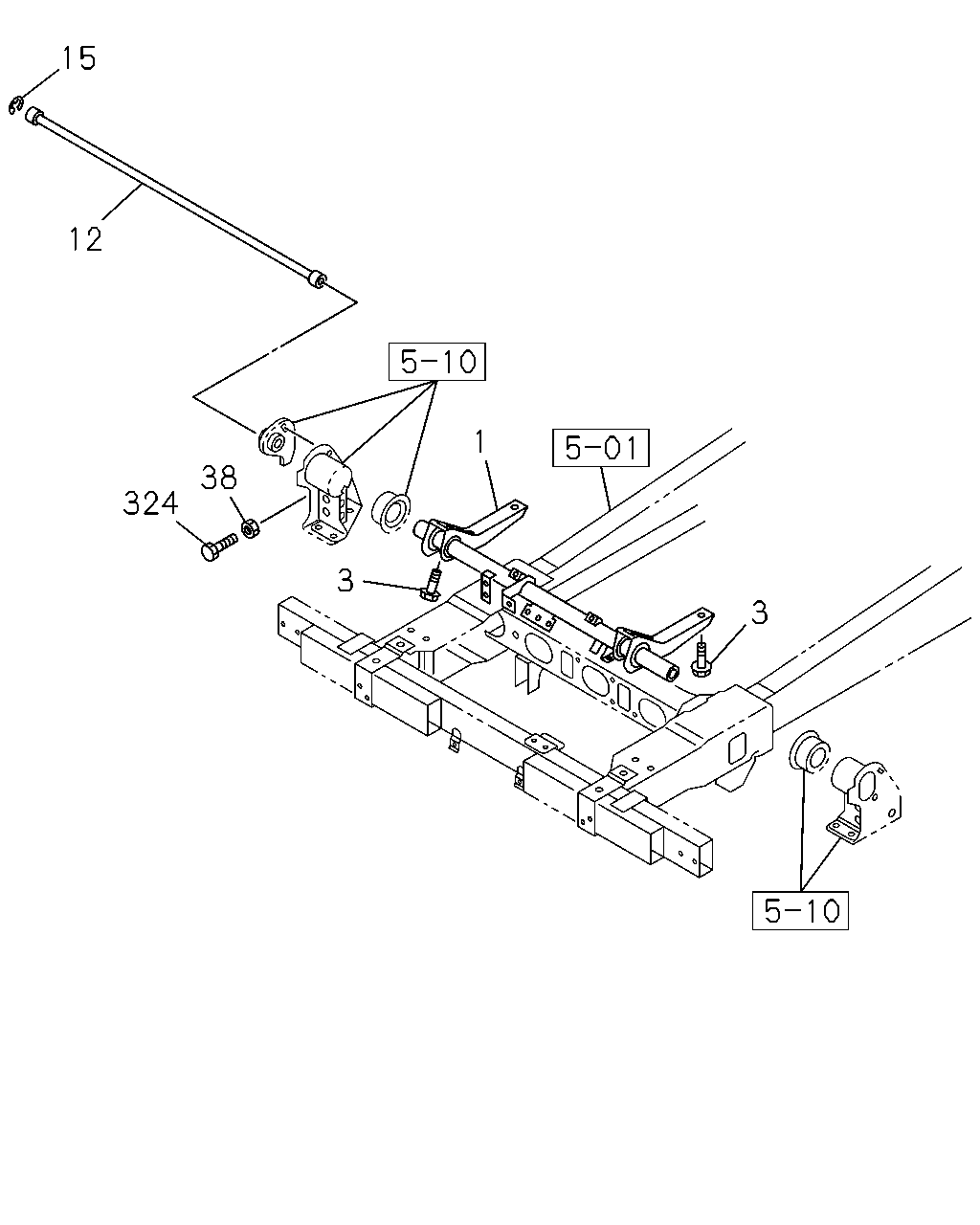

15 12 38 324 3 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.003 LEVER; TORSION BAR 4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ>	8-98020-095-4	01	1	1506-1508	●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98020-095-4	01	1	1509-	●	●
3	09.003 BOLT; LEVER 4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	1506-1508	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	1509-	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98021-033-0	01	1	1506-1508	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98021-033-0	01	1	1509-	●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	1506-1508	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	1509-	●	●
38	09.005 NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	1506-1508	●
38	09.005 NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	1509-	●	●
324	09.003 BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	1506-1508	●
324	09.003 BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	1509-	●	●

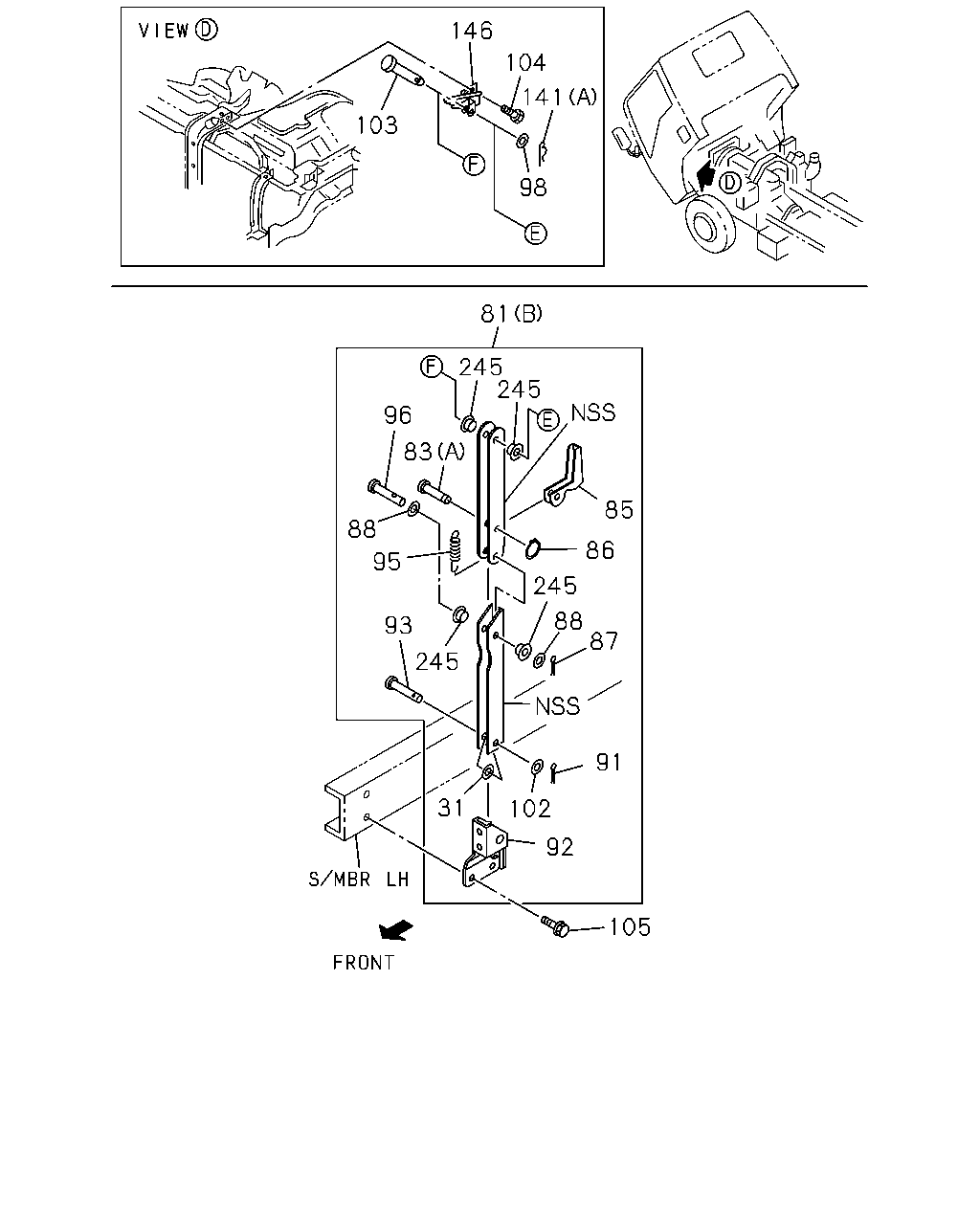

105 91 102 93 92 87 88 245 245 97 86 245 245 83 83 96 88 95 98 141 104 146 103 85 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	09.003 STAY ASM; CAB TILT FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> (B)	8-98123-308-0	01	1	1509-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98141-229-2	01	1	1506-1508	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98141-229-2	01	1	1509-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98141-229-2	01	1	1509-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97231-416-0	01	1	1506-1508	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97231-416-0	01	1	1509-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97231-416-0	01	1	1509-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (A)	8-98122-493-0	01	1	1506-1508	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (A)	8-98122-493-0	01	1	1509-	●	●
85	09.003 LEVER; LOCK,CAB STAY FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1509-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-97231-421-1	01	1	1506-1508	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97231-421-1	01	1	1509-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-97231-421-1	01	1	1509-		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1506-1508	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1509-	●	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1506-1508	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1509-	●	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1506-1508	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1509-	●	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1506-1508	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1509-	●	●
92	09.003 BRACKET; CAB STAY TO FRAME FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-97385-586-1	01	1	1509-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98049-333-1	01	1	1506-1508	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98049-333-1	01	1	1509-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98049-333-1	01	1	1509-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1506-1508	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1509-	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1506-1508	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1509-	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1506-1508	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1509-	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ>	8-97231-415-0	01	1	1506-1508	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97231-415-0	01	1	1509-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ>	8-97231-415-0	01	1	1509-		●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1506-1508	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1509-	●	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1506-1508	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1509-	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1506-1508	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1509-	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1506-1508	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1509-	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-1508	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1506-1508	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1509-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1506-1508	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1509-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1506-1508	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1509-	●	●
146	09.003 BRACKET ASM; CAB STAY UPR FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-98035-848-1	01	1	1509-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-98001-523-1	01	1	1506-1508	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98001-523-1	01	1	1509-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-98001-523-1	01	1	1509-		●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1506-1508	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1509-	●	●

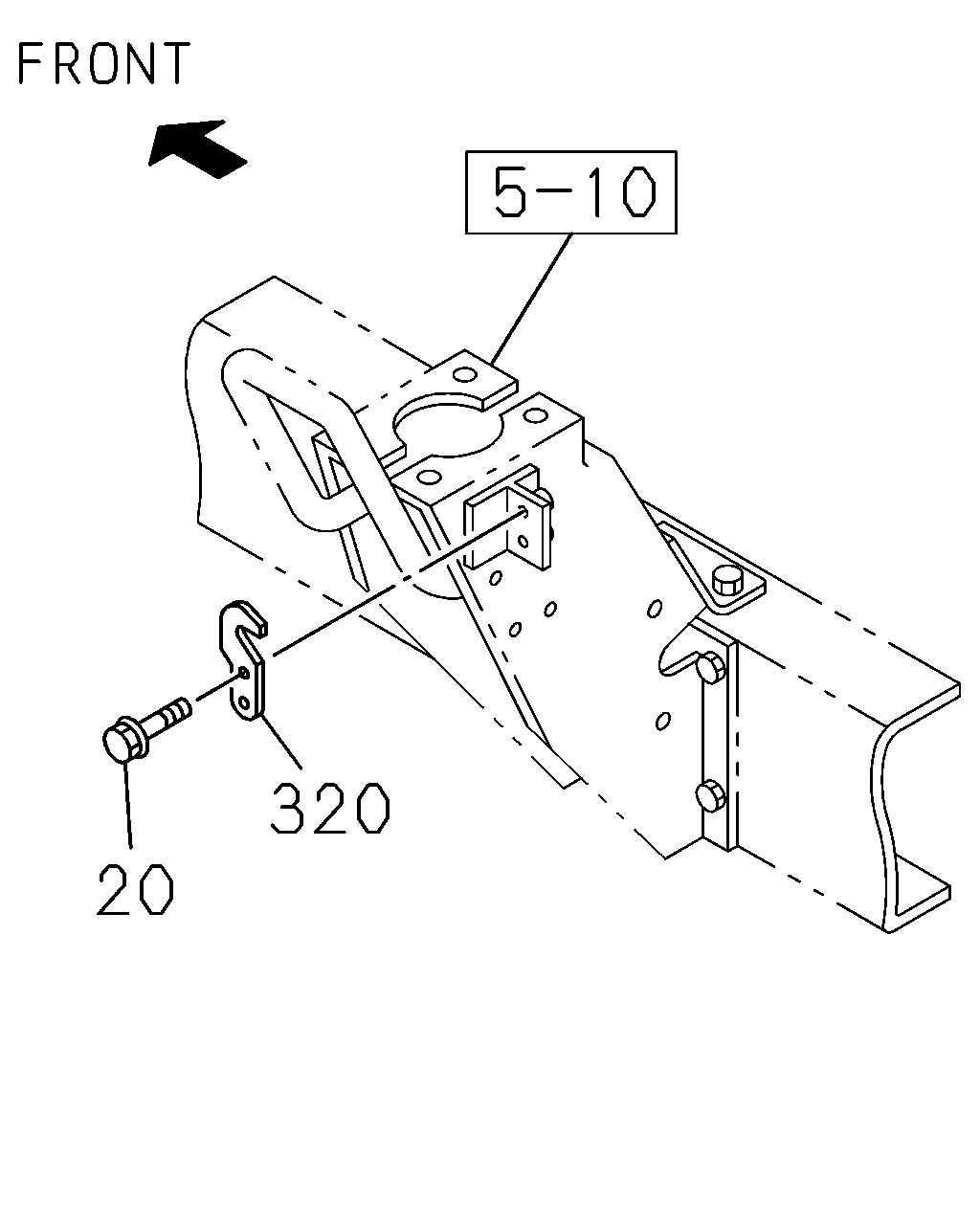

320 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	09.003 BOLT 4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	04	1	1506-1508	●
20	09.003 BOLT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	04	1	1509-	●
20	09.003 BOLT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	04	1	1509-		●
320	09.001 ANCHOR; CAB RR 4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ>	8-98089-546-0	02	1	1506-1508	●
320	09.001 ANCHOR; CAB RR TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ>	8-98089-546-0	02	1	1509-	●
320	09.001 ANCHOR; CAB RR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ>	8-98089-546-0	02	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
