Sayfa 4-80 - Isuzu EPC

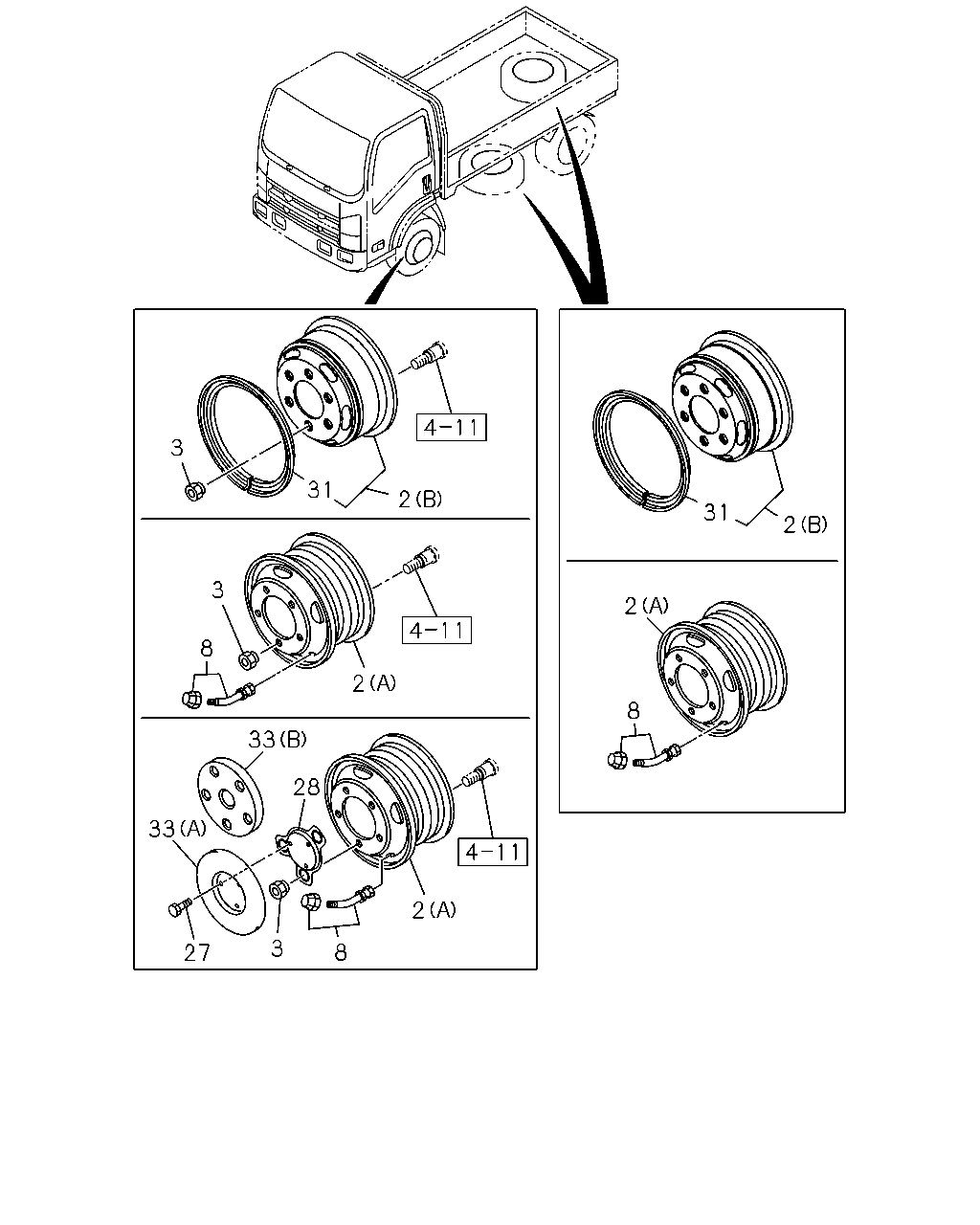

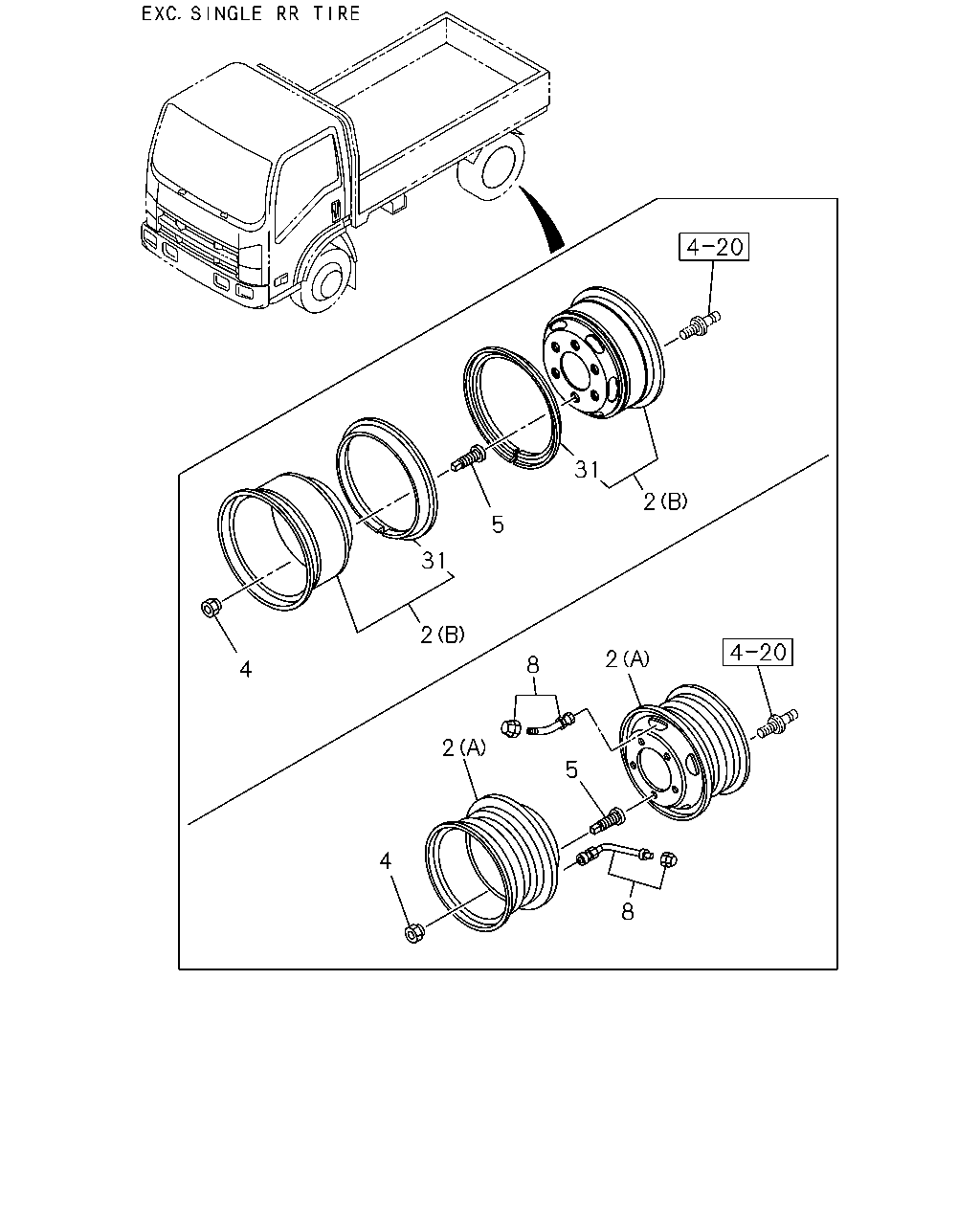

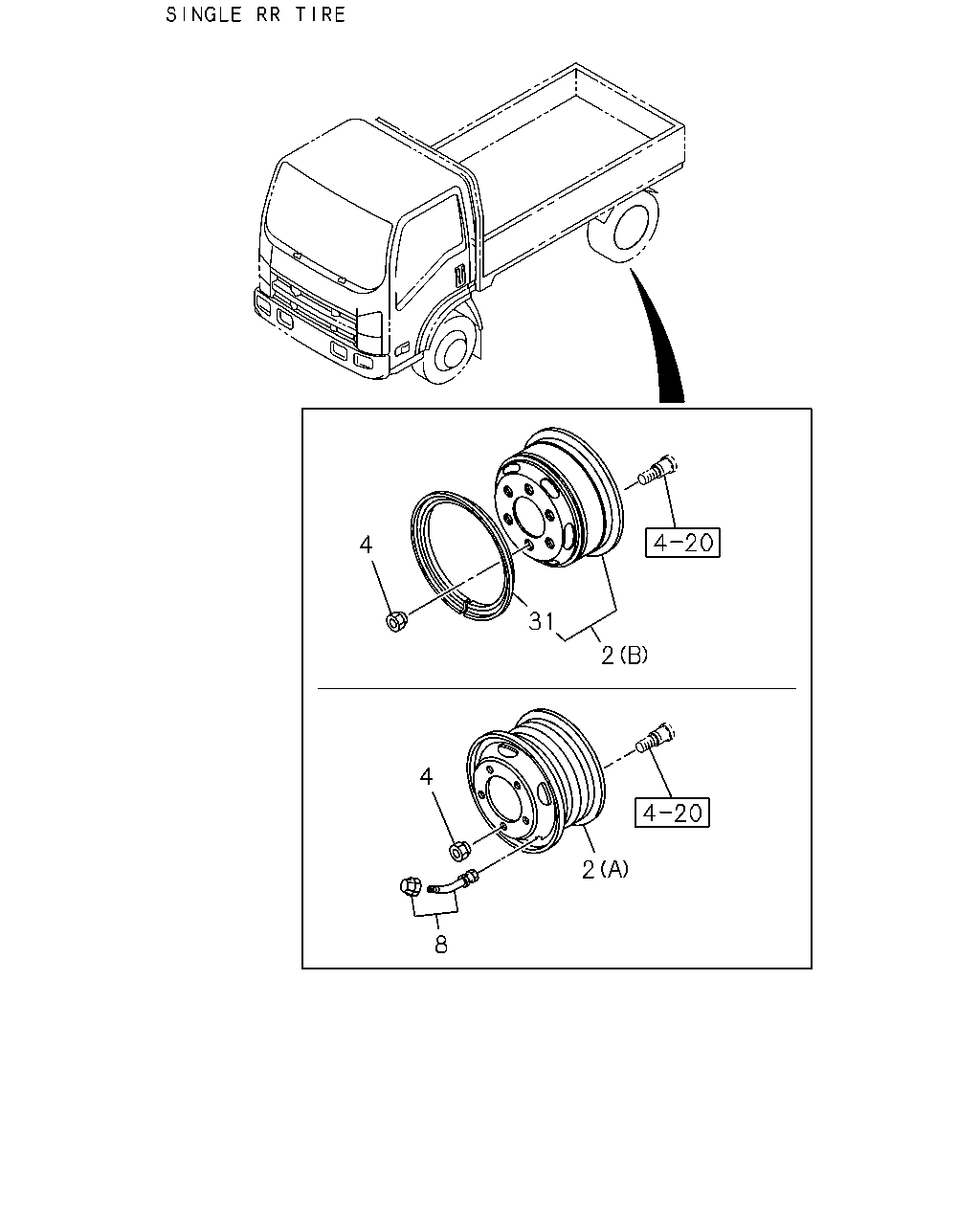

4-80 — ROAD WHEEL (#162228) — 142 parça

31 5 31 2 4 2 2 8 2 4 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1509-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	1509-	●
2	05.803 WHEEL; DISC F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE (CYQ) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	01	1	1509-	●
2	05.803 WHEEL; DISC F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE (CYQ) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	04	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	1509-		●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	1509-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	1509-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	1509-		●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1509-		●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1509-		●
4	05.813 NUT; WHEEL,RR AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5 .5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RI B 16X5.5J-85 SILVER(CYR) M14 RH THREAD	8-98007-905-0	06	1	1509-	●
4	05.813 NUT; WHEEL,RR AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5 .5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RI B 16X5.5J-85 SILVER(CYR) M14 LH THREAD	8-98007-906-0	06	1	1509-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1506-1508	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) M27 RH THREAD	8-98007-824-0	05	1	1509-	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) M27 RH THREAD	8-98007-824-0	05	1	1509-		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1506-1508	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) M27 LH THREAD	8-98007-825-0	05	1	1509-	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) M27 LH THREAD	8-98007-825-0	05	1	1509-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1506-1508	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1509-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1509-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1506-1508	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1509-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1509-		●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J -85 SILVER(CYR)	8-98221-106-0	04	1	1509-	●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR TIRE 205/75R16C DISC 16X5. 5J-85(CVK),FRT&RR 185/85R16 16X5.5J-116.5SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR),F&R 205/75R16C L .R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) SPARE	8-98221-106-0	01	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE	8-98221-106-0	01	1	1509-		●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) FRONT,REAR	8-98221-106-0	06	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) FRONT,REAR	8-98221-106-0	06	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	1509-		●

3 31 2 31 2 2 8 2 8 3 27 33 28 33 2 8 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1509-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	1509-	●
2	05.803 WHEEL; DISC F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE (CYQ) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	01	1	1509-	●
2	05.803 WHEEL; DISC F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE (CYQ) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	04	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	1509-		●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	1509-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	1509-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	1509-		●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1509-		●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1509-		●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5 .5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RI B 16X5.5J-85 SILVER(CYR) M14 RH THREAD	8-98007-905-0	06	1	1509-	●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5 .5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RI B 16X5.5J-85 SILVER(CYR) M14 LH THREAD	8-98007-906-0	06	1	1509-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1506-1508	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) M18 RH THREAD	8-98007-907-0	05	1	1509-	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) M18 RH THREAD	8-98007-907-0	05	1	1509-		●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1506-1508	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) M18 LH THREAD	8-98007-908-0	05	1	1509-	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) M18 LH THREAD	8-98007-908-0	05	1	1509-		●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J -85 SILVER(CYR)	8-98221-106-0	04	1	1509-	●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR TIRE 205/75R16C DISC 16X5. 5J-85(CVK),FRT&RR 185/85R16 16X5.5J-116.5SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR),F&R 205/75R16C L .R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) SPARE	8-98221-106-0	01	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE	8-98221-106-0	01	1	1509-		●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) FRONT,REAR	8-98221-106-0	06	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) FRONT,REAR	8-98221-106-0	06	1	1509-		●
27	05.871 BOLT; COVER RUSSIA EQUIPMENT(B12) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 02.343 M10X20 FLANGE	0-28651-020-0	06	1	1509-	●
27	05.871 BOLT; COVER RUSSIA EQUIPMENT(B12) 02.343 M10X20 FLANGE	0-28651-020-0	06	1	1509-		●
28	05.864 BRACKET; COVER FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) RUSSIA EQUIPMENT(B12) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD)	8-97169-249-0	02	1	1509-	●
28	05.864 BRACKET; COVER FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) RUSSIA EQUIPMENT(B12)	8-97169-249-0	02	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	1509-		●
33	05.858 COVER; WHEEL RUSSIA EQUIPMENT(B12) FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (B)	8-98083-921-0	02	1	1509-	●
33	05.858 COVER; WHEEL RUSSIA EQUIPMENT(B12) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (A)	8-97167-658-0	02	1	1509-	●
33	05.858 COVER; WHEEL RUSSIA EQUIPMENT(B12) (A)	8-97167-658-0	02	1	1509-		●

4 31 2 2 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1509-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	1509-	●
2	05.803 WHEEL; DISC F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE (CYQ) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	01	1	1509-	●
2	05.803 WHEEL; DISC F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE (CYQ) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	04	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	1509-		●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	1509-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	1509-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	1509-		●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1509-		●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1509-		●
4	05.813 NUT; WHEEL,RR AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5 .5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RI B 16X5.5J-85 SILVER(CYR) M14 RH THREAD	8-98007-905-0	06	1	1509-	●
4	05.813 NUT; WHEEL,RR AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5 .5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RI B 16X5.5J-85 SILVER(CYR) M14 LH THREAD	8-98007-906-0	06	1	1509-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1506-1508	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) M27 RH THREAD	8-98007-824-0	05	1	1509-	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) M27 RH THREAD	8-98007-824-0	05	1	1509-		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1506-1508	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) M27 LH THREAD	8-98007-825-0	05	1	1509-	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) M27 LH THREAD	8-98007-825-0	05	1	1509-		●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J -85 SILVER(CYR)	8-98221-106-0	04	1	1509-	●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR TIRE 205/75R16C DISC 16X5. 5J-85(CVK),FRT&RR 185/85R16 16X5.5J-116.5SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR),F&R 205/75R16C L .R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) SPARE	8-98221-106-0	01	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE	8-98221-106-0	01	1	1509-		●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) FRONT,REAR	8-98221-106-0	06	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) FRONT,REAR	8-98221-106-0	06	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
