4-61 — SHOCK ABSORBER; REAR SUSPENSION (#162226) — 123 parça

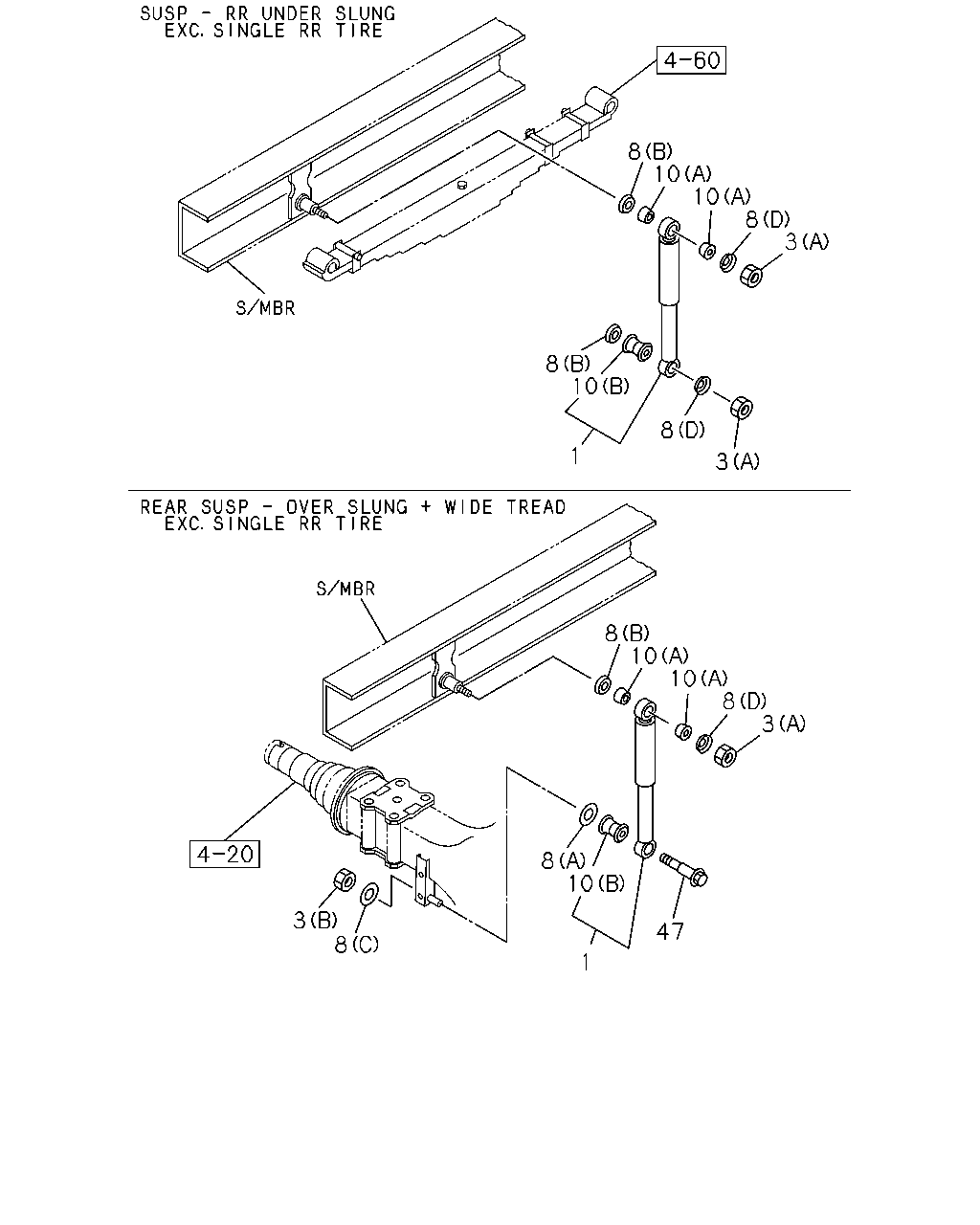

çizim 480261
1 10 8 8 3 47 3 8 10 10 8 3 8 1 10 8 3 8 10 10 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.395 ABSORBER ASM; SHOCK,RR
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98316-233-0 02 1 1509- ●
1 07.395 ABSORBER ASM; SHOCK,RR
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98316-233-0 02 1 1509- ●
1 07.395 ABSORBER ASM; SHOCK,RR
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98316-232-0 02 1 1509- ●
1 07.395 ABSORBER ASM; SHOCK,RR
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 		8-98040-034-2 02 1 1509- ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-654-2 02 1 1506-1508 ●
1 07.395 ABSORBER ASM; SHOCK,RR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-97253-654-2 02 1 1509- ●
3 07.347 NUT; S/ABS
SINGLE RR TIRE(6TD) 05.002 (C) M12 		0-91110-512-0 04 1 1509- ●
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 1506-1508 ●
3 07.347 NUT; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 07.833 (A) M14 		0-91110-514-0 02 1 1509-1509 ●
3 07.347 NUT; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> EXC. SINGLE RR TIRE(6TD) 07.833 (A) M14 		0-91110-514-0 02 1 1509-1509 ●
3 07.347 NUT; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 07.833 (A) M14 		0-91110-514-0 02 1 1509-1509 ●
3 07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD) 07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
00.785 (B) M16 		0-91111-516-0 02 1 1506-1508 ●
3 07.347 NUT; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 00.785 (B) M16 		0-91111-516-0 02 1 1509-1509 ●
3 07.347 NUT; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.785 (B) M16 		0-91111-516-0 02 1 1509-1509 ●
3 07.347 NUT; S/ABS
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.785 (B) M16 		0-91111-516-0 02 1 1510- ●
3 07.347 NUT; S/ABS
00.785 (B) M16 		0-91111-516-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (E) ID=16.5 		9-51679-021-0 04 1 1509- ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (F) ID=12.5 		9-51679-022-0 04 1 1509- ●
8 07.347 WASHER; S/ABS
(D) ID=15 		8-97360-056-0 02 1 1506-1508 ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) (D) ID=15 		8-97360-056-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> EXC. SINGLE RR TIRE(6TD) (D) ID=15 		8-97360-056-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (D) ID=15 		8-97360-056-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD) (D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
(D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
(B) ID=20.0 		8-97360-057-0 02 1 1506-1508 ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) (B) ID=20.0 		8-97360-057-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> EXC. SINGLE RR TIRE(6TD) (B) ID=20.0 		8-97360-057-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B) ID=20.0 		8-97360-057-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD) (B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
(B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
07.516 (A) ID=16.4 		8-97360-118-0 02 1 1506-1508 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 07.516 (A) ID=16.4 		8-97360-118-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
07.516 (A) ID=16.4 		8-97360-118-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
07.427 (C) ID=16.5 		8-98011-489-0 02 1 1506-1508 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 07.427 (C) ID=16.5 		8-98011-489-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 07.427 (C) ID=16.5 		8-98011-489-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 07.427 (C) ID=16.5 		8-98011-489-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
07.427 (C) ID=16.5 		8-98011-489-0 02 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1509- ●
10 07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD) 07.347 (A) KYB 		8-94132-727-1 04 1 1509-1509 ●
10 07.388 BUSHING; RUBBER,S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> SINGLE RR TIRE(6TD) 07.347 (A) KYB 		8-94132-727-1 04 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.347 (A) KYB 		8-94132-727-1 04 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.347 (A) KYB 		8-94132-727-1 04 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 1506-1508 ●
10 07.388 BUSHING; RUBBER,S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (B) TOKICO 		8-94382-149-0 02 1 1509- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1506-1508 ●
10 07.388 BUSHING; RUBBER,S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (A) TOKICO 		9-51631-014-0 04 1 1509-1509 ● ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. SINGLE RR TIRE(6TD) (A) TOKICO 		9-51631-014-0 04 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1510- ●
47 07.347 PIN; S/ABS SETTING 8-97316-972-0 02 1 1506-1508 ●
47 07.347 PIN; S/ABS SETTING
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-97316-972-0 02 1 1509-1509 ●
47 07.347 PIN; S/ABS SETTING
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-97316-972-0 02 1 1509-1509 ●
47 07.347 PIN; S/ABS SETTING
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97316-972-0 02 1 1510- ●
47 07.347 PIN; S/ABS SETTING 8-97316-972-0 02 1 1510- ●
çizim 492864
3 8 8 10 1 3 8 10 10 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.395 ABSORBER ASM; SHOCK,RR
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98316-233-0 02 1 1509- ●
1 07.395 ABSORBER ASM; SHOCK,RR
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98316-233-0 02 1 1509- ●
1 07.395 ABSORBER ASM; SHOCK,RR
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98316-232-0 02 1 1509- ●
1 07.395 ABSORBER ASM; SHOCK,RR
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 		8-98040-034-2 02 1 1509- ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-654-2 02 1 1506-1508 ●
1 07.395 ABSORBER ASM; SHOCK,RR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-97253-654-2 02 1 1509- ●
3 07.347 NUT; S/ABS
SINGLE RR TIRE(6TD) 05.002 (C) M12 		0-91110-512-0 04 1 1509- ●
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 1506-1508 ●
3 07.347 NUT; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 07.833 (A) M14 		0-91110-514-0 02 1 1509-1509 ●
3 07.347 NUT; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> EXC. SINGLE RR TIRE(6TD) 07.833 (A) M14 		0-91110-514-0 02 1 1509-1509 ●
3 07.347 NUT; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 07.833 (A) M14 		0-91110-514-0 02 1 1509-1509 ●
3 07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD) 07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
00.785 (B) M16 		0-91111-516-0 02 1 1506-1508 ●
3 07.347 NUT; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 00.785 (B) M16 		0-91111-516-0 02 1 1509-1509 ●
3 07.347 NUT; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.785 (B) M16 		0-91111-516-0 02 1 1509-1509 ●
3 07.347 NUT; S/ABS
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.785 (B) M16 		0-91111-516-0 02 1 1510- ●
3 07.347 NUT; S/ABS
00.785 (B) M16 		0-91111-516-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (E) ID=16.5 		9-51679-021-0 04 1 1509- ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (F) ID=12.5 		9-51679-022-0 04 1 1509- ●
8 07.347 WASHER; S/ABS
(D) ID=15 		8-97360-056-0 02 1 1506-1508 ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) (D) ID=15 		8-97360-056-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> EXC. SINGLE RR TIRE(6TD) (D) ID=15 		8-97360-056-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (D) ID=15 		8-97360-056-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD) (D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
(D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
(B) ID=20.0 		8-97360-057-0 02 1 1506-1508 ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) (B) ID=20.0 		8-97360-057-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> EXC. SINGLE RR TIRE(6TD) (B) ID=20.0 		8-97360-057-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B) ID=20.0 		8-97360-057-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD) (B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
(B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
07.516 (A) ID=16.4 		8-97360-118-0 02 1 1506-1508 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 07.516 (A) ID=16.4 		8-97360-118-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
07.516 (A) ID=16.4 		8-97360-118-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
07.427 (C) ID=16.5 		8-98011-489-0 02 1 1506-1508 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 07.427 (C) ID=16.5 		8-98011-489-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 07.427 (C) ID=16.5 		8-98011-489-0 02 1 1509-1509 ●
8 07.347 WASHER; S/ABS
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 07.427 (C) ID=16.5 		8-98011-489-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
07.427 (C) ID=16.5 		8-98011-489-0 02 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1509- ●
10 07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD) 07.347 (A) KYB 		8-94132-727-1 04 1 1509-1509 ●
10 07.388 BUSHING; RUBBER,S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> SINGLE RR TIRE(6TD) 07.347 (A) KYB 		8-94132-727-1 04 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.347 (A) KYB 		8-94132-727-1 04 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.347 (A) KYB 		8-94132-727-1 04 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 1506-1508 ●
10 07.388 BUSHING; RUBBER,S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (B) TOKICO 		8-94382-149-0 02 1 1509- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1506-1508 ●
10 07.388 BUSHING; RUBBER,S/ABS
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (A) TOKICO 		9-51631-014-0 04 1 1509-1509 ● ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. SINGLE RR TIRE(6TD) (A) TOKICO 		9-51631-014-0 04 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
