◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#162225) — 125 parça
çizim 480218
5 155 6 1 502 4 225 230 227
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM<FE1> G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 5-LEAF 		8-98048-271-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SINGLE RR TIRE(6TD) 5-LEAF 		8-98001-564-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 3-LEAF 		8-98001-543-1 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 5-LEAF 		8-98001-551-1 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SINGLE RR TIRE(6TD) 10-LEAF 		8-98022-373-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) G.V.W. 5.5-6.0TON(RPU) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) 10-LEAF 		8-98022-373-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS VAR.2(6GQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 6-LEAF 		8-98273-764-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) 2-LEAF 		8-98022-371-1 02 1 1506-1508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SINGLE RR TIRE(6TD) 2-LEAF 		8-98022-371-1 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) 2-LEAF 		8-98233-168-0 02 1 1506-1508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SINGLE RR TIRE(6TD) 2-LEAF 		8-98233-168-0 02 1 1509- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) L=235 		8-97262-039-0 04 1 1509- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) L=205 		8-94127-917-3 04 1 1509- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) L=245 		8-94127-921-3 04 1 1509- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS VAR.2(6GQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> L=245 		8-94127-921-3 04 1 1509- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) L=265 		8-94127-923-3 04 1 1509- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> L=265 		8-94127-923-3 04 1 1509- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> L=265 		8-94127-923-3 04 1 1509- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) G.V.W. 5.5-6.0TON(RPU) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. MINI BUS CHASSIS VAR.2(6GQ) L=265 		8-94127-923-3 04 1 1509- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W) L=215 		8-94127-918-3 04 1 1506-1508 ●
4 07.516 U-BOLT; RR SPR
AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) L=215 		8-94127-918-3 04 1 1509- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) L=235 		8-94127-920-3 04 1 1506-1508 ●
4 07.516 U-BOLT; RR SPR
AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) L=235 		8-94127-920-3 04 1 1509- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1506-1508 ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1509- ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1506-1508 ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1509- ● ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-360-4 01 1 1509- ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-361-4 01 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM<FE1> G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD) 		8-98187-340-0 02 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98002-085-1 02 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W) CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98002-085-1 02 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W) 		8-98021-554-0 02 1 1506-1508 ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) FULL FLATLOW<6GL> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 3300MM(33W) CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98021-554-0 02 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) G.V.W. 5.5-6.0TON(RPU) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98021-554-0 02 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98021-554-0 02 1 1509- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 3300MM(33W) 		8-98025-096-1 02 1 1506-1508 ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 		8-98025-096-1 02 1 1509- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1506-1508 ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1509- ● ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 2400MM(24W) CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-97136-853-0 02 1 1509- ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 2400MM(24W) 		8-97136-852-0 02 1 1506-1508 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-97136-852-0 02 1 1509- ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) G.V.W. 3.0-3.5TON(RPP) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-97136-852-0 02 1 1509- ●
230 07.518 SPACER; CUSHION RUBBER
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-97136-852-0 02 1 1509- ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3300MM(33W) 		8-98240-436-0 02 1 1506-1508 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98240-436-0 02 1 1509- ●
502 07.506 CLAMP; RR LEAF SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) L=176 T=8 		8-97136-907-0 02 1 1509- ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 		8-94113-325-2 01 1 1509- ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 		8-94113-326-2 01 1 1509- ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1506-1508 ●
502 07.506 CLAMP; RR LEAF SPR
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1509- ● ●
502 07.506 CLAMP; RR LEAF SPR
SINGLE RR TIRE(6TD) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1509- ●

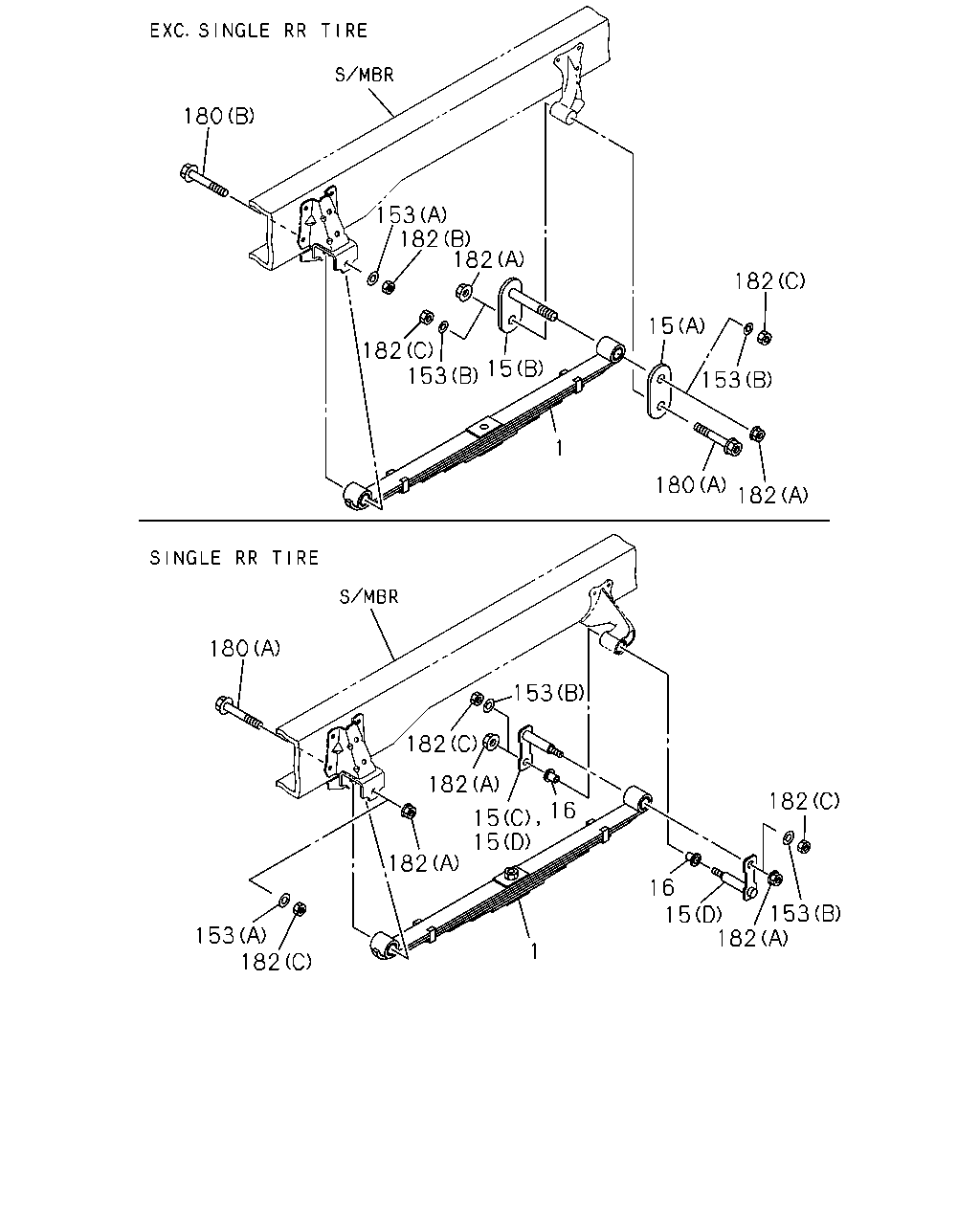

çizim 480276
180 153 182 182 182 153 15 153 15 1 180 182 182 180 153 182 182 15 15 182 182 153 16 1 16 15 182 153 182
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM<FE1> G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 5-LEAF 		8-98048-271-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SINGLE RR TIRE(6TD) 5-LEAF 		8-98001-564-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 3-LEAF 		8-98001-543-1 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 5-LEAF 		8-98001-551-1 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SINGLE RR TIRE(6TD) 10-LEAF 		8-98022-373-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) G.V.W. 5.5-6.0TON(RPU) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) 10-LEAF 		8-98022-373-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS VAR.2(6GQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 6-LEAF 		8-98273-764-0 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) 2-LEAF 		8-98022-371-1 02 1 1506-1508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SINGLE RR TIRE(6TD) 2-LEAF 		8-98022-371-1 02 1 1509- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) 2-LEAF 		8-98233-168-0 02 1 1506-1508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SINGLE RR TIRE(6TD) 2-LEAF 		8-98233-168-0 02 1 1509- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (D) 		8-94113-322-3 02 1 1509- ●
15 07.523 SHACKLE; RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-94113-322-3 02 1 1509- ●
15 07.523 SHACKLE; RR SPR
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (C) 		8-97033-966-1 02 1 1509- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1506-1508 ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (A) 		8-94118-511-3 02 1 1509- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1509- ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1506-1508 ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (B) 		8-97360-011-0 02 1 1509- ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1509- ●
16 07.524 BUSHING; SHACKLE,RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-94113-323-2 08 1 1509- ●
16 07.524 BUSHING; SHACKLE,RR SPR
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 1509- ●
16 07.524 BUSHING; SHACKLE,RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 08 1 1509- ●
16 07.524 BUSHING; SHACKLE,RR SPR
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 1509- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 07.427 (A) ID=16.5 		8-98011-489-0 02 1 1509- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 1506-1508 ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 1509- ● ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1506-1508 ●
153 07.529 WASHER; PL,SPRING PIN
EXC. SINGLE RR TIRE(6TD) (A) ID=19 		8-97360-119-0 02 1 1509- ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1509- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1506-1508 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1509- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1506-1508 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD) (B) M18X130 		8-98011-488-0 02 1 1509- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1509- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1506-1508 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1509- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1506-1508 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>,SINGLE RR TIRE(6TD) (B) M18X130 FLANGE 		8-97360-112-0 02 1 1509- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1509- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 06.509 (C) M16 		0-91110-516-0 02 1 1509- ●
182 07.529 NUT; PIN,RR SPR
SINGLE RR TIRE(6TD) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 1509- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 1506-1508 ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 1509- ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1506-1508 ●
182 07.529 NUT; PIN,RR SPR
EXC. SINGLE RR TIRE(6TD) (B) M18 		0-91110-518-0 02 1 1509- ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1509- ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1506-1508 ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1509- ● ●

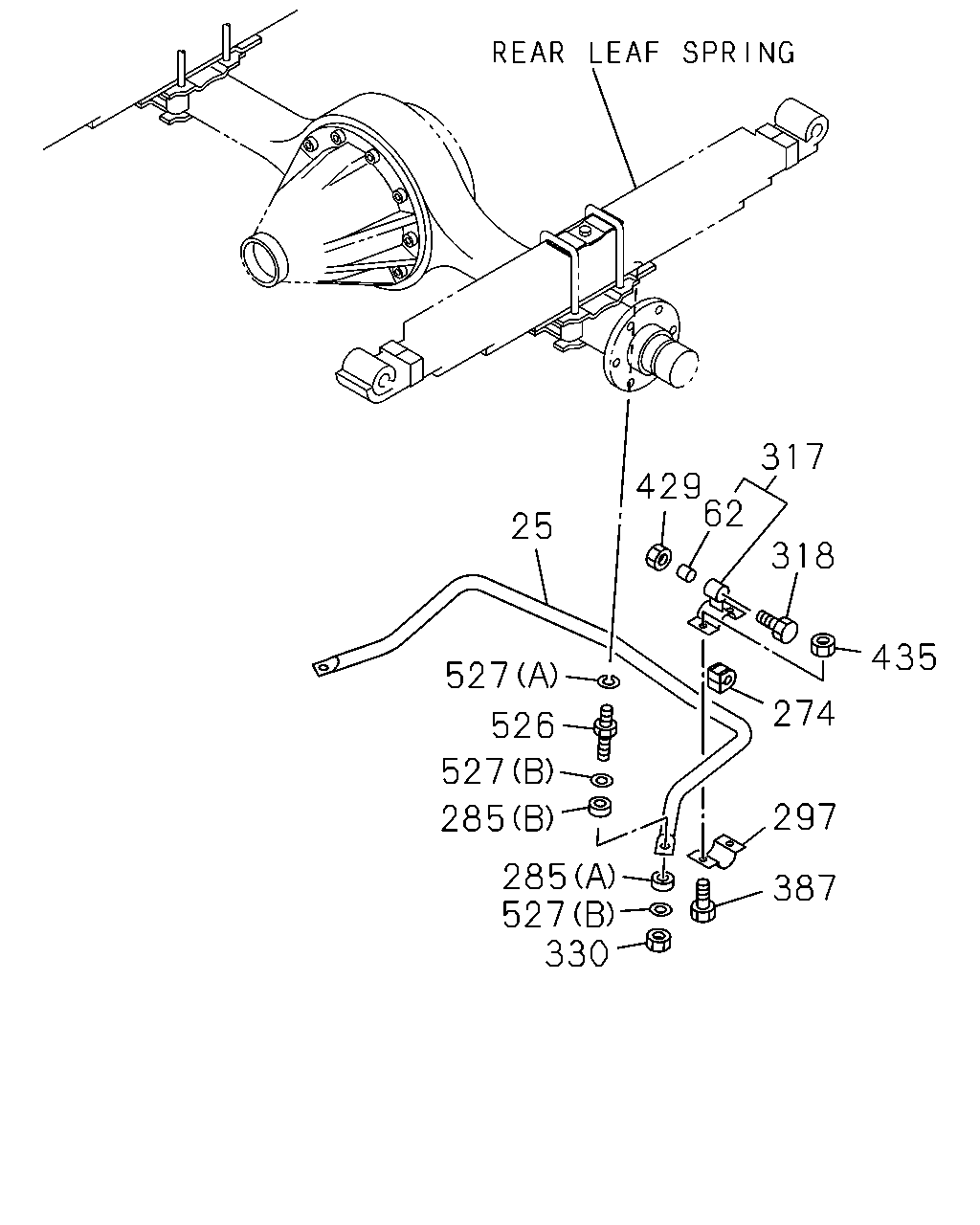

çizim 492815
387 297 330 527 274 285 285 526 527 527 435 318 317 62 429 25
BalonParca AdiParca NoAdetTipApplied Date A B
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-97043-370-1 01 1 1509- ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-97239-911-0 02 1 1509- ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-94433-867-0 02 1 1509- ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (A) L=18 		8-97089-556-0 02 1 1509- ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B) L=29 		8-97089-557-0 02 1 1509- ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-94178-430-2 02 1 1509- ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-97239-907-0 02 1 1509- ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> M14X70 FLANGE 		0-28851-470-0 02 1 1509- ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> M12 LOCK NUT 		0-91370-012-0 02 1 1509- ●
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1509- ●
429 07.242 NUT; LINK
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 06.174 M14 FLANGE 		8-97360-124-0 02 1 1509- ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
526 07.535 STUD; STABILIZER
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 07.242 		8-97360-120-0 02 1 1509- ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 1509- ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B) 		8-97360-055-0 04 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
