◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#162220) — 6 parça

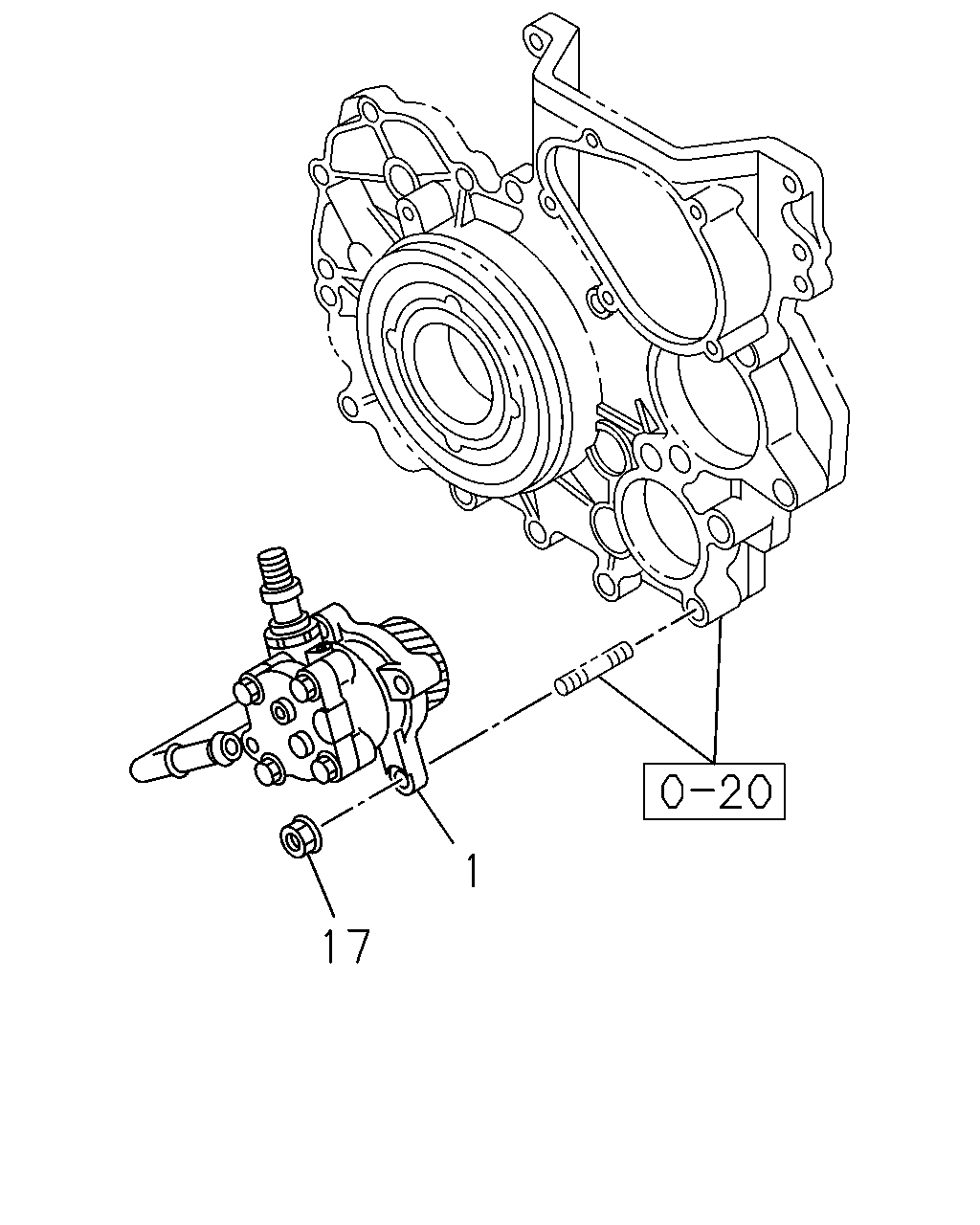

çizim 480332
1 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. FRT INDEPENDENT SUSPENSION(FF0) 		8-98006-823-4 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98043-205-4 01 1 1506-1508 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-205-4 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98043-205-4 01 1 1509- ●
17 06.606 NUT; POWER STRG PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1506-1508 ●
17 06.606 NUT; POWER STRG PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1509- ● ●
