Sayfa 4-35 - Isuzu EPC

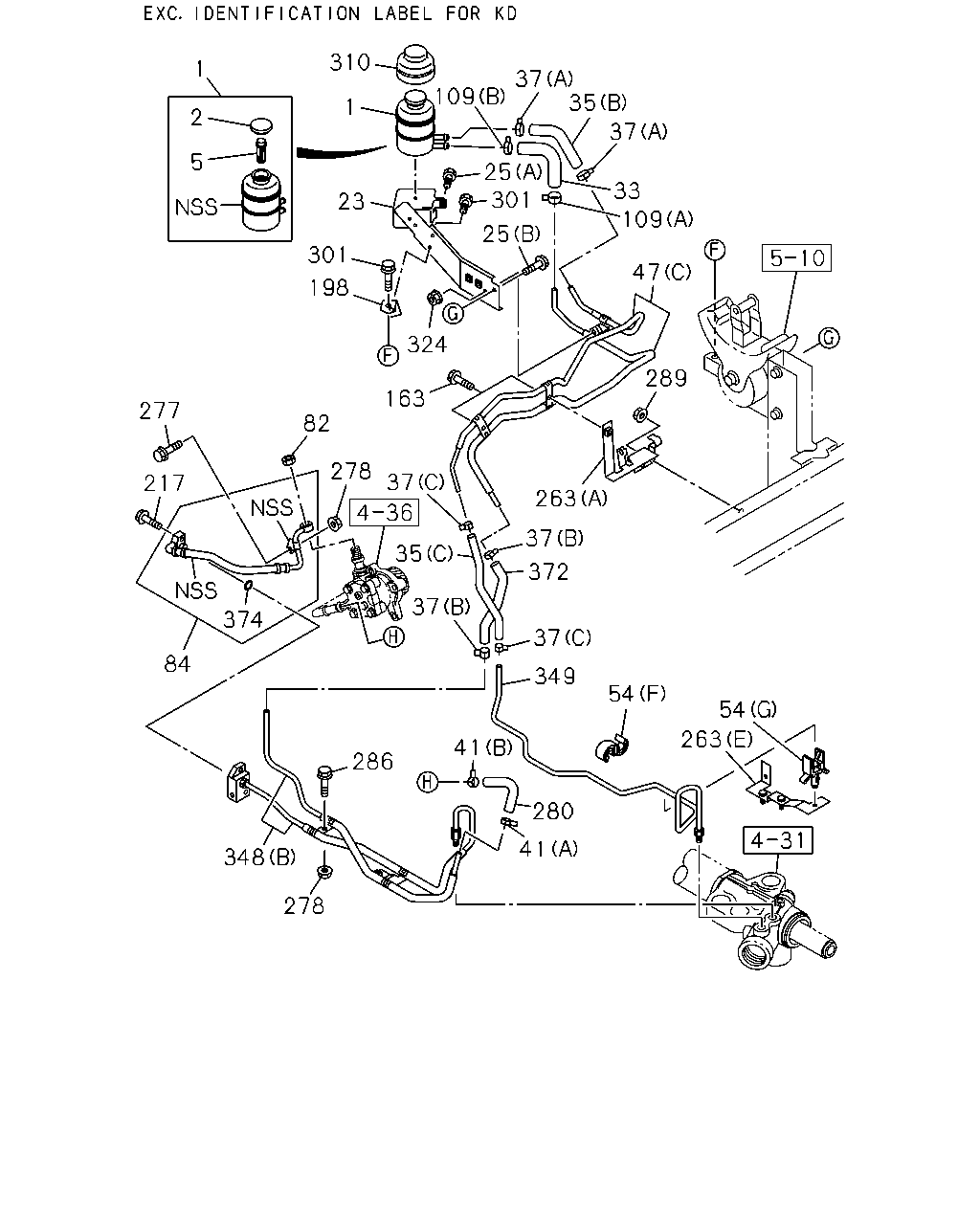

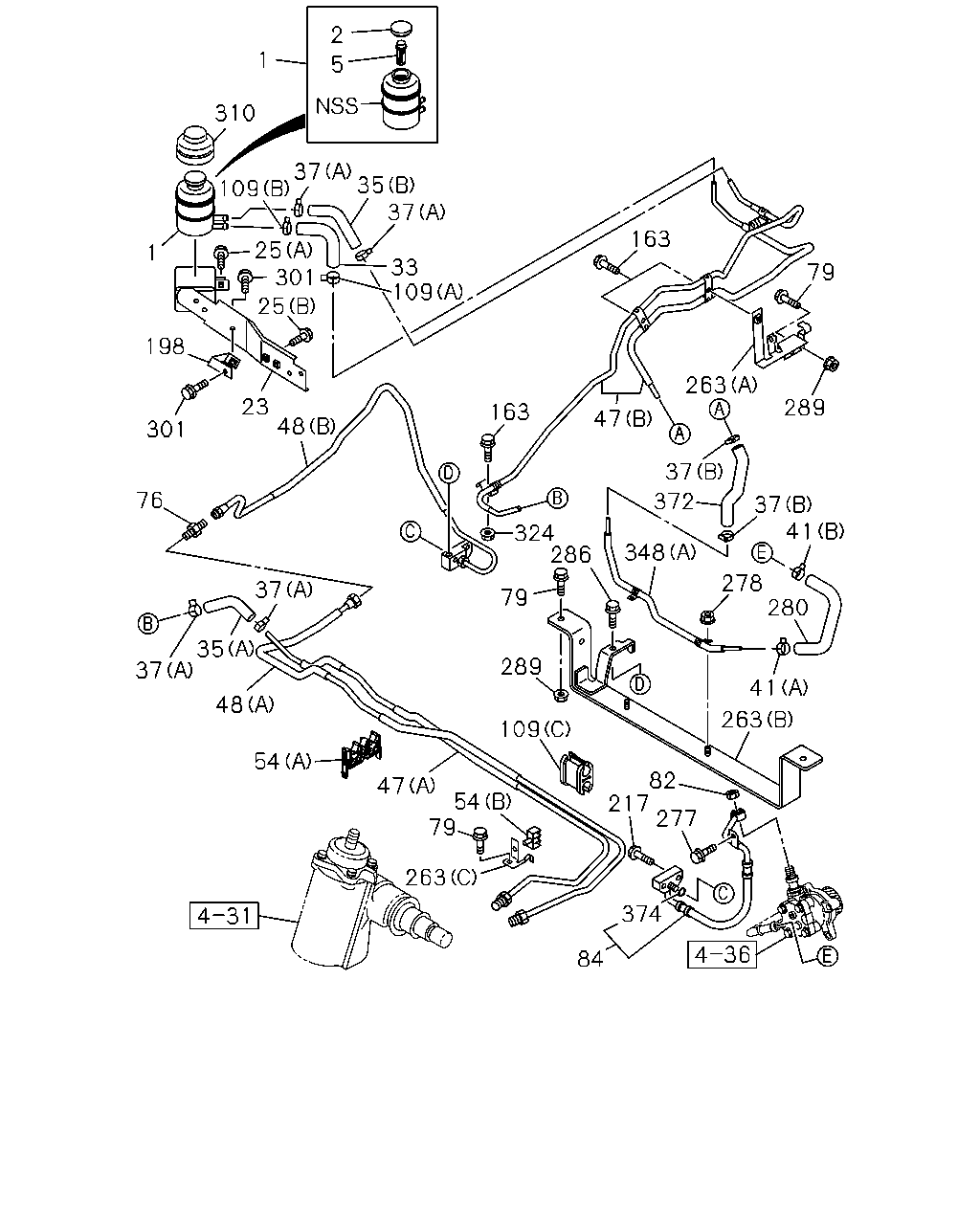

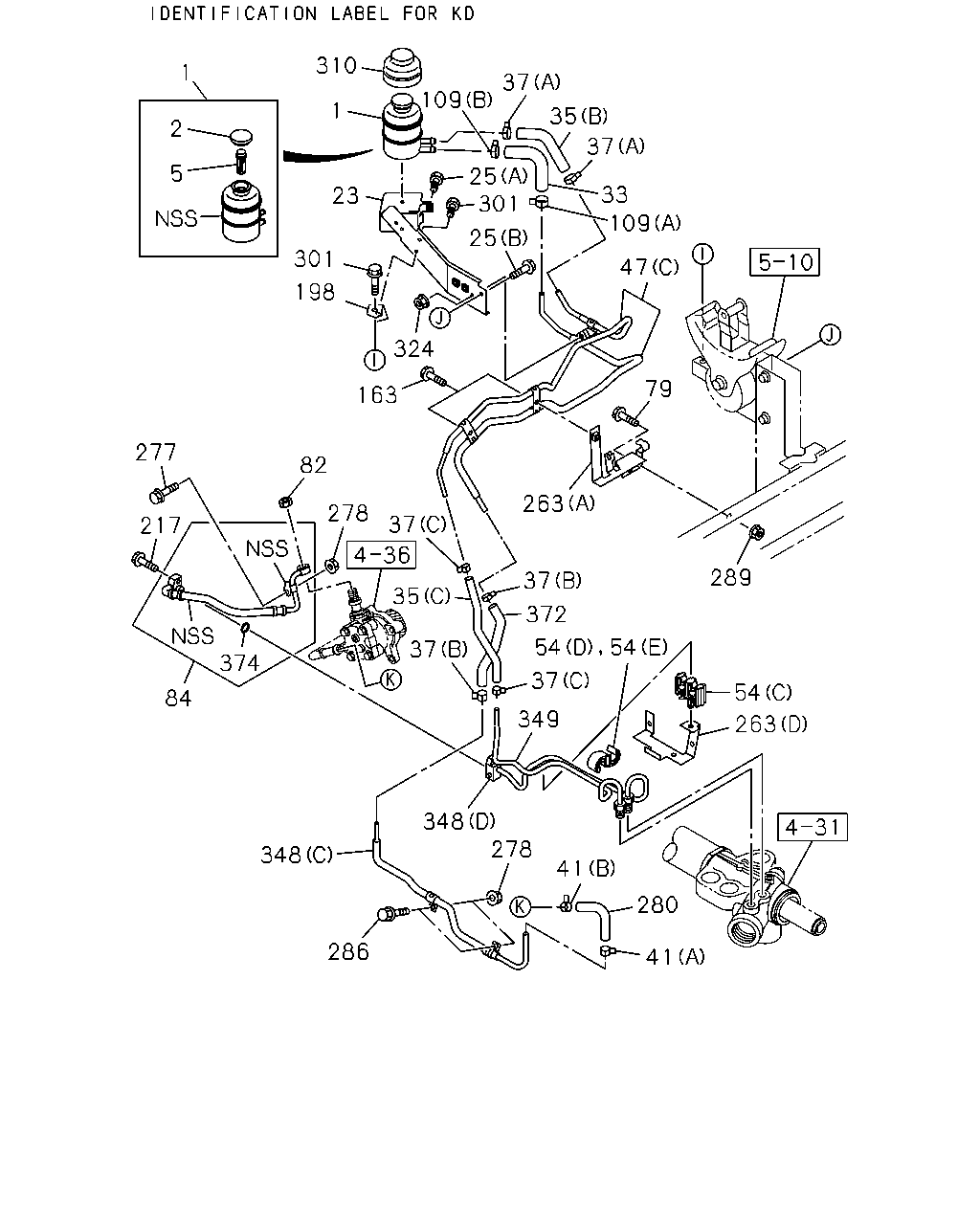

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#162219) — 397 parça

37 35 37 48 54 47 54 109 82 277 217 84 374 263 41 280 41 37 289 263 47 163 79 163 324 79 286 348 372 37 2 5 1 310 37 35 37 109 1 25 301 25 23 301 198 33 109 79 263 278 76 48 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1506-1508	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1509-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1506-1508	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1509-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1506-1508	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1509-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1506-1508	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1509-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1506-1508	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1509-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1506-1508	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1509-	●	●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1509-	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1506-1508	●
35	06.671 HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1509-	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1509-		●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1506-1508	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1509-	●	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1509-	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1509-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1506-1508	●
37	01.762 CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1509-		●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1506-1508	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1509-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1506-1508	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1509-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1506-1508	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1509-	●	●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1509-	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1509-		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98173-324-0	01	1	1509-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98203-811-0	01	1	1509-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1506-1508	●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1509-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1509-		●
47	06.671 PIPE; RETURN (B)	8-98203-813-0	01	1	1506-1508	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98203-813-0	01	1	1509-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98203-813-0	01	1	1509-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1506-1508	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=1337	8-98125-313-0	01	1	1509-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1509-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1506-1508	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-106-0	01	1	1509-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1509-		●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.866 (D) ID=10 & 10	1-09709-277-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=10 & 15	1-09709-279-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.930 (G) ID=10 H=40	8-94462-219-0	01	1	1509-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1506-1508	●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1509-		●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1506-1508	●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1509-	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1509-		●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1506-1508	●
76	06.673 UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1509-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1509-	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1506-1508	●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1509-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1506-1508	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1509-	●	●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1509-	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1506-1508	●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1509-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1506-1508	●
109	06.672 CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1509-	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1509-		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1506-1508	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1509-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1506-1508	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1509-	●	●
163	06.671 BOLT; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1506-1508	●
163	06.671 BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1509-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1509-		●
198	06.672 STAY; OIL TANK,POWER STEERING CHILE EQUIPMENT(KE1)	8-98011-885-1	01	1	1509-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1506-1508	●
198	06.672 STAY; OIL TANK,POWER STEERING TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12)	8-98082-763-0	01	1	1509-	●
198	06.672 STAY; OIL TANK,POWER STEERING TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12)	8-98082-763-0	01	1	1509-		●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1506-1508	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98008-078-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) (A)	8-98008-078-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98063-136-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98045-688-1	01	1	1509-	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98138-713-1	01	1	1509-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98203-818-0	01	1	1506-1508	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98203-818-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98250-108-0	01	1	1506-1508	●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-108-0	01	1	1509-	●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-1508	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-		●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1509-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1506-1508	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1509-	●	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1509-	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1506-1508	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1509-	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0), CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1506-1508	●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 M12 FLANGE	0-91180-112-0	01	1	1509-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1506-1508	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1509-	●	●
324	06.660 NUT; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	03	1	1506-1508	●
324	06.660 NUT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	03	1	1509-	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	03	1	1509-		●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98045-722-1	01	1	1509-	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98156-812-0	01	1	1509-	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-813-0	01	1	1509-	●
348	06.671 PIPE; OIL,P/S PRESS (A)	8-98250-107-0	01	1	1506-1508	●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98250-107-0	01	1	1509-	●	●
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1509-	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1506-1508	●
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1509-	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1506-1508	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1509-	●	●

47 109 37 25 25 23 301 198 1 2 5 1 310 109 37 35 33 301 324 163 263 289 54 263 54 37 372 37 278 37 82 277 217 84 374 37 35 54 41 278 348 348 280 79 41 286 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1506-1508	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1509-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1506-1508	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1509-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1506-1508	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1509-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1506-1508	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1509-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1506-1508	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1509-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1506-1508	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1509-	●	●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1509-	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1506-1508	●
35	06.671 HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1509-	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1509-		●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1506-1508	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1509-	●	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1509-	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1509-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1506-1508	●
37	01.762 CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1509-		●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1506-1508	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1509-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1506-1508	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1509-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1506-1508	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1509-	●	●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1509-	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1509-		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98173-324-0	01	1	1509-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98203-811-0	01	1	1509-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1506-1508	●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1509-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1509-		●
47	06.671 PIPE; RETURN (B)	8-98203-813-0	01	1	1506-1508	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98203-813-0	01	1	1509-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98203-813-0	01	1	1509-		●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.866 (D) ID=10 & 10	1-09709-277-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=10 & 15	1-09709-279-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.930 (G) ID=10 H=40	8-94462-219-0	01	1	1509-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1506-1508	●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1509-		●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1506-1508	●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1509-	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1509-		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1509-	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1506-1508	●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1509-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1506-1508	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1509-	●	●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1509-	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1506-1508	●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1509-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1506-1508	●
109	06.672 CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1509-	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1509-		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1506-1508	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1509-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1506-1508	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1509-	●	●
163	06.671 BOLT; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1506-1508	●
163	06.671 BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1509-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1509-		●
198	06.672 STAY; OIL TANK,POWER STEERING CHILE EQUIPMENT(KE1)	8-98011-885-1	01	1	1509-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1506-1508	●
198	06.672 STAY; OIL TANK,POWER STEERING TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12)	8-98082-763-0	01	1	1509-	●
198	06.672 STAY; OIL TANK,POWER STEERING TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12)	8-98082-763-0	01	1	1509-		●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1506-1508	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98008-078-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) (A)	8-98008-078-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98063-136-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98045-688-1	01	1	1509-	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98138-713-1	01	1	1509-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98203-818-0	01	1	1506-1508	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98203-818-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98250-108-0	01	1	1506-1508	●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-108-0	01	1	1509-	●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-1508	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-		●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1509-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1506-1508	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1509-	●	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1509-	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1506-1508	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1509-	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0), CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1506-1508	●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 M12 FLANGE	0-91180-112-0	01	1	1509-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1506-1508	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1509-	●	●
324	06.660 NUT; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	03	1	1506-1508	●
324	06.660 NUT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	03	1	1509-	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	03	1	1509-		●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98045-722-1	01	1	1509-	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98156-812-0	01	1	1509-	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-813-0	01	1	1509-	●
348	06.671 PIPE; OIL,P/S PRESS (A)	8-98250-107-0	01	1	1506-1508	●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98250-107-0	01	1	1509-	●	●
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT>	8-98148-145-0	01	1	1509-	●
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98148-146-0	01	1	1509-	●
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1509-	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1506-1508	●
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1509-	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1506-1508	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1509-	●	●

54 263 54 349 41 280 41 286 348 278 374 84 277 217 82 278 37 263 372 37 35 37 289 47 109 33 37 35 37 109 310 1 2 5 23 1 301 198 324 163 25 301 25 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1506-1508	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1509-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1506-1508	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1509-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1506-1508	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1509-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1506-1508	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1509-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1506-1508	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1509-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1506-1508	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1509-	●	●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1509-	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1506-1508	●
35	06.671 HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1509-	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1509-		●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1506-1508	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1509-	●	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1509-	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1509-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1506-1508	●
37	01.762 CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1509-		●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1506-1508	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1509-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1506-1508	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1509-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1506-1508	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1509-	●	●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1509-	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1509-		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98173-324-0	01	1	1509-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98203-811-0	01	1	1509-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1506-1508	●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1509-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1509-		●
47	06.671 PIPE; RETURN (B)	8-98203-813-0	01	1	1506-1508	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98203-813-0	01	1	1509-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98203-813-0	01	1	1509-		●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.866 (D) ID=10 & 10	1-09709-277-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=10 & 15	1-09709-279-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.930 (G) ID=10 H=40	8-94462-219-0	01	1	1509-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1506-1508	●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1509-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1509-		●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1506-1508	●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1509-	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1509-		●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1506-1508	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1509-	●	●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1509-	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1506-1508	●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1509-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1506-1508	●
109	06.672 CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1509-	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1509-		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1506-1508	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1509-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1506-1508	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1509-	●	●
163	06.671 BOLT; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1506-1508	●
163	06.671 BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1509-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1509-		●
198	06.672 STAY; OIL TANK,POWER STEERING CHILE EQUIPMENT(KE1)	8-98011-885-1	01	1	1509-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1506-1508	●
198	06.672 STAY; OIL TANK,POWER STEERING TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12)	8-98082-763-0	01	1	1509-	●
198	06.672 STAY; OIL TANK,POWER STEERING TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12)	8-98082-763-0	01	1	1509-		●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1506-1508	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98008-078-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) (A)	8-98008-078-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98063-136-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98045-688-1	01	1	1509-	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98138-713-1	01	1	1509-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98203-818-0	01	1	1506-1508	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98203-818-0	01	1	1509-	●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98250-108-0	01	1	1506-1508	●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-108-0	01	1	1509-	●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-1508	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-		●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1509-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1506-1508	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1509-	●	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1509-	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1506-1508	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1509-	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0), CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1506-1508	●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 M12 FLANGE	0-91180-112-0	01	1	1509-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1506-1508	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1509-	●	●
324	06.660 NUT; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	03	1	1506-1508	●
324	06.660 NUT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	03	1	1509-	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	03	1	1509-		●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98045-722-1	01	1	1509-	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98156-812-0	01	1	1509-	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-813-0	01	1	1509-	●
348	06.671 PIPE; OIL,P/S PRESS (A)	8-98250-107-0	01	1	1506-1508	●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98250-107-0	01	1	1509-	●	●
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT>	8-98148-145-0	01	1	1509-	●
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98148-146-0	01	1	1509-	●
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1509-	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1506-1508	●
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1509-	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1506-1508	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
