4-31 — STEERING COLUMN AND SHAFT (#162217) — 85 parça

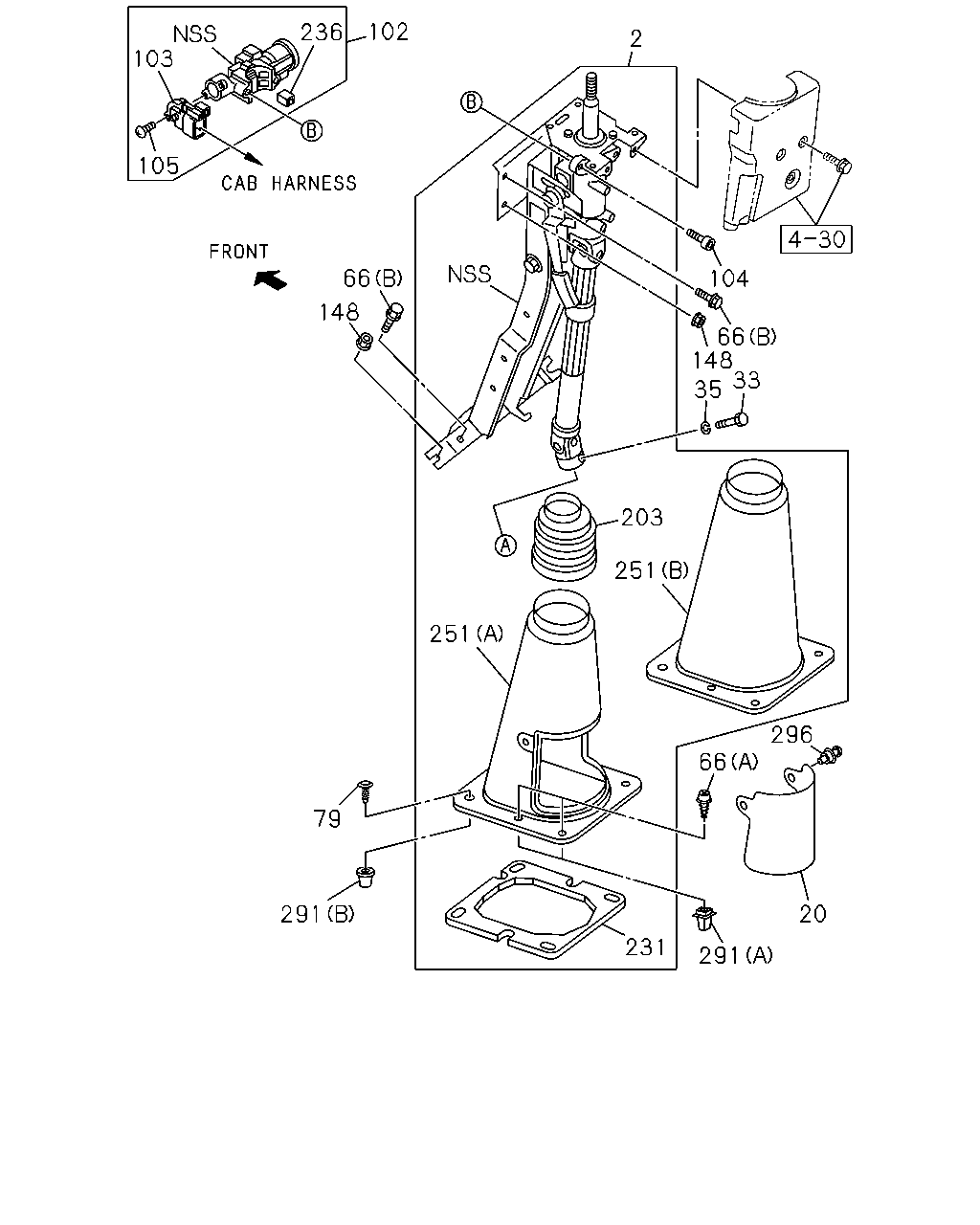

103 236 102 105 2 104 66 148 35 33 203 251 251 66 296 20 291 231 291 79 148 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	06.518 SHAFT ASM; STRG FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> BLACK	8-97418-802-2	01	1	1509-	●
2	06.518 SHAFT ASM; STRG FRT INDEPENDENT SUSPENSION(FF0) EXC. MANUAL TILT CAB<RWZ> BLACK	8-97406-375-8	01	1	1509-	●
2	06.518 SHAFT ASM; STRG MANUAL TILT CAB<RWZ> BLACK	8-97418-801-2	01	1	1506-1508	●
2	06.518 SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0) BLACK	8-97418-801-2	01	1	1509-	●	●
2	06.518 SHAFT ASM; STRG EXC. MANUAL TILT CAB<RWZ> BLACK	8-97405-355-8	01	1	1506-1508	●
2	06.518 SHAFT ASM; STRG EXC. FRT INDEPENDENT SUSPENSION(FF0), MANUAL TILT CAB<RWZ> BLACK	8-97405-355-8	01	1	1509-	●	●
20	06.525 COVER; STRG SHAFT EXC. MANUAL TILT CAB<RWZ> BLACK	8-97405-159-0	01	1	1506-1508	●
20	06.525 COVER; STRG SHAFT EXC. MANUAL TILT CAB<RWZ> BLACK	8-97405-159-0	01	1	1509-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	1506-1508	●
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	1509-	●	●
35	06.525 WASHER; LK,STRG SHAFT 02.559 ID=8.2	0-91510-808-0	01	1	1506-1508	●
35	06.525 WASHER; LK,STRG SHAFT 02.559 ID=8.2	0-91510-808-0	01	1	1509-	●	●
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1506-1508	●
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1509-	●	●
66	06.514 BOLT; STRG COLUMN (A) M5X18 TAPPING	0-72180-518-0	04	1	1506-1508	●
66	06.514 BOLT; STRG COLUMN (A) M5X18 TAPPING	0-72180-518-0	04	1	1509-	●	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1506-1508	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1509-	●	●
79	06.760 CLIP; STRG COLUMN COVER 16.800 L=19 BLACK	8-94363-776-0	02	1	1506-1508	●
79	06.760 CLIP; STRG COLUMN COVER 16.800 L=19 BLACK	8-94363-776-0	02	1	1509-	●	●
102	06.500 LOCK ASM; STRG	8-97387-036-0	01	1	1506-1508	●
102	06.500 LOCK ASM; STRG TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97387-036-0	01	1	1509-	●	●
103	02.188 SWITCH; IGNITION	8-98045-349-0	01	1	1506-1508	●
103	02.188 SWITCH; IGNITION TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98045-349-0	01	1	1509-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN M8X20 TORQUE SHEAR BOLT	8-97321-385-0	02	1	1506-1508	●
104	06.500 BOLT; STRG LOCK TO COLUMN M8X20 TORQUE SHEAR BOLT	8-97321-385-0	02	1	1509-	●	●
105	06.500 SCREW; IGN SW	8-98045-346-0	02	1	1506-1508	●
105	06.500 SCREW; IGN SW TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98045-346-0	02	1	1509-	●	●
148	06.514 NUT; COLUMN TO BRKT 01.840 M8 W/DISHED WASHER	8-97329-625-0	03	1	1506-1508	●
148	06.514 NUT; COLUMN TO BRKT 01.840 M8 W/DISHED WASHER	8-97329-625-0	03	1	1509-	●	●
203	06.525 BOOT; STRG COLUMN LWR	8-98137-331-0	01	1	1506-1508	●
203	06.525 BOOT; STRG COLUMN LWR	8-98137-331-0	01	1	1509-	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-98137-329-0	01	1	1506-1508	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-98137-329-0	01	1	1509-	●	●
236	02.195 SWITCH; DOOR WARNING,STRG LOCK	8-98045-350-0	01	1	1506-1508	●
236	02.195 SWITCH; DOOR WARNING,STRG LOCK TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98045-350-0	01	1	1509-	●	●
251	06.518 COVER; LWR MANUAL TILT CAB<RWZ> (B) BLACK	8-97418-804-0	01	1	1506-1508	●
251	06.518 COVER; LWR MANUAL TILT CAB<RWZ> (B) BLACK	8-97418-804-0	01	1	1509-	●	●
251	06.518 COVER; LWR EXC. MANUAL TILT CAB<RWZ> (A) BLACK	8-97417-049-0	01	1	1506-1508	●
251	06.518 COVER; LWR EXC. MANUAL TILT CAB<RWZ> (A) BLACK	8-97417-049-0	01	1	1509-	●	●
291	06.518 GROMMET; STRG SHAFT COVER 04.931 (A) H=15	8-94463-268-1	04	1	1506-1508	●
291	06.518 GROMMET; STRG SHAFT COVER 04.931 (A) H=15	8-94463-268-1	04	1	1509-	●	●
291	06.518 GROMMET; STRG SHAFT COVER (B)	8-98029-442-1	02	1	1506-1508	●
291	06.518 GROMMET; STRG SHAFT COVER (B)	8-98029-442-1	02	1	1509-	●	●
296	06.525 CLIP; COVER EXC. MANUAL TILT CAB<RWZ> BLACK	8-97868-409-0	01	1	1506-1508	●
296	06.525 CLIP; COVER EXC. MANUAL TILT CAB<RWZ> BLACK	8-97868-409-0	01	1	1509-	●	●

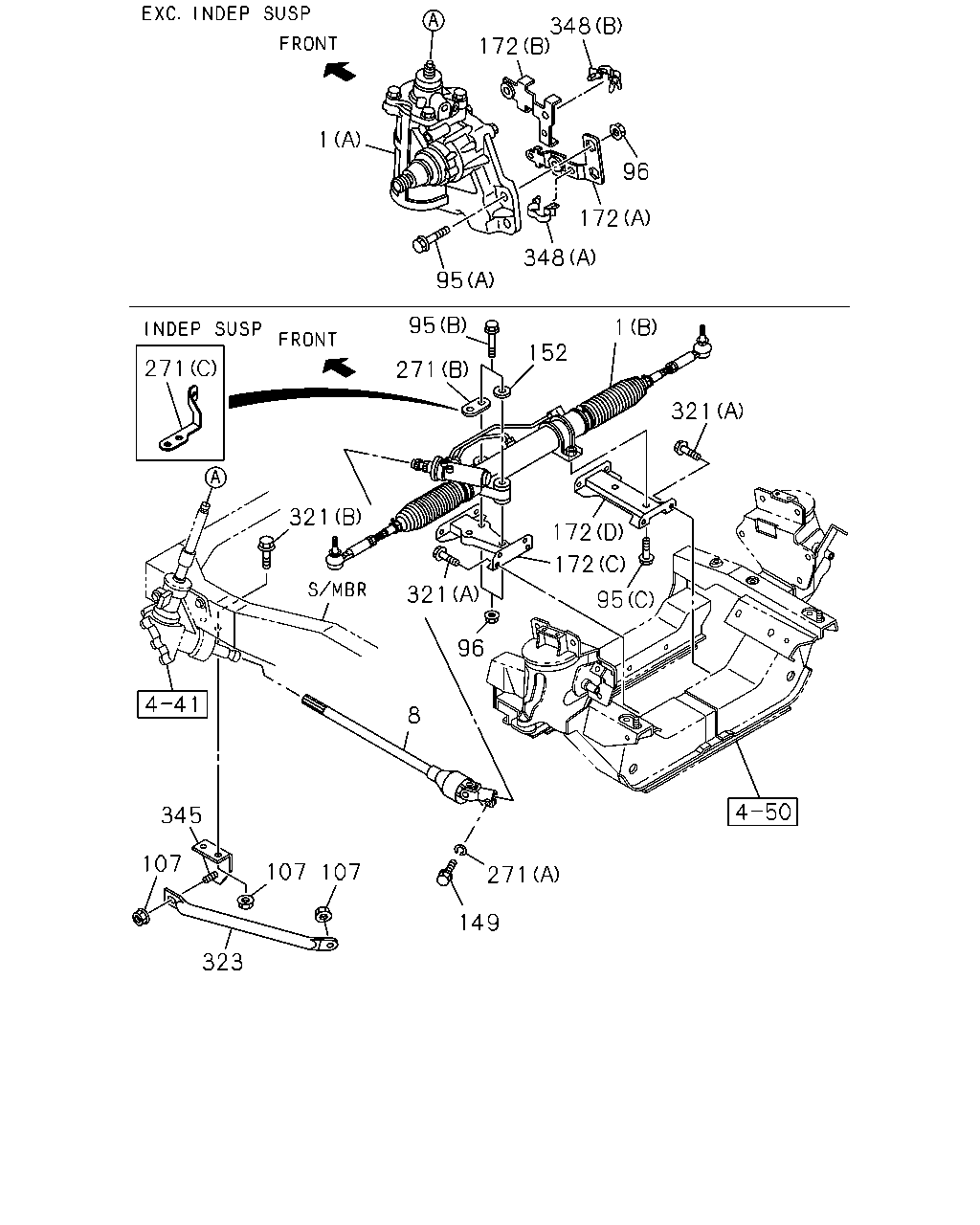

1 172 348 96 172 95 348 95 152 1 271 321 172 172 321 321 96 95 271 149 107 107 323 107 345 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97388-318-2	01	1	1509-	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. (A)	8-98101-298-3	01	1	1506-1508	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98101-298-3	01	1	1509-	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. (A)	8-98101-298-3	01	1	1509-		●
8	06.525 JOINT; UNIVERSAL FRT INDEPENDENT SUSPENSION(FF0)	8-98115-712-0	01	1	1509-	●
95	06.509 BOLT; STRG UNIT FRT INDEPENDENT SUSPENSION(FF0) 07.874 (C) M14X30 FLANGE	0-28651-430-0	02	1	1509-	●
95	06.509 BOLT; STRG UNIT FRT INDEPENDENT SUSPENSION(FF0) 06.525 (B) M14X80 FLANGE	0-28851-480-0	03	1	1509-	●
95	06.509 BOLT; STRG UNIT (A) M12X47 FLANGE	8-98055-055-0	04	1	1506-1508	●
95	06.509 BOLT; STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M12X47 FLANGE	8-98055-055-0	04	1	1509-	●
95	06.509 BOLT; STRG UNIT (A) M12X47 FLANGE	8-98055-055-0	04	1	1509-		●
96	06.509 NUT; STRG UNIT FRT INDEPENDENT SUSPENSION(FF0) 00.429 M14 FLANGE	0-91180-214-0	03	1	1509-	●
96	06.509 NUT; STRG UNIT M12 FLANGE	8-97359-618-0	02	1	1506-1508	●
96	06.509 NUT; STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE	8-97359-618-0	02	1	1509-	●
96	06.509 NUT; STRG UNIT M12 FLANGE	8-97359-618-0	02	1	1509-		●
107	06.514 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 05.816 M12 FLANGE	0-91180-212-0	08	1	1509-	●
149	06.525 BOLT; GEAR BOX FRT INDEPENDENT SUSPENSION(FF0) M8X30	8-97359-615-0	02	1	1509-	●
152	00.796 WASHER; LK,STRG UNIT FRT INDEPENDENT SUSPENSION(FF0) 03.704 ID=15 OD=40	9-09851-995-0	01	1	1509-	●
172	06.509 BRACKET; STRG FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98034-269-1	01	1	1509-	●
172	06.509 BRACKET; STRG FRT INDEPENDENT SUSPENSION(FF0) KD PREPARATORY PACK<6HF> (D)	8-98034-270-2	01	1	1509-	●
172	06.509 BRACKET; STRG FRT INDEPENDENT SUSPENSION(FF0) EXC. KD PREPARATORY PACK<6HF> (D)	8-98141-245-0	01	1	1509-	●
172	06.509 BRACKET; STRG (B)	8-98060-973-0	01	1	1506-1508	●
172	06.509 BRACKET; STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98060-973-0	01	1	1509-	●
172	06.509 BRACKET; STRG (B)	8-98060-973-0	01	1	1509-		●
172	06.509 BRACKET; STRG (A)	8-98078-804-0	01	1	1506-1508	●
172	06.509 BRACKET; STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98078-804-0	01	1	1509-	●
172	06.509 BRACKET; STRG (A)	8-98078-804-0	01	1	1509-		●
271	06.514 WASHER; LK,GEAR BOX FRT INDEPENDENT SUSPENSION(FF0) 02.559 (A) ID=8.2	0-91510-808-0	02	1	1509-	●
271	06.514 WASHER; LK,GEAR BOX FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 06.521 (B)	8-98018-561-0	01	1	1509-	●
271	06.514 WASHER; LK,GEAR BOX FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98141-257-0	01	1	1509-	●
321	06.514 BOLT; BRKT,STRG FRT INDEPENDENT SUSPENSION(FF0) 07.395 (A) M12X30 FLANGE	0-28651-230-0	10	1	1509-	●
321	06.514 BOLT; BRKT,STRG FRT INDEPENDENT SUSPENSION(FF0) 06.509 (B) M12X30 FLANGE	0-28661-230-0	04	1	1509-	●
323	06.518 ROD; GUARD,STRG SHAFT FRT INDEPENDENT SUSPENSION(FF0)	8-98033-649-0	02	1	1509-	●
345	06.509 BRACKET; ROD FRT INDEPENDENT SUSPENSION(FF0) 06.518	8-98033-651-0	02	1	1509-	●
348	06.525 CLIP; BRKT,STRG (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1508	●
348	06.525 CLIP; BRKT,STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=5-12 L=18	1-09709-287-0	01	1	1509-	●
348	06.525 CLIP; BRKT,STRG (A) ID=5-12 L=18	1-09709-287-0	01	1	1509-		●
348	06.525 CLIP; BRKT,STRG (B) ID=5-12 L=22	1-09709-288-0	01	1	1506-1508	●
348	06.525 CLIP; BRKT,STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=5-12 L=22	1-09709-288-0	01	1	1509-	●
348	06.525 CLIP; BRKT,STRG (B) ID=5-12 L=22	1-09709-288-0	01	1	1509-		●
