4-30 — STEERING WHEEL AND COWL (#162216) — 55 parça

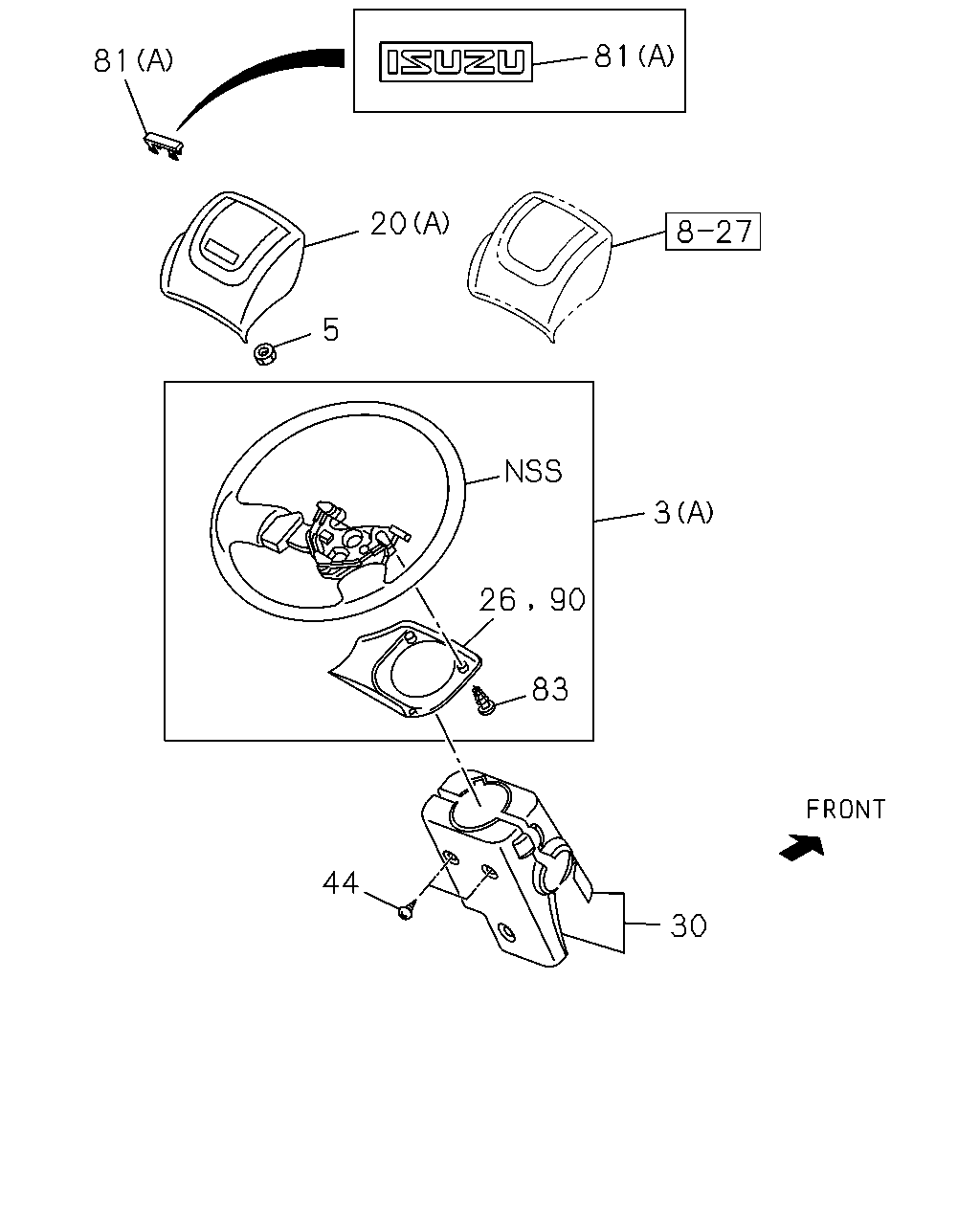

81 20 5 26 90 3 83 30 44 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) (A) DARK GRAY	8-97465-649-2	01	1	1509-	●	●
3	06.513 WHEEL; STRG TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97465-649-2	01	1	1509-	●	●
3	06.513 WHEEL; STRG CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> (B) DARK GRAY	8-97412-556-1	01	1	1509-	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97428-464-5	01	1	1506-1508	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CHILE EQUIPMENT(KE1) (A) DARK GRAY	8-97428-464-5	01	1	1509-	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97466-361-0	01	1	1506-1508	●
3	06.513 WHEEL; STRG 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,TAIWAN EQUIPMENT(B04), CHILE EQUIPMENT(KE1) (A) DARK GRAY	8-97466-361-0	01	1	1509-	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1506-1508	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1509-	●	●
20	06.512 SHROUD; PAD,STRG WHEEL CHILE EQUIPMENT(KE1) CHEVROLET BRAND<RWE>,GM BRAND<X61> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B) DARK GRAY	8-97405-985-1	01	1	1509-	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97465-647-0	01	1	1506-1508	●
20	06.512 SHROUD; PAD,STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,CHILE EQUIPMENT(KE1) (A) DARK GRAY	8-97465-647-0	01	1	1509-	●	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) DARK GRAY	8-97465-650-0	01	1	1509-	●	●
26	06.514 COVER; STRG WHEEL,LWR TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY	8-97465-650-0	01	1	1509-	●	●
26	06.514 COVER; STRG WHEEL,LWR CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> DARK GRAY	8-97409-275-2	01	1	1509-	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1506-1508	●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1509-	●	●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1506-1508	●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1509-	●	●
81	02.820 EMBLEM; STRG WHEEL CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1509-	●	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97465-648-0	01	1	1506-1508	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,CHILE EQUIPMENT(KE1) (A) DARK GRAY	8-97465-648-0	01	1	1509-	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M4X10 TAPPING	8-98319-680-0	03	1	1506-1508	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CHILE EQUIPMENT(KE1) M4X10 TAPPING	8-98319-680-0	03	1	1509-	●	●
83	06.514 SCREW; LWR COVER TO WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 09.242 M4X10 TAPPING	0-71240-410-0	03	1	1506-1508	●
83	06.514 SCREW; LWR COVER TO WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,CHILE EQUIPMENT(KE1) 09.242 M4X10 TAPPING	0-71240-410-0	03	1	1509-	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR DARK GRAY	8-97465-726-2	01	1	1506-1508	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CHILE EQUIPMENT(KE1) DARK GRAY	8-97465-726-2	01	1	1509-	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,TAIWAN EQUIPMENT(B04), CHILE EQUIPMENT(KE1) DARK GRAY	8-97465-726-2	01	1	1509-	●	●

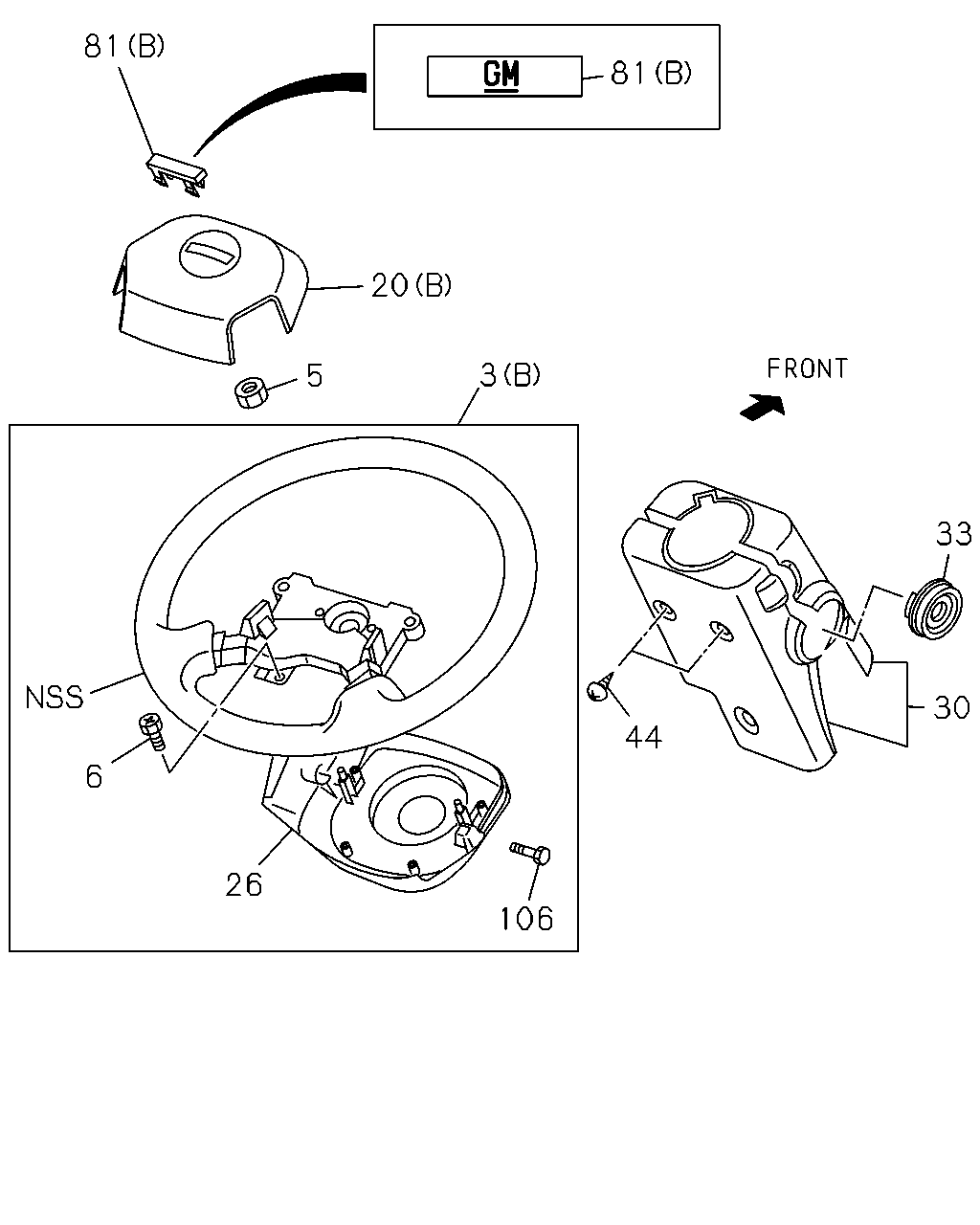

81 81 20 5 3 6 26 106 44 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) (A) DARK GRAY	8-97465-649-2	01	1	1509-	●	●
3	06.513 WHEEL; STRG TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97465-649-2	01	1	1509-	●	●
3	06.513 WHEEL; STRG CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> (B) DARK GRAY	8-97412-556-1	01	1	1509-	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97428-464-5	01	1	1506-1508	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CHILE EQUIPMENT(KE1) (A) DARK GRAY	8-97428-464-5	01	1	1509-	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97466-361-0	01	1	1506-1508	●
3	06.513 WHEEL; STRG 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,TAIWAN EQUIPMENT(B04), CHILE EQUIPMENT(KE1) (A) DARK GRAY	8-97466-361-0	01	1	1509-	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1506-1508	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1509-	●	●
6	02.820 SCREW; HORN SPR CONTACT CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> M4X12	8-97167-588-0	04	1	1509-	●	●
20	06.512 SHROUD; PAD,STRG WHEEL CHILE EQUIPMENT(KE1) CHEVROLET BRAND<RWE>,GM BRAND<X61> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B) DARK GRAY	8-97405-985-1	01	1	1509-	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97465-647-0	01	1	1506-1508	●
20	06.512 SHROUD; PAD,STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,CHILE EQUIPMENT(KE1) (A) DARK GRAY	8-97465-647-0	01	1	1509-	●	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) DARK GRAY	8-97465-650-0	01	1	1509-	●	●
26	06.514 COVER; STRG WHEEL,LWR TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY	8-97465-650-0	01	1	1509-	●	●
26	06.514 COVER; STRG WHEEL,LWR CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> DARK GRAY	8-97409-275-2	01	1	1509-	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1506-1508	●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1509-	●	●
33	06.518 COVER; STRG COWL EXC. IMMOBILIZER SYSTEM(7KC) DARK GRAY	8-97409-495-0	01	1	1509-	●
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1509-		●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1506-1508	●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1509-	●	●
81	02.820 EMBLEM; STRG WHEEL CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1509-	●	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97465-648-0	01	1	1506-1508	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,CHILE EQUIPMENT(KE1) (A) DARK GRAY	8-97465-648-0	01	1	1509-	●	●
106	05.453 BOLT; TORX CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98231-397-0	02	1	1509-	●	●
