Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#162215) — 274 parça

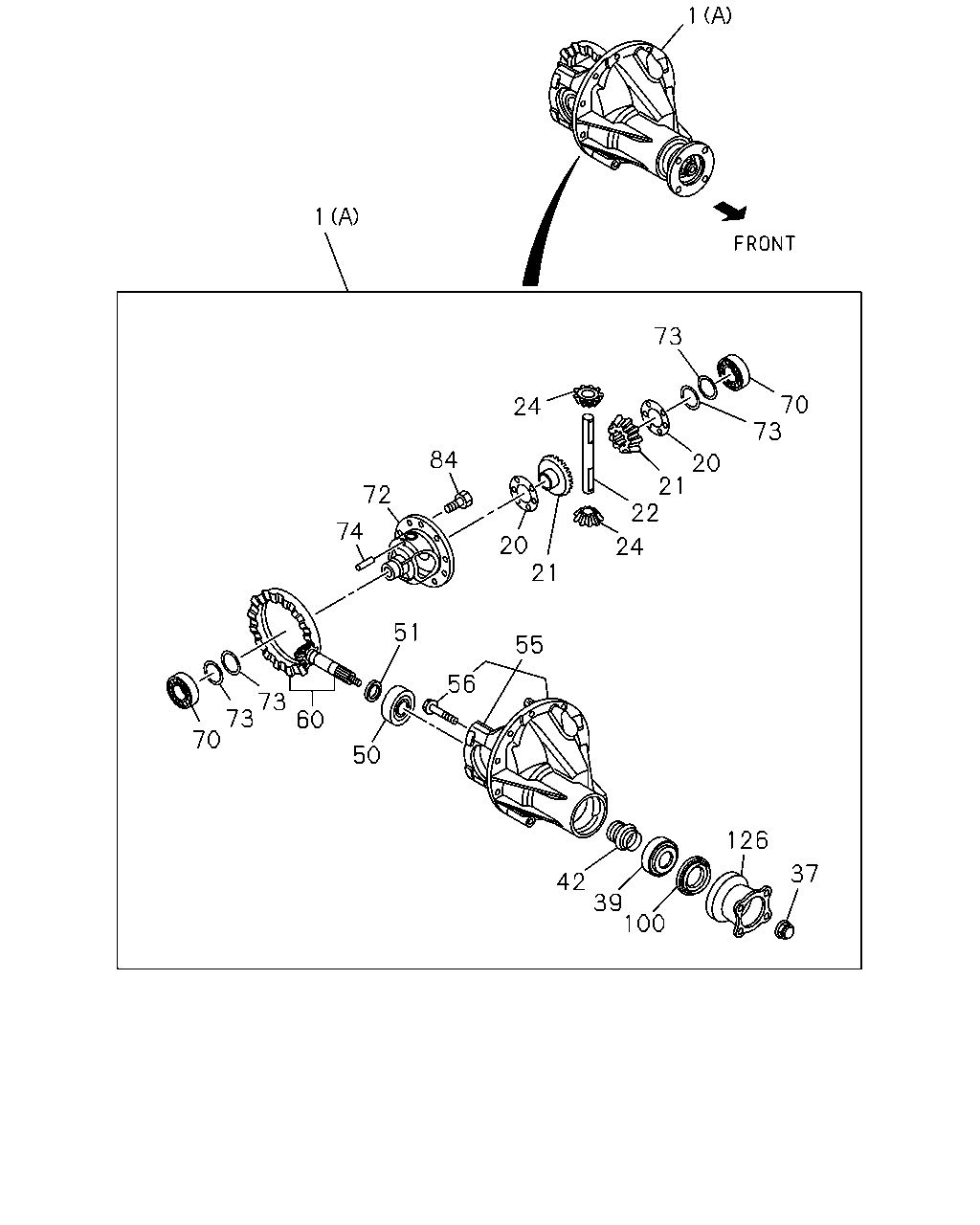

1 1 73 70 73 20 21 22 24 21 20 24 84 72 74 51 55 56 50 60 73 73 70 42 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/11(GNA) (B) 43/11	8-98015-134-0	01	1	1509-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5) (B) 41/10	8-98015-135-0	01	1	1509-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) (B) 41/9	8-98015-137-0	01	1	1509-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) (B) 43/9	8-98015-138-0	01	1	1509-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) (B) 43/10	8-98015-136-0	01	1	1509-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) (B) 41/8	8-98015-139-0	01	1	1509-		●
1	05.505 DRIVE ASM; FINAL,RR (A) 43/11	8-98240-457-0	01	1	1506-1508	●
1	05.505 DRIVE ASM; FINAL,RR AXLE REAR - LIGHT DUTY(8PB) (A) 43/11	8-98240-457-0	01	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1509-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=0.80	8-94435-343-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=0.80	8-94435-343-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=0.90	8-94435-344-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=0.90	8-94435-344-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.10	8-94435-345-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=1.10	8-94435-345-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.20	8-94435-346-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=1.20	8-94435-346-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.30	8-94435-347-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=1.30	8-94435-347-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=1.00	9-41562-602-0	02	1	1509-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) 05.515 Z=20	8-97362-599-1	02	1	1509-	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1509-		●
21	05.528 GEAR; SIDE,DIFF Z=18	8-98186-828-1	02	1	1506-1508	●
21	05.528 GEAR; SIDE,DIFF AXLE REAR - LIGHT DUTY(8PB) Z=18	8-98186-828-1	02	1	1509-	●
22	05.520 SPIDER; DIFF PINION	8-94435-308-1	01	1	1506-1508	●
22	05.520 SPIDER; DIFF PINION AXLE REAR - LIGHT DUTY(8PB)	8-94435-308-1	01	1	1509-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1509-	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1509-		●
24	05.526 GEAR; PINION,DIFF Z=10	8-98186-829-0	02	1	1506-1508	●
24	05.526 GEAR; PINION,DIFF AXLE REAR - LIGHT DUTY(8PB) Z=10	8-98186-829-0	02	1	1509-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1509-	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1509-		●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	1506-1508	●
37	05.595 NUT; DRIVING PINION AXLE REAR - LIGHT DUTY(8PB) M24 FLANGE	8-94376-261-1	01	1	1509-	●
39	05.484 BEARING; FINAL PINION NSK	9-00093-078-0	01	1	1506-1508	●
39	05.484 BEARING; FINAL PINION AXLE REAR - LIGHT DUTY(8PB) NSK	9-00093-078-0	01	1	1509-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1509-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1509-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	1506-1508	●
42	05.453 COLLAR; DIST,COLLAPSIBLE AXLE REAR - LIGHT DUTY(8PB)	8-97035-399-0	01	1	1509-	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	1509-	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1509-		●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	1509-	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1509-		●
50	05.447 BEARING; FINAL PINION NSK	8-94435-342-0	01	1	1506-1508	●
50	05.447 BEARING; FINAL PINION AXLE REAR - LIGHT DUTY(8PB) NSK	8-94435-342-0	01	1	1509-	●
50	05.447 BEARING; FINAL PINION JTEKT	8-94452-448-0	01	1	1506-1508	●
50	05.447 BEARING; FINAL PINION AXLE REAR - LIGHT DUTY(8PB) JTEKT	8-94452-448-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=1.94	8-94435-356-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=1.96	8-94435-357-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=1.98	8-94435-358-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.00	8-94435-359-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.02	8-94435-360-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.04	8-94435-361-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.06	8-94435-362-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.08	8-94435-363-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.10	8-94435-364-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.12	8-94435-365-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.14	8-94435-366-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.16	8-94435-367-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.18	8-94435-368-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.20	8-94435-369-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.22	8-94435-370-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.24	8-94435-371-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.26	8-94435-372-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.28	8-94435-373-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.30	8-94435-374-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.32	8-94435-375-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.34	8-94435-376-0	01	1	1509-	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	01	1	1506-1508	●
51	05.586 SHIM; PINION,FINAL DRIVE AXLE REAR - LIGHT DUTY(8PB) T=2.36	8-94435-377-0	01	1	1509-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1509-	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1509-		●
55	05.505 CARRIER; DIFF	8-97240-889-2	01	1	1506-1508	●
55	05.505 CARRIER; DIFF AXLE REAR - LIGHT DUTY(8PB)	8-97240-889-2	01	1	1509-	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	1509-	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1509-		●
56	05.506 BOLT; BRG CAP M12X75 FLANGE	8-98176-233-0	04	1	1506-1508	●
56	05.506 BOLT; BRG CAP AXLE REAR - LIGHT DUTY(8PB) M12X75 FLANGE	8-98176-233-0	04	1	1509-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/11(GNA) 43/11	8-97263-251-1	01	1	1509-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1509-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1509-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	1509-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1509-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	1509-		●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/11	8-98014-980-1	01	1	1506-1508	●
60	05.529 GEAR SET; FINAL DRIVE,RR AXLE REAR - LIGHT DUTY(8PB) 43/11	8-98014-980-1	01	1	1509-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1509-	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1509-		●
70	05.536 BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	1506-1508	●
70	05.536 BEARING; DIFF CAGE AXLE REAR - LIGHT DUTY(8PB) NSK	8-94435-355-0	02	1	1509-	●
70	05.536 BEARING; DIFF CAGE JTEKT	8-94452-449-1	02	1	1506-1508	●
70	05.536 BEARING; DIFF CAGE AXLE REAR - LIGHT DUTY(8PB) JTEKT	8-94452-449-1	02	1	1509-	●
72	05.510 CAGE; DIFF	8-94325-448-0	01	1	1506-1508	●
72	05.510 CAGE; DIFF AXLE REAR - LIGHT DUTY(8PB)	8-94325-448-0	01	1	1509-	●
73	05.537 SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	1506-1508	●
73	05.537 SHIM; DIFF SIDE BRG AXLE REAR - LIGHT DUTY(8PB) T=0.12	8-94435-348-0	AR	1	1509-	●
73	05.537 SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	1506-1508	●
73	05.537 SHIM; DIFF SIDE BRG AXLE REAR - LIGHT DUTY(8PB) T=0.15	8-94435-349-0	AR	1	1509-	●
73	05.537 SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	1506-1508	●
73	05.537 SHIM; DIFF SIDE BRG AXLE REAR - LIGHT DUTY(8PB) T=0.18	8-94435-350-0	AR	1	1509-	●
73	05.537 SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	1506-1508	●
73	05.537 SHIM; DIFF SIDE BRG AXLE REAR - LIGHT DUTY(8PB) T=0.25	8-94435-351-0	AR	1	1509-	●
73	05.537 SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	1506-1508	●
73	05.537 SHIM; DIFF SIDE BRG AXLE REAR - LIGHT DUTY(8PB) T=0.30	8-94435-352-0	AR	1	1509-	●
73	05.537 SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	1506-1508	●
73	05.537 SHIM; DIFF SIDE BRG AXLE REAR - LIGHT DUTY(8PB) T=0.50	8-94435-353-0	AR	1	1509-	●
74	05.518 PIN; LK,CROSS PIN OD=5 L=35	9-09878-096-0	01	1	1506-1508	●
74	05.518 PIN; LK,CROSS PIN AXLE REAR - LIGHT DUTY(8PB) OD=5 L=35	9-09878-096-0	01	1	1509-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1509-	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1509-		●
84	05.531 BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	1506-1508	●
84	05.531 BOLT; FINAL DRIVE GEAR AXLE REAR - LIGHT DUTY(8PB) M10X18.5	8-97038-064-0	12	1	1509-	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1509-	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1509-		●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	1506-1508	●
100	05.469 SEAL; OIL,FINAL PINION AXLE REAR - LIGHT DUTY(8PB) NOK	8-97328-648-0	01	1	1509-	●
126	05.545 COUPLING; DRIVING PINION	8-97353-898-0	01	1	1506-1508	●
126	05.545 COUPLING; DRIVING PINION AXLE REAR - LIGHT DUTY(8PB)	8-97353-898-0	01	1	1509-	●

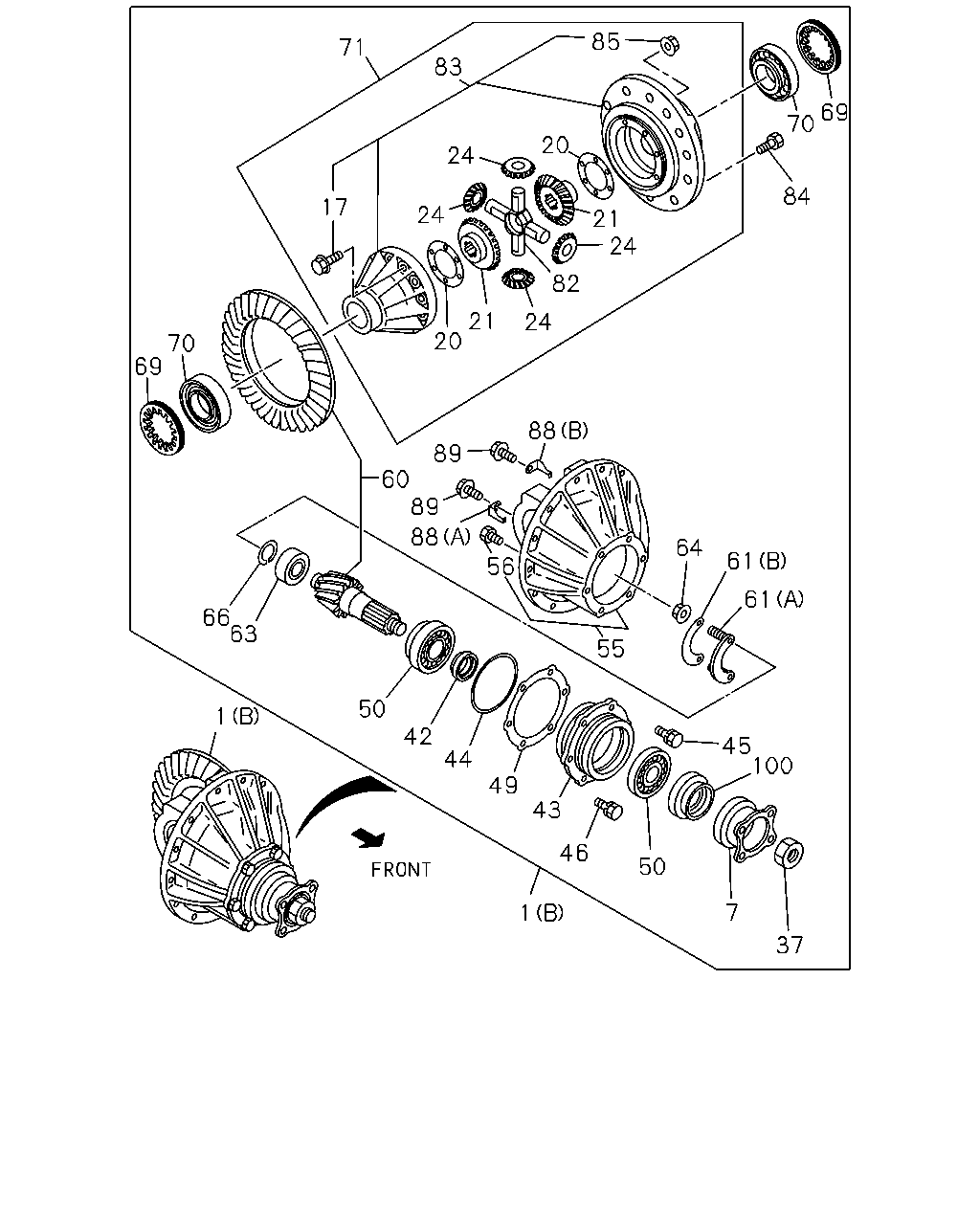

71 83 85 70 69 84 21 24 20 24 24 17 20 21 24 82 70 69 60 89 88 89 88 56 55 64 61 61 45 100 66 63 1 50 42 44 49 43 46 50 7 37 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/11(GNA) (B) 43/11	8-98015-134-0	01	1	1509-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5) (B) 41/10	8-98015-135-0	01	1	1509-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) (B) 41/9	8-98015-137-0	01	1	1509-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) (B) 43/9	8-98015-138-0	01	1	1509-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) (B) 43/10	8-98015-136-0	01	1	1509-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) (B) 41/8	8-98015-139-0	01	1	1509-		●
1	05.505 DRIVE ASM; FINAL,RR (A) 43/11	8-98240-457-0	01	1	1506-1508	●
1	05.505 DRIVE ASM; FINAL,RR AXLE REAR - LIGHT DUTY(8PB) (A) 43/11	8-98240-457-0	01	1	1509-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	1509-	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1509-		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X75 FLANGE	8-97232-161-0	12	1	1509-	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1509-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1509-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=0.80	8-94435-343-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=0.80	8-94435-343-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=0.90	8-94435-344-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=0.90	8-94435-344-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.10	8-94435-345-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=1.10	8-94435-345-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.20	8-94435-346-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=1.20	8-94435-346-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.30	8-94435-347-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=1.30	8-94435-347-0	02	1	1509-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	1506-1508	●
20	05.543 WASHER; THRUST,SIDE GEAR AXLE REAR - LIGHT DUTY(8PB) T=1.00	9-41562-602-0	02	1	1509-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) 05.515 Z=20	8-97362-599-1	02	1	1509-	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1509-		●
21	05.528 GEAR; SIDE,DIFF Z=18	8-98186-828-1	02	1	1506-1508	●
21	05.528 GEAR; SIDE,DIFF AXLE REAR - LIGHT DUTY(8PB) Z=18	8-98186-828-1	02	1	1509-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1509-	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1509-		●
24	05.526 GEAR; PINION,DIFF Z=10	8-98186-829-0	02	1	1506-1508	●
24	05.526 GEAR; PINION,DIFF AXLE REAR - LIGHT DUTY(8PB) Z=10	8-98186-829-0	02	1	1509-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1509-	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1509-		●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	1506-1508	●
37	05.595 NUT; DRIVING PINION AXLE REAR - LIGHT DUTY(8PB) M24 FLANGE	8-94376-261-1	01	1	1509-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1509-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1509-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	1506-1508	●
42	05.453 COLLAR; DIST,COLLAPSIBLE AXLE REAR - LIGHT DUTY(8PB)	8-97035-399-0	01	1	1509-	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1509-	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1509-		●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	1509-	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1509-		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1509-	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1509-		●
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	1509-	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1509-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1509-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1509-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1509-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1509-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1509-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1509-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1509-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1509-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1509-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1509-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1509-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1509-		●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	1509-	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1509-		●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	1509-	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1509-		●
50	05.447 BEARING; FINAL PINION NSK	8-94435-342-0	01	1	1506-1508	●
50	05.447 BEARING; FINAL PINION AXLE REAR - LIGHT DUTY(8PB) NSK	8-94435-342-0	01	1	1509-	●
50	05.447 BEARING; FINAL PINION JTEKT	8-94452-448-0	01	1	1506-1508	●
50	05.447 BEARING; FINAL PINION AXLE REAR - LIGHT DUTY(8PB) JTEKT	8-94452-448-0	01	1	1509-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1509-	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1509-		●
55	05.505 CARRIER; DIFF	8-97240-889-2	01	1	1506-1508	●
55	05.505 CARRIER; DIFF AXLE REAR - LIGHT DUTY(8PB)	8-97240-889-2	01	1	1509-	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	1509-	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1509-		●
56	05.506 BOLT; BRG CAP M12X75 FLANGE	8-98176-233-0	04	1	1506-1508	●
56	05.506 BOLT; BRG CAP AXLE REAR - LIGHT DUTY(8PB) M12X75 FLANGE	8-98176-233-0	04	1	1509-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/11(GNA) 43/11	8-97263-251-1	01	1	1509-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1509-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1509-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	1509-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1509-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	1509-		●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/11	8-98014-980-1	01	1	1506-1508	●
60	05.529 GEAR SET; FINAL DRIVE,RR AXLE REAR - LIGHT DUTY(8PB) 43/11	8-98014-980-1	01	1	1509-	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1509-	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1509-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1509-	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1509-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/11(GNA) NSK	8-97309-525-0	01	1	1509-	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/11(GNA) JTEKT	8-97309-526-0	01	1	1509-	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C) NSK	5-09810-008-1	01	1	1509-	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1509-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C) JTEKT	8-97107-548-0	01	1	1509-	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1509-		●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-		●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1509-	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1509-		●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1509-	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1509-		●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1509-	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1509-		●
70	05.536 BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	1506-1508	●
70	05.536 BEARING; DIFF CAGE AXLE REAR - LIGHT DUTY(8PB) NSK	8-94435-355-0	02	1	1509-	●
70	05.536 BEARING; DIFF CAGE JTEKT	8-94452-449-1	02	1	1506-1508	●
70	05.536 BEARING; DIFF CAGE AXLE REAR - LIGHT DUTY(8PB) JTEKT	8-94452-449-1	02	1	1509-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/11(GNA)	8-98015-180-1	01	1	1509-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1)	8-98015-182-1	01	1	1509-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C)	8-98015-181-1	01	1	1509-	●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	1509-	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1509-		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/11(GNA)	8-97262-082-2	01	1	1509-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-97319-396-1	01	1	1509-		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C)	8-97319-398-1	01	1	1509-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1509-	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1509-		●
84	05.531 BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	1506-1508	●
84	05.531 BOLT; FINAL DRIVE GEAR AXLE REAR - LIGHT DUTY(8PB) M10X18.5	8-97038-064-0	12	1	1509-	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	1509-	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1509-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	1509-	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	1509-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	1509-	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	1509-		●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1509-	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1509-		●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	1506-1508	●
100	05.469 SEAL; OIL,FINAL PINION AXLE REAR - LIGHT DUTY(8PB) NOK	8-97328-648-0	01	1	1509-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
