Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#162214) — 335 parça

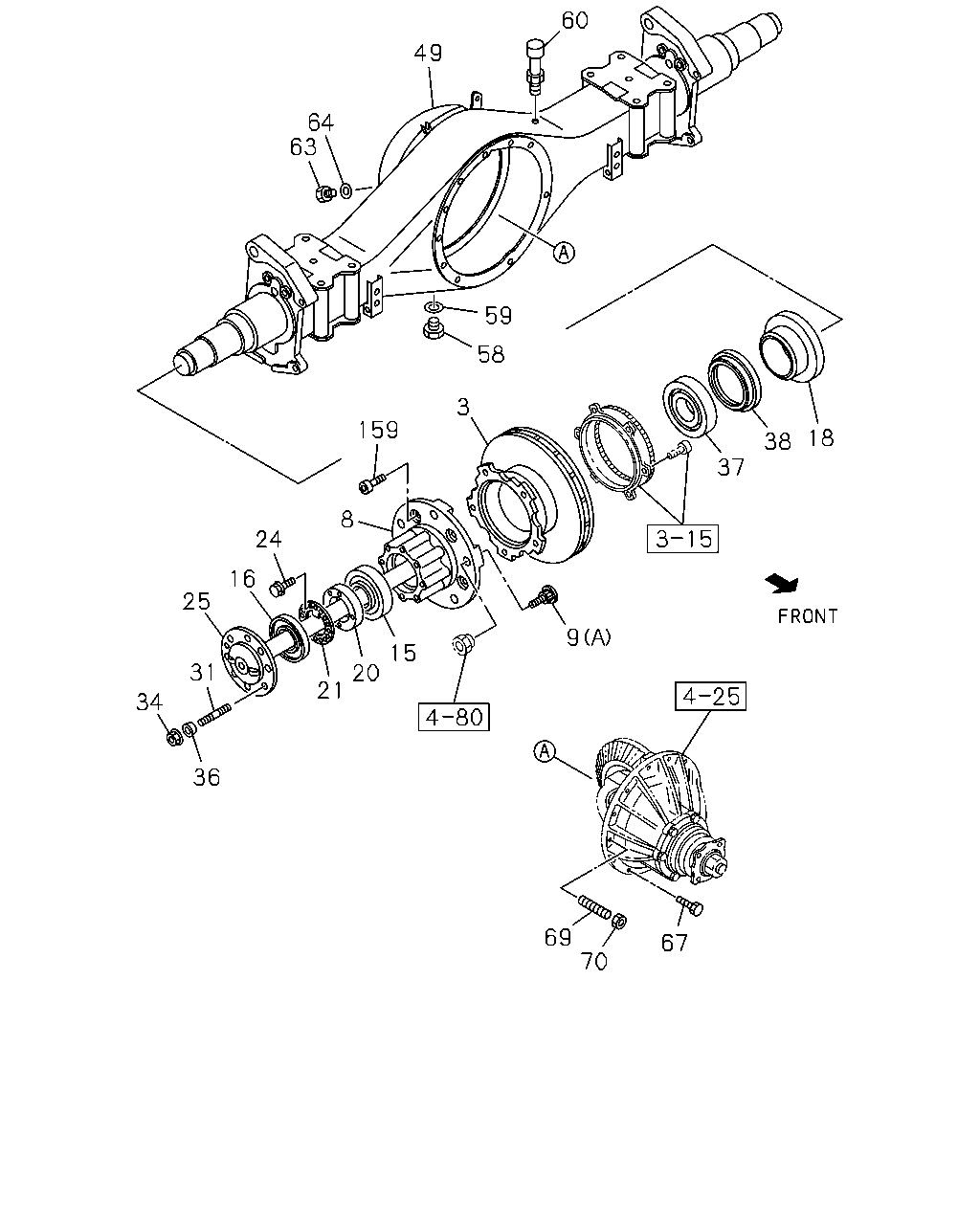

67 70 69 9 3 159 8 15 20 21 24 16 25 31 34 36 37 38 18 59 58 60 49 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	05.809 ROTOR; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98209-261-2	02	1	1509-	●
3	05.809 ROTOR; DISC BRK,RR	8-98248-897-0	02	1	1506-1508		●
3	05.809 ROTOR; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98248-897-0	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-323-1	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1)	8-97240-323-1	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-406-4	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD)	8-97034-406-4	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-406-4	02	1	1509-	●
8	05.809 HUB; RR AXLE G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97026-139-3	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97026-139-3	02	1	1509-	●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9>	5-42311-009-3	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97173-549-0	02	1	1509-	●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	1506-1508		●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	1509-	●	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 RH THREAD	9-42331-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 RH THREAD	9-42331-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 LH THREAD	9-42332-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 LH THREAD	9-42332-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (C) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) (C) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) (C) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (C) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) (C) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) (C) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (C) M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (C) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE (A) M18X46 RH THREAD	8-98028-532-1	05	1	1506-1508		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-	●	●
9	05.812 PIN; WHEEL,RR AXLE (A) M18X46 LH THREAD	8-98028-533-1	05	1	1506-1508		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1506-1508		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1509-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1506-1508		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1509-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1506-1508		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1509-	●	●
18	05.822 RETAINER; RR AXLE	8-98232-252-0	02	1	1506-1508		●
18	05.822 RETAINER; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98232-252-0	02	1	1509-	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1506-1508		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1509-	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	1506-1508		●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1509-	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1506-1508		●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-97032-496-0	02	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) SINGLE RR TIRE(6TD) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-94366-192-0	02	1	1509-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-97032-495-0	02	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR AXLE REAR - LIGHT DUTY(8PB) SINGLE RR TIRE(6TD)	8-98175-444-0	02	1	1509-		●
25	05.420 SHAFT; AXLE,RR	8-98232-273-0	02	1	1506-1508		●
25	05.420 SHAFT; AXLE,RR AXLE REAR - LIGHT DUTY(8PB) EXC. SINGLE RR TIRE(6TD)	8-98232-273-0	02	1	1509-		●
31	05.422 STUD; AXLE SHAFT TO HUB SINGLE RR TIRE(6TD) M10X30 L=49	8-97359-803-0	12	1	1509-		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1506-1508		●
31	05.422 STUD; AXLE SHAFT TO HUB EXC. SINGLE RR TIRE(6TD) M10X30 L=49	8-97359-803-0	16	1	1509-		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1509-	●
34	05.387 NUT; AXLE SHAFT SINGLE RR TIRE(6TD) 04.085 M10 FLANGE	0-91180-210-0	12	1	1509-		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1506-1508		●
34	05.387 NUT; AXLE SHAFT EXC. SINGLE RR TIRE(6TD) 04.085 M10 FLANGE	0-91180-210-0	16	1	1509-		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1509-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT SINGLE RR TIRE(6TD) ID=10.5	8-97360-004-0	12	1	1509-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1506-1508		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT EXC. SINGLE RR TIRE(6TD) ID=10.5	8-97360-004-0	16	1	1509-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1509-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1506-1508		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1509-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1506-1508		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1509-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	1509-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	1509-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	1506-1508		●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-329-3	01	1	1509-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WI DE TREAD<8PZ>	8-97251-367-2	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-97042-906-4	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD)	8-97251-368-3	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>	8-97032-861-5	01	1	1509-	●	●
49	05.387 CASE; RR AXLE G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98061-921-0	01	1	1509-		●
49	05.387 CASE; RR AXLE AXLE REAR - LIGHT DUTY(8PB) SINGLE RR TIRE(6TD)	8-98175-439-1	01	1	1509-		●
49	05.387 CASE; RR AXLE	8-98232-187-1	01	1	1506-1508		●
49	05.387 CASE; RR AXLE AXLE REAR - LIGHT DUTY(8PB) EXC. SINGLE RR TIRE(6TD)	8-98232-187-1	01	1	1509-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1506-1508		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1509-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1506-1508		●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1509-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1506-1508		●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1509-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1506-1508		●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1509-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1506-1508		●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1509-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1509-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1506-1508		●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1509-		●
67	05.387 BOLT; FINAL DRIVE SETTING M10X90	0-28061-090-0	01	1	1506-1508		●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) M10X90	0-28061-090-0	01	1	1509-		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1506-1508		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1509-	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1506-1508		●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1509-	●	●
159	05.822 BOLT; ROTOR TO HUB 05.812	8-98021-780-0	10	1	1506-1508		●
159	05.822 BOLT; ROTOR TO HUB 4 WHEEL DISC BRAKE<JF9> 05.812	8-98021-780-0	10	1	1509-	●	●

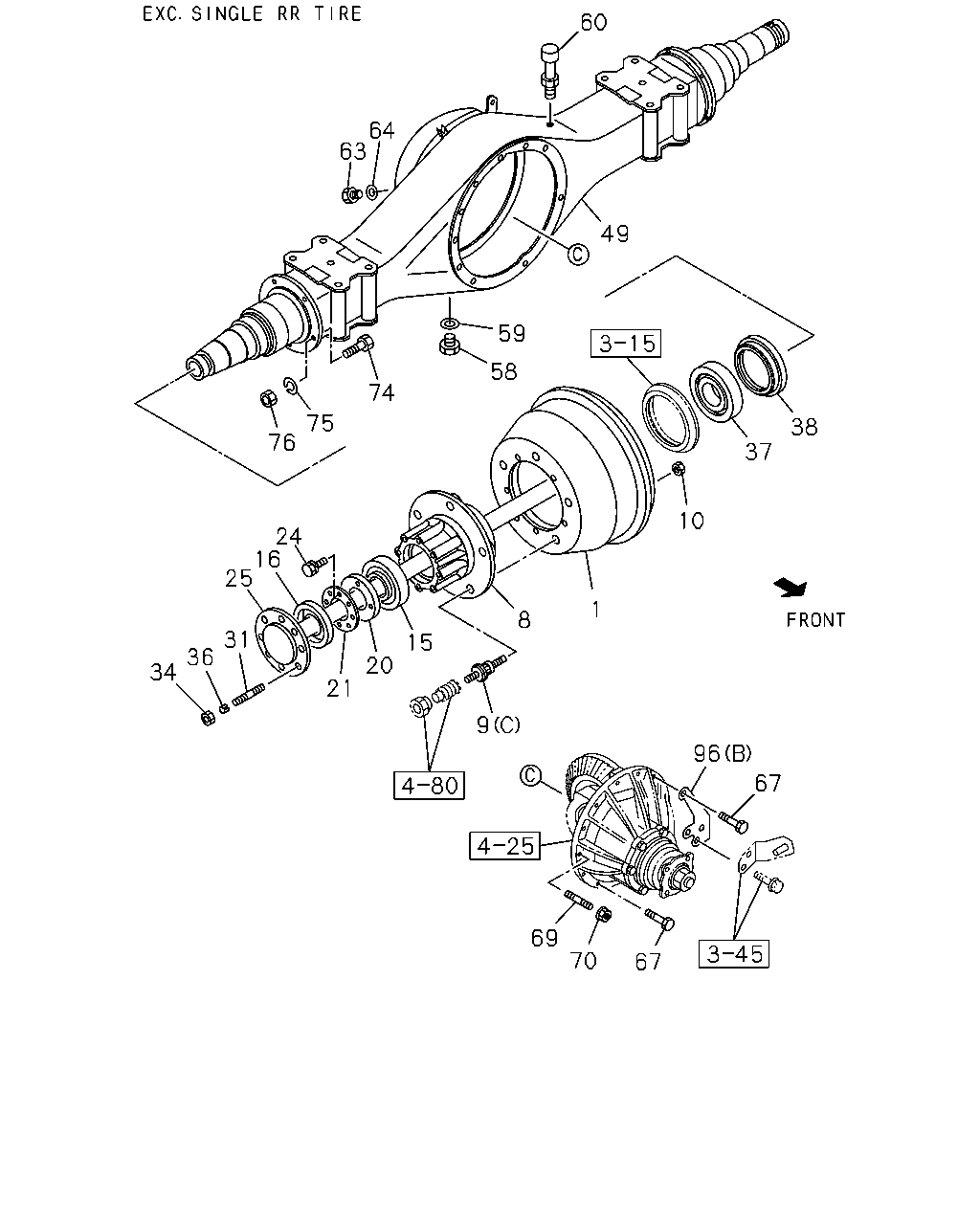

67 96 67 15 20 21 16 25 31 36 34 1 8 37 38 9 70 69 59 58 74 154 75 76 24 60 49 63 64 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98248-899-0	02	1	1509-		●
1	05.809 DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1)	8-98248-899-0	02	1	1509-		●
1	05.809 DRUM; BRK,RR G.V.W. 3.0-3.5TON(RPP)	8-98248-900-0	02	1	1509-		●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1)	8-98248-900-0	02	1	1509-	●
1	05.809 DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD)	8-97184-245-2	02	1	1509-		●
1	05.809 DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9>	8-94455-285-2	02	1	1509-		●
1	05.809 DRUM; BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97036-367-1	02	1	1509-	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1)	8-94382-884-4	02	1	1509-	●
2	05.812 BOLT; BRK DRUM G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 04.012 M6X18	0-20800-618-0	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-323-1	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1)	8-97240-323-1	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-406-4	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD)	8-97034-406-4	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-406-4	02	1	1509-	●
8	05.809 HUB; RR AXLE G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97026-139-3	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97026-139-3	02	1	1509-	●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9>	5-42311-009-3	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97173-549-0	02	1	1509-	●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	1506-1508		●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	1509-	●	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 RH THREAD	9-42331-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 RH THREAD	9-42331-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 LH THREAD	9-42332-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 LH THREAD	9-42332-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (C) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) (C) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) (C) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (C) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) (C) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) (C) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (C) M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (C) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE (A) M18X46 RH THREAD	8-98028-532-1	05	1	1506-1508		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-	●	●
9	05.812 PIN; WHEEL,RR AXLE (A) M18X46 LH THREAD	8-98028-533-1	05	1	1506-1508		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1506-1508		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1509-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1506-1508		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1509-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1506-1508		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1509-	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1506-1508		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1509-	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	1506-1508		●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1509-	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1506-1508		●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-97032-496-0	02	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) SINGLE RR TIRE(6TD) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-94366-192-0	02	1	1509-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-97032-495-0	02	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR AXLE REAR - LIGHT DUTY(8PB) SINGLE RR TIRE(6TD)	8-98175-444-0	02	1	1509-		●
25	05.420 SHAFT; AXLE,RR	8-98232-273-0	02	1	1506-1508		●
25	05.420 SHAFT; AXLE,RR AXLE REAR - LIGHT DUTY(8PB) EXC. SINGLE RR TIRE(6TD)	8-98232-273-0	02	1	1509-		●
31	05.422 STUD; AXLE SHAFT TO HUB SINGLE RR TIRE(6TD) M10X30 L=49	8-97359-803-0	12	1	1509-		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1506-1508		●
31	05.422 STUD; AXLE SHAFT TO HUB EXC. SINGLE RR TIRE(6TD) M10X30 L=49	8-97359-803-0	16	1	1509-		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1509-	●
34	05.387 NUT; AXLE SHAFT SINGLE RR TIRE(6TD) 04.085 M10 FLANGE	0-91180-210-0	12	1	1509-		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1506-1508		●
34	05.387 NUT; AXLE SHAFT EXC. SINGLE RR TIRE(6TD) 04.085 M10 FLANGE	0-91180-210-0	16	1	1509-		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1509-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT SINGLE RR TIRE(6TD) ID=10.5	8-97360-004-0	12	1	1509-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1506-1508		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT EXC. SINGLE RR TIRE(6TD) ID=10.5	8-97360-004-0	16	1	1509-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1509-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1506-1508		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1509-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1506-1508		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1509-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	1509-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	1509-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	1506-1508		●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-329-3	01	1	1509-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WI DE TREAD<8PZ>	8-97251-367-2	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-97042-906-4	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD)	8-97251-368-3	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>	8-97032-861-5	01	1	1509-	●	●
49	05.387 CASE; RR AXLE G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98061-921-0	01	1	1509-		●
49	05.387 CASE; RR AXLE AXLE REAR - LIGHT DUTY(8PB) SINGLE RR TIRE(6TD)	8-98175-439-1	01	1	1509-		●
49	05.387 CASE; RR AXLE	8-98232-187-1	01	1	1506-1508		●
49	05.387 CASE; RR AXLE AXLE REAR - LIGHT DUTY(8PB) EXC. SINGLE RR TIRE(6TD)	8-98232-187-1	01	1	1509-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1506-1508		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1509-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1506-1508		●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1509-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1506-1508		●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1509-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1506-1508		●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1509-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1506-1508		●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1509-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1509-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1506-1508		●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1509-		●
67	05.387 BOLT; FINAL DRIVE SETTING M10X90	0-28061-090-0	01	1	1506-1508		●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) M10X90	0-28061-090-0	01	1	1509-		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1506-1508		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1509-	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1506-1508		●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1509-	●	●
74	05.002 BOLT; RR BRK ASM SETTING SINGLE RR TIRE(6TD)	8-98007-877-0	12	1	1509-		●
74	05.002 BOLT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) M12X32	8-97359-819-0	12	1	1509-		●
74	05.002 BOLT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M12X32	8-97359-819-0	12	1	1509-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING SINGLE RR TIRE(6TD) 02.277 ID=10.2	0-91510-810-0	12	1	1509-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) 07.347 ID=12.2	0-91510-812-0	12	1	1509-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 07.347 ID=12.2	0-91510-812-0	12	1	1509-	●
76	05.002 NUT; RR BRK ASM SETTING SINGLE RR TIRE(6TD) 00.833 M10	0-91110-510-0	12	1	1509-		●
76	05.002 NUT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) M12	0-91110-512-0	12	1	1509-		●
76	05.002 NUT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M12	0-91110-512-0	12	1	1509-	●
96	04.730 BRACKET; LSPV,AXLE CASE G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98030-957-0	01	1	1509-		●
96	04.730 BRACKET; LSPV,AXLE CASE G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) (B)	8-98030-957-0	01	1	1509-	●
96	04.730 BRACKET; LSPV,AXLE CASE G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98030-956-0	01	1	1509-		●
154	04.665 SCREW; SLOTTED G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	1509-		●
154	04.665 SCREW; SLOTTED G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	1509-		●

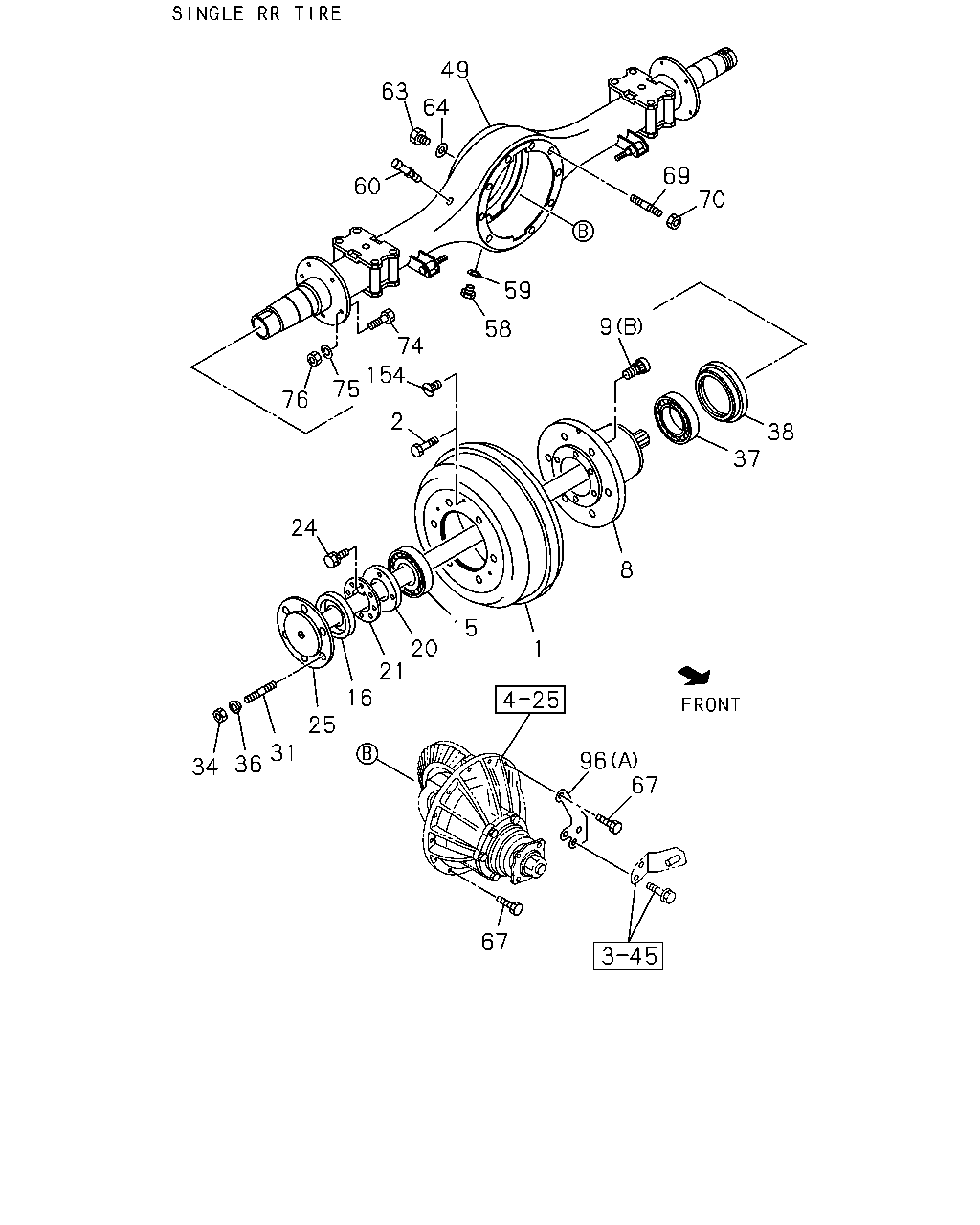

60 64 63 49 59 58 74 75 76 24 16 25 31 36 34 21 20 15 8 1 10 37 38 9 96 67 67 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98248-899-0	02	1	1509-		●
1	05.809 DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1)	8-98248-899-0	02	1	1509-		●
1	05.809 DRUM; BRK,RR G.V.W. 3.0-3.5TON(RPP)	8-98248-900-0	02	1	1509-		●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1)	8-98248-900-0	02	1	1509-	●
1	05.809 DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD)	8-97184-245-2	02	1	1509-		●
1	05.809 DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9>	8-94455-285-2	02	1	1509-		●
1	05.809 DRUM; BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97036-367-1	02	1	1509-	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1)	8-94382-884-4	02	1	1509-	●
8	05.809 HUB; RR AXLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-323-1	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1)	8-97240-323-1	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-406-4	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD)	8-97034-406-4	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-406-4	02	1	1509-	●
8	05.809 HUB; RR AXLE G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97026-139-3	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97026-139-3	02	1	1509-	●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9>	5-42311-009-3	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97173-549-0	02	1	1509-	●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	1506-1508		●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	1509-	●	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 RH THREAD	9-42331-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 RH THREAD	9-42331-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 LH THREAD	9-42332-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9> (B) M14X50 LH THREAD	9-42332-605-5	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (C) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) (C) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) (C) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (C) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) (C) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) (C) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (C) M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (C) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1509-	●
9	05.812 PIN; WHEEL,RR AXLE (A) M18X46 RH THREAD	8-98028-532-1	05	1	1506-1508		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-	●	●
9	05.812 PIN; WHEEL,RR AXLE (A) M18X46 LH THREAD	8-98028-533-1	05	1	1506-1508		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-	●	●
10	05.813 NUT; WHEEL PIN,RR AXLE G.V.W. 3.0-3.5TON(RPP) 05.812 M20	0-91110-520-0	10	1	1509-		●
10	05.813 NUT; WHEEL PIN,RR AXLE G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) 05.812 M20	0-91110-520-0	10	1	1509-		●
10	05.813 NUT; WHEEL PIN,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> 05.812 M20	0-91110-520-0	10	1	1509-	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1506-1508		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1509-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1506-1508		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1509-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1506-1508		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1509-	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1506-1508		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1509-	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	1506-1508		●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1509-	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1506-1508		●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-97032-496-0	02	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) SINGLE RR TIRE(6TD) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-94366-192-0	02	1	1509-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-97032-495-0	02	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR AXLE REAR - LIGHT DUTY(8PB) SINGLE RR TIRE(6TD)	8-98175-444-0	02	1	1509-		●
25	05.420 SHAFT; AXLE,RR	8-98232-273-0	02	1	1506-1508		●
25	05.420 SHAFT; AXLE,RR AXLE REAR - LIGHT DUTY(8PB) EXC. SINGLE RR TIRE(6TD)	8-98232-273-0	02	1	1509-		●
31	05.422 STUD; AXLE SHAFT TO HUB SINGLE RR TIRE(6TD) M10X30 L=49	8-97359-803-0	12	1	1509-		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1506-1508		●
31	05.422 STUD; AXLE SHAFT TO HUB EXC. SINGLE RR TIRE(6TD) M10X30 L=49	8-97359-803-0	16	1	1509-		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1509-	●
34	05.387 NUT; AXLE SHAFT SINGLE RR TIRE(6TD) 04.085 M10 FLANGE	0-91180-210-0	12	1	1509-		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1506-1508		●
34	05.387 NUT; AXLE SHAFT EXC. SINGLE RR TIRE(6TD) 04.085 M10 FLANGE	0-91180-210-0	16	1	1509-		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1509-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT SINGLE RR TIRE(6TD) ID=10.5	8-97360-004-0	12	1	1509-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1506-1508		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT EXC. SINGLE RR TIRE(6TD) ID=10.5	8-97360-004-0	16	1	1509-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1509-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1506-1508		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1509-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1506-1508		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1509-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	1509-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	1509-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	1506-1508		●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-329-3	01	1	1509-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WI DE TREAD<8PZ>	8-97251-367-2	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-97042-906-4	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD)	8-97251-368-3	01	1	1509-	●	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>	8-97032-861-5	01	1	1509-	●	●
49	05.387 CASE; RR AXLE G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98061-921-0	01	1	1509-		●
49	05.387 CASE; RR AXLE AXLE REAR - LIGHT DUTY(8PB) SINGLE RR TIRE(6TD)	8-98175-439-1	01	1	1509-		●
49	05.387 CASE; RR AXLE	8-98232-187-1	01	1	1506-1508		●
49	05.387 CASE; RR AXLE AXLE REAR - LIGHT DUTY(8PB) EXC. SINGLE RR TIRE(6TD)	8-98232-187-1	01	1	1509-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1506-1508		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1509-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1506-1508		●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1509-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1506-1508		●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1509-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1506-1508		●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1509-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1506-1508		●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1509-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1509-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1506-1508		●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1509-		●
67	05.387 BOLT; FINAL DRIVE SETTING M10X90	0-28061-090-0	01	1	1506-1508		●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) M10X90	0-28061-090-0	01	1	1509-		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1506-1508		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1509-	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1506-1508		●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1509-	●	●
74	05.002 BOLT; RR BRK ASM SETTING SINGLE RR TIRE(6TD)	8-98007-877-0	12	1	1509-		●
74	05.002 BOLT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) M12X32	8-97359-819-0	12	1	1509-		●
74	05.002 BOLT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M12X32	8-97359-819-0	12	1	1509-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING SINGLE RR TIRE(6TD) 02.277 ID=10.2	0-91510-810-0	12	1	1509-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) 07.347 ID=12.2	0-91510-812-0	12	1	1509-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 07.347 ID=12.2	0-91510-812-0	12	1	1509-	●
76	05.002 NUT; RR BRK ASM SETTING SINGLE RR TIRE(6TD) 00.833 M10	0-91110-510-0	12	1	1509-		●
76	05.002 NUT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) M12	0-91110-512-0	12	1	1509-		●
76	05.002 NUT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M12	0-91110-512-0	12	1	1509-	●
96	04.730 BRACKET; LSPV,AXLE CASE G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98030-957-0	01	1	1509-		●
96	04.730 BRACKET; LSPV,AXLE CASE G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) (B)	8-98030-957-0	01	1	1509-	●
96	04.730 BRACKET; LSPV,AXLE CASE G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98030-956-0	01	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
