4-11 — FRONT HUB AND DRUM OR ROTOR (#162213) — 235 parça

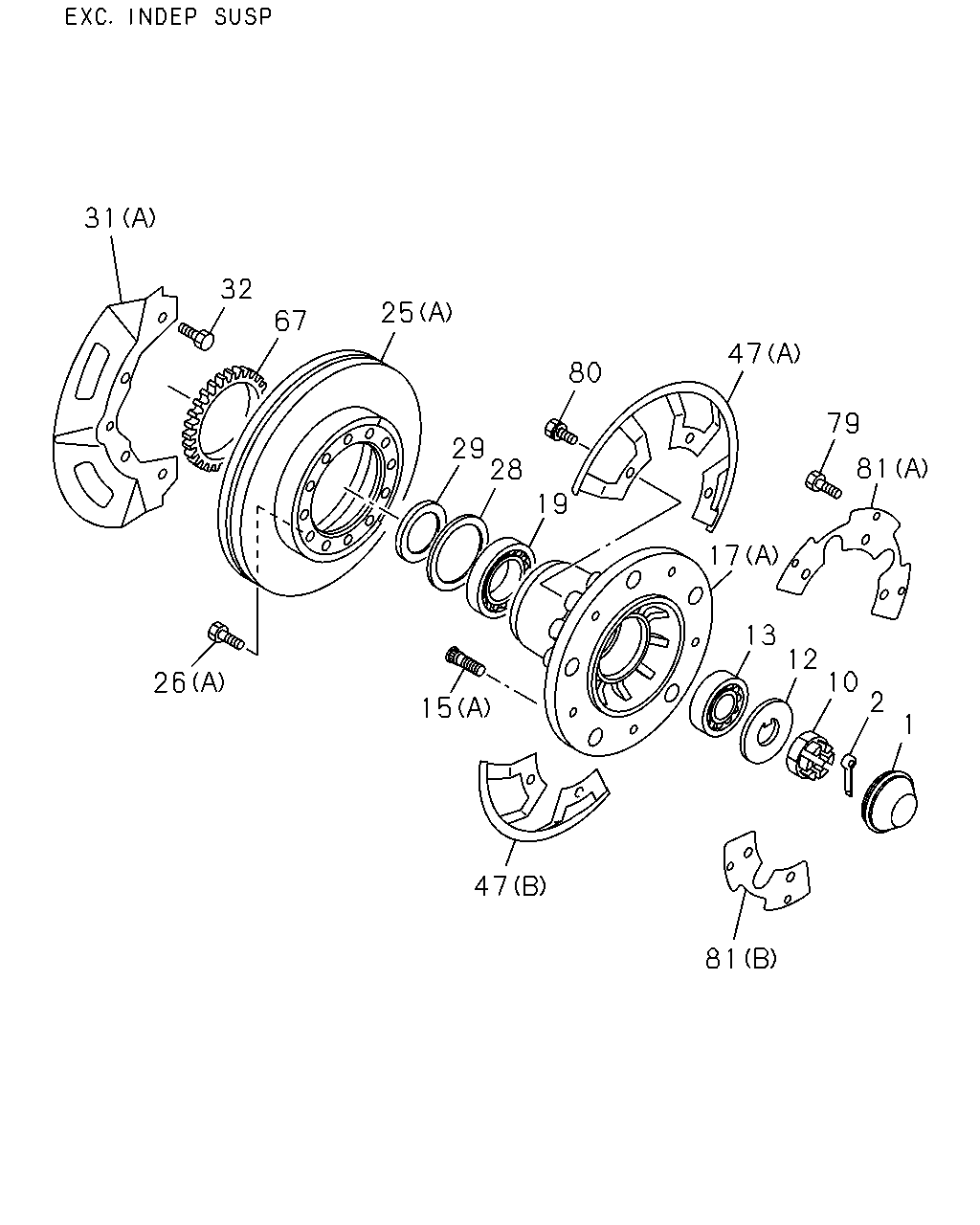

31 32 26 67 29 19 28 80 79 47 81 1 2 10 12 13 81 47 15 25 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1506-1508	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1509-	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1506-1508	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1509-	●	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1506-1508	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1509-	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1506-1508	●
12	06.321 WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.812	8-98282-435-0	02	1	1509-	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1509-		●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1506-1508	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1509-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1506-1508	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1509-	●	●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) M14X50 RH THREAD	9-42331-605-5	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) M14X50 LH THREAD	9-42332-605-5	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) M14X39 RH THREAD	8-97126-490-1	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) M14X39 LH THREAD	8-97126-491-1	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE (A) M18X46 RH THREAD	8-98028-532-1	05	1	1506-1508	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE (A) M18X46 LH THREAD	8-98028-533-1	05	1	1506-1508	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-		●
17	06.307 HUB; FRT AXLE G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97017-193-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E)	8-94365-459-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E)	8-94365-459-0	02	1	1509-		●
17	06.307 HUB; FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D)	8-94420-597-1	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (C)	8-98049-164-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B)	8-98049-154-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD) (B)	8-98049-155-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE (A)	8-97035-160-0	02	1	1506-1508	●
17	06.307 HUB; FRT AXLE G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97035-160-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97035-160-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-97035-160-0	02	1	1509-		●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) NSK	8-97034-255-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) NSK	8-94336-289-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) 06.313 NTN	8-98008-156-1	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1506-1508	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-98171-254-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1509-		●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1506-1508	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	1-87610-134-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1509-		●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (A)	8-98171-033-0	02	1	1509-	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B)	8-98248-893-0	02	1	1509-	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD) (B)	8-98001-343-0	02	1	1509-	●
25	05.809 ROTOR; DISC BRK,FRT (A)	8-97387-229-0	02	1	1506-1508	●
25	05.809 ROTOR; DISC BRK,FRT 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97387-229-0	02	1	1509-	●
25	05.809 ROTOR; DISC BRK,FRT 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-97387-229-0	02	1	1509-		●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B)	8-98021-780-0	12	1	1509-	●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD) (B)	8-98021-781-0	10	1	1509-	●
26	05.812 BOLT; BRK,DISC TO HUB (A)	8-94474-923-0	24	1	1506-1508	●
26	05.812 BOLT; BRK,DISC TO HUB 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-94474-923-0	24	1	1509-	●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (A)	8-94474-923-0	24	1	1509-	●
26	05.812 BOLT; BRK,DISC TO HUB 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-94474-923-0	24	1	1509-		●
28	06.326 SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-97211-082-0	02	1	1509-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1506-1508	●
28	06.326 SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94248-117-1	02	1	1509-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1509-		●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1506-1508	●
29	06.326 DISTANCE PIECE; HUB BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) NTN	8-97234-513-0	02	1	1509-	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1509-		●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97353-960-1	01	1	1509-	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97353-961-1	01	1	1509-	●
31	04.665 COVER; DUST,FRT BRAKE (A)	8-98037-377-0	02	1	1506-1508	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98037-377-0	02	1	1509-	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-98037-377-0	02	1	1509-		●
32	04.665 BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) M8X10 W/LK WASHER	8-98029-928-0	06	1	1509-	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1506-1508	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1509-	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1509-		●
47	06.308 HOLDER; TIRE VALVE,FRT HUB FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-97228-399-0	02	1	1509-		●
47	06.308 HOLDER; TIRE VALVE,FRT HUB FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-97228-400-0	02	1	1509-		●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD)	8-97387-156-1	02	1	1509-	●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD)	8-97387-157-1	02	1	1509-	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1506-1508	●
67	05.811 ROTOR; SENSOR G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-159-0	02	1	1509-	●
67	05.811 ROTOR; SENSOR FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97387-159-0	02	1	1509-	●
67	05.811 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-97387-159-0	02	1	1509-		●
79	04.665 BOLT; BRKT FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE	0-28050-812-0	10	1	1509-		●
80	05.812 BOLT; VALVE HOLDER FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1509-		●
81	05.812 BRACKET; VALVE HOLDER FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-97214-248-0	02	1	1509-		●
81	05.812 BRACKET; VALVE HOLDER FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-97214-249-0	02	1	1509-		●

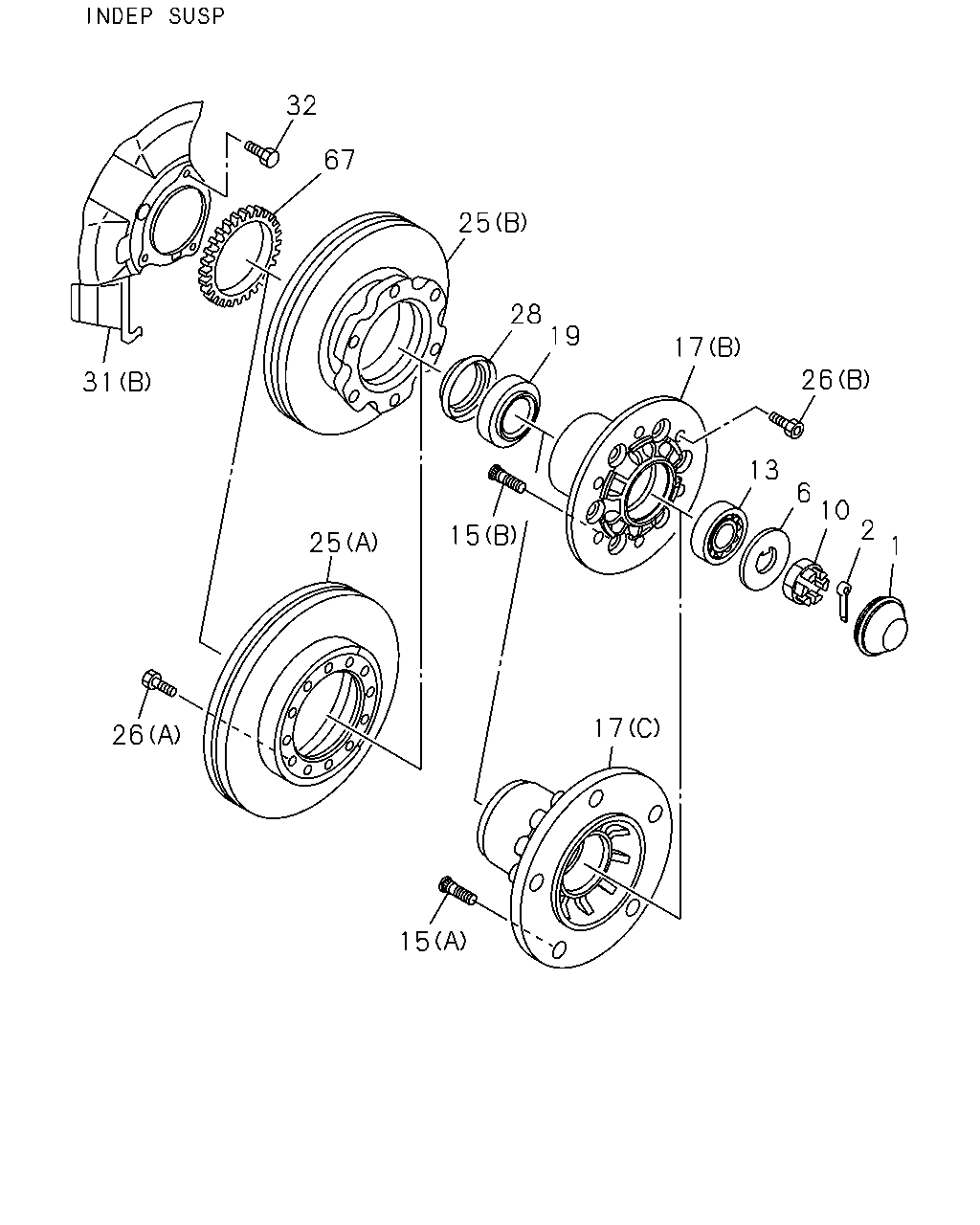

13 2 10 6 1 26 17 19 28 25 67 32 31 25 15 17 15 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1506-1508	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1509-	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1506-1508	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1509-	●	●
6	05.812 WASHER; LK,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-98282-435-0	02	1	1509-	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1506-1508	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1509-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1506-1508	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1509-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1506-1508	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1509-	●	●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) M14X50 RH THREAD	9-42331-605-5	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) M14X50 LH THREAD	9-42332-605-5	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) M14X39 RH THREAD	8-97126-490-1	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) M14X39 LH THREAD	8-97126-491-1	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE (A) M18X46 RH THREAD	8-98028-532-1	05	1	1506-1508	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE (A) M18X46 LH THREAD	8-98028-533-1	05	1	1506-1508	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-		●
17	06.307 HUB; FRT AXLE G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97017-193-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E)	8-94365-459-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E)	8-94365-459-0	02	1	1509-		●
17	06.307 HUB; FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D)	8-94420-597-1	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (C)	8-98049-164-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B)	8-98049-154-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD) (B)	8-98049-155-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE (A)	8-97035-160-0	02	1	1506-1508	●
17	06.307 HUB; FRT AXLE G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97035-160-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97035-160-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-97035-160-0	02	1	1509-		●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) NSK	8-97034-255-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) NSK	8-94336-289-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) 06.313 NTN	8-98008-156-1	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1506-1508	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-98171-254-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1509-		●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1506-1508	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	1-87610-134-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1509-		●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (A)	8-98171-033-0	02	1	1509-	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B)	8-98248-893-0	02	1	1509-	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD) (B)	8-98001-343-0	02	1	1509-	●
25	05.809 ROTOR; DISC BRK,FRT (A)	8-97387-229-0	02	1	1506-1508	●
25	05.809 ROTOR; DISC BRK,FRT 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97387-229-0	02	1	1509-	●
25	05.809 ROTOR; DISC BRK,FRT 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-97387-229-0	02	1	1509-		●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B)	8-98021-780-0	12	1	1509-	●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD) (B)	8-98021-781-0	10	1	1509-	●
26	05.812 BOLT; BRK,DISC TO HUB (A)	8-94474-923-0	24	1	1506-1508	●
26	05.812 BOLT; BRK,DISC TO HUB 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-94474-923-0	24	1	1509-	●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (A)	8-94474-923-0	24	1	1509-	●
26	05.812 BOLT; BRK,DISC TO HUB 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-94474-923-0	24	1	1509-		●
28	06.326 SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-97211-082-0	02	1	1509-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1506-1508	●
28	06.326 SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94248-117-1	02	1	1509-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1509-		●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97353-960-1	01	1	1509-	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97353-961-1	01	1	1509-	●
31	04.665 COVER; DUST,FRT BRAKE (A)	8-98037-377-0	02	1	1506-1508	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98037-377-0	02	1	1509-	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-98037-377-0	02	1	1509-		●
32	04.665 BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) M8X10 W/LK WASHER	8-98029-928-0	06	1	1509-	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1506-1508	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1509-	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1509-		●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD)	8-97387-156-1	02	1	1509-	●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD)	8-97387-157-1	02	1	1509-	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1506-1508	●
67	05.811 ROTOR; SENSOR G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-159-0	02	1	1509-	●
67	05.811 ROTOR; SENSOR FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97387-159-0	02	1	1509-	●
67	05.811 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-97387-159-0	02	1	1509-		●

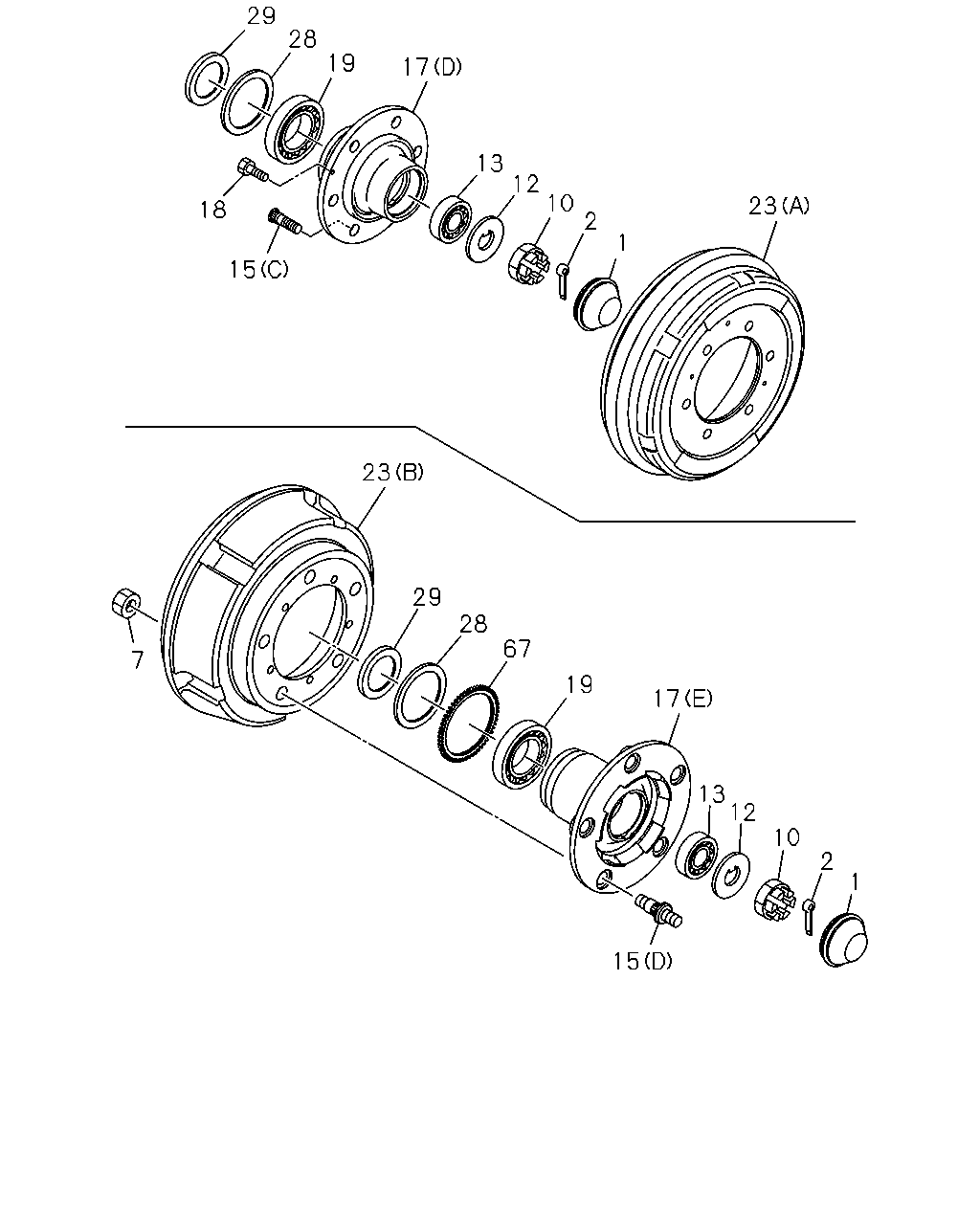

29 19 28 17 13 10 12 2 23 1 15 18 23 29 28 67 19 17 13 12 10 2 1 15 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1506-1508	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1509-	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1506-1508	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1509-	●	●
7	05.812 NUT; FRT HUB FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> M20	0-91110-520-0	10	1	1509-	●
7	05.812 NUT; FRT HUB EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> M20	0-91110-520-0	10	1	1509-		●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1506-1508	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1509-	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1506-1508	●
12	06.321 WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.812	8-98282-435-0	02	1	1509-	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1509-		●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1506-1508	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1509-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1506-1508	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1509-	●	●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) M14X50 RH THREAD	9-42331-605-5	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) M14X50 LH THREAD	9-42332-605-5	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) M14X39 RH THREAD	8-97126-490-1	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) M14X39 LH THREAD	8-97126-491-1	06	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE (A) M18X46 RH THREAD	8-98028-532-1	05	1	1506-1508	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) M18X46 RH THREAD	8-98028-532-1	05	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE (A) M18X46 LH THREAD	8-98028-533-1	05	1	1506-1508	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-	●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) M18X46 LH THREAD	8-98028-533-1	05	1	1509-		●
17	06.307 HUB; FRT AXLE G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97017-193-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E)	8-94365-459-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E)	8-94365-459-0	02	1	1509-		●
17	06.307 HUB; FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (D)	8-94420-597-1	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (C)	8-98049-164-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B)	8-98049-154-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD) (B)	8-98049-155-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE (A)	8-97035-160-0	02	1	1506-1508	●
17	06.307 HUB; FRT AXLE G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97035-160-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97035-160-0	02	1	1509-	●
17	06.307 HUB; FRT AXLE 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-97035-160-0	02	1	1509-		●
18	06.022 BOLT; DRUM TO HUB FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.012 M6X18	0-20800-618-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) NSK	8-97034-255-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) NSK	8-94336-289-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) 06.313 NTN	8-98008-156-1	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1506-1508	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-98171-254-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1509-		●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1506-1508	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	1-87610-134-0	02	1	1509-	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1509-		●
23	05.809 DRUM; BRK,FRT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-97094-434-2	02	1	1509-	●
23	05.809 DRUM; BRK,FRT EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-97094-434-2	02	1	1509-		●
23	05.809 DRUM; BRK,FRT FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A)	8-98242-348-0	02	1	1509-	●
28	06.326 SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-97211-082-0	02	1	1509-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1506-1508	●
28	06.326 SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94248-117-1	02	1	1509-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1509-		●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1506-1508	●
29	06.326 DISTANCE PIECE; HUB BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) NTN	8-97234-513-0	02	1	1509-	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1509-		●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD)	8-97387-156-1	02	1	1509-	●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD)	8-97387-157-1	02	1	1509-	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1506-1508	●
67	05.811 ROTOR; SENSOR G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-159-0	02	1	1509-	●
67	05.811 ROTOR; SENSOR FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97387-159-0	02	1	1509-	●
67	05.811 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-97387-159-0	02	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
