Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#162210) — 704 parça

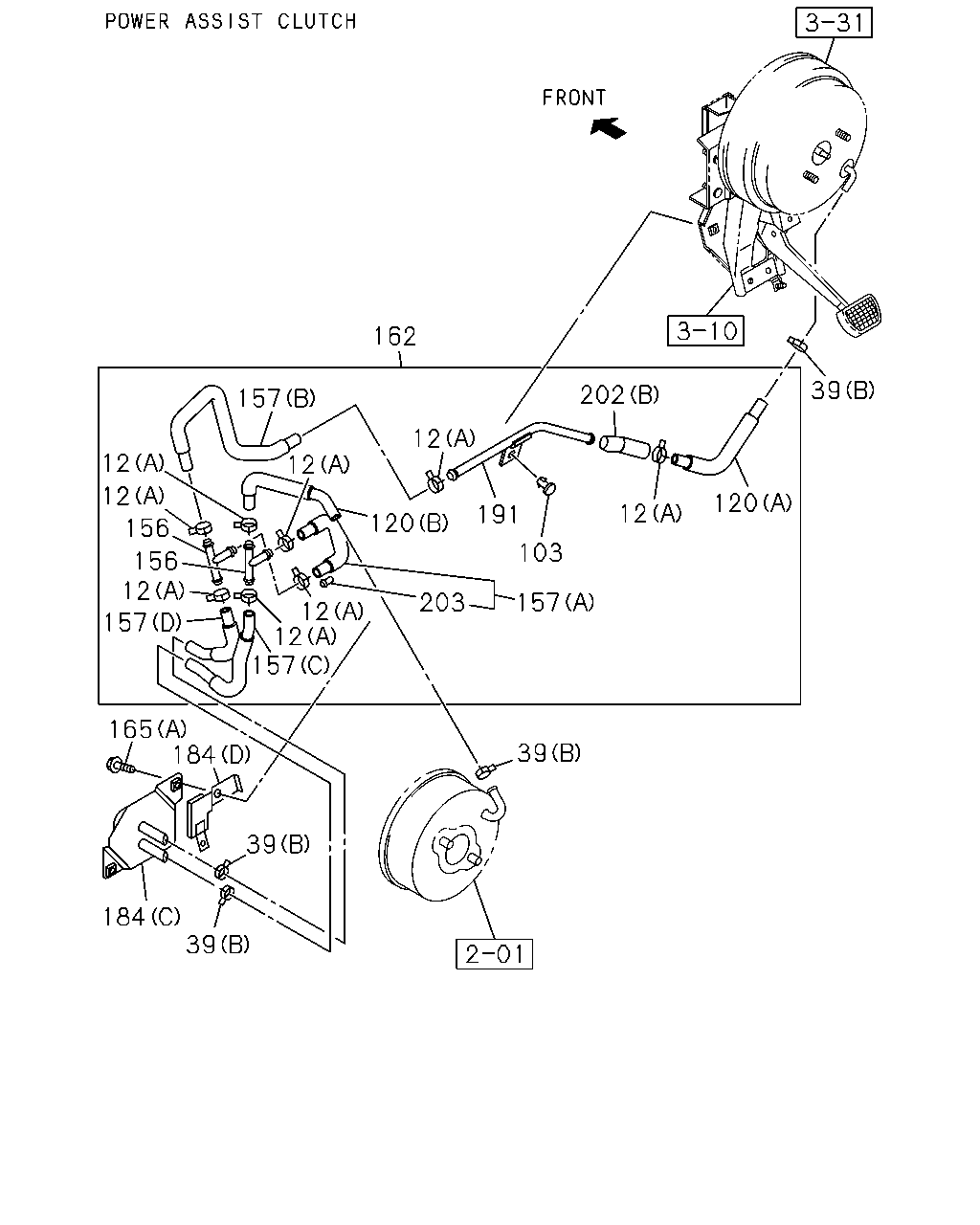

165 184 184 39 12 191 202 103 120 12 162 39 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E) ID=18 L=80	1-09701-069-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 04.930 (F) ID=10 H=40	8-94462-219-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	04	1	1509-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1506-1508	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1509-	●	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1506-1508	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1509-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98194-488-0	01	1	1506-1508	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98194-488-0	01	1	1509-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98191-454-0	01	1	1506-1508	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98191-454-0	01	1	1509-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98191-452-0	01	1	1506-1508	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98191-452-0	01	1	1509-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98191-453-0	01	1	1506-1508	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98191-453-0	01	1	1509-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98191-458-0	01	1	1506-1508	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98191-458-0	01	1	1509-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98194-489-0	01	1	1506-1508	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98194-489-0	01	1	1509-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98191-466-0	01	1	1506-1508	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98191-466-0	01	1	1509-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-98191-457-0	01	1	1506-1508	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-98191-457-0	01	1	1509-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98191-465-1	01	1	1506-1508	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98191-465-1	01	1	1509-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1506-1508	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1509-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1506-1508	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1509-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-469-1	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-469-1	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-537-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-537-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-541-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-541-0	01	1	1509-	●	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1506-1508	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1509-	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1506-1508	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1509-	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1506-1508	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1509-	●	●

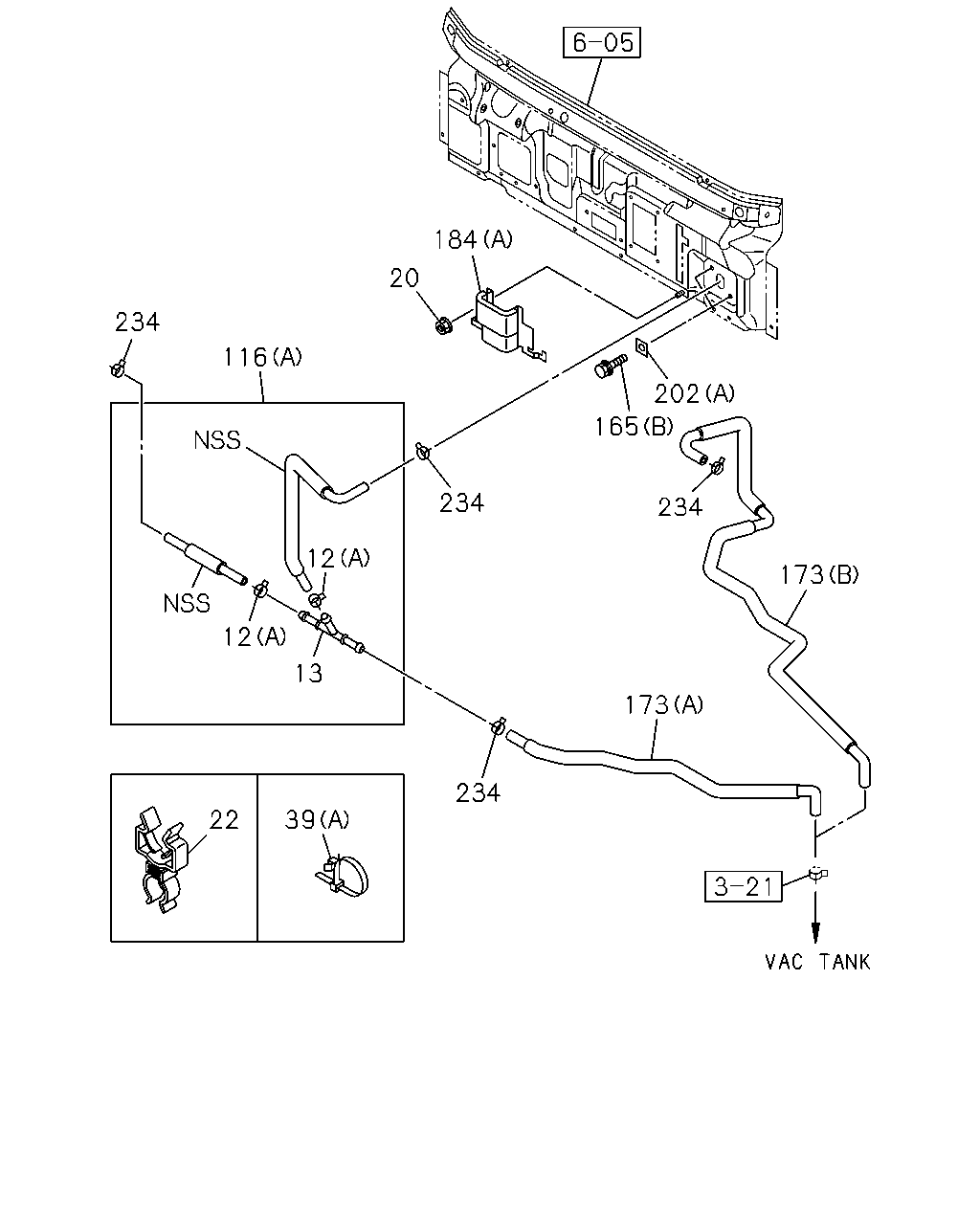

184 20 202 165 234 173 173 324 39 22 13 12 12 234 116 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E) ID=18 L=80	1-09701-069-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 04.930 (F) ID=10 H=40	8-94462-219-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	04	1	1509-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1506-1508	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1506-1508	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1509-	●	●
20	04.686 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1508	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG(LFB) 01.166 ID=22 & 22	8-94464-837-0	01	1	1509-	●	●
22	04.681 CLIP; HOSE,VAC TANK ID=18-24 L=14.5	1-09709-298-0	01	1	1506-1508	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCC ENG(RDU) ID=18-24 L=14.5	1-09709-298-0	01	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1509-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1506-1508	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1509-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1506-1508	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1509-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1506-1508	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1509-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1506-1508	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-469-1	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-469-1	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-537-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-537-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-541-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-541-0	01	1	1509-	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1506-1508	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1509-	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1506-1508	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1509-	●	●
234	04.685 CLAMP; PIPE 4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1506-1508	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1509-	●	●
234	04.685 CLAMP; PIPE 4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1506-1508	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1509-	●	●

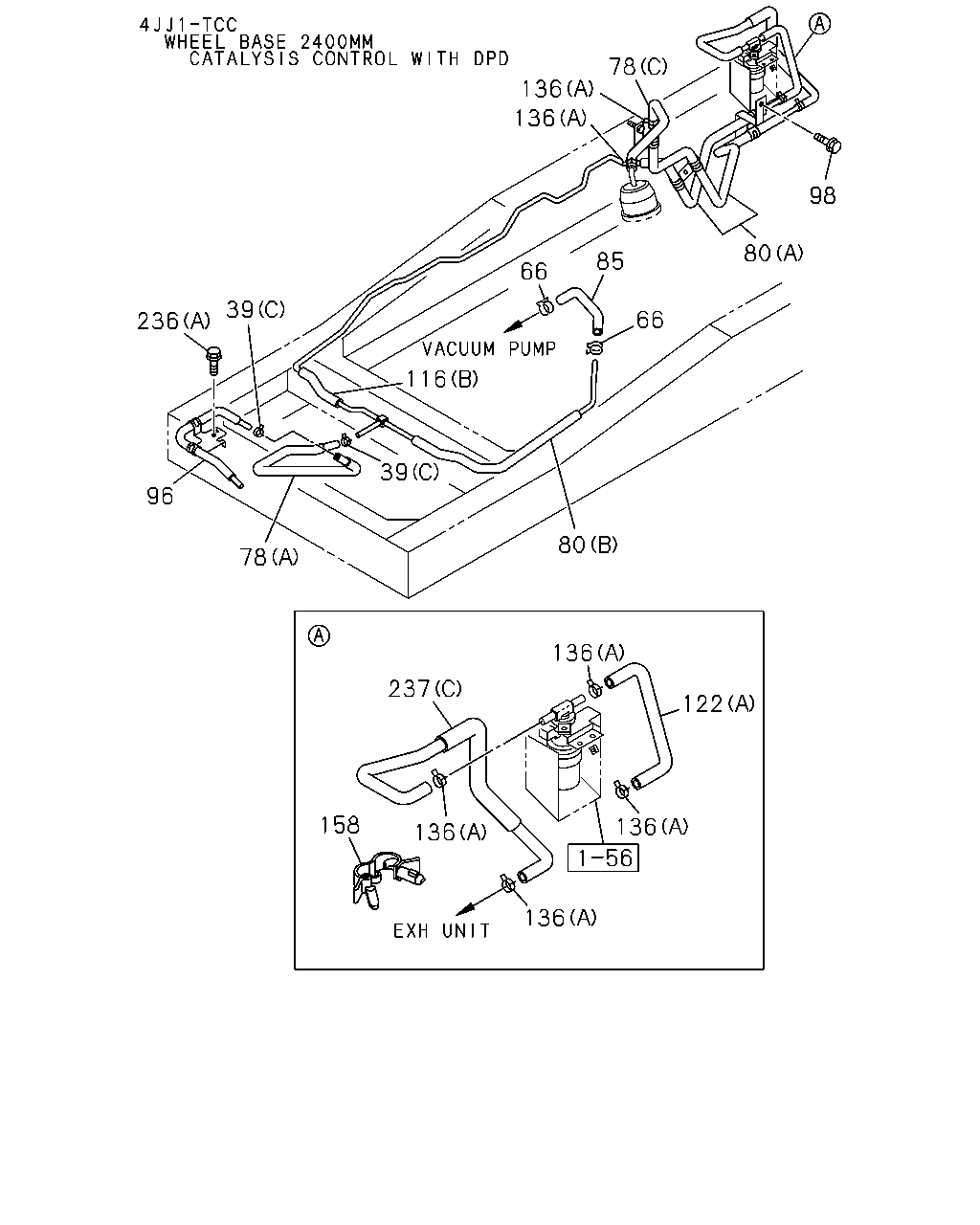

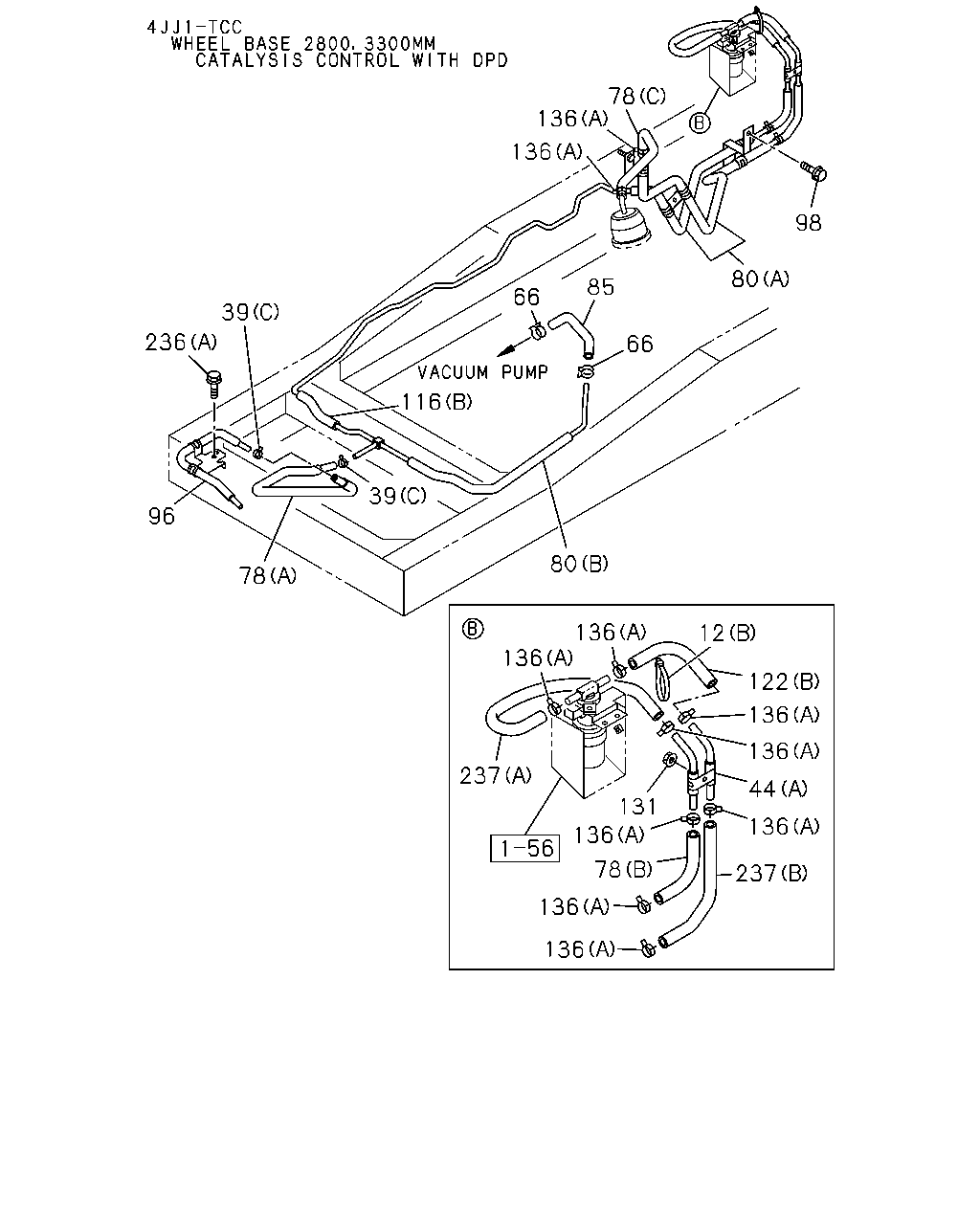

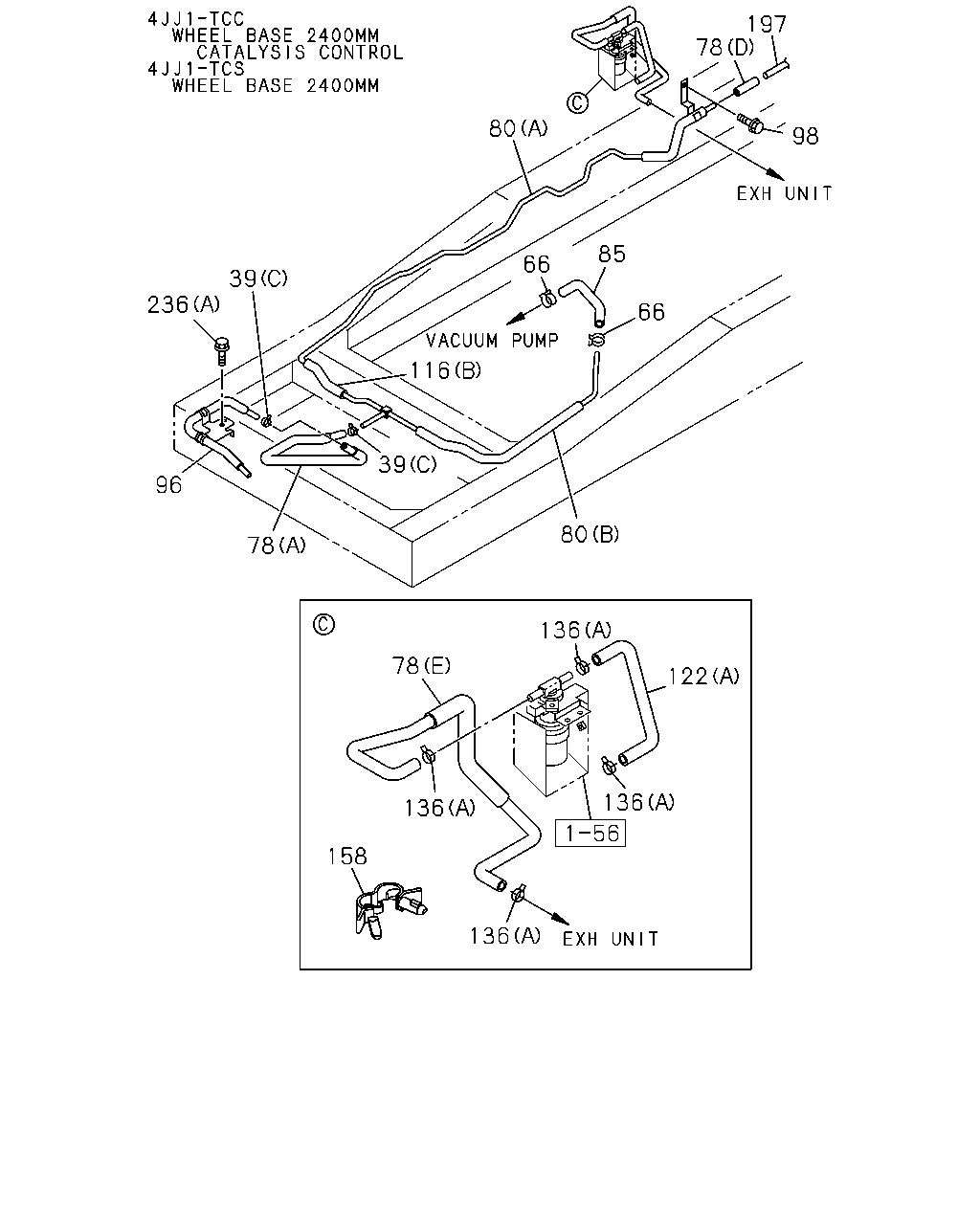

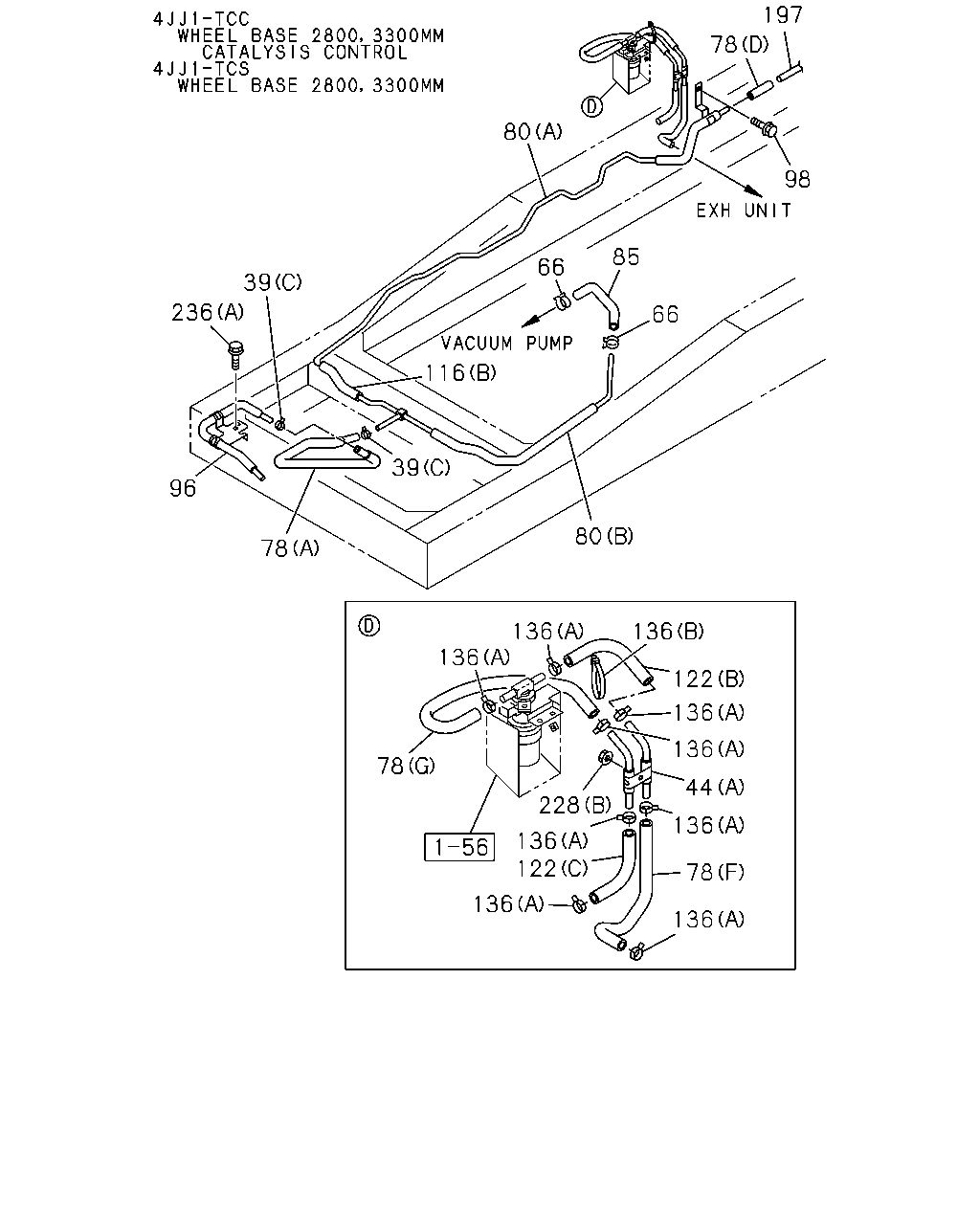

78 136 136 98 80 85 66 66 116 39 236 96 78 39 80 136 122 136 136 136 237 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1509-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1506-1508	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) (A)	8-98138-842-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98098-174-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98098-174-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1506-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98207-005-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1506-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98189-226-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C)	8-98227-654-1	01	1	1506-1507	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98227-654-1	01	1	1508-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-654-1	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) (A)	8-98042-655-2	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) (A)	8-98056-002-2	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1506-1508	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98227-591-1	01	1	1506-1508	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98227-591-1	01	1	1509-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1506-1508	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1509-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1506-1508	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1509-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-1508	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A)	8-98076-068-1	01	1	1506-1508	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98189-222-0	01	1	1506-1508	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98189-222-0	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	06	1	1506-1507	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	06	1	1508-1508	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) ID=18-24 L=14.5	1-09709-298-0	01	1	1506-1508	●
158	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> ID=18-24 L=14.5	1-09709-298-0	01	1	1509-	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> ID=18-24 L=14.5	1-09709-298-0	01	1	1509-	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) ID=18-24 L=14.5	1-09709-298-0	01	1	1509-	●	●
236	04.930 BOLT; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1506-1508	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E)	8-98034-429-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98034-429-0	01	1	1509-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (F)	8-98039-789-1	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> (F)	8-98039-789-1	01	1	1509-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.630 (D) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (G)	8-98171-286-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (C)	8-98227-652-1	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98189-224-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98227-653-1	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1509-	●	●

122 136 136 44 136 237 136 136 136 237 136 80 66 85 66 116 39 236 96 78 136 136 78 98 80 136 12 131 78 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E) ID=18 L=80	1-09701-069-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 04.930 (F) ID=10 H=40	8-94462-219-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	04	1	1509-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1506-1508	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98039-807-1	01	1	1509-	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B)	8-98039-806-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (C)	8-98145-928-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1506-1508	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1509-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1506-1508	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) (A)	8-98138-842-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98098-174-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98098-174-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1506-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98207-005-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1506-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98189-226-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C)	8-98227-654-1	01	1	1506-1507	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98227-654-1	01	1	1508-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-654-1	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) (A)	8-98042-655-2	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) (A)	8-98056-002-2	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1506-1508	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98227-591-1	01	1	1506-1508	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98227-591-1	01	1	1509-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1506-1508	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1509-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1506-1508	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1509-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-1508	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A)	8-98076-068-1	01	1	1506-1508	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98189-222-0	01	1	1506-1508	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98189-222-0	01	1	1509-	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1508	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	06	1	1506-1507	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	06	1	1508-1508	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●	●
236	04.930 BOLT; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1506-1508	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E)	8-98034-429-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98034-429-0	01	1	1509-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (F)	8-98039-789-1	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> (F)	8-98039-789-1	01	1	1509-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.630 (D) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (G)	8-98171-286-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (C)	8-98227-652-1	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98189-224-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98227-653-1	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1509-	●	●

162 12 202 12 120 39 103 191 157 203 120 12 157 12 12 157 157 12 156 156 12 12 184 165 39 39 184 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E) ID=18 L=80	1-09701-069-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 04.930 (F) ID=10 H=40	8-94462-219-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	04	1	1509-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1506-1508	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1509-	●	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1506-1508	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1509-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98194-488-0	01	1	1506-1508	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98194-488-0	01	1	1509-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98191-454-0	01	1	1506-1508	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98191-454-0	01	1	1509-	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1506-1508	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1509-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98191-452-0	01	1	1506-1508	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98191-452-0	01	1	1509-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98191-453-0	01	1	1506-1508	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98191-453-0	01	1	1509-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98191-458-0	01	1	1506-1508	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98191-458-0	01	1	1509-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98194-489-0	01	1	1506-1508	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98194-489-0	01	1	1509-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98191-466-0	01	1	1506-1508	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98191-466-0	01	1	1509-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-98191-457-0	01	1	1506-1508	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-98191-457-0	01	1	1509-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98191-465-1	01	1	1506-1508	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98191-465-1	01	1	1509-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1506-1508	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1509-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1506-1508	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1509-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-469-1	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-469-1	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-537-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-537-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1509-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-541-0	01	1	1506-1508	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-541-0	01	1	1509-	●	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1506-1508	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1509-	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1506-1508	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1509-	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1506-1508	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1509-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	1506-1508	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	1509-	●	●

136 136 78 122 136 136 44 122 136 228 136 78 136 80 136 136 78 96 236 39 39 66 85 66 98 78 197 80 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98039-807-1	01	1	1509-	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B)	8-98039-806-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (C)	8-98145-928-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1506-1508	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1509-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1506-1508	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) (A)	8-98138-842-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98098-174-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98098-174-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1506-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98207-005-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1506-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98189-226-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C)	8-98227-654-1	01	1	1506-1507	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98227-654-1	01	1	1508-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-654-1	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) (A)	8-98042-655-2	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) (A)	8-98056-002-2	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1506-1508	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98227-591-1	01	1	1506-1508	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98227-591-1	01	1	1509-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1506-1508	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1509-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1506-1508	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1509-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-1508	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A)	8-98076-068-1	01	1	1506-1508	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98189-222-0	01	1	1506-1508	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98189-222-0	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	06	1	1506-1507	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	06	1	1508-1508	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1509-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-852-1	01	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-803-1	01	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-805-2	01	1	1509-	●	●
228	04.930 NUT; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1509-	●	●
228	04.930 NUT; PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
228	04.930 NUT; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
228	04.930 NUT; PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
228	04.930 NUT; PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
236	04.930 BOLT; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1506-1508	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1509-	●	●

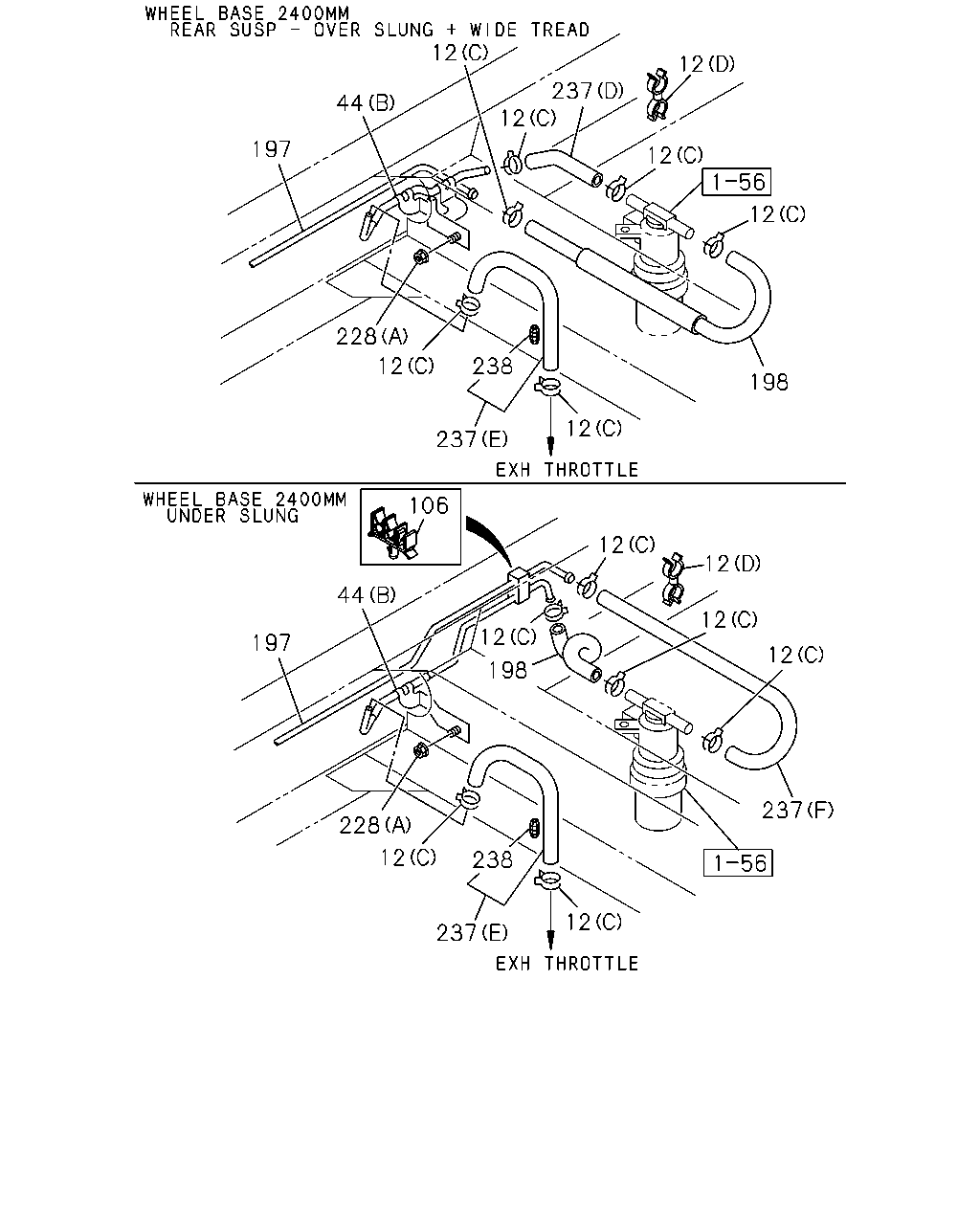

237 12 237 238 228 197 44 12 12 198 12 12 12 237 228 238 12 12 12 198 12 237 44 12 197 12 12 12 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E) ID=18 L=80	1-09701-069-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 04.930 (F) ID=10 H=40	8-94462-219-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	04	1	1509-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1506-1508	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98039-807-1	01	1	1509-	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B)	8-98039-806-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (C)	8-98145-928-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1506-1508	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1509-	●	●
106	04.930 CLIP; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> ID=10X2 & 4.76	8-97170-259-0	01	1	1509-	●	●
106	04.930 CLIP; PIPE SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1509-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1509-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-852-1	01	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-803-1	01	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-805-2	01	1	1509-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-788-1	01	1	1509-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1509-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-787-0	01	1	1509-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98063-388-0	01	1	1509-	●	●
228	04.930 NUT; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1509-	●	●
228	04.930 NUT; PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
228	04.930 NUT; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
228	04.930 NUT; PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
228	04.930 NUT; PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E)	8-98034-429-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98034-429-0	01	1	1509-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (F)	8-98039-789-1	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> (F)	8-98039-789-1	01	1	1509-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.630 (D) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (G)	8-98171-286-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (C)	8-98227-652-1	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98189-224-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98227-653-1	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1509-	●	●
238	04.892 ORIFICE; VACUUM HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-97377-521-0	01	1	1509-	●	●
238	04.892 ORIFICE; VACUUM HOSE SUSPENSION - RR UNDER SLUNG<V4U>	8-97377-521-0	01	1	1509-	●

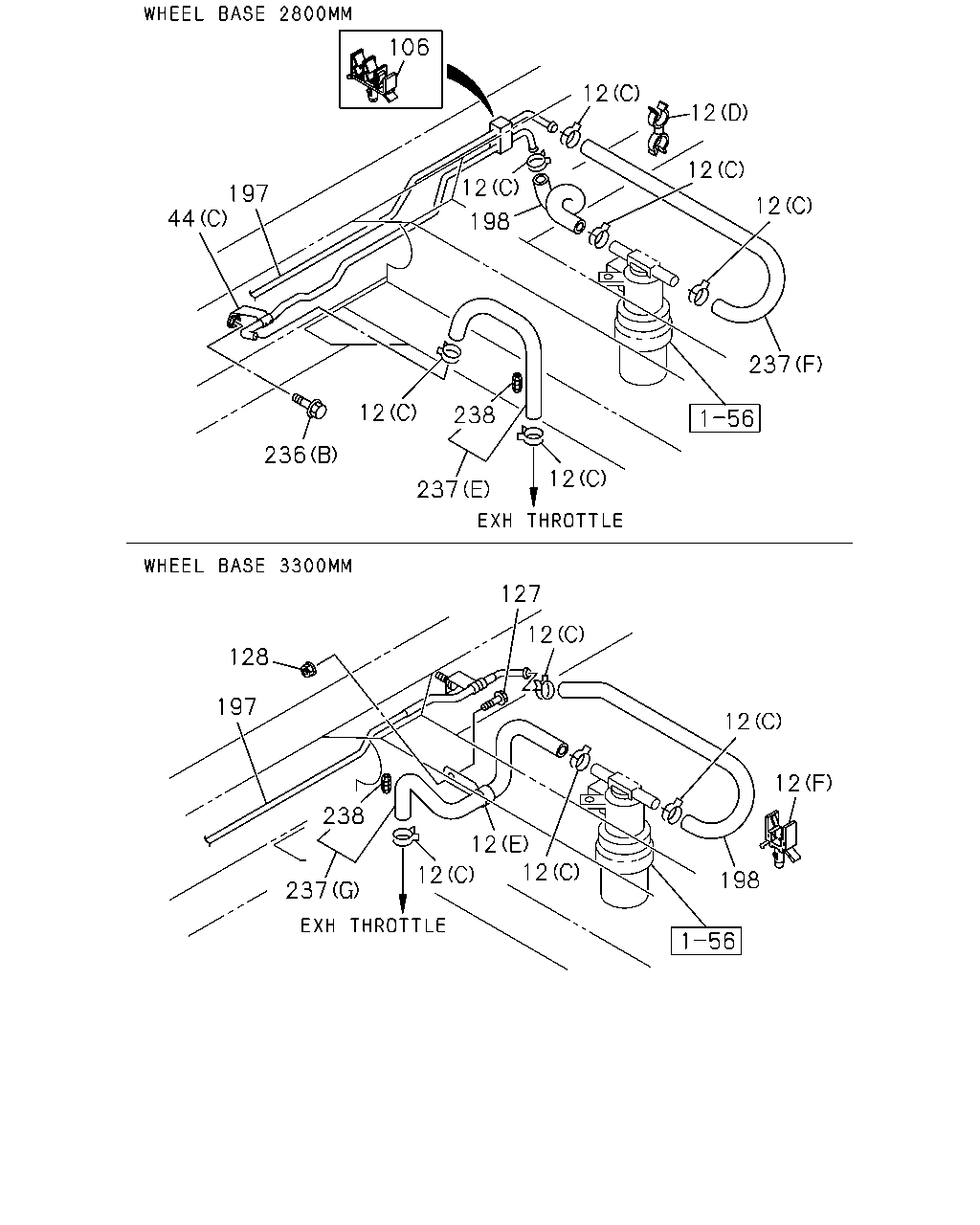

236 44 197 12 238 12 237 237 12 12 12 12 198 12 12 198 12 12 127 12 128 197 237 238 12 106 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (C) ID=16	8-98008-098-0	06	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1509-	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E) ID=18 L=80	1-09701-069-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 04.930 (F) ID=10 H=40	8-94462-219-0	01	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.162 (C) ID=16	8-98008-098-0	04	1	1509-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1506-1508	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-1508	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98039-807-1	01	1	1509-	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B)	8-98039-806-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (C)	8-98145-928-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1506-1508	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98042-654-0	01	1	1509-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1509-	●	●
106	04.930 CLIP; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> ID=10X2 & 4.76	8-97170-259-0	01	1	1509-	●	●
106	04.930 CLIP; PIPE SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1509-	●
127	04.930 BOLT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
128	04.930 NUT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1509-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-852-1	01	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-803-1	01	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-805-2	01	1	1509-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-788-1	01	1	1509-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1509-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-787-0	01	1	1509-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98063-388-0	01	1	1509-	●	●
236	04.930 BOLT; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1506-1508	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E)	8-98034-429-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98034-429-0	01	1	1509-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (F)	8-98039-789-1	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> (F)	8-98039-789-1	01	1	1509-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 03.630 (D) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (G)	8-98171-286-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (C)	8-98227-652-1	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98189-224-0	01	1	1509-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98227-653-1	01	1	1506-1508	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1509-	●	●
238	04.892 ORIFICE; VACUUM HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-97377-521-0	01	1	1509-	●	●
238	04.892 ORIFICE; VACUUM HOSE SUSPENSION - RR UNDER SLUNG<V4U>	8-97377-521-0	01	1	1509-	●

136 136 158 78 136 122 80 39 78 96 236 39 80 66 85 66 98 78 197 136 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1509-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1506-1508	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1509-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1506-1508	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) (A)	8-98138-842-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98098-174-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98098-174-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (F)	8-98189-223-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (G)	8-98189-224-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1506-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98207-005-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1506-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98189-226-0	01	1	1509-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C)	8-98227-654-1	01	1	1506-1507	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98227-654-1	01	1	1508-1508	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-654-1	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) (A)	8-98042-655-2	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) (A)	8-98056-002-2	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1506-1508	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1509-	●	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98227-591-1	01	1	1506-1508	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98227-591-1	01	1	1509-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1506-1508	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1509-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1506-1508	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1509-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-1508	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1509-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1506-1508	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98189-226-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A)	8-98076-068-1	01	1	1506-1508	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98076-068-1	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98189-222-0	01	1	1506-1508	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98189-222-0	01	1	1509-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98189-222-0	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) ID=16	8-98008-098-0	06	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	06	1	1506-1507	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	06	1	1508-1508	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) ID=18-24 L=14.5	1-09709-298-0	01	1	1506-1508	●
158	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> ID=18-24 L=14.5	1-09709-298-0	01	1	1509-	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> ID=18-24 L=14.5	1-09709-298-0	01	1	1509-	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) ID=18-24 L=14.5	1-09709-298-0	01	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1509-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-852-1	01	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-803-1	01	1	1509-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98039-805-2	01	1	1509-	●	●
236	04.930 BOLT; PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1506-1508	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
