3-58 — FIXING PARTS; OIL PIPING (#162209) — 124 parça

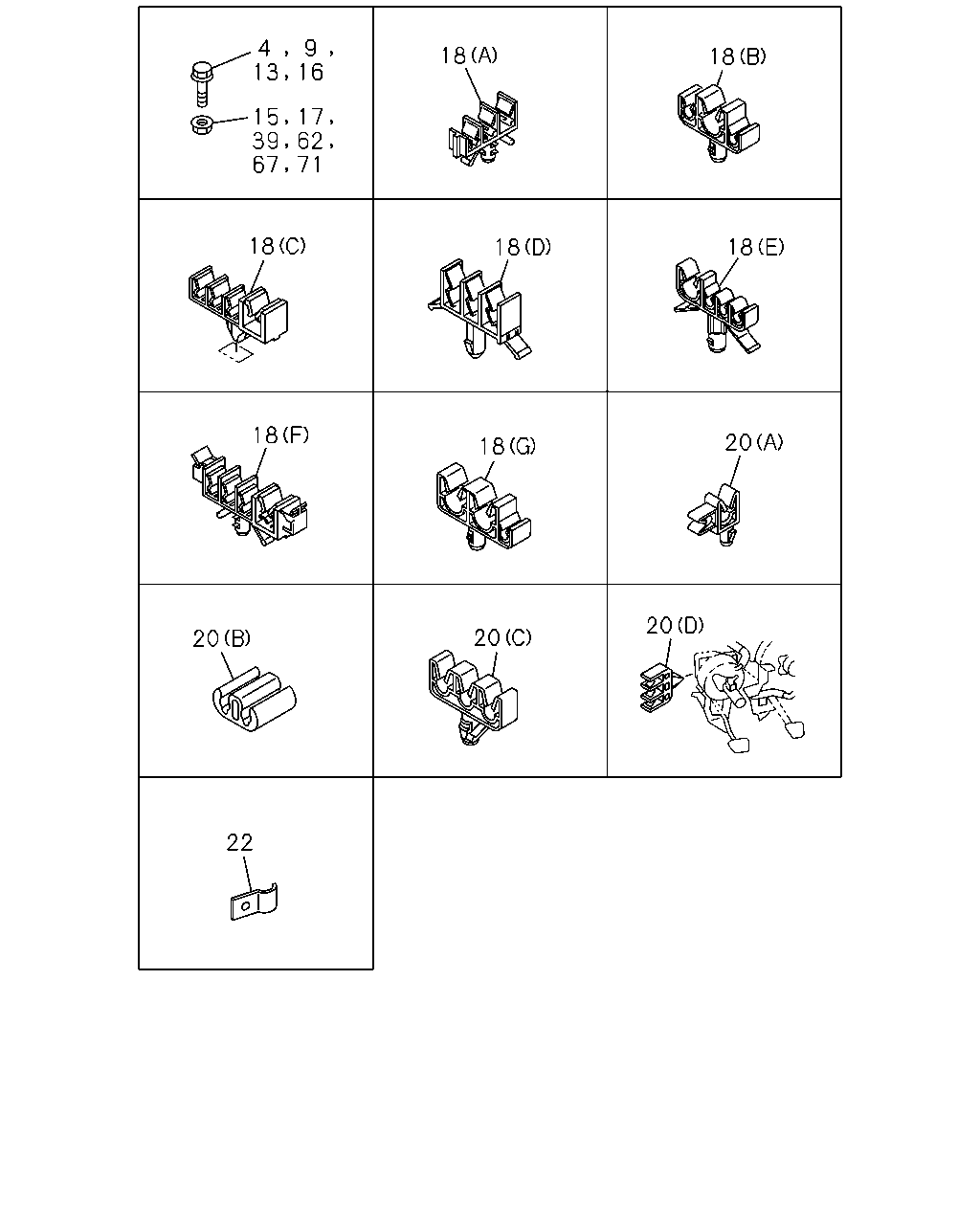

çizim 479431
4 9 13 16 15 17 39 62 67 71 18 18 20 22 18 18 18 20 18 18 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ●
4 04.686 BOLT; BRKT
HEAVY DUTY FRAME<6WB> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ●
4 04.686 BOLT; BRKT
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
4 04.686 BOLT; BRKT
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
4 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
4 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
4 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) HEAVY DUTY FRAME<6WB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
4 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) HEAVY DUTY FRAME<6WB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
9 04.686 BOLT; BRKT
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
9 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. BRK WHL LK CONT LSPV<6PH> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
9 04.686 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ●
9 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ●
9 04.686 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1509- ● ●
9 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1509- ● ●
9 04.686 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1509- ● ●
9 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1509- ● ●
9 04.686 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1506-1508 ●
9 04.686 BOLT; BRKT
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1509- ●
9 04.686 BOLT; BRKT
AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1509- ●
9 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1506-1508 ●
9 04.686 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1509- ● ●
13 04.686 BOLT; BRKT,OIL PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1506-1508 ●
13 04.686 BOLT; BRKT,OIL PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ● ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506-1508 ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ● ●
16 04.686 BOLT; BRKT TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1509- ●
17 04.686 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ●
17 04.686 NUT; BRKT TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
17 04.686 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (G) ID=10 OR 12X2 & 4.76 		8-98058-323-0 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (F) ID=10 & 4.76X3 		8-97326-158-1 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (F) ID=10 & 4.76X3 		8-97326-158-1 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> (F) ID=10 & 4.76X3 		8-97326-158-1 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) (F) ID=10 & 4.76X3 		8-97326-158-1 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=10 & 4.76X3 		8-97326-158-1 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH> (F) ID=10 & 4.76X3 		8-97326-158-1 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) SINGLE RR TIRE(6TD) (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
03.162 (A) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
03.162 (A) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 06 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 06 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97326-158-1 03 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (F) ID=10 & 4.76X3 		8-97326-158-1 04 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) (F) ID=10 & 4.76X3 		8-97326-158-1 04 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) (F) ID=10 & 4.76X3 		8-97326-158-1 04 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
(B) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) (F) ID=10 & 4.76X3 		8-97326-158-1 03 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (F) ID=10 & 4.76X3 		8-97326-158-1 04 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH> (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) EXC. SINGLE RR TIRE(6TD) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (E) ID=10 & 4.76X3 		8-97168-820-0 03 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (E) ID=10 & 4.76X3 		8-97168-820-0 03 1 1509- ● ●
20 04.686 CLIP; BRK PIPE
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1509- ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1509- ● ●
20 04.686 CLIP; BRK PIPE
03.162 (B) ID=6.35 & 6.35 		8-94474-113-0 02 1 1506-1508 ●
20 04.686 CLIP; BRK PIPE
03.162 (B) ID=6.35 & 6.35 		8-94474-113-0 02 1 1509- ● ●
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=12 & 6.35 		8-97215-437-0 01 1 1506-1508 ●
20 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) ID=12 & 6.35 		8-97215-437-0 01 1 1509- ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76X3 		8-98196-265-0 01 1 1506-1508 ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TAIWAN EQUIPMENT(B04) (C) ID=4.76X3 		8-98196-265-0 01 1 1509- ● ●
22 04.686 CLIP; PIPE TO FRAME
00.785 B=14 L=16 		9-09916-996-0 02 1 1506-1508 ●
22 04.686 CLIP; PIPE TO FRAME
00.785 B=14 L=16 		9-09916-996-0 02 1 1509- ● ●
39 04.686 NUT; BRKT FIX
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
39 04.686 NUT; BRKT FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. BRK WHL LK CONT LSPV<6PH> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
39 04.686 NUT; BRKT FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
39 04.686 NUT; BRKT FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
39 04.686 NUT; BRKT FIX
4JJ1-TCS ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
39 04.686 NUT; BRKT FIX
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
39 04.686 NUT; BRKT FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
39 04.686 NUT; BRKT FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
39 04.686 NUT; BRKT FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
39 04.686 NUT; BRKT FIX
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
62 04.686 NUT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
62 04.686 NUT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
62 04.686 NUT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
62 04.686 NUT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
67 04.686 NUT; BRKT
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ●
67 04.686 NUT; BRKT
HEAVY DUTY FRAME<6WB> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
71 04.686 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
71 04.686 NUT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
çizim 480334
12 68 19 68 19 68
BalonParca AdiParca NoAdetTipApplied Date A B
12 04.686 BRACKET; OIL PIPE
03.634 		8-98209-974-1 01 1 1506-1508 ●
12 04.686 BRACKET; OIL PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 03.634 		8-98209-974-1 01 1 1509- ● ●
19 04.686 BRACKET; OIL PIPE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98162-759-0 01 1 1509- ● ●
19 04.686 BRACKET; OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98162-759-0 01 1 1509- ● ●
19 04.686 BRACKET; OIL PIPE
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH> (B) 		8-98162-759-0 01 1 1509- ● ●
19 04.686 BRACKET; OIL PIPE
(A) 		8-98207-832-0 01 1 1506-1508 ●
19 04.686 BRACKET; OIL PIPE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-98207-832-0 01 1 1509- ● ●
19 04.686 BRACKET; OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98207-832-0 01 1 1509- ● ●
19 04.686 BRACKET; OIL PIPE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-98207-832-0 01 1 1509- ● ●
19 04.686 BRACKET; OIL PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98207-832-0 01 1 1509- ● ●
19 04.686 BRACKET; OIL PIPE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98207-832-0 01 1 1509- ● ●
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 1506-1508 ●
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 1509- ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B) 		8-98060-870-2 01 1 1506-1508 ●
68 04.686 BRACKET; CLIP
HEAVY DUTY FRAME<6WB> (B) 		8-98060-870-2 01 1 1509- ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C) 		8-98178-046-0 01 1 1506-1508 ●
68 04.686 BRACKET; CLIP
HEAVY DUTY FRAME<6WB> (C) 		8-98178-046-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
