3-55 — BRAKE PIPING; OIL,REAR (#162208) — 151 parça

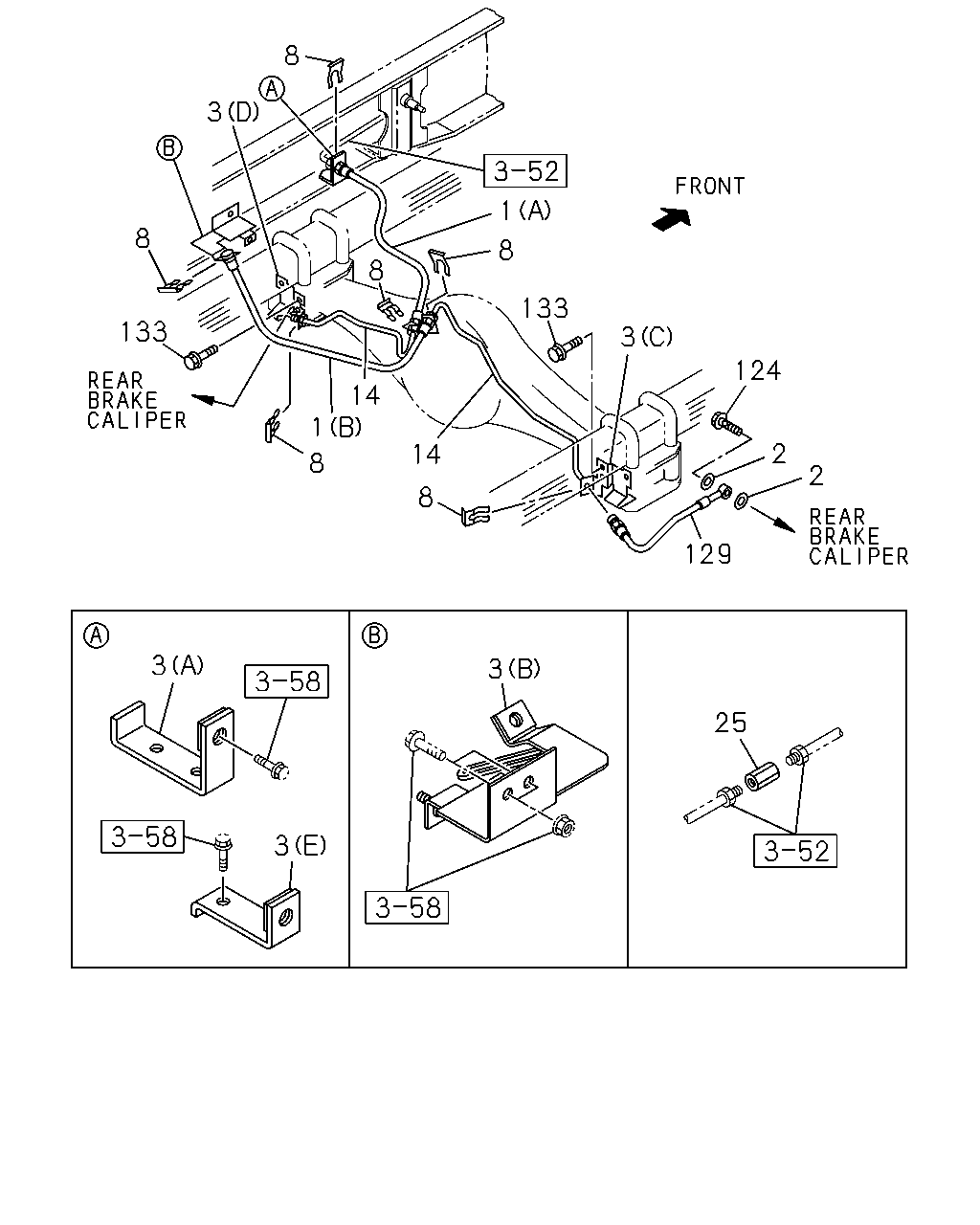

çizim 479385
8 3 8 133 1 8 14 14 133 8 1 3 124 2 2 129 8 3 3 3 25 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) L=345 		8-97230-284-1 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1506-1508 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1509- ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1506-1508 ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1509- ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1506-1508 ●
2 04.686 GASKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-97251-436-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) (F) 		8-97251-436-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-97251-436-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98117-513-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. BRK WHL LK CONT LSPV<6PH> (G) 		8-98117-513-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) 		8-97205-198-0 01 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-625-3 01 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98037-625-3 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98037-626-3 01 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(E) 		8-98135-875-0 01 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) (E) 		8-98135-875-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (E) 		8-98135-875-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B) 		8-98153-296-0 01 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1509- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1506-1508 ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ● ●
8 04.686 CLIP; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,SINGLE RR TIRE(6TD) 		8-97360-054-0 02 1 1509- ●
8 04.686 CLIP; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 1509- ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1506-1508 ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 04 1 1509- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 04 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98021-862-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> SINGLE RR TIRE(6TD) 		8-98021-862-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98021-877-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> SINGLE RR TIRE(6TD) 		8-98021-877-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98021-876-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98021-876-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98021-880-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98021-880-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98021-871-0 01 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98021-879-0 01 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-193-0 01 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-196-0 01 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,REAR SUSPENSION - OVER S LUNG + WIDE TREAD<8PZ> 		8-98021-860-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9> 		8-98021-869-0 01 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SIN GLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-192-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),REA R SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-192-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98175-406-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98175-407-1 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98232-597-0 01 1 1506-1508 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98232-597-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98232-598-0 01 1 1506-1508 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98232-598-0 01 1 1509- ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) M10 STRAIGHT 		0-92107-005-0 02 1 1509- ● ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 1509- ● ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 1509- ● ●
25 04.686 CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH>,HEAVY DUTY FRAME<6WB>,CATALYSIS CONTROL WITH DPD(8JM) M10 STRAIGHT 		0-92107-005-0 02 1 1509- ● ●
25 04.686 CONNECTOR
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 02 1 1509- ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 02 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1506-1508 ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04) M10 STRAIGHT 		0-92107-005-0 04 1 1509- ●
25 04.686 CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) M10 STRAIGHT 		0-92107-005-0 04 1 1509- ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) M10 STRAIGHT 		0-92107-005-0 01 1 1506-1508 ●
25 04.686 CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1509- ● ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) M10 STRAIGHT 		0-92107-005-0 01 1 1509- ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) M10 STRAIGHT 		0-92107-005-0 01 1 1509- ● ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) M10 STRAIGHT 		0-92107-005-0 01 1 1509- ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1506-1508 ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 04.681 M10X22 		8-98014-005-0 02 1 1509- ● ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1506-1508 ●
129 04.680 HOSE; FLEX,RR DISC
4 WHEEL DISC BRAKE<JF9> 		8-98037-757-2 02 1 1509- ● ●
133 04.685 BOLT; CLIP
03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1506-1508 ●
133 04.685 BOLT; CLIP
4 WHEEL DISC BRAKE<JF9> 03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1509- ● ●

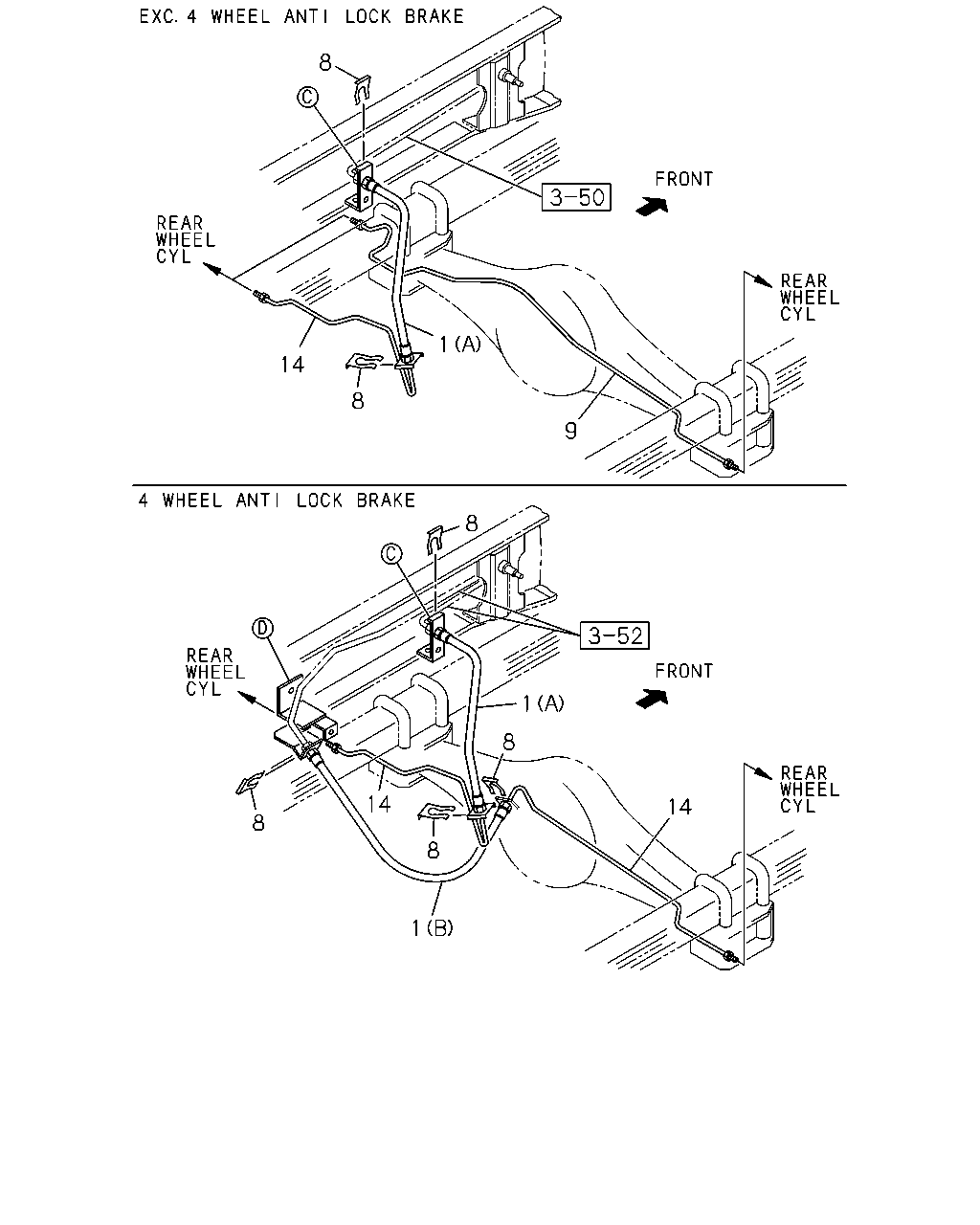

çizim 492489
8 14 8 1 9 8 1 8 8 14 8 1 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) L=345 		8-97230-284-1 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1506-1508 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1509- ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1506-1508 ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1509- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1506-1508 ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ● ●
8 04.686 CLIP; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,SINGLE RR TIRE(6TD) 		8-97360-054-0 02 1 1509- ●
8 04.686 CLIP; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 1509- ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1506-1508 ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 04 1 1509- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 04 1 1509- ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,REAR SUSPENSION - OVER S LUNG + WIDE TREAD<8PZ> 		8-98021-864-0 01 1 1509- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,SINGLE RR TIRE(6TD) 		8-98067-256-0 01 1 1509- ●
9 04.685 PIPE; BRK,RR AXLE
CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9> 		8-98067-256-0 01 1 1509- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SIN GLE RR TIRE(6TD) 		8-98021-870-0 01 1 1509- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-98021-870-0 01 1 1509- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SIN GLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-198-0 01 1 1509- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),REA R SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-198-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98021-862-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> SINGLE RR TIRE(6TD) 		8-98021-862-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98021-877-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) FULL FLATLOW<6GL> SINGLE RR TIRE(6TD) 		8-98021-877-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98021-876-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98021-876-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98021-880-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98021-880-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98021-871-0 01 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98021-879-0 01 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-193-0 01 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-196-0 01 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,REAR SUSPENSION - OVER S LUNG + WIDE TREAD<8PZ> 		8-98021-860-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9> 		8-98021-869-0 01 1 1509- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SIN GLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-192-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),REA R SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-192-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98175-406-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98175-407-1 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98232-597-0 01 1 1506-1508 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98232-597-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98232-598-0 01 1 1506-1508 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98232-598-0 01 1 1509- ●
çizim 493058
3 3 3 3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-97251-436-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) (F) 		8-97251-436-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-97251-436-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98117-513-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. BRK WHL LK CONT LSPV<6PH> (G) 		8-98117-513-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) 		8-97205-198-0 01 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-625-3 01 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98037-625-3 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98037-626-3 01 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 1509- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(E) 		8-98135-875-0 01 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) (E) 		8-98135-875-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (E) 		8-98135-875-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B) 		8-98153-296-0 01 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1509- ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) M10 STRAIGHT 		0-92107-005-0 02 1 1509- ● ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 1509- ● ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 1509- ● ●
25 04.686 CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH>,HEAVY DUTY FRAME<6WB>,CATALYSIS CONTROL WITH DPD(8JM) M10 STRAIGHT 		0-92107-005-0 02 1 1509- ● ●
25 04.686 CONNECTOR
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 02 1 1509- ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 02 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1506-1508 ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04) M10 STRAIGHT 		0-92107-005-0 04 1 1509- ●
25 04.686 CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) M10 STRAIGHT 		0-92107-005-0 04 1 1509- ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) M10 STRAIGHT 		0-92107-005-0 01 1 1506-1508 ●
25 04.686 CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1509- ● ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) M10 STRAIGHT 		0-92107-005-0 01 1 1509- ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) M10 STRAIGHT 		0-92107-005-0 01 1 1509- ● ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) M10 STRAIGHT 		0-92107-005-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
