3-52 — BRAKE PIPING; OIL,FRONT (#162207) — 164 parça

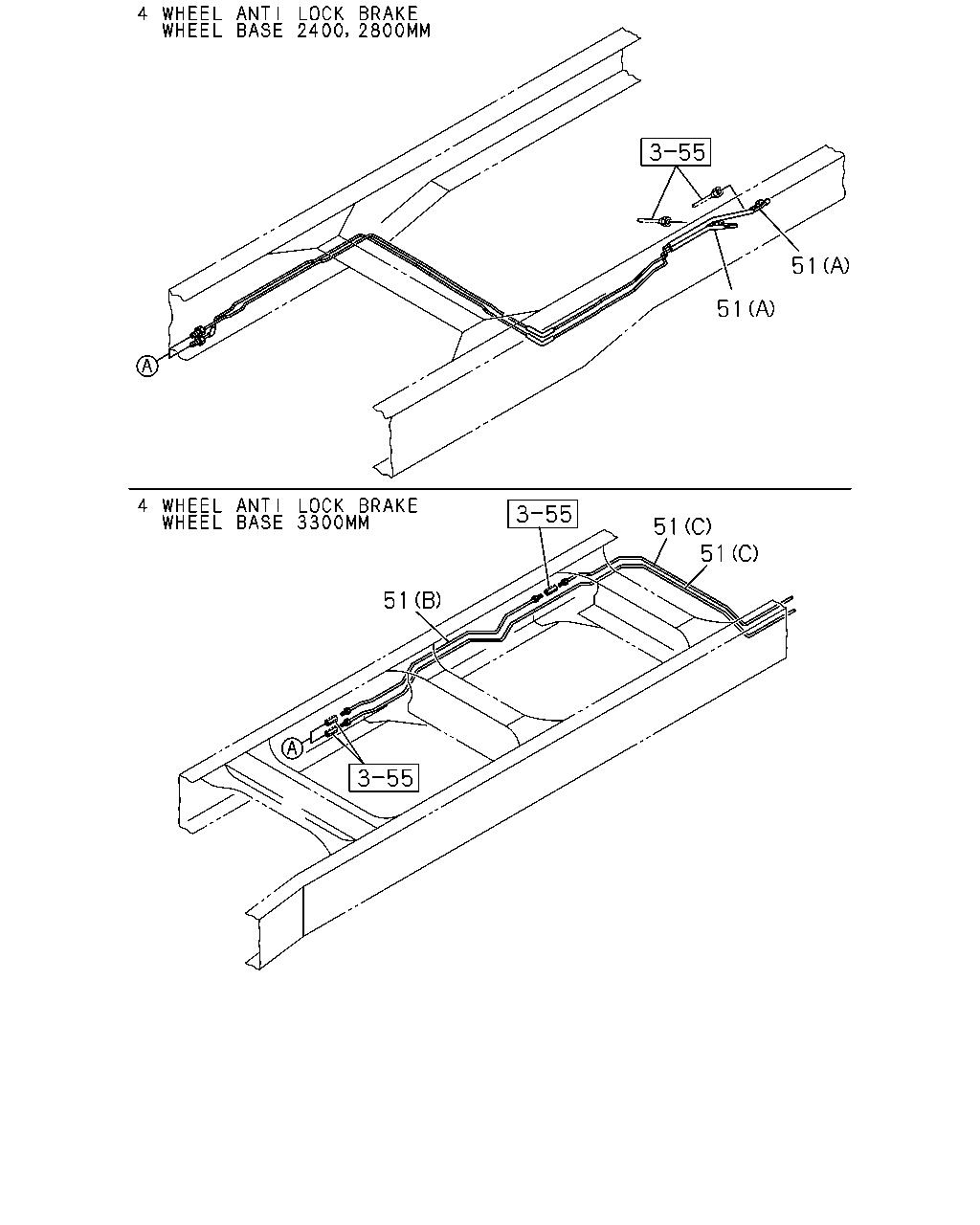

çizim 480026
51 51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (E) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98010-306-1 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. BRK WHL LK CONT LSPV<6PH> (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98010-306-1 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98010-307-1 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. BRK WHL LK CONT LSPV<6PH> (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98010-307-1 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-516-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-516-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-529-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-529-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRA KE<JF9>,DISC BRAKE FRT<J52> (D) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRA KE<JF9>,DISC BRAKE FRT<J52> (D) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98258-923-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1506-1508 ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1506-1508 ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1506-1508 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1506-1508 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1506-1508 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1509- ● ●

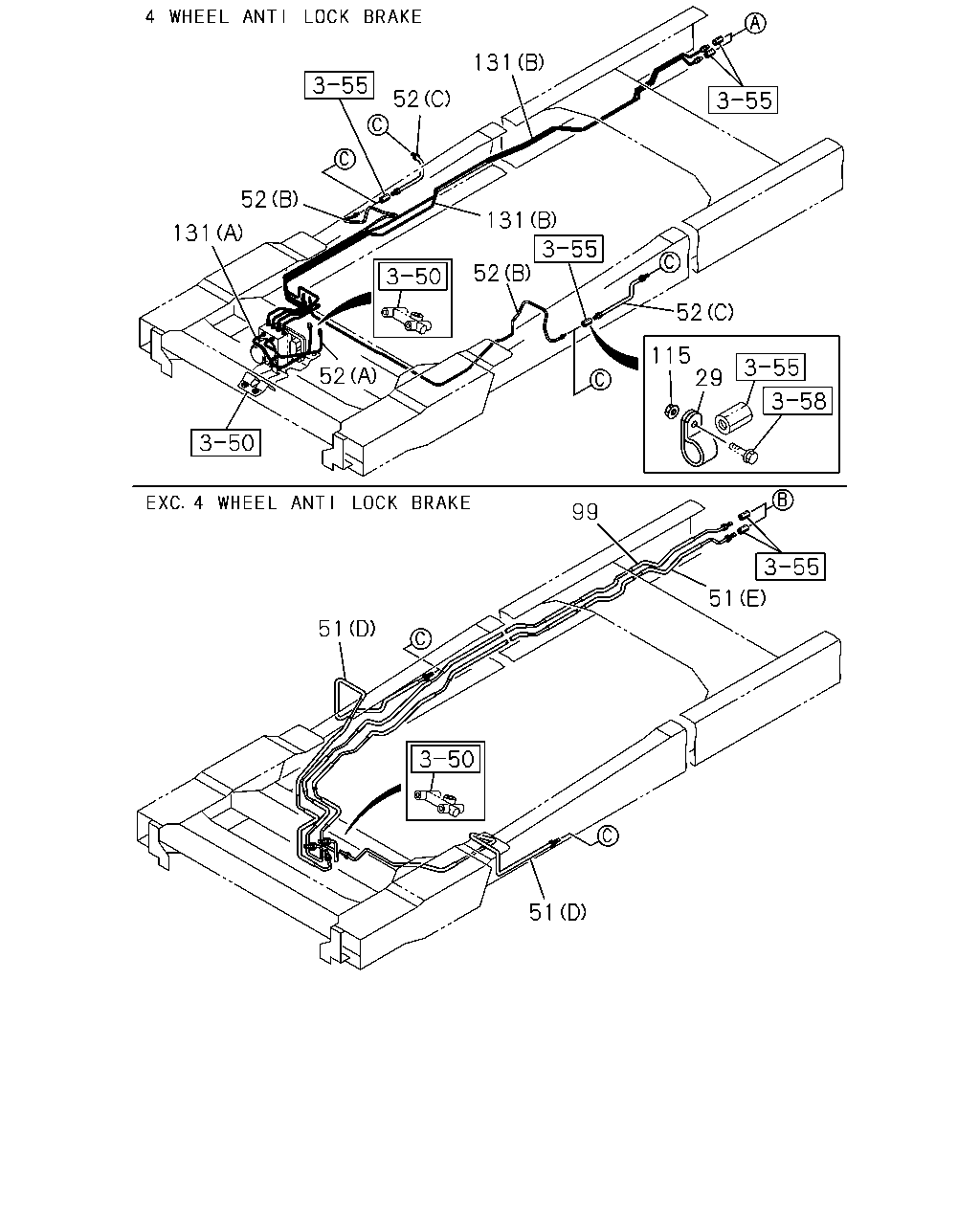

çizim 480044
51 51 99 51 115 29 52 52 131 52 131 52 52 131
BalonParca AdiParca NoAdetTipApplied Date A B
29 04.686 CLIP; UNION
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04) ID=16 L=20 		0-95235-532-0 02 1 1509- ●
29 04.686 CLIP; UNION
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) ID=16 L=20 		0-95235-532-0 02 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (E) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98010-306-1 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. BRK WHL LK CONT LSPV<6PH> (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98010-306-1 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98010-307-1 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. BRK WHL LK CONT LSPV<6PH> (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98010-307-1 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-516-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-516-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-529-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-529-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRA KE<JF9>,DISC BRAKE FRT<J52> (D) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRA KE<JF9>,DISC BRAKE FRT<J52> (D) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98258-923-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1506-1508 ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1506-1508 ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1506-1508 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1506-1508 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1506-1508 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) (A) 4WAY TO HU,FRONT 		8-98254-349-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98296-246-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> CATALYSIS CONTROL WITH DPD(8JM) EXC. BRK WHL LK CONT LSPV<6PH> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98286-215-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-254-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-98096-387-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-98096-387-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98145-532-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98145-532-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (D) 2WAY TO REAR 		8-98054-696-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (D) 2WAY TO REAR 		8-98054-696-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-253-0 01 1 1509- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1506-1508 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1506-1508 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1506-1508 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1509- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRA KE<JF9>,DISC BRAKE FRT<J52> 		8-98051-512-1 01 1 1509- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98051-512-1 01 1 1509- ●
115 04.680 NUT; CLIP
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ●
115 04.680 NUT; CLIP
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) (A) 4WAY TO HU,REAR 		8-98254-348-0 01 1 1509- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH 		8-98206-257-0 01 1 1506-1508 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,RR LH 		8-98206-257-0 01 1 1509- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) (B) BRAKE SYSTEM,RR LH 		8-98206-257-0 01 1 1509- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH 		8-98206-258-0 01 1 1506-1508 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,RR RH 		8-98206-258-0 01 1 1509- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) (B) BRAKE SYSTEM,RR RH 		8-98206-258-0 01 1 1509- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1506-1508 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1509- ● ●

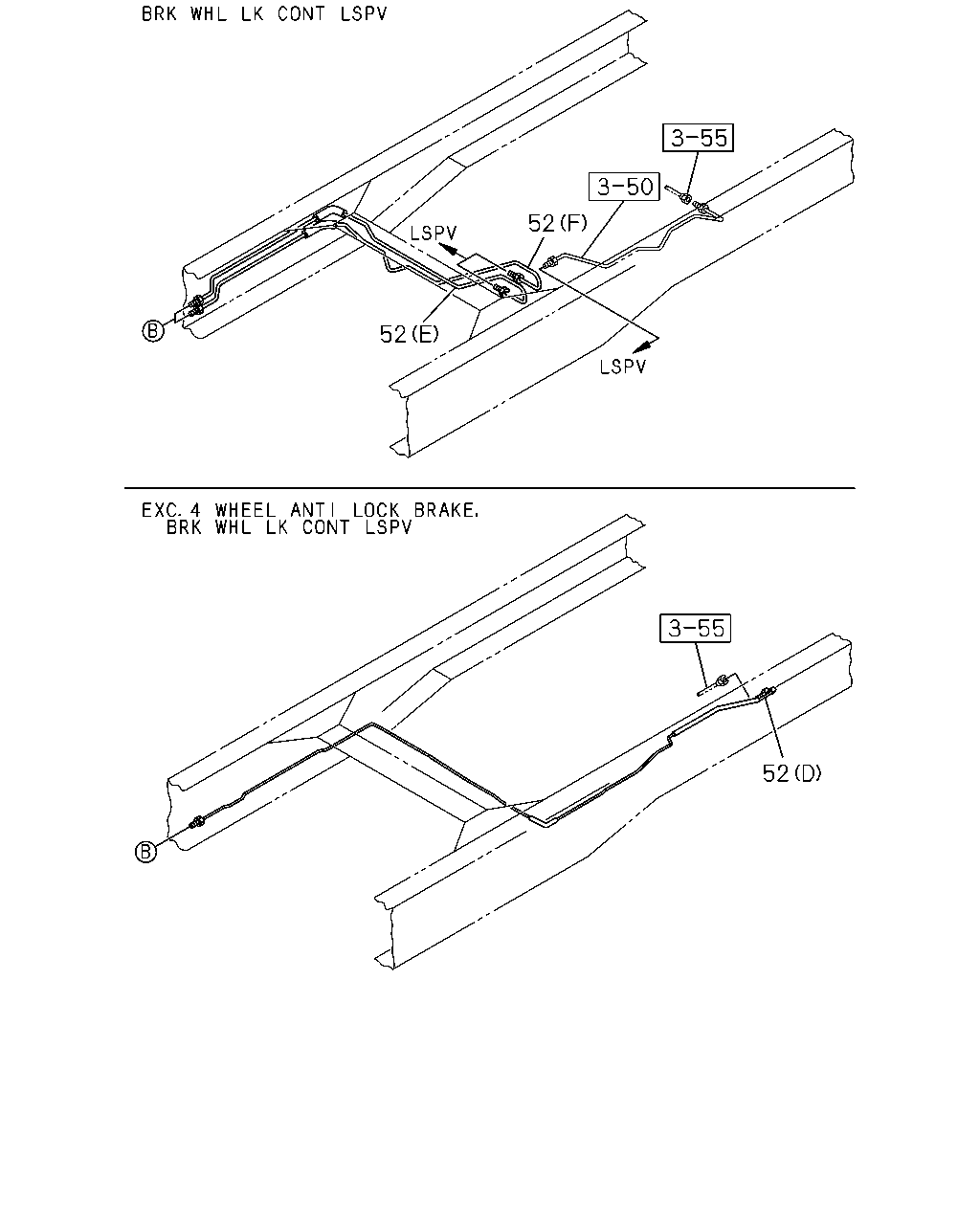

çizim 492483
52 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) (A) 4WAY TO HU,FRONT 		8-98254-349-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98296-246-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> CATALYSIS CONTROL WITH DPD(8JM) EXC. BRK WHL LK CONT LSPV<6PH> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98286-215-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-254-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-98096-387-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-98096-387-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98145-532-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98145-532-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (F) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) (E) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1509- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (D) 2WAY TO REAR 		8-98054-696-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) (D) 2WAY TO REAR 		8-98054-696-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-253-0 01 1 1509- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1506-1508 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1506-1508 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1509- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1506-1508 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1509- ● ●

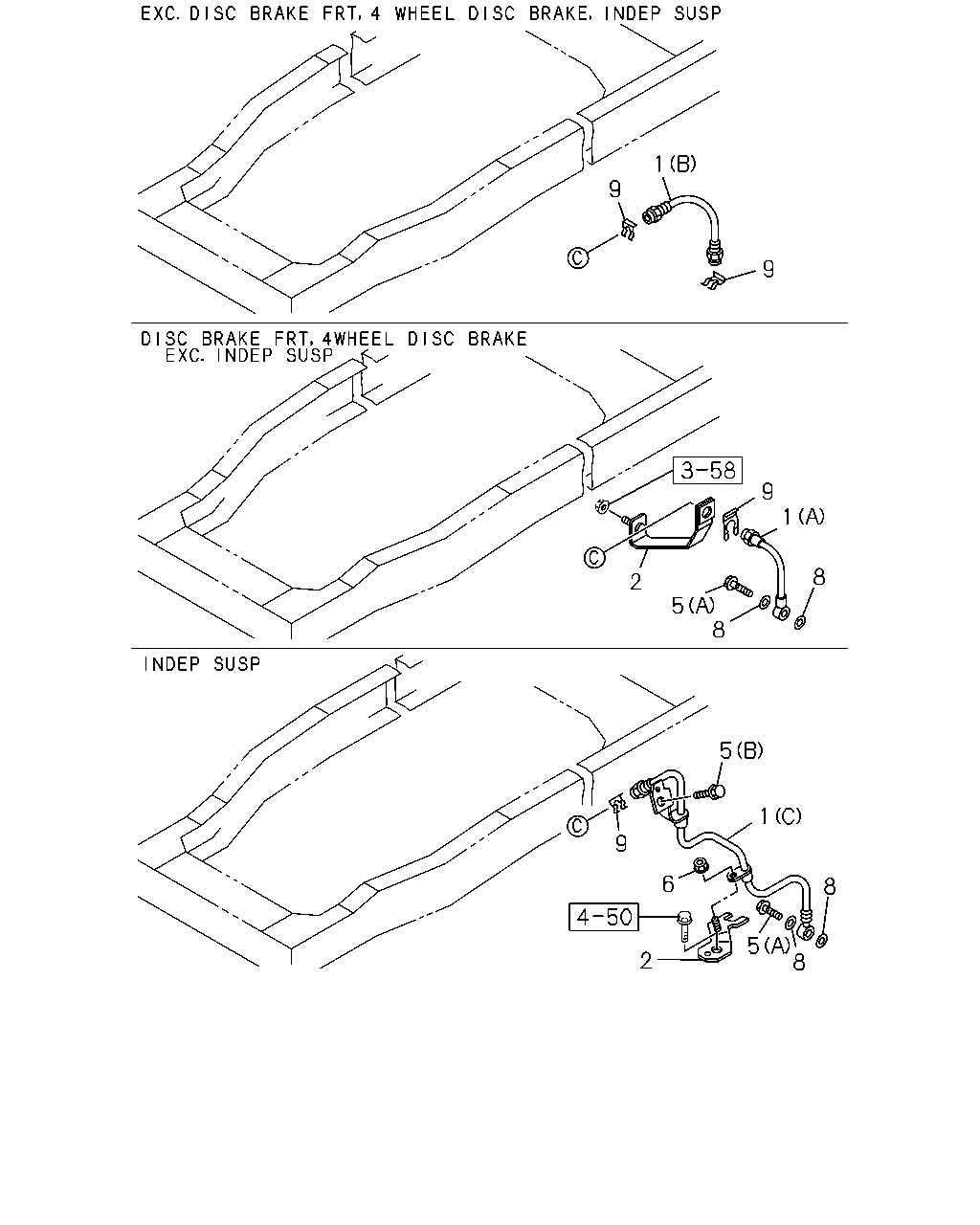

çizim 492502
2 5 8 9 8 1 1 5 6 9 5 8 2 9 1 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-97042-976-0 02 1 1509- ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-97358-770-3 01 1 1509- ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-97358-771-3 01 1 1509- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97366-925-1 02 1 1506-1508 ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97366-925-1 02 1 1509- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 04.686 		8-97369-635-1 01 1 1509- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 04.686 		8-97369-636-1 01 1 1509- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97389-691-1 01 1 1506-1508 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-691-1 01 1 1509- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97389-691-1 01 1 1509- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97389-692-1 01 1 1506-1508 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-692-1 01 1 1509- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97389-692-1 01 1 1509- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1509- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
(A) M10X22 		8-98014-005-0 02 1 1506-1508 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M10X22 		8-98014-005-0 02 1 1509- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) M10X22 		8-98014-005-0 02 1 1509- ●
6 04.686 NUT; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1506-1508 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1506-1508 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1509- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 1509- ● ●

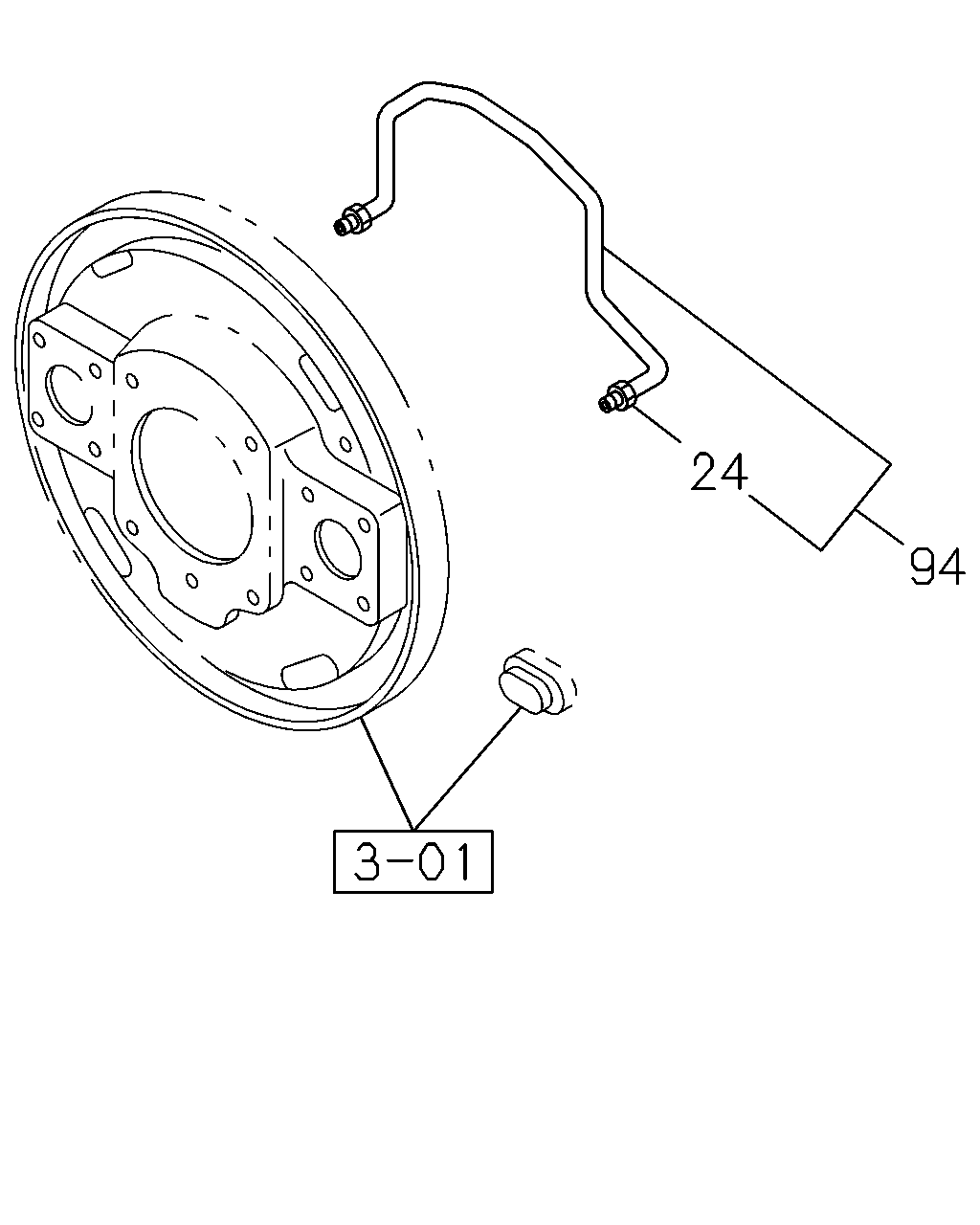

çizim 493099
94 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 04.686 NUT; UNION,OIL PIPE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		0-92107-605-0 02 1 1509- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97019-222-0 01 1 1509- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97019-223-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
