◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#162206) — 137 parça

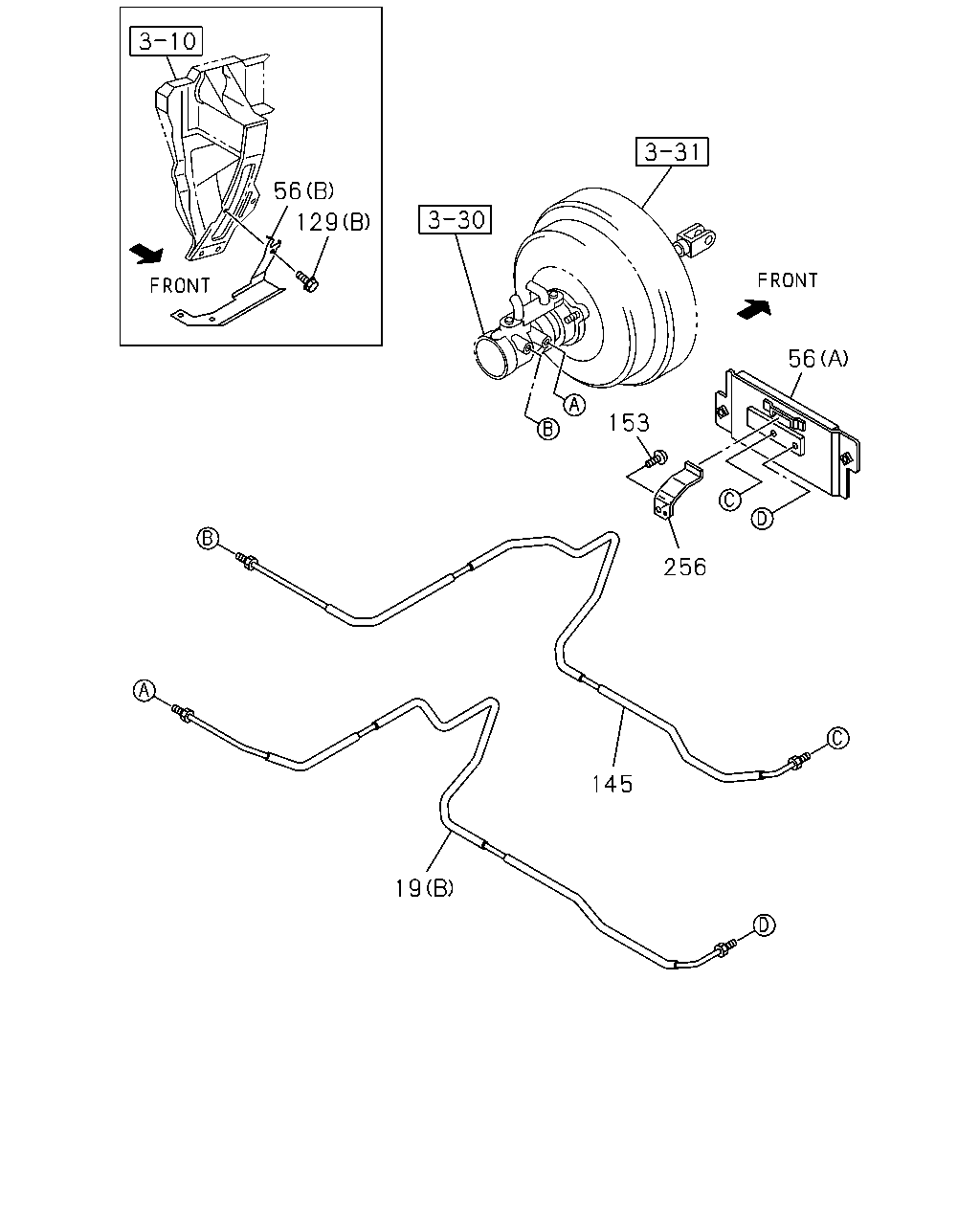

çizim 479470
56 129 153 256 56 145 19
BalonParca AdiParca NoAdetTipApplied Date A B
19 04.685 PIPE; BRK,M/CYL TO UNION
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98197-655-2 01 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98197-655-2 01 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98047-210-2 02 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98047-210-2 02 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1506-1508 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TAIWAN EQUIPMENT(B04) (B) 		8-98191-449-0 01 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCC ENG(RDU) (A) 		8-98206-899-0 02 1 1506-1508 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. TAIWAN EQUIPMENT(B04) (A) 		8-98206-899-0 02 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04) (A) 		8-98206-899-0 02 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98154-269-1 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98154-269-1 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98154-268-1 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98154-268-1 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TAIWAN EQUIPMENT(B04) (A) 		8-98196-285-0 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1506-1508 ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98196-284-0 01 1 1506-1508 ●
56 04.686 BRACKET; UNION,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) (A) 		8-98196-284-0 01 1 1509- ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1506-1508 ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1509- ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1506-1508 ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1509- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98197-658-1 01 1 1509- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98197-658-1 01 1 1509- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98191-450-0 01 1 1506-1508 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TAIWAN EQUIPMENT(B04) 		8-98191-450-0 01 1 1509- ● ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1506-1508 ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1509- ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1506-1508 ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1509- ● ●

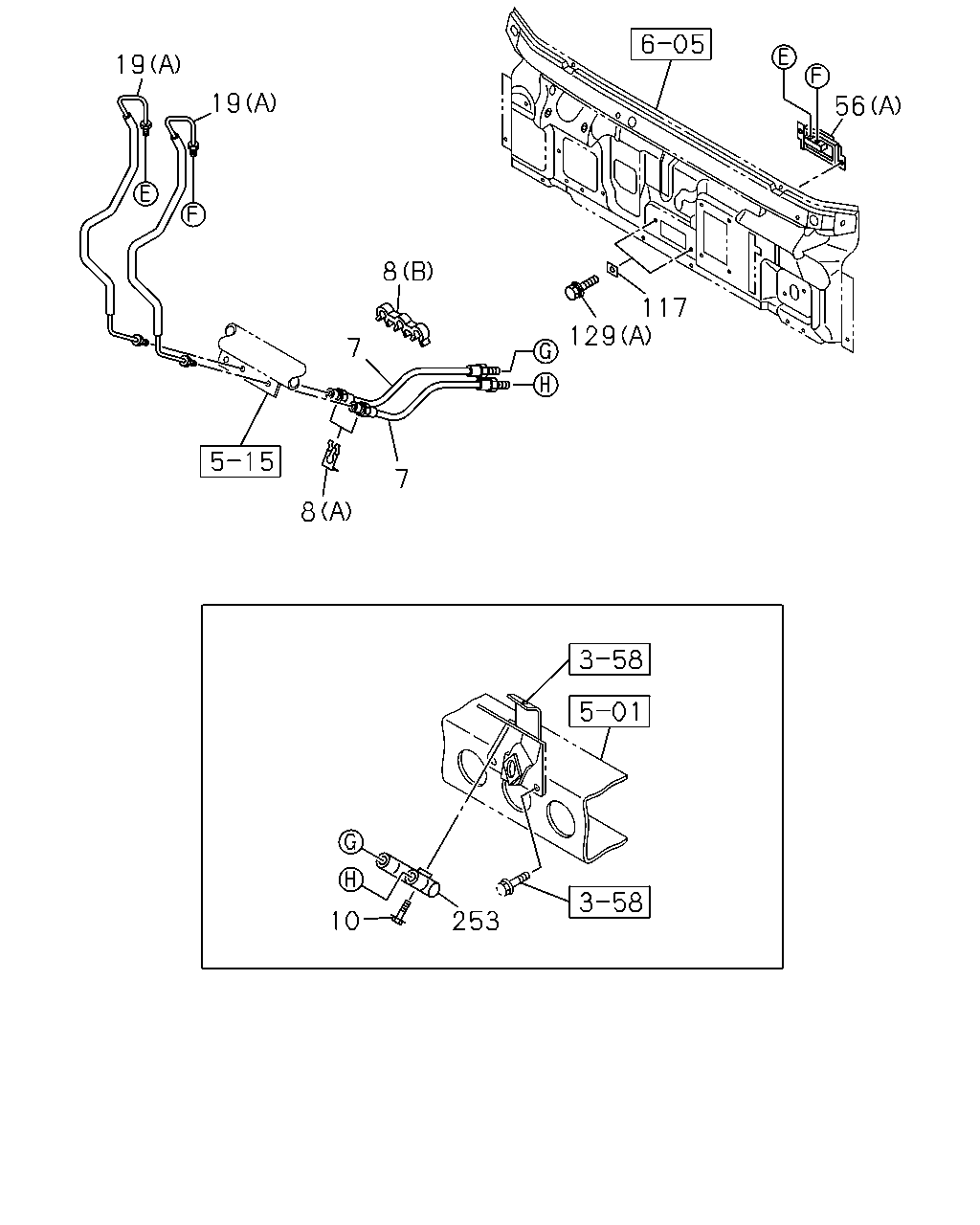

çizim 479491
19 19 8 7 7 8 129 117 56 10 253
BalonParca AdiParca NoAdetTipApplied Date A B
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98033-732-0 02 1 1509- ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98033-732-0 02 1 1509- ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98206-868-0 02 1 1506-1508 ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TAIWAN EQUIPMENT(B04) 		8-98206-868-0 02 1 1509- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1506-1508 ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1509- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1506-1508 ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1509- ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1506-1508 ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98197-655-2 01 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98197-655-2 01 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98047-210-2 02 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98047-210-2 02 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1506-1508 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TAIWAN EQUIPMENT(B04) (B) 		8-98191-449-0 01 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCC ENG(RDU) (A) 		8-98206-899-0 02 1 1506-1508 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. TAIWAN EQUIPMENT(B04) (A) 		8-98206-899-0 02 1 1509- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04) (A) 		8-98206-899-0 02 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98154-269-1 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98154-269-1 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98154-268-1 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98154-268-1 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TAIWAN EQUIPMENT(B04) (A) 		8-98196-285-0 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1506-1508 ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1509- ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98196-284-0 01 1 1506-1508 ●
56 04.686 BRACKET; UNION,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) (A) 		8-98196-284-0 01 1 1509- ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1506-1508 ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1509- ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1506-1508 ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1509- ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1506-1508 ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1509- ● ●
253 04.840 JOINT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH> 		8-97038-940-1 01 1 1509- ●
253 04.840 JOINT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-97038-940-1 01 1 1509- ●
253 04.840 JOINT
BRK WHL LK CONT LSPV<6PH> 04.686 		8-97120-033-2 01 1 1509- ●
253 04.840 JOINT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> 04.686 		5-47456-009-1 01 1 1509- ●
253 04.840 JOINT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 		5-47456-009-1 01 1 1509- ●
253 04.840 JOINT 8-98192-436-0 01 1 1506-1508 ●
253 04.840 JOINT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98192-436-0 01 1 1509- ● ●
253 04.840 JOINT
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) 		8-98192-436-0 01 1 1509- ● ●
253 04.840 JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH>,CATALYSIS CONTROL WITH DPD(8JM) 		8-98192-436-0 01 1 1509- ● ●
253 04.840 JOINT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98192-436-0 01 1 1509- ● ●
253 04.840 JOINT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98192-436-0 01 1 1509- ● ●
253 04.840 JOINT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),BRK WHL LK CONT LSPV<6PH>,HEAVY DUTY FRAME<6WB>,CATALYSIS CONTROL WITH DPD(8JM) 		8-98192-436-0 01 1 1509- ● ●

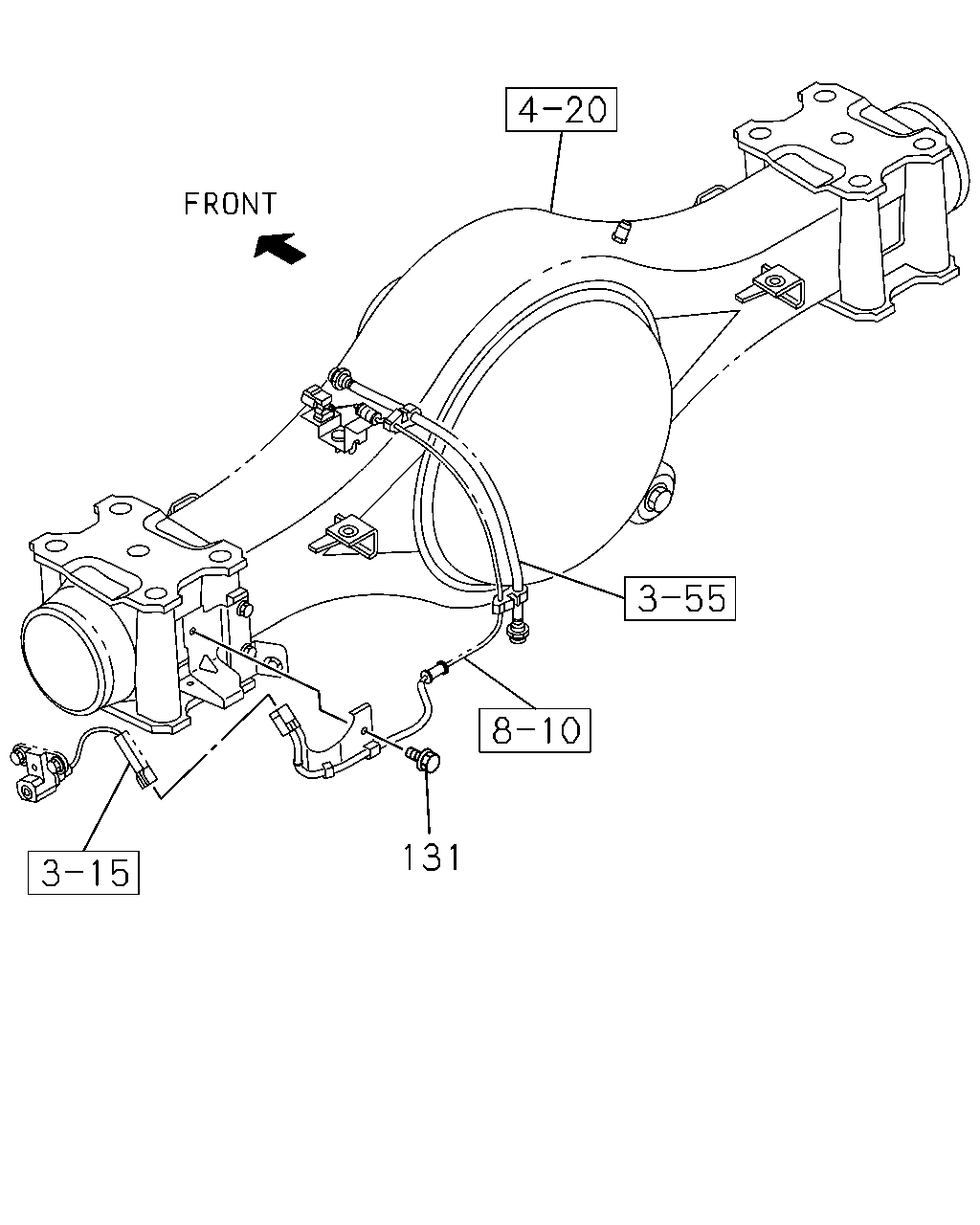

çizim 479574
131
BalonParca AdiParca NoAdetTipApplied Date A B
131 04.710 BOLT; BRKT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1506-1507 ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1508-1508 ●
131 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1509- ● ●

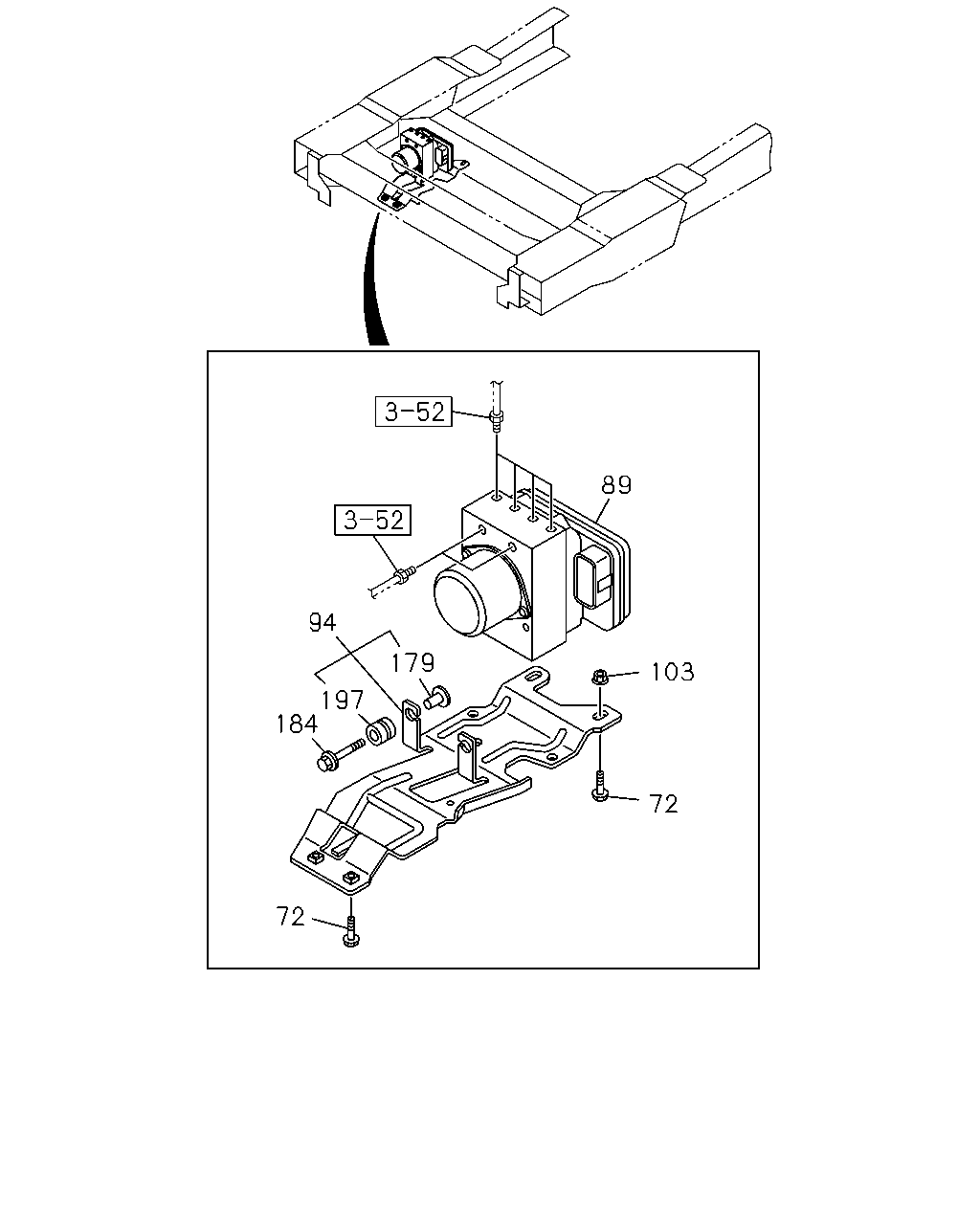

çizim 480109
184 94 179 197 72 72 103 89
BalonParca AdiParca NoAdetTipApplied Date A B
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1506-1508 ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1509- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> THROTTLE CONTROL SYSTEM<6XH> 		8-98277-171-0 01 1 1509- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TURKEY EQUIPMENT(B11) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-98305-785-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-774-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-98305-784-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-773-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-98305-781-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98305-777-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98305-800-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TURKEY EQUIPMENT(B11) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-98305-780-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-768-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-98305-779-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98305-802-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS VAR.2(6GQ) 		8-98305-802-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS VAR.2(6GQ) 		8-98305-803-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98305-801-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS VAR.2(6GQ) 		8-98305-801-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 		8-98305-769-0 01 1 1506-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-769-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98305-767-0 01 1 1506-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-767-0 01 1 1509- ●
94 04.730 BRACKET; ABS CONT UNIT 8-98131-871-2 01 1 1506-1508 ●
94 04.730 BRACKET; ABS CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98131-871-2 01 1 1509- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
179 04.685 SPACER; BRKT 8-98130-134-0 03 1 1506-1508 ●
179 04.685 SPACER; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98130-134-0 03 1 1509- ● ●
184 04.681 BOLT; CLIP
M6X27 W/PL WASHER 		8-98131-461-0 03 1 1506-1508 ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> M6X27 W/PL WASHER 		8-98131-461-0 03 1 1509- ● ●
197 04.730 RUBBER; DAMPER 8-98130-133-0 03 1 1506-1508 ●
197 04.730 RUBBER; DAMPER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98130-133-0 03 1 1509- ● ●
çizim 493272
130 130 131 131
BalonParca AdiParca NoAdetTipApplied Date A B
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98035-633-0 01 1 1509- ●
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98035-634-0 01 1 1509- ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (B) 		8-97080-060-2 02 1 1509- ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (B) 		8-97080-060-2 02 1 1509- ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) (B) 		8-97080-060-2 02 1 1509- ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (B) 		8-97080-060-2 02 1 1509- ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97080-060-2 02 1 1509- ●
131 04.710 BOLT; BRKT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1506-1507 ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1508-1508 ●
131 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1509- ● ●
çizim 493461
35 11 164 260 262 263 261 261 13 11 26 104 26 104 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) 04.730 		8-94368-455-2 01 1 1509- ●
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) 04.730 		8-97070-721-0 01 1 1509- ●
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1509- ●
26 04.730 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) (B) 		8-98029-822-0 01 1 1509- ●
26 04.730 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) (A) 		8-98029-821-0 01 1 1509- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98064-716-0 01 1 1509- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98064-716-0 01 1 1509- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<6PH> CATALYSIS CONTROL WITH DPD(8JM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) 		8-97389-540-0 01 1 1509- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD) 		8-97389-540-0 01 1 1509- ●
104 04.730 BOLT; BRKT TO BODY
REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1509- ●
164 04.730 SCREW; BLEEDER
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97093-663-0 01 1 1509- ●
260 04.685 SHACKLE; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97173-366-0 01 1 1509- ●
261 04.685 BUSHING; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97145-631-0 02 1 1509- ●
262 04.685 COLLAR; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97139-186-0 01 1 1509- ●
263 04.685 CAP; BLEEDER
BRK WHL LK CONT LSPV<6PH> 		8-97093-662-0 01 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
