◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#162204) — 8 parça

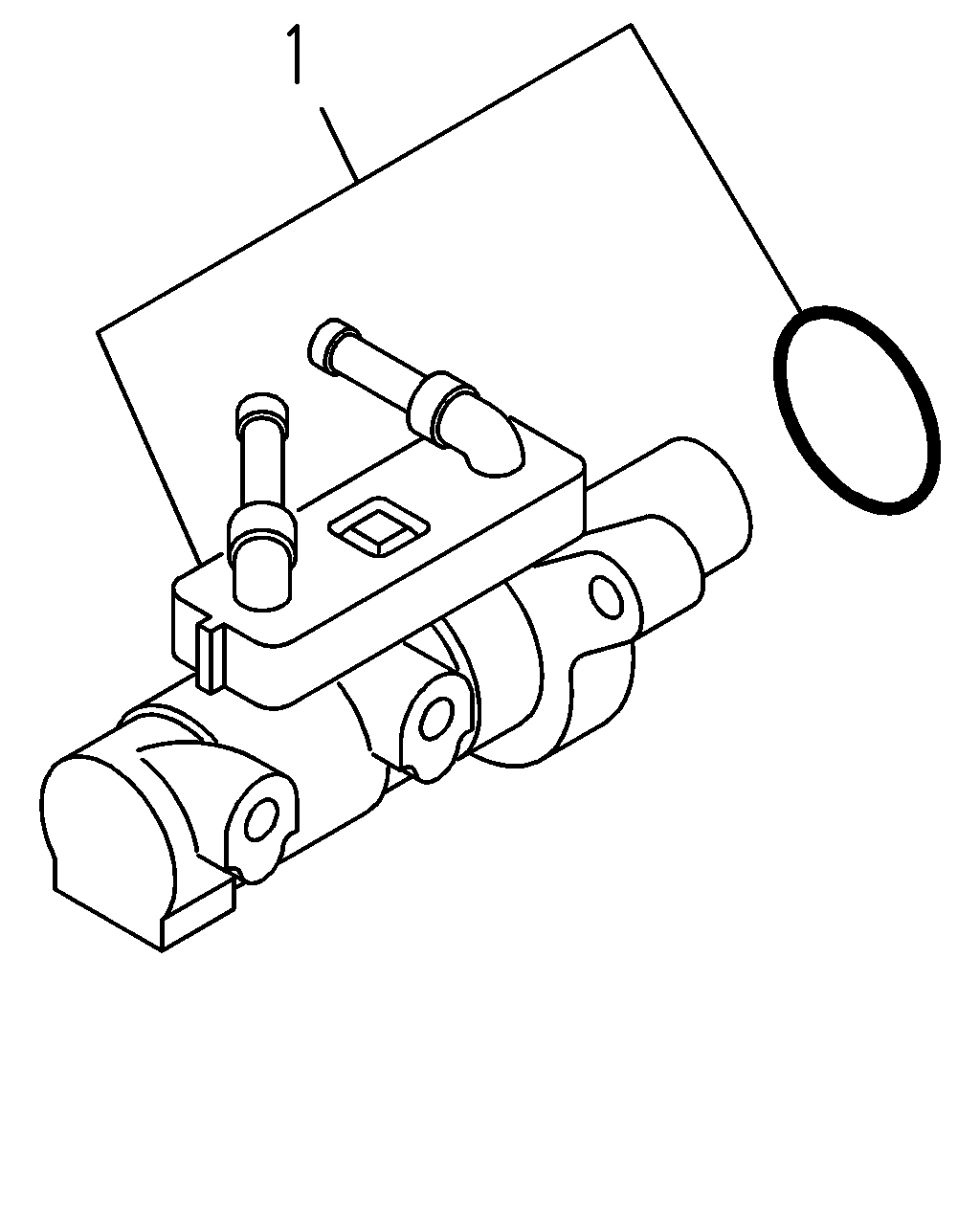

çizim 479790
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.0-3.5TON(RPP),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) 		8-98201-096-3 01 1 1509- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) DISC BRAKE FRT<J52> MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-096-3 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. TAIWAN EQUIPMENT(B04),FULL FLATLOW<6GL> 		8-98206-648-3 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,DISC BRAKE FRT<J52>,FULL FLATLOW<6GL> 		8-98207-350-2 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER
CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEELDISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98207-350-2 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-786-3 01 1 1506-1508 ●
1 04.650 CYLINDER ASM; BRK MASTER
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 3.5-4.0TON(RPQ) EXC. TAIWAN EQUIPMENT(B04),FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 		8-98191-786-3 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) EXC. TAIWAN EQUIPMENT(B04) 		8-98191-786-3 01 1 1509- ●
