◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 3 - Brakes, Brake System ▶ 3-21 - VACUUM TANK ▶
3-21 — VACUUM TANK (#162203) — 12 parça

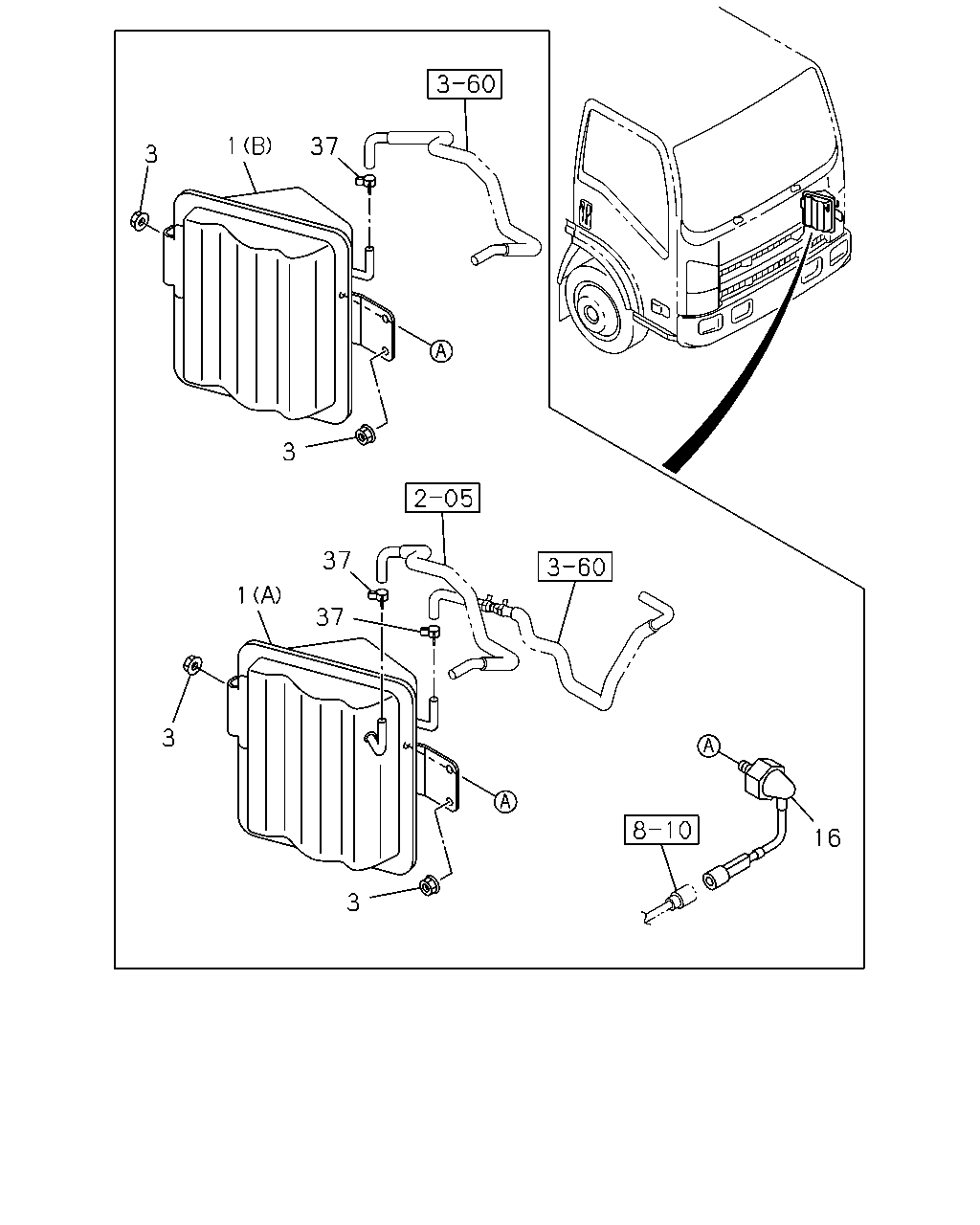

çizim 479573
16 37 37 1 3 3 3 1 37 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A) 		8-98009-123-0 01 1 1506-1508 ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A) 		8-98009-123-0 01 1 1509- ● ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98009-124-1 01 1 1506-1508 ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98009-124-1 01 1 1509- ● ●
3 04.902 NUT; VAC TANK TO BRKT
04.785 		8-98008-071-0 03 1 1506-1508 ●
3 04.902 NUT; VAC TANK TO BRKT
04.785 		8-98008-071-0 03 1 1509- ● ●
16 04.906 SWITCH; VAC 8-98049-417-0 01 1 1506-1508 ●
16 04.906 SWITCH; VAC 8-98049-417-0 01 1 1509- ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 02 1 1506-1508 ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 02 1 1509- ● ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 01 1 1506-1508 ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 01 1 1509- ● ●
