3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#162202) — 107 parça

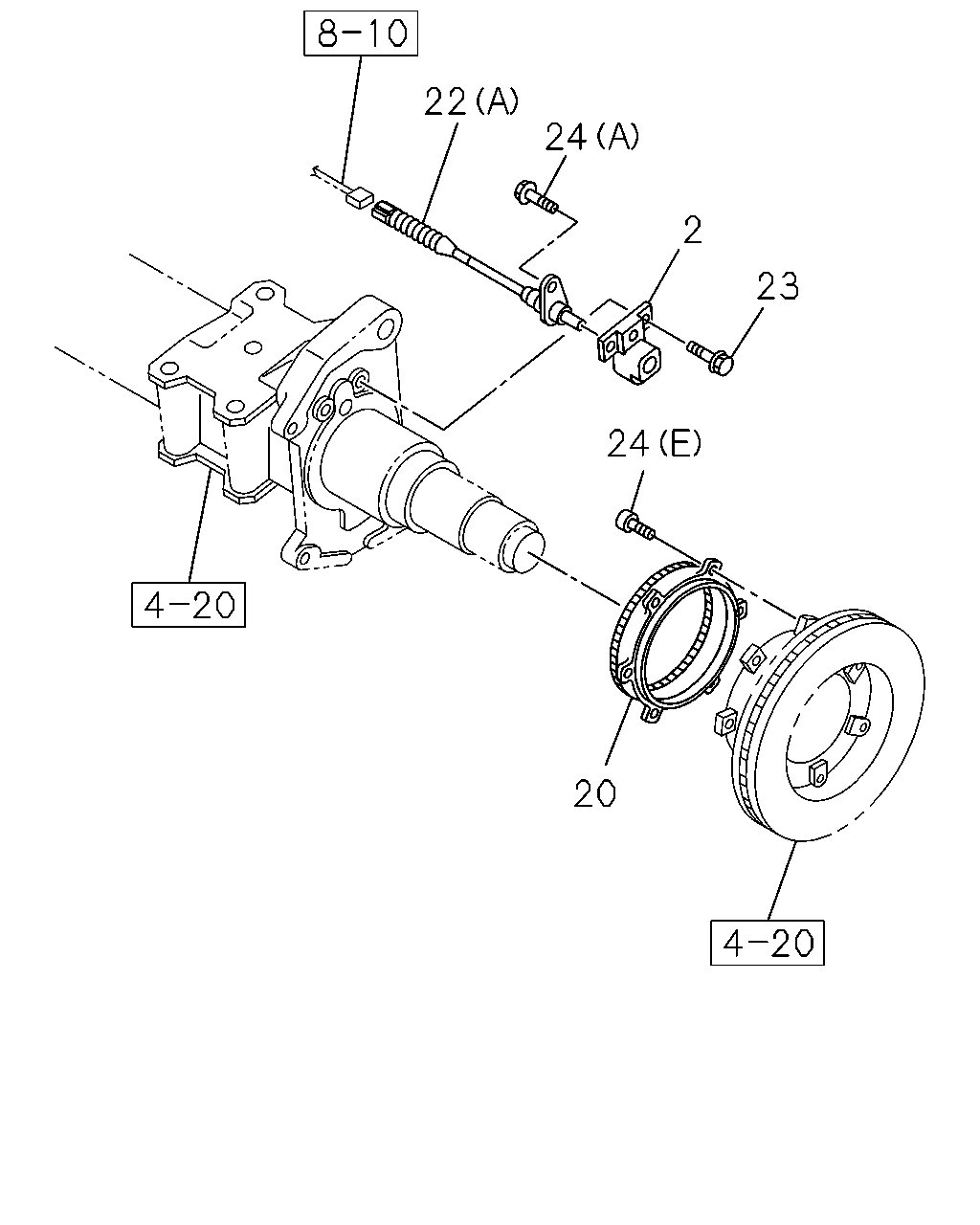

çizim 479382
20 24 23 2 24 22
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.730 BRACKET; SENSOR
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98002-436-1 02 1 1509- ●
2 04.730 BRACKET; SENSOR
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-98002-436-1 02 1 1509- ●
2 04.730 BRACKET; SENSOR
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98000-019-2 02 1 1509- ●
2 04.730 BRACKET; SENSOR
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD) 		8-98000-019-2 02 1 1509- ●
2 04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98000-019-2 02 1 1509- ●
2 04.730 BRACKET; SENSOR 8-98045-222-0 02 1 1506-1508 ●
2 04.730 BRACKET; SENSOR
4 WHEEL DISC BRAKE<JF9> 		8-98045-222-0 02 1 1509- ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98113-174-0 02 1 1509- ●
20 04.710 ROTOR; SENSOR
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-98113-174-0 02 1 1509- ●
20 04.710 ROTOR; SENSOR
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-3 02 1 1509- ●
20 04.710 ROTOR; SENSOR
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD) 		8-97234-459-3 02 1 1509- ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97234-459-3 02 1 1509- ●
20 04.710 ROTOR; SENSOR
05.809 		8-98187-136-0 02 1 1506-1508 ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> 05.809 		8-98187-136-0 02 1 1509-1511 ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> 		8-98312-785-0 02 1 1512- ● ●
22 04.710 SENSOR; SPEED
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98244-877-0 02 1 1509- ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98219-351-0 02 1 1509- ●
22 04.710 SENSOR; SPEED
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98219-351-0 02 1 1509- ●
22 04.710 SENSOR; SPEED
(A) 		8-98012-753-1 02 1 1506-1508 ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (A) 		8-98012-753-1 02 1 1509- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98001-127-1 01 1 1506-1508 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-127-1 01 1 1509- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98001-128-1 01 1 1506-1508 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-128-1 01 1 1509- ● ●
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 05.811 (C) 		8-98001-470-1 01 1 1509- ●
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 05.811 (C) 		8-98001-471-2 01 1 1509- ●
23 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 04 1 1506-1508 ●
23 04.710 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 1509- ● ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1509- ● ●
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (F) M8X12 FLANGE 		0-28050-812-0 04 1 1509- ●
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 04.686 (G) M6X14 FLANGE 		0-28080-614-0 02 1 1509- ●

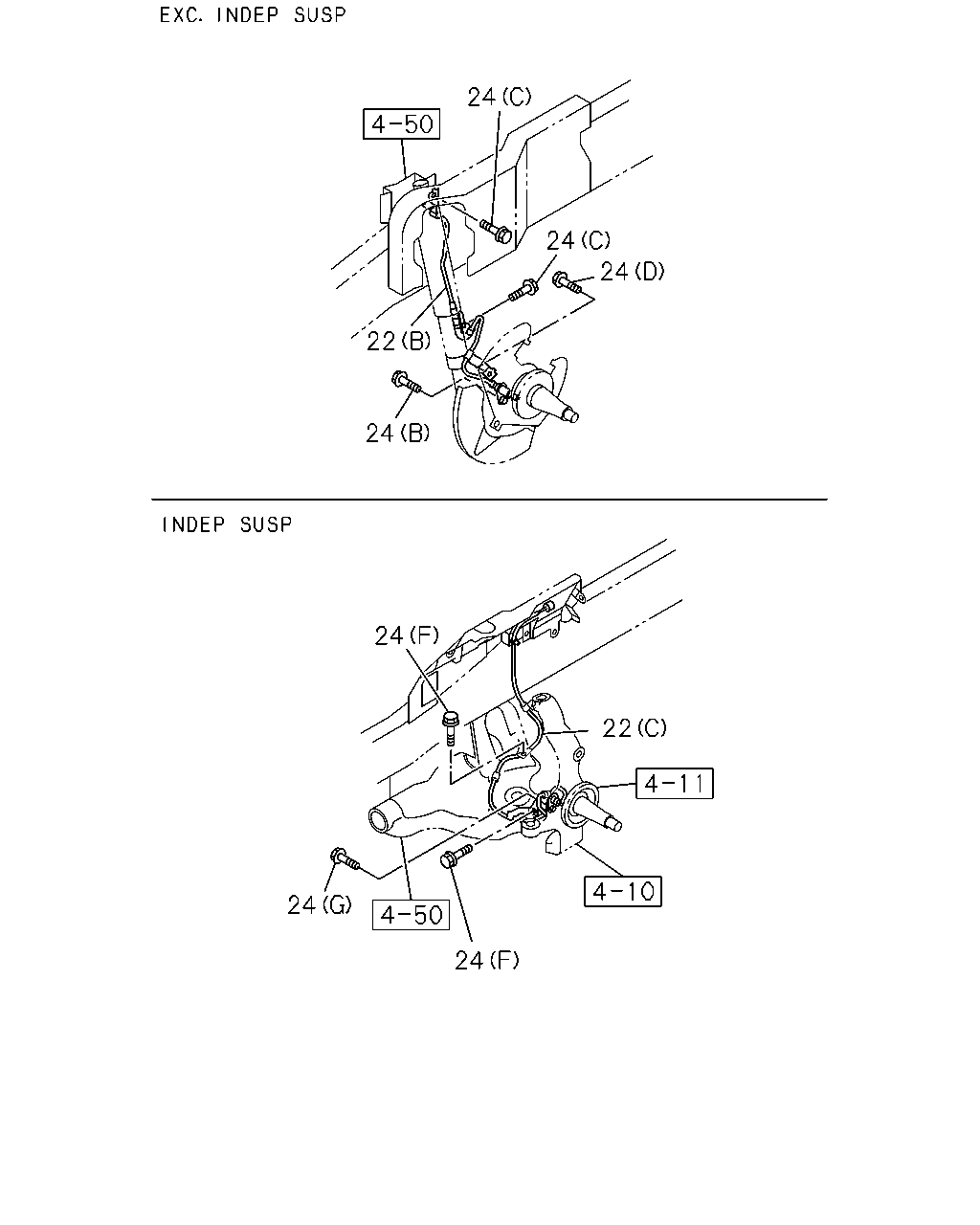

çizim 479638
22 24 24 24 24 22 24 24 24
BalonParca AdiParca NoAdetTipApplied Date A B
22 04.710 SENSOR; SPEED
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98244-877-0 02 1 1509- ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98219-351-0 02 1 1509- ●
22 04.710 SENSOR; SPEED
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98219-351-0 02 1 1509- ●
22 04.710 SENSOR; SPEED
(A) 		8-98012-753-1 02 1 1506-1508 ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (A) 		8-98012-753-1 02 1 1509- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98001-127-1 01 1 1506-1508 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-127-1 01 1 1509- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98001-128-1 01 1 1506-1508 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-128-1 01 1 1509- ● ●
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 05.811 (C) 		8-98001-470-1 01 1 1509- ●
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 05.811 (C) 		8-98001-471-2 01 1 1509- ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1509- ● ●
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (F) M8X12 FLANGE 		0-28050-812-0 04 1 1509- ●
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 04.686 (G) M6X14 FLANGE 		0-28080-614-0 02 1 1509- ●

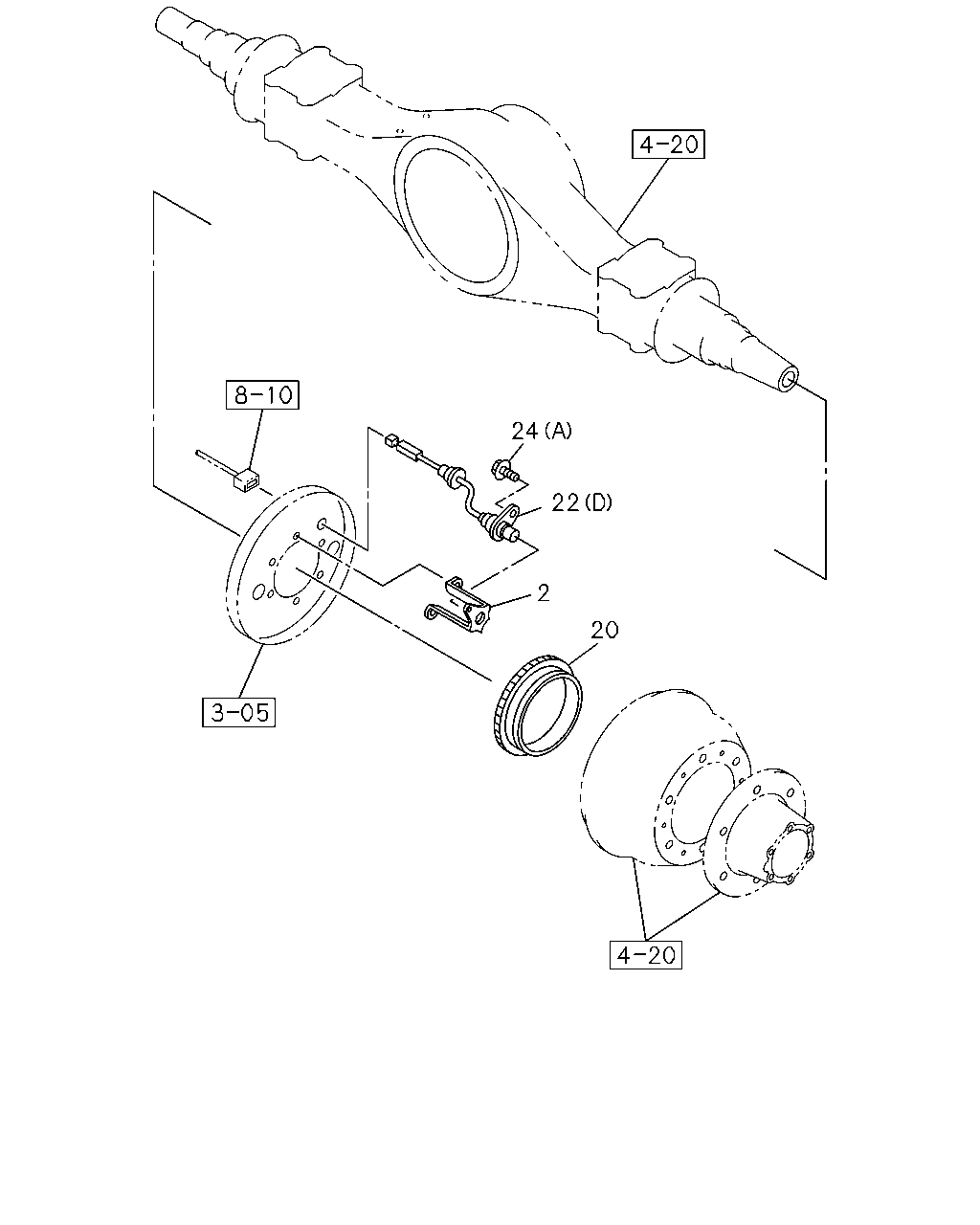

çizim 493374
20 2 22 24
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.730 BRACKET; SENSOR
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98002-436-1 02 1 1509- ●
2 04.730 BRACKET; SENSOR
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-98002-436-1 02 1 1509- ●
2 04.730 BRACKET; SENSOR
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98000-019-2 02 1 1509- ●
2 04.730 BRACKET; SENSOR
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD) 		8-98000-019-2 02 1 1509- ●
2 04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98000-019-2 02 1 1509- ●
2 04.730 BRACKET; SENSOR 8-98045-222-0 02 1 1506-1508 ●
2 04.730 BRACKET; SENSOR
4 WHEEL DISC BRAKE<JF9> 		8-98045-222-0 02 1 1509- ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98113-174-0 02 1 1509- ●
20 04.710 ROTOR; SENSOR
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-98113-174-0 02 1 1509- ●
20 04.710 ROTOR; SENSOR
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-3 02 1 1509- ●
20 04.710 ROTOR; SENSOR
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD) 		8-97234-459-3 02 1 1509- ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97234-459-3 02 1 1509- ●
20 04.710 ROTOR; SENSOR
05.809 		8-98187-136-0 02 1 1506-1508 ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> 05.809 		8-98187-136-0 02 1 1509-1511 ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> 		8-98312-785-0 02 1 1512- ● ●
22 04.710 SENSOR; SPEED
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98244-877-0 02 1 1509- ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98219-351-0 02 1 1509- ●
22 04.710 SENSOR; SPEED
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98219-351-0 02 1 1509- ●
22 04.710 SENSOR; SPEED
(A) 		8-98012-753-1 02 1 1506-1508 ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (A) 		8-98012-753-1 02 1 1509- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98001-127-1 01 1 1506-1508 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-127-1 01 1 1509- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98001-128-1 01 1 1506-1508 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-128-1 01 1 1509- ● ●
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 05.811 (C) 		8-98001-470-1 01 1 1509- ●
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 05.811 (C) 		8-98001-471-2 01 1 1509- ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1509- ● ●
24 04.730 BOLT; SENSOR
01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1506-1508 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1509- ● ●
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (F) M8X12 FLANGE 		0-28050-812-0 04 1 1509- ●
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 04.686 (G) M6X14 FLANGE 		0-28080-614-0 02 1 1509- ●
