3-11 — PARKING BRAKE CONTROL (#162201) — 130 parça

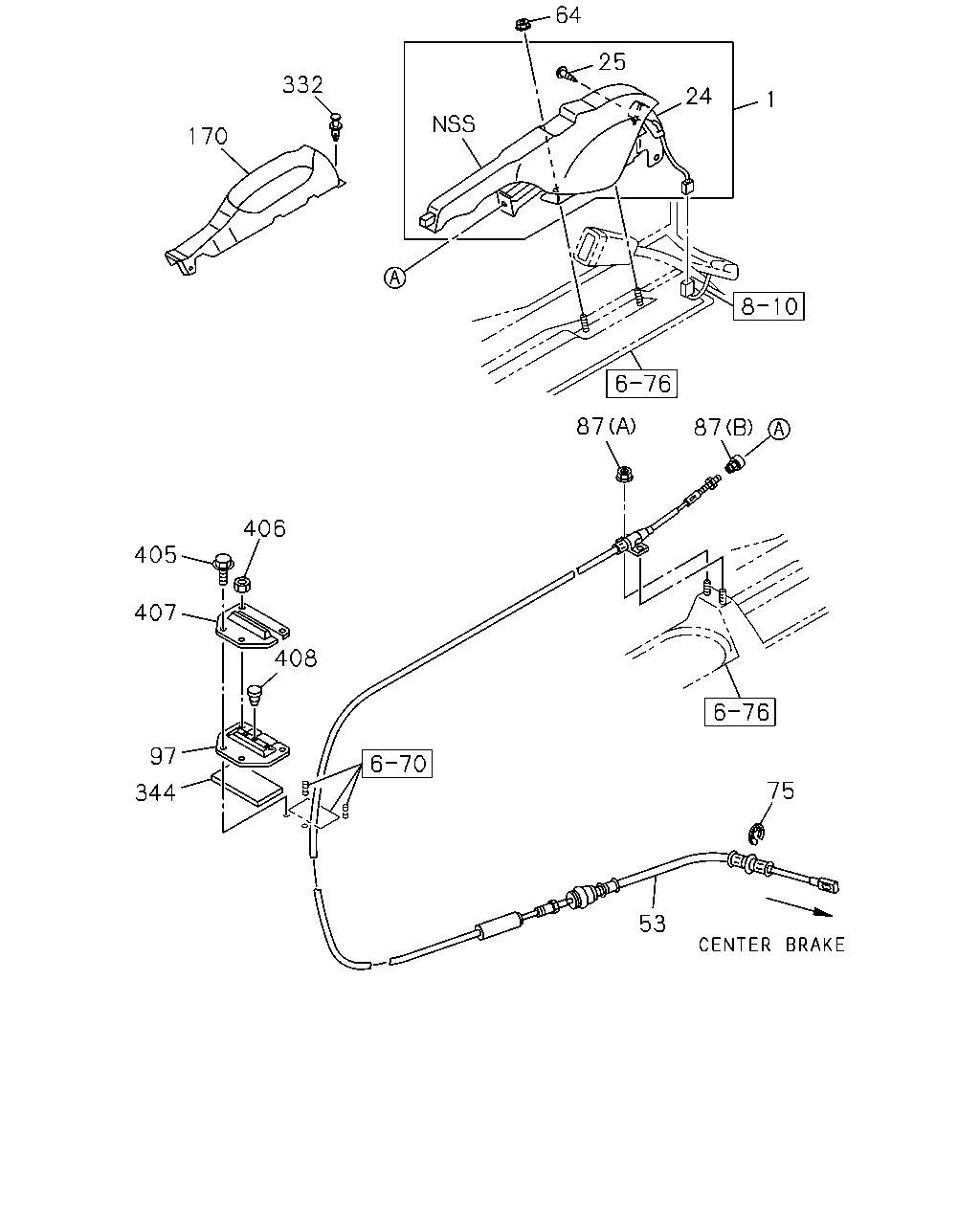

53 75 87 87 1 24 25 64 332 170 406 405 407 97 344 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.592 STEM ASM; PARKING BRK GRAY	8-97426-514-0	01	1	1506-1508	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97426-514-0	01	1	1509-	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1506-1508	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1509-	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	1506-1508	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	1509-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5M(RNV),M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98142-592-1	01	1	1509-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98051-572-4	01	1	1509-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98051-572-4	01	1	1509-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98142-593-1	01	1	1509-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98142-593-1	01	1	1509-		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98292-265-0	01	1	1509-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM)	8-98209-950-2	01	1	1506-1507	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU)	8-98209-950-2	01	1	1508-1508	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98209-950-2	01	1	1509-	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	1506-1508	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	1509-	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	1506-1508	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	1509-	●	●
87	04.785 NUT CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1509-	●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	1506-1508	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	1509-	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97091-890-0	01	1	1506-1508	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97091-890-0	01	1	1509-	●	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97411-674-1	01	1	1506-1508	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97411-674-1	01	1	1509-	●	●
332	04.785 CLIP; COVER GRAY	8-97406-171-0	01	1	1506-1508	●
332	04.785 CLIP; COVER GRAY	8-97406-171-0	01	1	1509-	●	●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	1506-1508	●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	1509-	●	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	1506-1508	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	1509-	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-1508	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	1506-1508	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	1509-	●	●
408	04.785 CAP; GROMMET CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 04.010	8-97371-108-0	02	1	1509-	●	●

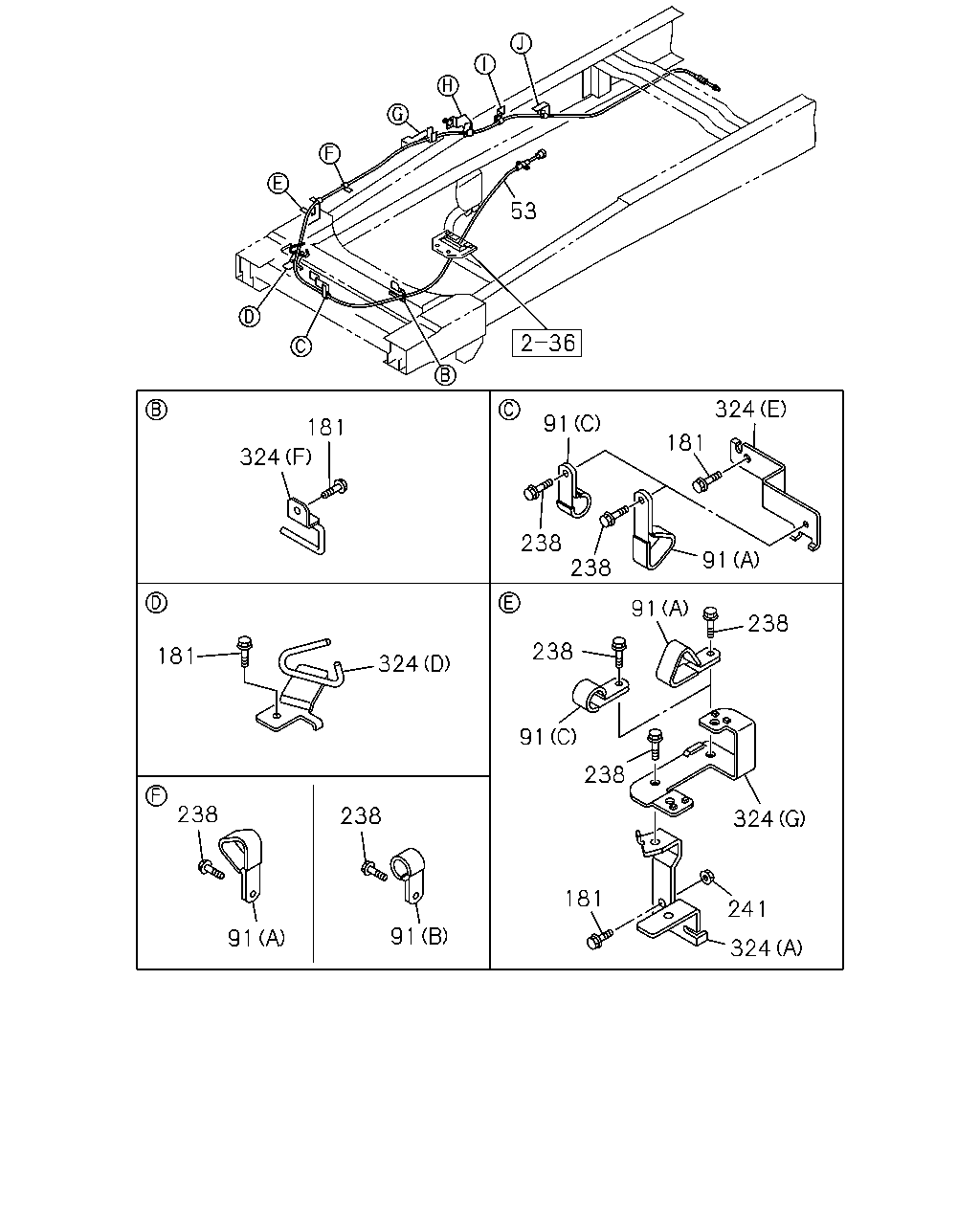

324 181 324 238 91 238 238 91 91 181 324 91 238 238 238 324 241 324 91 53 238 91 181 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5M(RNV),M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98142-592-1	01	1	1509-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98051-572-4	01	1	1509-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98051-572-4	01	1	1509-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98142-593-1	01	1	1509-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98142-593-1	01	1	1509-		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98292-265-0	01	1	1509-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM)	8-98209-950-2	01	1	1506-1507	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU)	8-98209-950-2	01	1	1508-1508	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98209-950-2	01	1	1509-	●	●
91	04.785 CLIP; PARKING BRK CABLE CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.540 (C) ID=13 L=28	0-95235-255-0	02	1	1509-	●	●
91	04.785 CLIP; PARKING BRK CABLE CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 06.672 (B) ID=16 L=28	0-95235-556-0	01	1	1509-	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 04.047 (A)	8-97036-333-1	01	1	1506-1507	●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1-TCC ENG(RDU) 04.047 (A)	8-97036-333-1	01	1	1508-1508	●
91	04.785 CLIP; PARKING BRK CABLE EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.047 (A)	8-97036-333-1	01	1	1509-	●	●
91	04.785 CLIP; PARKING BRK CABLE CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	1509-	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	02	1	1506-1508	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	02	1	1509-	●	●
181	04.785 BOLT; BRKT EXC. CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
181	04.785 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
181	04.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1507	●
181	04.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1507	●
181	04.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-1508	●
181	04.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-1508	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
181	04.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
241	04.785 NUT; BRKT CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
324	04.785 BRACKET EXC. CATALYSIS CONTROL WITH DPD(8JM) (H)	8-98026-099-2	01	1	1509-	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-98026-099-2	01	1	1509-	●	●
324	04.785 BRACKET CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (I)	8-98038-563-0	01	1	1509-	●	●
324	04.785 BRACKET (A)	8-98003-642-1	01	1	1506-1508	●
324	04.785 BRACKET (A)	8-98003-642-1	01	1	1509-	●	●
324	04.785 BRACKET (D)	8-98047-573-0	01	1	1506-1508	●
324	04.785 BRACKET (D)	8-98047-573-0	01	1	1509-	●	●
324	04.785 BRACKET (E)	8-98047-575-1	01	1	1506-1508	●
324	04.785 BRACKET (E)	8-98047-575-1	01	1	1509-	●	●
324	04.785 BRACKET (F)	8-98116-060-0	01	1	1506-1508	●
324	04.785 BRACKET (F)	8-98116-060-0	01	1	1509-	●	●
324	04.785 BRACKET (B)	8-98207-273-1	01	1	1506-1508	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98207-273-1	01	1	1509-	●	●
324	04.785 BRACKET (G)	8-98209-952-2	01	1	1506-1508	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98209-952-2	01	1	1509-	●	●
324	04.785 BRACKET (C)	8-98240-296-0	01	1	1506-1508	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) M/T MYY5M(RNV),M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98240-296-0	01	1	1509-	●	●

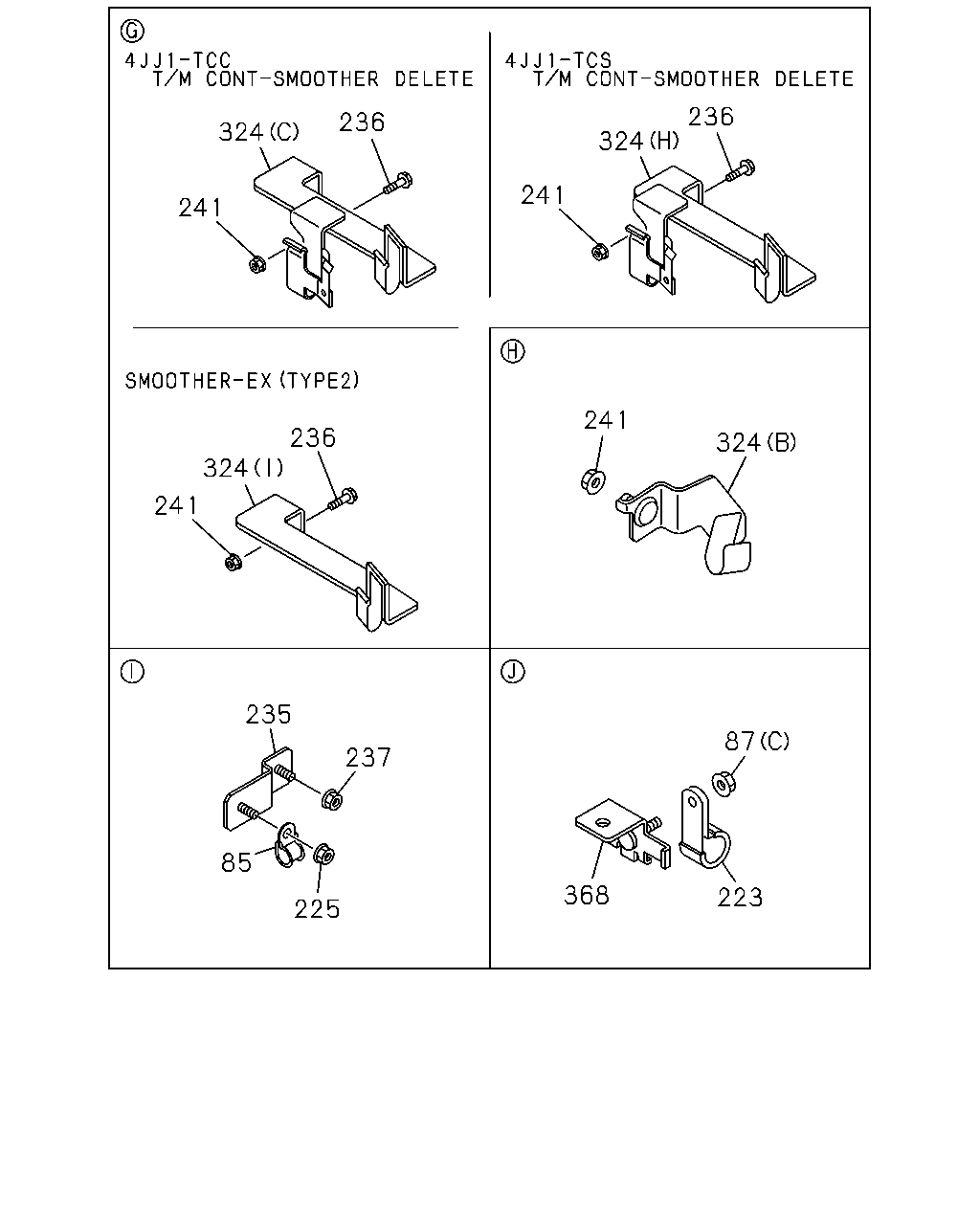

236 324 241 235 85 225 237 87 368 241 324 223 241 241 324 236 324 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	1506-1508	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	1509-	●	●
87	04.785 NUT CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1509-	●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	1506-1508	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	1509-	●	●
223	04.785 CLIP; PARKING BRK CABLE CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 00.799 ID=13 L=20	1-09701-138-1	01	1	1509-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME	8-98034-352-0	01	1	1506-1508	●
235	04.785 BRACKET; CONT CABLE TO FRAME	8-98034-352-0	01	1	1509-	●	●
236	04.785 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●
236	04.785 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●
236	04.785 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
236	04.785 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
237	04.785 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
237	04.785 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
237	04.785 NUT; BRKT TO FRAME EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
237	04.785 NUT; BRKT TO FRAME CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
237	04.785 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
241	04.785 NUT; BRKT CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
324	04.785 BRACKET EXC. CATALYSIS CONTROL WITH DPD(8JM) (H)	8-98026-099-2	01	1	1509-	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-98026-099-2	01	1	1509-	●	●
324	04.785 BRACKET CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (I)	8-98038-563-0	01	1	1509-	●	●
324	04.785 BRACKET (A)	8-98003-642-1	01	1	1506-1508	●
324	04.785 BRACKET (A)	8-98003-642-1	01	1	1509-	●	●
324	04.785 BRACKET (D)	8-98047-573-0	01	1	1506-1508	●
324	04.785 BRACKET (D)	8-98047-573-0	01	1	1509-	●	●
324	04.785 BRACKET (E)	8-98047-575-1	01	1	1506-1508	●
324	04.785 BRACKET (E)	8-98047-575-1	01	1	1509-	●	●
324	04.785 BRACKET (F)	8-98116-060-0	01	1	1506-1508	●
324	04.785 BRACKET (F)	8-98116-060-0	01	1	1509-	●	●
324	04.785 BRACKET (B)	8-98207-273-1	01	1	1506-1508	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98207-273-1	01	1	1509-	●	●
324	04.785 BRACKET (G)	8-98209-952-2	01	1	1506-1508	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98209-952-2	01	1	1509-	●	●
324	04.785 BRACKET (C)	8-98240-296-0	01	1	1506-1508	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) M/T MYY5M(RNV),M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98240-296-0	01	1	1509-	●	●
368	04.785 BRACKET; T/M SIDE CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ)	8-97372-863-1	01	1	1509-	●	●
