4-20 — REAR AXLE CASE AND SHAFT (#1622) — 157 parça

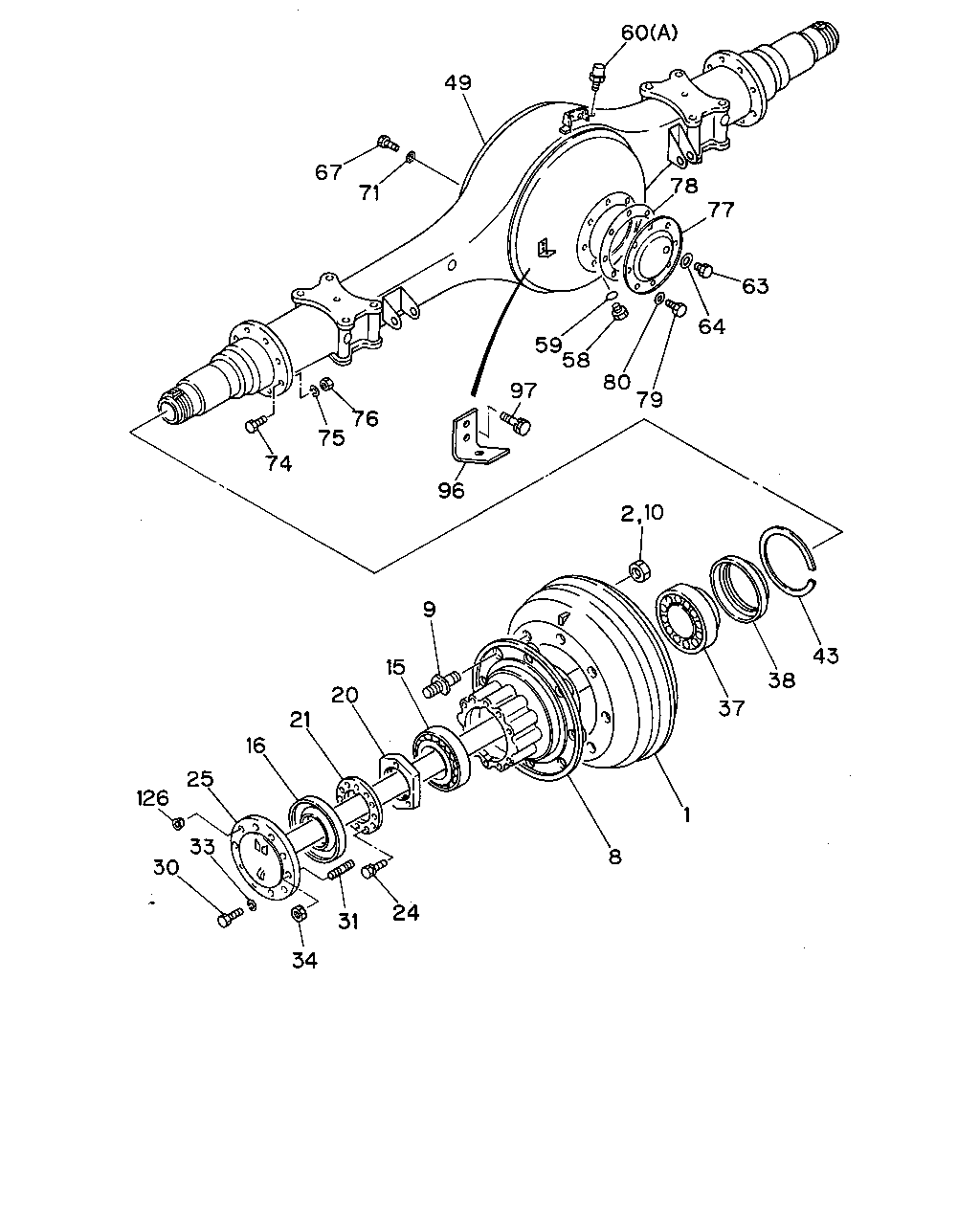

çizim 27789
60 49 67 71 74 75 76 59 97 96 58 80 79 64 63 77 78 10 2 43 38 37 1 8 24 31 34 30 33 126 25 16 21 20 15 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRUM; BRK,RR 1-42315-266-1 02 1 9207- ● ●
1 DRUM; BRK,RR
H=195 		1-42315-208-2 02 1 9207- ● ● ●
2 BOLT; BRK DRUM
EXC. REARWARD INNER SINGLE TIRE<YK3> 		1-09000-580-0 16 1 9207-9212 ●
2 BOLT; BRK DRUM
EXC. REARWARD INNER SINGLE TIRE<YK3> M22X54 		1-09000-275-1 16 1 9301- ●
8 HUB; RR AXLE 1-42311-041-2 02 1 9207- ● ● ●
8 HUB; RR AXLE
FINAL GEAR 39/7 14.5" HYPOID(WIH) 		1-42311-041-2 02 1 9207- ●
8 HUB; RR AXLE
EXC. REARWARD INNER SINGLE TIRE<YK3> 		1-42311-041-2 02 1 9207- ●
8 HUB; RR AXLE
FINAL GEAR 41/8 14.5" HYPOID(W4F) 		1-42311-021-1 02 1 9207- ●
8 HUB; RR AXLE
REARWARD INNER SINGLE TIRE<YK3> 		9-42311-099-2 02 1 9207- ●
9 PIN; WHEEL,RR AXLE 1-42332-110-0 08 1 9207- ● ● ● ●
9 PIN; WHEEL,RR AXLE
EXC. REARWARD INNER SINGLE TIRE<YK3> 		1-42332-110-0 08 1 9207- ●
9 PIN; WHEEL,RR AXLE 1-42331-110-0 08 1 9207- ● ● ● ●
9 PIN; WHEEL,RR AXLE
EXC. REARWARD INNER SINGLE TIRE<YK3> 		1-42331-110-0 08 1 9207- ●
9 PIN; WHEEL,RR AXLE
REARWARD INNER SINGLE TIRE<YK3> M20X37 LH THREAD,M22X35.5 RH THREAD 		1-42332-135-0 08 1 9207-9212 ●
9 PIN; WHEEL,RR AXLE
REARWARD INNER SINGLE TIRE<YK3> M20X37.5 LH THREAD,M22X33.5 RH THREAD 		1-42332-053-0 08 1 9301- ●
9 PIN; WHEEL,RR AXLE
REARWARD INNER SINGLE TIRE<YK3> M20X37,M22X35.5 RH THREAD 		1-42331-135-0 08 1 9207-9212 ●
9 PIN; WHEEL,RR AXLE
REARWARD INNER SINGLE TIRE<YK3> M20X37.5,M22X33.5 RH THREAD 		1-42331-053-0 08 1 9301- ●
10 NUT; WHEEL PIN,RR AXLE
M22 		9-09110-522-0 16 1 9207- ● ● ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. REARWARD INNER SINGLE TIRE<YK3> M22 		9-09110-522-0 16 1 9207- ●
10 NUT; WHEEL PIN,RR AXLE
REARWARD INNER SINGLE TIRE<YK3> M22 		9-09110-522-0 32 1 9207-9212 ●
10 NUT; WHEEL PIN,RR AXLE
REARWARD INNER SINGLE TIRE<YK3> M22 		1-09400-037-0 32 1 9301- ●
15 BEARING; HUB OUTER,RR AXLE
KOYO 		1-09812-044-0 02 1 9207- ●
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/7 14.5" HYPOID(WIH) KOYO 		1-09812-044-0 02 1 9207- ●
15 BEARING; HUB OUTER,RR AXLE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> KOYO 		1-09812-044-0 02 1 9207- ● ● ●
15 BEARING; HUB OUTER,RR AXLE
NACHI 		1-09812-053-0 02 1 9207- ●
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/7 14.5" HYPOID(WIH) NACHI 		1-09812-053-0 02 1 9207- ●
15 BEARING; HUB OUTER,RR AXLE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> NACHI 		1-09812-053-0 02 1 9207- ● ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-161-0 02 1 9207- ●
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/7 14.5" HYPOID(WIH) NSK 		9-00093-161-0 02 1 9207- ●
15 BEARING; HUB OUTER,RR AXLE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> NSK 		9-00093-161-0 02 1 9207- ● ● ●
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 41/8 14.5" HYPOID(W4F) KOYO 		1-09812-049-0 02 1 9207- ●
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 41/8 14.5" HYPOID(W4F) NSK 		9-00093-159-0 02 1 9207- ●
15 BEARING; HUB OUTER,RR AXLE
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> NSK 		1-09812-153-0 02 1 9207- ● ● ●
15 BEARING; HUB OUTER,RR AXLE
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> KOYO 		1-09812-154-0 02 1 9207- ● ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		9-09924-468-0 02 1 9207- ● ● ● ●
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/7 14.5" HYPOID(WIH) NOK 		9-09924-468-0 02 1 9207- ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		9-09924-470-0 02 1 9207- ● ● ● ●
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/7 14.5" HYPOID(WIH) TKK 		9-09924-470-0 02 1 9207- ●
16 SEAL; OIL,RR HUB,OUTER
KOYO 		9-09924-499-0 02 1 9207- ● ● ● ●
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/7 14.5" HYPOID(WIH) KOYO 		9-09924-499-0 02 1 9207- ●
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 41/8 14.5" HYPOID(W4F) TKK 		1-09625-331-0 02 1 9207- ●
20 NUT; BRG,RR HUB
M74.6 		9-09843-064-2 02 1 9207- ● ● ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/7 14.5" HYPOID(WIH) M74.6 		9-09843-064-2 02 1 9207- ●
20 NUT; BRG,RR HUB
FINAL GEAR 41/8 14.5" HYPOID(W4F) M64 		9-09843-721-2 02 1 9207- ●
21 WASHER; LK,BRG NUT
ID=74.6 		1-09533-008-0 02 1 9207- ● ● ● ●
21 WASHER; LK,BRG NUT
FINAL GEAR 39/7 14.5" HYPOID(WIH) ID=74.6 		1-09533-008-0 02 1 9207- ●
21 WASHER; LK,BRG NUT
FINAL GEAR 41/8 14.5" HYPOID(W4F) ID=64 		9-09854-122-0 02 1 9207- ●
24 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 06 1 9207- ● ● ● ● ●
25 SHAFT; AXLE,RR 1-42171-247-2 01 1 9207- ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/7 14.5" HYPOID(WIH) 		1-42171-247-2 01 1 9207- ●
25 SHAFT; AXLE,RR 1-42171-246-2 01 1 9207- ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/7 14.5" HYPOID(WIH) 		1-42171-246-2 01 1 9207- ●
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 14.5" HYPOID(W4F) 		1-42171-260-0 02 1 9207- ●
25 SHAFT; AXLE,RR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> EXC. REARWARD INNER SINGLE TIRE<YK3> L=986 		1-42171-280-0 02 1 9207- ● ● ●
25 SHAFT; AXLE,RR
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ,REARWARD INNER SINGLE TIRE<YK3> 		1-42171-220-2 02 1 9207- ● ● ●
25 SHAFT; AXLE,RR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REARWARD INNER SINGLE TIRE<YK3> 		1-42171-366-0 02 1 9207- ●
25 SHAFT; AXLE,RR
REARWARD INNER SINGLE TIRE<YK3> EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-42171-286-1 02 1 9207- ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09020-095-1 20 1 9207- ● ● ●
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 39/7 14.5" HYPOID(WIH) M14X58 		1-09020-095-1 20 1 9207- ●
30 BOLT; HUB TO AXLE SHAFT
EXC. REARWARD INNER SINGLE TIRE<YK3> M14X58 		1-09020-095-1 20 1 9207- ●
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 41/8 14.5" HYPOID(W4F) M12X45 		9-09804-239-1 20 1 9207- ●
31 STUD; AXLE SHAFT TO HUB
REARWARD INNER SINGLE TIRE<YK3> 		1-09302-045-0 20 1 9207- ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 9207- ● ● ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/7 14.5" HYPOID(WIH) ID=14.2 		9-09150-814-0 20 1 9207- ●
33 WASHER; AXLE SHAFT
EXC. REARWARD INNER SINGLE TIRE<YK3> ID=14.2 		9-09150-814-0 20 1 9207- ●
33 WASHER; AXLE SHAFT
FINAL GEAR 41/8 14.5" HYPOID(W4F) ID=12.2 		9-09150-812-0 20 1 9207- ●
33 WASHER; AXLE SHAFT
REARWARD INNER SINGLE TIRE<YK3> ID=12.2 		9-09150-812-0 20 1 9207- ●
34 NUT; AXLE SHAFT
REARWARD INNER SINGLE TIRE<YK3> M12 		9-99110-512-0 20 1 9207- ●
37 BEARING; HUB INNER,RR AXLE
ID=80 OD=140 T=35.3 NACHI 		1-09812-144-0 02 1 9207- ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/7 14.5" HYPOID(WIH) ID=80 OD=140 T=35.3 NACHI 		1-09812-144-0 02 1 9207- ●
37 BEARING; HUB INNER,RR AXLE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ID=80 OD=140 T=35.3 NACHI 		1-09812-144-0 02 1 9207- ● ● ●
37 BEARING; HUB INNER,RR AXLE
KOYO ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 9207- ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/7 14.5" HYPOID(WIH) KOYO ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 9207- ●
37 BEARING; HUB INNER,RR AXLE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> KOYO ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 9207- ● ● ●
37 BEARING; HUB INNER,RR AXLE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 9207- ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/7 14.5" HYPOID(WIH) NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 9207- ●
37 BEARING; HUB INNER,RR AXLE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 9207- ● ● ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 41/8 14.5" HYPOID(W4F) KOYO 		1-09812-044-0 02 1 9207- ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 41/8 14.5" HYPOID(W4F) NACHI 		1-09812-053-0 02 1 9207- ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 41/8 14.5" HYPOID(W4F) NSK 		9-00093-161-0 02 1 9207- ●
37 BEARING; HUB INNER,RR AXLE
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> NSK 		1-09812-150-0 02 1 9207- ● ● ●
37 BEARING; HUB INNER,RR AXLE
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> NACHI 		1-09812-151-0 02 1 9207- ● ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		9-09924-415-0 02 1 9207- ● ● ● ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/7 14.5" HYPOID(WIH) TKK 		9-09924-415-0 02 1 9207- ●
38 SEAL; OIL,RR HUB,INNER
NOK 		9-09924-416-0 02 1 9207- ● ● ● ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/7 14.5" HYPOID(WIH) NOK 		9-09924-416-0 02 1 9207- ●
38 SEAL; OIL,RR HUB,INNER
KOYO 		9-09924-417-0 02 1 9207- ● ● ● ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/7 14.5" HYPOID(WIH) KOYO 		9-09924-417-0 02 1 9207- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 41/8 14.5" HYPOID(W4F) TKK 		1-09625-043-0 02 1 9207-9310 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 41/8 14.5" HYPOID(W4F) TKK 		1-09625-569-0 02 1 9311- ●
43 RING; SNAP,HUB SEAL,RR AXLE 9-09950-147-0 02 1 9207- ● ● ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 39/7 14.5" HYPOID(WIH) 		9-09950-147-0 02 1 9207- ●
43 RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 41/8 14.5" HYPOID(W4F) 		9-09950-201-0 02 1 9207- ●
49 CASE; RR AXLE
FINAL GEAR 39/7 14.5" HYPOID(WIH) BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-42150-450-2 01 1 9207- ● ●
49 CASE; RR AXLE
FINAL GEAR 39/7 14.5" HYPOID(WIH) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-42130-854-4 01 1 9207- ● ●
49 CASE; RR AXLE
FINAL GEAR 41/8 14.5" HYPOID(W4F) BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-42150-578-2 01 1 9207- ●
49 CASE; RR AXLE
FINAL GEAR 41/8 14.5" HYPOID(W4F) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-42130-912-5 01 1 9207- ●
49 CASE; RR AXLE
REAR WHEEL PARKING(B3A) EXC. REAR SHOCK ABSORBER<GL6>,REARWARD INNER SINGLE TIRE<YK3> 		1-42130-874-7 01 1 9207- ● ● ●
49 CASE; RR AXLE
EXC. REAR WHEEL PARKING(B3A),REAR SHOCK ABSORBER<GL6>,REARWARD INNER SINGLE TIRE<YK3> 		1-42150-029-4 01 1 9207- ● ● ●
49 CASE; RR AXLE
REAR SHOCK ABSORBER<GL6> EXC. REAR WHEEL PARKING(B3A),REARWARD INNER SINGLE TIRE<YK3> 		1-42150-080-3 01 1 9207- ●
49 CASE; RR AXLE
REAR WHEEL PARKING(B3A) REARWARD INNER SINGLE TIRE<YK3> REAR SHOCK ABSORBER<GL6> 		1-42150-197-4 01 1 9207- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9207- ● ● ● ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 9207- ● ● ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		9-36122-015-1 01 1 9207- ● ●
60 BREATHER; RR AXLE CASE
EXC. REAR WHEEL PARKING(B3A),AIR BREATHER W/FLEX HOSE<C4M> (A) 		9-36122-015-1 01 1 9207- ● ● ●
60 BREATHER; RR AXLE CASE

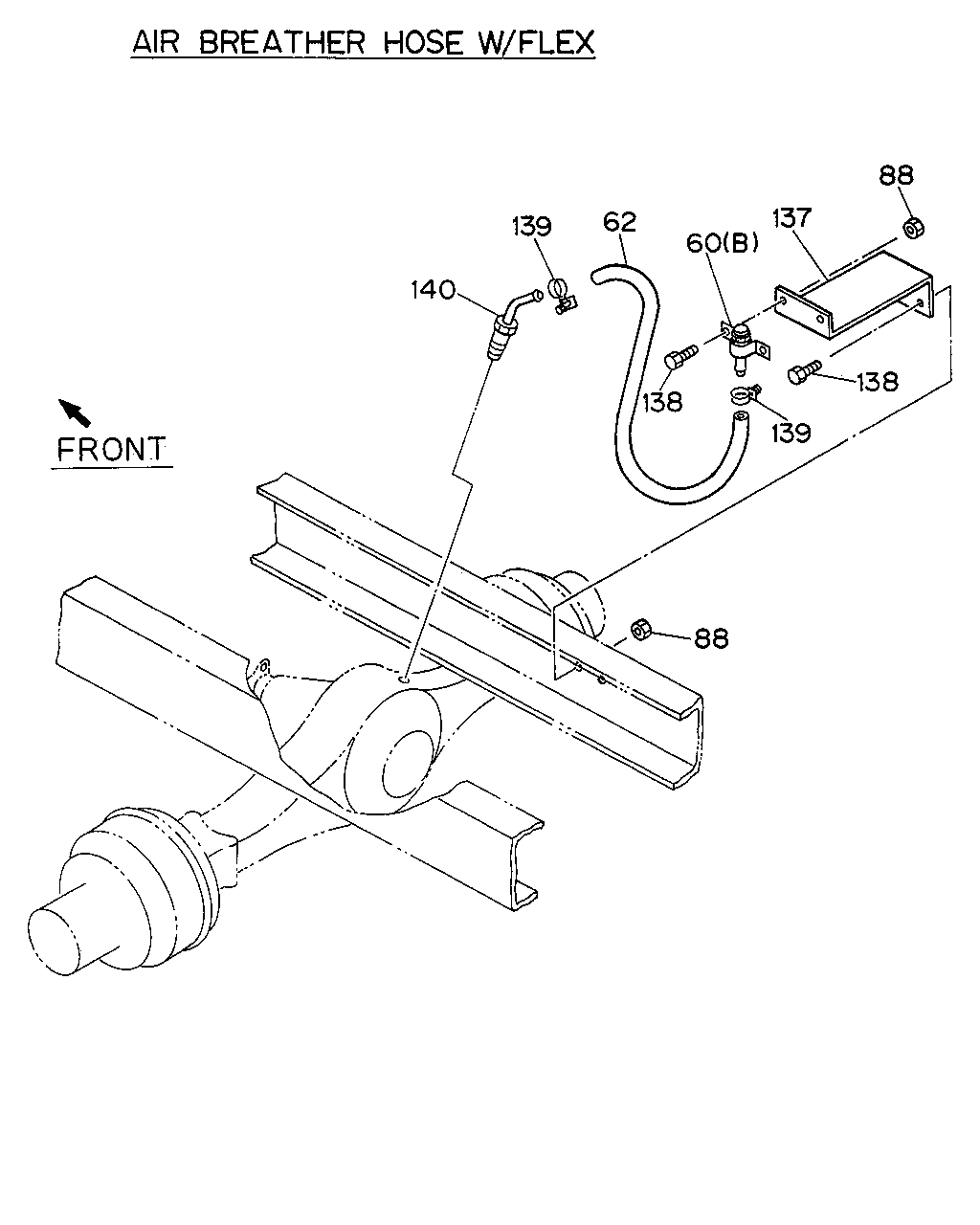

AIR BREATHER W/FLEX HOSE<C4M> (B) 		1-09893-009-0 01 1 9207- ● ● ●
60 BREATHER; RR AXLE CASE
REAR WHEEL PARKING(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A) 		1-09893-007-0 01 1 9207- ● ● ●
63 PLUG; OIL FILLER,AXLE CASE 1-09604-021-0 01 1 9207-9307 ● ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE 1-09604-022-0 01 1 9308- ● ● ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=24.5 OD=32.5 		9-09920-392-0 01 1 9207-9307 ● ● ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 9308- ● ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
M12X55 		9-91066-255-0 04 1 9207- ● ●
67 BOLT; FINAL DRIVE SETTING
M12X35 		9-92061-235-0 08 1 9207- ● ●
67 BOLT; FINAL DRIVE SETTING
M14X65 		9-91066-465-0 04 1 9207- ● ● ●
67 BOLT; FINAL DRIVE SETTING
M14X40 		9-92061-440-0 08 1 9207- ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=12.2 		9-09150-812-0 12 1 9207- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=14.2 		9-09150-814-0 12 1 9207- ● ● ●
74 BOLT; RR BRK ASM SETTING
M14X56 		1-09060-004-0 04 1 9207- ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/7 14.5" HYPOID(WIH) M14X56 		1-09060-004-0 04 1 9207- ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 41/8 14.5" HYPOID(W4F) M14X50 		9-91061-450-0 12 1 9207-9401 ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 41/8 14.5" HYPOID(W4F) M14X50 		9-92061-450-0 12 1 9402- ●
74 BOLT; RR BRK ASM SETTING
REAR WHEEL PARKING(B3A) M14X52 		1-09000-310-0 12 1 9207- ● ● ●
74 BOLT; RR BRK ASM SETTING
EXC. REAR WHEEL PARKING(B3A) M14X52 		1-09000-310-0 04 1 9207- ● ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-614-0 16 1 9207-9401 ● ● ● ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 9402- ● ● ● ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 9207- ●
76 NUT; RR BRK ASM SETTING
FINAL GEAR 39/7 14.5" HYPOID(WIH) M14 		9-99110-514-0 16 1 9207- ●
76 NUT; RR BRK ASM SETTING
EXC. REAR WHEEL PARKING(B3A) M14 		9-99110-514-0 16 1 9207- ● ● ●
76 NUT; RR BRK ASM SETTING
FINAL GEAR 41/8 14.5" HYPOID(W4F) M14 		9-99110-514-0 10 1 9207- ●
76 NUT; RR BRK ASM SETTING
REAR WHEEL PARKING(B3A) M14 		9-99110-514-0 10 1 9207- ● ● ●
77 COVER; RR AXLE CASE 9-42141-059-0 01 1 9207- ●
77 COVER; RR AXLE CASE
FINAL GEAR 39/7 14.5" HYPOID(WIH) 		9-42141-059-0 01 1 9207- ●
78 GASKET; COVER TO RR AXLE CASE 9-42142-026-1 01 1 9207- ●
78 GASKET; COVER TO RR AXLE CASE
FINAL GEAR 39/7 14.5" HYPOID(WIH) 		9-42142-026-1 01 1 9207- ●
79 BOLT; COVER TO CASE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> M10X16 		9-09800-874-0 08 1 9207-9309 ●
79 BOLT; COVER TO CASE
FINAL GEAR 39/7 14.5" HYPOID(WIH) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> M10X16 		9-09800-874-0 08 1 9207-9309 ●
79 BOLT; COVER TO CASE
FINAL GEAR 39/7 14.5" HYPOID(WIH) BRK LINING MATERIAL L709 NON ASBESTOS<BBY> M10X16 		9-09800-874-0 01 1 9207-9309 ● ●
79 BOLT; COVER TO CASE
M10X16 		9-09800-874-0 08 1 9310- ●
79 BOLT; COVER TO CASE
FINAL GEAR 39/7 14.5" HYPOID(WIH) M10X16 		9-09800-874-0 08 1 9310- ●
80 GASKET; BOLT,COVER
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ID=10.2 OD=19 		9-09572-010-0 01 1 9207- ●
80 GASKET; BOLT,COVER
FINAL GEAR 39/7 14.5" HYPOID(WIH) BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ID=10.2 OD=19 		9-09572-010-0 01 1 9207- ●
80 GASKET; BOLT,COVER
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ID=10.2 OD=19 		9-09572-010-0 08 1 9207- ●
80 GASKET; BOLT,COVER
FINAL GEAR 39/7 14.5" HYPOID(WIH) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ID=10.2 OD=19 		9-09572-010-0 08 1 9207- ●
96 BRACKET; LSPV,AXLE CASE
REAR WHEEL PARKING(B3A) 		1-47475-073-0 01 1 9207- ● ● ●
97 BOLT; BRKT,LSPV
REAR WHEEL PARKING(B3A) M8X18 W/LK WASHER 		0-50040-818-0 02 1 9207-9409 ● ● ●
97 BOLT; BRKT,LSPV
REAR WHEEL PARKING(B3A) M8X16 FLANGE 		0-28080-816-0 02 1 9410- ● ● ●
126 COLLAR; AXLE SHAFT
REARWARD INNER SINGLE TIRE<YK3> 		9-42179-016-0 20 1 9207- ●
çizim 93890
140 139 62 60 137 88 138 138 139 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E
60 BREATHER; RR AXLE CASE
(A) 		9-36122-015-1 01 1 9207- ● ●
60 BREATHER; RR AXLE CASE
EXC. REAR WHEEL PARKING(B3A),AIR BREATHER W/FLEX HOSE<C4M> (A) 		9-36122-015-1 01 1 9207- ● ● ●
60 BREATHER; RR AXLE CASE
AIR BREATHER W/FLEX HOSE<C4M> (B) 		1-09893-009-0 01 1 9207- ● ● ●
60 BREATHER; RR AXLE CASE
REAR WHEEL PARKING(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A) 		1-09893-007-0 01 1 9207- ● ● ●
62 HOSE; RUBBER,BREATHER,RR AXLE
AIR BREATHER W/FLEX HOSE<C4M> 		0-02811-500-0 01 1 9207- ● ● ●
88 NUT; BRKT
AIR BREATHER W/FLEX HOSE<C4M> M8 		9-09110-408-0 04 1 9207- ● ● ●
137 BRACKET; BREATHER,RR AXLE
AIR BREATHER W/FLEX HOSE<C4M> 		1-42129-122-0 01 1 9207- ● ● ●
138 BOLT; BRKT
AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE 		0-28080-825-0 04 1 9207- ● ● ●
139 CLIP; WIRE
AIR BREATHER W/FLEX HOSE<C4M> 		1-09704-080-0 02 1 9207- ● ● ●
140 CONNECTOR; AXLE CASE
AIR BREATHER W/FLEX HOSE<C4M> 		1-09669-080-1 01 1 9207- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
