◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#162197) — 72 parça

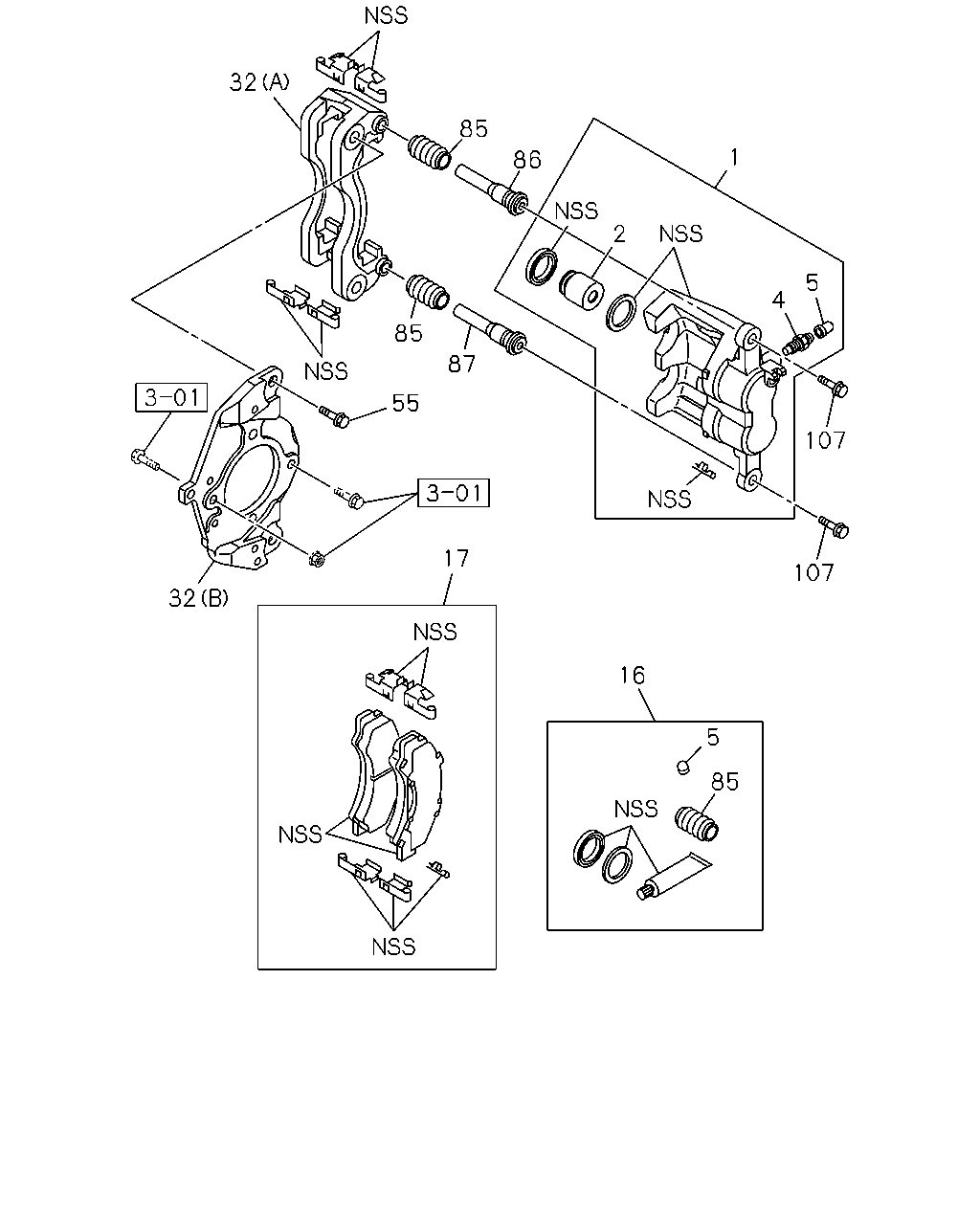

çizim 479412
32 17 55 85 87 16 5 85 107 107 4 5 1 2 86 85 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98303-459-0 01 1 1509- ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) EXC. SINGLE RR TIRE(6TD) 		8-98303-459-0 01 1 1509- ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98303-460-0 01 1 1509- ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) EXC. SINGLE RR TIRE(6TD) 		8-98303-460-0 01 1 1509- ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1506-1508 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-461-0 01 1 1509- ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-98303-461-0 01 1 1509- ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98303-461-0 01 1 1509- ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1506-1508 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-462-0 01 1 1509- ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-98303-462-0 01 1 1509- ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98303-462-0 01 1 1509- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-97365-256-0 04 1 1509- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) EXC. SINGLE RR TIRE(6TD) 		8-97365-256-0 04 1 1509- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 1506-1508 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-269-0 04 1 1509- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-97365-269-0 04 1 1509- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97365-269-0 04 1 1509- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1506-1508 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 1509- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1506-1508 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 1509- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98302-529-0 01 1 1509- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) EXC. SINGLE RR TIRE(6TD) 		8-98302-529-0 01 1 1509- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1506-1508 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) W/GREASE 		8-98302-531-0 01 1 1509- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) W/GREASE 		8-98302-531-0 01 1 1509- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> W/GREASE 		8-98302-531-0 01 1 1509- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98216-921-0 01 1 1509- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) EXC. SINGLE RR TIRE(6TD) 		8-98216-921-0 01 1 1509- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98216-922-0 01 1 1509- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) FULL FLATLOW<6GL> EXC. DISC BRAKE FRT<J52> 		8-98216-922-0 01 1 1509- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. SINGLE RR TIRE(6TD) 		8-98216-922-0 01 1 1509- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1506-1508 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.0-3.5TON(RPP) 		8-98259-157-0 01 1 1509- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 6.0-6.5TON(RPV) 		8-98259-157-0 01 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-728-0 01 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-729-0 01 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) (A) 		8-97365-258-0 02 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) EXC. SINGLE RR TIRE(6TD) (A) 		8-97365-258-0 02 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 1506-1508 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97365-271-0 02 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) (A) 		8-97365-271-0 02 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-97365-271-0 02 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 1506-1508 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) (B) 		8-98009-726-0 01 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-726-0 01 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98009-726-0 01 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 1506-1508 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) (B) 		8-98009-727-0 01 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-727-0 01 1 1509- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98009-727-0 01 1 1509- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) M16X48 FLANGE 		8-98033-656-0 04 1 1509- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 1506-1508 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) M16X31 FLANGE 		8-97359-816-0 04 1 1509- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> M16X31 FLANGE 		8-97359-816-0 04 1 1509- ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 1506-1508 ●
85 04.665 BOOT; PIN
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98120-354-0 04 1 1509- ● ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98047-530-0 02 1 1509- ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) EXC. SINGLE RR TIRE(6TD) 		8-98047-530-0 02 1 1509- ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 1506-1508 ●
86 04.665 PIN; GUIDE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-529-0 02 1 1509- ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-98047-529-0 02 1 1509- ●
86 04.665 PIN; GUIDE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98047-529-0 02 1 1509- ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98047-532-0 02 1 1509- ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) EXC. SINGLE RR TIRE(6TD) 		8-98047-532-0 02 1 1509- ●
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1506-1508 ●
87 04.665 PIN; LOCK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98248-005-0 02 1 1509- ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-98248-005-0 02 1 1509- ●
87 04.665 PIN; LOCK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98248-005-0 02 1 1509- ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 1506-1508 ●
107 04.665 BOLT; PIN
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97365-264-0 04 1 1509- ● ●
