3-01 — FRONT WHEEL BRAKE (#162196) — 84 parça

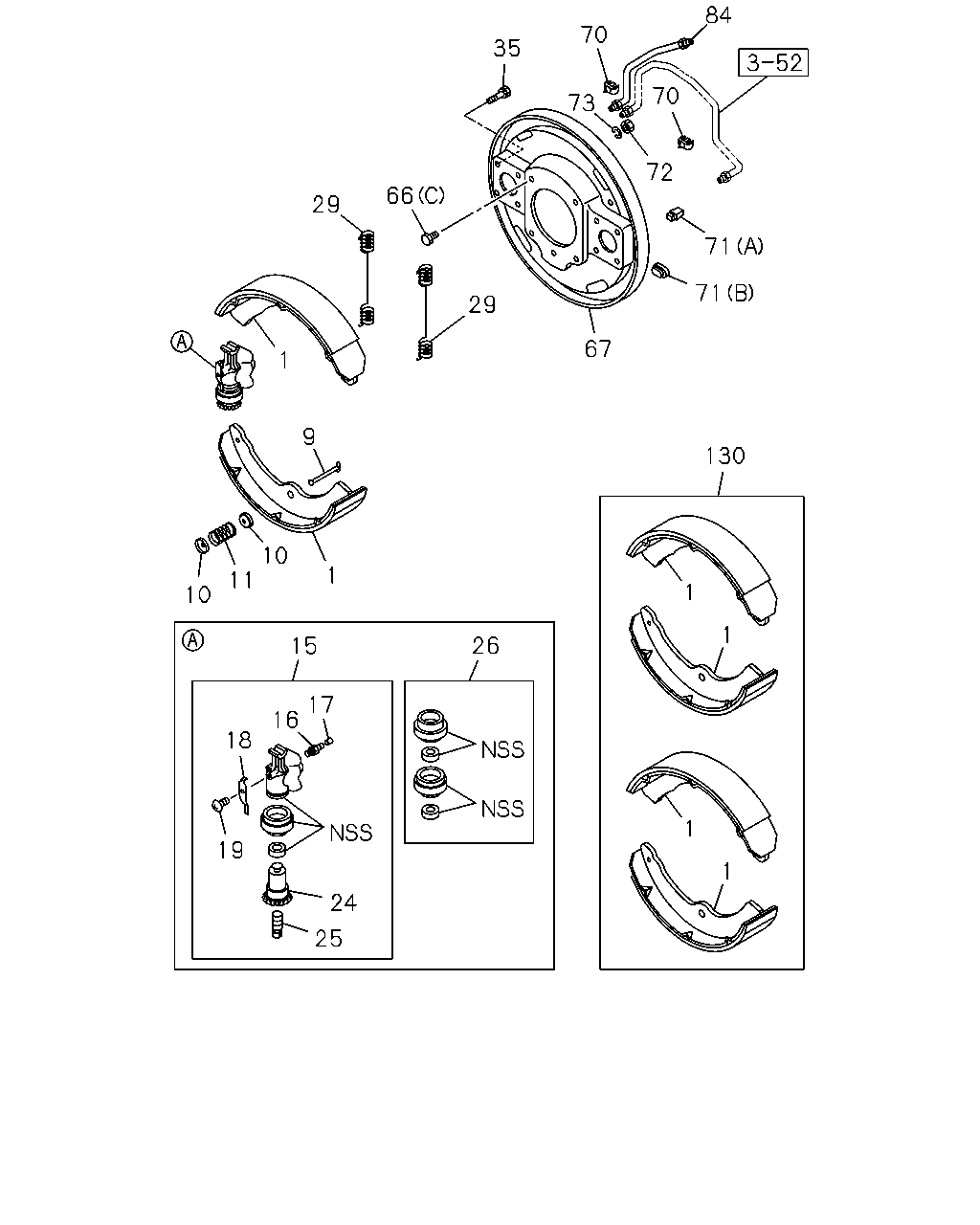

çizim 479665
84 70 73 70 72 71 71 67 35 66 29 29 1 9 1 10 11 10 130 15 17 16 18 19 24 25 26 1 1 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.017 SHOE; BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97035-085-1 04 1 1509- ●
1 05.017 SHOE; BRK,FRT
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97035-085-1 04 1 1509- ●
1 05.017 SHOE; BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BEST VALUE PARTS 		5-87610-123-0 04 1 1509- ●
1 05.017 SHOE; BRK,FRT
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> BEST VALUE PARTS 		5-87610-123-0 04 1 1509- ●
9 05.026 PIN; SHOE HOLDER
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97019-207-0 04 1 1509- ●
9 05.026 PIN; SHOE HOLDER
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97019-207-0 04 1 1509- ●
9 05.026 PIN; SHOE HOLDER
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.043 		9-47162-607-0 04 1 1509- ●
10 05.043 CUP; SHOE HOLDING
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		9-47162-033-0 08 1 1509- ●
10 05.043 CUP; SHOE HOLDING
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		9-47162-033-0 08 1 1509- ●
11 05.027 SPRING; SHOE HOLDING
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.043 		9-09940-989-1 04 1 1509- ●
11 05.027 SPRING; SHOE HOLDING
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.043 		9-09940-989-1 04 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> REAR 		8-97179-357-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> REAR 		8-97179-357-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> REAR 		8-97179-358-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> REAR 		8-97179-358-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRONT 		8-97179-359-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRONT 		8-97179-359-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRONT 		8-97179-360-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRONT 		8-97179-360-0 01 1 1509- ●
16 04.666 SCREW; BLEEDER,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 1509- ●
16 04.666 SCREW; BLEEDER,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 1509- ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 1509- ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 1509- ●
18 05.107 STOPPER; ADJ SCREW
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 1509- ●
18 05.107 STOPPER; ADJ SCREW
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 1509- ●
19 05.107 SCREW; STOPPER SETTING
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 1509- ●
19 05.107 SCREW; STOPPER SETTING
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 1509- ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97078-621-0 04 1 1509- ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97078-621-0 04 1 1509- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97078-623-0 04 1 1509- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97078-623-0 04 1 1509- ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		5-87831-602-0 01 1 1509- ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		5-87831-602-0 01 1 1509- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97078-739-0 04 1 1509- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97078-739-0 04 1 1509- ●
35 04.665 BOLT; FRT WHEEL CYL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97025-734-0 16 1 1509- ●
35 04.665 BOLT; FRT WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97025-734-0 16 1 1509- ●
35 04.665 BOLT; FRT WHEEL CYL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		5-09030-036-1 16 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) M12X33 		8-98009-493-2 08 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) M12X33 		8-98009-493-2 08 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 1506-1508 ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M14X43 		8-97168-638-1 06 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 1506-1508 ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M14X23.5 		8-97359-814-0 02 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97302-586-0 01 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97302-586-0 01 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97302-587-0 01 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97302-587-0 01 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97302-584-0 01 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97302-585-0 01 1 1509- ●
70 04.685 CLIP; PIPE HOLD
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94128-306-0 04 1 1509- ●
70 04.685 CLIP; PIPE HOLD
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94128-306-0 04 1 1509- ●
71 05.002 GROMMET; CHECK HOLE
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-94171-287-0 02 1 1509- ●
71 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-94171-287-0 02 1 1509- ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		9-09756-034-0 04 1 1509- ●
71 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		9-09756-034-0 04 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.002 M12 		0-91110-512-0 08 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.002 M12 		0-91110-512-0 08 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 1506-1508 ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97359-815-0 06 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97359-815-0 06 1 1509- ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 07.347 ID=12.2 		0-91510-812-0 08 1 1509- ●
73 05.815 WASHER; LK,OIL SHIELD COVER
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 07.347 ID=12.2 		0-91510-812-0 08 1 1509- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97019-224-0 01 1 1509- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97019-224-0 01 1 1509- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97019-225-0 01 1 1509- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97019-225-0 01 1 1509- ●
130 05.017 SHOE KIT; BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		5-87832-045-0 01 1 1509- ●
130 05.017 SHOE KIT; BRK,FRT
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		5-87832-045-0 01 1 1509- ●

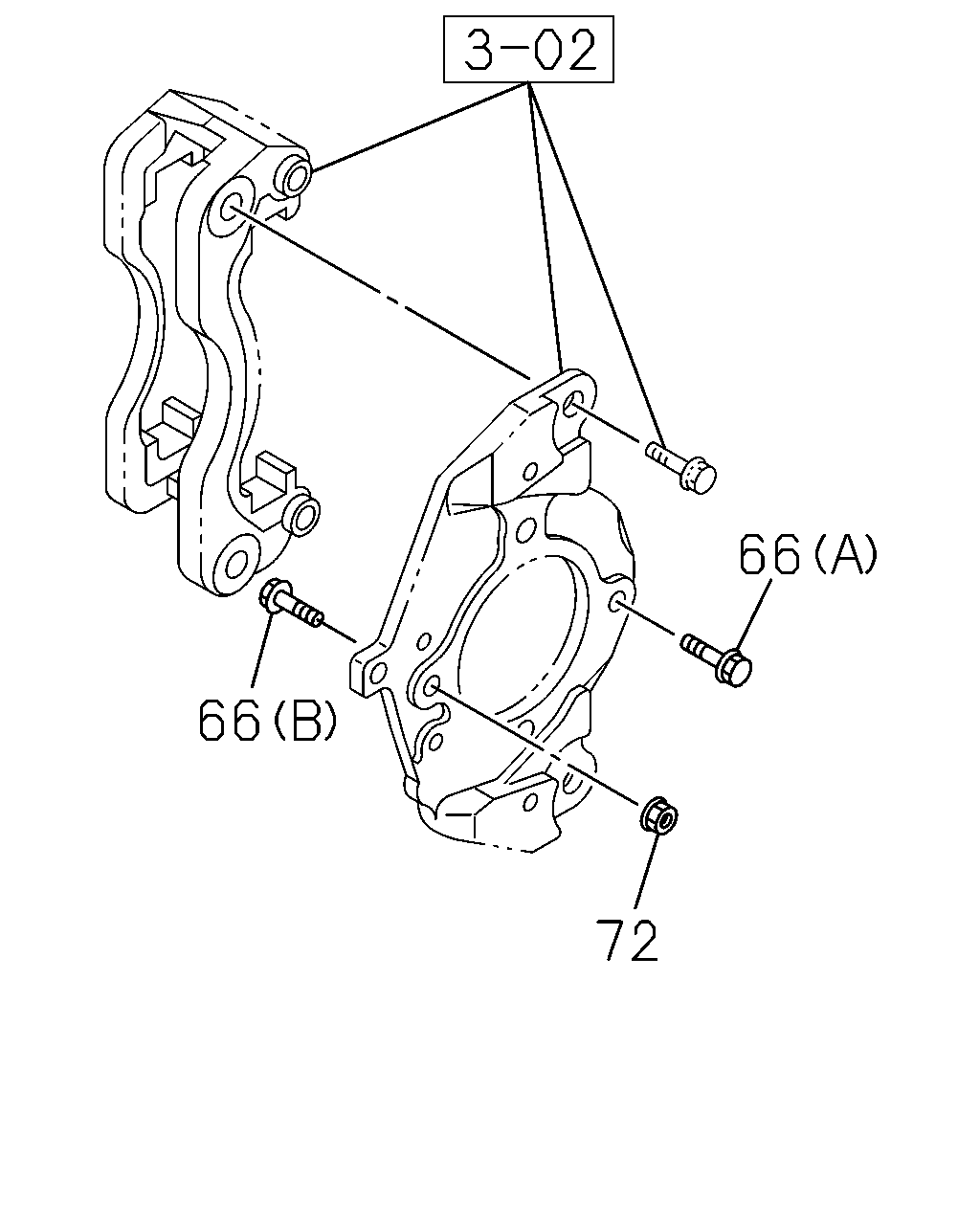

çizim 493288
66 72 66
BalonParca AdiParca NoAdetTipApplied Date A B
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) M12X33 		8-98009-493-2 08 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) M12X33 		8-98009-493-2 08 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 1506-1508 ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M14X43 		8-97168-638-1 06 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 1506-1508 ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M14X23.5 		8-97359-814-0 02 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.002 M12 		0-91110-512-0 08 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.002 M12 		0-91110-512-0 08 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 1506-1508 ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97359-815-0 06 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97359-815-0 06 1 1509- ●
