2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#162193) — 61 parça

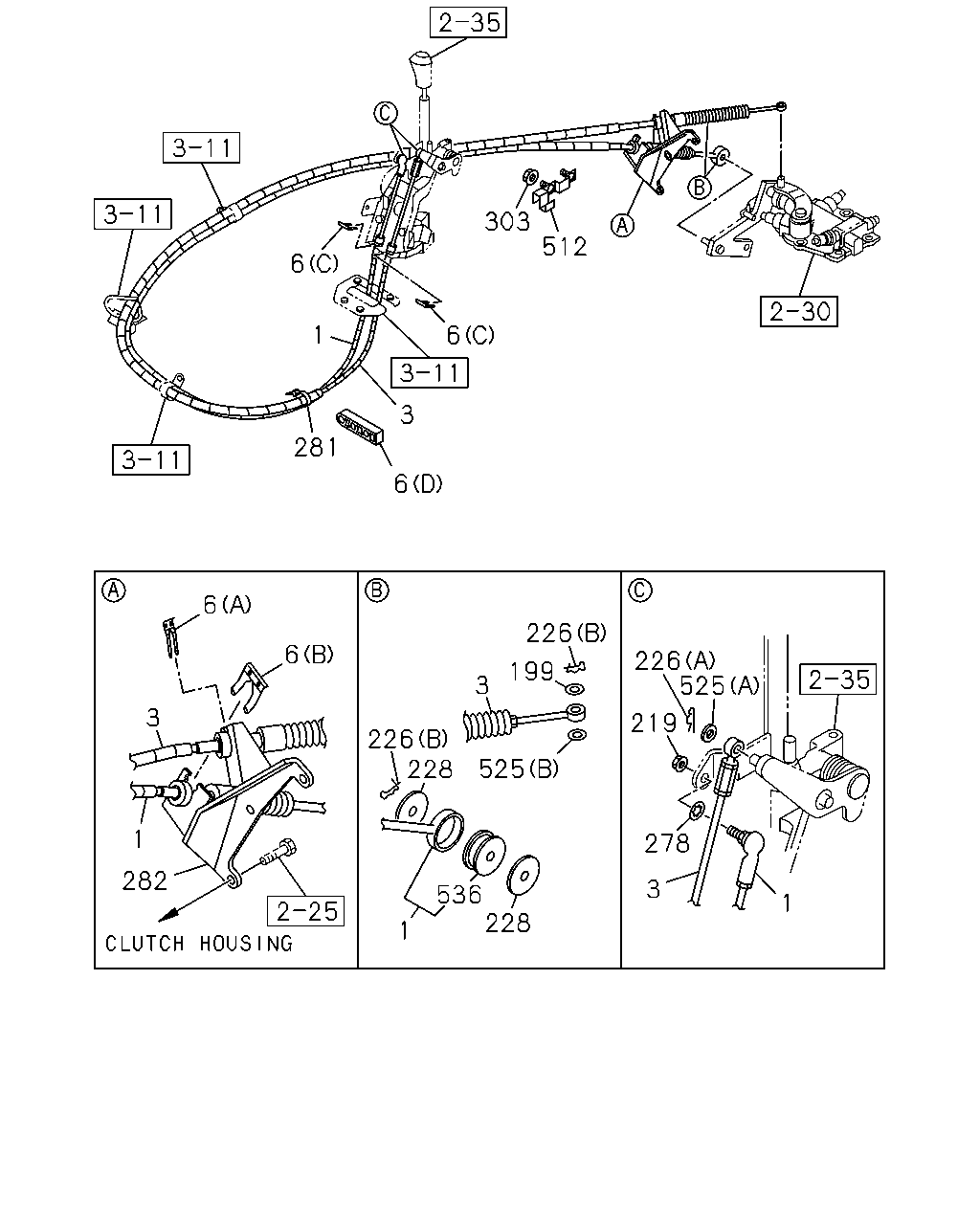

çizim 479410
281 3 6 6 1 303 226 3 226 228 525 536 228 1 282 1 3 6 6 199 226 525 1 3 278 219 512 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.854 CABLE; SHIFT,TRANS CONT
EXC. CATALYSIS CONTROL WITH DPD(8JM) L=3035 		8-98146-825-1 01 1 1509- ● ● ● ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) L=3035 		8-98146-825-1 01 1 1509- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=3045 		8-98207-265-0 01 1 1506-1508 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) L=3045 		8-98207-265-0 01 1 1509- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
EXC. CATALYSIS CONTROL WITH DPD(8JM) L=3120 		8-98021-700-2 01 1 1509- ● ● ● ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) L=3120 		8-98021-700-2 01 1 1509- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3125 		8-98207-272-0 01 1 1506-1508 ●
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) L=3125 		8-98207-272-0 01 1 1509- ● ●
6 04.047 CLIP; CABLE
00.854 (A) ID=22.2 		1-09701-209-1 01 1 1506-1508 ●
6 04.047 CLIP; CABLE
EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 1509- ● ● ● ● ●
6 04.047 CLIP; CABLE
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 1509- ● ● ●
6 04.047 CLIP; CABLE
(C) 		8-97011-448-0 02 1 1506-1508 ●
6 04.047 CLIP; CABLE
EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97011-448-0 02 1 1509- ● ● ● ● ●
6 04.047 CLIP; CABLE
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97011-448-0 02 1 1509- ● ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1506-1508 ●
6 04.047 CLIP; CABLE
EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) ID=19.2 		8-97211-011-0 01 1 1509- ● ● ● ● ●
6 04.047 CLIP; CABLE
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2 		8-97211-011-0 01 1 1509- ● ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D) 		8-97093-491-1 01 1 1506-1508 ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ>,CATALYSIS CONTROL WITH DPD(8JM) 04.008 (D) 		8-97093-491-1 01 1 1509- ● ● ● ● ●
6 04.047 CLIP; CABLE
CATALYSIS CONTROL WITH DPD(8JM) EXC. MANUAL TILT CAB<RWZ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 04.008 (D) 		8-97093-491-1 01 1 1509- ● ● ●
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1506-1508 ●
199 04.012 WASHER; PL,SELECT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1509- ● ● ● ● ●
199 04.012 WASHER; PL,SELECT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1509- ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 1506-1508 ●
219 04.047 NUT; FLANGE,SHAFT CABLE
EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.037 M8 T=8.0 		8-94363-045-0 01 1 1509- ● ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0 		8-94363-045-0 01 1 1509- ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1506-1508 ●
226 04.047 PIN; SHIFT CABLE
EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.833 (A) L=27.7 		8-94111-137-0 01 1 1509- ● ● ● ● ●
226 04.047 PIN; SHIFT CABLE
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7 		8-94111-137-0 01 1 1509- ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1506-1508 ●
226 04.047 PIN; SHIFT CABLE
EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) L=23 		8-94170-378-0 02 1 1509- ● ● ● ● ●
226 04.047 PIN; SHIFT CABLE
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23 		8-94170-378-0 02 1 1509- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 1506-1508 ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. CATALYSIS CONTROL WITH DPD(8JM) ID=8.2 OD=40 		8-97182-975-0 02 1 1509- ● ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.2 OD=40 		8-97182-975-0 02 1 1509- ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1506-1508 ●
278 00.854 WASHER; LK,SHIFT WIRE
EXC. CATALYSIS CONTROL WITH DPD(8JM) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1509- ● ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1509- ● ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 1506-1508 ●
281 04.042 CLIP; BAND
EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 L=140 		5-09707-031-1 01 1 1509- ● ● ● ● ●
281 04.042 CLIP; BAND
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 1509- ● ● ●
282 04.010 BRACKET; TRANS SIDE
EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-97350-449-0 01 1 1509- ● ● ● ● ●
282 04.010 BRACKET; TRANS SIDE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 		8-97350-449-0 01 1 1509- ● ●
282 04.010 BRACKET; TRANS SIDE 8-98200-183-1 01 1 1506-1508 ●
282 04.010 BRACKET; TRANS SIDE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98200-183-1 01 1 1509- ● ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
303 00.855 NUT; CLIP
EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ● ● ●
303 00.855 NUT; CLIP
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ●
512 04.012 GUIDE; CABLE,GEAR CONT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-98111-916-0 01 1 1509- ● ● ● ● ●
512 04.012 GUIDE; CABLE,GEAR CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98111-916-0 01 1 1509- ● ●
512 04.012 GUIDE; CABLE,GEAR CONT 8-98200-182-5 01 1 1506-1508 ●
512 04.012 GUIDE; CABLE,GEAR CONT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98200-182-5 01 1 1509- ● ●
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1506-1508 ●
525 04.047 WASHER; SHIFT CABLE
EXC. CATALYSIS CONTROL WITH DPD(8JM) 06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1509- ● ● ● ● ●
525 04.047 WASHER; SHIFT CABLE
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1509- ● ● ●
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1506-1508 ●
525 04.047 WASHER; SHIFT CABLE
EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1509- ● ● ● ● ●
525 04.047 WASHER; SHIFT CABLE
CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1509- ● ● ●
536 00.854 DAMPER; CABLE 8-98097-681-0 01 1 1506-1508 ●
536 00.854 DAMPER; CABLE
EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-98097-681-0 01 1 1509- ● ● ● ● ●
536 00.854 DAMPER; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98097-681-0 01 1 1509- ● ● ●
