Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#162191) — 341 parça

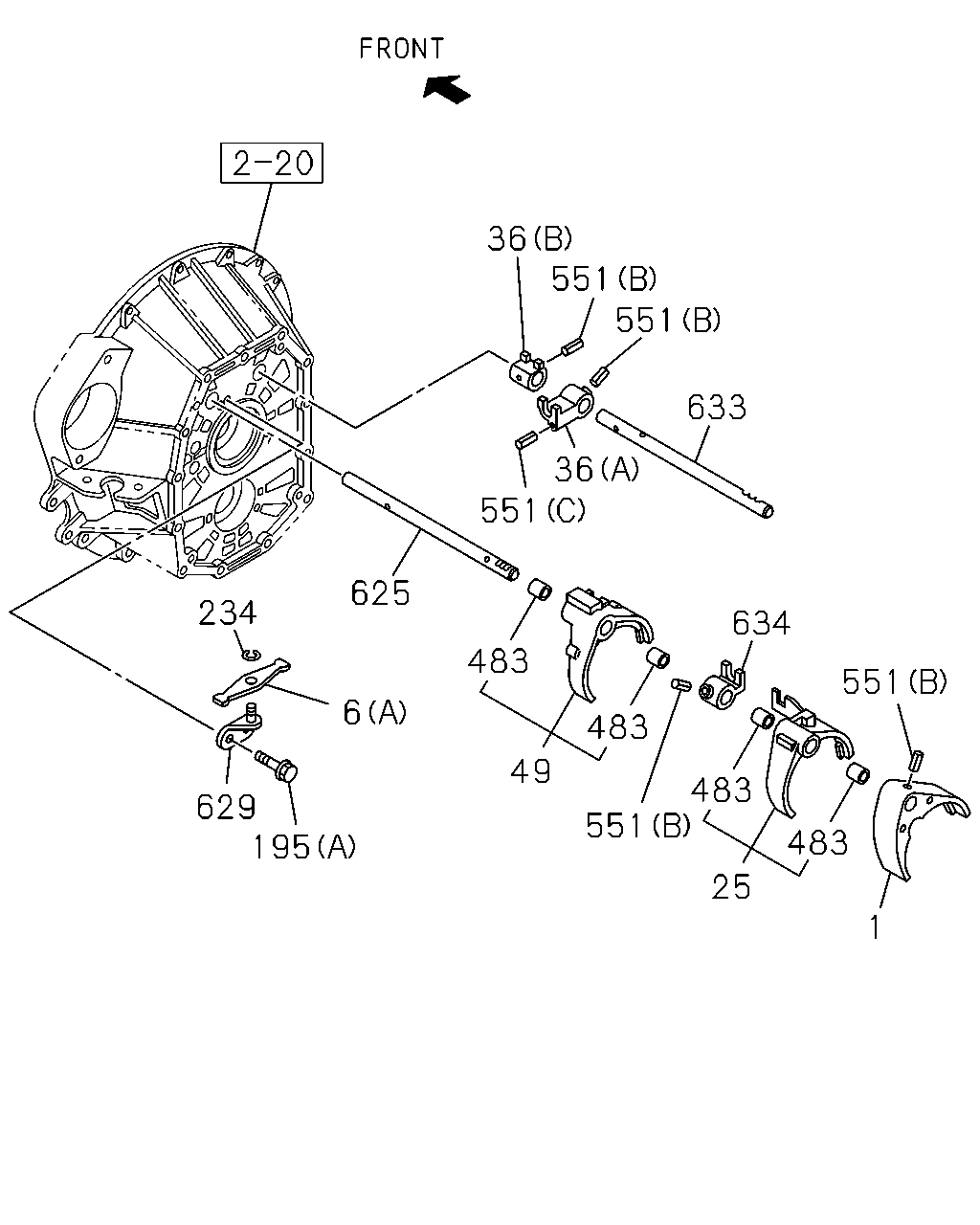

195 629 6 234 625 483 49 483 551 483 25 483 551 634 551 36 633 551 551 36 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	1506-1508	●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	1509-	●	●	●	●	●
6	04.302 LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1509-	●
6	04.302 LEVER; RELAY (B)	8-97379-995-0	01	1	1509-				●	●
6	04.302 LEVER; RELAY (A)	8-97241-344-0	01	1	1506-1508	●
6	04.302 LEVER; RELAY (A)	8-97241-344-0	01	1	1509-	●	●	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-98255-926-1	01	1	1506-1508	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-98255-926-1	01	1	1509-	●	●	●	●	●
36	04.303 BLOCK; SHIFT,4TH & 5TH (A)	8-97241-329-1	01	1	1506-1508	●
36	04.303 BLOCK; SHIFT,4TH & 5TH (A)	8-97241-329-1	01	1	1509-	●	●	●
36	04.303 BLOCK; SHIFT,4TH & 5TH (B)	8-97241-330-0	01	1	1506-1508	●
36	04.303 BLOCK; SHIFT,4TH & 5TH (B)	8-97241-330-0	01	1	1509-	●	●	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97362-732-1	01	1	1509-				●	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	1506-1508	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	1509-	●	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1509-	●
195	04.105 BOLT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1509-				●	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1506-1508	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1509-	●	●	●	●	●
234	04.311 RING; SNAP ID=16.5	0-91800-618-0	01	1	1509-				●	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	1506-1508	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	1509-	●	●	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	1506-1508	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	1509-	●	●	●	●	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	1509-	●
551	04.303 PIN; SPRING 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	1509-				●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	1509-	●
551	04.303 PIN; SPRING 04.302 (F) OD=5	8-97184-905-0	03	1	1509-				●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	1509-	●
551	04.303 PIN; SPRING (E)	8-97379-991-0	01	1	1509-				●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	1509-				●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	1506-1508	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	1506-1508	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	1506-1508	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	1509-	●	●	●	●	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	1506-1508	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	1509-	●	●	●	●	●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	1509-				●	●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	1506-1508	●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	1509-	●	●	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-518-0	01	1	1509-	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH	8-97362-743-0	01	1	1506-1508	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97362-743-0	01	1	1509-	●	●	●
634	04.303 BLOCK; SHIFT,LOW,REV	8-97241-327-1	01	1	1506-1508	●
634	04.303 BLOCK; SHIFT,LOW,REV	8-97241-327-1	01	1	1509-	●	●	●

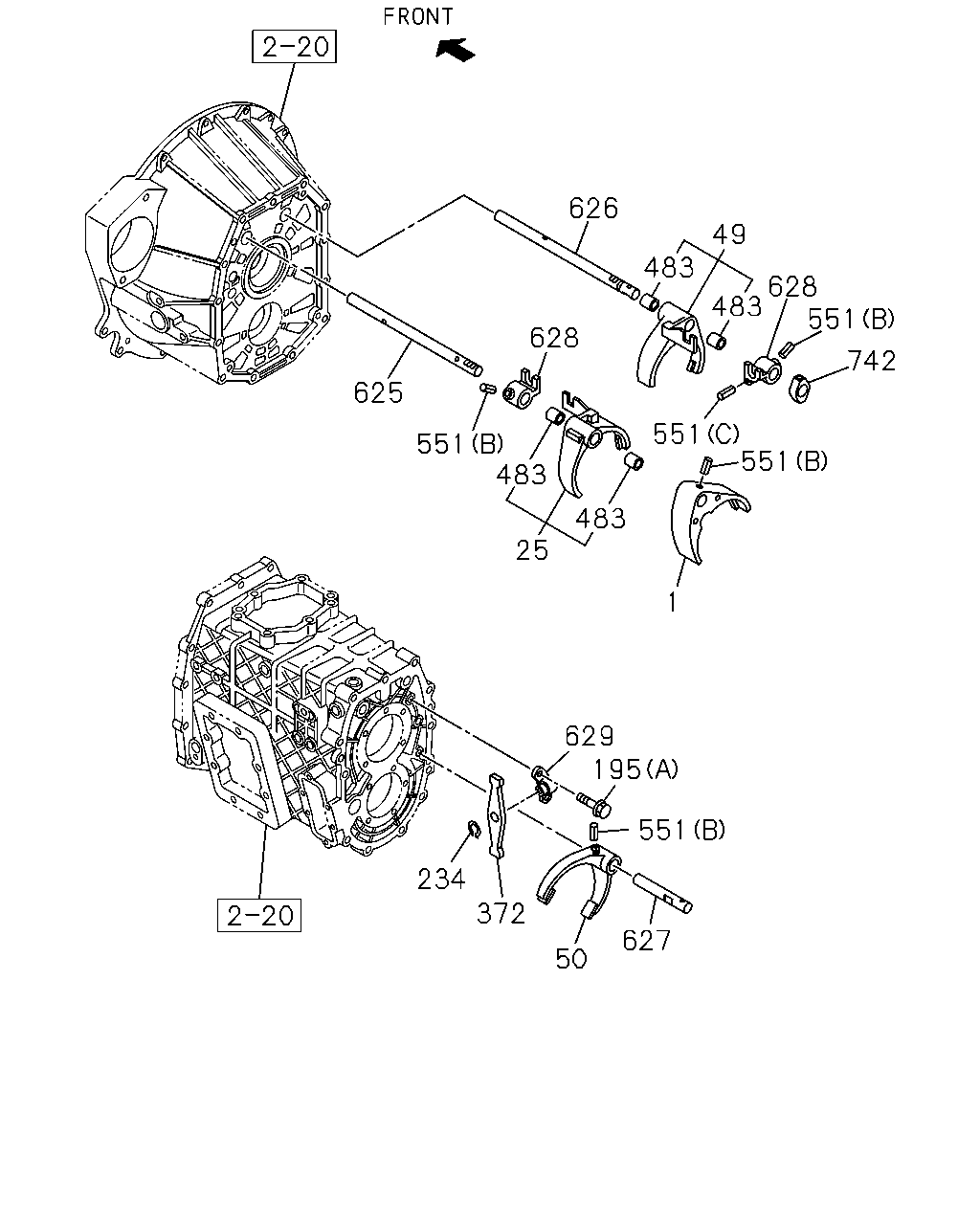

626 49 483 551 628 551 742 551 628 483 483 1 25 483 551 625 551 195 629 234 372 50 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	1506-1508	●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	1509-	●	●	●	●	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-98255-926-1	01	1	1506-1508	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-98255-926-1	01	1	1509-	●	●	●	●	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97362-732-1	01	1	1509-				●	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	1506-1508	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	1509-	●	●	●
50	04.302 ARM; SHIFT,6TH	8-97241-325-1	01	1	1509-				●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1509-	●
195	04.105 BOLT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1509-				●	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1506-1508	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1509-	●	●	●	●	●
234	04.311 RING; SNAP ID=16.5	0-91800-618-0	01	1	1509-				●	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	1506-1508	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	1509-	●	●	●
372	04.302 LEVER; RELAY,6TH	8-97241-343-0	01	1	1509-				●	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	1506-1508	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	1509-	●	●	●	●	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	1509-	●
551	04.303 PIN; SPRING 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	1509-				●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	1509-	●
551	04.303 PIN; SPRING 04.302 (F) OD=5	8-97184-905-0	03	1	1509-				●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	1509-	●
551	04.303 PIN; SPRING (E)	8-97379-991-0	01	1	1509-				●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	1509-				●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	1506-1508	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	1506-1508	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	1506-1508	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	1509-	●	●	●	●	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	1506-1508	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	1509-	●	●	●	●	●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH	8-97366-024-1	01	1	1509-1509				●	●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH	8-98331-689-0	01	1	1510-				●	●
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-98119-293-0	01	1	1509-				●	●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH	8-97241-327-1	02	1	1509-				●	●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	1509-				●	●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	1506-1508	●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	1509-	●	●	●
742	04.162 COLLAR; ROD	8-98331-722-0	01	1	1510-				●	●

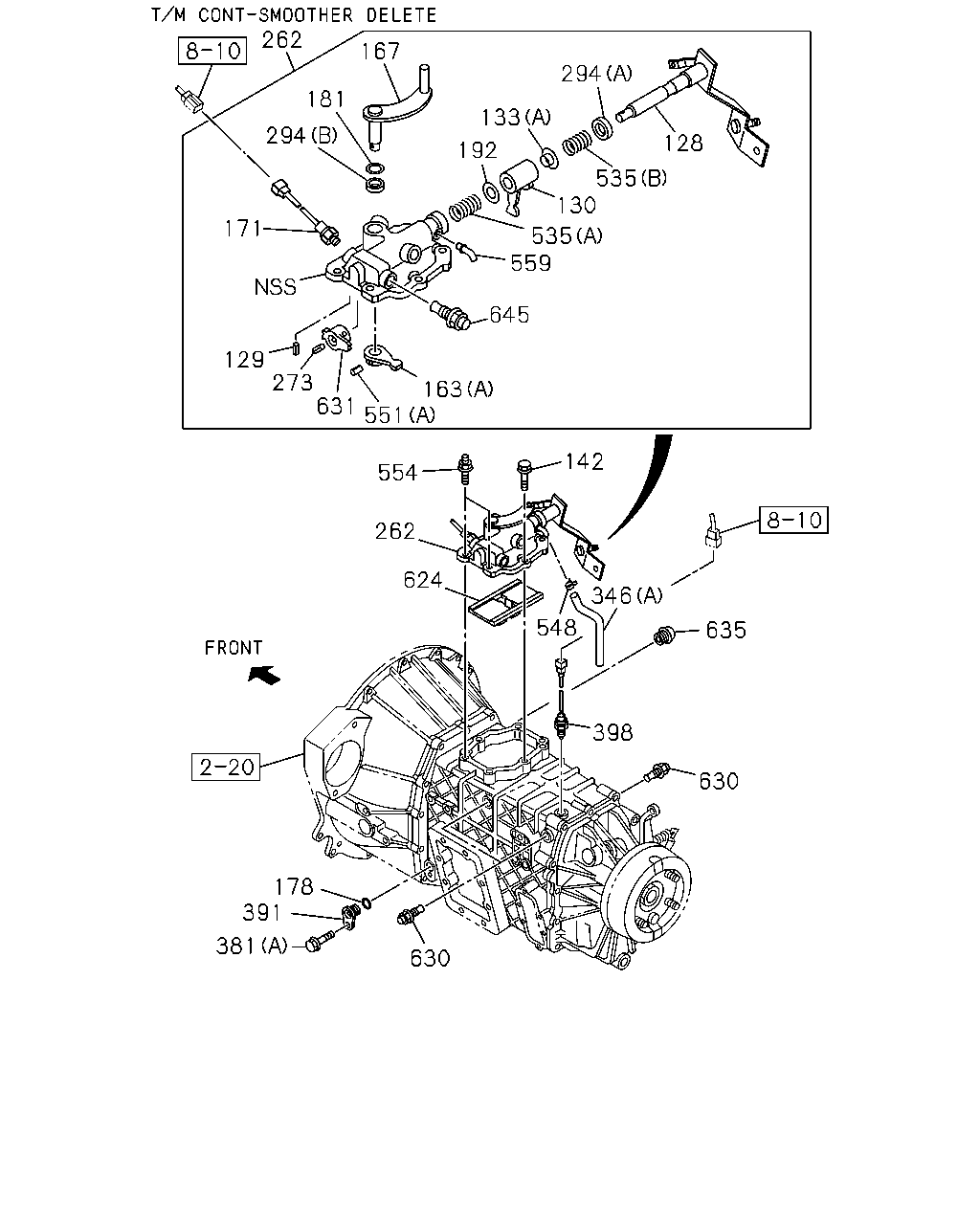

262 167 181 294 171 129 273 631 551 163 645 559 535 130 535 128 294 133 192 142 554 262 624 346 548 635 398 630 630 381 391 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
128	04.030 LEVER; SHIFT,EXTERNAL	8-97305-725-0	01	1	1506-1508	●
128	04.030 LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-725-0	01	1	1509-	●	●	●
129	04.027 PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1506-1508	●
129	04.027 PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	1509-	●	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1506-1508	●
130	04.302 LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	1509-	●	●	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	1509-	●
133	04.027 SEAT; SPR (B)	8-97379-988-0	01	1	1509-				●	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	1509-	●
133	04.027 SEAT; SPR (C)	8-97379-989-0	01	1	1509-				●	●
133	04.027 SEAT; SPR (A)	8-97305-667-0	01	1	1506-1508	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-667-0	01	1	1509-	●	●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-98020-384-0	03	1	1509-	●
142	04.012 BOLT; QUAD BOX M8X35 FLANGE	8-98020-384-0	03	1	1509-				●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-98020-385-0	03	1	1509-	●
142	04.012 BOLT; QUAD BOX M8X75 FLANGE	8-98020-385-0	03	1	1509-				●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1506-1508	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1509-	●	●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	1509-	●
163	04.302 LEVER; SELECT,INTERNAL (B)	8-97379-979-0	01	1	1509-				●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	1509-	●
163	04.302 LEVER; SELECT,INTERNAL (C)	8-97379-990-0	01	1	1509-				●	●
163	04.302 LEVER; SELECT,INTERNAL (A)	8-97305-663-0	01	1	1506-1508	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-663-0	01	1	1509-	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1509-	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97379-994-0	01	1	1509-				●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-98039-436-0	01	1	1506-1508	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98039-436-0	01	1	1509-	●	●	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1506-1508	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1509-1509	●	●	●	●	●
171	04.054 SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●	●	●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1506-1508	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09567-113-0	01	1	1509-	●	●	●
181	04.302 WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1506-1508	●
181	04.302 WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	1509-	●	●	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	1509-	●
192	04.309 WASHER; PL 04.302	1-09503-280-0	01	1	1509-				●	●
192	04.309 WASHER; PL	8-97305-661-0	01	1	1506-1508	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-661-0	01	1	1509-	●	●	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-529-0	01	1	1509-1509	●
262	04.105 BOX ASM; SHIFT CONT	8-98296-529-0	01	1	1509-1509				●	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98331-685-0	01	1	1510-	●
262	04.105 BOX ASM; SHIFT CONT	8-98331-685-0	01	1	1510-				●	●
262	04.105 BOX ASM; SHIFT CONT	8-98241-002-1	01	1	1506-1508	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98241-002-2	01	1	1509-	●	●	●
273	04.309 PIN; SPR,STOPPER 04.307 D=4.2 L=25	8-97103-142-0	01	1	1506-1508	●
273	04.309 PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 D=4.2 L=25	8-97103-142-0	01	1	1509-	●	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF). (C)	1-09625-600-0	01	1	1509-	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (C)	1-09625-600-0	01	1	1509-				●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	1506-1508	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-662-0	01	1	1509-	●	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97363-225-0	01	1	1506-1508	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97363-225-0	01	1	1509-	●	●	●
346	04.545 HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1509-	●
346	04.545 HOSE; AIR (B)	8-97373-381-0	01	1	1509-				●	●
346	04.545 HOSE; AIR (A)	8-97309-855-0	01	1	1506-1508	●
346	04.545 HOSE; AIR (A)	8-97309-855-0	01	1	1509-	●	●	●	●	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE	1-33739-842-0	04	1	1509-	●
381	04.105 BOLT 04.010 (B) M6X12 FLANGE	1-33739-842-0	04	1	1509-				●	●
381	04.105 BOLT 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1509-				●	●
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1506-1508	●
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1509-	●	●	●
391	04.104 PLUG; SW HOLE	8-97300-273-1	01	1	1506-1508	●
391	04.104 PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97300-273-1	01	1	1509-	●	●	●
398	02.698 SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-173-1	01	1	1509-	●
398	02.698 SWITCH; REV LAMP	8-98242-173-1	01	1	1509-				●	●
398	02.698 SWITCH; REV LAMP	8-98256-418-0	01	1	1506-1508	●
398	02.698 SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98256-418-0	01	1	1509-	●	●	●
535	04.302 SPRING; LEVER (A)	8-97323-771-0	01	1	1506-1508	●
535	04.302 SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97323-771-0	01	1	1509-	●	●	●
535	04.302 SPRING; LEVER (B)	8-97323-772-0	01	1	1506-1508	●
535	04.302 SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97323-772-0	01	1	1509-	●	●	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	1506-1508	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	1509-	●
551	04.303 PIN; SPRING 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	1509-				●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	1509-	●
551	04.303 PIN; SPRING 04.302 (F) OD=5	8-97184-905-0	03	1	1509-				●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	1509-	●
551	04.303 PIN; SPRING (E)	8-97379-991-0	01	1	1509-				●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	1509-				●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	1506-1508	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	1506-1508	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	1506-1508	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	1509-	●	●	●	●	●
554	04.302 STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1506-1508	●
554	04.302 STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1509-	●	●	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1509-	●
559	04.302 PIPE; BREATHER	8-98020-710-0	01	1	1509-				●	●
559	04.302 PIPE; BREATHER 04.510	8-97358-318-0	01	1	1506-1508	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510	8-97358-318-0	01	1	1509-	●	●	●
624	04.105 PLATE; INTER LOCK	8-97241-317-3	01	1	1506-1508	●
624	04.105 PLATE; INTER LOCK	8-97241-317-3	01	1	1509-	●	●	●	●	●
630	04.307 DETENT ASM	8-98019-536-0	04	1	1509-				●	●
630	04.307 DETENT ASM	8-98019-536-0	03	1	1506-1508	●
630	04.307 DETENT ASM	8-98019-536-0	03	1	1509-	●	●	●
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1509-	●
631	04.105 STOPPER; SPRING	8-97379-984-0	01	1	1509-				●	●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	1506-1508	●
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1509-	●	●	●
635	04.309 PLUG; DETENT 00.206	8-97380-892-0	01	1	1506-1508	●
635	04.309 PLUG; DETENT 00.206	8-97380-892-0	01	1	1509-	●	●	●
645	04.311 DETENT ASM 04.307	8-98019-536-0	01	1	1506-1508	●
645	04.311 DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307	8-98019-536-0	01	1	1509-	●	●	●

262 652 374 551 551 163 655 381 551 631 265 171 654 294 192 167 653 243 274 530 317 6 317 374 655 163 315 551 381 651 374 654 551 656 559 133 656 133 551 298 265 656 657 652 381 551 654 374 651 142 262 624 548 346 237 637 632 687 644 381 630 346 195 552 630 398 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	04.302 LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1509-	●
6	04.302 LEVER; RELAY (B)	8-97379-995-0	01	1	1509-				●	●
6	04.302 LEVER; RELAY (A)	8-97241-344-0	01	1	1506-1508	●
6	04.302 LEVER; RELAY (A)	8-97241-344-0	01	1	1509-	●	●	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	1509-	●
133	04.027 SEAT; SPR (B)	8-97379-988-0	01	1	1509-				●	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	1509-	●
133	04.027 SEAT; SPR (C)	8-97379-989-0	01	1	1509-				●	●
133	04.027 SEAT; SPR (A)	8-97305-667-0	01	1	1506-1508	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-667-0	01	1	1509-	●	●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-98020-384-0	03	1	1509-	●
142	04.012 BOLT; QUAD BOX M8X35 FLANGE	8-98020-384-0	03	1	1509-				●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-98020-385-0	03	1	1509-	●
142	04.012 BOLT; QUAD BOX M8X75 FLANGE	8-98020-385-0	03	1	1509-				●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1506-1508	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1509-	●	●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	1509-	●
163	04.302 LEVER; SELECT,INTERNAL (B)	8-97379-979-0	01	1	1509-				●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	1509-	●
163	04.302 LEVER; SELECT,INTERNAL (C)	8-97379-990-0	01	1	1509-				●	●
163	04.302 LEVER; SELECT,INTERNAL (A)	8-97305-663-0	01	1	1506-1508	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-663-0	01	1	1509-	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1509-	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97379-994-0	01	1	1509-				●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-98039-436-0	01	1	1506-1508	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98039-436-0	01	1	1509-	●	●	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1506-1508	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1509-1509	●	●	●	●	●
171	04.054 SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●	●	●	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	1509-	●
192	04.309 WASHER; PL 04.302	1-09503-280-0	01	1	1509-				●	●
192	04.309 WASHER; PL	8-97305-661-0	01	1	1506-1508	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-661-0	01	1	1509-	●	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1509-	●
195	04.105 BOLT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1509-				●	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1506-1508	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1509-	●	●	●	●	●
237	04.057 BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-905-1	01	1	1509-	●
237	04.057 BRACKET; CABLE,TRANS	8-98018-905-1	01	1	1509-				●	●
243	04.105 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 M6X12 FLANGE	1-33739-842-0	11	1	1509-	●
243	04.105 BOLT; COVER 04.010 M6X12 FLANGE	1-33739-842-0	11	1	1509-				●	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-529-0	01	1	1509-1509	●
262	04.105 BOX ASM; SHIFT CONT	8-98296-529-0	01	1	1509-1509				●	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98331-685-0	01	1	1510-	●
262	04.105 BOX ASM; SHIFT CONT	8-98331-685-0	01	1	1510-				●	●
262	04.105 BOX ASM; SHIFT CONT	8-98241-002-1	01	1	1506-1508	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98241-002-2	01	1	1509-	●	●	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF). (A)	8-97363-225-0	01	1	1509-	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97363-225-0	01	1	1509-				●	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF). (B)	8-97379-981-0	01	1	1509-	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97379-981-0	01	1	1509-				●	●
274	04.105 COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	1509-	●
274	04.105 COVER; SHAFT,QUAD BOX	8-98020-711-0	01	1	1509-				●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF). (C)	1-09625-600-0	01	1	1509-	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (C)	1-09625-600-0	01	1	1509-				●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	1506-1508	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-662-0	01	1	1509-	●	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97363-225-0	01	1	1506-1508	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97363-225-0	01	1	1509-	●	●	●
298	04.309 SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1509-	●
298	04.309 SHAFT; SHIFT LEVER	8-97379-978-0	01	1	1509-				●	●
315	04.302 LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1509-	●
315	04.302 LEVER; SELECT	8-98296-526-0	01	1	1509-				●	●
317	04.302 BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1509-	●
317	04.302 BUSHING; LEVER	8-97379-997-0	02	1	1509-				●	●
346	04.545 HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1509-	●
346	04.545 HOSE; AIR (B)	8-97373-381-0	01	1	1509-				●	●
346	04.545 HOSE; AIR (A)	8-97309-855-0	01	1	1506-1508	●
346	04.545 HOSE; AIR (A)	8-97309-855-0	01	1	1509-	●	●	●	●	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF). (A)	8-97349-571-0	03	1	1509-	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97349-571-0	03	1	1509-				●	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF). (B)	8-97349-573-0	01	1	1509-	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97349-573-0	01	1	1509-				●	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE	1-33739-842-0	04	1	1509-	●
381	04.105 BOLT 04.010 (B) M6X12 FLANGE	1-33739-842-0	04	1	1509-				●	●
381	04.105 BOLT 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1509-				●	●
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1506-1508	●
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1509-	●	●	●
398	02.698 SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-173-1	01	1	1509-	●
398	02.698 SWITCH; REV LAMP	8-98242-173-1	01	1	1509-				●	●
398	02.698 SWITCH; REV LAMP	8-98256-418-0	01	1	1506-1508	●
398	02.698 SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98256-418-0	01	1	1509-	●	●	●
530	04.302 SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	1509-	●
530	04.302 SHAFT; SELECT	8-97379-996-0	01	1	1509-				●	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	1506-1508	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	1509-	●
551	04.303 PIN; SPRING 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	1509-				●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	1509-	●
551	04.303 PIN; SPRING 04.302 (F) OD=5	8-97184-905-0	03	1	1509-				●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	1509-	●
551	04.303 PIN; SPRING (E)	8-97379-991-0	01	1	1509-				●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	1509-				●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	1506-1508	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	1506-1508	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	1509-	●	●	●	●	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	1506-1508	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	1509-	●	●	●	●	●
552	04.105 BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-914-1	01	1	1509-	●
552	04.105 BRACKET	8-97349-914-1	01	1	1509-				●	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1509-	●
559	04.302 PIPE; BREATHER	8-98020-710-0	01	1	1509-				●	●
559	04.302 PIPE; BREATHER 04.510	8-97358-318-0	01	1	1506-1508	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510	8-97358-318-0	01	1	1509-	●	●	●
624	04.105 PLATE; INTER LOCK	8-97241-317-3	01	1	1506-1508	●
624	04.105 PLATE; INTER LOCK	8-97241-317-3	01	1	1509-	●	●	●	●	●
630	04.307 DETENT ASM	8-98019-536-0	04	1	1509-				●	●
630	04.307 DETENT ASM	8-98019-536-0	03	1	1506-1508	●
630	04.307 DETENT ASM	8-98019-536-0	03	1	1509-	●	●	●
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1509-	●
631	04.105 STOPPER; SPRING	8-97379-984-0	01	1	1509-				●	●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	1506-1508	●
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1509-	●	●	●
632	04.054 SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	1509-	●
632	04.054 SENSOR; TRANS,REV	8-97315-604-1	01	1	1509-				●	●
637	04.105 BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1509-	●
637	04.105 BOLT; BRACKET 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1509-				●	●
644	04.302 SPACER; SENSOR	8-97255-489-1	01	1	1509-				●	●
651	04.309 SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98002-759-0	01	1	1509-	●
651	04.309 SOLENOID ASM; SHIFT (A)	8-98002-759-0	01	1	1509-				●	●
651	04.309 SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98002-760-0	01	1	1509-	●
651	04.309 SOLENOID ASM; SHIFT (B)	8-98002-760-0	01	1	1509-				●	●
652	04.309 BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X25 FLANGE	0-28151-025-0	06	1	1509-	●
652	04.309 BOLT; SORENOID 02.042 M10X25 FLANGE	0-28151-025-0	06	1	1509-				●	●
653	04.309 SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	1509-	●
653	04.309 SOLENOID ASM; SELECT	8-98002-761-0	01	1	1509-				●	●
654	04.309 JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	1509-	●
654	04.309 JOINT; SOLENOID,CASE (A)	8-97349-473-0	02	1	1509-				●	●
654	04.309 JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	1509-	●
654	04.309 JOINT; SOLENOID,CASE (B)	8-97380-419-0	01	1	1509-				●	●
655	04.309 SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-823-0	01	1	1509-	●
655	04.309 SENSOR; STROKE (A)	8-98107-823-0	01	1	1509-				●	●
655	04.309 SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98107-824-0	01	1	1509-	●
655	04.309 SENSOR; STROKE (B)	8-98107-824-0	01	1	1509-				●	●
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	1509-	●
656	04.307 SPRING; SHAFT (A)	8-97379-985-0	01	1	1509-				●	●
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	1509-	●
656	04.307 SPRING; SHAFT (B)	8-97379-986-0	01	1	1509-				●	●
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	1509-	●
656	04.307 SPRING; SHAFT (C)	8-97379-987-0	01	1	1509-				●	●
657	04.105 PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	1509-	●
657	04.105 PLATE; SIDE	8-98020-712-0	01	1	1509-				●	●
687	04.075 GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	9-09567-113-0	01	1	1509-	●
687	04.075 GASKET; SENSOR 04.307	9-09567-113-0	01	1	1509-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
