◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#162189) — 56 parça

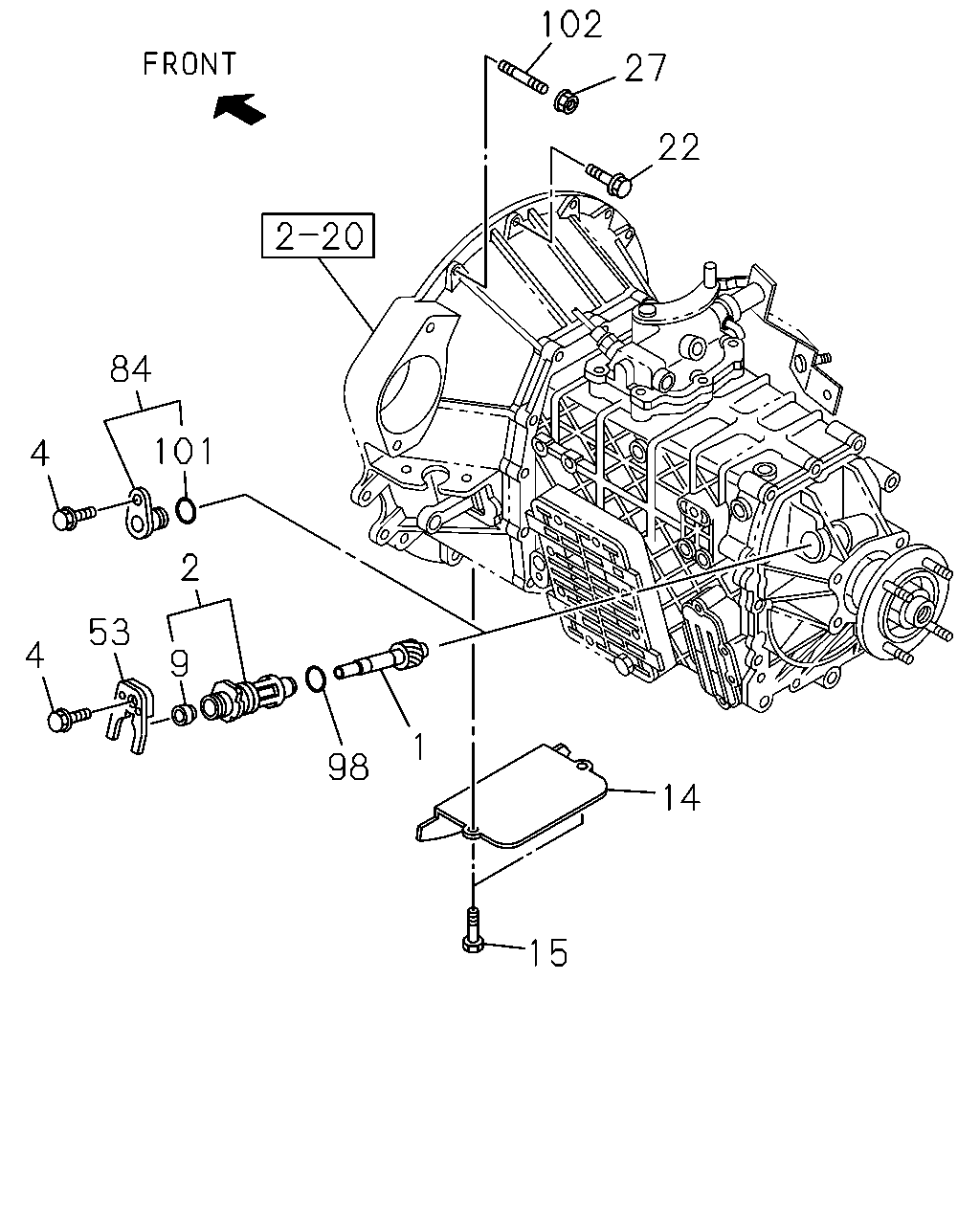

çizim 479631
14 15 1 98 9 53 4 4 84 101 2 102 22 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> Z=12 		8-97253-563-1 01 1 1509- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> Z=12 		8-97253-563-1 01 1 1509- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) FRT&RR 7R-16-10 16X5.5F-115(07H) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> Z=12 		8-97253-563-1 01 1 1509- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT& RR 7R-15-10 5.5FX15-115(58H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> Z=14 		8-97253-561-1 01 1 1509- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> Z=13 		8-97253-562-1 01 1 1509- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SI LVER(CYS) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> Z=13 		8-97253-562-1 01 1 1509- ●
1 04.337 GEAR; DRIVEN,SPD
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> Z=11 		8-97253-559-1 01 1 1506-1508 ●
1 04.337 GEAR; DRIVEN,SPD
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> Z=11 		8-97253-559-1 01 1 1509- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> Z=11 		8-97253-559-1 01 1 1509- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> MARK "12,13,14,15" 		8-97253-125-0 01 1 1509- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> MARK "12,13,14,15" 		8-97253-125-0 01 1 1509- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> MARK "12,13,14,15" 		8-97253-125-0 01 1 1509- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> MARK "10,11,16,17" 		8-97253-124-0 01 1 1506-1508 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> MARK "10,11,16,17" 		8-97253-124-0 01 1 1509- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> MARK "10,11,16,17" 		8-97253-124-0 01 1 1509- ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1506-1508 ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> NOK 		8-97131-328-1 01 1 1506-1508 ●
9 04.338 SEAL; OIL,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> NOK 		8-97131-328-1 01 1 1509- ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> NOK 		8-97131-328-1 01 1 1509- ● ●
14 00.679 COVER; UNDER,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97308-233-0 01 1 1509- ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE 		0-28151-050-0 04 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) 00.683 M10X150 FLANGE 		0-28156-015-0 01 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) 00.683 M10X55 FLANGE 		8-97365-449-0 01 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE 		0-28151-050-0 05 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66) 00.683 M10X140 FLANGE 		0-28156-014-0 02 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 1506-1508 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE 		0-28151-035-0 04 1 1506-1508 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.670 M10X35 FLANGE 		0-28151-035-0 04 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) 00.683 M10X130 FLANGE 		0-28156-013-0 01 1 1506-1508 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 M10X130 FLANGE 		0-28156-013-0 01 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1506-1508 ●
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1506-1508 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1506-1508 ●
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1506-1508 ●
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1509- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1506-1508 ●
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1509- ● ●
27 00.685 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 02 1 1509- ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98046-217-0 01 1 1506-1508 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98046-217-0 01 1 1509- ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98046-217-0 01 1 1509- ● ●
84 04.104 CAP; BUSH,SPEEDOMETER GEAR
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98035-151-1 01 1 1506-1508 ●
84 04.104 CAP; BUSH,SPEEDOMETER GEAR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98035-151-1 01 1 1509- ● ●
98 04.338 SEAL; OIL,BUSH
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 04.439 		9-09561-324-0 01 1 1506-1508 ●
98 04.338 SEAL; OIL,BUSH
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 04.439 		9-09561-324-0 01 1 1509- ● ●
98 04.338 SEAL; OIL,BUSH
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 04.439 		9-09561-324-0 01 1 1509- ● ●
101 04.338 GASKET; CAP
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 04.439 		9-09561-324-0 01 1 1506-1508 ●
101 04.338 GASKET; CAP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 04.439 		9-09561-324-0 01 1 1509- ● ●
102 00.683 STUD; TRANS
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99 		0-49241-050-0 02 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
