Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#162188) — 179 parça

1 1

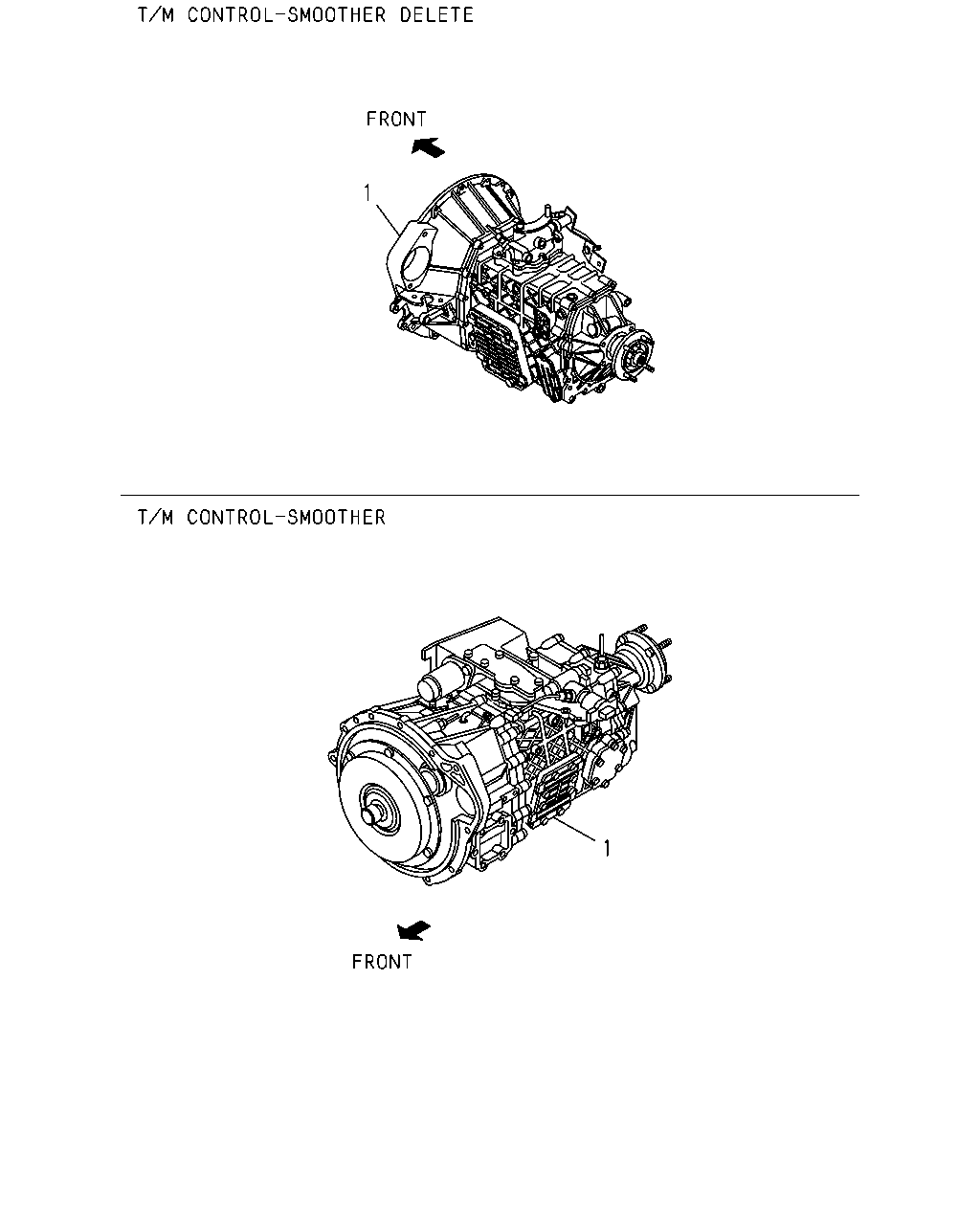

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98223-634-0	01	1	1509-	●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98223-634-0	01	1	1509-	●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	1509-		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) PTO TRANSMISSION SIDE(V66) EXC. KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	1509-		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) KD PREPARATORY PACK<6HF> EXC. PTO TRANSMISSION SIDE(V66)	8-98113-072-0	01	1	1509-		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	1509-		●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF>	8-98067-660-0	01	1	1509-			●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) EXC. KD PREPARATORY PACK<6HF>	8-98067-660-0	01	1	1509-			●
1	04.003 TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> EXC. PTO TRANSMISSION SIDE(V66)	8-98067-660-0	01	1	1509-			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98067-660-0	01	1	1509-			●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98288-593-0	01	1	1509-				●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98288-593-0	01	1	1509-				●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98174-961-0	01	1	1509-					●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98174-961-0	01	1	1509-					●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1506-1508		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1509-		●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1506-1508		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1509-		●

593 1 597 261 595 628 629 629 630 591 255 254 595 594 592 594 596 561 598 599 604 605 607 601 603 600 602 283 647 406 649 11 282 606

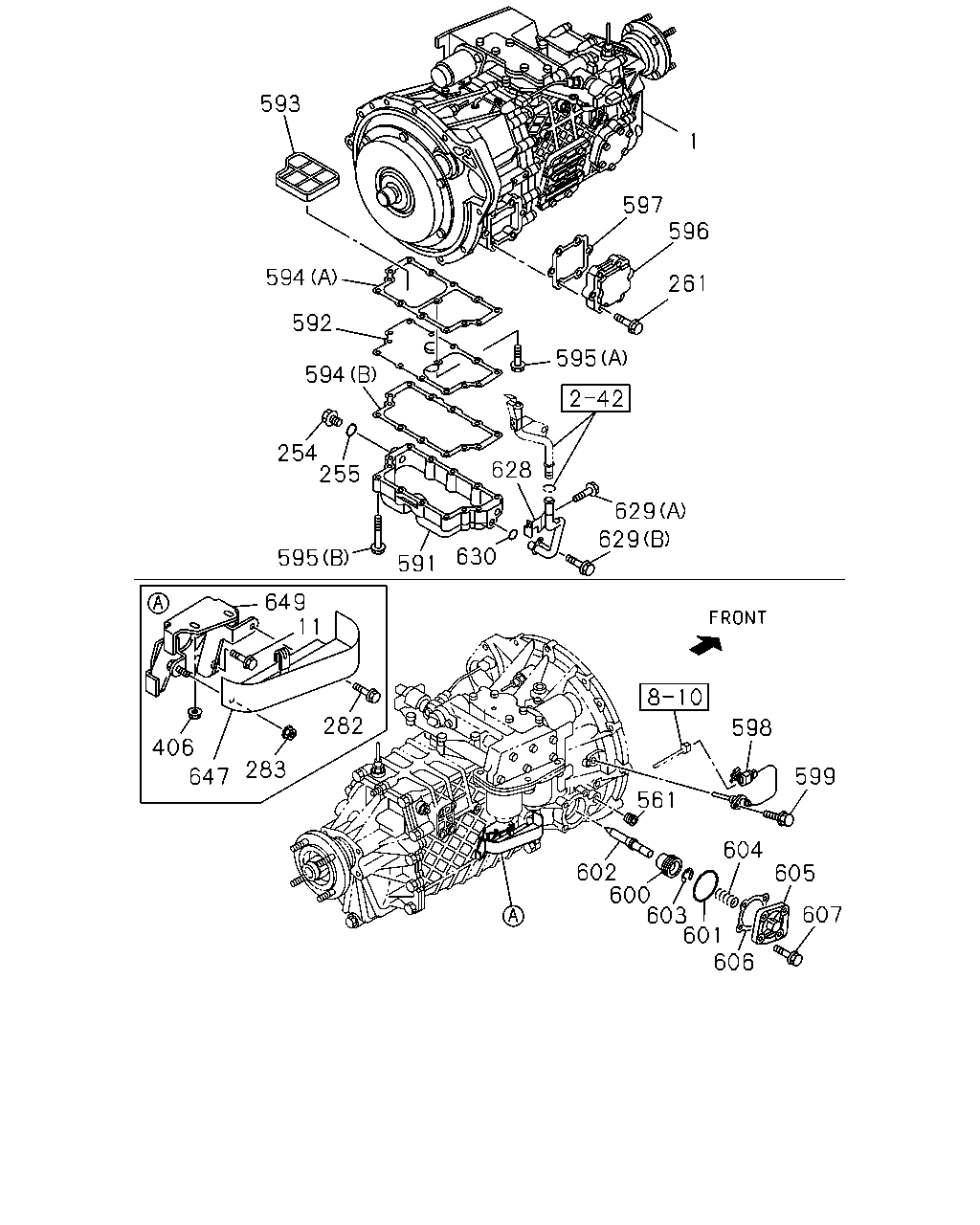

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98223-634-0	01	1	1509-	●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98223-634-0	01	1	1509-	●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	1509-		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) PTO TRANSMISSION SIDE(V66) EXC. KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	1509-		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) KD PREPARATORY PACK<6HF> EXC. PTO TRANSMISSION SIDE(V66)	8-98113-072-0	01	1	1509-		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	1509-		●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF>	8-98067-660-0	01	1	1509-			●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) EXC. KD PREPARATORY PACK<6HF>	8-98067-660-0	01	1	1509-			●
1	04.003 TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> EXC. PTO TRANSMISSION SIDE(V66)	8-98067-660-0	01	1	1509-			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98067-660-0	01	1	1509-			●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98288-593-0	01	1	1509-				●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98288-593-0	01	1	1509-				●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98174-961-0	01	1	1509-					●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98174-961-0	01	1	1509-					●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1506-1508		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1509-		●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1506-1508		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1509-		●
11	04.085 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	1509-		●
11	04.085 BOLT; BRKT M10X20 FLANGE	0-28761-020-0	02	1	1509-			●	●
254	04.104 PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.105	8-97365-374-0	01	1	1509-		●
254	04.104 PLUG; DRAIN,OIL 04.105	8-97365-374-0	01	1	1509-			●	●
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF). ID=17	8-97115-712-0	01	1	1509-		●
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1509-			●	●
261	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X35 FLANGE	0-28650-635-0	06	1	1509-		●
261	04.109 BOLT; COVER 03.162 M6X35 FLANGE	0-28650-635-0	06	1	1509-			●	●
282	00.785 BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1509-		●
282	00.785 BOLT; PROTECTOR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1509-			●	●
283	04.083 NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
283	04.083 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-			●	●
406	04.510 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	1509-		●
406	04.510 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	1509-			●	●
561	04.104 PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	1509-		●
561	04.104 PLUG	8-97320-204-0	01	1	1509-			●	●
591	04.195 PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	1509-		●
591	04.195 PAN; OIL	8-97256-429-2	01	1	1509-			●	●
592	04.338 COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF).	8-97289-771-1	01	1	1509-		●
592	04.338 COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T).	8-97289-771-1	01	1	1509-			●	●
593	04.338 FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	1509-		●
593	04.338 FILTER; STRAINER	8-97256-438-1	01	1	1509-			●	●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF). (A)	8-97256-430-1	01	1	1509-		●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97256-430-1	01	1	1509-			●	●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF). (B)	8-97289-772-0	01	1	1509-		●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97289-772-0	01	1	1509-			●	●
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1509-		●
595	04.510 BOLT; OIL PAN 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1509-			●	●
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	1509-		●
595	04.510 BOLT; OIL PAN 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	1509-			●	●
596	04.317 COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	1509-		●
596	04.317 COVER; OIL PAN	8-97289-773-0	01	1	1509-			●	●
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF).	8-97289-774-0	01	1	1509-		●
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97289-774-0	01	1	1509-			●	●
598	04.329 SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	1509-		●
598	04.329 SENSOR; TURBINE	8-97316-495-1	01	1	1509-			●	●
599	04.329 BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1509-		●
599	04.329 BOLT; SENSOR 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1509-			●	●
600	04.105 PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	1509-		●
600	04.105 PISTON; BRAKE	8-97254-652-1	01	1	1509-			●	●
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF).	8-97254-755-0	01	1	1509-		●
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T).	8-97254-755-0	01	1	1509-			●	●
602	04.166 PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-653-0	01	1	1509-		●
602	04.166 PLUNGER; BRAKE	8-97254-653-0	01	1	1509-			●	●
603	04.317 RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) 03.838 ID=8	9-09185-008-0	01	1	1509-		●
603	04.317 RING; SNAP 03.838 ID=8	9-09185-008-0	01	1	1509-			●	●
604	04.384 SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-752-0	01	1	1509-		●
604	04.384 SPRING; PISTON	8-97254-752-0	01	1	1509-			●	●
605	04.356 COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	1509-		●
605	04.356 COVER; CYLINDER	8-97254-756-0	01	1	1509-			●	●
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF).	8-97254-757-0	01	1	1509-		●
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97254-757-0	01	1	1509-			●	●
607	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE	0-28650-830-0	04	1	1509-		●
607	04.109 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	04	1	1509-			●	●
628	04.439 TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98017-101-1	01	1	1509-		●
628	04.439 TUBE; OIL FILLER	8-98017-101-1	01	1	1509-			●	●
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	1509-		●
629	04.317 BOLT; OIL FILLER 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	1509-			●	●
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1509-		●
629	04.317 BOLT; OIL FILLER 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1509-			●	●
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF). ID=15.8	8-97305-656-0	01	1	1509-		●
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). ID=15.8	8-97305-656-0	01	1	1509-			●	●
647	00.782 PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	1509-		●
647	00.782 PROTECTOR; HEAT	8-97329-465-0	01	1	1509-			●	●
649	04.105 BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-237-0	01	1	1509-		●
649	04.105 BRACKET; SOLENOID	8-97387-237-0	01	1	1509-			●	●

86 50 586 90 324 86 50 90 430 421 317 610 256 119 121 117 72 265 609 257 71 429 429 417 435 45 316 256 86 33 324 33 256 388 587 434 388 434 13 24 316 256 256 421 611 256 319 33 430 86

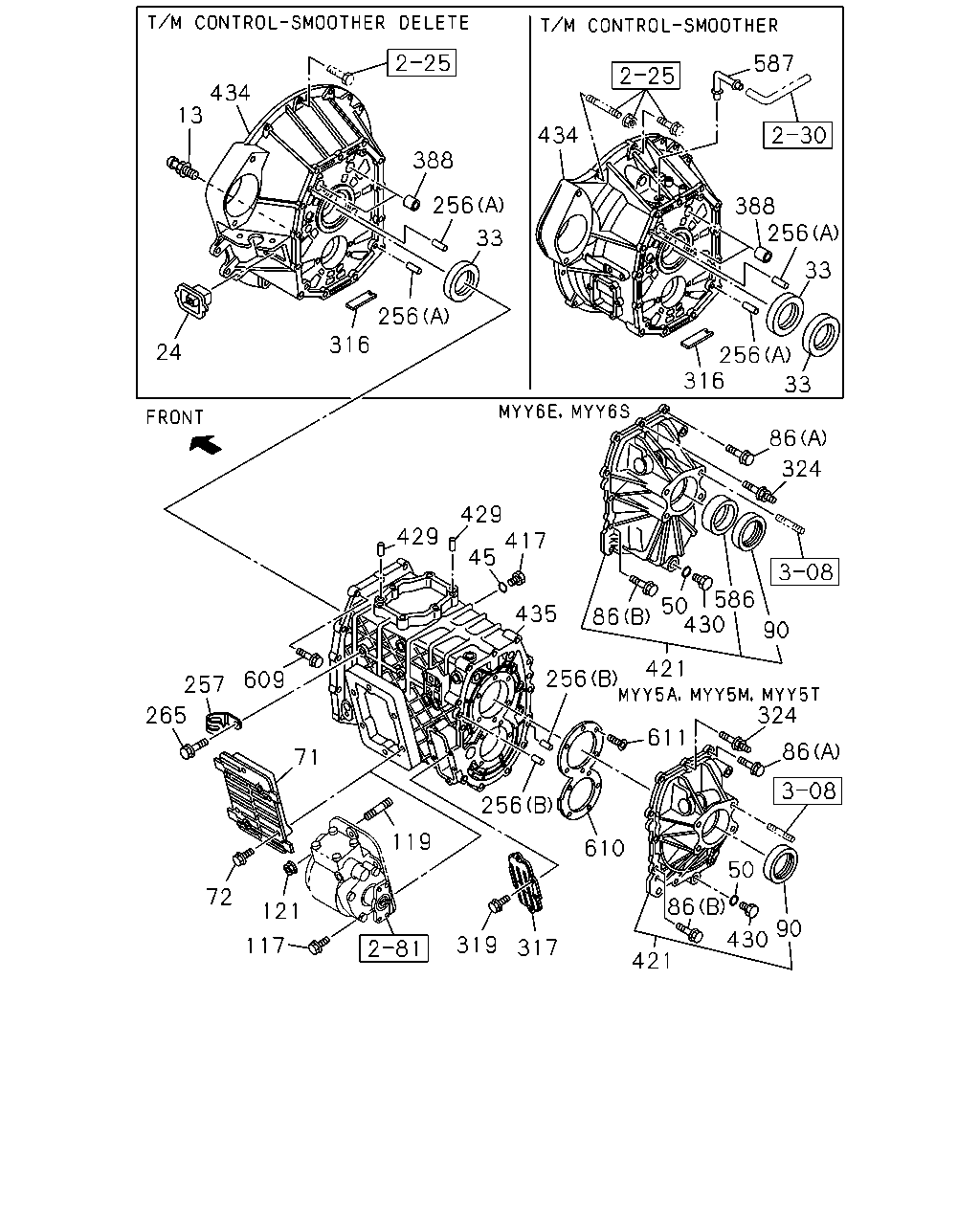

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	1506-1508		●
13	04.302 SUPPORT; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-384-1	01	1	1509-	●	●			●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1506-1508		●
24	00.797 COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-201-0	01	1	1509-	●	●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF).	8-97255-187-0	02	1	1509-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97255-187-0	02	1	1509-			●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1506-1508		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-550-0	01	1	1509-	●	●			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1506-1508		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1509-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1509-			●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1506-1508		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1509-	●	●			●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	1506-1508		●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	1509-	●	●	●	●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1506-1508		●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1509-	●	●	●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1509-			●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1506-1508		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1509-	●	●			●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1506-1508		●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1509-	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1506-1508		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1509-	●	●	●	●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1506-1508		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1509-	●	●	●	●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1506-1508		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1509-	●	●	●	●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1506-1508		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1509-	●	●	●	●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1506-1508		●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1509-	●	●	●	●	●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1506-1508		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1509-	●	●	●	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1506-1508		●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1509-	●	●	●	●	●
257	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1509-		●
257	02.559 CLIP; HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1509-			●	●
265	00.785 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-		●
265	00.785 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-			●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1506-1508		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1509-	●	●	●	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1506-1508		●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1509-	●	●	●	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1506-1508		●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1509-	●	●	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1509-			●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1506-1508		●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1509-	●	●			●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1506-1508		●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1509-	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1506-1508		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1509-	●	●	●	●	●
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	1509-			●	●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1506-1508		●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1509-	●	●			●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1506-1508		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1509-	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1509-			●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1506-1508		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1509-	●	●			●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-978-0	01	1	1509-		●
434	00.683 HOUSING; CLU	8-98100-978-0	01	1	1509-			●	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1506-1508		●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97237-099-5	01	1	1509-	●	●			●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1509-			●	●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1506-1508		●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1509-	●	●			●
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	1509-			●	●
587	04.020 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	1509-		●
587	04.020 PIPE; BREATHER 04.510	8-97358-318-0	01	1	1509-			●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1506-1508		●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1509-	●	●	●	●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1506-1508		●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1509-	●	●	●	●	●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1506-1508		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1509-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
