Sayfa 1-56 - Isuzu EPC

1-56 — EXHAUST BRAKE SYSTEM (#162180) — 110 parça

8 5 1 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (C)	8-98227-170-0	01	1	1509-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98258-268-0	01	1	1509-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98033-200-1	01	1	1509-	●	●
1	03.632 BRAKE UNIT; EXH (A)	8-98228-983-0	01	1	1506-1508	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98228-983-0	01	1	1509-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 (B) ID=64	8-97373-108-0	02	1	1509-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) ID=54	8-94328-354-0	02	1	1509-	●	●
5	03.634 GASKET; EXH BRAKE UNIT (A)	8-98228-984-1	01	1	1506-1508	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98228-984-1	01	1	1509-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●	●

5 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (C)	8-98227-170-0	01	1	1509-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98258-268-0	01	1	1509-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98033-200-1	01	1	1509-	●	●
1	03.632 BRAKE UNIT; EXH (A)	8-98228-983-0	01	1	1506-1508	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98228-983-0	01	1	1509-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 (B) ID=64	8-97373-108-0	02	1	1509-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) ID=54	8-94328-354-0	02	1	1509-	●	●
5	03.634 GASKET; EXH BRAKE UNIT (A)	8-98228-984-1	01	1	1506-1508	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98228-984-1	01	1	1509-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 03.613 M8	1-09400-118-1	04	1	1509-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 03.613 M10 FLANGE	8-97096-192-1	04	1	1506-1508	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.613 M10 FLANGE	8-97096-192-1	04	1	1509-	●	●

1 8 5 5 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (C)	8-98227-170-0	01	1	1509-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98258-268-0	01	1	1509-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98033-200-1	01	1	1509-	●	●
1	03.632 BRAKE UNIT; EXH (A)	8-98228-983-0	01	1	1506-1508	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98228-983-0	01	1	1509-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 (B) ID=64	8-97373-108-0	02	1	1509-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) ID=54	8-94328-354-0	02	1	1509-	●	●
5	03.634 GASKET; EXH BRAKE UNIT (A)	8-98228-984-1	01	1	1506-1508	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98228-984-1	01	1	1509-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 03.613 M8	1-09400-118-1	04	1	1509-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 03.613 M10 FLANGE	8-97096-192-1	04	1	1506-1508	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.613 M10 FLANGE	8-97096-192-1	04	1	1509-	●	●

78 125 78 78 125 78 78 78 125 78 78 125 78

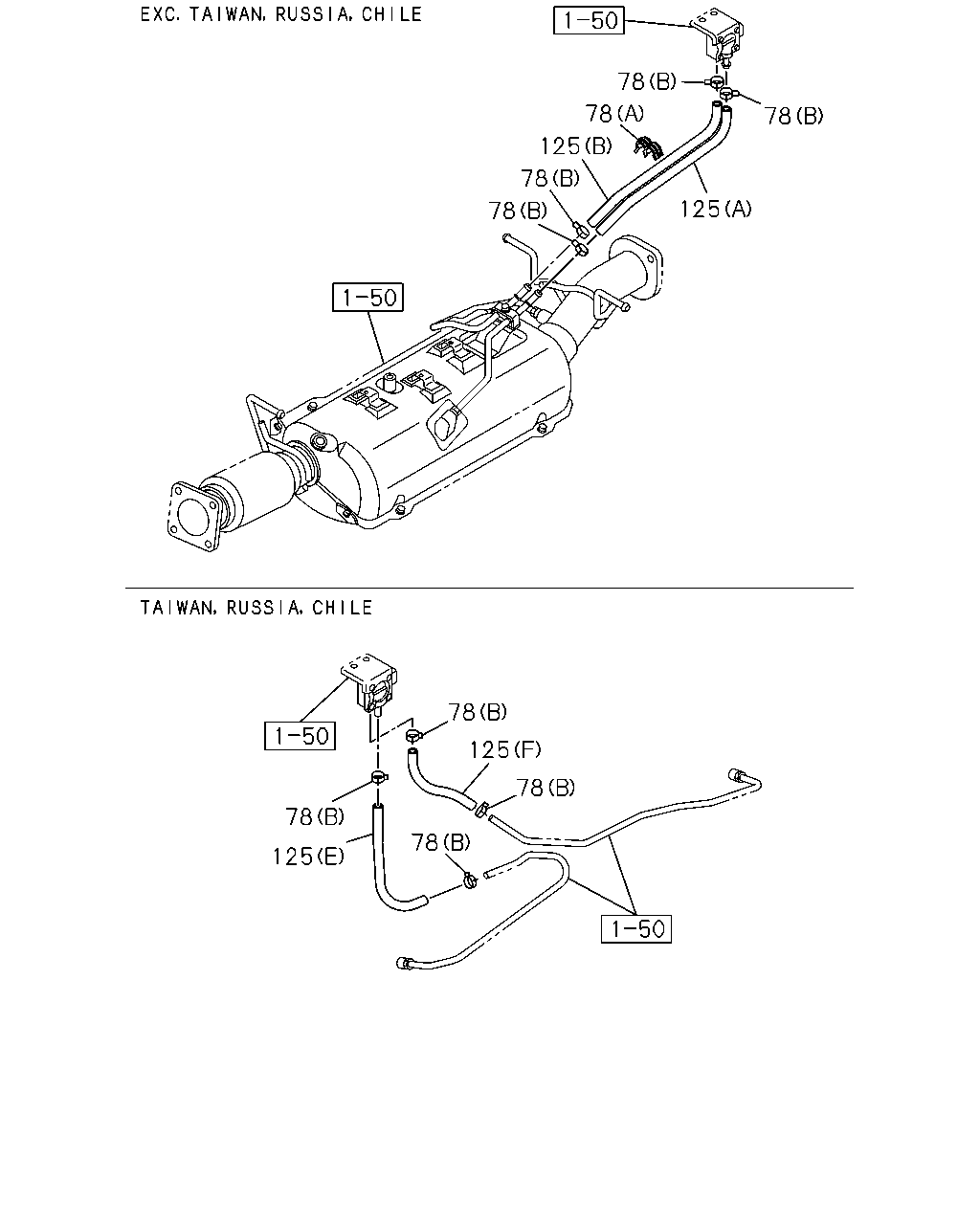

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
78	03.636 CLIP; HOSE 03.162 (A)	8-97173-119-0	01	1	1506-1508	●
78	03.636 CLIP; HOSE EXC. FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 03.162 (A)	8-97173-119-0	01	1	1509-	●	●
78	03.636 CLIP; HOSE FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. CATALYSIS CONTROL(6MZ) 03.162 (A)	8-97173-119-0	01	1	1509-	●	●
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1506-1508	●
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1509-	●	●
125	03.630 HOSE; DPD TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98029-399-0	01	1	1509-	●	●
125	03.630 HOSE; DPD TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98029-400-0	01	1	1509-	●	●
125	03.630 HOSE; DPD EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98292-371-0	01	1	1509-	●	●
125	03.630 HOSE; DPD EXC. CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98323-830-0	01	1	1509-	●	●
125	03.630 HOSE; DPD (A)	8-98236-427-1	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98236-427-1	01	1	1509-	●	●
125	03.630 HOSE; DPD (B)	8-98236-428-1	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98236-428-1	01	1	1509-	●	●

126 17 95 94 17 95 92 127 94 122 86 96 6 124 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	03.632 BOLT; EXH BRAKE UNIT FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●
6	03.632 BOLT; EXH BRAKE UNIT FIX CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1509-	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1509-	●	●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1509-	●	●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1509-	●	●
17	03.634 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●

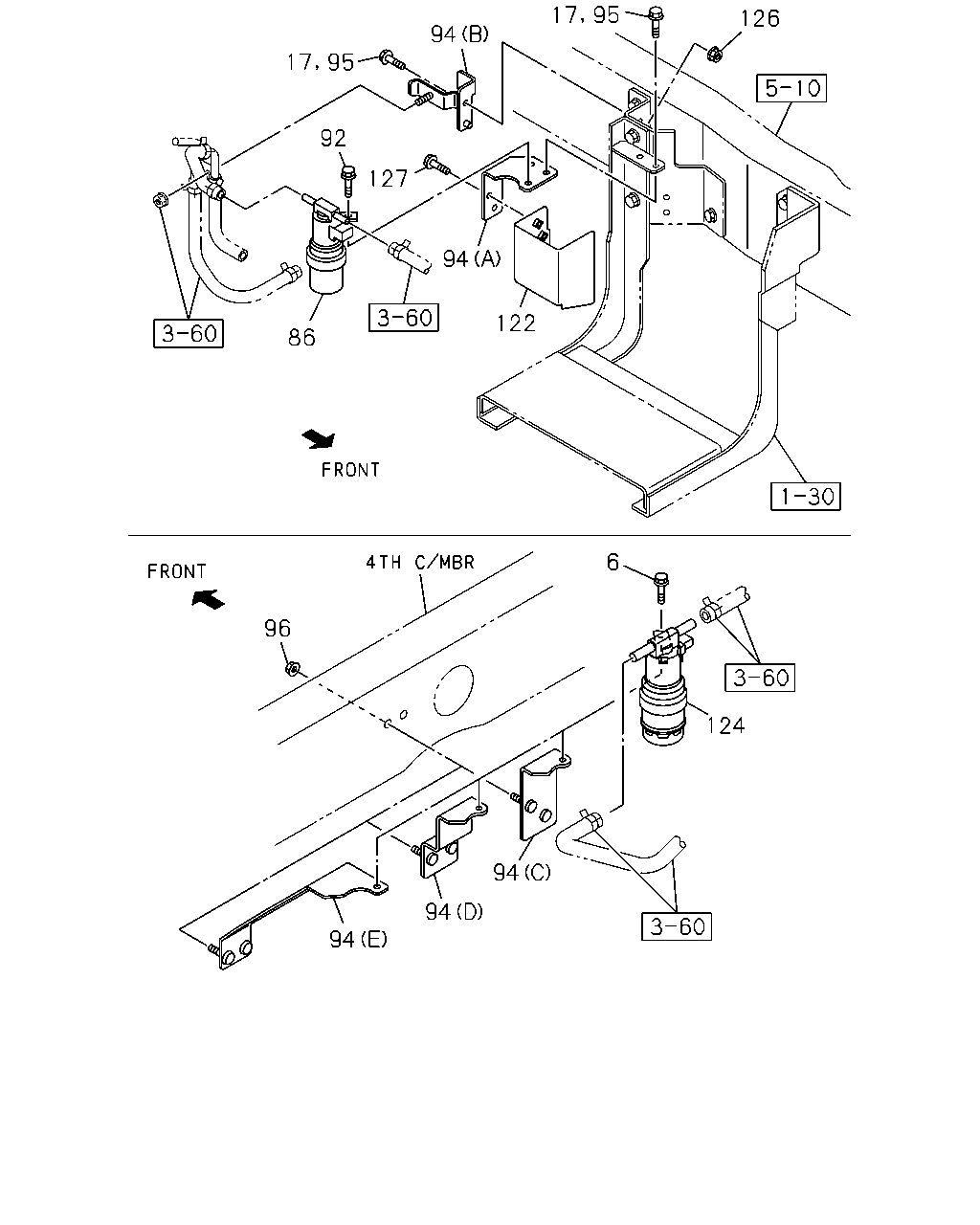

86	03.636 VALVE; MAG,EXH BRK TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1509-	●	●
92	08.900 BOLT; MAG VLV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
92	08.900 BOLT; MAG VLV 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1506-1508	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (E)	8-98039-761-2	01	1	1509-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98039-761-2	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (D)	8-98039-762-1	01	1	1509-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (C)	8-98039-764-1	01	1	1509-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1506-1508	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98042-694-2	01	1	1509-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98042-694-2	01	1	1509-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98042-694-2	01	1	1509-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98042-694-2	01	1	1509-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98042-694-2	01	1	1509-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98211-757-1	01	1	1506-1508	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) (A)	8-98211-757-1	01	1	1509-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98211-757-1	01	1	1509-	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-		●
122	03.640 PROTECTOR; MAG VLV WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98269-467-0	01	1	1509-	●	●
122	03.640 PROTECTOR; MAG VLV WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98098-564-0	01	1	1506-1508	●
122	03.640 PROTECTOR; MAG VLV WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98098-564-0	01	1	1509-	●	●
122	03.640 PROTECTOR; MAG VLV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM)	8-98098-564-0	01	1	1509-	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	1506-1508	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1509-	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
127	04.902 BOLT; PROTECTOR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●

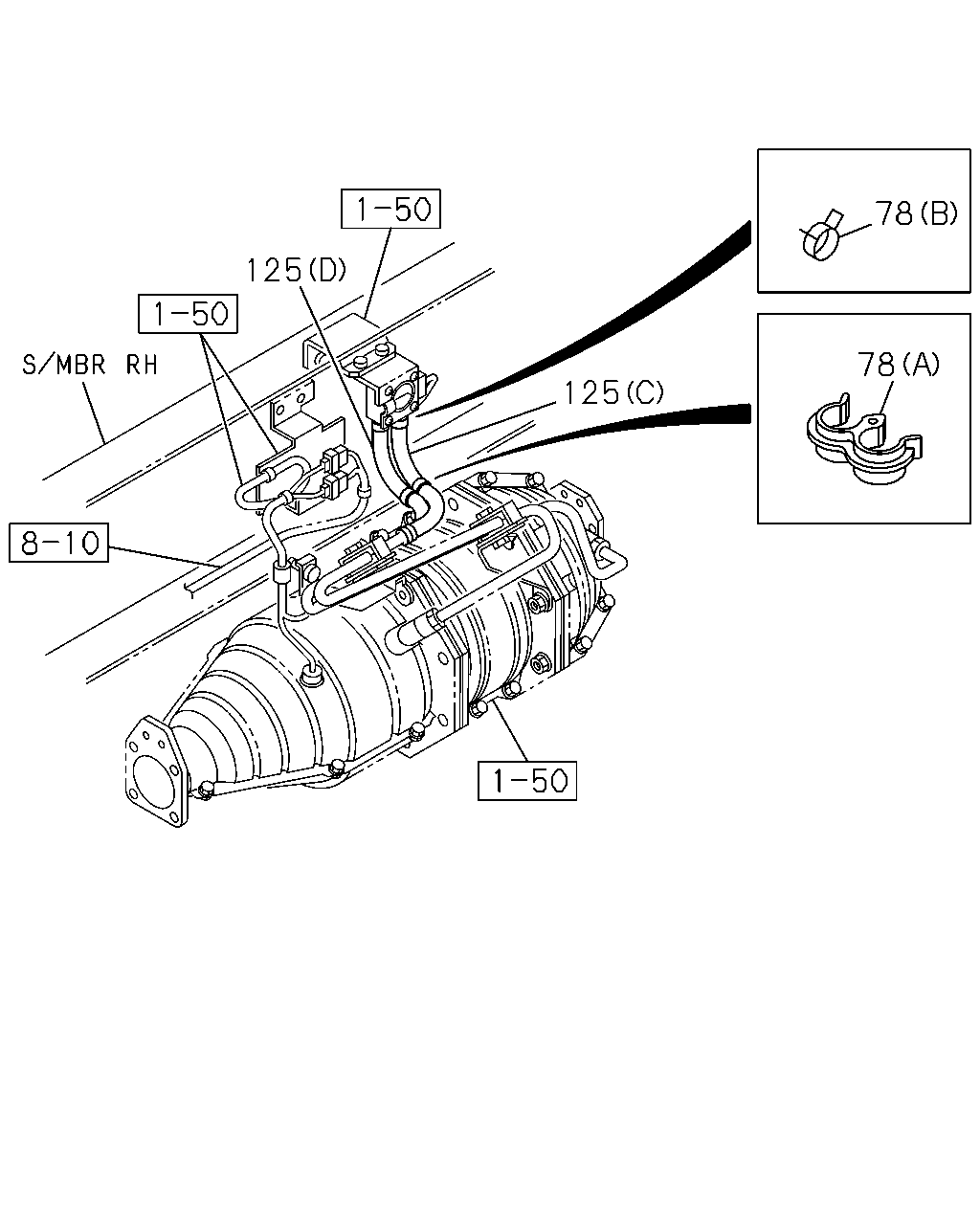

125 125 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
78	03.636 CLIP; HOSE 03.162 (A)	8-97173-119-0	01	1	1506-1508	●
78	03.636 CLIP; HOSE EXC. FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 03.162 (A)	8-97173-119-0	01	1	1509-	●	●
78	03.636 CLIP; HOSE FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. CATALYSIS CONTROL(6MZ) 03.162 (A)	8-97173-119-0	01	1	1509-	●	●
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1506-1508	●
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1509-	●	●
125	03.630 HOSE; DPD TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98029-399-0	01	1	1509-	●	●
125	03.630 HOSE; DPD TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98029-400-0	01	1	1509-	●	●
125	03.630 HOSE; DPD EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98292-371-0	01	1	1509-	●	●
125	03.630 HOSE; DPD EXC. CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98323-830-0	01	1	1509-	●	●
125	03.630 HOSE; DPD (A)	8-98236-427-1	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98236-427-1	01	1	1509-	●	●
125	03.630 HOSE; DPD (B)	8-98236-428-1	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98236-428-1	01	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
