Sayfa 1-55 - Isuzu EPC

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#162179) — 192 parça

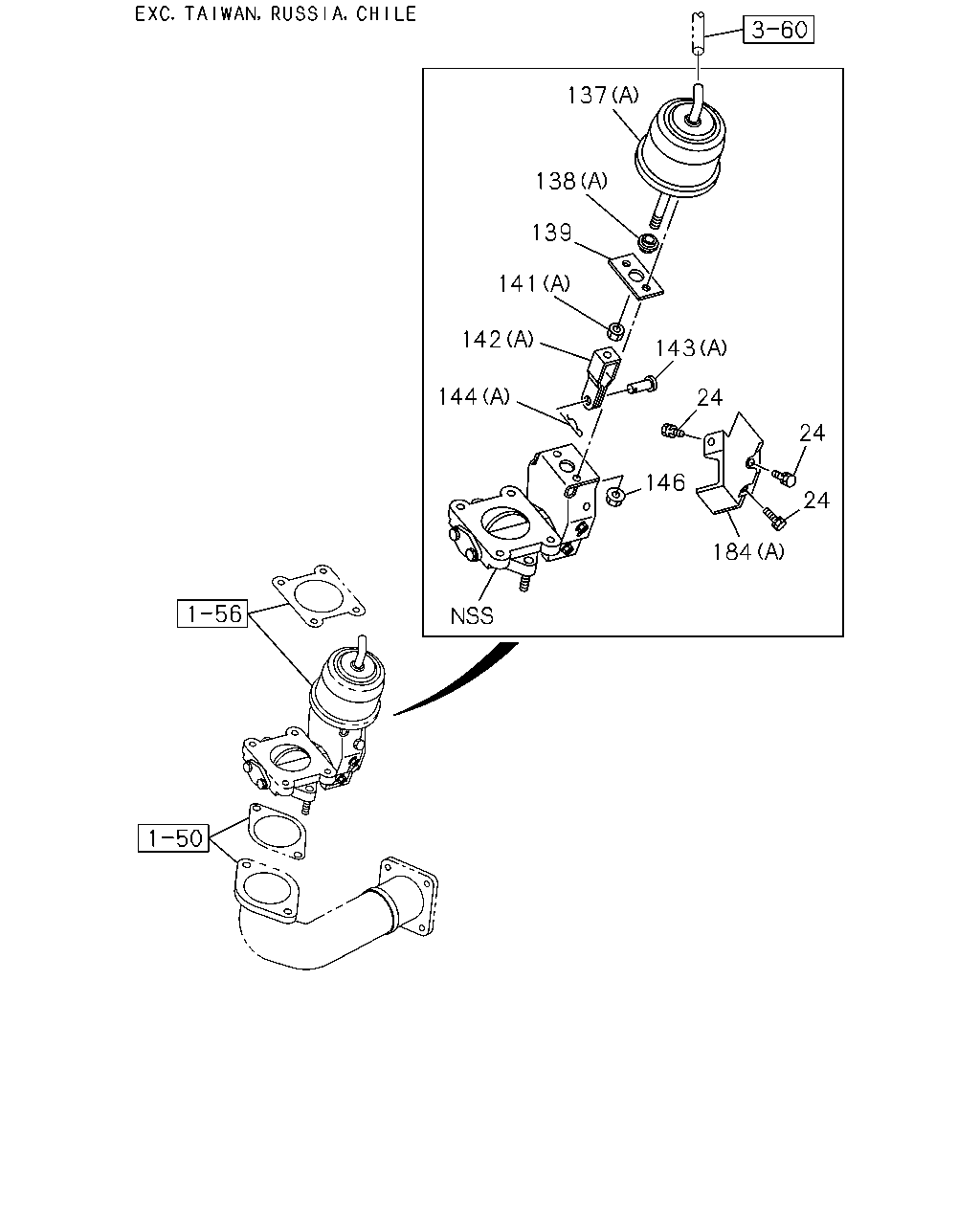

137 138 139 141 142 144 143 24 146 184 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1506-1508	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1509-	●	●
24	03.634 BOLT; COVER 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.444	8-97065-029-0	02	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCS ENG(LFB) (C)	8-97985-132-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCS ENG(LFB) (B)	8-98229-058-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98043-596-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER (A)	8-98245-612-0	01	1	1506-1508	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-612-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-98231-608-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.440 (C)	8-94311-446-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV (A)	5-22189-004-0	01	1	1506-1508	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	5-22189-004-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	5-22189-004-0	01	1	1509-	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1506-1508	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1509-	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM)	8-94328-234-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-97985-128-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	9-88510-009-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122 (A)	8-94311-428-0	01	1	1506-1508	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 05.122 (A)	8-94311-428-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 05.122 (A)	8-94311-428-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-97985-133-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCS ENG(LFB) (C)	8-98231-609-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-97177-311-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV (A)	8-98245-611-0	01	1	1506-1508	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-611-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-98231-610-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-94311-452-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV (A)	8-97985-126-0	01	1	1506-1508	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-97985-126-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-126-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-97029-428-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (A)	8-97985-124-0	01	1	1506-1508	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-97985-124-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-124-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-124-0	01	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 07.633 M8 FLANGE	0-91150-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCS ENG(LFB) (B)	8-97370-068-0	01	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCS ENG(LFB) (C)	8-98037-493-0	01	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-97311-447-1	01	1	1509-	●	●
184	03.634 COVER; BRKT (A)	8-98245-610-0	01	1	1506-1508	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-610-0	01	1	1509-	●	●

137 139 138 141 143 6 142 146 144 24 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	03.632 VALVE; EXH BRAKE 4JJ1-TCS ENG(LFB) (A)	8-98069-291-0	01	1	1509-	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-97360-025-1	01	1	1509-	●	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1506-1508	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1509-	●	●
24	03.634 BOLT; COVER 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.444	8-97065-029-0	02	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCS ENG(LFB) (C)	8-97985-132-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCS ENG(LFB) (B)	8-98229-058-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98043-596-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER (A)	8-98245-612-0	01	1	1506-1508	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-612-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-98231-608-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.440 (C)	8-94311-446-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV (A)	5-22189-004-0	01	1	1506-1508	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	5-22189-004-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	5-22189-004-0	01	1	1509-	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1506-1508	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1509-	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM)	8-94328-234-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-97985-128-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	9-88510-009-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122 (A)	8-94311-428-0	01	1	1506-1508	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 05.122 (A)	8-94311-428-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 05.122 (A)	8-94311-428-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-97985-133-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCS ENG(LFB) (C)	8-98231-609-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-97177-311-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV (A)	8-98245-611-0	01	1	1506-1508	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-611-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-98231-610-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-94311-452-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV (A)	8-97985-126-0	01	1	1506-1508	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-97985-126-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-126-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-97029-428-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (A)	8-97985-124-0	01	1	1506-1508	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-97985-124-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-124-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-124-0	01	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 07.633 M8 FLANGE	0-91150-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCS ENG(LFB) (B)	8-97370-068-0	01	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCS ENG(LFB) (C)	8-98037-493-0	01	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-97311-447-1	01	1	1509-	●	●
184	03.634 COVER; BRKT (A)	8-98245-610-0	01	1	1506-1508	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-610-0	01	1	1509-	●	●

137 139 138 141 143 186 6 186 146 184 24 144 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	03.632 VALVE; EXH BRAKE 4JJ1-TCS ENG(LFB) (A)	8-98069-291-0	01	1	1509-	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-97360-025-1	01	1	1509-	●	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1506-1508	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1509-	●	●
24	03.634 BOLT; COVER 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.444	8-97065-029-0	02	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCS ENG(LFB) (C)	8-97985-132-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCS ENG(LFB) (B)	8-98229-058-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98043-596-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER (A)	8-98245-612-0	01	1	1506-1508	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-612-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-98231-608-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.440 (C)	8-94311-446-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV (A)	5-22189-004-0	01	1	1506-1508	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	5-22189-004-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	5-22189-004-0	01	1	1509-	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1506-1508	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1509-	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM)	8-94328-234-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-97985-128-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	9-88510-009-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122 (A)	8-94311-428-0	01	1	1506-1508	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 05.122 (A)	8-94311-428-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 05.122 (A)	8-94311-428-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-97985-133-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCS ENG(LFB) (C)	8-98231-609-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-97177-311-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV (A)	8-98245-611-0	01	1	1506-1508	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-611-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-98231-610-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-94311-452-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV (A)	8-97985-126-0	01	1	1506-1508	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-97985-126-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-126-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-97029-428-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (A)	8-97985-124-0	01	1	1506-1508	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-97985-124-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-124-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-124-0	01	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 07.633 M8 FLANGE	0-91150-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCS ENG(LFB) (B)	8-97370-068-0	01	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCS ENG(LFB) (C)	8-98037-493-0	01	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-97311-447-1	01	1	1509-	●	●
184	03.634 COVER; BRKT (A)	8-98245-610-0	01	1	1506-1508	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-610-0	01	1	1509-	●	●
186	03.611 GASKET; EXH BRK VLV,BODY 4JJ1-TCS ENG(LFB)	8-98022-713-0	02	1	1509-	●	●

137 139 138 140 187 142 141 144 180 146 184 24 180 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1506-1508	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1509-	●	●
24	03.634 BOLT; COVER 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.444	8-97065-029-0	02	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCS ENG(LFB) (C)	8-97985-132-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCS ENG(LFB) (B)	8-98229-058-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98043-596-0	01	1	1509-	●	●
137	03.634 CHAMBER; POWER (A)	8-98245-612-0	01	1	1506-1508	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-612-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-98231-608-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.440 (C)	8-94311-446-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV (A)	5-22189-004-0	01	1	1506-1508	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	5-22189-004-0	01	1	1509-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	5-22189-004-0	01	1	1509-	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1506-1508	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1509-	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM)	8-94328-234-0	01	1	1509-	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-98037-494-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-97985-128-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	9-88510-009-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122 (A)	8-94311-428-0	01	1	1506-1508	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 05.122 (A)	8-94311-428-0	01	1	1509-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 05.122 (A)	8-94311-428-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-97985-133-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCS ENG(LFB) (C)	8-98231-609-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-97177-311-0	01	1	1509-	●	●
142	03.636 CLEVIS; EXH BRK VLV (A)	8-98245-611-0	01	1	1506-1508	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-611-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCS ENG(LFB) (B)	8-98231-610-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-94311-452-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV (A)	8-97985-126-0	01	1	1506-1508	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-97985-126-0	01	1	1509-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-126-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-97029-428-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (A)	8-97985-124-0	01	1	1506-1508	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-97985-124-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-124-0	01	1	1509-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97985-124-0	01	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 07.633 M8 FLANGE	0-91150-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
180	03.640 COLLAR; EXH BRK VLV 4JJ1-TCS ENG(LFB) 03.440	8-97018-597-0	02	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCS ENG(LFB) (B)	8-97370-068-0	01	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCS ENG(LFB) (C)	8-98037-493-0	01	1	1509-	●	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-97311-447-1	01	1	1509-	●	●
184	03.634 COVER; BRKT (A)	8-98245-610-0	01	1	1506-1508	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98245-610-0	01	1	1509-	●	●
187	03.685 PROTECTOR; EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-98037-495-0	01	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
