◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#162178) — 1490 parça

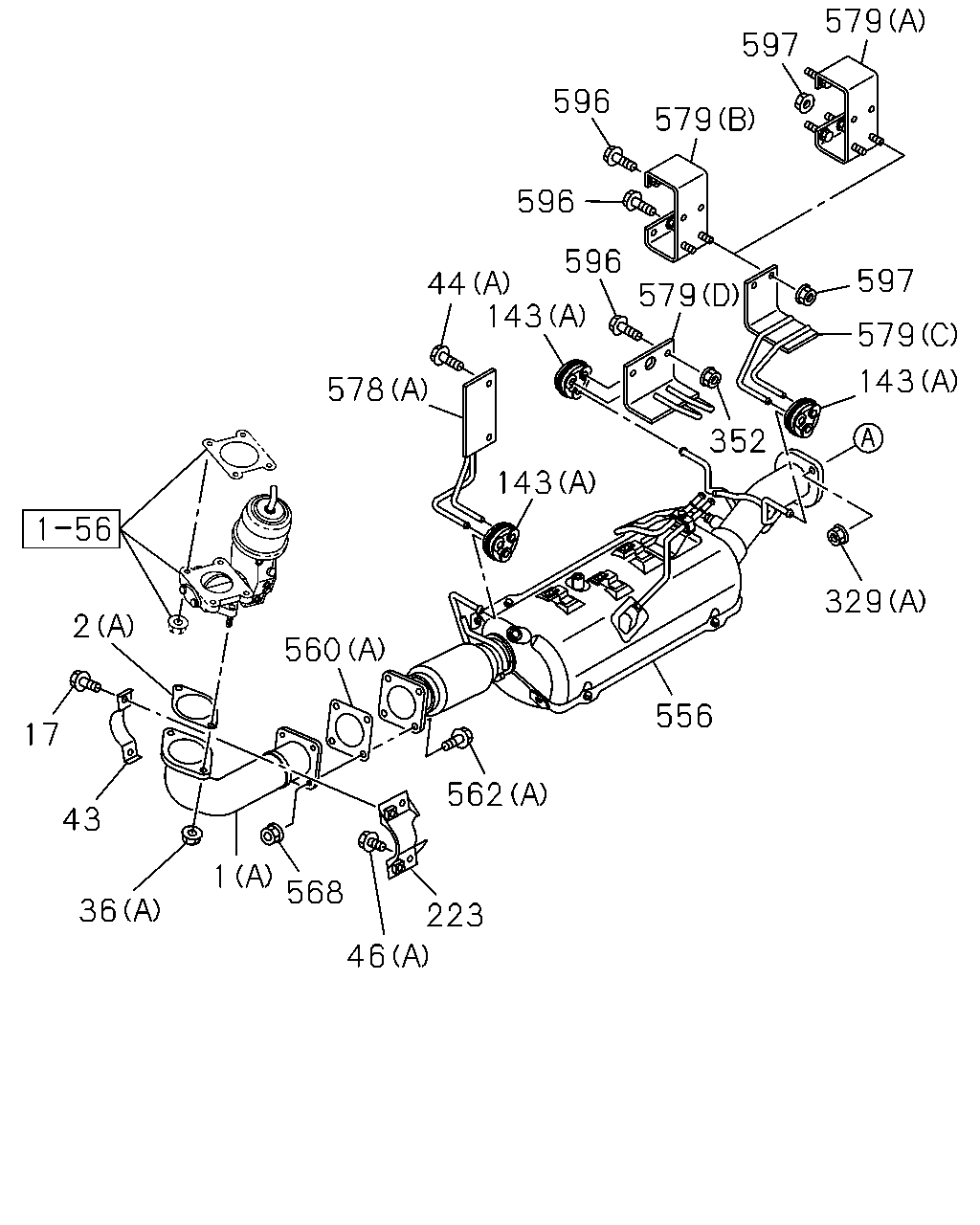

çizim 479016
596 597 579 579 596 44 596 579 579 143 579 143 578 143 352 329 556 562 223 46 568 1 36 43 17 2 560
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (B) 		8-98026-060-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98075-966-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98292-703-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
EXC. CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98292-704-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
(A) 		8-98228-986-1 01 1 1506-1508 ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-986-1 01 1 1509- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) (B) 		8-97384-590-0 01 1 1509- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B) 		8-97384-590-0 01 1 1509- ● ●
2 03.611 GASKET; PIPE TO MANIF
(A) 		8-98228-985-0 01 1 1506-1508 ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-985-0 01 1 1509- ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) (A) M10 FLANGE 		8-97096-192-1 03 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (A) M10 FLANGE 		8-97096-192-1 03 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1509- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 02 1 1506-1508 ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) M10 FLANGE 		8-97096-192-1 02 1 1509- ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1506-1508 ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1509- ● ●
44 03.613 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1509- ●
44 03.613 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1509- ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1506-1508 ●
46 03.704 BOLT; BRKT,EXH PIPE
02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1509- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SINGLE RR TI RE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 02 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 03 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 03 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
223 03.706 BRACKET; EXH PIPE
03.613 		8-98026-063-0 01 1 1506-1508 ●
223 03.706 BRACKET; EXH PIPE
03.613 		8-98026-063-0 01 1 1509- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
352 03.613 NUT; BRKT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
352 03.613 NUT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
352 03.613 NUT; BRKT
POOR QUALITY DIESEL FUEL(KF0) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) 		8-98084-595-4 01 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98227-899-3 01 1 1506-1508 ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98227-899-3 01 1 1509- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (B) 		8-97331-947-0 02 1 1509- ● ●
560 03.611 GASKET; DPD
(A) ID=64 		8-97373-108-0 01 1 1506-1508 ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=64 		8-97373-108-0 01 1 1509- ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=64 		8-97373-108-0 01 1 1509- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97373-966-0 02 1 1509- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (A) M8X35 FLANGE 		0-28050-835-0 04 1 1506-1508 ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) M8X35 FLANGE 		0-28050-835-0 04 1 1509- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (A) M8X35 FLANGE 		0-28050-835-0 04 1 1509- ● ●
568 03.704 NUT; DPD
01.062 M8 FLANGE 		0-91180-108-0 04 1 1506-1508 ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
568 03.704 NUT; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98001-873-1 01 1 1509- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A) 		8-98228-997-1 01 1 1506-1508 ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-997-1 01 1 1509- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (E) 		8-98001-883-1 01 1 1509- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98001-883-1 01 1 1509- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (F) 		8-98001-877-0 01 1 1509- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98001-877-0 01 1 1509- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> (A) 		8-98232-080-2 01 1 1506-1508 ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98232-080-2 01 1 1509- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98232-080-2 01 1 1509- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (B) 		8-98232-084-1 01 1 1506-1508 ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98232-084-1 01 1 1509- ● ●
579 03.704 BRACKET; DPD RR
(C) 		8-98228-999-1 01 1 1506-1508 ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98228-999-1 01 1 1509- ● ●
579 03.704 BRACKET; DPD RR
(D) 		8-98229-000-1 01 1 1506-1508 ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) 		8-98229-000-1 01 1 1509- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
596 03.704 BOLT; BRKT,DPD
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
596 03.704 BOLT; BRKT,DPD
WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●

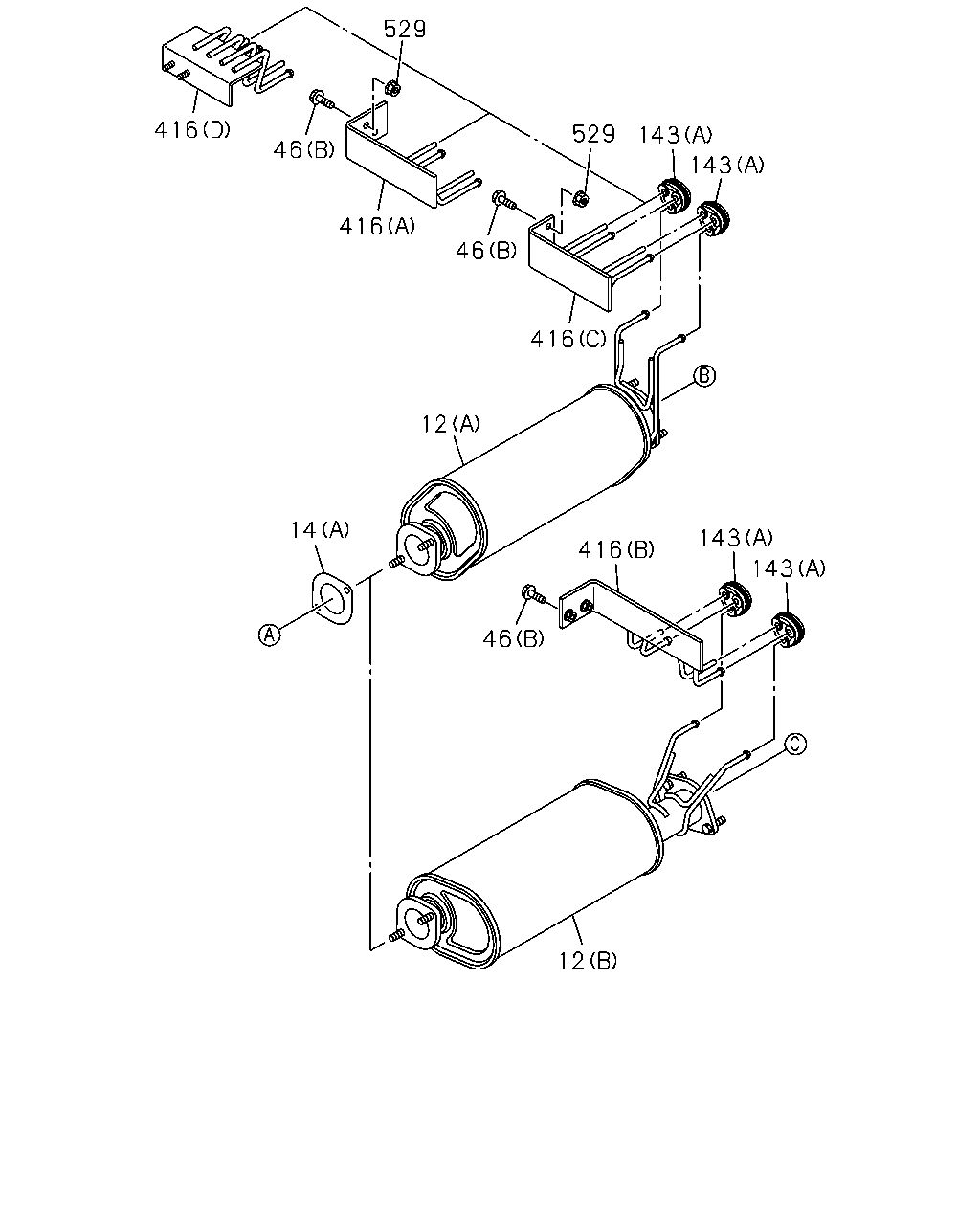

çizim 479022
529 46 416 416 46 529 143 143 416 12 14 46 416 143 143 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-98254-790-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98254-781-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-98254-791-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98254-784-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E) 		8-98299-158-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98273-275-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
WHEEL BASE 2400MM(24W) (A) 		8-98228-994-1 01 1 1506-1508 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98228-994-1 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
WHEEL BASE 3300MM(33W) (B) 		8-98228-995-1 01 1 1506-1508 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98228-995-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.611 (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.611 (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
03.611 (A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1506-1508 ●
46 03.704 BOLT; BRKT,EXH PIPE
02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1509- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SINGLE RR TI RE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 02 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 03 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 03 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98229-003-2 01 1 1509- ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SINGLE RR TI RE(6TD) (D) 		8-98273-276-0 01 1 1509- ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) 		8-98273-276-0 01 1 1509- ●
416 03.706 BRACKET; RR EXH PIPE
WHEEL BASE 2400MM(24W) (A) 		8-98229-004-2 01 1 1506-1508 ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SINGLE RR TI RE(6TD) (A) 		8-98229-004-2 01 1 1509- ● ●
416 03.706 BRACKET; RR EXH PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98229-005-2 01 1 1506-1508 ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SINGLE RR TI RE(6TD) (B) 		8-98229-005-2 01 1 1509- ● ●
529 03.704 NUT; BRKT,EXH PIPE
WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SINGLE RR TI RE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●

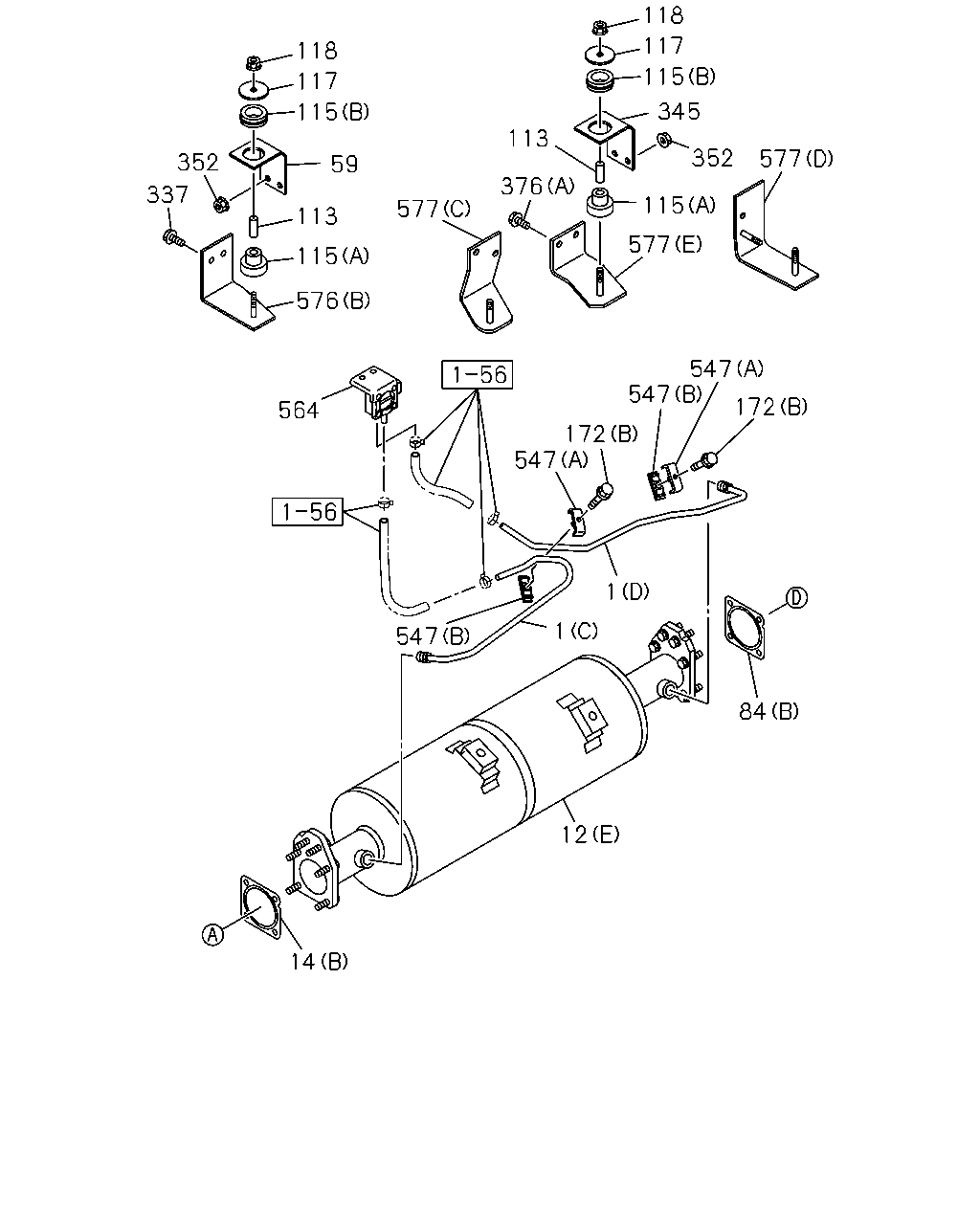

çizim 479472
118 115 117 352 337 113 115 576 59 577 376 113 345 115 117 118 352 115 577 577 547 547 172 172 547 1 1 84 12 14 564 547
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (B) 		8-98026-060-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98075-966-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98292-703-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
EXC. CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98292-704-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
(A) 		8-98228-986-1 01 1 1506-1508 ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-986-1 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-98254-790-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98254-781-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-98254-791-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98254-784-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E) 		8-98299-158-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98273-275-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
WHEEL BASE 2400MM(24W) (A) 		8-98228-994-1 01 1 1506-1508 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98228-994-1 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
WHEEL BASE 3300MM(33W) (B) 		8-98228-995-1 01 1 1506-1508 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98228-995-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.611 (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.611 (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
03.611 (A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
59 03.704 BRACKET; EXH SILENCER,FRT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-98082-156-0 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
(A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
84 03.611 GASKET; EXH PIPE
WHEEL BASE 3300MM(33W) (A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) ID=65 		8-97148-757-1 01 1 1509- ●
113 03.704 COLLAR; DIST,MTG BRKT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.706 L=37.5 		9-22151-217-0 02 1 1509- ●
113 03.704 COLLAR; DIST,MTG BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 03.706 L=37.5 		9-22151-217-0 02 1 1509- ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-94457-277-1 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) (A) 		8-94457-277-1 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
(A) 		8-94457-277-1 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-94457-278-1 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) (B) 		8-94457-278-1 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
(B) 		8-94457-278-1 02 1 1509- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
EXC. CATALYSIS CONTROL WITH DPD(8JM) OD=55 		9-09852-169-0 02 1 1509- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) OD=55 		9-09852-169-0 02 1 1509- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 1509- ●
118 03.704 NUT; SILENCER MTG BRKT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE 		5-09440-006-0 02 1 1509- ●
118 03.704 NUT; SILENCER MTG BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 07.874 M10 FLANGE 		5-09440-006-0 02 1 1509- ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 02 1 1509- ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
172 03.708 BOLT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M6X35 FLANGE 		0-28650-635-0 02 1 1509- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL(6MZ) 03.895 M10X40 FLANGE 		8-98124-451-2 02 1 1509- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
337 03.706 BOLT; RUBBER,SUPPORT
CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
345 03.704 BRACKET; EXH SILENCER,RR
EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-98027-822-0 01 1 1509- ● ●
352 03.613 NUT; BRKT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
352 03.613 NUT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
352 03.613 NUT; BRKT
POOR QUALITY DIESEL FUEL(KF0) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL(6MZ) EXC. TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 03.895 (A) M10X40 FLANGE 		8-98124-451-2 01 1 1509- ● ●
376 03.708 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 03.890 (A) M10X30 FLANGE 		0-28051-030-0 02 1 1509- ●
376 03.708 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 03.890 (A) M10X30 FLANGE 		0-28051-030-0 02 1 1509- ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11), IDENTIFICATIONLABEL FOR KD<6UT> 03.690 (B) 		8-98005-985-0 01 1 1509- ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B) 		8-98005-985-0 01 1 1509- ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (A) 		8-97381-635-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97381-636-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) (A) 		8-97381-635-0 01 1 1506-1508 ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97381-635-0 01 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) (B) 		8-97381-636-0 01 1 1506-1508 ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-97381-636-0 01 1 1509- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) 		8-97359-985-2 01 1 1506-1508 ●
564 01.150 SENSOR; PRESSURE,DPD 8-97359-985-2 01 1 1509- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98001-862-0 01 1 1509- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B) 		8-98292-541-0 01 1 1509- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) 		8-98001-880-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98001-880-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98001-875-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98001-875-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) (D) 		8-98107-264-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL(6MZ) EXC. SINGLE RR TIRE(6TD) (C) 		8-98107-265-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL(6MZ) (C) 		8-98107-265-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SINGLE RR TIRE(6TD) (E) 		8-98107-266-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (E) 		8-98107-266-0 01 1 1509- ●

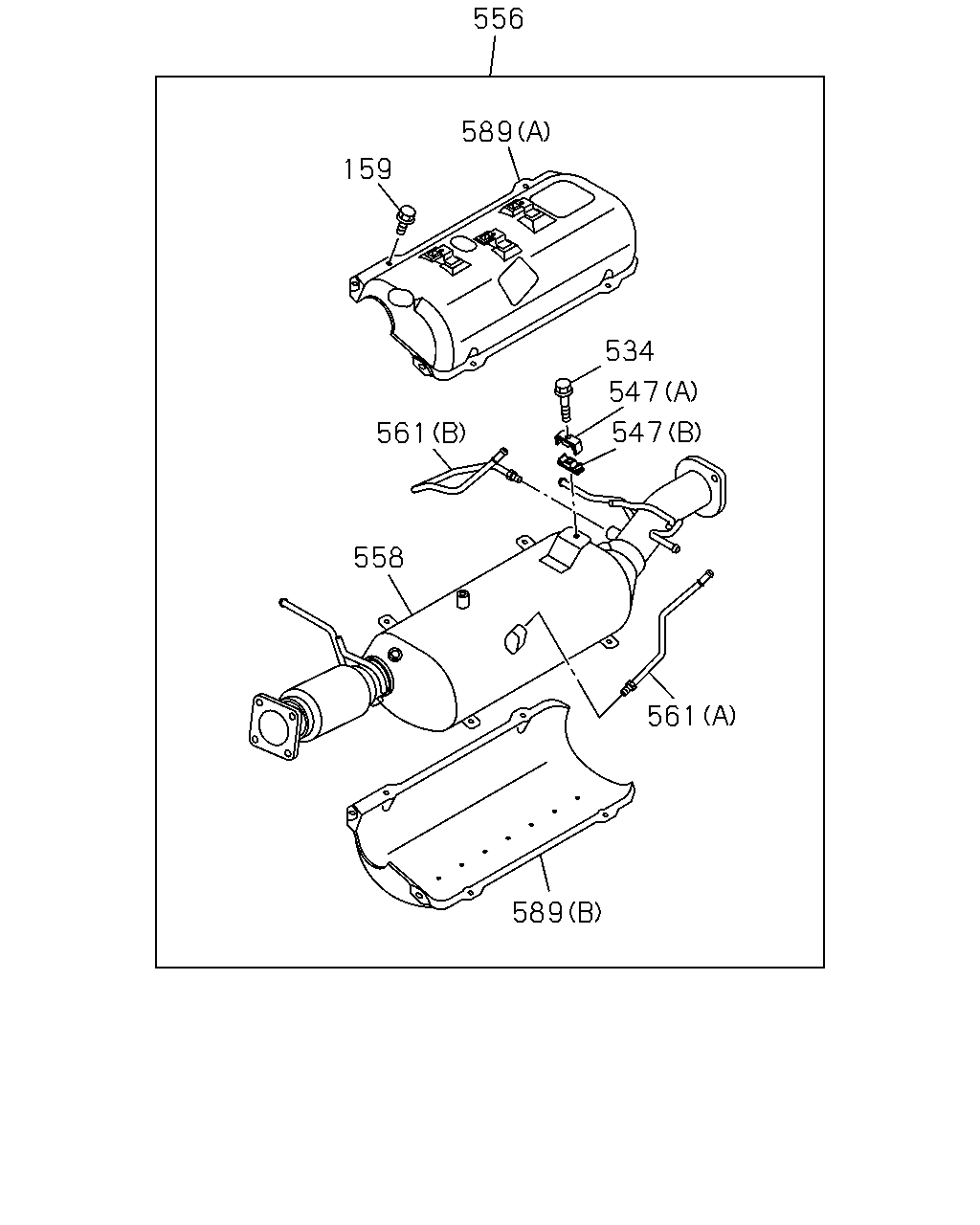

çizim 479474
556 589 159 561 534 547 547 558 561 589
BalonParca AdiParca NoAdetTipApplied Date A B
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) 		8-98242-133-0 06 1 1506-1508 ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98242-133-0 06 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE 		0-28650-635-0 02 1 1509- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) 		8-98242-134-0 01 1 1506-1508 ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98242-134-0 01 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (A) 		8-97381-635-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97381-636-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) (A) 		8-97381-635-0 01 1 1506-1508 ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97381-635-0 01 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) (B) 		8-97381-636-0 01 1 1506-1508 ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-97381-636-0 01 1 1509- ● ●

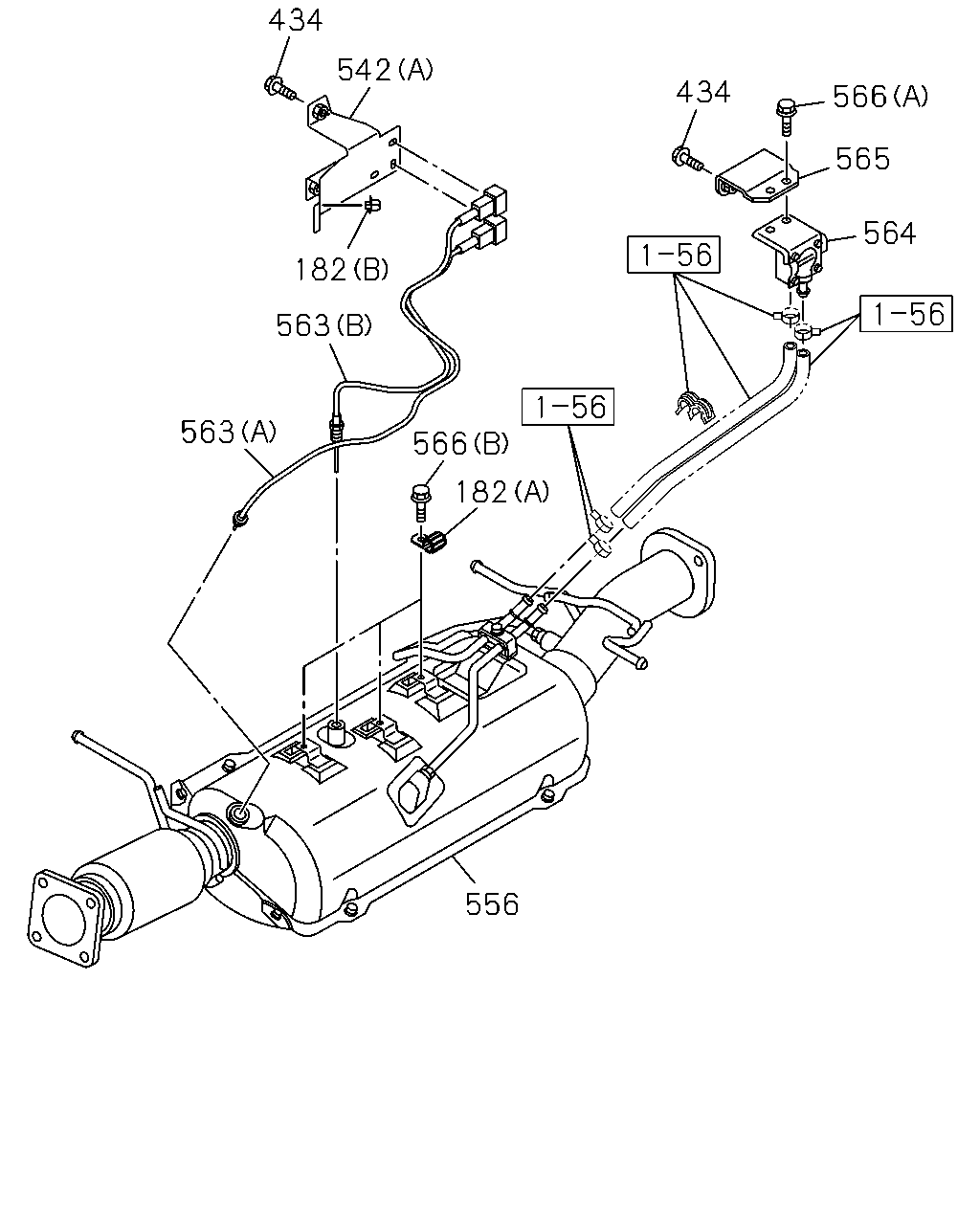

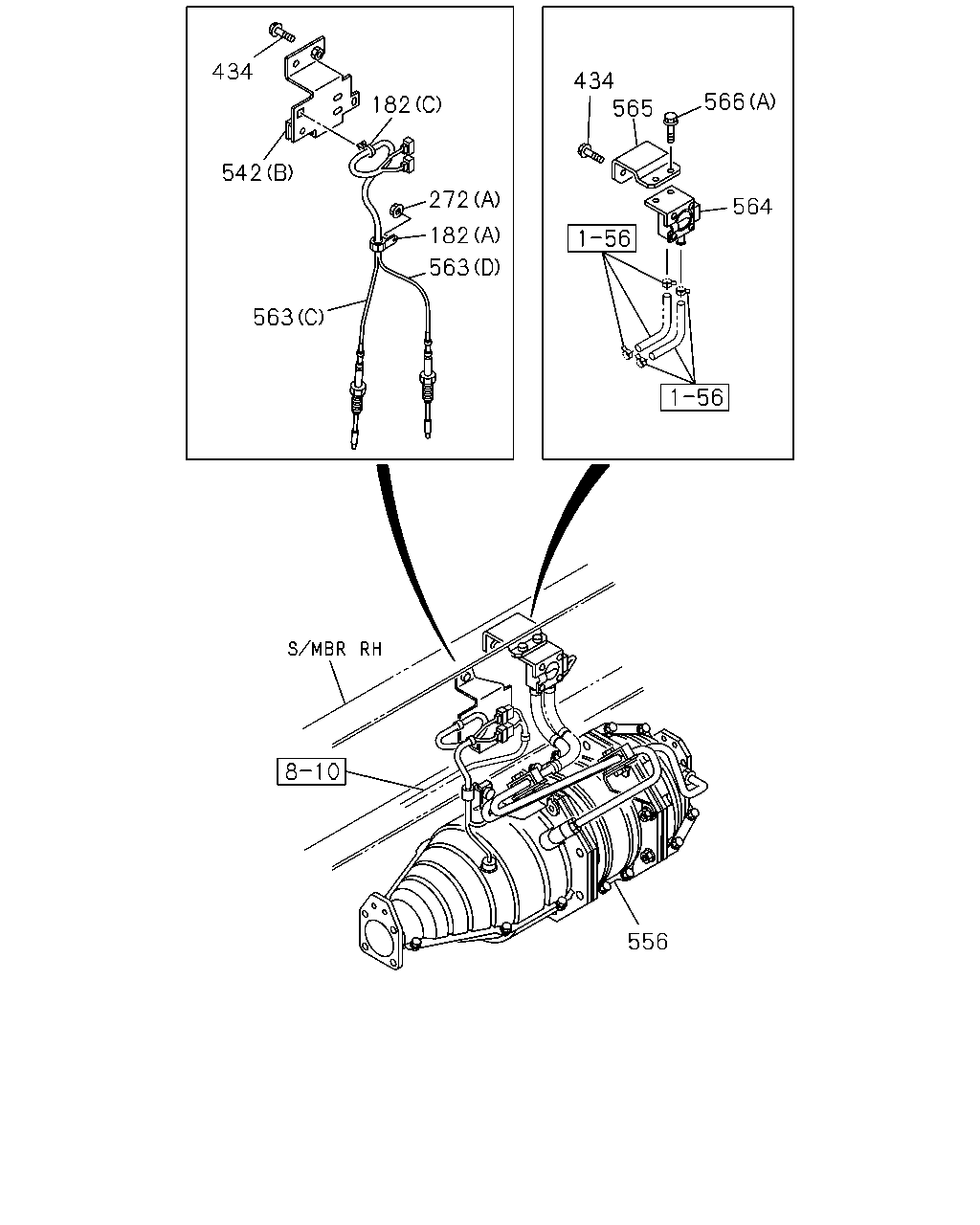

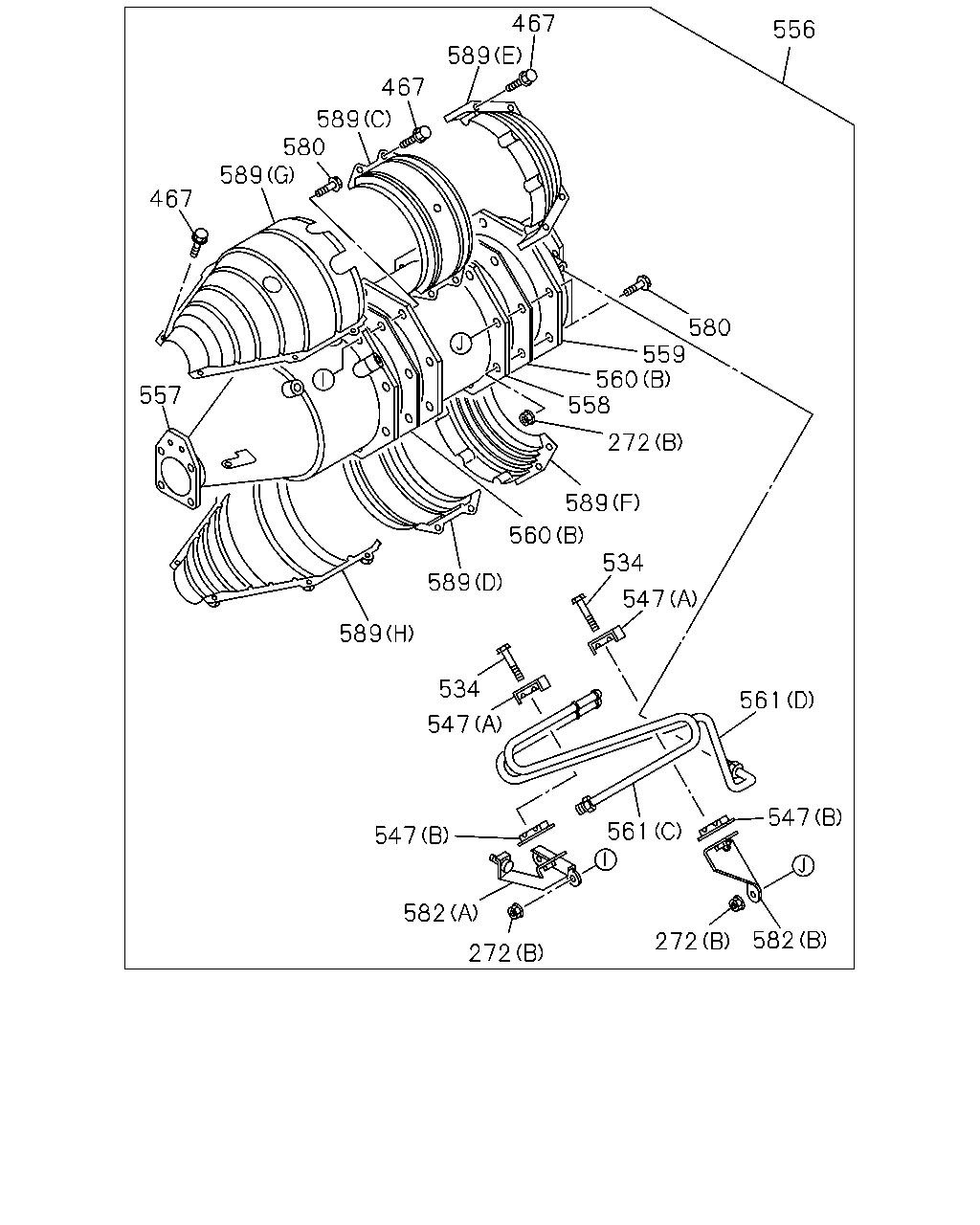

556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) 		8-98084-595-4 01 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98227-899-3 01 1 1506-1508 ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98227-899-3 01 1 1509- ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98032-908-2 01 1 1509- ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) 		8-98233-618-1 01 1 1506-1508 ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98233-618-1 01 1 1509- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98084-600-0 01 1 1509- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98084-601-0 01 1 1509- ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (A) 		8-98233-520-1 01 1 1506-1508 ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98233-520-1 01 1 1509- ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (B) 		8-98233-521-1 01 1 1506-1508 ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98233-521-1 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (C) 		8-97383-660-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-97383-663-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-921-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-923-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (D) 		8-98032-924-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-98032-926-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (A) 		8-98233-517-1 01 1 1506-1508 ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98233-517-1 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (B) 		8-98233-518-0 01 1 1506-1508 ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98233-518-0 01 1 1509- ● ●

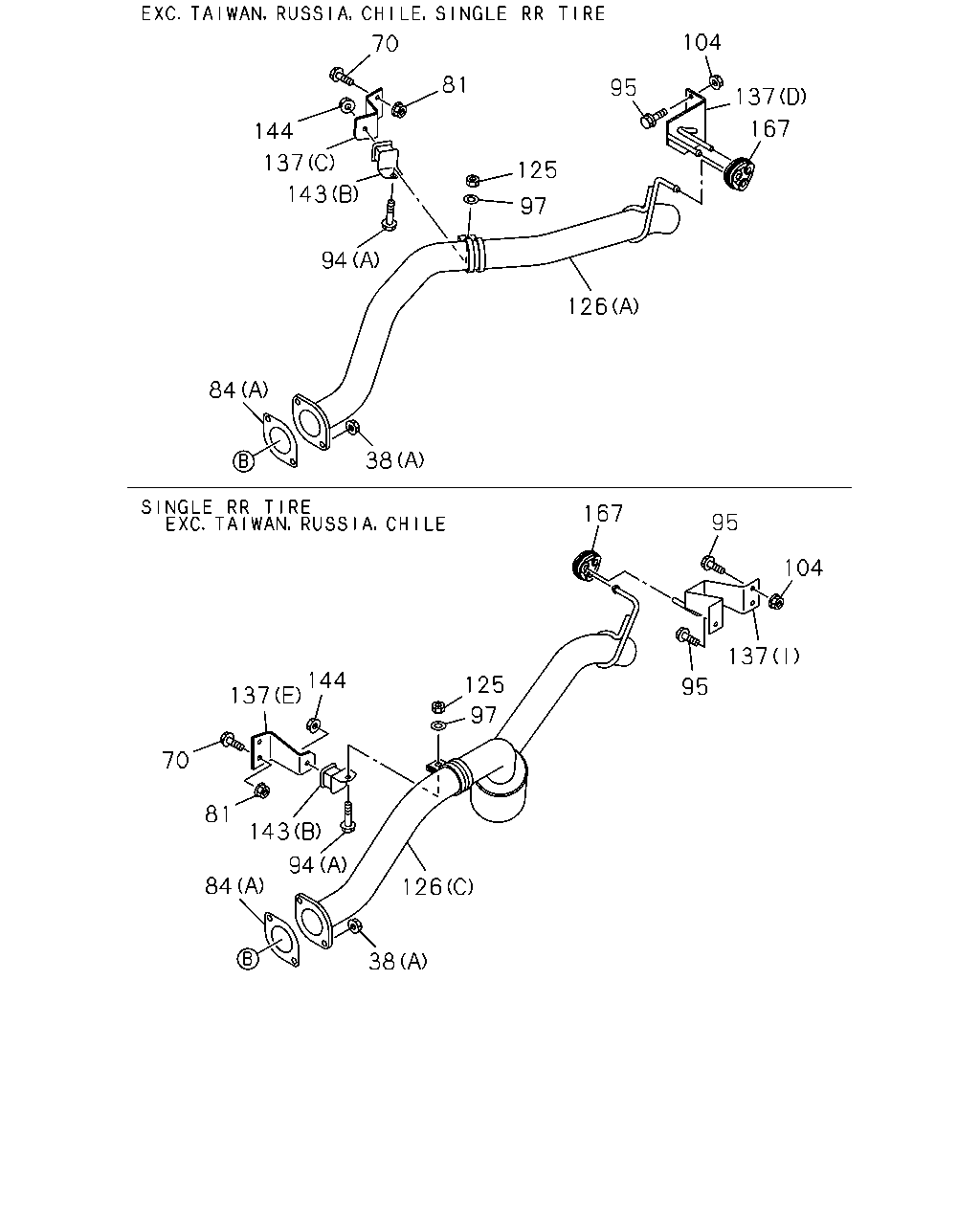

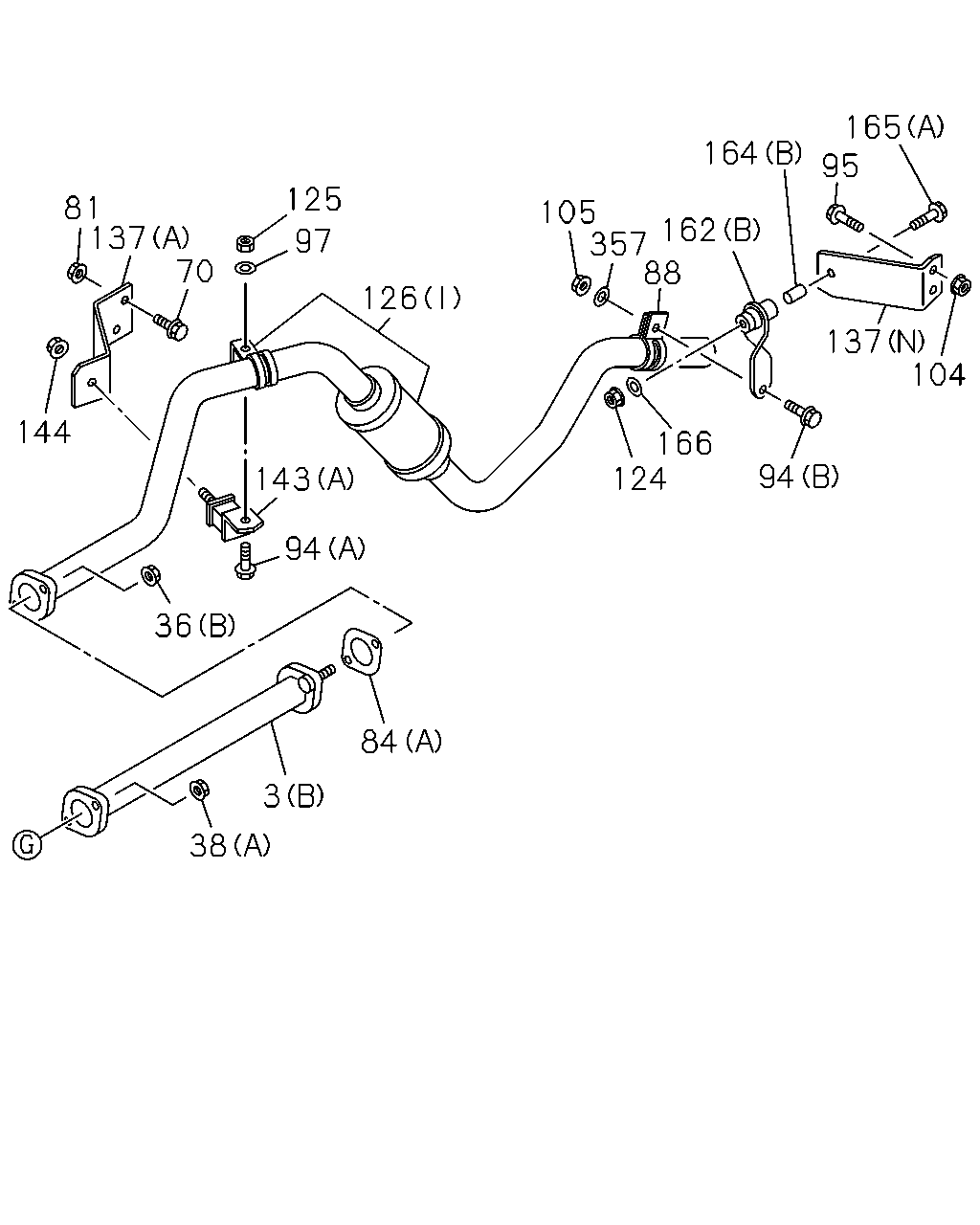

çizim 479521
70 81 125 97 104 95 137 167 126 38 84 94 143 137 144 167 95 104 137 95 125 97 126 38 94 84 143 81 70 137 144
BalonParca AdiParca NoAdetTipApplied Date A B
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
81 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,S INGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
(A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
84 03.611 GASKET; EXH PIPE
WHEEL BASE 3300MM(33W) (A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) ID=65 		8-97148-757-1 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1506-1508 ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
95 03.708 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
97 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1506-1508 ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
125 03.708 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 1506-1508 ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (G) 		8-98254-812-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98072-128-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98072-129-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98140-855-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-98228-989-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 2400MM(24W) (A) 		8-98228-990-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W) (B) 		8-98228-991-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98228-991-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98228-991-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (L) 		8-98001-896-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (M) 		8-98001-908-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (F) 		8-98001-903-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (I) 		8-98229-008-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98001-895-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (D) 		8-98229-009-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (A) 		8-98001-897-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98229-010-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98229-010-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98229-010-1 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 02 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 03 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 03 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
167 03.706 HANGER; EXH PIPE
03.704 		8-97080-694-0 01 1 1506-1508 ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.704 		8-97080-694-0 01 1 1509- ● ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.704 		8-97080-694-0 01 1 1509- ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●

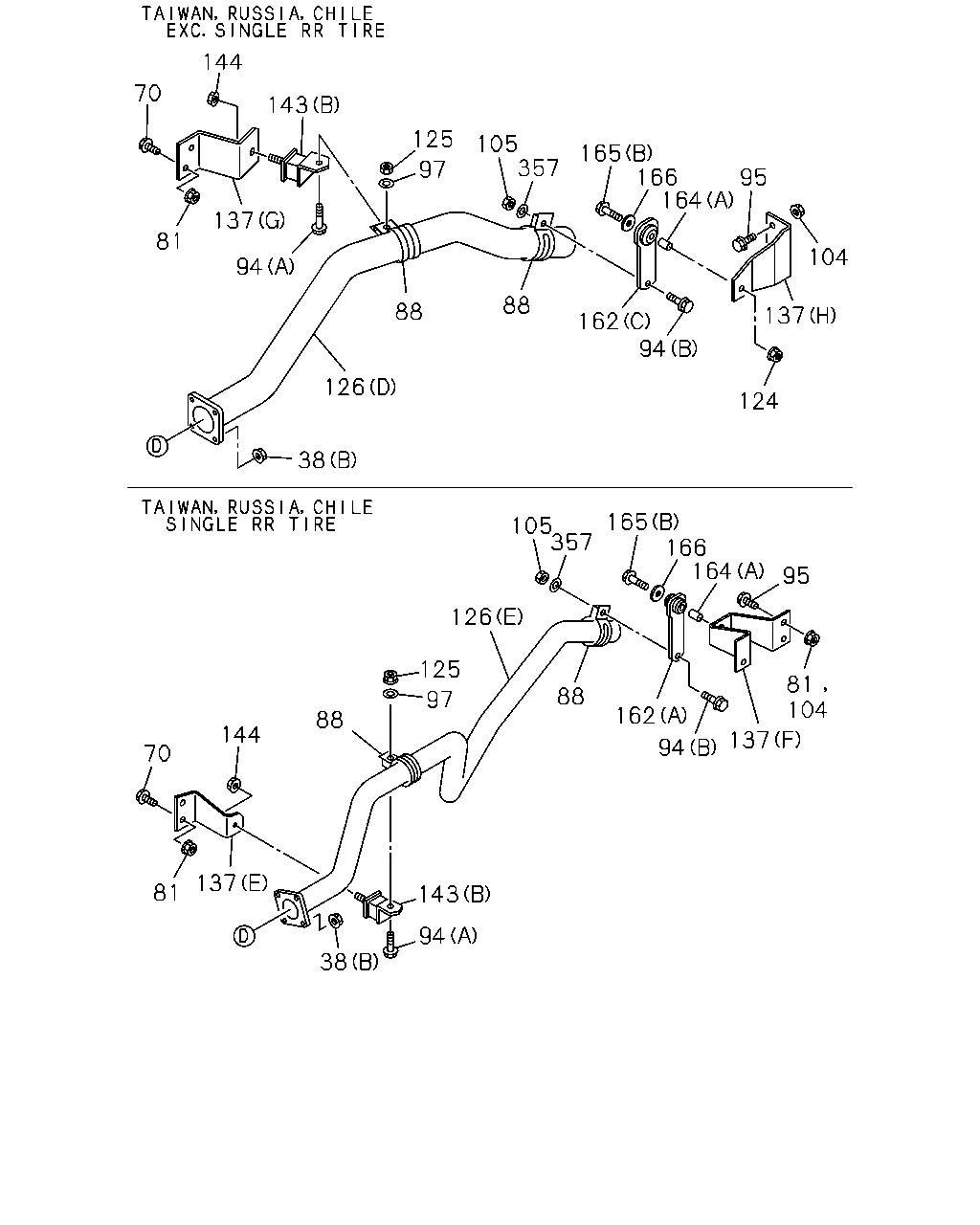

çizim 479561
70 144 143 137 94 81 126 88 88 105 125 97 357 165 166 164 95 104 137 124 165 166 164 95 81 104 137 94 162 88 357 105 126 125 97 88 144 70 81 137 143 94 162 94 38 38
BalonParca AdiParca NoAdetTipApplied Date A B
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
81 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,S INGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97373-158-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1506-1508 ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
95 03.708 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
97 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1506-1508 ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
105 03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
105 03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
125 03.708 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 1506-1508 ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (G) 		8-98254-812-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98072-128-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98072-129-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98140-855-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-98228-989-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 2400MM(24W) (A) 		8-98228-990-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W) (B) 		8-98228-991-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98228-991-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98228-991-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (L) 		8-98001-896-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (M) 		8-98001-908-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (F) 		8-98001-903-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (I) 		8-98229-008-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98001-895-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (D) 		8-98229-009-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (A) 		8-98001-897-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98229-010-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98229-010-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98229-010-1 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 02 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 03 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 03 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (C) 		8-98032-150-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C) 		8-98032-150-0 01 1 1509- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (D) L=115 		8-98032-151-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=115 		8-98034-765-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=115 		8-98034-765-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98032-149-0 01 1 1509- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) L=23 		8-98006-011-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) L=23 		8-98006-011-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=37.5 		9-22151-217-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=37.5 		9-22151-217-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
çizim 492333
434 542 182 563 563 566 182 556 434 566 565 564
BalonParca AdiParca NoAdetTipApplied Date A B
182 03.682 CLIP; HARNESS
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (C) L=112 		8-94232-618-0 01 1 1509- ● ●
182 03.682 CLIP; HARNESS
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 		8-98002-767-0 01 1 1509- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) (B) ID=7 L=7.5 		8-97369-561-0 01 1 1506-1508 ●
182 03.682 CLIP; HARNESS
EXC. FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> (B) ID=7 L=7.5 		8-97369-561-0 01 1 1509- ● ●
182 03.682 CLIP; HARNESS
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. CATALYSIS CONTROL(6MZ) (B) ID=7 L=7.5 		8-97369-561-0 01 1 1509- ● ●
182 03.682 CLIP; HARNESS
(A) ID=7 		8-98002-767-0 03 1 1506-1508 ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=7 		8-98002-767-0 03 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
434 03.613 BOLT; BRKT
WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. CATALYSIS CONTROL(6MZ) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
EXC. FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
EXC. FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
434 03.613 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
434 03.613 BOLT; BRKT
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ● ●
542 03.704 BRACKET
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98047-896-0 01 1 1509- ● ●
542 03.704 BRACKET
(A) 		8-98236-437-2 01 1 1506-1508 ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98236-437-2 01 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) 		8-98084-595-4 01 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98227-899-3 01 1 1506-1508 ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98227-899-3 01 1 1509- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98004-329-0 01 1 1509- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98004-330-0 01 1 1509- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98002-572-4 01 1 1509- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
03.337 (A) 		8-98031-605-1 01 1 1506-1508 ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.337 (A) 		8-98031-605-1 01 1 1509- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98186-762-1 01 1 1506-1508 ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98186-762-1 01 1 1509- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) 		8-97359-985-2 01 1 1506-1508 ●
564 01.150 SENSOR; PRESSURE,DPD 8-97359-985-2 01 1 1509- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 		8-98029-348-0 01 1 1509- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-348-0 01 1 1509- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) 		8-98029-347-0 01 1 1506-1508 ●
565 03.706 BRACKET; SENSOR,PRESSURE
WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 		8-98029-347-0 01 1 1509- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1509- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98029-347-0 01 1 1509- ● ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1506-1508 ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ●
566 03.706 BOLT; SENSOR
02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1506-1508 ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1509- ● ●
çizim 492346
167 137 104 95 125 97 126 70 143 94 81 144 137 38 84 363 554 84
BalonParca AdiParca NoAdetTipApplied Date A B
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
81 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,S INGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
(A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
84 03.611 GASKET; EXH PIPE
WHEEL BASE 3300MM(33W) (A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) ID=65 		8-97148-757-1 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1506-1508 ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
95 03.708 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
97 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1506-1508 ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
125 03.708 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 1506-1508 ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (G) 		8-98254-812-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98072-128-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98072-129-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98140-855-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-98228-989-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 2400MM(24W) (A) 		8-98228-990-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W) (B) 		8-98228-991-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98228-991-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98228-991-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (L) 		8-98001-896-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (M) 		8-98001-908-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (F) 		8-98001-903-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (I) 		8-98229-008-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98001-895-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (D) 		8-98229-009-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (A) 		8-98001-897-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98229-010-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98229-010-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98229-010-1 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 02 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 03 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 03 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
167 03.706 HANGER; EXH PIPE
03.704 		8-97080-694-0 01 1 1506-1508 ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.704 		8-97080-694-0 01 1 1509- ● ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.704 		8-97080-694-0 01 1 1509- ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
363 03.704 NUT; EXH PIPE TO PIPE
WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
363 03.704 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
554 03.705 PIPE; EXH,SILENCER
WHEEL BASE 3300MM(33W) 		8-98228-987-1 01 1 1506-1508 ●
554 03.705 PIPE; EXH,SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98228-987-1 01 1 1509- ● ●
çizim 492357
124 166 94 162 104 164 88 357 105 125 97 88 165 137 126 38 94 143 144 81 137 70 95
BalonParca AdiParca NoAdetTipApplied Date A B
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
81 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,S INGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97373-158-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1506-1508 ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
95 03.708 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
97 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1506-1508 ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
105 03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
105 03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
125 03.708 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 1506-1508 ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (G) 		8-98254-812-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98072-128-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98072-129-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98140-855-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-98228-989-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 2400MM(24W) (A) 		8-98228-990-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W) (B) 		8-98228-991-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98228-991-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98228-991-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (L) 		8-98001-896-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (M) 		8-98001-908-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (F) 		8-98001-903-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (I) 		8-98229-008-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98001-895-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (D) 		8-98229-009-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (A) 		8-98001-897-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98229-010-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98229-010-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98229-010-1 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 02 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 03 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 03 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (C) 		8-98032-150-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C) 		8-98032-150-0 01 1 1509- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (D) L=115 		8-98032-151-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=115 		8-98034-765-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=115 		8-98034-765-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98032-149-0 01 1 1509- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) L=23 		8-98006-011-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) L=23 		8-98006-011-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=37.5 		9-22151-217-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=37.5 		9-22151-217-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
çizim 492359
165 95 137 104 94 164 162 166 124 88 357 105 126 125 70 137 81 144 143 36 84 3 38 94 97
BalonParca AdiParca NoAdetTipApplied Date A B
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98214-259-0 01 1 1509- ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98014-286-1 01 1 1509- ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98005-237-0 01 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) (A) M10 FLANGE 		8-97096-192-1 03 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (A) M10 FLANGE 		8-97096-192-1 03 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1509- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 02 1 1506-1508 ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) M10 FLANGE 		8-97096-192-1 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
81 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,S INGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
(A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
84 03.611 GASKET; EXH PIPE
WHEEL BASE 3300MM(33W) (A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) ID=65 		8-97148-757-1 01 1 1509- ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97373-158-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1506-1508 ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
95 03.708 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
97 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1506-1508 ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
105 03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
105 03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
125 03.708 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 1506-1508 ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (G) 		8-98254-812-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98072-128-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98072-129-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98140-855-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-98228-989-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 2400MM(24W) (A) 		8-98228-990-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W) (B) 		8-98228-991-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98228-991-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98228-991-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (L) 		8-98001-896-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (M) 		8-98001-908-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (F) 		8-98001-903-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (I) 		8-98229-008-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98001-895-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (D) 		8-98229-009-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (A) 		8-98001-897-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98229-010-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98229-010-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98229-010-1 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 02 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 03 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 03 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (C) 		8-98032-150-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C) 		8-98032-150-0 01 1 1509- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (D) L=115 		8-98032-151-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=115 		8-98034-765-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=115 		8-98034-765-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98032-149-0 01 1 1509- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) L=23 		8-98006-011-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) L=23 		8-98006-011-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=37.5 		9-22151-217-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=37.5 		9-22151-217-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
çizim 492362
589 580 589 467 589 467 467 557 556 80 559 560 558 589 560 589 589 534 547 547 534 547 561 561 547 272 582 272 582 272
BalonParca AdiParca NoAdetTipApplied Date A B
272 03.685 NUT; FLANGE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1509- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB) M6X16 		8-98019-179-0 14 1 1509- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE 		0-28650-635-0 02 1 1509- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) 		8-98242-134-0 01 1 1506-1508 ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98242-134-0 01 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (A) 		8-97381-635-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97381-636-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 02 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) (A) 		8-97381-635-0 01 1 1506-1508 ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97381-635-0 01 1 1509- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) (B) 		8-97381-636-0 01 1 1506-1508 ●
547 03.682 CLIP; PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-97381-636-0 01 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) 		8-98084-595-4 01 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98227-899-3 01 1 1506-1508 ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98227-899-3 01 1 1509- ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98036-815-7 01 1 1509- ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98032-908-2 01 1 1509- ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) 		8-98233-618-1 01 1 1506-1508 ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98233-618-1 01 1 1509- ● ●
559 03.602 COVER; RR
4JJ1-TCS ENG(LFB) 		8-98093-507-0 01 1 1509- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (B) 		8-97331-947-0 02 1 1509- ● ●
560 03.611 GASKET; DPD
(A) ID=64 		8-97373-108-0 01 1 1506-1508 ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=64 		8-97373-108-0 01 1 1509- ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=64 		8-97373-108-0 01 1 1509- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98084-600-0 01 1 1509- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98084-601-0 01 1 1509- ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (A) 		8-98233-520-1 01 1 1506-1508 ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98233-520-1 01 1 1509- ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (B) 		8-98233-521-1 01 1 1506-1508 ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98233-521-1 01 1 1509- ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 01.060 M8X35 FLANGE 		0-28650-835-0 16 1 1509- ● ●
582 03.706 BRACKET; PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98032-919-0 01 1 1509- ● ●
582 03.706 BRACKET; PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98032-920-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (C) 		8-97383-660-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-97383-663-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-921-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-923-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (D) 		8-98032-924-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-98032-926-0 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (A) 		8-98233-517-1 01 1 1506-1508 ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98233-517-1 01 1 1509- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (B) 		8-98233-518-0 01 1 1506-1508 ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98233-518-0 01 1 1509- ● ●
çizim 492365
434 542 182 272 182 434 565 566 564 556 563 563
BalonParca AdiParca NoAdetTipApplied Date A B
182 03.682 CLIP; HARNESS
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (C) L=112 		8-94232-618-0 01 1 1509- ● ●
182 03.682 CLIP; HARNESS
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 		8-98002-767-0 01 1 1509- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) (B) ID=7 L=7.5 		8-97369-561-0 01 1 1506-1508 ●
182 03.682 CLIP; HARNESS
EXC. FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> (B) ID=7 L=7.5 		8-97369-561-0 01 1 1509- ● ●
182 03.682 CLIP; HARNESS
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. CATALYSIS CONTROL(6MZ) (B) ID=7 L=7.5 		8-97369-561-0 01 1 1509- ● ●
182 03.682 CLIP; HARNESS
(A) ID=7 		8-98002-767-0 03 1 1506-1508 ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=7 		8-98002-767-0 03 1 1509- ● ●
272 03.685 NUT; FLANGE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1509- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
434 03.613 BOLT; BRKT
WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. CATALYSIS CONTROL(6MZ) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
EXC. FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
EXC. FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
434 03.613 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
434 03.613 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
434 03.613 BOLT; BRKT
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ● ●
542 03.704 BRACKET
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98047-896-0 01 1 1509- ● ●
542 03.704 BRACKET
(A) 		8-98236-437-2 01 1 1506-1508 ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98236-437-2 01 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) 		8-98084-595-4 01 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98227-899-3 01 1 1506-1508 ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98227-899-3 01 1 1509- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98004-329-0 01 1 1509- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98004-330-0 01 1 1509- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98002-572-4 01 1 1509- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
03.337 (A) 		8-98031-605-1 01 1 1506-1508 ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.337 (A) 		8-98031-605-1 01 1 1509- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98186-762-1 01 1 1506-1508 ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98186-762-1 01 1 1509- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) 		8-97359-985-2 01 1 1506-1508 ●
564 01.150 SENSOR; PRESSURE,DPD 8-97359-985-2 01 1 1509- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 		8-98029-348-0 01 1 1509- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-348-0 01 1 1509- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) 		8-98029-347-0 01 1 1506-1508 ●
565 03.706 BRACKET; SENSOR,PRESSURE
WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 		8-98029-347-0 01 1 1509- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1509- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98029-347-0 01 1 1509- ● ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1506-1508 ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ●
566 03.706 BOLT; SENSOR
02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1506-1508 ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1509- ● ●
çizim 493076
36 25 568 329 25 43 17 46 223 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (B) 		8-98026-060-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98075-966-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98292-703-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
EXC. CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98292-704-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
(A) 		8-98228-986-1 01 1 1506-1508 ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-986-1 01 1 1509- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) (B) 		8-97384-590-0 01 1 1509- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B) 		8-97384-590-0 01 1 1509- ● ●
2 03.611 GASKET; PIPE TO MANIF
(A) 		8-98228-985-0 01 1 1506-1508 ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-985-0 01 1 1509- ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) (A) 		8-98026-061-2 01 1 1509- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98292-540-0 01 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) (A) M10 FLANGE 		8-97096-192-1 03 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (A) M10 FLANGE 		8-97096-192-1 03 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1509- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 02 1 1506-1508 ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) M10 FLANGE 		8-97096-192-1 02 1 1509- ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1506-1508 ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1509- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1506-1508 ●
46 03.704 BOLT; BRKT,EXH PIPE
02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1509- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SINGLE RR TI RE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
223 03.706 BRACKET; EXH PIPE
03.613 		8-98026-063-0 01 1 1506-1508 ●
223 03.706 BRACKET; EXH PIPE
03.613 		8-98026-063-0 01 1 1509- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
568 03.704 NUT; DPD
01.062 M8 FLANGE 		0-91180-108-0 04 1 1506-1508 ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
568 03.704 NUT; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
çizim 493224
118 115 117 579 352 115 352 113 376 577 143 532 352 118 115 117 376 376 579 113 172 577 118 376 117 115 44 115 385 532 385 12 14 578 113 115 337 352 576 556 34 1 12 562 562 560 352
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (B) 		8-98026-060-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98075-966-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98292-703-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
EXC. CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98292-704-0 01 1 1509- ● ●
1 03.609 PIPE; EXH
(A) 		8-98228-986-1 01 1 1506-1508 ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-986-1 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-98254-790-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98254-781-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-98254-791-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98254-784-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E) 		8-98299-158-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98273-275-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
WHEEL BASE 2400MM(24W) (A) 		8-98228-994-1 01 1 1506-1508 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98228-994-1 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
WHEEL BASE 3300MM(33W) (B) 		8-98228-995-1 01 1 1506-1508 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98228-995-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.611 (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.611 (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
03.611 (A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.611 (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
34 03.613 WASHER; EXH PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 03.632 T=1.9 		5-09500-012-0 04 1 1509- ● ●
44 03.613 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1509- ●
44 03.613 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1509- ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.706 L=37.5 		9-22151-217-0 02 1 1509- ●
113 03.704 COLLAR; DIST,MTG BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 03.706 L=37.5 		9-22151-217-0 02 1 1509- ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-94457-277-1 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) (A) 		8-94457-277-1 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
(A) 		8-94457-277-1 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-94457-278-1 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) (B) 		8-94457-278-1 02 1 1509- ●
115 03.704 RUBBER; MTG,SILENCER
(B) 		8-94457-278-1 02 1 1509- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
EXC. CATALYSIS CONTROL WITH DPD(8JM) OD=55 		9-09852-169-0 02 1 1509- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) OD=55 		9-09852-169-0 02 1 1509- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 1509- ●
118 03.704 NUT; SILENCER MTG BRKT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE 		5-09440-006-0 02 1 1509- ●
118 03.704 NUT; SILENCER MTG BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 07.874 M10 FLANGE 		5-09440-006-0 02 1 1509- ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 02 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 03 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 03 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
172 03.708 BOLT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M6X35 FLANGE 		0-28650-635-0 02 1 1509- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL(6MZ) 03.895 M10X40 FLANGE 		8-98124-451-2 02 1 1509- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
337 03.706 BOLT; RUBBER,SUPPORT
CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
352 03.613 NUT; BRKT
EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
352 03.613 NUT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
352 03.613 NUT; BRKT
POOR QUALITY DIESEL FUEL(KF0) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL(6MZ) EXC. TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 03.895 (A) M10X40 FLANGE 		8-98124-451-2 01 1 1509- ● ●
376 03.708 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 03.890 (A) M10X30 FLANGE 		0-28051-030-0 02 1 1509- ●
376 03.708 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 03.890 (A) M10X30 FLANGE 		0-28051-030-0 02 1 1509- ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11), IDENTIFICATIONLABEL FOR KD<6UT> 03.690 (B) 		8-98005-985-0 01 1 1509- ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B) 		8-98005-985-0 01 1 1509- ●
376 03.708 BOLT; BRKT
CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 1509- ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98051-655-0 01 1 1509- ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98001-889-1 01 1 1509- ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) 		8-98084-595-4 01 1 1509- ● ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98227-899-3 01 1 1506-1508 ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98227-899-3 01 1 1509- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (B) 		8-97331-947-0 02 1 1509- ● ●
560 03.611 GASKET; DPD
(A) ID=64 		8-97373-108-0 01 1 1506-1508 ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=64 		8-97373-108-0 01 1 1509- ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=64 		8-97373-108-0 01 1 1509- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97373-966-0 02 1 1509- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (A) M8X35 FLANGE 		0-28050-835-0 04 1 1506-1508 ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) M8X35 FLANGE 		0-28050-835-0 04 1 1509- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (A) M8X35 FLANGE 		0-28050-835-0 04 1 1509- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98001-862-0 01 1 1509- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B) 		8-98292-541-0 01 1 1509- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) 		8-98001-880-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98001-880-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98001-875-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98001-875-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) (D) 		8-98107-264-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL(6MZ) EXC. SINGLE RR TIRE(6TD) (C) 		8-98107-265-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL(6MZ) (C) 		8-98107-265-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SINGLE RR TIRE(6TD) (E) 		8-98107-266-0 01 1 1509- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (E) 		8-98107-266-0 01 1 1509- ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98001-873-1 01 1 1509- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A) 		8-98228-997-1 01 1 1506-1508 ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-997-1 01 1 1509- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (E) 		8-98001-883-1 01 1 1509- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98001-883-1 01 1 1509- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (F) 		8-98001-877-0 01 1 1509- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98001-877-0 01 1 1509- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> (A) 		8-98232-080-2 01 1 1506-1508 ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98232-080-2 01 1 1509- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98232-080-2 01 1 1509- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (B) 		8-98232-084-1 01 1 1506-1508 ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98232-084-1 01 1 1509- ● ●
579 03.704 BRACKET; DPD RR
(C) 		8-98228-999-1 01 1 1506-1508 ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98228-999-1 01 1 1509- ● ●
579 03.704 BRACKET; DPD RR
(D) 		8-98229-000-1 01 1 1506-1508 ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) 		8-98229-000-1 01 1 1509- ● ●
çizim 493338
105 104 137 164 165 166 162 94 124 95 357 88 125 97 88 126 70 81 144 137 143 94 38 104 95 165 137 124 162 164 166 124 165 125 97 143 144 70 137 94 126 36 84 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98214-259-0 01 1 1509- ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98014-286-1 01 1 1509- ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98005-237-0 01 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) (A) M10 FLANGE 		8-97096-192-1 03 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (A) M10 FLANGE 		8-97096-192-1 03 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1509- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 02 1 1506-1508 ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) M10 FLANGE 		8-97096-192-1 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509- ● ●
38 00.002 NUT; SILENCER
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
81 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,S INGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
81 03.704 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B) ID=64 		8-97373-108-0 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
(A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
84 03.611 GASKET; EXH PIPE
WHEEL BASE 3300MM(33W) (A) ID=65 		8-97148-757-1 01 1 1506-1508 ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=65 		8-97148-757-1 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) ID=65 		8-97148-757-1 01 1 1509- ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97373-158-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1506-1508 ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1509- ●
95 03.708 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
97 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1506-1508 ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
104 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1508 ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
105 03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
105 03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
125 03.708 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 1506-1508 ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10 		0-91110-510-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (G) 		8-98254-812-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98072-128-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98072-129-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98140-855-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) FUEL TANK 75L<7GX> (D) 		8-98120-471-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-98228-989-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98273-274-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL TANK 100L<N02> CATALYSIS CONTROL(6MZ) (F) 		8-98120-472-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 2400MM(24W) (A) 		8-98228-990-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98228-990-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W) (B) 		8-98228-991-1 01 1 1506-1508 ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98228-991-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98228-991-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (L) 		8-98001-896-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (M) 		8-98001-908-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (H) 		8-98038-762-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-98001-913-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (F) 		8-98001-903-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98001-893-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (G) 		8-98075-678-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (I) 		8-98229-008-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (K) 		8-98075-674-0 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (J) 		8-98075-675-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98001-895-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98001-895-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W) (D) 		8-98229-009-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) 		8-98229-009-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (A) 		8-98001-897-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98001-897-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98229-010-1 01 1 1506-1508 ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98229-010-1 01 1 1509- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98229-010-1 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 02 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 02 1 1509- ●
143 03.704 RUBBER; SUPPORT
(A) 		8-97080-694-0 03 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-97080-694-0 03 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1506-1508 ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-98034-767-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (C) 		8-98032-150-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C) 		8-98032-150-0 01 1 1509- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (D) L=115 		8-98032-151-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=115 		8-98034-765-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=115 		8-98034-765-0 01 1 1509- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98032-149-0 01 1 1509- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) L=23 		8-98006-011-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) L=23 		8-98006-011-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=37.5 		9-22151-217-0 01 1 1509- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B) L=37.5 		9-22151-217-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1509- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1509- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE 		8-98213-301-0 04 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
