1-35 — CHARGE AIR COOLER (#162175) — 15 parça

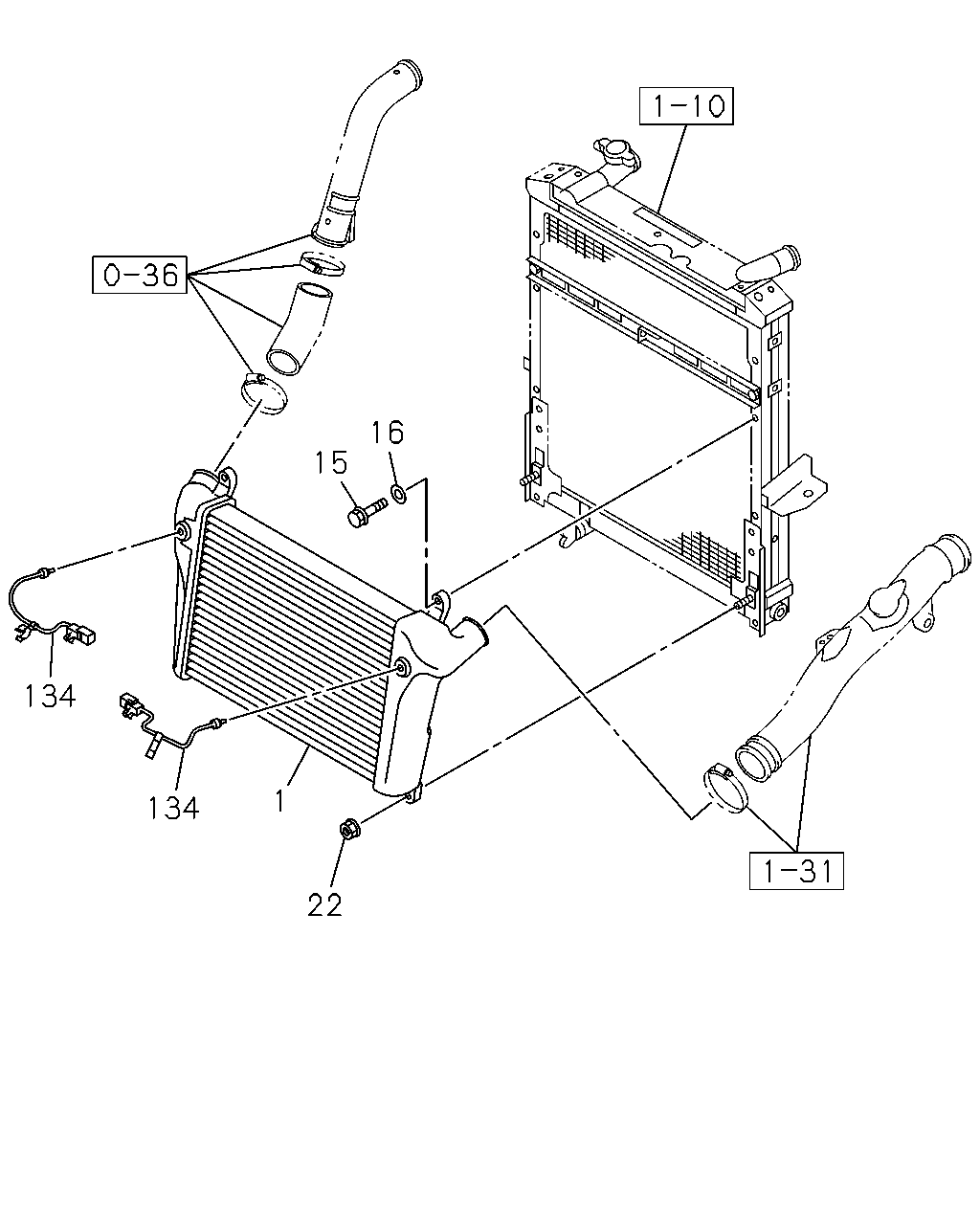

çizim 479970
16 15 1 22 134 134
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.374 COOLER; CHARGE AIR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) 		8-98094-527-1 01 1 1509- ● ●
1 03.374 COOLER; CHARGE AIR
4JJ1-TCS ENG(LFB) 		8-98094-527-1 01 1 1509- ● ●
1 03.374 COOLER; CHARGE AIR 8-98149-840-1 01 1 1506-1508 ●
1 03.374 COOLER; CHARGE AIR
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) 		8-98149-840-1 01 1 1509- ● ●
15 03.374 BOLT; CHARGE AIR COOLER
03.275 M8X25 FLANGE 		0-28050-825-0 02 1 1506-1508 ●
15 03.374 BOLT; CHARGE AIR COOLER
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.275 M8X25 FLANGE 		0-28050-825-0 02 1 1509- ● ●
15 03.374 BOLT; CHARGE AIR COOLER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.275 M8X25 FLANGE 		0-28050-825-0 02 1 1509- ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
03.417 ID=8.4 OD=16 		0-91610-508-0 02 1 1506-1508 ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.417 ID=8.4 OD=16 		0-91610-508-0 02 1 1509- ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.417 ID=8.4 OD=16 		0-91610-508-0 02 1 1509- ● ●
22 03.374 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ●
22 03.374 NUT
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
22 03.374 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
134 03.682 SENSOR; INTAKE,AIR TEMPERATURE 8-98244-851-0 01 1 1506-1508 ●
134 03.682 SENSOR; INTAKE,AIR TEMPERATURE
4JJ1-TCC ENG(RDU) TURKEY EQUIPMENT(B11) 		8-98244-851-0 01 1 1509- ●
