Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#162174) — 240 parça

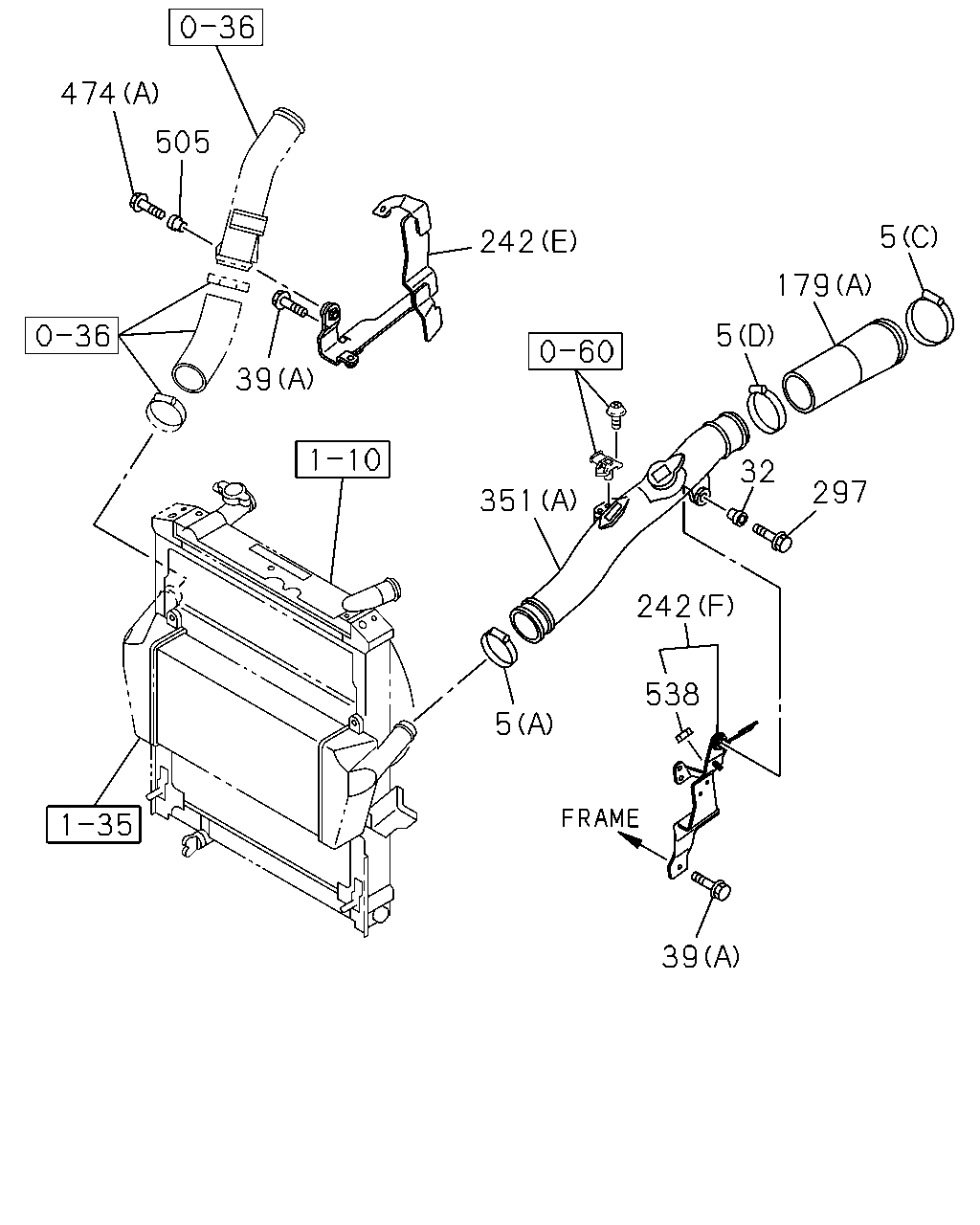

474 505 39 242 351 5 538 242 32 297 5 179 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICATI ON LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICATI ON LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICATI ON LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=45-65	8-98133-348-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) ID=55-75	8-98133-349-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	1506-1508	●
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	1509-	●	●
39	03.417 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1509-	●	●
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1506-1508	●
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1509-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB) (B)	8-98050-920-2	01	1	1509-	●	●
179	03.417 HOSE; AIR INT (A)	8-98111-374-1	01	1	1506-1508	●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU) (A)	8-98111-374-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (G)	8-98079-905-2	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (G)	8-98079-905-2	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (H)	8-98108-313-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (C)	8-98067-765-1	01	1	1509-	●
242	03.417 BRACKET; AIR DUCT EXC. RUSSIA EQUIPMENT(B12) (C)	8-98067-765-1	01	1	1509-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98194-755-2	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98194-755-2	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98205-756-0	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (C)	8-98242-327-0	01	1	1509-	●
242	03.417 BRACKET; AIR DUCT RUSSIA EQUIPMENT(B12) (C)	8-98242-327-0	01	1	1509-		●
297	03.417 BOLT; DUCT 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1506-1508	●
297	03.417 BOLT; DUCT 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1509-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	1506-1508	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	1509-	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1506-1508	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1509-	●	●
474	03.417 BOLT; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) M6X70 FLANGE	0-28050-670-0	02	1	1509-	●	●
474	03.417 BOLT; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
474	03.417 BOLT; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1509-	●	●
474	03.417 BOLT; PIPE 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1506-1508	●
474	03.417 BOLT; PIPE 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1509-	●	●
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	1506-1508	●
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	1509-	●	●
538	03.417 NUT; PLATE,AIR DUCT 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●	●
538	03.417 NUT; PLATE,AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
538	03.417 NUT; PLATE,AIR DUCT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●

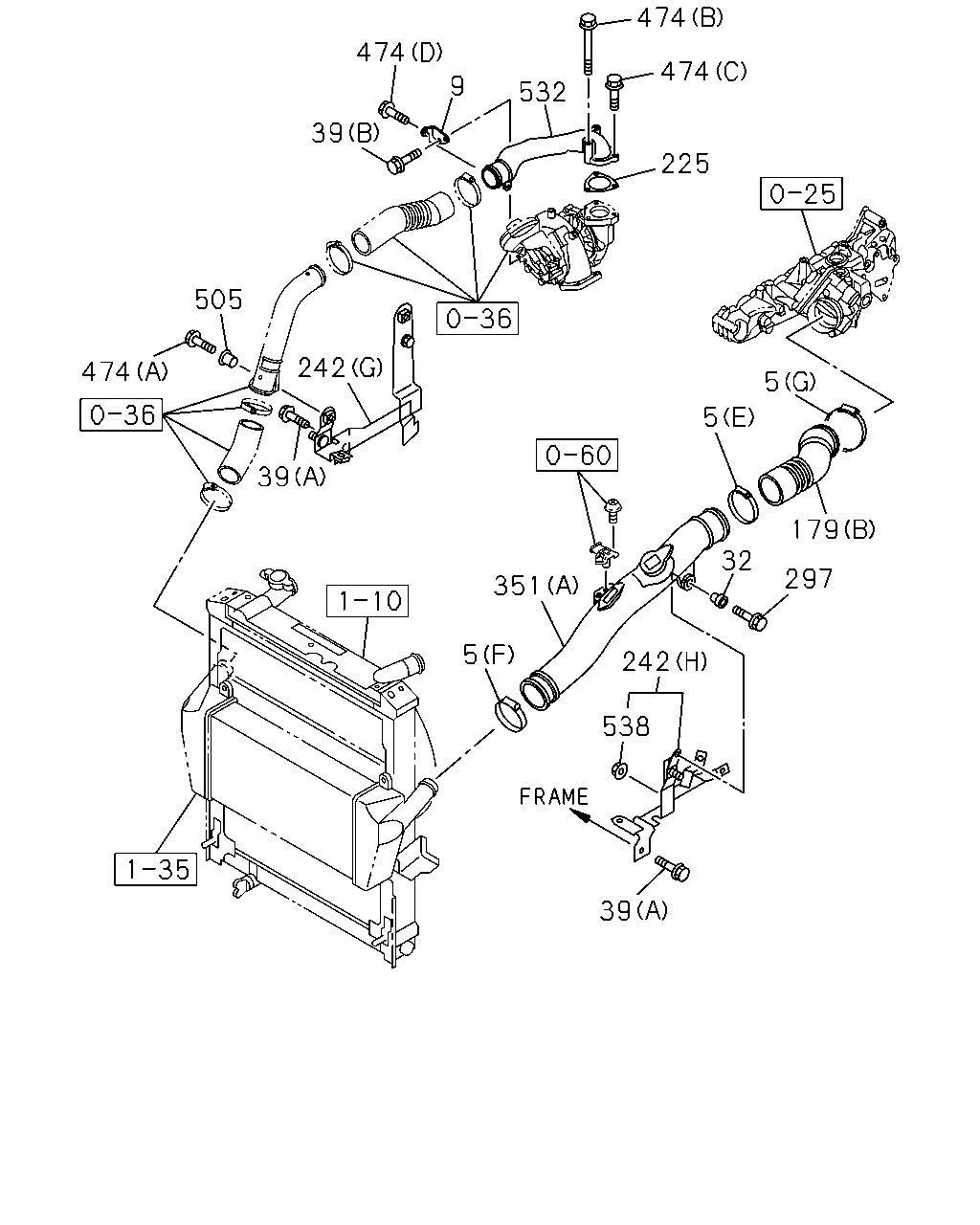

474 474 474 532 9 39 225 5 5 179 297 32 242 538 39 5 351 242 505 39 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICATI ON LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICATI ON LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICATI ON LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=45-65	8-98133-348-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) ID=55-75	8-98133-349-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
9	03.417 BRACKET; INT PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98009-086-0	01	1	1509-	●	●
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	1506-1508	●
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	1509-	●	●
39	03.417 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1509-	●	●
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1506-1508	●
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1509-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB) (B)	8-98050-920-2	01	1	1509-	●	●
179	03.417 HOSE; AIR INT (A)	8-98111-374-1	01	1	1506-1508	●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU) (A)	8-98111-374-1	01	1	1509-	●	●
225	03.417 GASKET; AIR PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.270 ID=47	8-97202-328-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (G)	8-98079-905-2	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (G)	8-98079-905-2	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (H)	8-98108-313-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (C)	8-98067-765-1	01	1	1509-	●
242	03.417 BRACKET; AIR DUCT EXC. RUSSIA EQUIPMENT(B12) (C)	8-98067-765-1	01	1	1509-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98194-755-2	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98194-755-2	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98205-756-0	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (C)	8-98242-327-0	01	1	1509-	●
242	03.417 BRACKET; AIR DUCT RUSSIA EQUIPMENT(B12) (C)	8-98242-327-0	01	1	1509-		●
297	03.417 BOLT; DUCT 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1506-1508	●
297	03.417 BOLT; DUCT 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1509-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	1506-1508	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	1509-	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1506-1508	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1509-	●	●
474	03.417 BOLT; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) M6X70 FLANGE	0-28050-670-0	02	1	1509-	●	●
474	03.417 BOLT; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
474	03.417 BOLT; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1509-	●	●
474	03.417 BOLT; PIPE 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1506-1508	●
474	03.417 BOLT; PIPE 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1509-	●	●
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	1506-1508	●
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	1509-	●	●
532	03.417 PIPE; INTAKE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98237-771-1	01	1	1509-	●	●
538	03.417 NUT; PLATE,AIR DUCT 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●	●
538	03.417 NUT; PLATE,AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
538	03.417 NUT; PLATE,AIR DUCT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●

287 557 562 248 228 228 248 379 175 287 562 174 175 379 248 228 248 174 175 287 232 287 242 26 5 35 40 409 61 426 351 389 242 64 381 389 389 381 381 242 242 232 381 381 314 281 317 314 317 314 317 287 232 287 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICATI ON LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICATI ON LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICATI ON LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=45-65	8-98133-348-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D) ID=55-75	8-98133-349-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	1506-1508	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
26	03.417 DUCT; AIR INT	8-98023-339-0	01	1	1506-1508	●
26	03.417 DUCT; AIR INT	8-98023-339-0	01	1	1509-	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1506-1508	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1509-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-1508	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1506-1508	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1509-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1506-1508	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1509-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1506-1508	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1509-	●	●
228	03.278 CLIP; PCV HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1509-	●	●
228	03.278 CLIP; PCV HOSE CATALYSIS CONTROL(6MZ) (B) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1509-	●	●
228	03.278 CLIP; PCV HOSE (A) ID=22 L=22	8-98120-916-0	01	1	1506-1508	●
228	03.278 CLIP; PCV HOSE TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=22 L=22	8-98120-916-0	01	1	1509-	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98282-483-0	01	1	1509-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (C)	8-98282-483-0	01	1	1509-	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98290-770-0	01	1	1509-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL(6MZ) (B)	8-98298-710-1	01	1	1509-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (A)	8-98241-971-0	01	1	1506-1508	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) TURKEY EQUIPMENT(B11) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98241-971-0	01	1	1509-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (G)	8-98079-905-2	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (G)	8-98079-905-2	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (H)	8-98108-313-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (C)	8-98067-765-1	01	1	1509-	●
242	03.417 BRACKET; AIR DUCT EXC. RUSSIA EQUIPMENT(B12) (C)	8-98067-765-1	01	1	1509-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98194-755-2	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98194-755-2	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98205-756-0	01	1	1509-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1506-1508	●
242	03.417 BRACKET; AIR DUCT TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (C)	8-98242-327-0	01	1	1509-	●
242	03.417 BRACKET; AIR DUCT RUSSIA EQUIPMENT(B12) (C)	8-98242-327-0	01	1	1509-		●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1506-1508	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1509-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	1506-1508	●
281	03.417 DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	1509-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1509-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1509-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1509-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=58-79	1-09707-136-0	01	1	1509-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 03.407 (A) ID=55-75	8-98133-349-0	01	1	1506-1508	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	1509-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 03.407 (B) ID=117	9-09915-075-1	01	1	1506-1508	●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=117	9-09915-075-1	01	1	1509-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1506-1508	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1509-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1506-1508	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1509-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	1506-1508	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	1509-	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1506-1508	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1509-	●	●
379	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B)	8-98286-347-1	01	1	1509-	●	●
379	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98156-950-0	01	1	1509-	●	●
379	03.675 HOSE; RUBBER RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL(6MZ) (B)	8-98324-028-0	01	1	1509-	●	●
379	03.675 HOSE; RUBBER (A)	8-98205-932-2	01	1	1506-1508	●
379	03.675 HOSE; RUBBER TURKEY EQUIPMENT(B11) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98205-932-2	01	1	1509-	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1506-1508	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1509-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1506-1508	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1509-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1506-1508	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1509-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1506-1508	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1509-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-1508	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1509-	●	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	1506-1508	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	1509-	●	●
557	03.403 BOLT; HOSE CLIP TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1509-	●	●
557	03.403 BOLT; HOSE CLIP CATALYSIS CONTROL(6MZ) 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1509-	●	●
562	03.403 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1508	●
562	03.403 NUT; HOSE CLIP TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
