◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶

1-10 — RADIATOR (#162171) — 102 parça

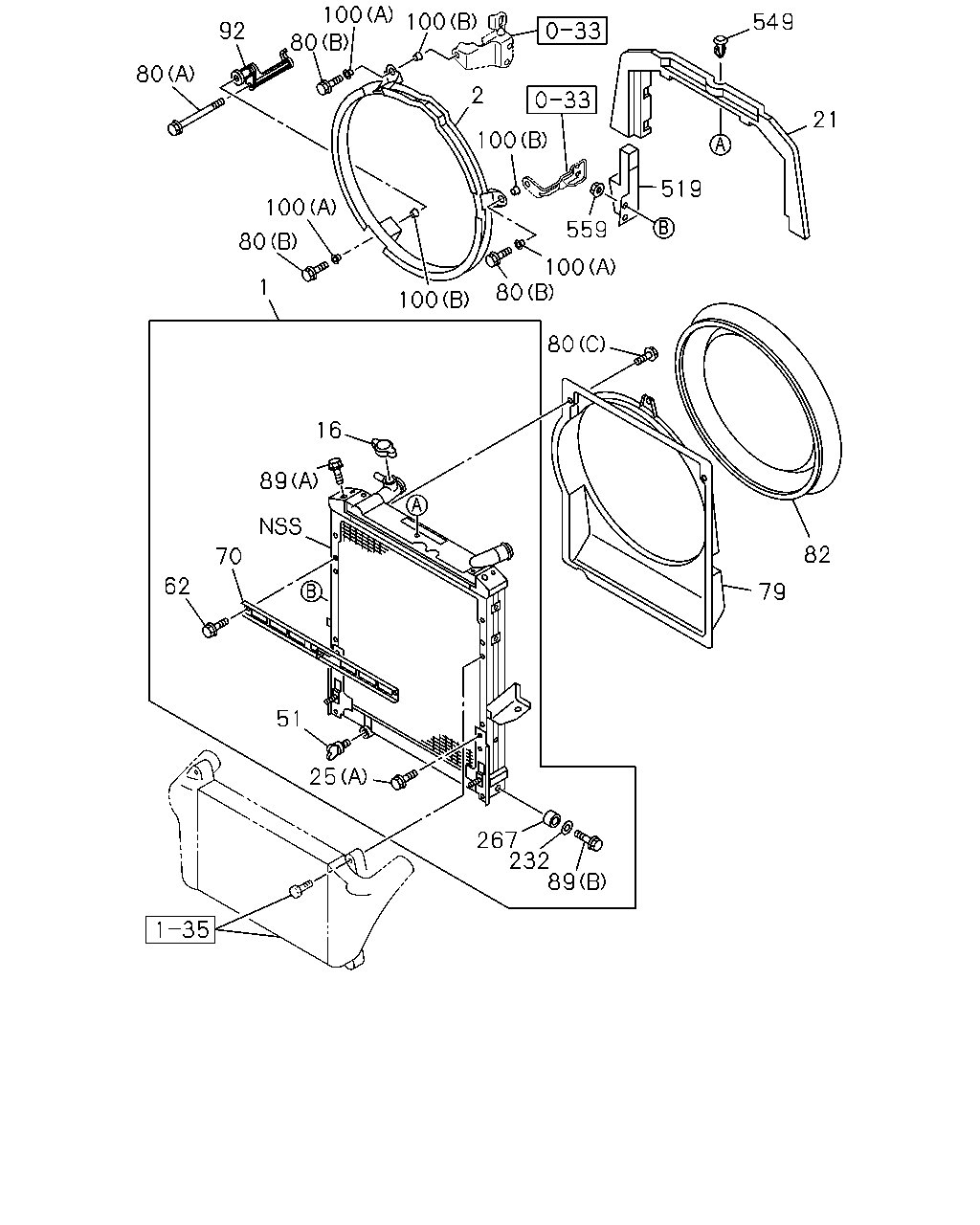

92 80 100 80 100 80 100 80 100 519 549 21 100 559 2 80 82 79 16 89 70 62 51 25 267 232 89 100 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98259-934-0	01	1	1509-	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98259-933-0	01	1	1509-	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98259-933-0	01	1	1509-	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98227-682-0	01	1	1509-	●	●
1	01.219 RADIATOR ASM	8-98231-893-0	01	1	1506-1508	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98231-893-0	01	1	1509-	●	●
2	01.277 GUIDE; FAN	8-98054-659-0	01	1	1506-1508	●
2	01.277 GUIDE; FAN	8-98054-659-0	01	1	1509-	●	●
16	01.203 CAP; RAD 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ)	8-97239-187-0	01	1	1509-	●	●
16	01.203 CAP; RAD 4JJ1-TCS ENG(LFB)	8-97239-187-0	01	1	1509-	●	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1506-1508	●
16	01.203 CAP; RAD 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD(8JM)	8-98096-226-0	01	1	1509-	●	●
21	01.276 SEAL; RAD 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ)	8-98234-995-0	01	1	1509-	●	●
21	01.276 SEAL; RAD	8-98000-816-0	01	1	1506-1508	●
21	01.276 SEAL; RAD CATALYSIS CONTROL WITH DPD(8JM)	8-98000-816-0	01	1	1509-	●	●
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1506-1508	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	01.271 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1506-1508	●
25	01.271 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1509-	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1509-		●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1506-1508	●
51	08.951 PLUG; DRAIN 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) W/GASKET	8-97171-437-0	01	1	1509-	●	●
51	08.951 PLUG; DRAIN TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) W/GASKET	8-97171-437-0	01	1	1509-	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●
62	01.271 BOLT; STAY 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1509-	●	●
62	01.271 BOLT; STAY TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1509-	●	●
70	01.271 STAY; RAD	8-98114-297-0	01	1	1506-1508	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98114-297-0	01	1	1509-	●	●
70	01.271 STAY; RAD TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98114-297-0	01	1	1509-	●	●
79	01.277 GUIDE; FAN,RAD	8-98234-712-0	01	1	1506-1508	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98234-712-0	01	1	1509-	●	●
79	01.277 GUIDE; FAN,RAD TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98234-712-0	01	1	1509-	●	●
80	01.277 BOLT; FAN GUIDE 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1506-1508	●
80	01.277 BOLT; FAN GUIDE 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1509-	●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1506-1508	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1509-	●	●
80	01.277 BOLT; FAN GUIDE (C) M6X12	8-98039-672-0	04	1	1506-1508	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M6X12	8-98039-672-0	04	1	1509-	●	●
80	01.277 BOLT; FAN GUIDE TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (C) M6X12	8-98039-672-0	04	1	1509-	●	●
82	01.277 COVER; FAN,RAD	8-97387-085-1	01	1	1506-1508	●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97387-085-1	01	1	1509-	●	●
82	01.277 COVER; FAN,RAD TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-97387-085-1	01	1	1509-	●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●	●
89	01.277 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1506-1508	●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-	●	●
89	01.277 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-	●	●
92	01.277 BRACKET; FAN GUIDE	8-98237-770-0	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE	8-98237-770-0	01	1	1509-	●	●
100	01.277 RUBBER; MTG (B) OD=32	8-94395-766-0	03	1	1506-1508	●
100	01.277 RUBBER; MTG (B) OD=32	8-94395-766-0	03	1	1509-	●	●
100	01.277 RUBBER; MTG (A) OD=32	8-98058-502-1	03	1	1506-1508	●
100	01.277 RUBBER; MTG (A) OD=32	8-98058-502-1	03	1	1509-	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	1506-1508	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98141-232-0	02	1	1509-	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98141-232-0	02	1	1509-	●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1506-1508	●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-21467-023-0	02	1	1509-	●	●
267	01.277 RUBBER; CUSHION TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	1-21467-023-0	02	1	1509-	●	●
519	01.276 SEAL; RAD SIDE 4JJ1-TCS ENG(LFB)	8-98038-591-0	01	1	1509-	●	●
549	03.438 CLIP; SEAL,RAD 01.276	8-97228-568-0	05	1	1506-1508	●
549	03.438 CLIP; SEAL,RAD 01.276	8-97228-568-0	05	1	1509-	●	●
559	01.276 NUT; RAD SIDE 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●	●

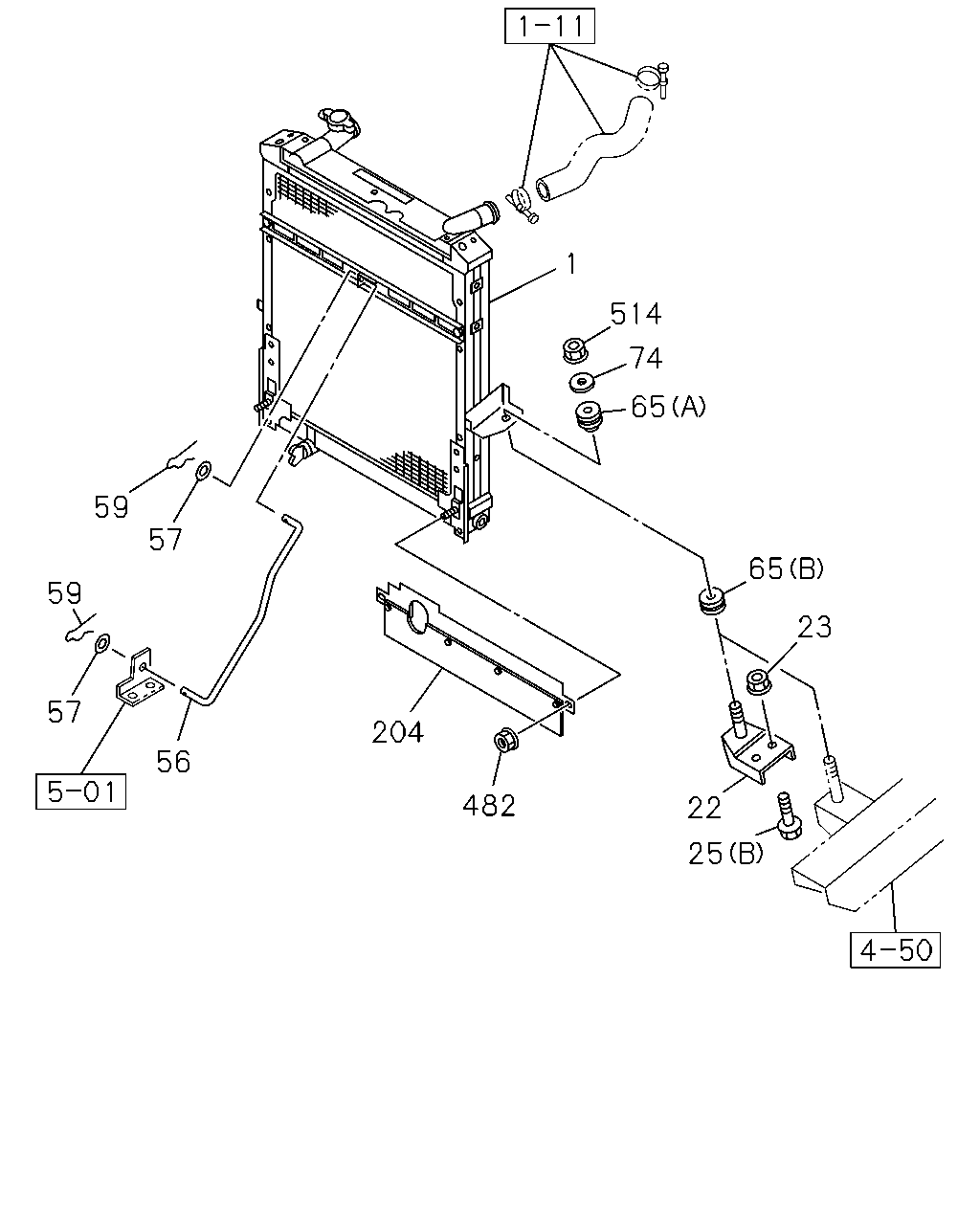

1 514 74 65 65 23 22 25 482 204 56 57 59 57 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98259-934-0	01	1	1509-	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98259-933-0	01	1	1509-	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98259-933-0	01	1	1509-	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98227-682-0	01	1	1509-	●	●
1	01.219 RADIATOR ASM	8-98231-893-0	01	1	1506-1508	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98231-893-0	01	1	1509-	●	●
22	01.270 BRACKET; RAD MTG	8-97383-951-0	01	1	1506-1508	●
22	01.270 BRACKET; RAD MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97383-951-0	01	1	1509-	●
22	01.270 BRACKET; RAD MTG	8-97383-951-0	01	1	1509-		●
22	01.270 BRACKET; RAD MTG	8-97383-952-0	01	1	1506-1508	●
22	01.270 BRACKET; RAD MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97383-952-0	01	1	1509-	●
22	01.270 BRACKET; RAD MTG	8-97383-952-0	01	1	1509-		●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-1508	●
23	01.271 NUT; RAD MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-		●
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1506-1508	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	01.271 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1506-1508	●
25	01.271 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1509-	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1509-		●
56	01.270 STAY; RAD	8-97383-947-1	01	1	1506-1508	●
56	01.270 STAY; RAD	8-97383-947-1	01	1	1509-	●	●
57	01.271 WASHER; PL,STAY 4JJ1-TCC ENG(RDU) 17.198 ID=10.5	0-91610-510-0	02	1	1506-1508	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1509-	●	●
59	01.271 PIN; SNAP,STAY 4JJ1-TCC ENG(RDU) L=32.6	8-97359-052-0	02	1	1506-1508	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1509-	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1506-1508	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1509-	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1506-1508	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1509-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1506-1508	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1509-	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB)	8-97383-928-1	01	1	1509-	●	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
