◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#162167) — 78 parça

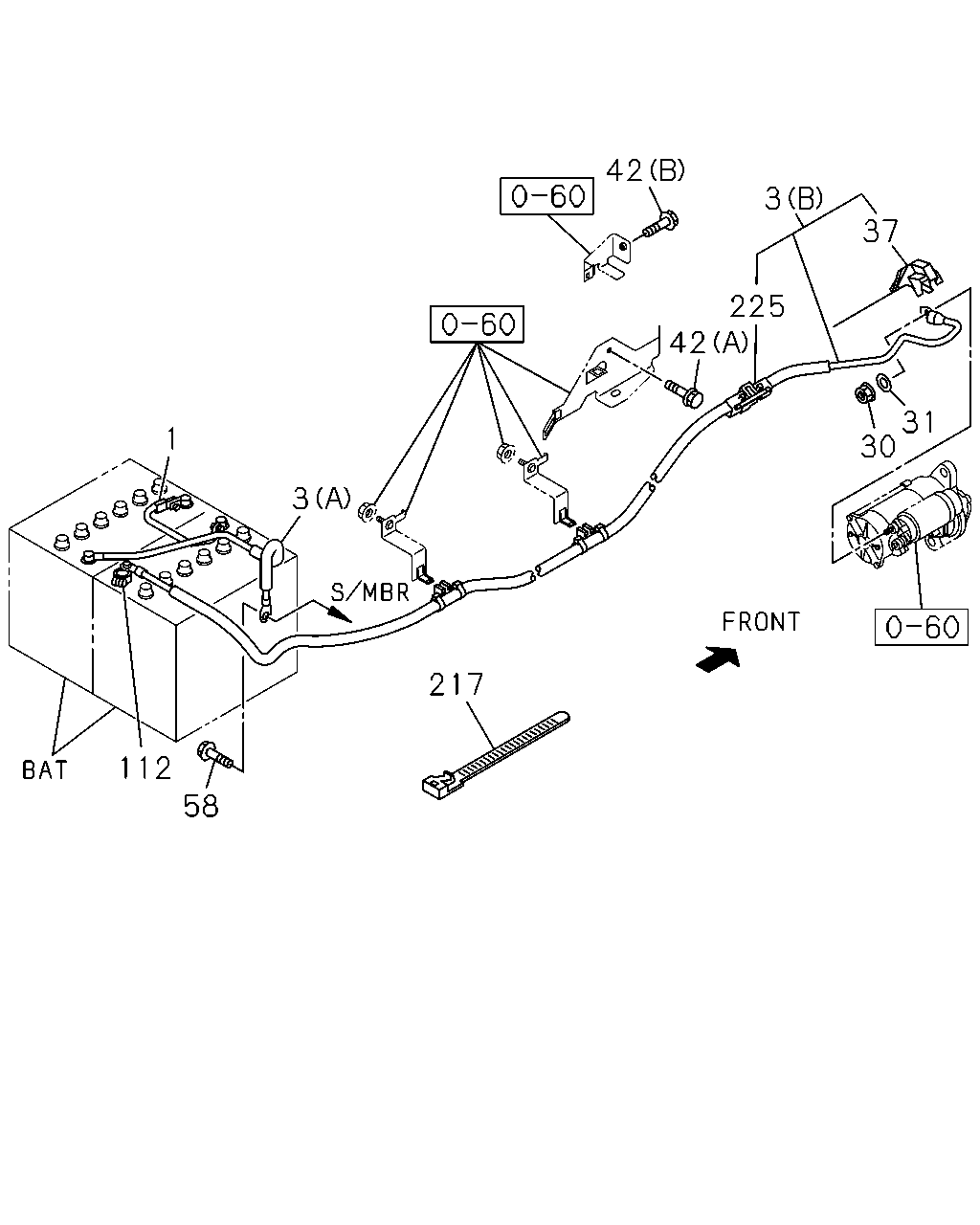

çizim 479938
42 42 225 3 37 31 30 217 58 112 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1506-1507 ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1508- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (B) 		8-98294-703-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98300-030-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98300-031-1 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR(NM***E) WHEEL BASE 2400MM(24W) (C) L=230 		8-98220-520-0 01 1 1506-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=230 		8-98220-520-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) L=230 		8-98220-520-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=230 		8-98220-520-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (C) L=230 		8-98220-520-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR(NM***E) WHEEL BASE 2400MM(24W) (D) 		8-98293-886-0 01 1 1506-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98293-886-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98293-886-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (D) 		8-98293-886-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR(NM***E) WHEEL BASE 3300MM(33W) (A) L=200 		8-98056-337-1 01 1 1506-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=200 		8-98056-337-1 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=200 		8-98056-337-1 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (A) L=200 		8-98056-337-1 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR(NM***E) WHEEL BASE 3300MM(33W) (B) 		8-98294-685-0 01 1 1506-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98294-685-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98294-685-0 01 1 1509- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1506-1508 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1509- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1506-1508 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1509- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1506- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR(NM***E) WHEEL BASE 2400MM(24W) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1506-1508 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1506-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1508- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1506-1507 ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1508- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1506-1508 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1509- ● ●
217 02.343 CLIP; BAND,CABLE
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140 		5-09707-031-1 01 1 1509- ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1506- ●

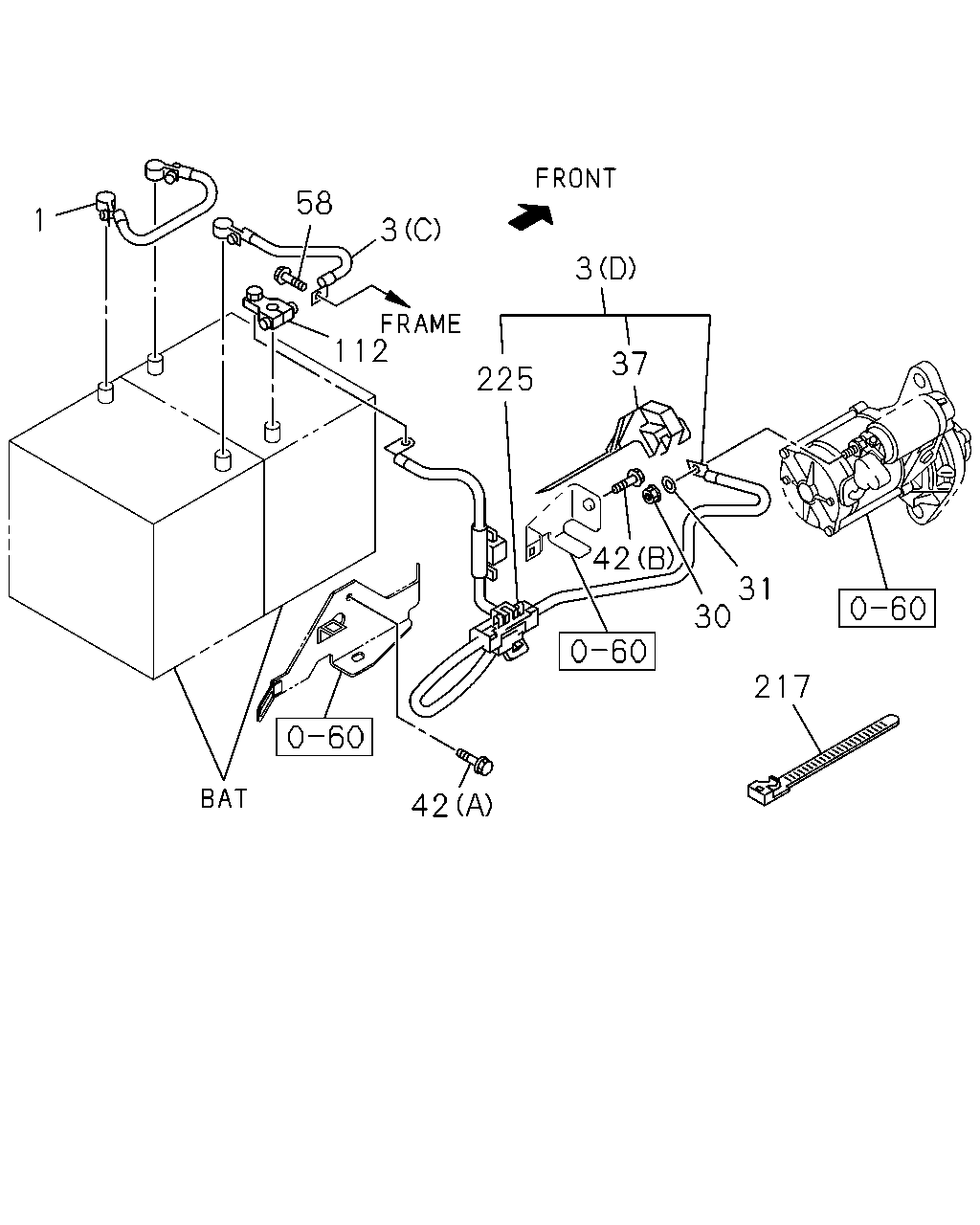

çizim 492202
1 58 112 225 37 3 31 30 217 42 3 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1506-1507 ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1508- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (B) 		8-98294-703-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98300-030-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98300-031-1 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR(NM***E) WHEEL BASE 2400MM(24W) (C) L=230 		8-98220-520-0 01 1 1506-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=230 		8-98220-520-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) L=230 		8-98220-520-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=230 		8-98220-520-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (C) L=230 		8-98220-520-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR(NM***E) WHEEL BASE 2400MM(24W) (D) 		8-98293-886-0 01 1 1506-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98293-886-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98293-886-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (D) 		8-98293-886-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR(NM***E) WHEEL BASE 3300MM(33W) (A) L=200 		8-98056-337-1 01 1 1506-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=200 		8-98056-337-1 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=200 		8-98056-337-1 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (A) L=200 		8-98056-337-1 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR(NM***E) WHEEL BASE 3300MM(33W) (B) 		8-98294-685-0 01 1 1506-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98294-685-0 01 1 1509- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98294-685-0 01 1 1509- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1506-1508 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1509- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1506-1508 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1509- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1506- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR(NM***E) WHEEL BASE 2400MM(24W) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1506-1508 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1506-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1508- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1506-1507 ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1508- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1506-1508 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1509- ● ●
217 02.343 CLIP; BAND,CABLE
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140 		5-09707-031-1 01 1 1509- ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1506- ●
