◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#162166) — 101 parça

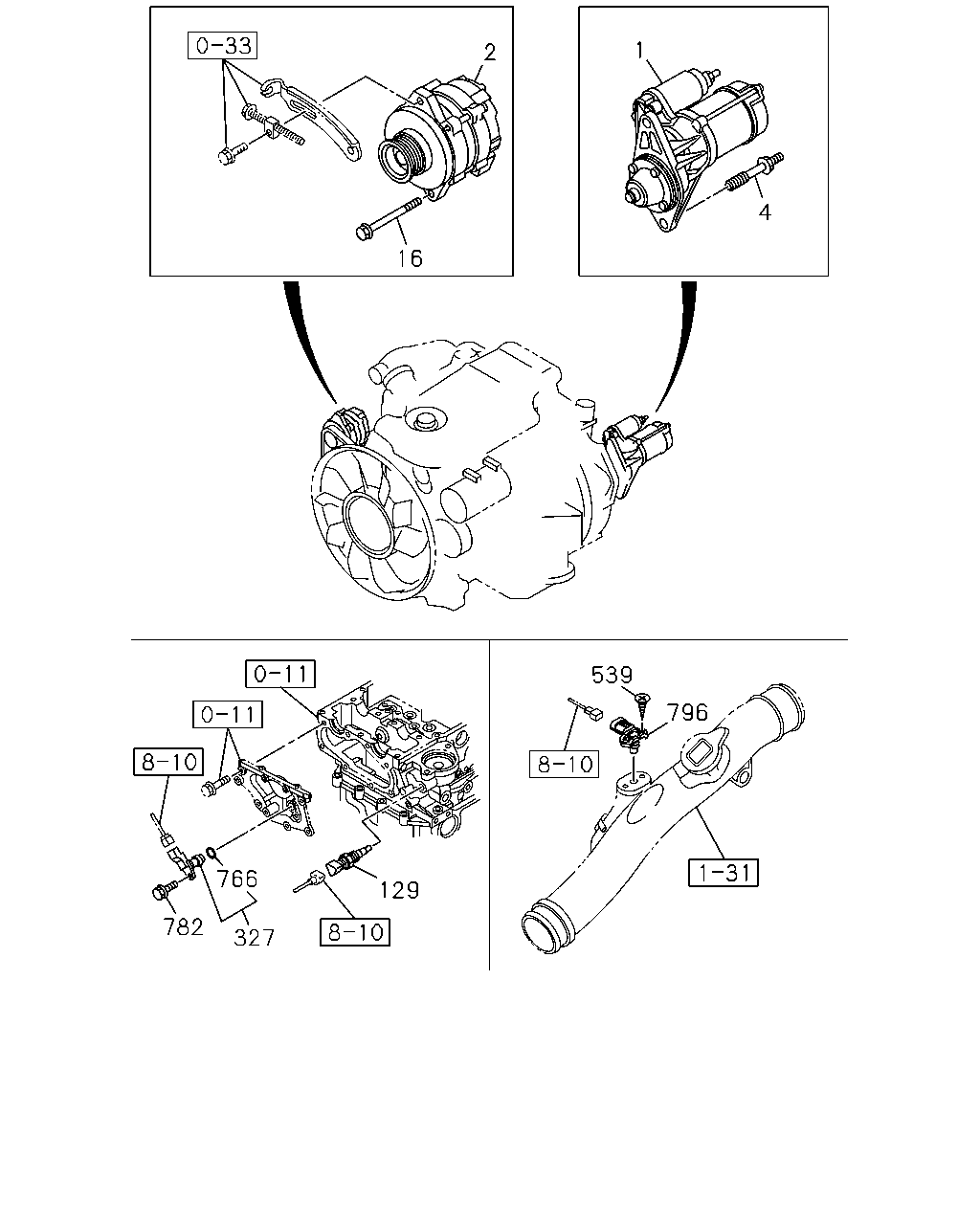

çizim 479249
2 16 1 4 539 796 129 766 327 782
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1506-1508 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1509- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. NLR(NM***E) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 24V 90A 		8-98251-635-1 01 1 1506-1508 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 24V 90A 		8-98251-635-1 01 1 1509- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. NLR(NM***E) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 24V 50A 		8-98268-791-0 01 1 1506-1508 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 24V 50A 		8-98268-791-0 01 1 1509- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1506-1508 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1509- ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1506-1508 ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1509- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1506-1508 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1509- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1506-1508 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1509- ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1509- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1506-1508 ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1509- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1506-1508 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1509- ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1506-1508 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1509- ● ●
796 01.150 SENSOR; MAP
NLR(NM***E) 		8-98009-418-0 01 1 1506-1508 ●
796 01.150 SENSOR; MAP
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98009-418-0 01 1 1509- ● ●

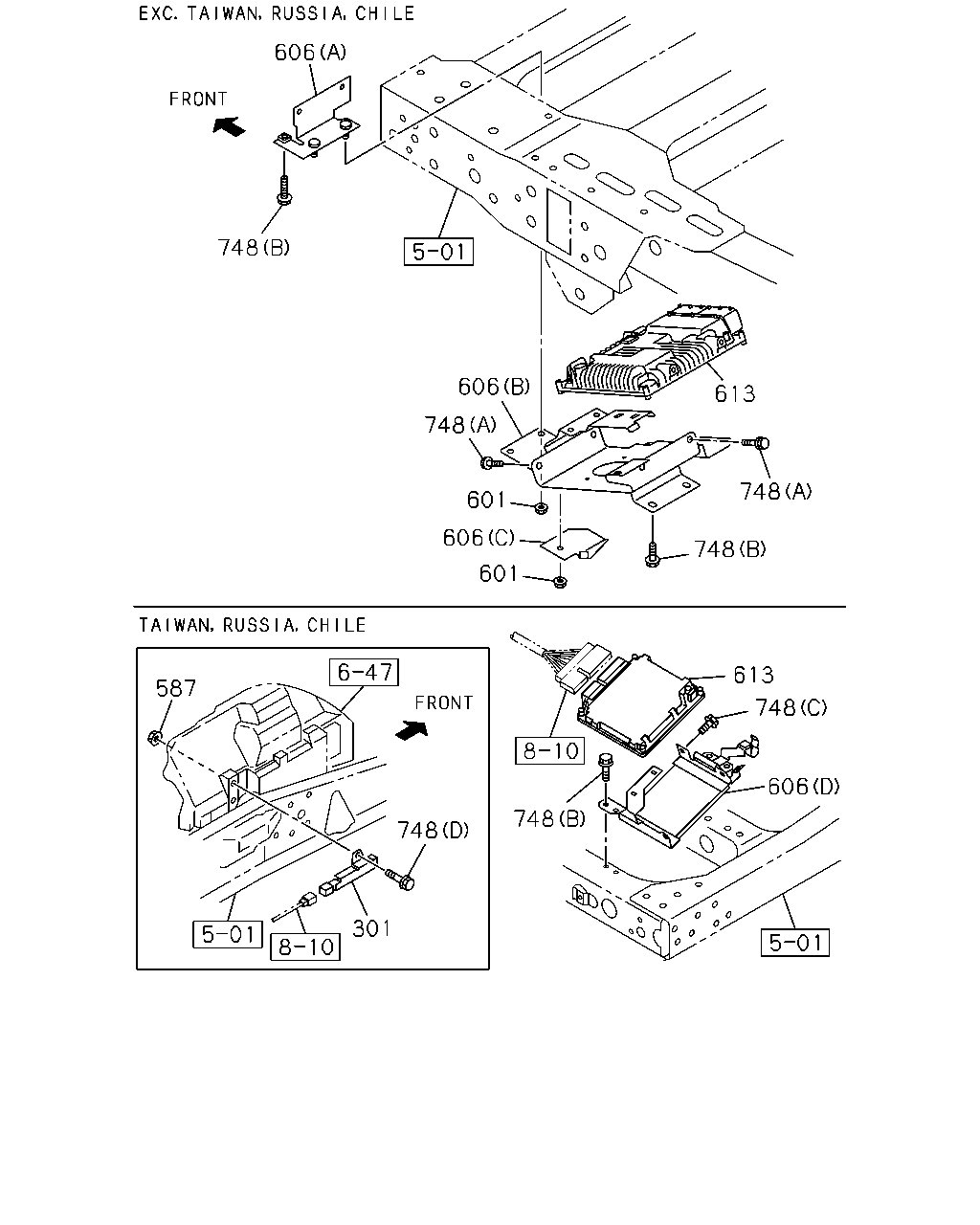

çizim 479253
606 748 606 748 601 601 606 748 748 613 587 748 301 748 613 748 606
BalonParca AdiParca NoAdetTipApplied Date A B
301 02.510 RESISTOR; DROPPING
TAIWAN EQUIPMENT(B04) 		8-97357-613-0 01 1 1509- ●
587 03.671 NUT; RESISTOR & RELAY
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) 04.115 M6 W/DISHED WASHER 		8-98029-921-0 02 1 1509- ● ●
601 03.670 NUT; UNIT
NLR(NM***E) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1506-1508 ●
601 03.670 NUT; UNIT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1509- ● ●
601 03.670 NUT; UNIT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1509- ● ●
606 03.680 BRACKET; CONT UNIT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98011-948-3 01 1 1509- ● ●
606 03.680 BRACKET; CONT UNIT
NLR(NM***E) (A) 		8-98119-085-0 01 1 1506-1508 ●
606 03.680 BRACKET; CONT UNIT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (A) 		8-98119-085-0 01 1 1509- ● ●
606 03.680 BRACKET; CONT UNIT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98119-085-0 01 1 1509- ● ●
606 03.680 BRACKET; CONT UNIT
NLR(NM***E) (C) 		8-98146-323-1 01 1 1506-1508 ●
606 03.680 BRACKET; CONT UNIT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (C) 		8-98146-323-1 01 1 1509- ● ●
606 03.680 BRACKET; CONT UNIT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98146-323-1 01 1 1509- ● ●
606 03.680 BRACKET; CONT UNIT
NLR(NM***E) (B) 		8-98207-079-1 01 1 1506-1508 ●
606 03.680 BRACKET; CONT UNIT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (B) 		8-98207-079-1 01 1 1509- ● ●
606 03.680 BRACKET; CONT UNIT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98207-079-1 01 1 1509- ● ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5A(RSL),M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),IMMOBILIZER SYSTEM(7KC) 		8-98299-675-0 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY6S(RST) FINAL GEAR RATIO 43/10(S7C) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98299-675-0 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5A(RSL),M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),IMMOBILIZER SYSTEM(7KC) 		8-98302-846-0 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY5A(RSL),M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ) 		8-98302-846-0 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5A(RSL),M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 3.0-3.5TON(RPP) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ),IMMOBILIZER SYSTEM(7KC) 		8-98299-676-0 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5A(RSL),M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 3.0-3.5TON(RPP) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ),IMMOBILIZER SYSTEM(7KC) 		8-98315-663-0 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5A(RSL),M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ) 		8-98302-577-0 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/10(GT5) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98288-404-0 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/10(GT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98286-722-0 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5M(RNV) FINAL GEAR RATIO 41/10(GT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) G.V.W. 3.5-4.0TON(RPQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98299-671-2 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY5M(RNV) FINAL GEAR RATIO 43/9(S2J) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) G.V.W. 5.5-6.0TON(RPU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98299-671-2 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5M(RNV) FINAL GEAR RATIO 41/10(GT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),IMMOBILIZER SYSTEM(7KC) 		8-98299-672-2 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY5M(RNV) FINAL GEAR RATIO 43/9(S2J) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ) 		8-98299-672-2 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5M(RNV) FINAL GEAR RATIO 43/9(S2J) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ),IMMOBILIZER SYSTEM(7KC) 		8-98299-673-2 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY5M(RNV) FINAL GEAR RATIO 41/8(RU1) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ) 		8-98299-673-2 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5A(RSL),M/T MYY5T(RSM) FINAL GEAR RATIO 43/11(GNA) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SPEED LIMITE R 90KM(NMJ) 		8-98286-718-0 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5T(RSM) 		8-98288-405-1 01 1 1506-1508 ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5A(RSL),M/T MYY5T(RSM) FINAL GEAR RATIO 43/11(GNA) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SPEED LIMITE R 90KM(NMJ) 		8-98288-405-1 01 1 1509- ●
748 02.500 BOLT; CONT UNIT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 04 1 1509- ● ●
748 02.500 BOLT; CONT UNIT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (D) M6X20 FLANGE 		0-28650-620-0 02 1 1509- ● ●
748 02.500 BOLT; CONT UNIT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL WITH DPD(8JM) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1509- ● ●
748 02.500 BOLT; CONT UNIT
NLR(NM***E) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 04 1 1506-1508 ●
748 02.500 BOLT; CONT UNIT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 04 1 1509- ● ●
748 02.500 BOLT; CONT UNIT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 04 1 1509- ● ●
748 02.500 BOLT; CONT UNIT
NLR(NM***E) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1506-1508 ●
748 02.500 BOLT; CONT UNIT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1509- ● ●
748 02.500 BOLT; CONT UNIT
CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1509- ● ●

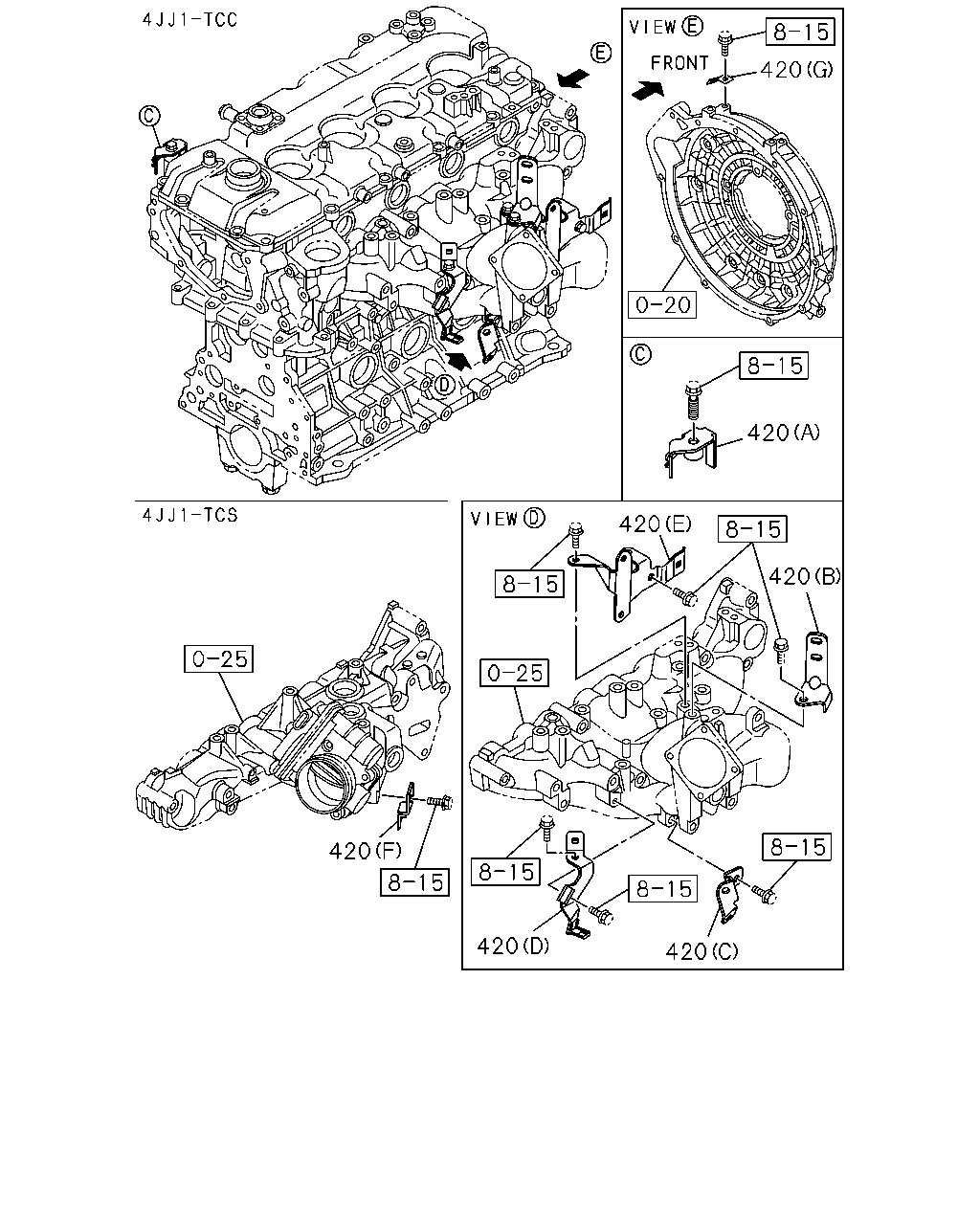

çizim 479254
420 420 420 420 420 420 420
BalonParca AdiParca NoAdetTipApplied Date A B
420 02.183 BRACKET; HARNESS
(F) 		8-98009-094-0 01 1 1509- ●
420 02.183 BRACKET; HARNESS
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (G) 		8-98115-346-1 01 1 1509- ●
420 02.183 BRACKET; HARNESS
(D) 		8-98115-415-1 01 1 1506- ●
420 02.183 BRACKET; HARNESS
(A) 		8-98140-298-3 01 1 1506-1508 ●
420 02.183 BRACKET; HARNESS
EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98140-298-3 01 1 1509- ●
420 02.183 BRACKET; HARNESS
02.483 (E) 		8-98195-122-0 01 1 1506-1508 ●
420 02.183 BRACKET; HARNESS
EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.483 (E) 		8-98195-122-0 01 1 1509- ●
420 02.183 BRACKET; HARNESS
(C) 		8-98203-403-0 01 1 1506- ●
420 02.183 BRACKET; HARNESS
(B) 		8-98209-804-1 01 1 1506-1508 ●
420 02.183 BRACKET; HARNESS
EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98209-804-1 01 1 1509- ●
çizim 479269
718 10 46
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1506- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1506- ● ●
718 02.483 RELAY; FUEL HTR
FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1509- ● ●

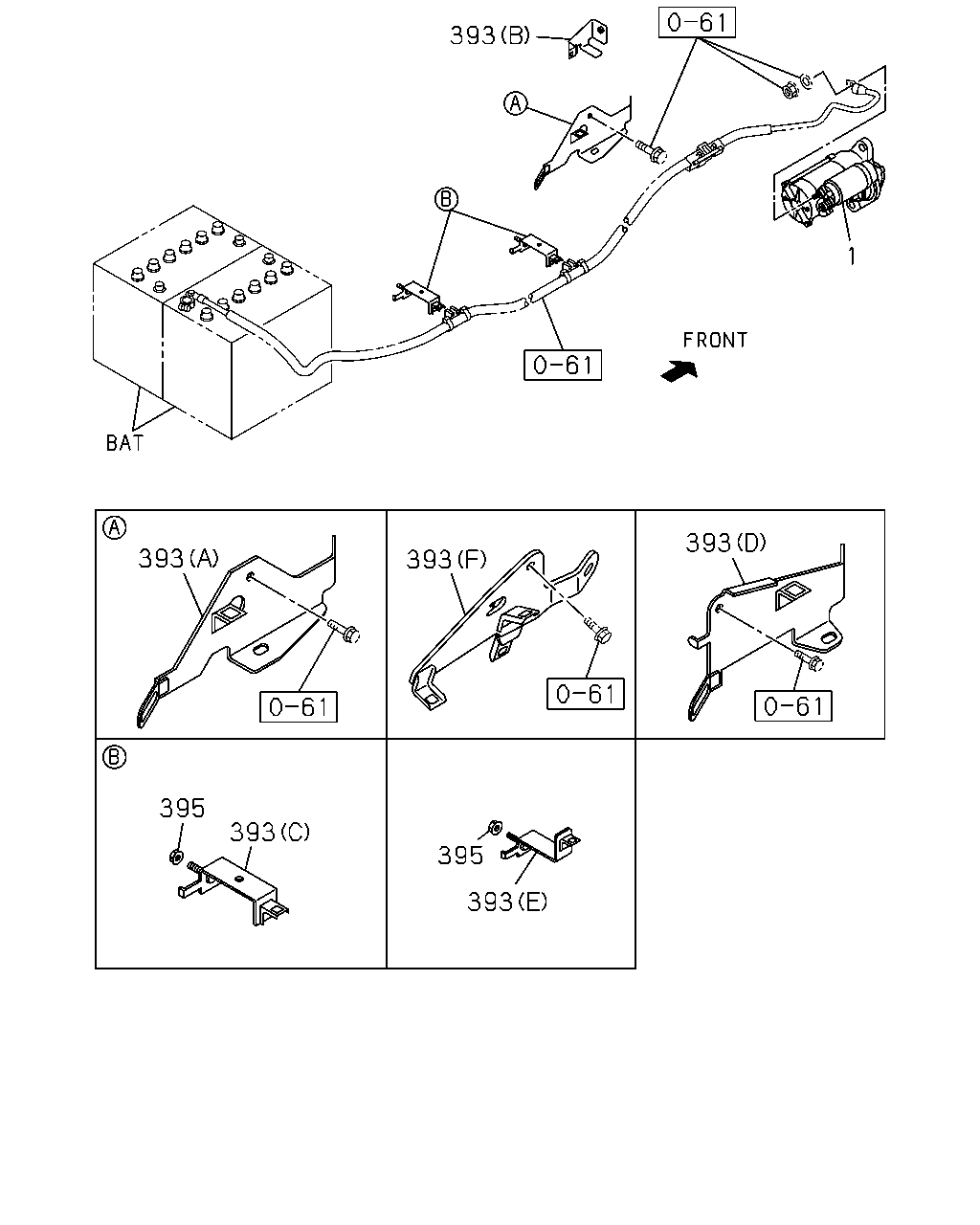

çizim 479672
393 395 393 395 393 393 393 393 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1506-1508 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1509- ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (D) 		8-98028-600-3 01 1 1509- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (E) 		8-98245-494-0 01 1 1509- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98256-613-0 01 1 1509- ●
393 02.343 BRACKET; HARNESS TO BODY
NLR(NM***E) WHEEL BASE 2400MM(24W) (B) 		8-98123-872-0 01 1 1506-1508 ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) (B) 		8-98123-872-0 01 1 1509- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98123-872-0 01 1 1509- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98123-872-0 01 1 1509- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (B) 		8-98123-872-0 01 1 1509- ●
393 02.343 BRACKET; HARNESS TO BODY
NLR(NM***E) WHEEL BASE 3300MM(33W) 02.483 (C) 		8-98018-251-1 01 1 1506-1508 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.483 (C) 		8-98018-251-1 01 1 1509- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (C) 		8-98018-251-1 01 1 1509- ●
393 02.343 BRACKET; HARNESS TO BODY
NLR(NM***E) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) 		8-98028-601-3 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98028-601-3 01 1 1508-1508 ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98028-601-3 01 1 1509- ● ●
395 02.343 NUT; BRKT FIX
NLR(NM***E) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
çizim 479815
897
BalonParca AdiParca NoAdetTipApplied Date A B
897 02.510 DRM
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98082-814-7 01 1 1509- ● ●
897 02.510 DRM
NLR(NM***E) 		8-98290-407-0 01 1 1506-1508 ● ●
897 02.510 DRM
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98290-407-0 01 1 1509- ● ●
