0-57 — EMISSION PIPING (#162165) — 302 parça

17 681 15 718 17 2 139 139 17 472 799 472 752 747 779 12 197 472

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.670 BOLT; EGR VLV 01.252 (C) M8X80 FLANGE	0-28050-880-0	01	1	1509-	●
2	03.670 BOLT; EGR VLV 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1506-		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1506-1508		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1509-	●	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	04	1	1509-	●
12	03.671 NUT; EGR VLV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1509-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1506-1508		●
12	03.671 NUT; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1509-		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1506-1508		●
12	03.671 NUT; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-		●
15	03.670 STUD; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 (C) M8X25 L=37	0-41010-825-0	02	1	1509-		●
15	03.670 STUD; EGR PIPE 03.275 (C) M8X25 L=37	0-41010-825-0	02	1	1509-	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1506-1508		●
15	03.670 STUD; EGR PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 (D) L=60	0-40210-860-0	01	1	1509-		●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1506-1508		●
15	03.670 STUD; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97357-684-3	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.680 (F)	8-98228-303-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98017-551-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1509-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98141-562-1	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.670 (D)	8-98150-745-0	01	1	1509-		●
139	02.559 CLIP; HARNESS 03.682 (A) ID=7 L=7.5	8-97369-561-0	01	1	1506-1508		●
139	02.559 CLIP; HARNESS EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.682 (A) ID=7 L=7.5	8-97369-561-0	01	1	1509-		●
139	02.559 CLIP; HARNESS (B) ID=10.2 & 5.2	8-98117-177-0	01	1	1506-1508		●
139	02.559 CLIP; HARNESS EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) ID=10.2 & 5.2	8-98117-177-0	01	1	1509-		●
197	03.670 VALVE; VAC SWITCHING	8-97352-151-0	01	1	1506-1508		●
197	03.670 VALVE; VAC SWITCHING EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-97352-151-0	01	1	1509-		●
472	03.671 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-		●
472	03.671 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
472	03.671 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98277-232-0	02	1	1509-		●
472	03.671 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	04	1	1506-1508		●
472	03.671 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X16 FLANGE	0-28050-816-0	04	1	1509-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●
681	03.671 NUT; EGR PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M8 FLANGE	0-91180-208-0	01	1	1509-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1506-1508		●
681	03.671 NUT; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M8 FLANGE	0-91180-208-0	04	1	1509-		●
718	03.337 COOLER; EGR	8-98063-283-8	01	1	1509-	●
718	03.337 COOLER; EGR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98181-205-1	01	1	1509-		●
718	03.337 COOLER; EGR	8-98201-683-2	01	1	1506-1508		●
718	03.337 COOLER; EGR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98201-683-2	01	1	1509-		●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508		●
747	03.671 NUT; VAC REG VALVE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-		●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
752	03.670 VALVE; EVRV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98116-259-0	01	1	1509-		●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1509-	●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1506-1508		●
752	03.670 VALVE; EVRV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98162-883-0	01	1	1509-		●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1506-1508		●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1509-	●	●
799	03.670 BRACKET; VSV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98245-792-1	01	1	1509-		●
799	03.670 BRACKET; VSV	8-98209-312-2	01	1	1506-1508		●
799	03.670 BRACKET; VSV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98209-312-2	01	1	1509-		●

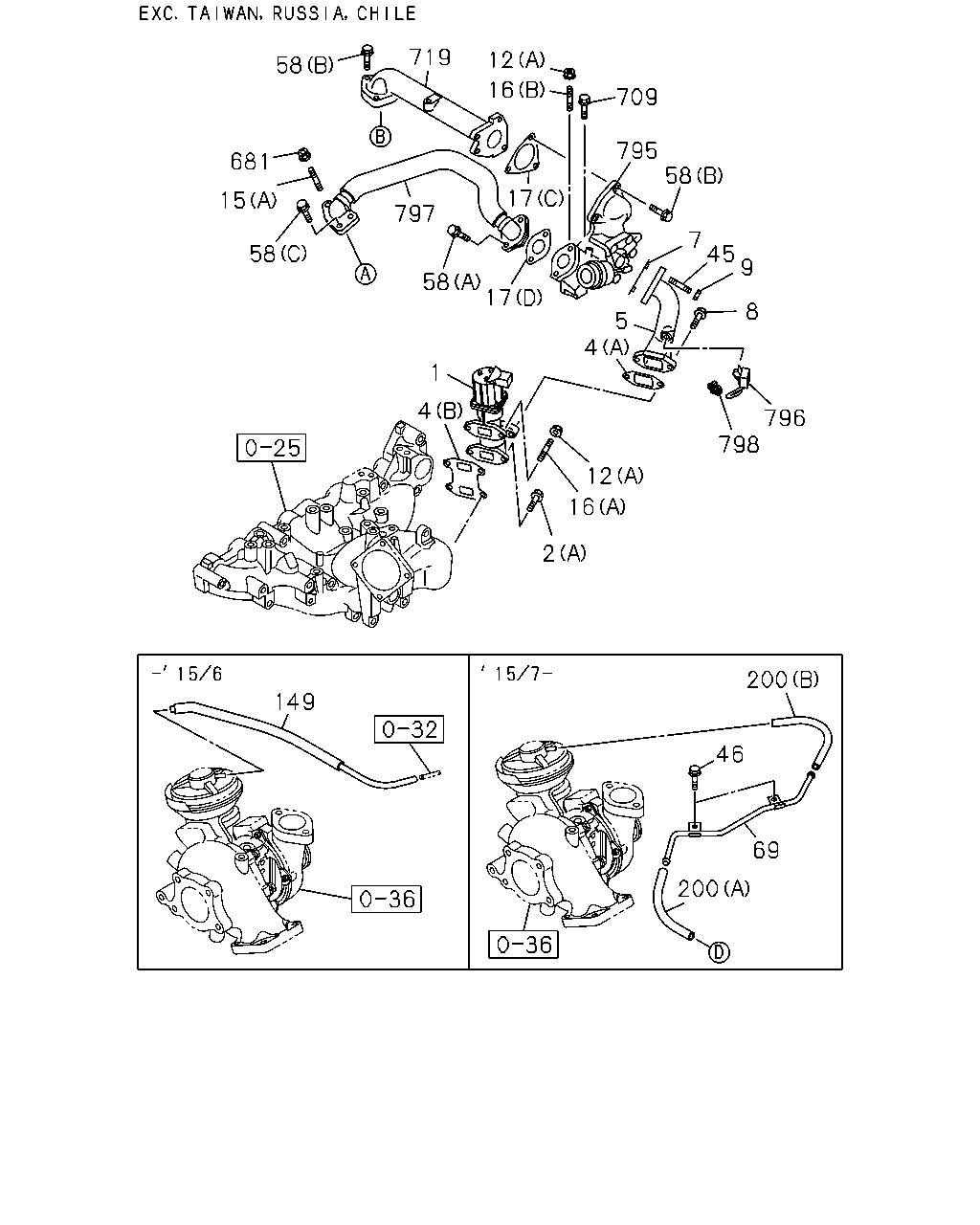

58 719 12 16 17 17 58 797 681 58 15 709 795 58 7 8 9 45 5 4 796 798 12 16 2 4 1 149 200 46 69 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-98238-259-1	01	1	1509-	●
1	03.670 VALVE; EGR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98250-571-0	01	1	1509-		●
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1506-1508		●
1	03.670 VALVE; EGR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98194-599-0	01	1	1509-		●
2	03.670 BOLT; EGR VLV 01.252 (C) M8X80 FLANGE	0-28050-880-0	01	1	1509-	●
2	03.670 BOLT; EGR VLV 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1506-		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1506-1508		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1509-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98094-528-2	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98146-676-0	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98106-025-1	01	1	1506-1508		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98106-025-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98106-027-1	01	1	1506-		●
5	03.670 ADAPTER ASM TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98237-775-1	01	1	1509-		●
5	03.670 ADAPTER ASM	8-98106-747-1	01	1	1506-1508		●
5	03.670 ADAPTER ASM EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98106-747-1	01	1	1509-		●
7	03.670 GASKET; ADAPTER	8-98150-745-0	01	1	1506-		●
8	03.670 BOLT; EGR ADAPTER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 M8X25 FLANGE	0-28050-825-0	04	1	1509-		●
8	03.670 BOLT; EGR ADAPTER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1506-1508		●
8	03.670 BOLT; EGR ADAPTER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1509-		●
9	03.670 NUT; EGR ADAPTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-1508		●
9	03.670 NUT; EGR ADAPTER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	04	1	1509-	●
12	03.671 NUT; EGR VLV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1509-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1506-1508		●
12	03.671 NUT; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1509-		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1506-1508		●
12	03.671 NUT; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-		●
15	03.670 STUD; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 (C) M8X25 L=37	0-41010-825-0	02	1	1509-		●
15	03.670 STUD; EGR PIPE 03.275 (C) M8X25 L=37	0-41010-825-0	02	1	1509-	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1506-1508		●
15	03.670 STUD; EGR PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 (D) L=60	0-40210-860-0	01	1	1509-		●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1506-1508		●
15	03.670 STUD; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-		●
16	03.275 STUD; EGR VLV (A) M8X25 L=41	0-40210-825-0	02	1	1509-	●	●
16	03.275 STUD; EGR VLV (A) M8X25 L=41	0-40210-825-0	02	1	1506-1508		●
16	03.275 STUD; EGR VLV (C) M8X50 L=62	0-40210-850-0	02	1	1509-	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1506-1508		●
16	03.275 STUD; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97357-684-3	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.680 (F)	8-98228-303-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98017-551-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1509-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98141-562-1	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.670 (D)	8-98150-745-0	01	1	1509-		●
45	09.173 STUD; ADAPTER,EGR 01.073 M8X22 L=34	0-41010-822-0	02	1	1506-1508		●
45	09.173 STUD; ADAPTER,EGR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.073 M8X22 L=34	0-41010-822-0	02	1	1509-		●
46	03.680 BOLT; VAC PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1507-1508		●
46	03.680 BOLT; VAC PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1509-		●
58	03.417 BOLT; PIPE 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1506-1508		●
58	03.417 BOLT; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1509-		●
58	03.417 BOLT; PIPE 00.206 (B) M8X30 FLANGE	0-28050-830-0	06	1	1506-1508		●
58	03.417 BOLT; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.206 (B) M8X30 FLANGE	0-28050-830-0	06	1	1509-		●
58	03.417 BOLT; PIPE (C) M8X23 FLANGE	8-97378-077-0	01	1	1506-1508		●
58	03.417 BOLT; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) M8X23 FLANGE	8-97378-077-0	01	1	1509-		●
69	03.675 PIPE ASM; VAC	8-98287-564-0	01	1	1507-1508		●
69	03.675 PIPE ASM; VAC EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98287-564-0	01	1	1509-		●
149	08.962 HOSE; VAC PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.675	8-98107-557-0	01	1	1509-		●
149	08.962 HOSE; VAC PIPE	8-98175-025-0	01	1	1506-1506		●
200	03.675 HOSE; VAC (B) L=150 SERVICED BY L=3000	0-14320-300-0	01	1	1507-1508		●
200	03.675 HOSE; VAC EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) L=150 SERVICED BY L=3000	0-14320-300-0	01	1	1509-		●
200	03.675 HOSE; VAC (A) L=110	0-14140-110-0	01	1	1507-1508		●
200	03.675 HOSE; VAC EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) L=110	0-14140-110-0	01	1	1509-		●
200	03.675 HOSE; VAC TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98228-399-1	01	1	1509-		●
200	03.675 HOSE; VAC TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98253-341-0	01	1	1509-		●
200	03.675 HOSE; VAC TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98253-343-1	01	1	1509-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●
681	03.671 NUT; EGR PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M8 FLANGE	0-91180-208-0	01	1	1509-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1506-1508		●
681	03.671 NUT; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M8 FLANGE	0-91180-208-0	04	1	1509-		●
709	03.670 BOLT; EGR COOLER 00.206 M8X70 FLANGE	0-28050-870-0	01	1	1506-1508		●
709	03.670 BOLT; EGR COOLER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.206 M8X70 FLANGE	0-28050-870-0	01	1	1509-		●
719	03.675 PIPE; EGR	8-98136-683-1	01	1	1506-1508		●
719	03.675 PIPE; EGR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98136-683-1	01	1	1509-		●
795	03.670 VALVE; EGR COOLER BYPASS	8-98299-182-0	01	1	1506-1508		●
795	03.670 VALVE; EGR COOLER BYPASS EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98299-182-0	01	1	1509-		●
796	03.670 SENSOR; TEMP,EGR COOLER OUT	8-98238-241-0	01	1	1506-1508		●
796	03.670 SENSOR; TEMP,EGR COOLER OUT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98238-241-0	01	1	1509-		●
797	01.540 PIPE; BYPASS	8-98214-448-1	01	1	1506-1508		●
797	01.540 PIPE; BYPASS EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98214-448-1	01	1	1509-		●
798	03.671 CLIP; TEMP SENSOR 03.682 ID=7 L=7.5	8-97369-561-0	01	1	1506-1508		●
798	03.671 CLIP; TEMP SENSOR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.682 ID=7 L=7.5	8-97369-561-0	01	1	1509-		●

799 752 200 472 779 200 472 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
200	03.675 HOSE; VAC (B) L=150 SERVICED BY L=3000	0-14320-300-0	01	1	1507-1508		●
200	03.675 HOSE; VAC EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) L=150 SERVICED BY L=3000	0-14320-300-0	01	1	1509-		●
200	03.675 HOSE; VAC (A) L=110	0-14140-110-0	01	1	1507-1508		●
200	03.675 HOSE; VAC EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) L=110	0-14140-110-0	01	1	1509-		●
200	03.675 HOSE; VAC TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98228-399-1	01	1	1509-		●
200	03.675 HOSE; VAC TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98253-341-0	01	1	1509-		●
200	03.675 HOSE; VAC TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98253-343-1	01	1	1509-		●
472	03.671 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-		●
472	03.671 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
472	03.671 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98277-232-0	02	1	1509-		●
472	03.671 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	04	1	1506-1508		●
472	03.671 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X16 FLANGE	0-28050-816-0	04	1	1509-		●
752	03.670 VALVE; EVRV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98116-259-0	01	1	1509-		●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1509-	●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1506-1508		●
752	03.670 VALVE; EVRV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98162-883-0	01	1	1509-		●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1506-1508		●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1509-	●	●
799	03.670 BRACKET; VSV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98245-792-1	01	1	1509-		●
799	03.670 BRACKET; VSV	8-98209-312-2	01	1	1506-1508		●
799	03.670 BRACKET; VSV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98209-312-2	01	1	1509-		●

7 8 8 5 4 12 1 4 16 2 149

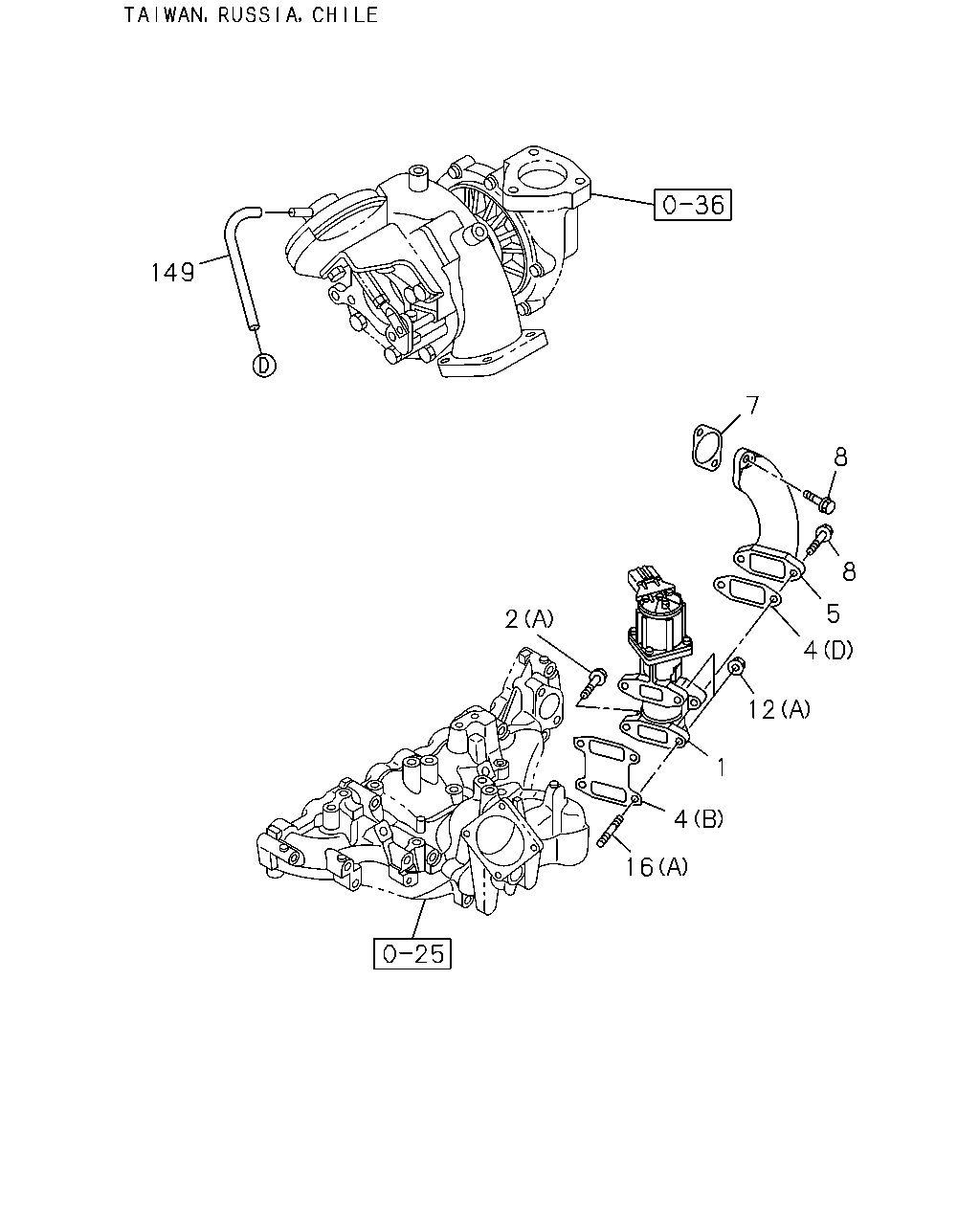

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-98238-259-1	01	1	1509-	●
1	03.670 VALVE; EGR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98250-571-0	01	1	1509-		●
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1506-1508		●
1	03.670 VALVE; EGR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98194-599-0	01	1	1509-		●
2	03.670 BOLT; EGR VLV 01.252 (C) M8X80 FLANGE	0-28050-880-0	01	1	1509-	●
2	03.670 BOLT; EGR VLV 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1506-		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1506-1508		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1509-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98094-528-2	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98146-676-0	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98106-025-1	01	1	1506-1508		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98106-025-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98106-027-1	01	1	1506-		●
5	03.670 ADAPTER ASM TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98237-775-1	01	1	1509-		●
5	03.670 ADAPTER ASM	8-98106-747-1	01	1	1506-1508		●
5	03.670 ADAPTER ASM EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98106-747-1	01	1	1509-		●
7	03.670 GASKET; ADAPTER	8-98150-745-0	01	1	1506-		●
8	03.670 BOLT; EGR ADAPTER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 M8X25 FLANGE	0-28050-825-0	04	1	1509-		●
8	03.670 BOLT; EGR ADAPTER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1506-1508		●
8	03.670 BOLT; EGR ADAPTER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1509-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	04	1	1509-	●
12	03.671 NUT; EGR VLV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1509-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1506-1508		●
12	03.671 NUT; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1509-		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1506-1508		●
12	03.671 NUT; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-		●
16	03.275 STUD; EGR VLV (A) M8X25 L=41	0-40210-825-0	02	1	1509-	●	●
16	03.275 STUD; EGR VLV (A) M8X25 L=41	0-40210-825-0	02	1	1506-1508		●
16	03.275 STUD; EGR VLV (C) M8X50 L=62	0-40210-850-0	02	1	1509-	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1506-1508		●
16	03.275 STUD; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-		●
149	08.962 HOSE; VAC PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.675	8-98107-557-0	01	1	1509-		●
149	08.962 HOSE; VAC PIPE	8-98175-025-0	01	1	1506-1506		●

2 718 681 17 15 16 1 12 2 12 4 16 16 16 17

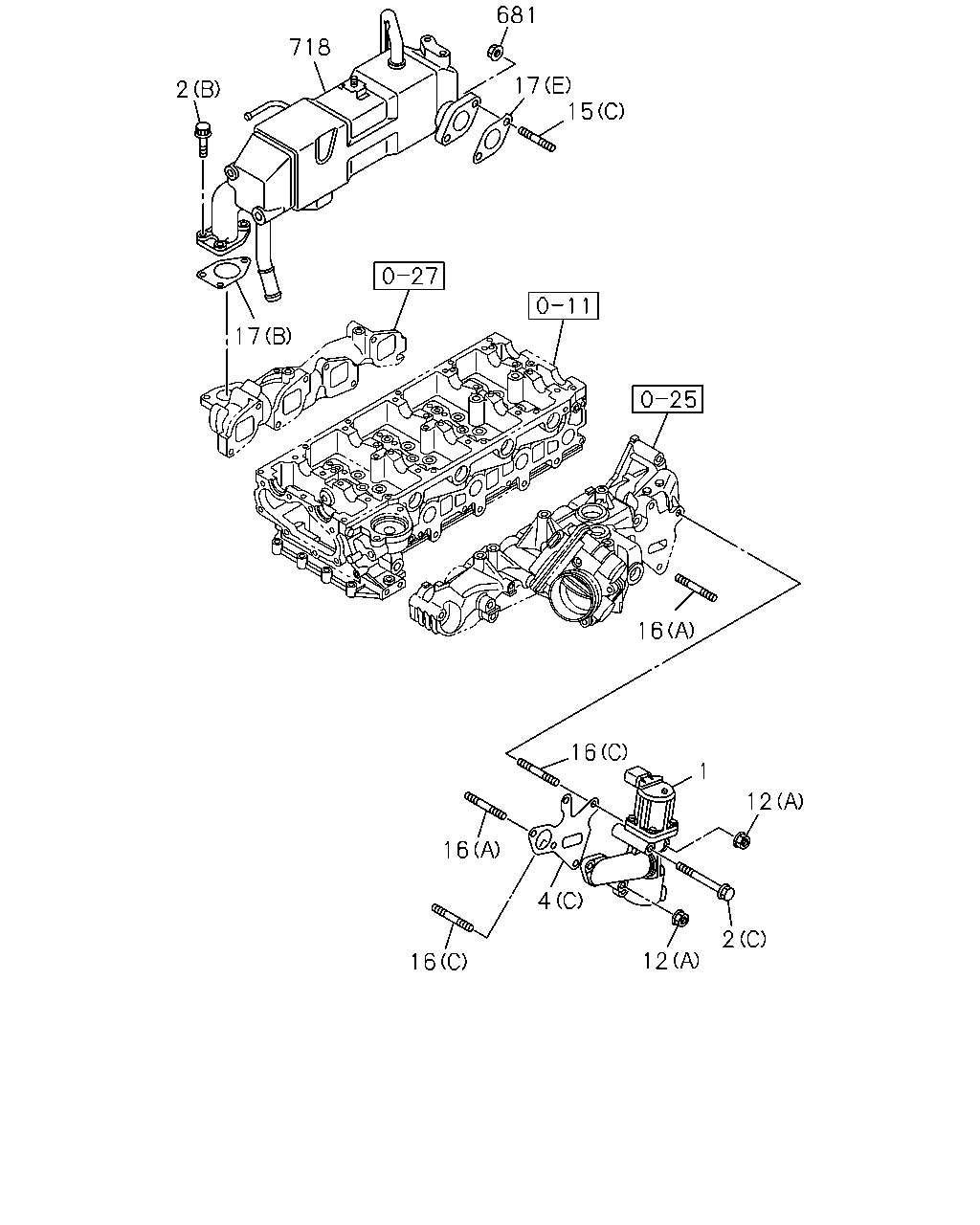

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-98238-259-1	01	1	1509-	●
1	03.670 VALVE; EGR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98250-571-0	01	1	1509-		●
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1506-1508		●
1	03.670 VALVE; EGR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98194-599-0	01	1	1509-		●
2	03.670 BOLT; EGR VLV 01.252 (C) M8X80 FLANGE	0-28050-880-0	01	1	1509-	●
2	03.670 BOLT; EGR VLV 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1506-		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1506-1508		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1509-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98094-528-2	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98146-676-0	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98106-025-1	01	1	1506-1508		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98106-025-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98106-027-1	01	1	1506-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	04	1	1509-	●
12	03.671 NUT; EGR VLV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1509-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1506-1508		●
12	03.671 NUT; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1509-		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1506-1508		●
12	03.671 NUT; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-		●
15	03.670 STUD; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 (C) M8X25 L=37	0-41010-825-0	02	1	1509-		●
15	03.670 STUD; EGR PIPE 03.275 (C) M8X25 L=37	0-41010-825-0	02	1	1509-	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1506-1508		●
15	03.670 STUD; EGR PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 (D) L=60	0-40210-860-0	01	1	1509-		●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1506-1508		●
15	03.670 STUD; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-		●
16	03.275 STUD; EGR VLV (A) M8X25 L=41	0-40210-825-0	02	1	1509-	●	●
16	03.275 STUD; EGR VLV (A) M8X25 L=41	0-40210-825-0	02	1	1506-1508		●
16	03.275 STUD; EGR VLV (C) M8X50 L=62	0-40210-850-0	02	1	1509-	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1506-1508		●
16	03.275 STUD; EGR VLV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97357-684-3	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.680 (F)	8-98228-303-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98017-551-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1509-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98141-562-1	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.670 (D)	8-98150-745-0	01	1	1509-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●
681	03.671 NUT; EGR PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M8 FLANGE	0-91180-208-0	01	1	1509-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1506-1508		●
681	03.671 NUT; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M8 FLANGE	0-91180-208-0	04	1	1509-		●
718	03.337 COOLER; EGR	8-98063-283-8	01	1	1509-	●
718	03.337 COOLER; EGR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98181-205-1	01	1	1509-		●
718	03.337 COOLER; EGR	8-98201-683-2	01	1	1506-1508		●
718	03.337 COOLER; EGR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98201-683-2	01	1	1509-		●

271 697 667 738 472 753 752 747 194 73 73 73 82 194 194 779

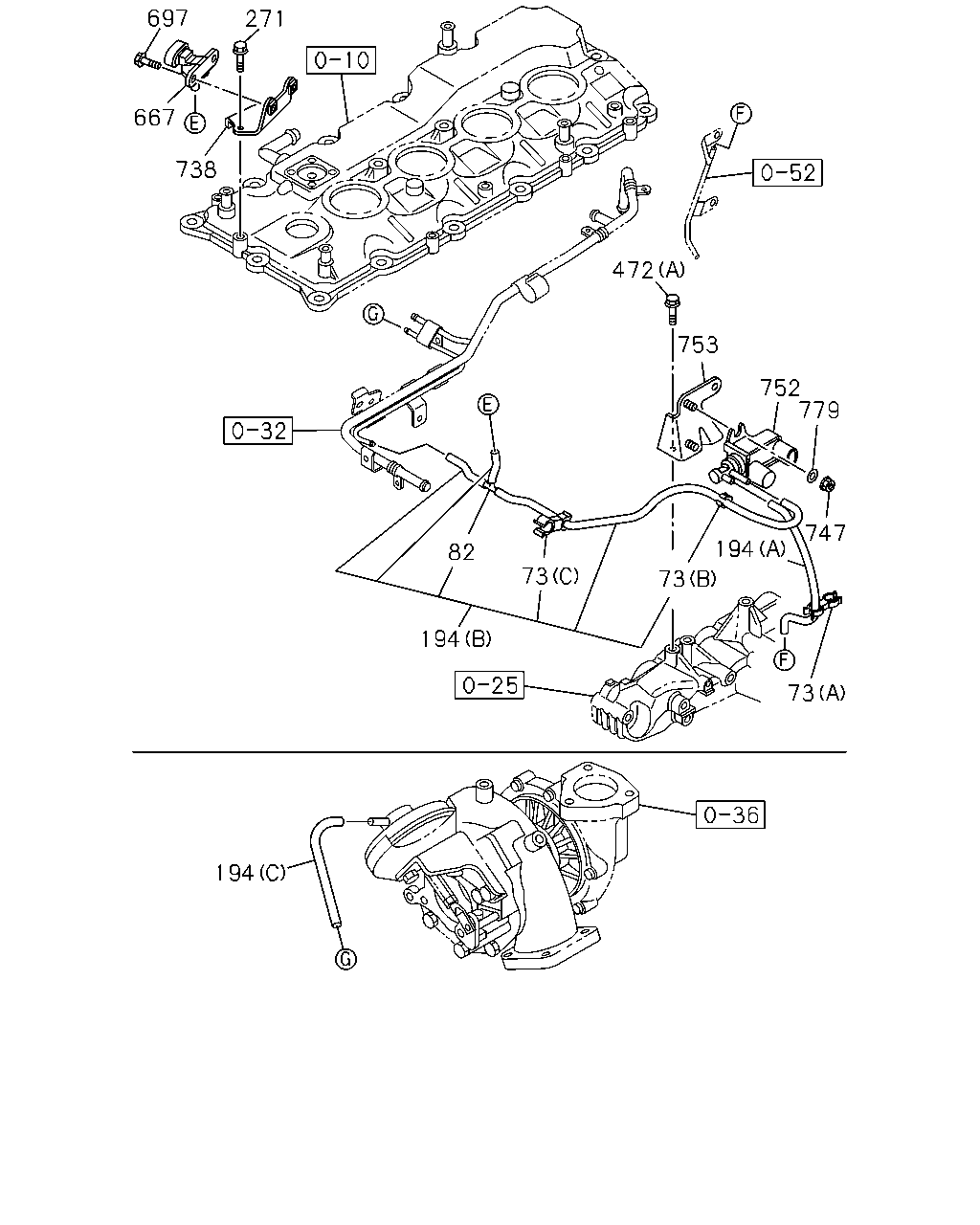

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1509-	●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1509-	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1509-	●
82	03.680 JOINT; 3 WAY 3WAY	8-98045-385-0	01	1	1509-	●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	1509-	●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	1509-	●
194	03.675 HOSE; VAC (C)	8-98107-557-0	01	1	1509-	●
271	03.675 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
271	03.675 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1509-		●
472	03.671 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-		●
472	03.671 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
472	03.671 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98277-232-0	02	1	1509-		●
472	03.671 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	04	1	1506-1508		●
472	03.671 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X16 FLANGE	0-28050-816-0	04	1	1509-		●
667	03.670 SENSOR; VAC	8-98044-520-0	01	1	1509-	●
697	03.680 BOLT; SENSOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1509-	●
738	03.675 BRACKET; SENSOR,VAC	8-98044-607-0	01	1	1509-	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508		●
747	03.671 NUT; VAC REG VALVE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-		●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
752	03.670 VALVE; EVRV EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98116-259-0	01	1	1509-		●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1509-	●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1506-1508		●
752	03.670 VALVE; EVRV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98162-883-0	01	1	1509-		●
753	03.670 BRACKET; VALVE	8-97381-571-1	01	1	1509-	●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1506-1508		●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1509-	●	●

681 271 17 15 2 718 17

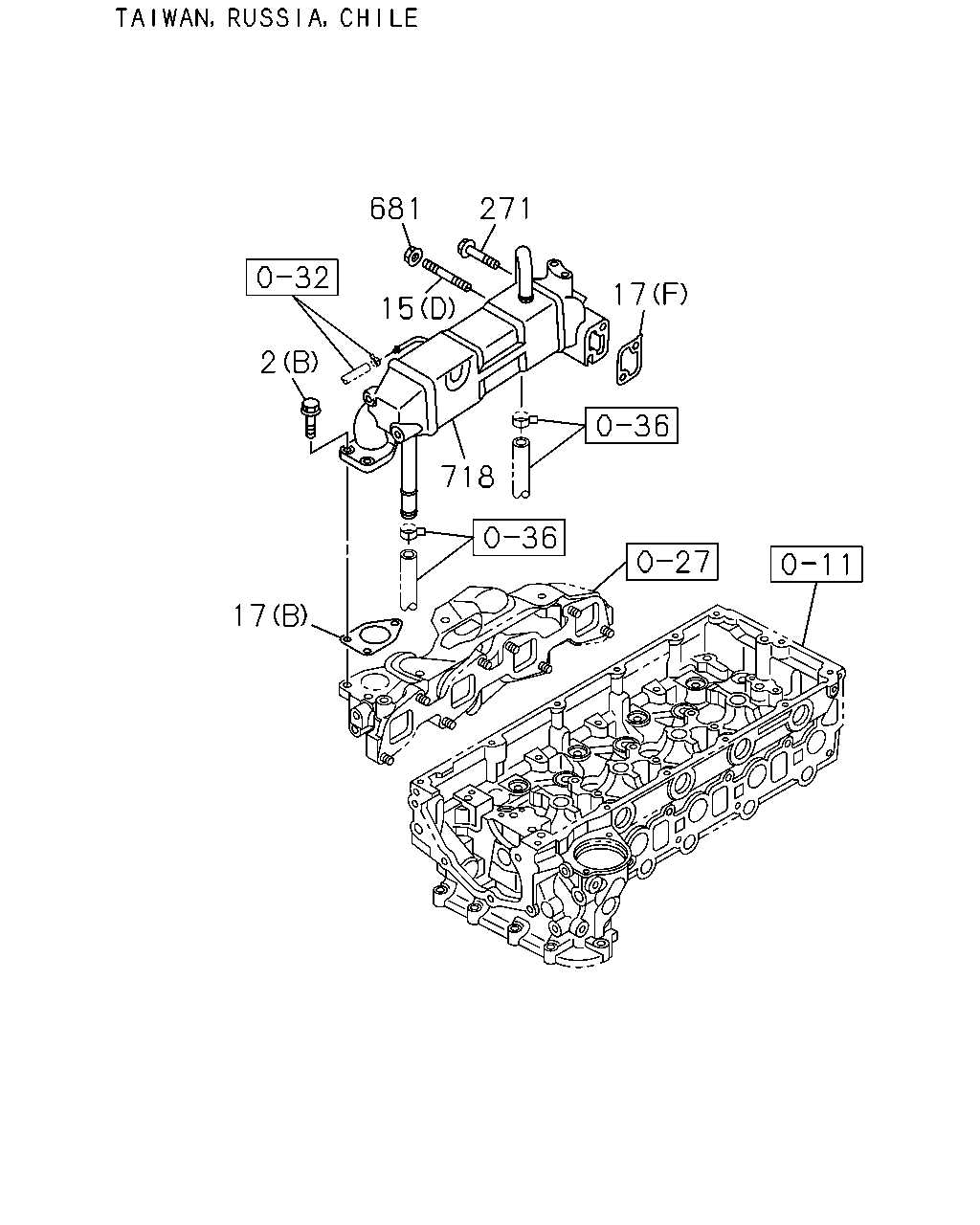

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.670 BOLT; EGR VLV 01.252 (C) M8X80 FLANGE	0-28050-880-0	01	1	1509-	●
2	03.670 BOLT; EGR VLV 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1506-		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1506-1508		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1509-	●	●
15	03.670 STUD; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 (C) M8X25 L=37	0-41010-825-0	02	1	1509-		●
15	03.670 STUD; EGR PIPE 03.275 (C) M8X25 L=37	0-41010-825-0	02	1	1509-	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1506-1508		●
15	03.670 STUD; EGR PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.275 (D) L=60	0-40210-860-0	01	1	1509-		●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1506-1508		●
15	03.670 STUD; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97357-684-3	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.680 (F)	8-98228-303-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98017-551-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1509-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98141-562-1	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1506-1508		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.670 (D)	8-98150-745-0	01	1	1509-		●
271	03.675 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
271	03.675 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1509-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●
681	03.671 NUT; EGR PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M8 FLANGE	0-91180-208-0	01	1	1509-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1506-1508		●
681	03.671 NUT; EGR PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M8 FLANGE	0-91180-208-0	04	1	1509-		●
718	03.337 COOLER; EGR	8-98063-283-8	01	1	1509-	●
718	03.337 COOLER; EGR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98181-205-1	01	1	1509-		●
718	03.337 COOLER; EGR	8-98201-683-2	01	1	1506-1508		●
718	03.337 COOLER; EGR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98201-683-2	01	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
