0-51 — OIL PUMP AND OIL STRAINER (#162163) — 12 parça

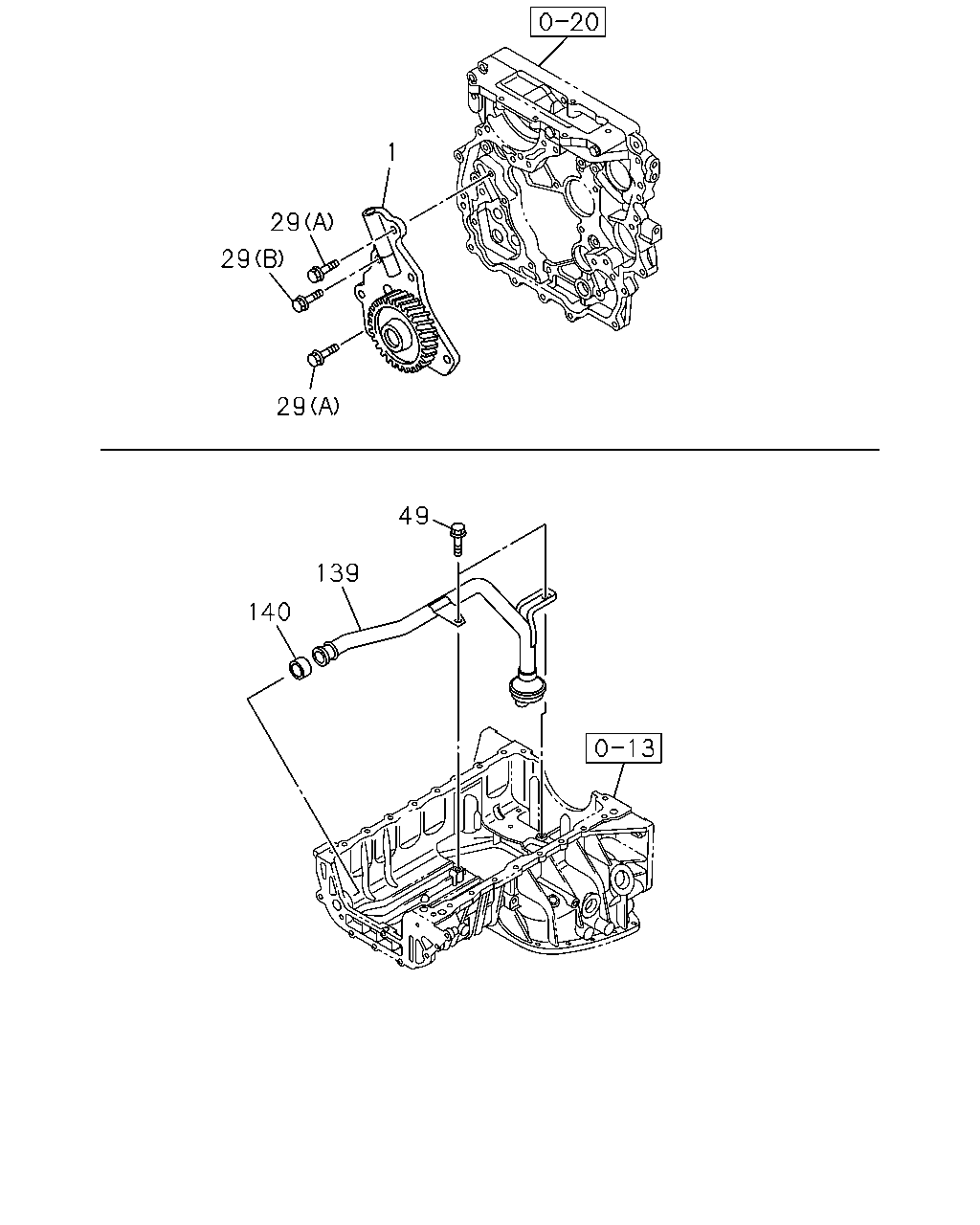

çizim 480192
29 29 29 49 139 140 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1506-1508 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1509- ● ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1506-1508 ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1509- ● ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1506-1508 ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1509- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1506-1508 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ●
139 01.639 PIPE; OIL STRAINER 8-98149-035-0 01 1 1506-1508 ●
139 01.639 PIPE; OIL STRAINER 8-98149-035-0 01 1 1509- ● ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 1506-1508 ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 1509- ● ●
