Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#162159) — 227 parça

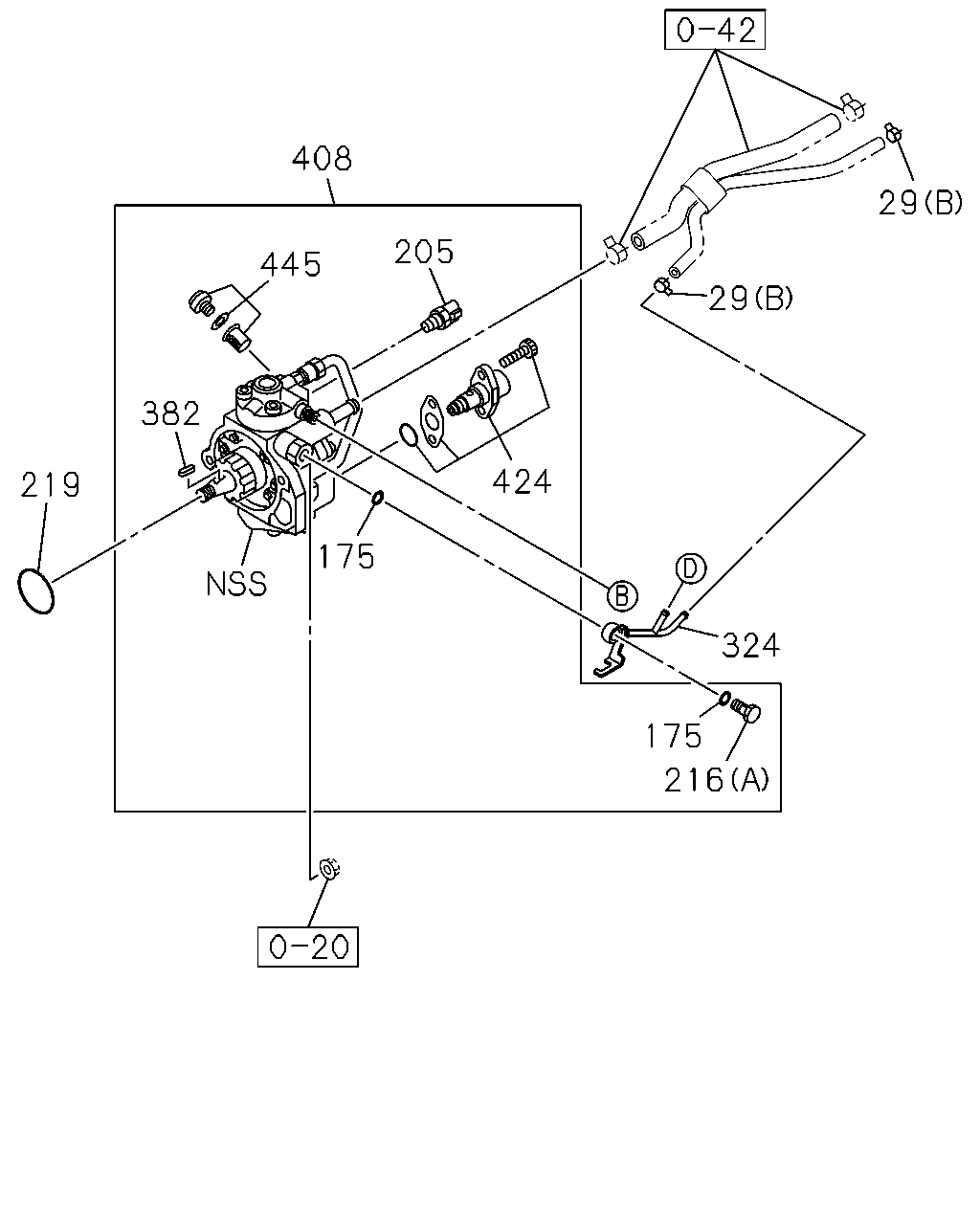

408 445 205 424 175 382 219 29 29 175 324 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1509-	●
29	03.162 CLIP; HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1509-		●
29	03.162 CLIP; HOSE 01.240 (D) ID=16	8-94392-924-0	02	1	1509-		●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1506-1508	●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	10	1	1509-		●
29	03.162 CLIP; HOSE 01.153 (B) ID=11	8-97375-639-0	02	1	1506-	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1506-1508	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1509-	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1506-1508	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1509-	●	●
216	03.162 BOLT; EYE (C)	8-98043-033-0	01	1	1509-		●
216	03.162 BOLT; EYE (B)	8-98035-828-0	01	1	1506-	●
216	03.162 BOLT; EYE 03.280 (A)	9-88130-088-0	01	1	1506-1508	●
216	03.162 BOLT; EYE 03.280 (A)	9-88130-088-0	01	1	1509-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1506-1508	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1509-	●	●
324	03.330 PIPE; FUEL RETURN	8-98111-476-3	01	1	1506-	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1506-1508	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1509-	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	1506-1508	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	1509-	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1506-1508	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1509-	●	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1506-1508	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1509-	●	●

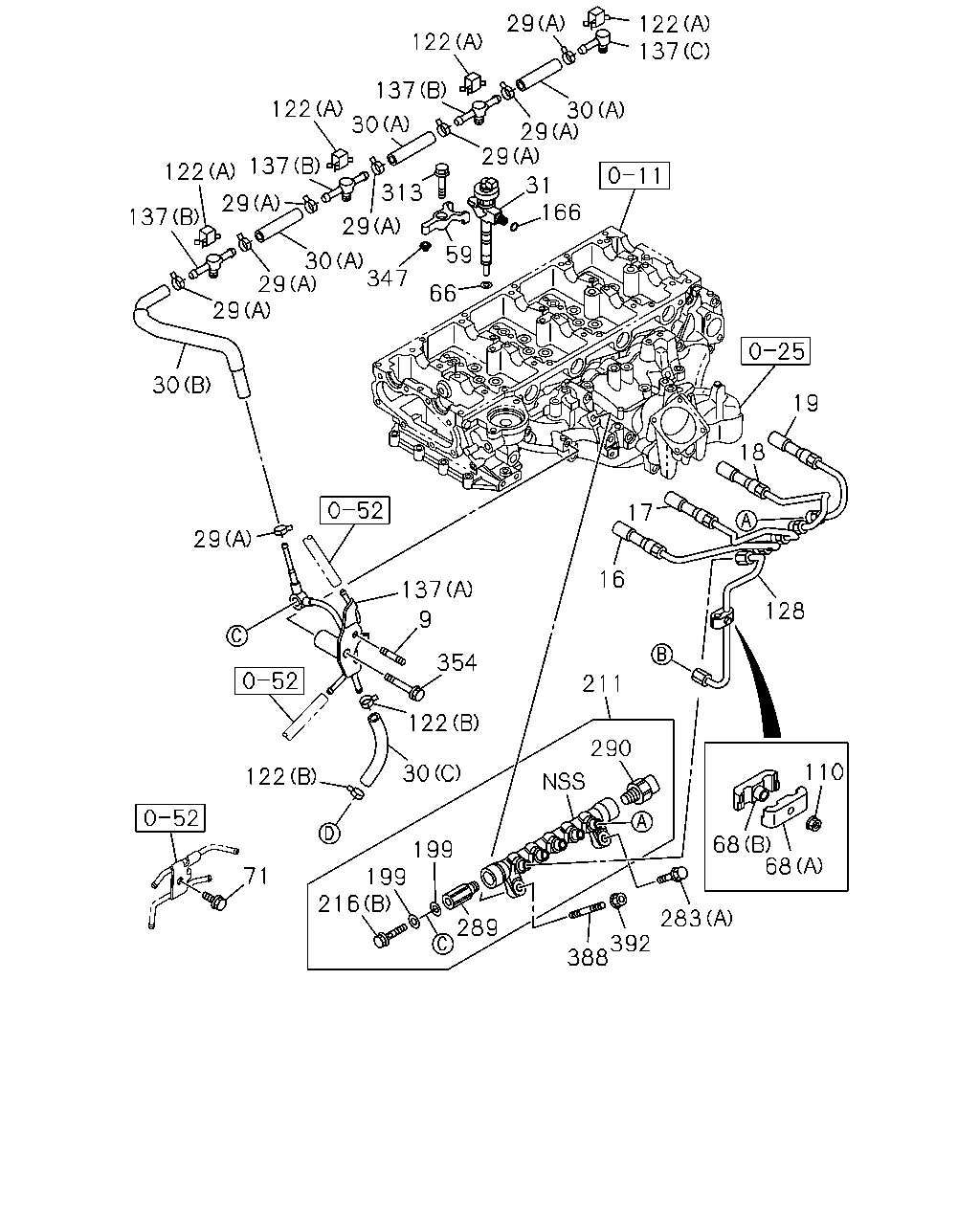

122 137 122 29 122 137 30 29 29 166 31 313 29 137 122 137 29 30 29 29 30 29 347 59 66 137 354 9 122 30 199 199 216 71 122 388 289 290 283 68 68 110 211 16 128 17 18 19 30 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	01	1	1509-	●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	01	1	1506-1508	●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	02	1	1509-		●
16	03.330 PIPE; INJ NO.1	8-98074-932-1	01	1	1506-1508	●
16	03.330 PIPE; INJ NO.1	8-98203-719-0	01	1	1509-		●
16	03.330 PIPE; INJ NO.1	8-98074-932-1	01	1	1509-	●
17	03.330 PIPE; INJ NO.2	8-98074-933-1	01	1	1506-1508	●
17	03.330 PIPE; INJ NO.2	8-98203-720-0	01	1	1509-		●
17	03.330 PIPE; INJ NO.2	8-98074-933-1	01	1	1509-	●
18	03.330 PIPE; INJ NO.3	8-98074-934-1	01	1	1506-1508	●
18	03.330 PIPE; INJ NO.3	8-98203-721-0	01	1	1509-		●
18	03.330 PIPE; INJ NO.3	8-98074-934-1	01	1	1509-	●
19	03.330 PIPE; INJ NO.4	8-98074-935-1	01	1	1506-1508	●
19	03.330 PIPE; INJ NO.4	8-98203-722-0	01	1	1509-		●
19	03.330 PIPE; INJ NO.4	8-98074-935-1	01	1	1509-	●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1509-	●
29	03.162 CLIP; HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1509-		●
29	03.162 CLIP; HOSE 01.240 (D) ID=16	8-94392-924-0	02	1	1509-		●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1506-1508	●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	10	1	1509-		●
29	03.162 CLIP; HOSE 01.153 (B) ID=11	8-97375-639-0	02	1	1506-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=130	0-01804-130-0	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=150	8-97362-306-2	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=110	8-97377-894-0	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98162-319-0	01	1	1506-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98162-623-1	03	1	1506-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98166-894-0	01	1	1506-	●
31	03.332 NOZZLE ASM; INJ	8-98238-318-0	04	1	1506-1508	●
31	03.332 NOZZLE ASM; INJ	8-98074-909-2	04	1	1509-		●
31	03.332 NOZZLE ASM; INJ	8-98238-318-0	04	1	1509-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98113-691-0	04	1	1506-1508	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1509-		●
59	03.332 CLAMP; NOZZLE HOLDER	8-98113-691-0	04	1	1509-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1506-1508	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1509-	●	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	04	1	1509-		●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1506-	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1506-	●
71	03.162 BOLT; BRKT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1508	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-		●
122	03.162 CLIP; LEAK OFF PIPE (A)	8-97315-286-0	04	1	1506-1508	●
122	03.162 CLIP; LEAK OFF PIPE (A)	8-97315-286-0	04	1	1509-	●	●
122	03.162 CLIP; LEAK OFF PIPE 01.153 (B) ID=11	8-97375-639-0	02	1	1506-	●
128	03.162 PIPE ASM; INJ	8-98074-938-1	01	1	1506-	●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98009-699-0	01	1	1509-		●
137	03.163 PIPE ASM; LEAK OFF (E)	8-98036-510-0	01	1	1509-		●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98074-940-3	01	1	1506-	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1506-1508	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1509-	●	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98161-062-0	01	1	1506-1508	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98161-062-0	01	1	1509-	●	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1506-1508	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1509-	●	●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	1506-1508	●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	1509-	●	●
211	03.331 RAIL ASM; COMMON	8-98077-001-1	01	1	1506-1508	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1509-		●
211	03.331 RAIL ASM; COMMON	8-98077-001-1	01	1	1509-	●
216	03.162 BOLT; EYE (C)	8-98043-033-0	01	1	1509-		●
216	03.162 BOLT; EYE (B)	8-98035-828-0	01	1	1506-	●
216	03.162 BOLT; EYE 03.280 (A)	9-88130-088-0	01	1	1506-1508	●
216	03.162 BOLT; EYE 03.280 (A)	9-88130-088-0	01	1	1509-	●	●
283	03.330 BOLT; COMMON RAIL 00.206 (C) M8X70 FLANGE	0-28050-870-0	02	1	1509-		●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	1509-		●
283	03.330 BOLT; COMMON RAIL 04.510 (A) M10X35 FLANGE	0-28051-035-0	01	1	1506-	●
289	03.331 LIMITER; FUEL PRESS	8-98138-695-0	01	1	1506-1508	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1509-		●
289	03.331 LIMITER; FUEL PRESS	8-98138-695-0	01	1	1509-	●
290	03.331 SENSOR; PRESS	8-98138-736-0	01	1	1506-1508	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1509-		●
290	03.331 SENSOR; PRESS	8-98138-736-0	01	1	1509-	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98212-021-0	04	1	1506-1508	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-97372-144-0	04	1	1509-		●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98212-021-0	04	1	1509-	●
347	03.332 PIN	8-98165-035-0	04	1	1506-1508	●
347	03.332 PIN	8-98165-035-0	04	1	1509-	●	●
354	03.163 BOLT; FUEL PIPE 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1506-	●
388	03.332 STUD; RAIL 04.510 M10X28,M10X15 L=50	5-09300-050-0	01	1	1506-	●
392	03.330 NUT; RAIL ASM 04.085 M10 FLANGE	0-91180-210-0	01	1	1506-	●

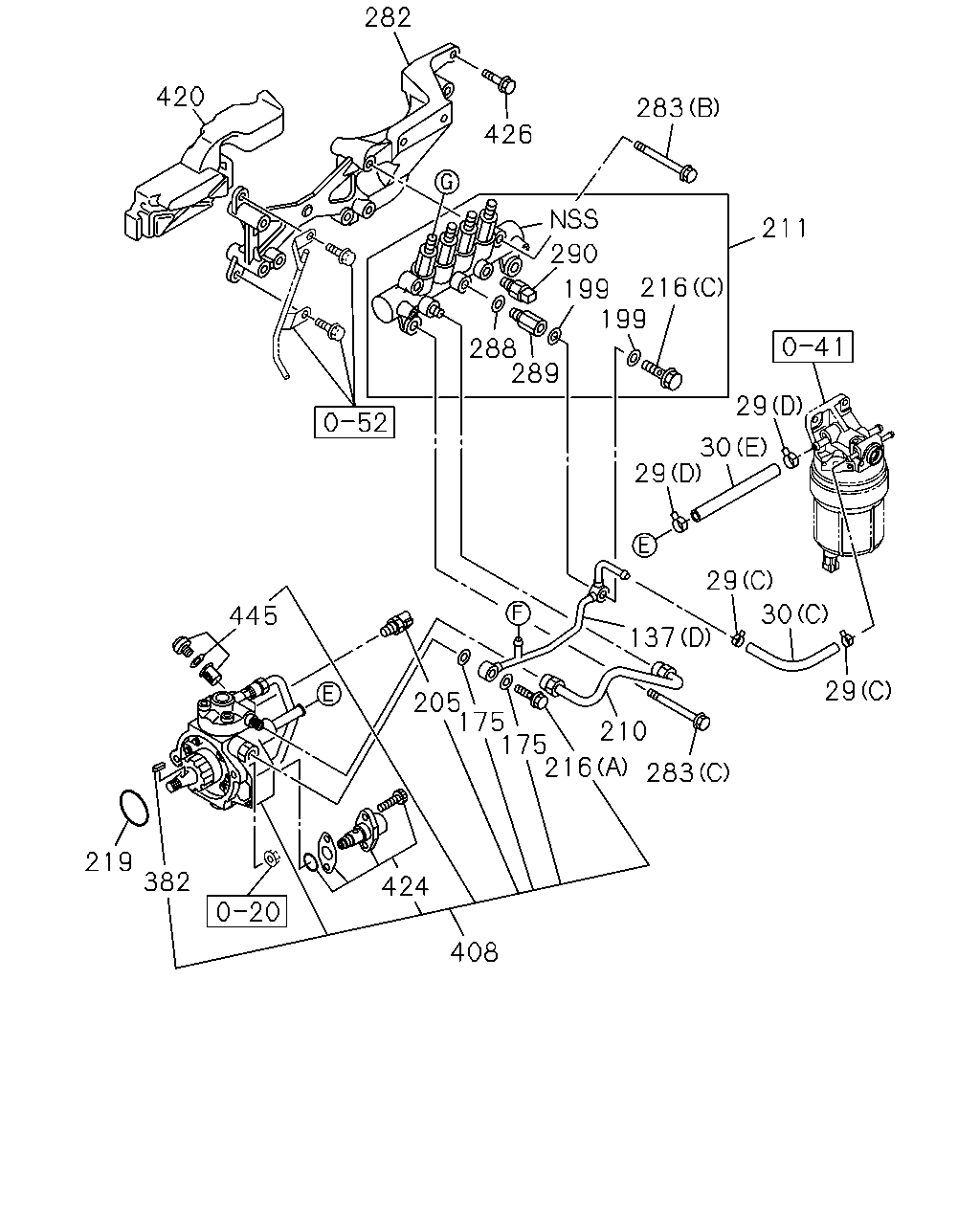

282 426 420 290 199 199 216 288 289 211 29 30 29 29 30 29 283 210 137 216 175 175 205 445 219 382 424 408 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1509-	●
29	03.162 CLIP; HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1509-		●
29	03.162 CLIP; HOSE 01.240 (D) ID=16	8-94392-924-0	02	1	1509-		●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1506-1508	●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	10	1	1509-		●
29	03.162 CLIP; HOSE 01.153 (B) ID=11	8-97375-639-0	02	1	1506-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=130	0-01804-130-0	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=150	8-97362-306-2	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=110	8-97377-894-0	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98162-319-0	01	1	1506-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98162-623-1	03	1	1506-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98166-894-0	01	1	1506-	●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98009-699-0	01	1	1509-		●
137	03.163 PIPE ASM; LEAK OFF (E)	8-98036-510-0	01	1	1509-		●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98074-940-3	01	1	1506-	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1506-1508	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1509-	●	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98161-062-0	01	1	1506-1508	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98161-062-0	01	1	1509-	●	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1506-1508	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1509-	●	●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	1506-1508	●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	1509-	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1506-1508	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1509-	●	●
210	03.330 PIPE; INJ,C/R	8-97388-902-0	01	1	1509-		●
211	03.331 RAIL ASM; COMMON	8-98077-001-1	01	1	1506-1508	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1509-		●
211	03.331 RAIL ASM; COMMON	8-98077-001-1	01	1	1509-	●
216	03.162 BOLT; EYE (C)	8-98043-033-0	01	1	1509-		●
216	03.162 BOLT; EYE (B)	8-98035-828-0	01	1	1506-	●
216	03.162 BOLT; EYE 03.280 (A)	9-88130-088-0	01	1	1506-1508	●
216	03.162 BOLT; EYE 03.280 (A)	9-88130-088-0	01	1	1509-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1506-1508	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1509-	●	●
282	03.163 BRACKET; COMMON RAIL	8-98147-694-0	01	1	1509-		●
283	03.330 BOLT; COMMON RAIL 00.206 (C) M8X70 FLANGE	0-28050-870-0	02	1	1509-		●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	1509-		●
283	03.330 BOLT; COMMON RAIL 04.510 (A) M10X35 FLANGE	0-28051-035-0	01	1	1506-	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1509-		●
289	03.331 LIMITER; FUEL PRESS	8-98138-695-0	01	1	1506-1508	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1509-		●
289	03.331 LIMITER; FUEL PRESS	8-98138-695-0	01	1	1509-	●
290	03.331 SENSOR; PRESS	8-98138-736-0	01	1	1506-1508	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1509-		●
290	03.331 SENSOR; PRESS	8-98138-736-0	01	1	1509-	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1506-1508	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1509-	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	1506-1508	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	1509-	●	●
420	03.340 RUBBER; SPACE,COMMON RAIL	8-98037-444-1	01	1	1509-		●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1506-1508	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1509-	●	●
426	03.330 BOLT; BRACKET 04.686 M8X60 FLANGE	0-28050-860-0	01	1	1509-		●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1506-1508	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1509-	●	●

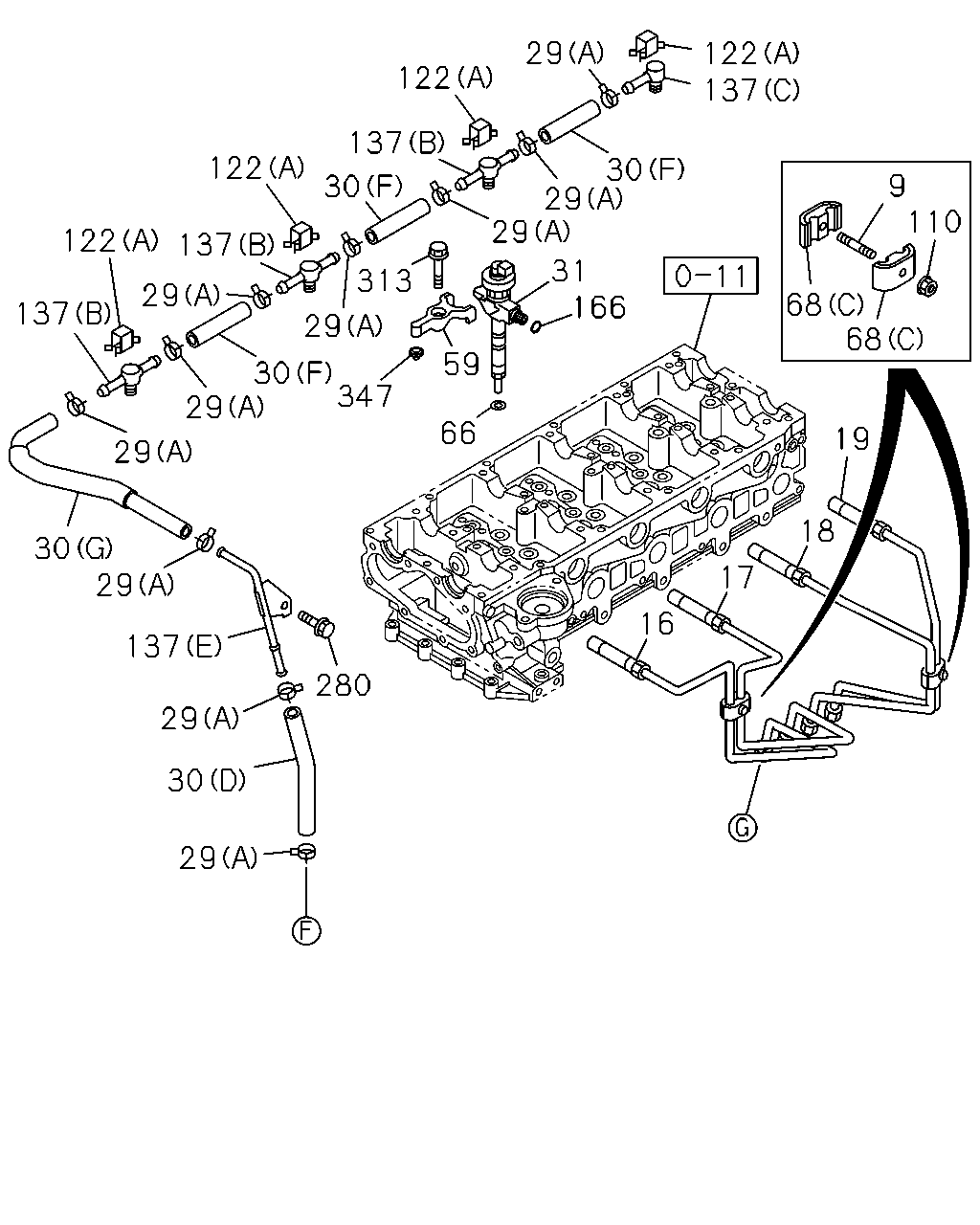

122 137 9 68 110 68 19 18 17 16 66 59 166 31 29 29 30 29 122 137 30 122 137 122 29 137 313 29 347 30 29 29 30 29 137 29 30 29 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	01	1	1509-	●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	01	1	1506-1508	●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	02	1	1509-		●
16	03.330 PIPE; INJ NO.1	8-98074-932-1	01	1	1506-1508	●
16	03.330 PIPE; INJ NO.1	8-98203-719-0	01	1	1509-		●
16	03.330 PIPE; INJ NO.1	8-98074-932-1	01	1	1509-	●
17	03.330 PIPE; INJ NO.2	8-98074-933-1	01	1	1506-1508	●
17	03.330 PIPE; INJ NO.2	8-98203-720-0	01	1	1509-		●
17	03.330 PIPE; INJ NO.2	8-98074-933-1	01	1	1509-	●
18	03.330 PIPE; INJ NO.3	8-98074-934-1	01	1	1506-1508	●
18	03.330 PIPE; INJ NO.3	8-98203-721-0	01	1	1509-		●
18	03.330 PIPE; INJ NO.3	8-98074-934-1	01	1	1509-	●
19	03.330 PIPE; INJ NO.4	8-98074-935-1	01	1	1506-1508	●
19	03.330 PIPE; INJ NO.4	8-98203-722-0	01	1	1509-		●
19	03.330 PIPE; INJ NO.4	8-98074-935-1	01	1	1509-	●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1509-	●
29	03.162 CLIP; HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1509-		●
29	03.162 CLIP; HOSE 01.240 (D) ID=16	8-94392-924-0	02	1	1509-		●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1506-1508	●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	10	1	1509-		●
29	03.162 CLIP; HOSE 01.153 (B) ID=11	8-97375-639-0	02	1	1506-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=130	0-01804-130-0	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=150	8-97362-306-2	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=110	8-97377-894-0	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1509-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98162-319-0	01	1	1506-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98162-623-1	03	1	1506-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98166-894-0	01	1	1506-	●
31	03.332 NOZZLE ASM; INJ	8-98238-318-0	04	1	1506-1508	●
31	03.332 NOZZLE ASM; INJ	8-98074-909-2	04	1	1509-		●
31	03.332 NOZZLE ASM; INJ	8-98238-318-0	04	1	1509-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98113-691-0	04	1	1506-1508	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1509-		●
59	03.332 CLAMP; NOZZLE HOLDER	8-98113-691-0	04	1	1509-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1506-1508	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1509-	●	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	04	1	1509-		●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1506-	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1506-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1508	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-		●
122	03.162 CLIP; LEAK OFF PIPE (A)	8-97315-286-0	04	1	1506-1508	●
122	03.162 CLIP; LEAK OFF PIPE (A)	8-97315-286-0	04	1	1509-	●	●
122	03.162 CLIP; LEAK OFF PIPE 01.153 (B) ID=11	8-97375-639-0	02	1	1506-	●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98009-699-0	01	1	1509-		●
137	03.163 PIPE ASM; LEAK OFF (E)	8-98036-510-0	01	1	1509-		●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98074-940-3	01	1	1506-	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1506-1508	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1509-	●	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98161-062-0	01	1	1506-1508	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98161-062-0	01	1	1509-	●	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1506-1508	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1509-	●	●
280	03.330 BOLT; CLIP,FUEL HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-		●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98212-021-0	04	1	1506-1508	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-97372-144-0	04	1	1509-		●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98212-021-0	04	1	1509-	●
347	03.332 PIN	8-98165-035-0	04	1	1506-1508	●
347	03.332 PIN	8-98165-035-0	04	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
