Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#162158) — 378 parça

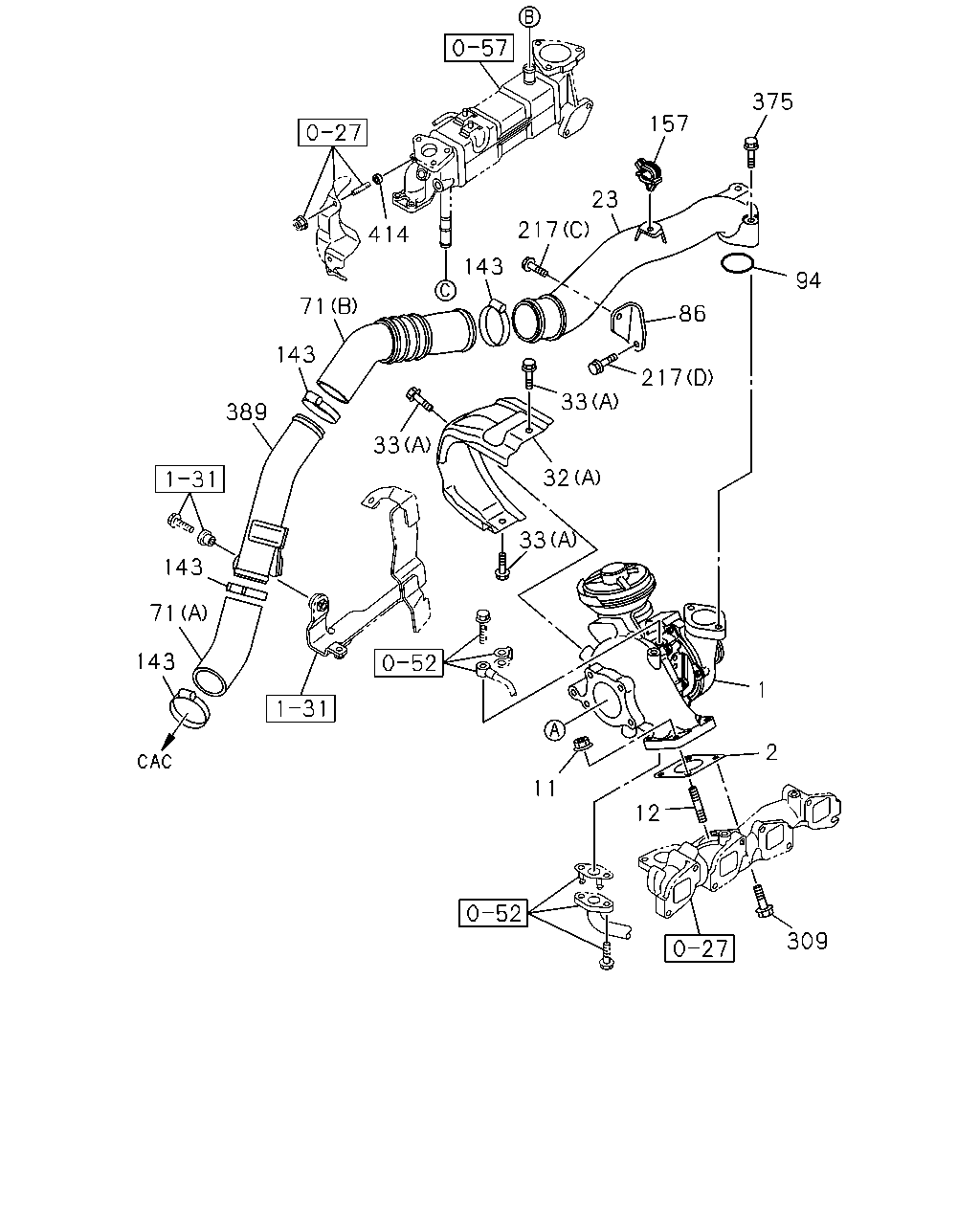

11 12 2 1 309 33 32 33 33 389 143 71 143 71 143 414 217 143 86 217 157 23 375 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM	8-98083-041-2	01	1	1509-	●
1	03.342 TURBOCHARGER ASM TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98165-448-1	01	1	1509-		●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1506-1508		●
1	03.342 TURBOCHARGER ASM EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98195-143-1	01	1	1509-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1506-1508		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1509-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1506-1508		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1509-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-1508		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1509-	●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98237-774-1	01	1	1506-1506		●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98308-040-0	01	1	1507-1508		●
23	03.417 PIPE; INTAKE,TURBOCHARGER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98308-040-0	01	1	1509-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98034-990-3	01	1	1509-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98034-991-1	01	1	1509-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98179-608-0	01	1	1506-1508		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98179-608-0	01	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X12 FLANGE	0-28050-812-0	07	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	07	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	09	1	1506-1508		●
33	03.342 BOLT; HEAT PROTECTOR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X12 FLANGE	0-28050-812-0	09	1	1509-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98050-918-1	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NLR(NM***E) (A)	8-98036-513-2	01	1	1506-1508		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1509-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NLR(NM***E) (B)	8-98111-372-1	01	1	1506-1508		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98111-372-1	01	1	1509-		●
86	03.417 BRACKET; INL PIPE	8-98173-247-0	01	1	1506-1508		●
86	03.417 BRACKET; INL PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98173-247-0	01	1	1509-		●
94	01.531 GASKET; INL PIPE ID=39.6	8-98243-868-0	01	1	1506-1508		●
94	01.531 GASKET; INL PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) ID=39.6	8-98243-868-0	01	1	1509-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NLR(NM***E) ID=45-65	8-98133-348-0	04	1	1506-1508		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1509-	●	●
157	03.417 CLIP; HOSE,INL ID=8	8-98136-175-0	01	1	1506-1506		●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1509-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1506-1508		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1509-	●	●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E) M10X20 FLANGE	0-28151-020-0	01	1	1509-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1509-		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1506-1508		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1509-	●	●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1509-		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1506-1508		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1509-	●	●
375	03.342 BOLT; FLANGE 00.386 M8X50 FLANGE	0-28050-850-0	02	1	1506-1508		●
375	03.342 BOLT; FLANGE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.386 M8X50 FLANGE	0-28050-850-0	02	1	1509-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98038-996-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC NLR(NM***E)	8-98111-209-0	01	1	1506-1508		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98111-209-0	01	1	1509-		●
414	03.602 SPACER	8-98143-884-0	01	1	1506-1508		●
414	03.602 SPACER	8-98143-884-0	01	1	1509-	●	●

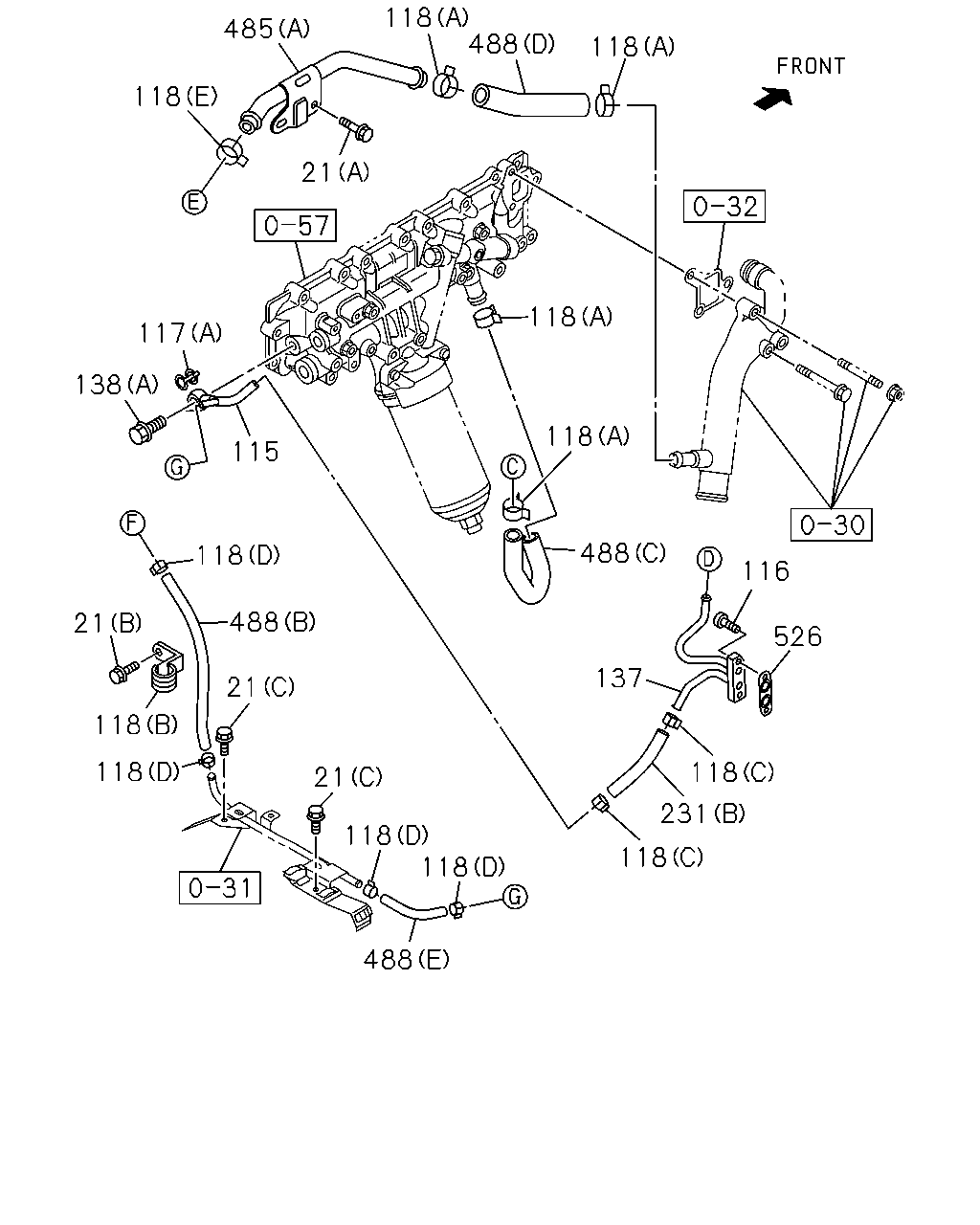

485 118 118 488 118 21 118 118 488 116 526 137 118 231 118 117 115 138 118 488 21 21 21 118 118 118 118 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-1508		●
21	03.358 BOLT; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1509-		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-1508		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1509-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-1508		●
21	03.358 BOLT; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1509-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98083-025-1	01	1	1509-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1509-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98223-106-0	01	1	1506-1508		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98223-106-0	01	1	1509-		●
116	03.342 BOLT; WATER PIPE 00.724 M6X16 HEX SOCKET	0-58330-616-0	02	1	1506-1508		●
116	03.342 BOLT; WATER PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.724 M6X16 HEX SOCKET	0-58330-616-0	02	1	1509-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1509-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1509-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=20.0	8-98113-762-0	01	1	1506-1508		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=20.0	8-98113-762-0	01	1	1509-	●	●
118	03.342 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.166 (F) ID=20.8	8-94125-862-1	02	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.166 (F) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.278 (A) ID=22	8-97359-141-0	02	1	1509-		●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.278 (A) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.153 (D) ID=11.5	8-97375-638-0	06	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98074-761-0	01	1	1509-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98074-761-0	01	1	1509-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1506-1508		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98173-164-0	01	1	1509-		●
138	03.342 BOLT; EYE,WATER PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.531 (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M14X33 FLANGE	1-09675-088-0	01	1	1506-1508		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M14X33 FLANGE	1-09675-088-0	01	1	1509-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98075-182-1	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98075-182-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98120-394-1	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D)	8-98120-394-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B) L=100	0-03609-100-0	01	1	1506-1508		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) L=100	0-03609-100-0	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98239-698-0	01	1	1506-1508		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98239-698-0	01	1	1509-		●
485	01.097 PIPE; WATER EGR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98107-346-0	01	1	1509-		●
485	01.097 PIPE; WATER EGR (B)	8-98107-346-0	01	1	1509-	●
485	01.097 PIPE; WATER EGR (A)	8-98082-424-1	01	1	1506-1508		●
485	01.097 PIPE; WATER EGR (A)	8-98082-424-1	01	1	1509-	●	●
488	03.163 HOSE; RUBBER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (H)	8-98082-221-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (H)	8-98082-221-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (D) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (C)	8-98075-184-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (A)	0-03607-140-0	02	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	0-03607-140-0	02	1	1509-		●
488	03.163 HOSE; RUBBER (B)	8-98138-272-1	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98138-272-1	01	1	1509-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (D)	8-98192-304-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (E)	8-98196-479-0	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98196-479-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (F)	8-98239-420-0	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (F)	8-98239-420-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (G)	8-98239-697-0	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (G)	8-98239-697-0	01	1	1509-		●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	1506-1508		●
526	03.342 GASKET; PLATE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.519	8-97352-985-0	01	1	1509-		●

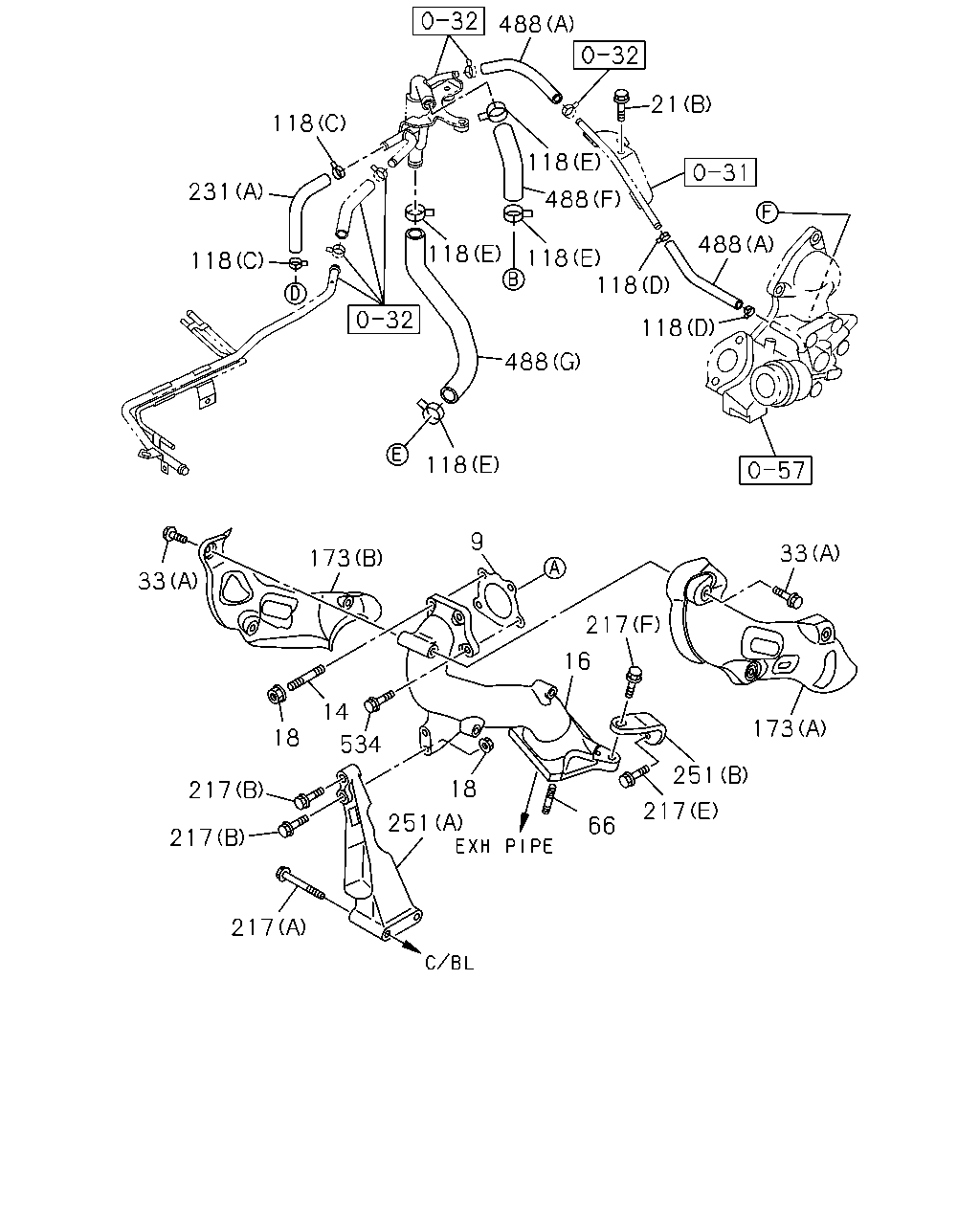

217 16 173 251 217 66 18 534 14 18 217 217 217 251 173 33 9 118 488 118 118 118 118 118 231 118 118 488 488 21 488 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	1509-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	1509-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98241-385-0	01	1	1506-1508		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98241-385-0	01	1	1509-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-1508		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1509-	●	●
16	03.609 ADAPTER; EXH PIPE	8-98224-792-1	01	1	1506-1508		●
16	03.609 ADAPTER; EXH PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98224-792-1	01	1	1509-		●
16	03.609 ADAPTER; EXH PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98147-897-1	01	1	1509-		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1509-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1506-1508		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1509-	●	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-1508		●
21	03.358 BOLT; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1509-		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-1508		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1509-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-1508		●
21	03.358 BOLT; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X12 FLANGE	0-28050-812-0	07	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	07	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	09	1	1506-1508		●
33	03.342 BOLT; HEAT PROTECTOR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X12 FLANGE	0-28050-812-0	09	1	1509-		●
66	03.342 STUD; EXH PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) M10X25 L=45	0-43211-025-0	03	1	1509-		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1509-	●
66	03.342 STUD; EXH PIPE 05.387 M10X31 L=43	8-98022-413-0	04	1	1506-1508		●
66	03.342 STUD; EXH PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 05.387 M10X31 L=43	8-98022-413-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.166 (F) ID=20.8	8-94125-862-1	02	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.166 (F) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.278 (A) ID=22	8-97359-141-0	02	1	1509-		●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.278 (A) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.153 (D) ID=11.5	8-97375-638-0	06	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98032-022-3	01	1	1509-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98032-022-3	01	1	1509-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98032-024-3	01	1	1509-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98032-024-3	01	1	1509-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98224-793-1	01	1	1506-1508		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98224-793-1	01	1	1509-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98224-794-1	01	1	1506-1508		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98224-794-1	01	1	1509-		●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1509-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1506-1508		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1509-	●	●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E) M10X20 FLANGE	0-28151-020-0	01	1	1509-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1509-		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1506-1508		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1509-	●	●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98075-182-1	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98075-182-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98120-394-1	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D)	8-98120-394-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B) L=100	0-03609-100-0	01	1	1506-1508		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) L=100	0-03609-100-0	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98239-698-0	01	1	1506-1508		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98239-698-0	01	1	1509-		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1506-1508		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1509-	●	●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1506-1508		●
251	03.417 BRACKET; ADAPTER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98225-284-0	01	1	1509-		●

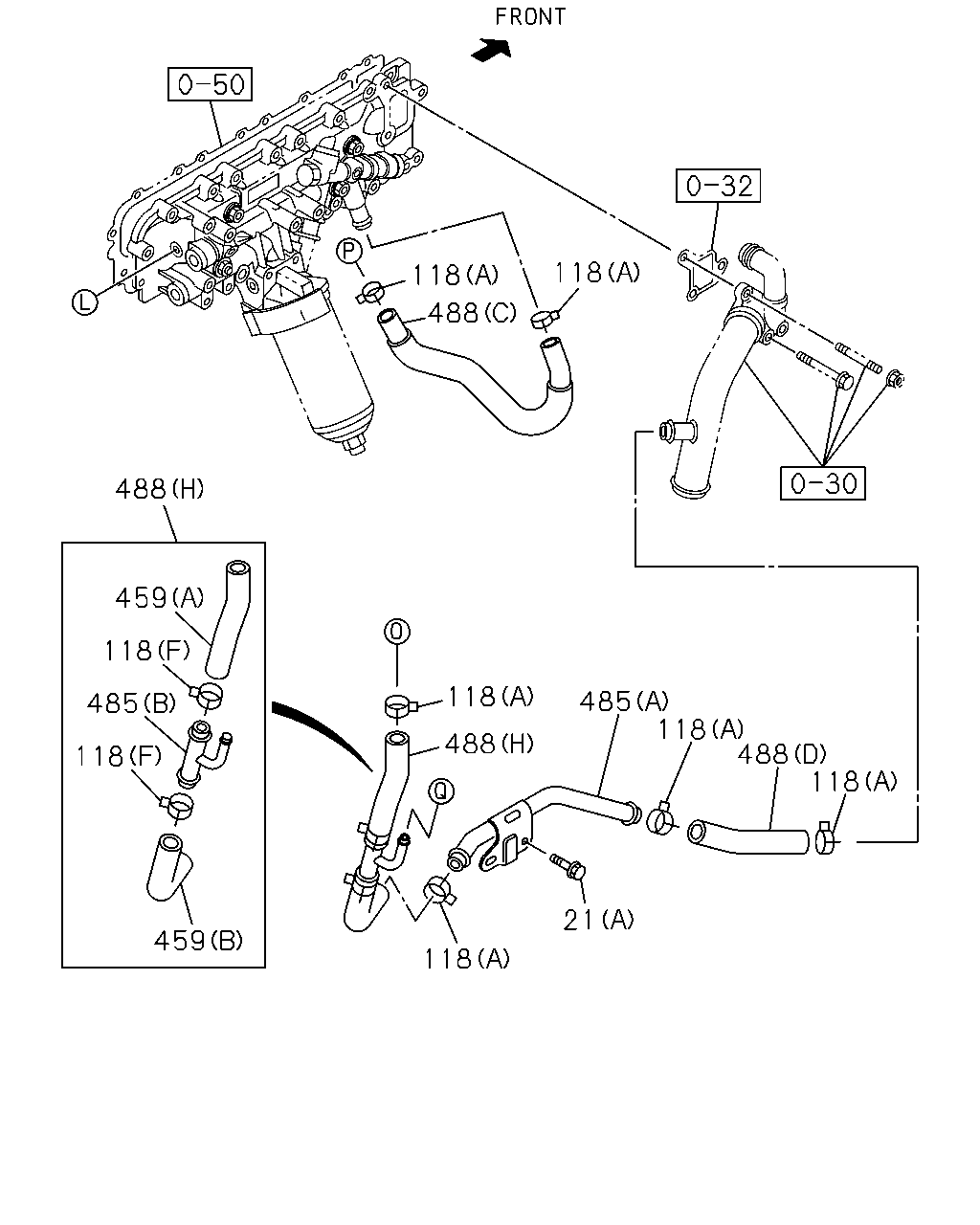

488	03.163 HOSE; RUBBER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (H)	8-98082-221-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (H)	8-98082-221-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (D) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (C)	8-98075-184-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (A)	0-03607-140-0	02	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	0-03607-140-0	02	1	1509-		●
488	03.163 HOSE; RUBBER (B)	8-98138-272-1	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98138-272-1	01	1	1509-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (D)	8-98192-304-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (E)	8-98196-479-0	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98196-479-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (F)	8-98239-420-0	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (F)	8-98239-420-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (G)	8-98239-697-0	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (G)	8-98239-697-0	01	1	1509-		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1506-1508		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1509-	●	●

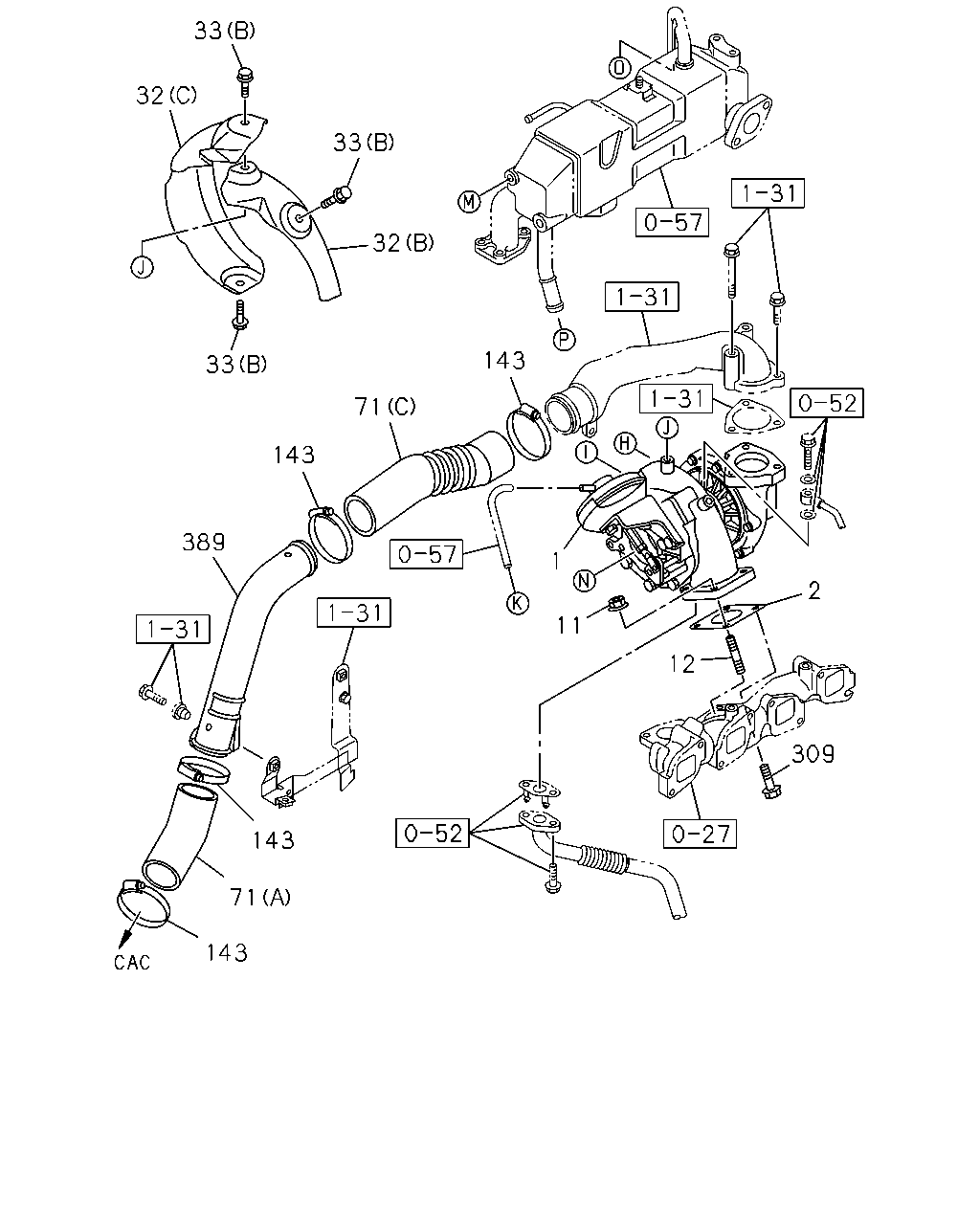

33 32 33 32 33 143 71 143 389 1 11 2 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM	8-98083-041-2	01	1	1509-	●
1	03.342 TURBOCHARGER ASM TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98165-448-1	01	1	1509-		●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1506-1508		●
1	03.342 TURBOCHARGER ASM EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98195-143-1	01	1	1509-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1506-1508		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1509-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1506-1508		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1509-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-1508		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1509-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98034-990-3	01	1	1509-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98034-991-1	01	1	1509-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98179-608-0	01	1	1506-1508		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98179-608-0	01	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X12 FLANGE	0-28050-812-0	07	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	07	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	09	1	1506-1508		●
33	03.342 BOLT; HEAT PROTECTOR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X12 FLANGE	0-28050-812-0	09	1	1509-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98050-918-1	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NLR(NM***E) (A)	8-98036-513-2	01	1	1506-1508		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1509-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NLR(NM***E) (B)	8-98111-372-1	01	1	1506-1508		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98111-372-1	01	1	1509-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NLR(NM***E) ID=45-65	8-98133-348-0	04	1	1506-1508		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1509-	●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1506-1508		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98038-996-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC NLR(NM***E)	8-98111-209-0	01	1	1506-1508		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98111-209-0	01	1	1509-		●

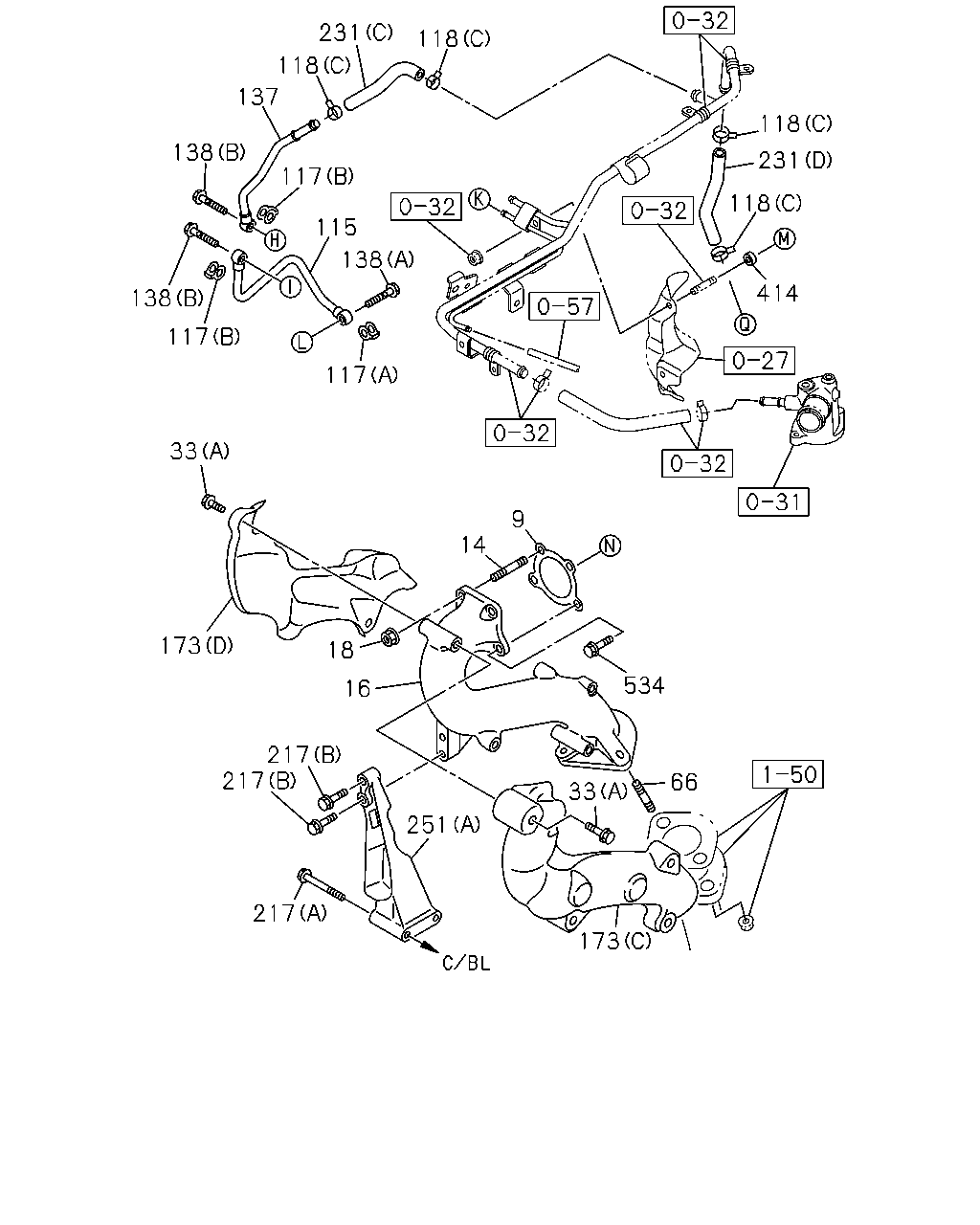

118 231 118 137 138 117 115 138 117 138 117 33 14 9 118 231 118 414 173 18 6 534 66 33 173 251 217 217 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	1509-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	1509-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98241-385-0	01	1	1506-1508		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98241-385-0	01	1	1509-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-1508		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1509-	●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1506-1508		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1509-	●	●
33	03.342 BOLT; HEAT PROTECTOR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X12 FLANGE	0-28050-812-0	07	1	1509-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	07	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	09	1	1506-1508		●
33	03.342 BOLT; HEAT PROTECTOR EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (A) M8X12 FLANGE	0-28050-812-0	09	1	1509-		●
66	03.342 STUD; EXH PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) M10X25 L=45	0-43211-025-0	03	1	1509-		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1509-	●
66	03.342 STUD; EXH PIPE 05.387 M10X31 L=43	8-98022-413-0	04	1	1506-1508		●
66	03.342 STUD; EXH PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 05.387 M10X31 L=43	8-98022-413-0	04	1	1509-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98083-025-1	01	1	1509-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1509-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98223-106-0	01	1	1506-1508		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98223-106-0	01	1	1509-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1509-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1509-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=20.0	8-98113-762-0	01	1	1506-1508		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=20.0	8-98113-762-0	01	1	1509-	●	●
118	03.342 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.166 (F) ID=20.8	8-94125-862-1	02	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.166 (F) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.278 (A) ID=22	8-97359-141-0	02	1	1509-		●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.278 (A) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.153 (D) ID=11.5	8-97375-638-0	06	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98074-761-0	01	1	1509-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98074-761-0	01	1	1509-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1506-1508		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98173-164-0	01	1	1509-		●
138	03.342 BOLT; EYE,WATER PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.531 (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M14X33 FLANGE	1-09675-088-0	01	1	1506-1508		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M14X33 FLANGE	1-09675-088-0	01	1	1509-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98032-022-3	01	1	1509-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98032-022-3	01	1	1509-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98032-024-3	01	1	1509-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98032-024-3	01	1	1509-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98224-793-1	01	1	1506-1508		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98224-793-1	01	1	1509-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98224-794-1	01	1	1506-1508		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98224-794-1	01	1	1509-		●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1509-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1506-1508		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1509-	●	●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E) M10X20 FLANGE	0-28151-020-0	01	1	1509-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1509-		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1506-1508		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1509-	●	●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1506-1508		●
217	03.417 BOLT; BRKT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98075-182-1	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98075-182-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98120-394-1	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D)	8-98120-394-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B) L=100	0-03609-100-0	01	1	1506-1508		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) L=100	0-03609-100-0	01	1	1509-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98239-698-0	01	1	1506-1508		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98239-698-0	01	1	1509-		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1506-1508		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1509-	●	●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1506-1508		●
251	03.417 BRACKET; ADAPTER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98225-284-0	01	1	1509-		●
414	03.602 SPACER	8-98143-884-0	01	1	1506-1508		●
414	03.602 SPACER	8-98143-884-0	01	1	1509-	●	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1506-1508		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1509-	●	●

118 118 488 118 488 485 118 488 118 21 118 459 459 488 118 485 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-1508		●
21	03.358 BOLT; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1509-		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-1508		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1509-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-1508		●
21	03.358 BOLT; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1509-		●
118	03.342 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.166 (F) ID=20.8	8-94125-862-1	02	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.166 (F) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.278 (A) ID=22	8-97359-141-0	02	1	1509-		●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.278 (A) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.153 (D) ID=11.5	8-97375-638-0	06	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-		●
459	03.341 HOSE; WATER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98107-347-0	01	1	1509-		●
459	03.341 HOSE; WATER (A)	8-98107-347-0	01	1	1509-	●
459	03.341 HOSE; WATER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98108-321-0	01	1	1509-		●
459	03.341 HOSE; WATER (B)	8-98108-321-0	01	1	1509-	●
485	01.097 PIPE; WATER EGR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98107-346-0	01	1	1509-		●
485	01.097 PIPE; WATER EGR (B)	8-98107-346-0	01	1	1509-	●
485	01.097 PIPE; WATER EGR (A)	8-98082-424-1	01	1	1506-1508		●
485	01.097 PIPE; WATER EGR (A)	8-98082-424-1	01	1	1509-	●	●
488	03.163 HOSE; RUBBER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (H)	8-98082-221-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (H)	8-98082-221-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (D) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (C)	8-98075-184-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (A)	0-03607-140-0	02	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	0-03607-140-0	02	1	1509-		●
488	03.163 HOSE; RUBBER (B)	8-98138-272-1	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98138-272-1	01	1	1509-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (D)	8-98192-304-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (E)	8-98196-479-0	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98196-479-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (F)	8-98239-420-0	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (F)	8-98239-420-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (G)	8-98239-697-0	01	1	1506-1508		●
488	03.163 HOSE; RUBBER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (G)	8-98239-697-0	01	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
