0-32 — WATER PIPING; ENGINE (#162156) — 103 parça

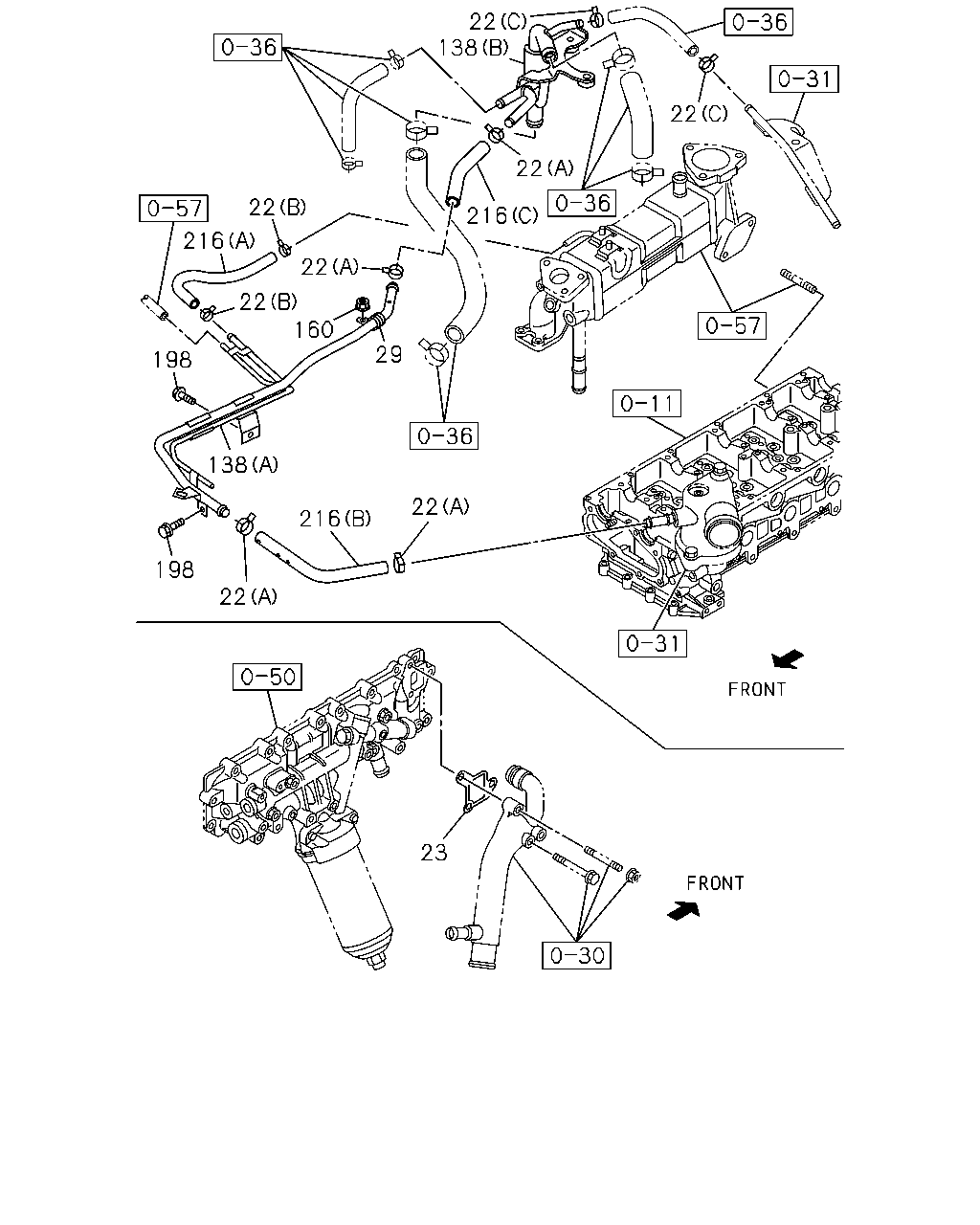

22 138 22 22 216 22 216 22 22 198 138 216 22 29 160 198 22 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	01.153 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=12.8	8-94367-943-0	02	1	1509-	●
22	01.153 CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	02	1	1509-		●
22	01.153 CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	04	1	1506-1508	●
22	01.153 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=12.8	8-94367-943-0	04	1	1509-	●
22	01.153 CLIP; WATER HOSE (C) ID=11.5	8-97375-638-0	02	1	1506-1508	●
22	01.153 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) ID=11.5	8-97375-638-0	02	1	1509-	●
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1506-1508	●
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1509-	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-98075-127-0	01	1	1506-1508	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-98075-127-0	01	1	1509-	●	●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	03	1	1509-		●
29	01.166 CLIP; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.251	8-98120-917-0	02	1	1509-	●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	01	1	1506-1508	●
29	01.166 CLIP; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.251	8-98120-917-0	01	1	1509-	●
138	01.251 PIPE; WATER (C)	8-98131-462-4	01	1	1509-		●
138	01.251 PIPE; WATER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98228-321-0	01	1	1509-	●
138	01.251 PIPE; WATER (A)	8-98201-792-0	01	1	1506-1506	●
138	01.251 PIPE; WATER (A)	8-98317-078-0	01	1	1507-1508	●
138	01.251 PIPE; WATER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98317-078-0	01	1	1509-	●
138	01.251 PIPE; WATER (B)	8-98239-417-2	01	1	1506-1508	●
138	01.251 PIPE; WATER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98239-417-2	01	1	1509-	●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1506-1508	●
160	01.153 NUT; WATER PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-	●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-		●
198	01.242 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1506-1508	●
198	01.242 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1506-1508	●
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1509-	●	●
216	01.240 HOSE; WATER 03.342 (C)	8-98075-182-1	01	1	1506-1508	●
216	01.240 HOSE; WATER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.342 (C)	8-98075-182-1	01	1	1509-	●
216	01.240 HOSE; WATER 03.342 (B)	8-98113-336-0	01	1	1506-1508	●
216	01.240 HOSE; WATER 03.342 (B)	8-98113-336-0	01	1	1509-	●	●

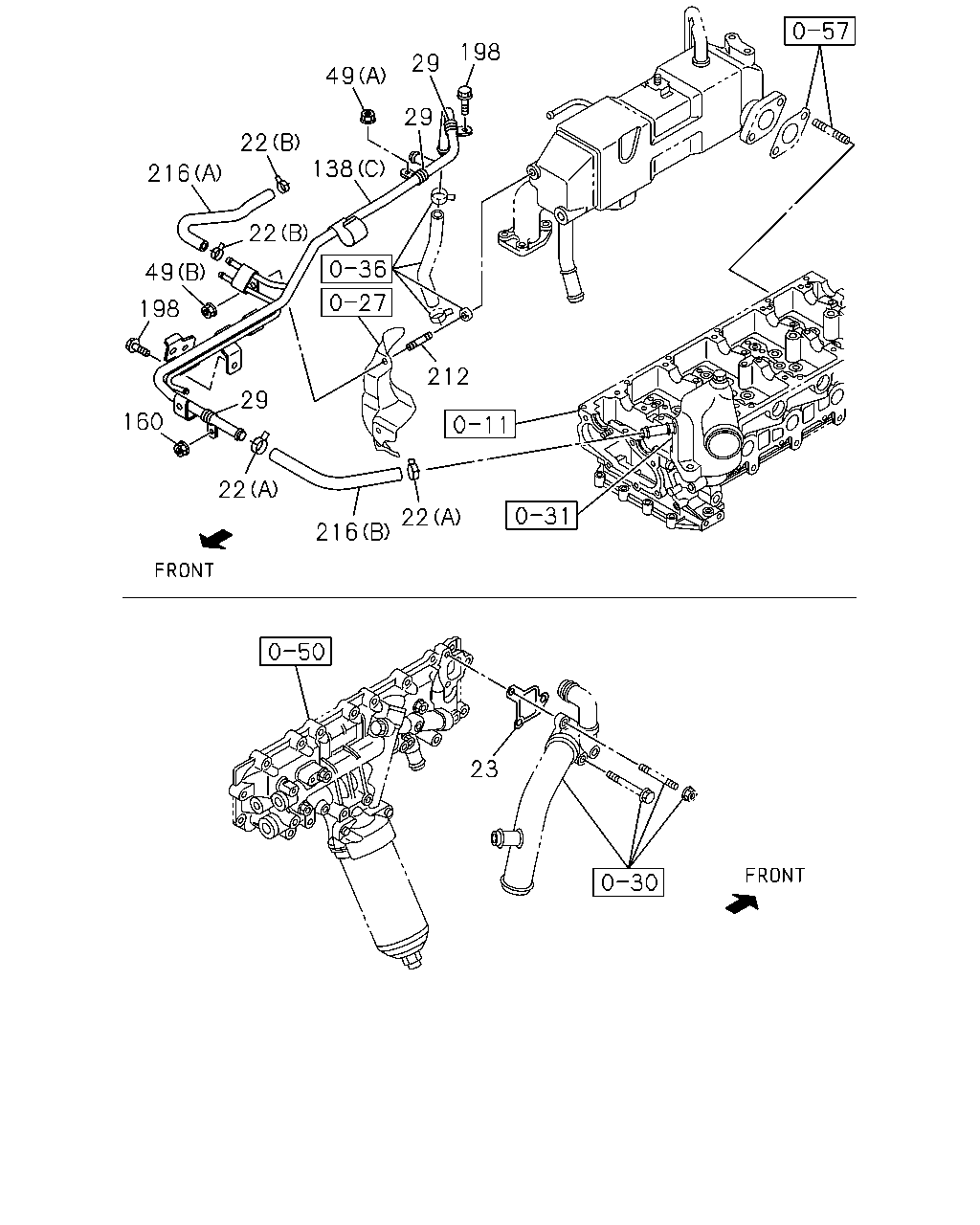

49 212 29 29 138 49 22 216 198 198 22 216 22 22 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	01.153 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=12.8	8-94367-943-0	02	1	1509-	●
22	01.153 CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	02	1	1509-		●
22	01.153 CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	04	1	1506-1508	●
22	01.153 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=12.8	8-94367-943-0	04	1	1509-	●
22	01.153 CLIP; WATER HOSE (C) ID=11.5	8-97375-638-0	02	1	1506-1508	●
22	01.153 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) ID=11.5	8-97375-638-0	02	1	1509-	●
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1506-1508	●
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1509-	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-98075-127-0	01	1	1506-1508	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-98075-127-0	01	1	1509-	●	●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	03	1	1509-		●
29	01.166 CLIP; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.251	8-98120-917-0	02	1	1509-	●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	01	1	1506-1508	●
29	01.166 CLIP; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.251	8-98120-917-0	01	1	1509-	●
49	01.153 NUT; WATER PIPE 01.540 (A) M6 FLANGE	0-91180-206-0	01	1	1509-		●
49	01.153 NUT; WATER PIPE 03.613 (B) M8 FLANGE	8-97161-607-0	01	1	1509-		●
49	01.153 NUT; WATER PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 (A) M6 FLANGE	0-91180-206-0	02	1	1509-	●
138	01.251 PIPE; WATER (C)	8-98131-462-4	01	1	1509-		●
138	01.251 PIPE; WATER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98228-321-0	01	1	1509-	●
138	01.251 PIPE; WATER (A)	8-98201-792-0	01	1	1506-1506	●
138	01.251 PIPE; WATER (A)	8-98317-078-0	01	1	1507-1508	●
138	01.251 PIPE; WATER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98317-078-0	01	1	1509-	●
138	01.251 PIPE; WATER (B)	8-98239-417-2	01	1	1506-1508	●
138	01.251 PIPE; WATER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98239-417-2	01	1	1509-	●
198	01.242 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1506-1508	●
198	01.242 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●
212	01.153 STUD; PIPE 03.601 M8X25 L=36	8-97378-062-0	01	1	1509-		●
212	01.153 STUD; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.206 M6X16 L=25	0-41010-616-0	01	1	1509-	●
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1506-1508	●
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1509-	●	●
216	01.240 HOSE; WATER 03.342 (C)	8-98075-182-1	01	1	1506-1508	●
216	01.240 HOSE; WATER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.342 (C)	8-98075-182-1	01	1	1509-	●
216	01.240 HOSE; WATER 03.342 (B)	8-98113-336-0	01	1	1506-1508	●
216	01.240 HOSE; WATER 03.342 (B)	8-98113-336-0	01	1	1509-	●	●

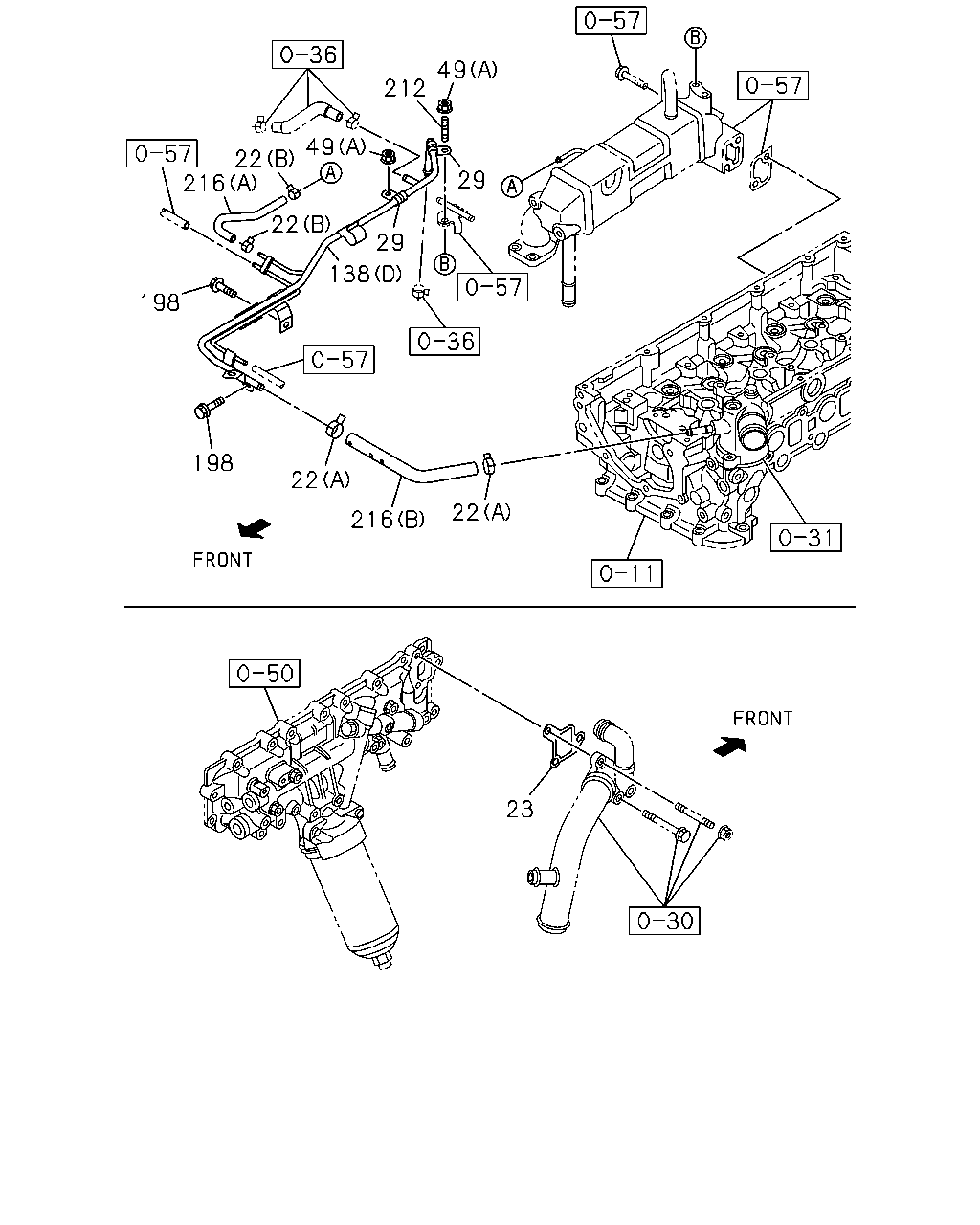

198 29 49 138 22 22 216 49 198 160 29 212 22 216 22 29 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	01.153 CLIP; WATER HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=12.8	8-94367-943-0	02	1	1509-	●
22	01.153 CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	02	1	1509-		●
22	01.153 CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	04	1	1506-1508	●
22	01.153 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=12.8	8-94367-943-0	04	1	1509-	●
22	01.153 CLIP; WATER HOSE (C) ID=11.5	8-97375-638-0	02	1	1506-1508	●
22	01.153 CLIP; WATER HOSE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) ID=11.5	8-97375-638-0	02	1	1509-	●
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1506-1508	●
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1509-	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-98075-127-0	01	1	1506-1508	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-98075-127-0	01	1	1509-	●	●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	03	1	1509-		●
29	01.166 CLIP; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.251	8-98120-917-0	02	1	1509-	●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	01	1	1506-1508	●
29	01.166 CLIP; PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.251	8-98120-917-0	01	1	1509-	●
49	01.153 NUT; WATER PIPE 01.540 (A) M6 FLANGE	0-91180-206-0	01	1	1509-		●
49	01.153 NUT; WATER PIPE 03.613 (B) M8 FLANGE	8-97161-607-0	01	1	1509-		●
49	01.153 NUT; WATER PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 (A) M6 FLANGE	0-91180-206-0	02	1	1509-	●
138	01.251 PIPE; WATER (C)	8-98131-462-4	01	1	1509-		●
138	01.251 PIPE; WATER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98228-321-0	01	1	1509-	●
138	01.251 PIPE; WATER (A)	8-98201-792-0	01	1	1506-1506	●
138	01.251 PIPE; WATER (A)	8-98317-078-0	01	1	1507-1508	●
138	01.251 PIPE; WATER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98317-078-0	01	1	1509-	●
138	01.251 PIPE; WATER (B)	8-98239-417-2	01	1	1506-1508	●
138	01.251 PIPE; WATER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98239-417-2	01	1	1509-	●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1506-1508	●
160	01.153 NUT; WATER PIPE EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-	●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-		●
198	01.242 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1506-1508	●
198	01.242 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●
212	01.153 STUD; PIPE 03.601 M8X25 L=36	8-97378-062-0	01	1	1509-		●
212	01.153 STUD; PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.206 M6X16 L=25	0-41010-616-0	01	1	1509-	●
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1506-1508	●
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1509-	●	●
216	01.240 HOSE; WATER 03.342 (C)	8-98075-182-1	01	1	1506-1508	●
216	01.240 HOSE; WATER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.342 (C)	8-98075-182-1	01	1	1509-	●
216	01.240 HOSE; WATER 03.342 (B)	8-98113-336-0	01	1	1506-1508	●
216	01.240 HOSE; WATER 03.342 (B)	8-98113-336-0	01	1	1509-	●	●
