◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶

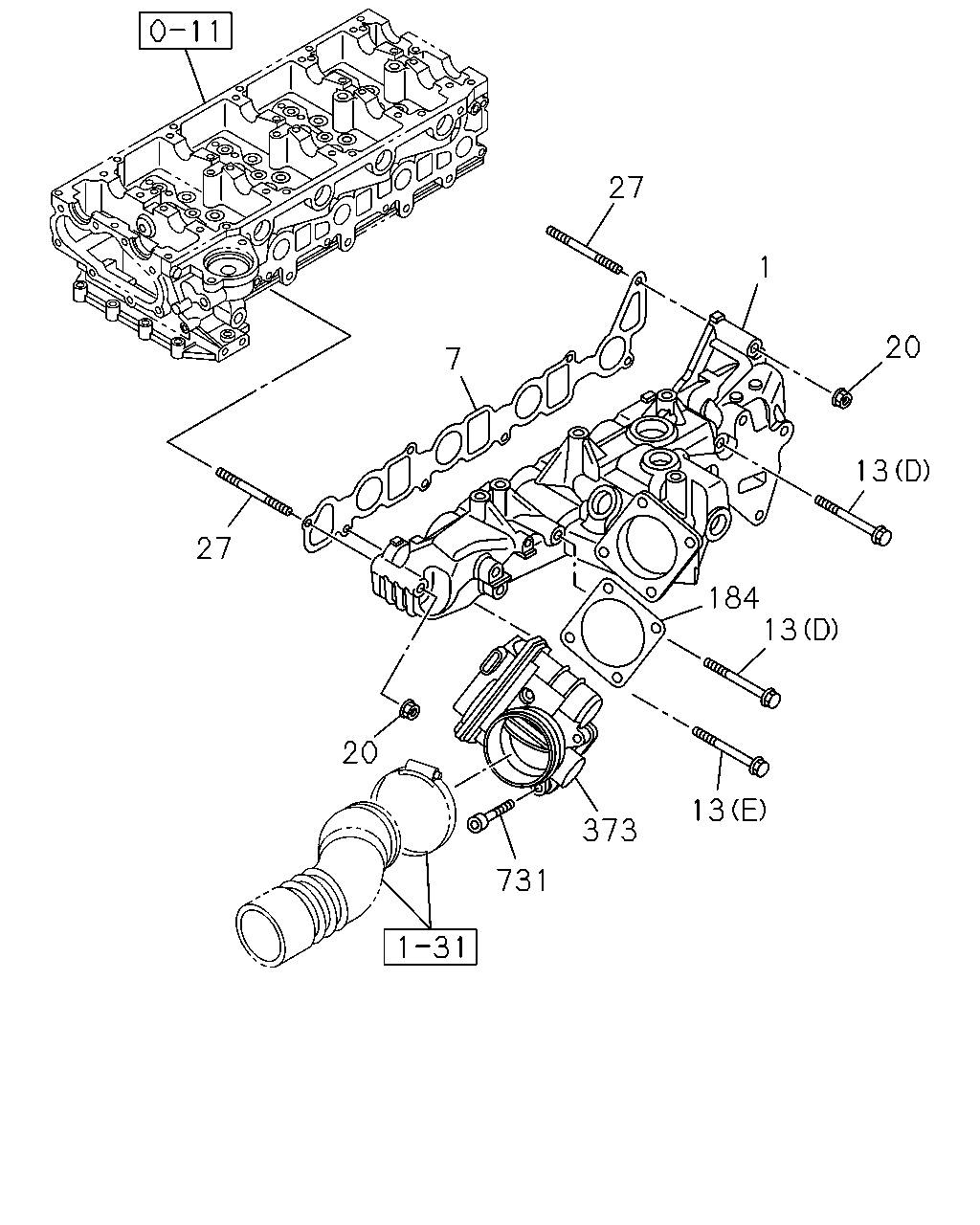

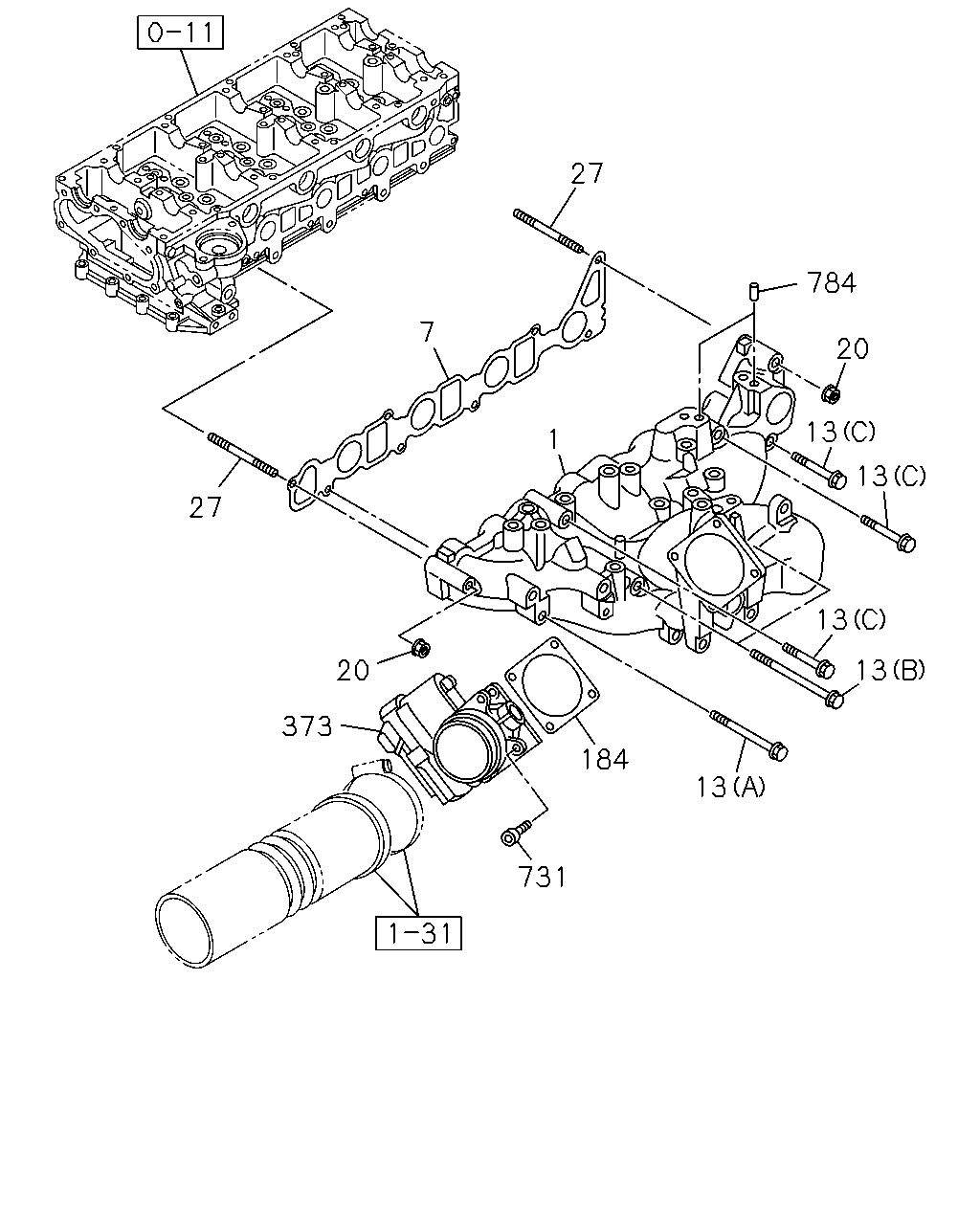

0-25 — INLET MANIFOLD (#162152) — 48 parça

731 184 13 373 27 20 7 27 1 784 20 13 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	1509-	●
1	03.265 MANIFOLD; INL TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98228-270-2	01	1	1509-		●
1	03.265 MANIFOLD; INL	8-98233-553-3	01	1	1506-1508		●
1	03.265 MANIFOLD; INL EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98233-553-3	01	1	1509-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98284-081-0	01	1	1509-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98284-081-0	01	1	1506-1508		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98212-999-0	01	1	1509-	●
13	03.275 BOLT; INL MANIF (D) M8X110 FLANGE	0-28055-811-0	02	1	1509-	●
13	03.275 BOLT; INL MANIF (E) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1509-	●
13	03.275 BOLT; INL MANIF 01.780 (A) M8X120 FLANGE	0-28055-812-0	01	1	1506-		●
13	03.275 BOLT; INL MANIF 03.278 (B) M8X150 FLANGE	0-28055-815-0	02	1	1506-		●
13	03.275 BOLT; INL MANIF 03.162 (C) M8X66 FLANGE	8-98081-507-0	03	1	1506-		●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-1508		●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●	●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1506-1508		●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1509-	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	1506-1508		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	1509-	●	●
373	03.265 THROTTLE ASM; INT	8-98100-891-4	01	1	1506-1508		●
373	03.265 THROTTLE ASM; INT	8-98040-003-4	01	1	1509-	●
373	03.265 THROTTLE ASM; INT	8-98100-891-4	01	1	1509-		●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1506-1508		●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1509-	●	●
784	03.265 PIN; KNOCK 04.399 OD=4 L=12	1-09740-032-0	02	1	1506-1508		●
784	03.265 PIN; KNOCK EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 04.399 OD=4 L=12	1-09740-032-0	02	1	1509-		●

27 1 20 13 184 13 13 373 731 20 27 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	1509-	●
1	03.265 MANIFOLD; INL TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98228-270-2	01	1	1509-		●
1	03.265 MANIFOLD; INL	8-98233-553-3	01	1	1506-1508		●
1	03.265 MANIFOLD; INL EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98233-553-3	01	1	1509-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98284-081-0	01	1	1509-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98284-081-0	01	1	1506-1508		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98212-999-0	01	1	1509-	●
13	03.275 BOLT; INL MANIF (D) M8X110 FLANGE	0-28055-811-0	02	1	1509-	●
13	03.275 BOLT; INL MANIF (E) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1509-	●
13	03.275 BOLT; INL MANIF 01.780 (A) M8X120 FLANGE	0-28055-812-0	01	1	1506-		●
13	03.275 BOLT; INL MANIF 03.278 (B) M8X150 FLANGE	0-28055-815-0	02	1	1506-		●
13	03.275 BOLT; INL MANIF 03.162 (C) M8X66 FLANGE	8-98081-507-0	03	1	1506-		●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-1508		●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●	●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1506-1508		●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1509-	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	1506-1508		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	1509-	●	●
373	03.265 THROTTLE ASM; INT	8-98100-891-4	01	1	1506-1508		●
373	03.265 THROTTLE ASM; INT	8-98040-003-4	01	1	1509-	●
373	03.265 THROTTLE ASM; INT	8-98100-891-4	01	1	1509-		●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1506-1508		●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
