0-14 — CAMSHAFT AND VALVE (#162148) — 185 parça

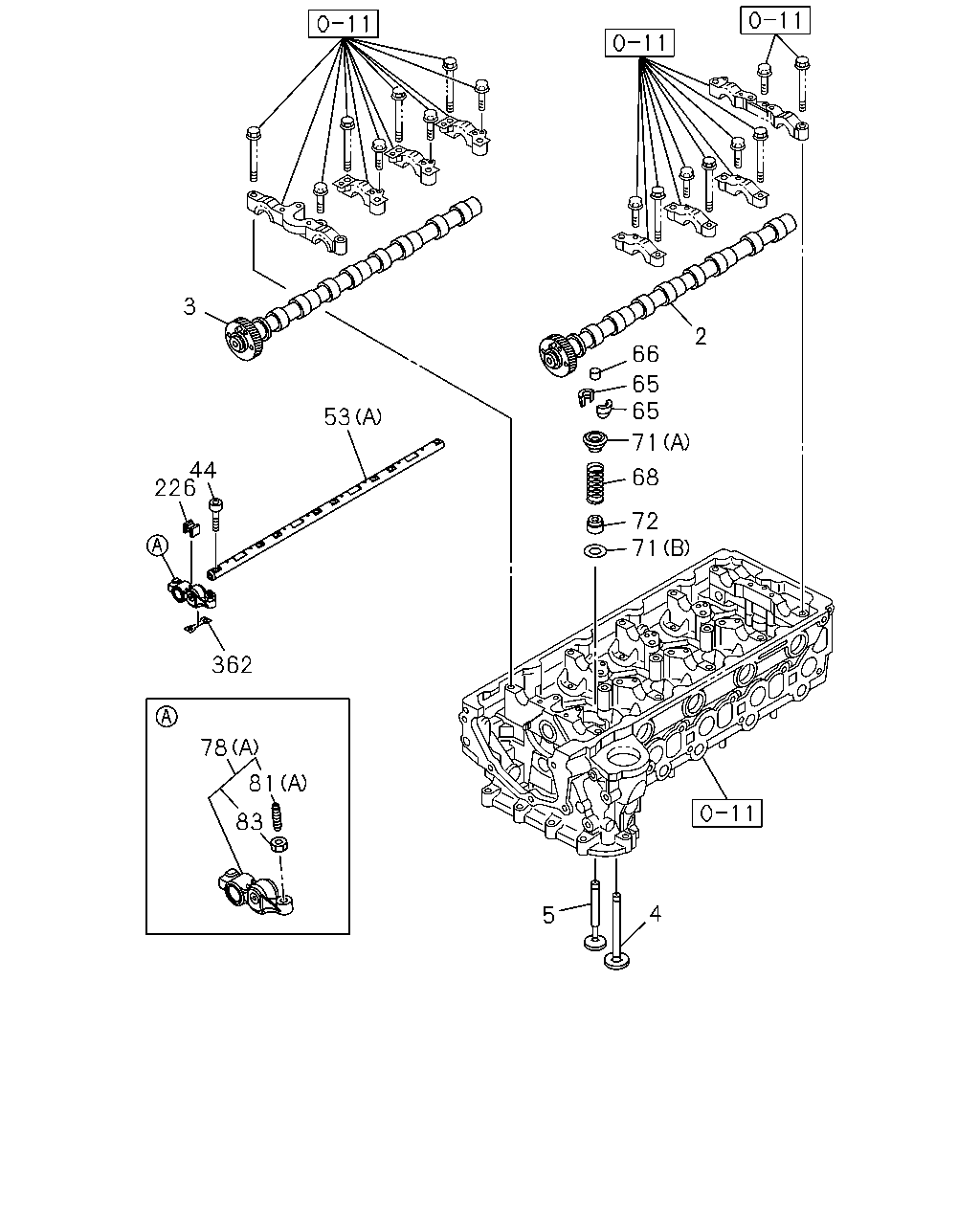

3 53 66 2 65 71 65 68 72 71 44 226 362 78 81 83 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.519 CAMSHAFT; INL	8-98205-037-1	01	1	1506-1508	●
2	00.519 CAMSHAFT; INL	8-98003-129-4	01	1	1509-		●
2	00.519 CAMSHAFT; INL	8-98205-037-1	01	1	1509-	●
3	00.519 CAMSHAFT; EXH	8-98205-041-1	01	1	1506-1508	●
3	00.519 CAMSHAFT; EXH	8-98003-130-4	01	1	1509-		●
3	00.519 CAMSHAFT; EXH	8-98205-041-1	01	1	1509-	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1506-1508	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1509-	●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1506-1508	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1509-	●	●
44	00.738 BOLT M6X25 HEX SOCKET	8-98224-626-0	14	1	1506-	●
53	00.353 SHAFT; ROCKER ARM (B) INLET	8-97364-809-2	04	1	1509-		●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-97364-811-2	04	1	1509-		●
53	00.353 SHAFT; ROCKER ARM (C) INLET	8-98025-071-1	04	1	1509-		●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST	8-98025-074-1	04	1	1509-		●
53	00.353 SHAFT; ROCKER ARM (A)	8-98271-105-0	02	1	1506-	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1506-1508	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1509-	●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1506-1508	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1509-	●	●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	1506-1508	●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	1509-	●	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1506-1508	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1509-	●	●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1506-1508	●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1509-	●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1506-1508	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1509-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97328-647-0	16	1	1506-1508	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97328-647-0	16	1	1509-	●	●
78	00.333 ARM; ROCKER 00.353 (C) JBK	8-98025-059-4	16	1	1509-		●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1509-		●
78	00.333 ARM; ROCKER (A)	8-98236-198-0	16	1	1506-	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1506-1508	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1509-		●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1509-	●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1506-1508	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1509-	●	●
226	00.303 SPRING; CMPR,ROCKER ARM	8-98204-889-0	08	1	1506-	●
362	00.662 PLATE	8-98225-381-1	06	1	1506-	●

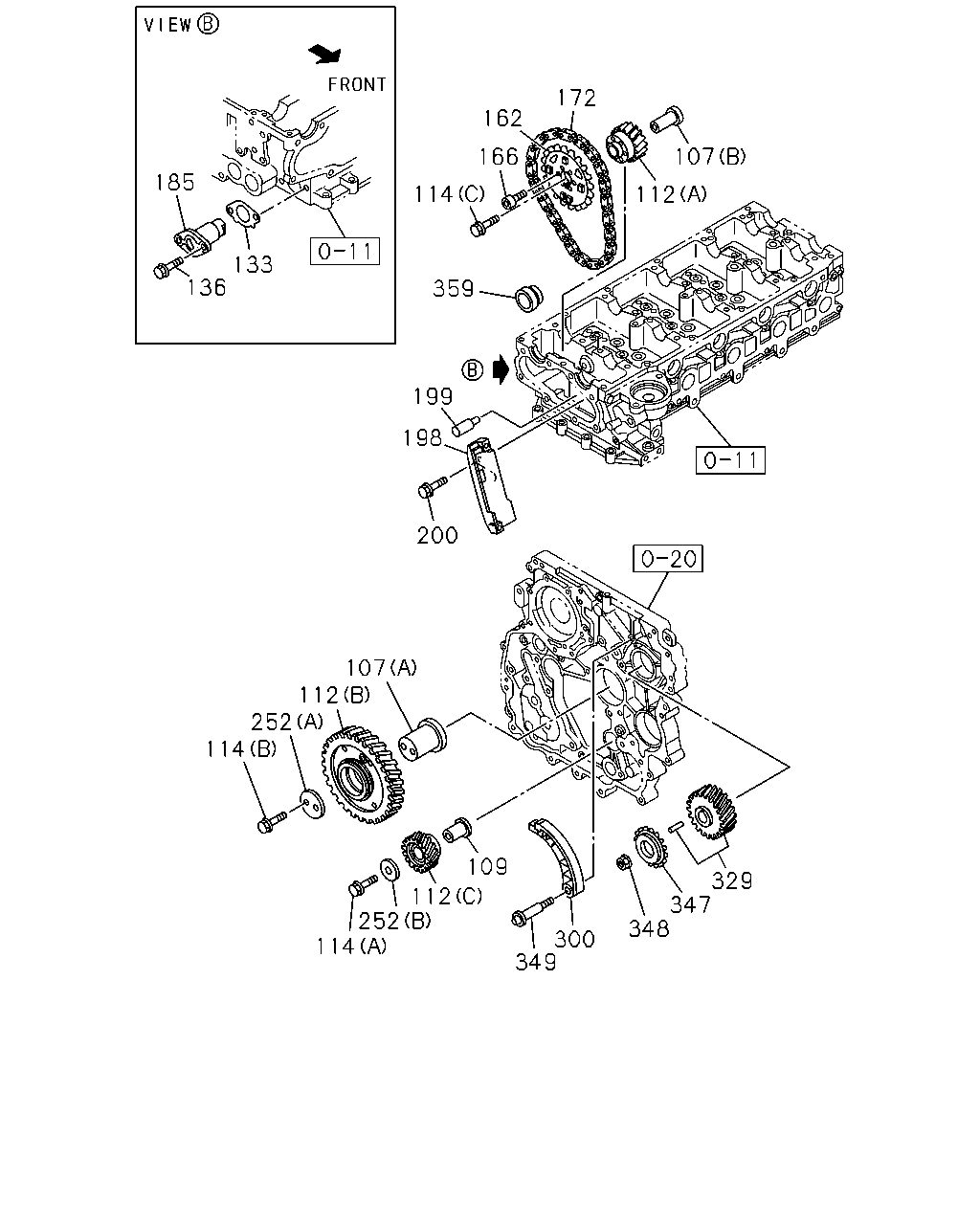

185 136 133 199 198 359 166 114 162 172 112 107 107 112 252 114 112 109 252 114 300 347 348 329 200 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	00.724 SHAFT; IDLE GEAR (C)	8-97312-322-1	01	1	1509-		●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	1506-1508	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	1509-	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-98201-549-0	01	1	1506-	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1506-1508	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1509-	●	●
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	1506-1508	●
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	1509-	●	●
112	00.724 GEAR; IDLE (A) Z=35	8-97381-520-3	01	1	1506-1508	●
112	00.724 GEAR; IDLE (A) Z=35	8-97381-520-3	01	1	1509-	●	●
112	00.724 GEAR; IDLE (B) Z=80	8-98232-105-1	01	1	1506-1508	●
112	00.724 GEAR; IDLE (B) Z=80	8-98232-105-1	01	1	1509-	●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	01	1	1509-	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1506-1508	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1509-	●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	01	1	1506-1508	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	1509-		●
114	00.724 BOLT; IDLE GEAR 05.506 (C) M12X75 FLANGE	8-98176-233-0	01	1	1506-	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-336-0	01	1	1506-1508	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-336-0	01	1	1509-	●	●
136	00.724 BOLT; TENSIONER 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1506-1508	●
136	00.724 BOLT; TENSIONER 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1509-	●	●
162	00.736 SPROCKET; IDLE	8-98193-179-0	01	1	1506-1508	●
162	00.736 SPROCKET; IDLE	8-98193-179-0	01	1	1509-	●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1506-1508	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1509-	●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1506-1508	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1509-	●	●
185	00.724 TENSIONER; CHAIN	8-98039-754-1	01	1	1506-1508	●
185	00.724 TENSIONER; CHAIN	8-98039-754-1	01	1	1509-	●	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1506-1508	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1509-	●	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1506-1508	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1509-	●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1506-1508	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1509-	●	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	01	1	1509-	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1506-1508	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1509-	●	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	01	1	1506-1508	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	1509-		●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1506-1508	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1509-	●	●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1506-1508	●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1509-	●	●
347	00.429 SPROCKET; I/PUMP	8-98210-266-0	01	1	1506-1508	●
347	00.429 SPROCKET; I/PUMP	8-98210-266-0	01	1	1509-	●	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1506-1508	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1509-	●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1506-1508	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1509-	●	●
359	02.530 SLEEVE; GEAR	8-98201-554-0	01	1	1506-	●

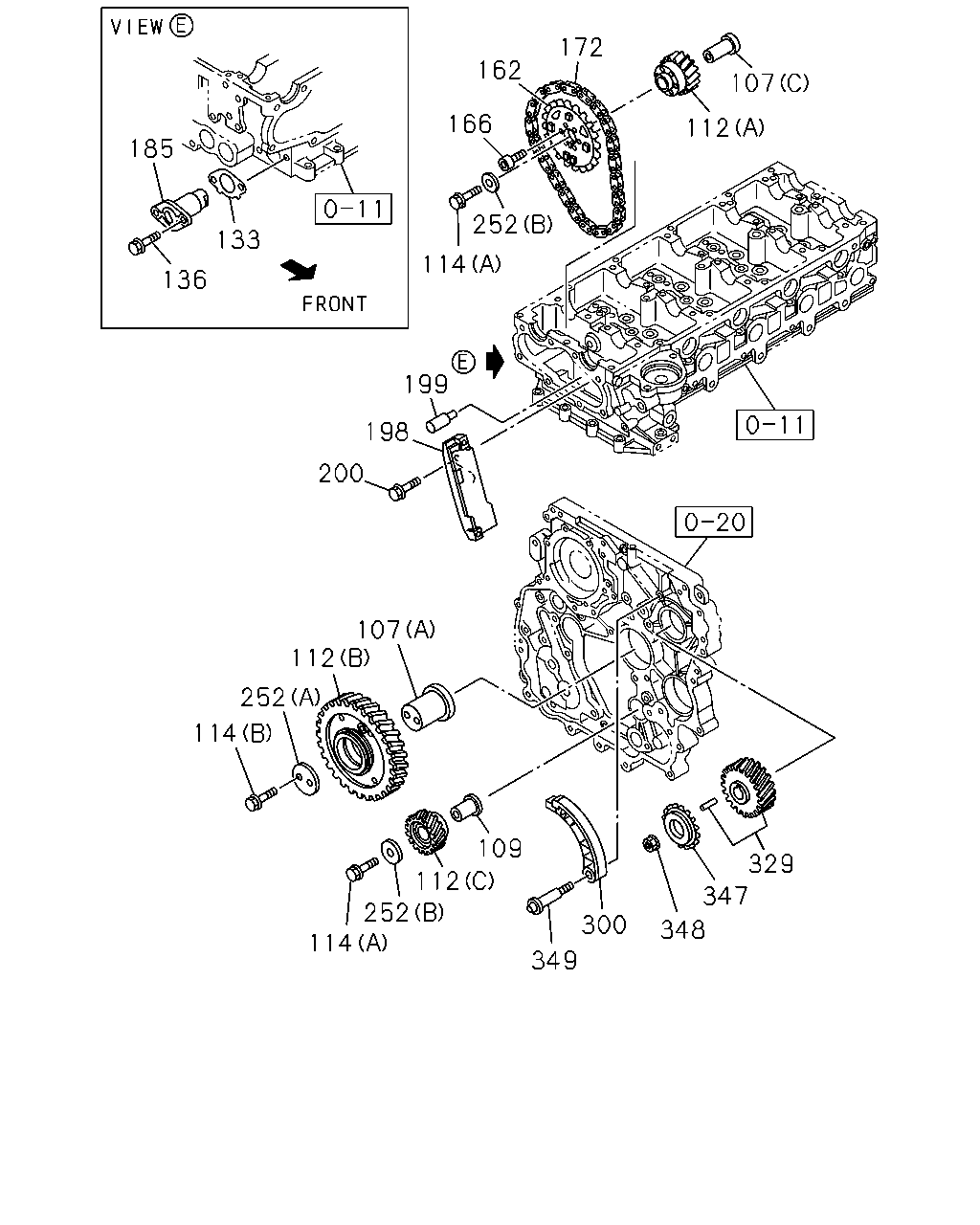

185 133 136 199 198 200 107 112 252 114 112 109 300 349 348 329 347 252 114 162 172 166 252 114 112 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	00.724 SHAFT; IDLE GEAR (C)	8-97312-322-1	01	1	1509-		●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	1506-1508	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	1509-	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-98201-549-0	01	1	1506-	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1506-1508	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1509-	●	●
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	1506-1508	●
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	1509-	●	●
112	00.724 GEAR; IDLE (A) Z=35	8-97381-520-3	01	1	1506-1508	●
112	00.724 GEAR; IDLE (A) Z=35	8-97381-520-3	01	1	1509-	●	●
112	00.724 GEAR; IDLE (B) Z=80	8-98232-105-1	01	1	1506-1508	●
112	00.724 GEAR; IDLE (B) Z=80	8-98232-105-1	01	1	1509-	●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	01	1	1509-	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1506-1508	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1509-	●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	01	1	1506-1508	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	1509-		●
114	00.724 BOLT; IDLE GEAR 05.506 (C) M12X75 FLANGE	8-98176-233-0	01	1	1506-	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-336-0	01	1	1506-1508	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-336-0	01	1	1509-	●	●
136	00.724 BOLT; TENSIONER 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1506-1508	●
136	00.724 BOLT; TENSIONER 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1509-	●	●
162	00.736 SPROCKET; IDLE	8-98193-179-0	01	1	1506-1508	●
162	00.736 SPROCKET; IDLE	8-98193-179-0	01	1	1509-	●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1506-1508	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1509-	●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1506-1508	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1509-	●	●
185	00.724 TENSIONER; CHAIN	8-98039-754-1	01	1	1506-1508	●
185	00.724 TENSIONER; CHAIN	8-98039-754-1	01	1	1509-	●	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1506-1508	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1509-	●	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1506-1508	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1509-	●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1506-1508	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1509-	●	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	01	1	1509-	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1506-1508	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1509-	●	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	01	1	1506-1508	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	1509-		●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1506-1508	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1509-	●	●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1506-1508	●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1509-	●	●
347	00.429 SPROCKET; I/PUMP	8-98210-266-0	01	1	1506-1508	●
347	00.429 SPROCKET; I/PUMP	8-98210-266-0	01	1	1509-	●	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1506-1508	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1509-	●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1506-1508	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1509-	●	●

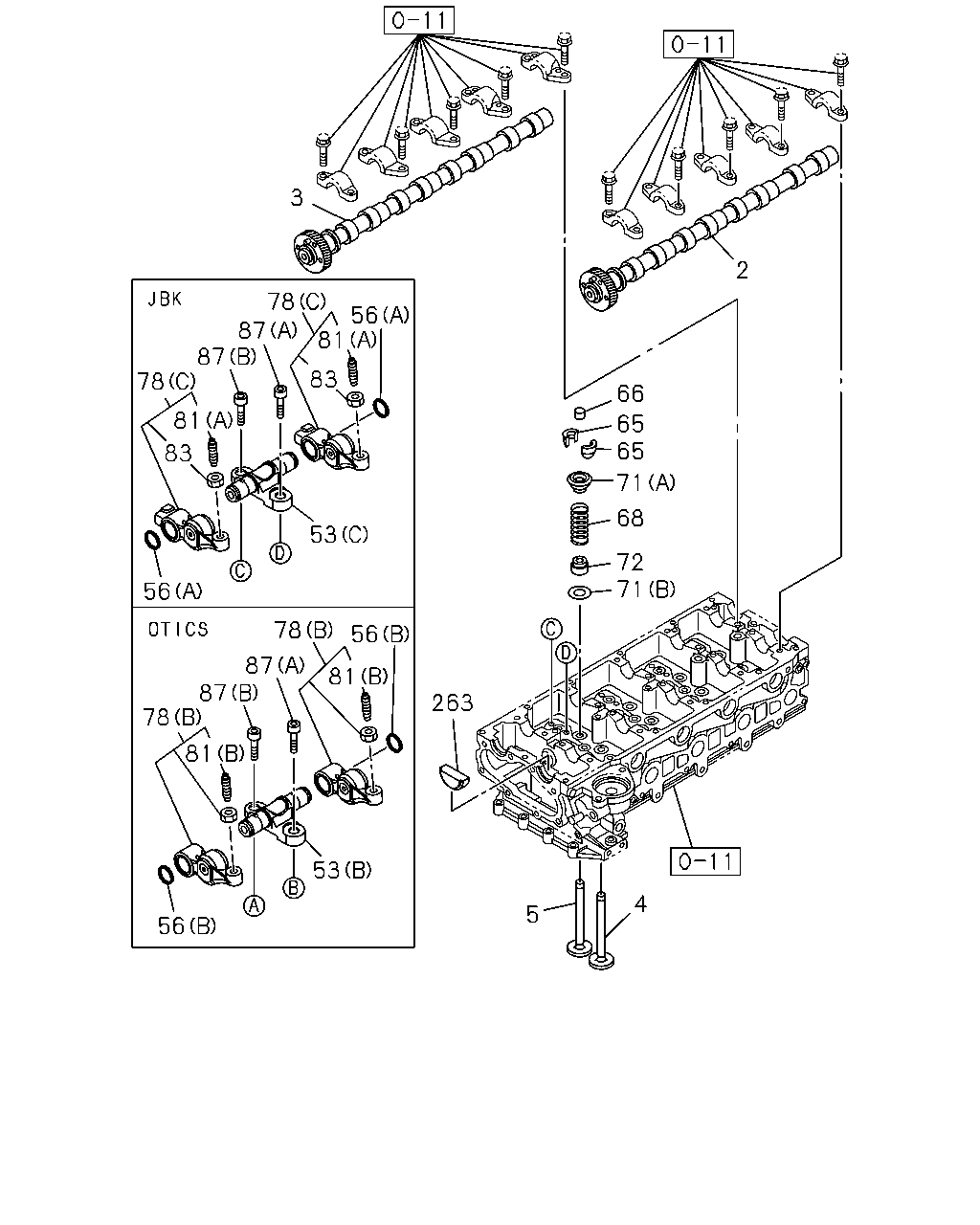

78 3 56 81 83 87 87 53 56 83 81 78 78 81 56 87 87 78 81 53 56 66 65 65 71 72 68 71 263 5 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.519 CAMSHAFT; INL	8-98205-037-1	01	1	1506-1508	●
2	00.519 CAMSHAFT; INL	8-98003-129-4	01	1	1509-		●
2	00.519 CAMSHAFT; INL	8-98205-037-1	01	1	1509-	●
3	00.519 CAMSHAFT; EXH	8-98205-041-1	01	1	1506-1508	●
3	00.519 CAMSHAFT; EXH	8-98003-130-4	01	1	1509-		●
3	00.519 CAMSHAFT; EXH	8-98205-041-1	01	1	1509-	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1506-1508	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1509-	●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1506-1508	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1509-	●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET	8-97364-809-2	04	1	1509-		●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-97364-811-2	04	1	1509-		●
53	00.353 SHAFT; ROCKER ARM (C) INLET	8-98025-071-1	04	1	1509-		●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST	8-98025-074-1	04	1	1509-		●
53	00.353 SHAFT; ROCKER ARM (A)	8-98271-105-0	02	1	1506-	●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	1509-		●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1509-		●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1506-1508	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1509-	●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1506-1508	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1509-	●	●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	1506-1508	●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	1509-	●	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1506-1508	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1509-	●	●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1506-1508	●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1509-	●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1506-1508	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1509-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97328-647-0	16	1	1506-1508	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97328-647-0	16	1	1509-	●	●
78	00.333 ARM; ROCKER 00.353 (C) JBK	8-98025-059-4	16	1	1509-		●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1509-		●
78	00.333 ARM; ROCKER (A)	8-98236-198-0	16	1	1506-	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1506-1508	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1509-		●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1509-	●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1506-1508	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1509-	●	●
87	00.349 BOLT; ROCKER SHAFT (A) M8X25 HEX SOCKET	0-58330-825-0	08	1	1509-		●
87	00.349 BOLT; ROCKER SHAFT (B) M8X40 HEX SOCKET	0-58330-840-0	08	1	1509-		●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98216-269-0	04	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
