0-13 — OIL PAN AND LEVEL GAUGE (#162147) — 84 parça

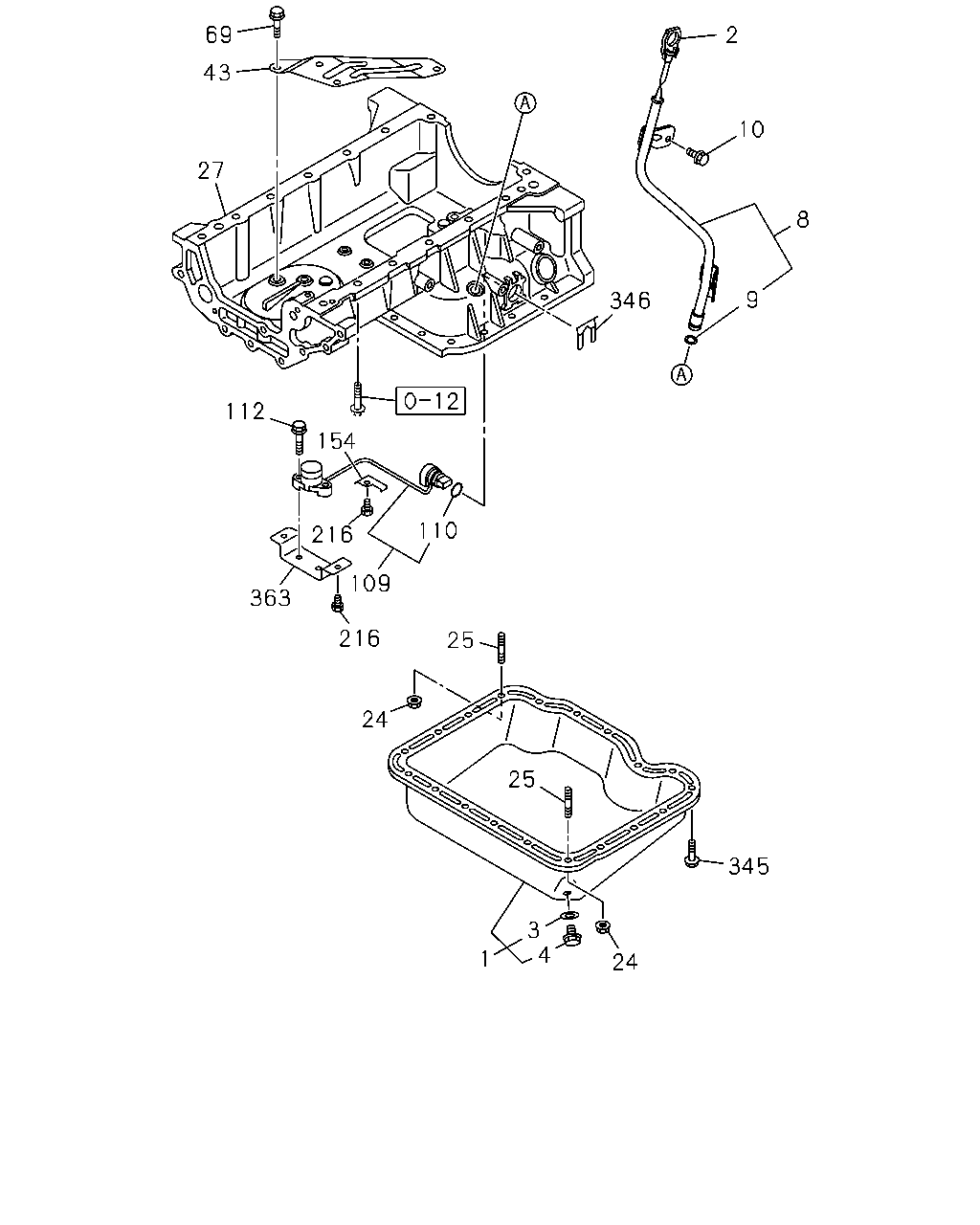

69 43 27 2 10 8 9 346 112 154 110 216 363 109 216 25 24 25 345 24 3 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL	8-98207-932-0	01	1	1506-1508	●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	1509-		●
1	01.426 PAN ASM; OIL	8-98207-932-0	01	1	1509-	●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1506-1508	●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1509-	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1506-1508	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1509-	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1506-1508	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1509-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98117-647-2	01	1	1506-1508	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1509-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98117-647-2	01	1	1509-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1506-1508	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1509-	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-1508	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●	●
25	01.453 STUD; OIL PAN 00.349 M8X20 L=31	8-97945-022-0	02	1	1506-1508	●
25	01.453 STUD; OIL PAN 00.349 M8X20 L=31	8-97945-022-0	02	1	1509-	●	●
27	01.426 CRANKCASE	8-98202-045-2	01	1	1506-1508	●
27	01.426 CRANKCASE	8-97381-483-7	01	1	1509-		●
27	01.426 CRANKCASE	8-98202-045-2	01	1	1509-	●
43	01.780 PLATE; CRANKCASE 04.642	8-98213-367-0	01	1	1506-	●
69	01.780 BOLT; PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1506-	●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1506-1508	●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1509-	●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1506-1508	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1509-	●	●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1506-1508	●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1509-	●	●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1506-1508	●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1509-	●	●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1506-1508	●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1509-	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X16 FLANGE	0-28050-816-0	17	1	1506-1508	●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X12 FLANGE	0-28050-812-0	17	1	1509-		●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X16 FLANGE	0-28050-816-0	17	1	1509-	●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1506-1508	●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1509-	●	●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1506-1508	●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1509-	●	●

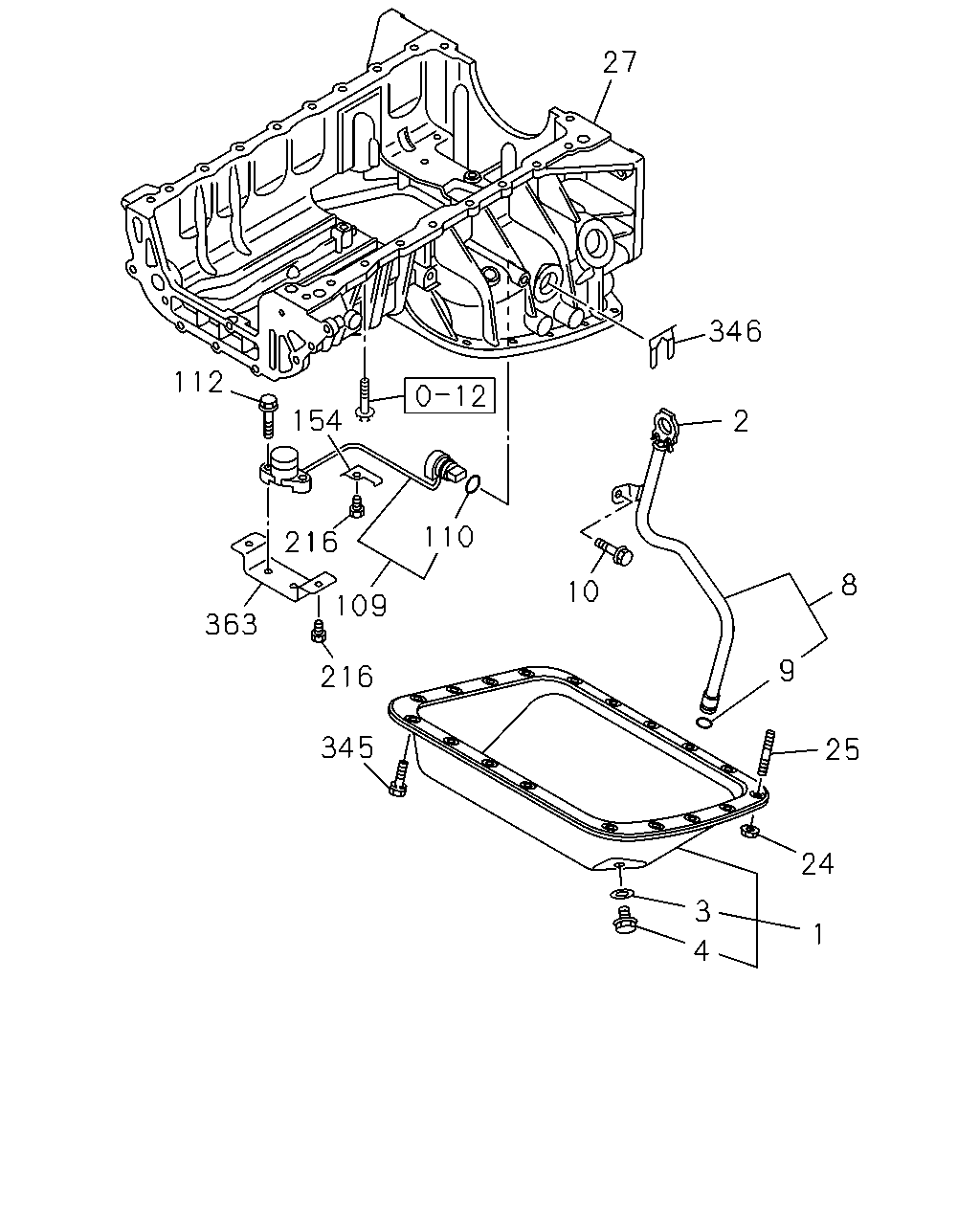

27 346 2 8 9 25 24 1 3 4 10 110 109 216 345 363 112 154 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL	8-98207-932-0	01	1	1506-1508	●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	1509-		●
1	01.426 PAN ASM; OIL	8-98207-932-0	01	1	1509-	●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1506-1508	●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1509-	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1506-1508	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1509-	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1506-1508	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1509-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98117-647-2	01	1	1506-1508	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1509-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98117-647-2	01	1	1509-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1506-1508	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1509-	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-1508	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●	●
25	01.453 STUD; OIL PAN 00.349 M8X20 L=31	8-97945-022-0	02	1	1506-1508	●
25	01.453 STUD; OIL PAN 00.349 M8X20 L=31	8-97945-022-0	02	1	1509-	●	●
27	01.426 CRANKCASE	8-98202-045-2	01	1	1506-1508	●
27	01.426 CRANKCASE	8-97381-483-7	01	1	1509-		●
27	01.426 CRANKCASE	8-98202-045-2	01	1	1509-	●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1506-1508	●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1509-	●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1506-1508	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1509-	●	●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1506-1508	●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1509-	●	●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1506-1508	●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1509-	●	●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1506-1508	●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1509-	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X16 FLANGE	0-28050-816-0	17	1	1506-1508	●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X12 FLANGE	0-28050-812-0	17	1	1509-		●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X16 FLANGE	0-28050-816-0	17	1	1509-	●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1506-1508	●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1509-	●	●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1506-1508	●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1509-	●	●
